Page 26 of 486
2-12
Vehicle information
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use
only lubricants of the proper quality. The correct lubricants also help promote
engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *2
(drain and refill)
1.0 MPI 3.1 l (2.73 lmp qt.)
API Latest (SN Plus)
1.2 MPI 3.4 l (2.99 lmp qt.)
Manual Transmission fluid1.3~1.4 l
(1.21~1.23 lmp qt.)API Serviced GL-4, SAE 70W, TGO-9
(HYUNDAI genuine transmission
fluid)
- HK SYN MTF 70W
- SPIRAX S6 GHME 70W MTF
- GS MTF HD 70W
Automated Manual
Transmission fluid1.3~1.4 l
(1.21~1.23 lmp qt.)API Serviced GL-4, SAE 70W, TGO-9
(HYUNDAI genuine transmission
fluid)
- HK SYN MTF 70W
- SPIRAX S6 GHME 70W MTF
- GS MTF HD 70W
Coolant1.0 MPI4.49 l
(3.95 lmp qt.)MIXTURE, Antifreeze with water
(Ethylene glycol base coolant for
aluminium radiator)
1.2 MPI4.77 l
(4.20 lmp qt.)
Brake/Clutch fluid0.7~0.8 l
(0.62~0.7 lmp qt.)FMVSS116 DOT-4
Fuel 36 l (7.92 lmp gal.) -
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*
2 : Engine oils labelled Energy Conserving Oil are now available. Along with other additional benefits, they con-
tribute to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these
improvements are difficult to measure in everyday driving, but in a year’s time, they can offer significant cost
and energy savings.
Page 99 of 486
4-9
04

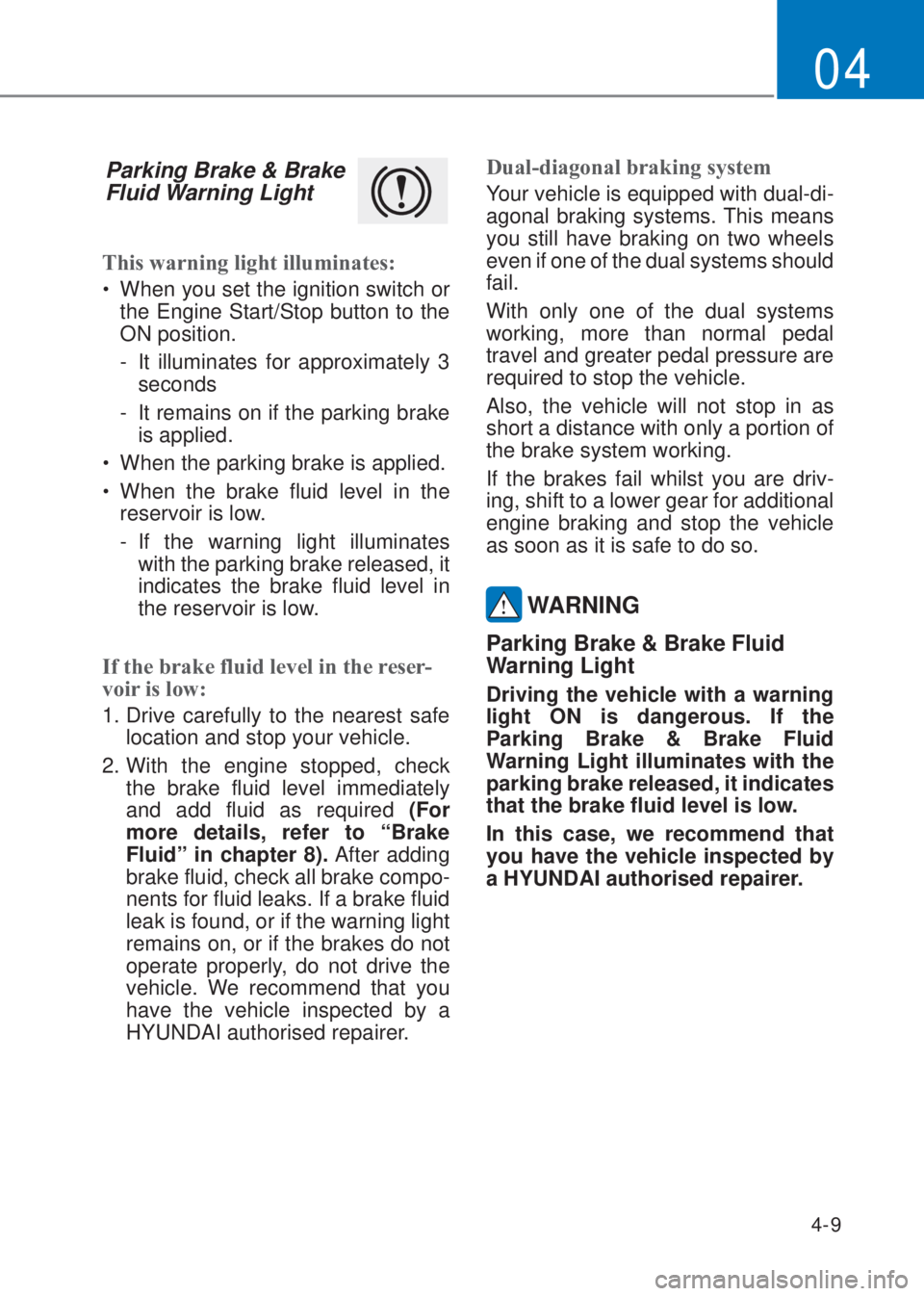

Parking Brake & Brake
Fluid Warning Light
7his warning light illuminates
‡ When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- It illuminates for approximately 3
seconds
- It remains on if the parking brake
is applied.
‡ When the parking brake is applied.
‡ When the brake fluid level in the
reservoir is low.
- If the warning light illuminates
with the parking brake released, it
indicates the brake fluid level in
the reservoir is low.
If the brake fluid level in the reser-
voir is low
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. With the engine stopped, check
the brake fluid level immediately
and add fluid as required (For
more details, refer to “Brake
Fluid” in chapter 8). After adding
brake fluid, check all brake compo-
nents for fluid leaks. If a brake fluid
leak is found, or if the warning light
remains on, or if the brakes do not
operate properly, do not drive the
vehicle. We recommend that you
have the vehicle inspected by a
HYUNDAI authorised repairer.
'ual-diagonal braking system
Your vehicle is equipped with dual-di-
agonal braking systems. This means
you still have braking on two wheels
even if one of the dual systems should
fail.
With only one of the dual systems
working, more than normal pedal
travel and greater pedal pressure are
required to stop the vehicle.
Also, the vehicle will not stop in as
short a distance with only a portion of
the brake system working.
If the brakes fail whilst you are driv-
ing, shift to a lower gear for additional
engine braking and stop the vehicle
as soon as it is safe to do so.
WARNING
Parking Brake & Brake Fluid
Warning Light
Driving the vehicle with a warning
light ON is dangerous. If the
Parking Brake & Brake Fluid
Warning Light illuminates with the
parking brake released, it indicates
that the brake fluid level is low.
In this case, we recommend that
you have the vehicle inspected by
a HYUNDAI authorised repairer.
Page 100 of 486
4-10
Instrument cluster

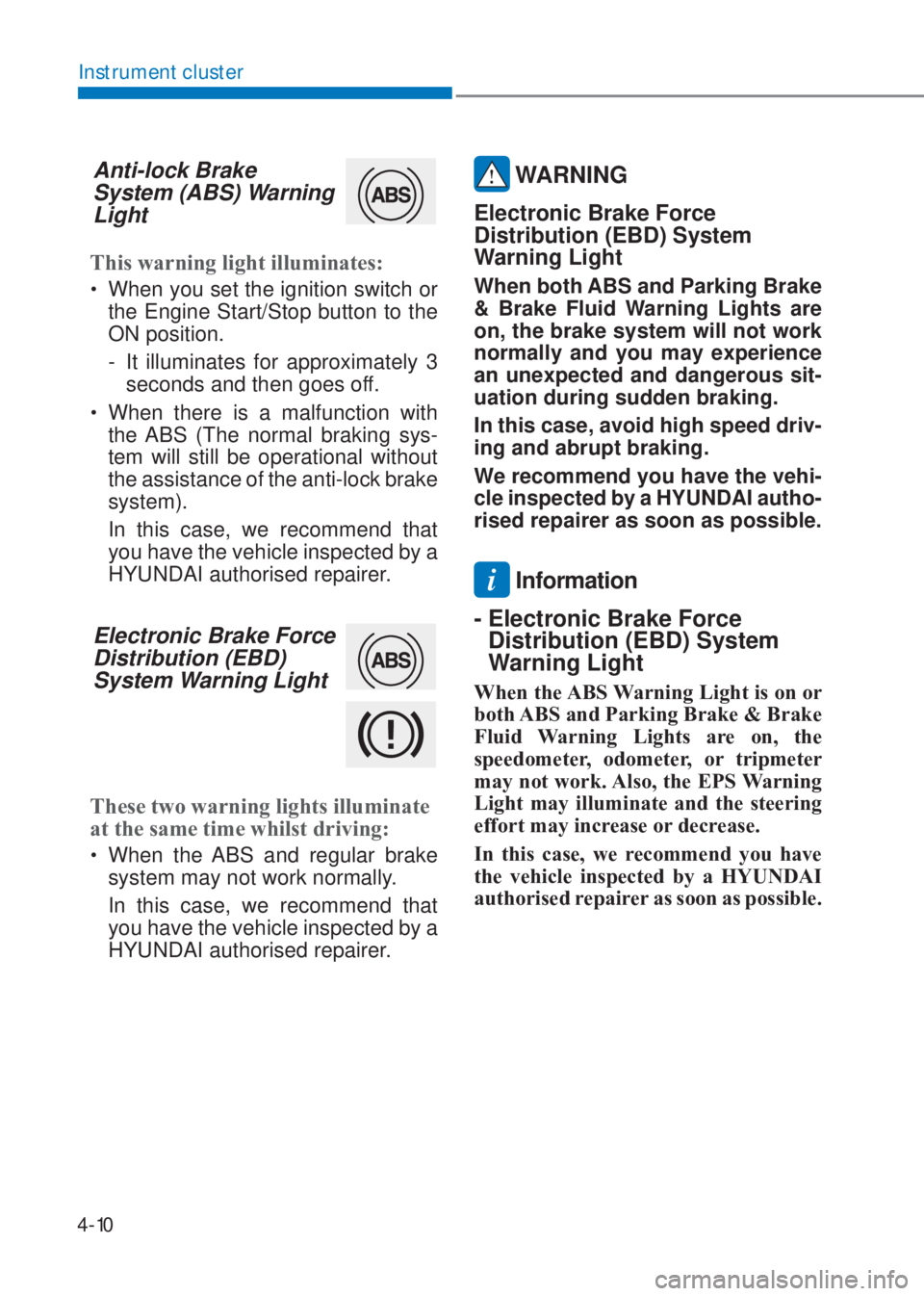

Anti-lock Brake
System (ABS) Warning
Light
7his warning light illuminates
‡ When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- It illuminates for approximately 3
seconds and then goes off.
‡ When there is a malfunction with
the ABS (The normal braking sys-
tem will still be operational without
the assistance of the anti-lock brake
system).
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
Electronic Brake Force
Distribution (EBD)
System Warning Light
7hese two warning lights illuminate
at the same time whilst driving
‡ When the ABS and regular brake
system may not work normally.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
WARNING
Electronic Brake Force
Distribution (EBD) System
Warning Light
When both ABS and Parking Brake
& Brake Fluid Warning Lights are
on, the brake system will not work
normally and you may experience
an unexpected and dangerous sit-
uation during sudden braking.
In this case, avoid high speed driv-
ing and abrupt braking.
We recommend you have the vehi-
cle inspected by a HYUNDAI autho-
rised repairer as soon as possible.
i Information
- Electronic Brake Force
Distribution (EBD) System
Warning Light
When the ABS Warning Light is on or
both ABS and Parking Brake Brake
Fluid Warning Lights are on, the
speedometer, odometer, or tripmeter
may not work. Also, the (PS Warning
Light may illuminate and the steering
effort may increase or decrease.
In this case, we recommend you have
the vehicle inspected by a + < 8 1 'AI
authorised repairer as soon as possible.
Page 350 of 486

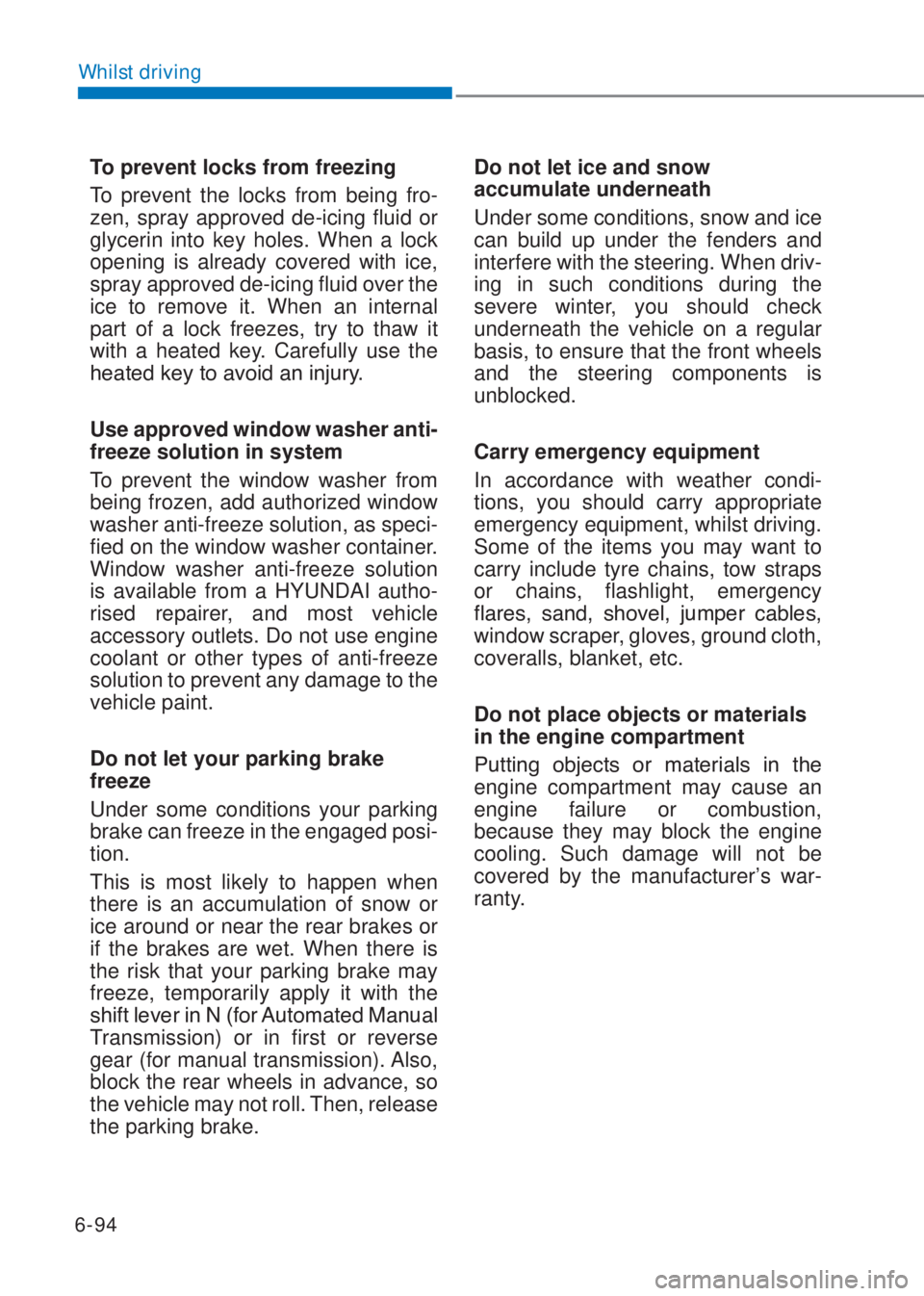

6-94
Whilst driving
To prevent locks from freezing
To prevent the locks from being fro-
zen, spray approved de-icing fluid or
glycerin into key holes. When a lock
opening is already covered with ice,
spray approved de-icing fluid over the
ice to remove it. When an internal
part of a lock freezes, try to thaw it
with a heated key. Carefully use the
K H D W H G N H \ W R D Y R L G D Q L Q M X U \
Use approved window washer anti-
freeze solution in system
To prevent the window washer from
being frozen, add authorized window
washer anti-freeze solution, as speci-
fied on the window washer container.
Window washer anti-freeze solution
is available from a HYUNDAI autho-
rised repairer, and most vehicle
accessory outlets. Do not use engine
coolant or other types of anti-freeze
solution to prevent any damage to the
vehicle paint.
Do not let your parking brake
freeze
Under some conditions your parking
brake can freeze in the engaged posi-
tion.
This is most likely to happen when
there is an accumulation of snow or
ice around or near the rear brakes or
if the brakes are wet. When there is
the risk that your parking brake may
freeze, temporarily apply it with the
V K L I W O H Y H U L Q 1 I R U $ X W R P D W H G 0 D Q X D O
Transmission) or in first or reverse
gear (for manual transmission). Also,
block the rear wheels in advance, so
the vehicle may not roll. Then, release
the parking brake.Do not let ice and snow
accumulate underneath
Under some conditions, snow and ice
can build up under the fenders and
interfere with the steering. When driv-
ing in such conditions during the
severe winter, you should check
underneath the vehicle on a regular
basis, to ensure that the front wheels
and the steering components is
unblocked.
Carry emergency equipment
In accordance with weather condi-
tions, you should carry appropriate
emergency equipment, whilst driving.
Some of the items you may want to
carry include tyre chains, tow straps
or chains, flashlight, emergency
I O D U H V V D Q G V K R Y H O M X P S H U F D E O H V
window scraper, gloves, ground cloth,
coveralls, blanket, etc.
Do not place objects or materials
in the engine compartment
3 X W W L Q J R E M H F W V R U P D W H U L D O V L Q W K H
engine compartment may cause an
engine failure or combustion,
because they may block the engine
cooling. Such damage will not be
covered by the manufacturer’s war-
ranty.
Page 397 of 486
Engine compartment .........................................................................................8-3
Maintenance services ....................................................................................... 8-4
Owner’s responsibility .................................................................................... 8-4
Owner maintenance precautions.................................................................. 8-4
Owner maintenance ...........................................................................................8-5
Owner maintenance schedule .......................................................................8-5
Scheduled maintenance services ..................................................................... 8-7
Explanation of scheduled maintenance items ................................................ 8-8
Engine oil ............................................................................................................ 8-11
Checking the engine oil level ........................................................................ 8-11
Checking the engine oil and filter ................................................................ 8-12
Engine coolant .................................................................................................. 8-13
Checking the coolant level ........................................................................... 8-13
Changing the engine coolant ....................................................................... 8-15
Brake/clutch fluid ............................................................................................. 8-16
Checking the brake/clutch fluid level .......................................................... 8-16
Washer fluid ...................................................................................................... 8-18
Checking the washer fluid level ................................................................... 8-18
Checking the parking brake.......................................................................... 8-18
Parking brake .................................................................................................... 8-18
Air cleaner ......................................................................................................... 8-19
Filter replacement ......................................................................................... 8-19
Climate control air filter ................................................................................... 8-21
Filter inspection ............................................................................................. 8-21
Filter replacement ......................................................................................... 8-21
Wiper blades .....................................................................................................8-23
Blade inspection ............................................................................................8-23
Blade replacement ......................................................................................8-23
Battery ............................................................................................................... 8-25
For best battery service ................................................................................ 8-25
Battery capacity label ................................................................................... 8-27
Battery recharging ......................................................................................... 8-27
Reset items ....................................................................................................8-28
8. Maintenance
8
Page 406 of 486
![HYUNDAI I10 2020 Owners Manual 8-10
Maintenance
Brake hoses and lines
9 L V X D O O \ F K H F N I R U S U R S H U L Q V W D O O D W L R Q
F K D I L Q J F U D F N V G H W H U L R U D W L R Q D Q G D Q \](/img/35/56230/w960_56230-405.png "HYUNDAI I10 2020 Owners Manual 8-10
Maintenance
Brake hoses and lines
9 L V X D O O \ F K H F N I R U S U R S H U L Q V W D O O D W L R Q
F K D I L Q J F U D F N V G H W H U L R U D W L R Q D Q G D Q \")
8-10
Maintenance
Brake hoses and lines
9 L V X D O O \ F K H F N I R U S U R S H U L Q V W D O O D W L R Q
F K D I L Q J F U D F N V G H W H U L R U D W L R Q D Q G D Q \
O H D N D J H 5 H S O D F H D Q \ G H W H U L R U D W H G R U
G D P D J H G S D U W V L P P H G L D W H O \

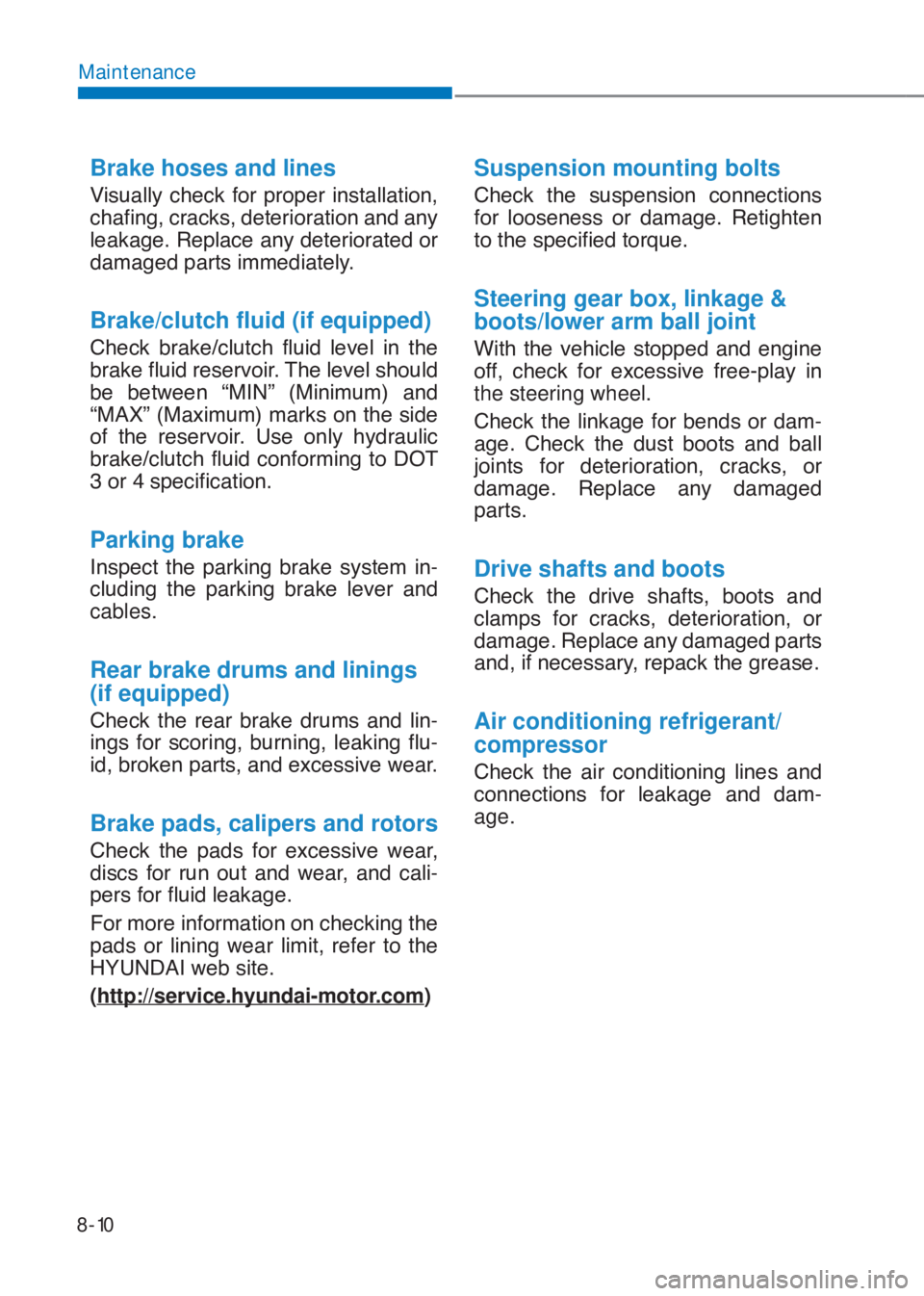

Brake/clutch fluid (if equipped)
& K H F N E U D N H F O X W F K I O X L G O H Y H O L Q W K H
E U D N H I O X L G U H V H U Y R L U 7 K H O H Y H O V K R X O G
E H E H W Z H H Q
Page 412 of 486
8-16
Maintenance

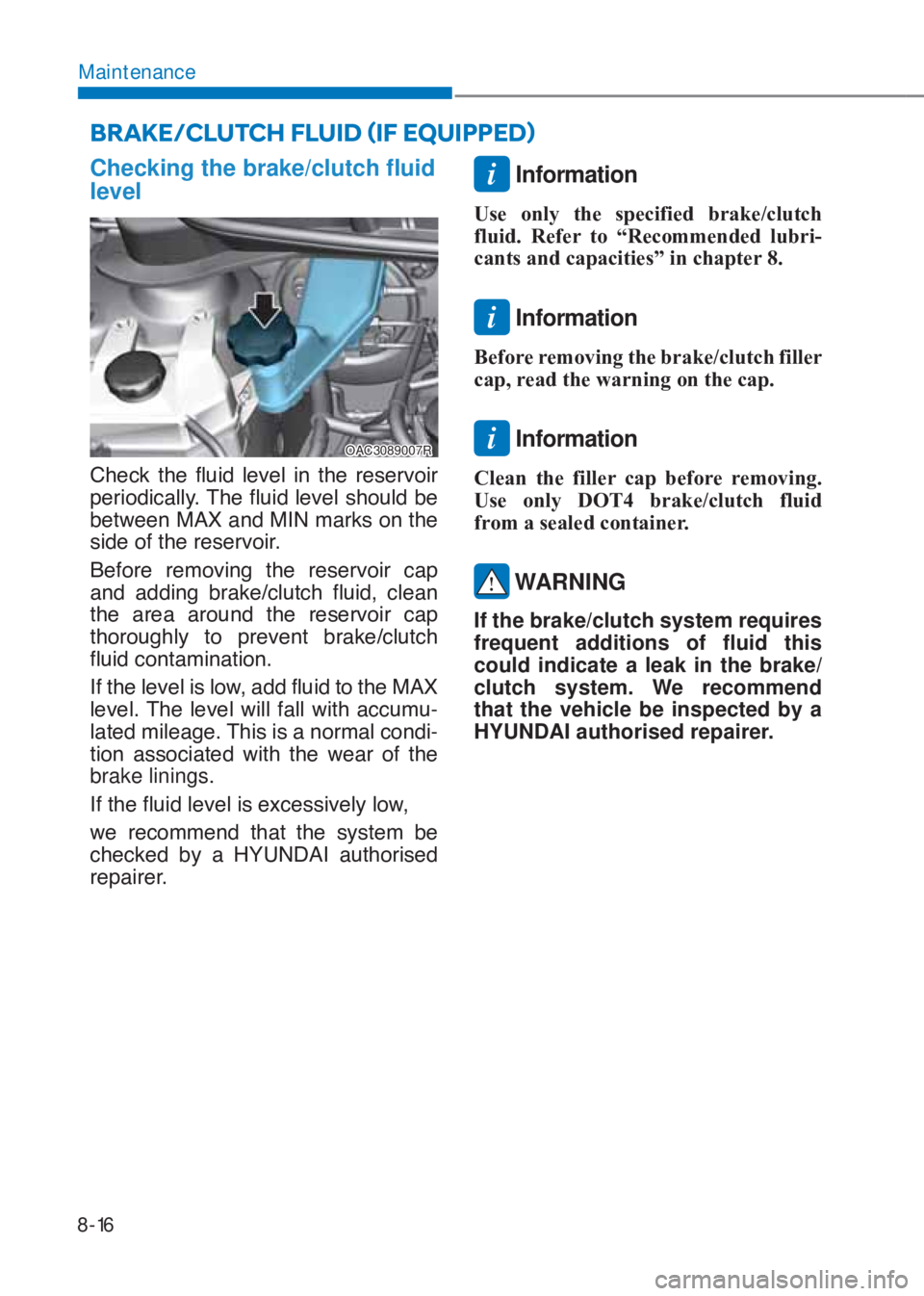

Checking the brake/clutch fluid
level
OAC3089007R
& K H F N W K H I O X L G O H Y H O L Q W K H U H V H U Y R L U
S H U L R G L F D O O \ 7 K H I O X L G O H Y H O V K R X O G E H
E H W Z H H Q 0 $ ; D Q G 0 , 1 P D U N V R Q W K H
V L G H R I W K H U H V H U Y R L U
% H I R U H U H P R Y L Q J W K H U H V H U Y R L U F D S
D Q G D G G L Q J E U D N H F O X W F K I O X L G F O H D Q
W K H D U H D D U R X Q G W K H U H V H U Y R L U F D S
W K R U R X J K O \ W R S U H Y H Q W E U D N H F O X W F K
I O X L G F R Q W D P L Q D W L R Q
, I W K H O H Y H O L V O R Z D G G I O X L G W R W K H 0 $ ;
O H Y H O 7 K H O H Y H O Z L O O I D O O Z L W K D F F X P X-
O D W H G P L O H D J H 7 K L V L V D Q R U P D O F R Q G L-
W L R Q D V V R F L D W H G Z L W K W K H Z H D U R I W K H
brake linings.
, I W K H I O X L G O H Y H O L V H [ F H V V L Y H O \ O R Z
Z H U H F R P P H Q G W K D W W K H V \ V W H P E H
F K H F N H G E \ D + < 8 1 ' $ , D X W K R U L V H G
U H S D L U H U
i Information
Use only the specified brake/clutch
fluid. Refer to “Recommended lubri-
cants and capacities” in chapter 8.
i Information
Before removing the brake/clutch filler
cap, read the warning on the cap.
i Information
Clean the filler cap before removing.
Use only DOT4 brake/clutch fluid
from a sealed container.
WARNING
If the brake/clutch system requires
frequent additions of fluid this
could indicate a leak in the brake/
clutch system. We recommend
that the vehicle be inspected by a
HYUNDAI authorised repairer.
BRAKE CLUTCH FLUID ãIF EQUIPPEDä
Page 413 of 486
8-17
08

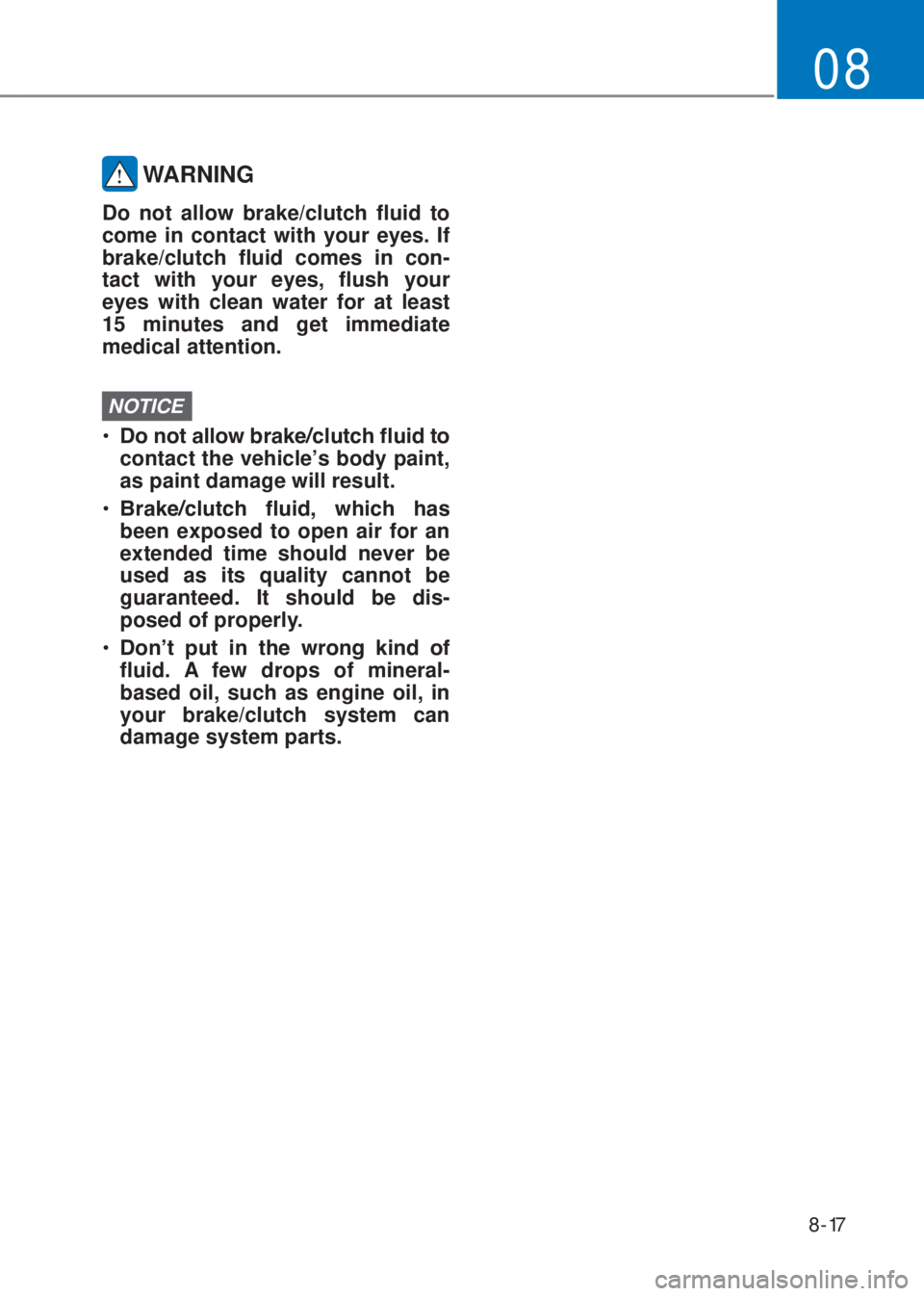

WARNING
Do not allow brake/clutch fluid to
come in contact with your eyes. If
brake/clutch fluid comes in con-
tact with your eyes, flush your
eyes with clean water for at least
15 minutes and get immediate
medical attention.
NOTICE
Page 475 of 486
I-3
I
Automatic climate control system ....................................................................... 5-62
Automatic heating and air conditioning ........................................................... 5-63
Manual heating and air conditioning ................................................................ 5-64
System operation .............................................................................................. 5-68
System maintenance ......................................................................................... 5-70
B
Battery ................................................................................................................. 8-25
For best battery service .................................................................................... 8-25
Battery capacity label ....................................................................................... 8-27
Battery recharging ............................................................................................ 8-27
Reset items ....................................................................................................... 8-28
Before driving ........................................................................................................ 6-5
Before entering the vehicle ............................................................................... 6-5
Before starting ................................................................................................... 6-5
Bluetooth ........................................................................................................... 5-113
Using a Bluetooth audio device ..................................................................... 5-116
Using a Bluetooth phone ................................................................................ 5-118
Brake/clutch fluid ................................................................................................ 8-16
Checking the brake/clutch fluid level ............................................................... 8-16
Braking system .................................................................................................... 6-33
Power brakes ................................................................................................... 6-33
Disc brakes wear indicator .............................................................................. 6-33
Rear drum brakes ............................................................................................. 6-34
Parking brake ................................................................................................... 6-34
Anti-lock Brake System (ABS) ........................................................................ 6-35
Electronic Stability Control (ESC) ................................................................... 6-37
Vehicle Stability Management (VSM) ............................................................. 6-40
Hill-Start Assist Control (HAC) ....................................................................... 6-41
Emergency Stop Signal (ESS) .......................................................................... 6-42
Good braking practices .................................................................................... 6-42
Bulb wattage .......................................................................................................... 2-9
Page 485 of 486
I-13
I
V
Vehicle break-in process ........................................................................................ 1-8
Vehicle certification label .................................................................................... 2-14
Vehicle identification number (VIN) ................................................................... 2-14
Vehicle modifications ............................................................................................ 1-7
Vehicle weight ..................................................................................................... 6-95
Overloading ...................................................................................................... 6-95
W
Washer fluid ......................................................................................................... 8-18
Checking the washer fluid level ....................................................................... 8-18
Checking the parking brake .............................................................................. 8-18
Windows .............................................................................................................. 5-26
Power windows ................................................................................................ 5-26
Windscreen defrosting and defogging ................................................................. 5-73
Automatic climate control system .................................................................... 5-74
Defroster ........................................................................................................... 5-75
Winter driving ...................................................................................................... 6-91
Snow or icy conditions ..................................................................................... 6-91
Winter Precautions ........................................................................................... 6-93
Wiper blades ........................................................................................................ 8-23
Blade inspection ............................................................................................... 8-23
Blade replacement .......................................................................................... 8-23
Wipers and washers ............................................................................................. 5-46
Windscreen wipers ........................................................................................... 5-46
Windscreen washers ........................................................................................ 5-47
Rear window wiper and washer switch ............................................................ 5-47
