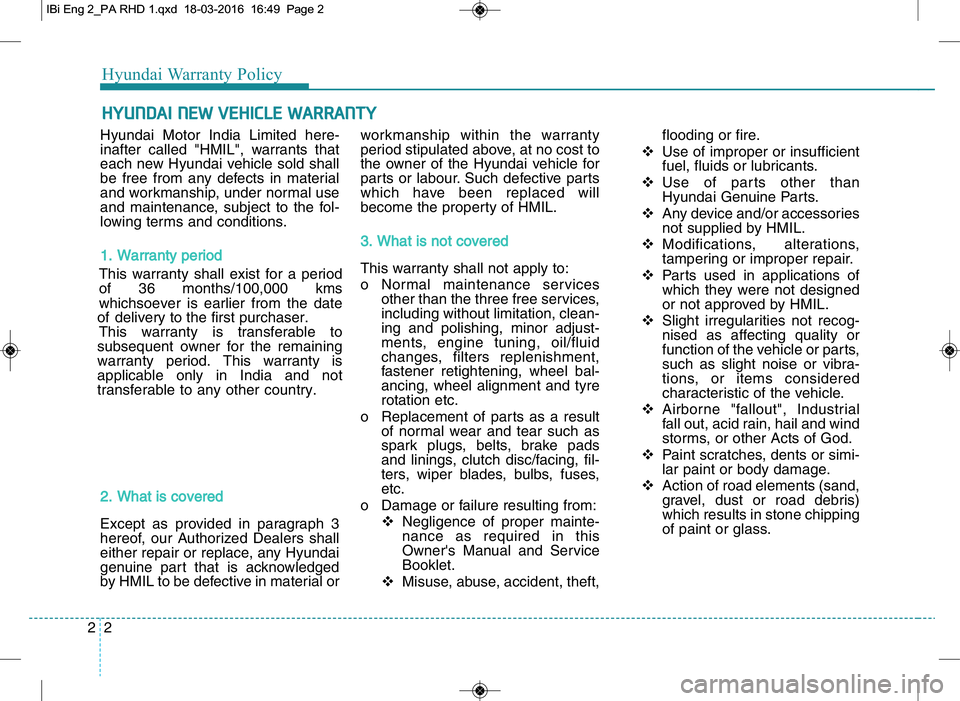

Hyundai Motor India Limited here-
inafter called "HMIL", warrants that
each new Hyundai vehicle sold shall
be free from any defects in material
and workmanship, under normal use
and maintenance, subject to the fol-
lowing terms and conditions.
1. Warranty period This warranty shall exist for a period
of
36 months/100,000 kms whichsoever is

earlier from the date
of delivery to the first purchaser.
This warranty is transferab
le to
subsequent owner for the remaining
warranty period. This warranty is
applicable only in India and
not
transferable to any other country.
2. What is covered
Except as provided in paragraph 3
hereof, our Authorized Dealers shall
either repair or replace, any Hyundai
genuine part that is acknowledged
by HMIL to be defective in material or w

orkmanship within the warranty
period stipulated above, at no cost to
the owner of the Hyundai vehicle for
parts or labour. Such defective parts
which have been replaced will
become the property of HMIL.
3. What is not covered
This warranty shall not apply to:
o Normal maintenance services other than the three free services,
including without limitation, clean-
ing and polishing, minor adjust-
ments, engine tuning, oil/fluid
changes, filters replenishment,
fastener retightening, wheel bal-
ancing, wheel alignment and tyre
rotation etc.
o Replacement of parts as a result of normal wear and tear such as
spark plugs, belts, brake pads
and linings, clutch disc/facing, fil-
ters, wiper blades, bulbs, fuses,
etc.
o Damage or failure resulting from: Negligence of proper mainte-
nance as required in this
Owner's Manual and Service
Booklet.
 Misuse, abuse, accident, theft, flooding or fire.
 Use of improper or insufficient
fuel, fluids or lubricants.
 Use of parts other than
Hyundai Genuine Parts.
 Any device and/or accessories
not supplied by HMIL.
 Modifications, alterations,
tampering or improper repair.
 Parts used in applications of
which they were not designed
or not approved by HMIL.
 Slight irregularities not recog-
nised as affecting quality or
function of the vehicle or parts,
such as slight noise or vibra-
tions, or items considered
characteristic of the vehicle.
 Airborne "fallout", Industrial
fall out, acid rain, hail and wind
storms, or other Acts of God.
 Paint scratches, dents or simi-
lar paint or body damage.
 Action of road elements (sand,
gravel, dust or road debris)
which results in stone chipping
of paint or glass.
22
Hyundai Warranty Policy
IBi Eng 2_PA RHD 1.qxd 18-03-2016 16:49 Page 2




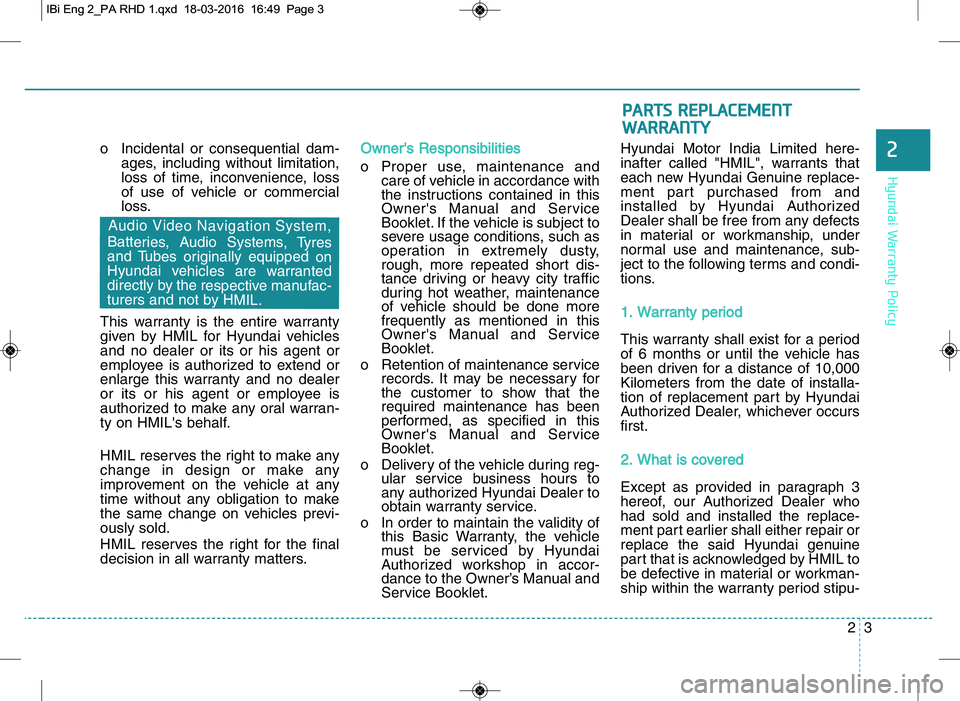

o Incidental or consequential dam-ages, including without limitation,
loss of time, inconvenience, loss
of use of vehicle or commercial
loss.
This warranty is the entire warranty
given by HMIL for Hyundai vehicles
and no dealer or its or his agent or
employee is authorized to extend or
enlarge this warranty and no dealer
or its or his agent or employee is
authorized to make any oral warran-
ty on HMIL's behalf.
HMIL reserves the right to make any
change in design or make any
improvement on the vehicle at any
time without any obligation to make
the same change on vehicles previ-
ously sold.
HMIL reserves the right for the final
decision in all warranty matters.Owner's Responsibilities
o Proper use, maintenance and care of vehicle in accordance with
the instructions contained in this
Owner's Manual and Service
Booklet. If the vehicle is subject to
severe usage conditions, such as
operation in extremely dusty,
rough, more repeated short dis-
tance driving or heavy city traffic
during hot weather, maintenance
of vehicle should be done more
frequently as mentioned in this
Owner's Manual and Service
Booklet.
o Retention of maintenance service records. It may be necessary for
the customer to show that the
required maintenance has been
performed, as specified in this
Owner's Manual and Service
Booklet.
o Delivery of the vehicle during reg- ular service business hours to
any authorized Hyundai Dealer to
obtain warranty service.
o In order to maintain the validity of this Basic Warranty, the vehicle
must be serviced by Hyundai
Authorized workshop in accor-
dance to the Owner’s Manual and
Service Booklet. Hyundai Motor India Limited here-
inafter called "HMIL", warrants that
each new Hyundai Genuine replace-
ment part purchased from and
installed by Hyundai Authorized
Dealer shall be free from any defects
in material or workmanship, under
normal use and maintenance, sub-
ject to the following terms and condi-
tions.
1. Warranty period
This warranty shall exist for a period
of 6 months or until the vehicle has
been driven for a distance of 10,000
Kilometers from the date of installa-
tion of replacement part by Hyundai
Authorized Dealer, whichever occurs
first.
2. What is covered
Except as provided in paragraph 3
hereof, our Authorized Dealer who
had sold and installed the replace-
ment part earlier shall either repair or
replace the said Hyundai genuine
part that is acknowledged by HMIL to
be defective in material or workman-
ship within the warranty period stipu-
32
)#+$,(.,--,+').%(&)


IBi Eng 2_PA RHD 1.qxd 18-03-2016 16:49 Page 3
Batteries, Audio Systems, Tyres
and Tubes originally equipped on
Hyundai vehicles are warranted
directly by the respective manufac-
turers and not by HMIL.
Audio Video Navigation System,

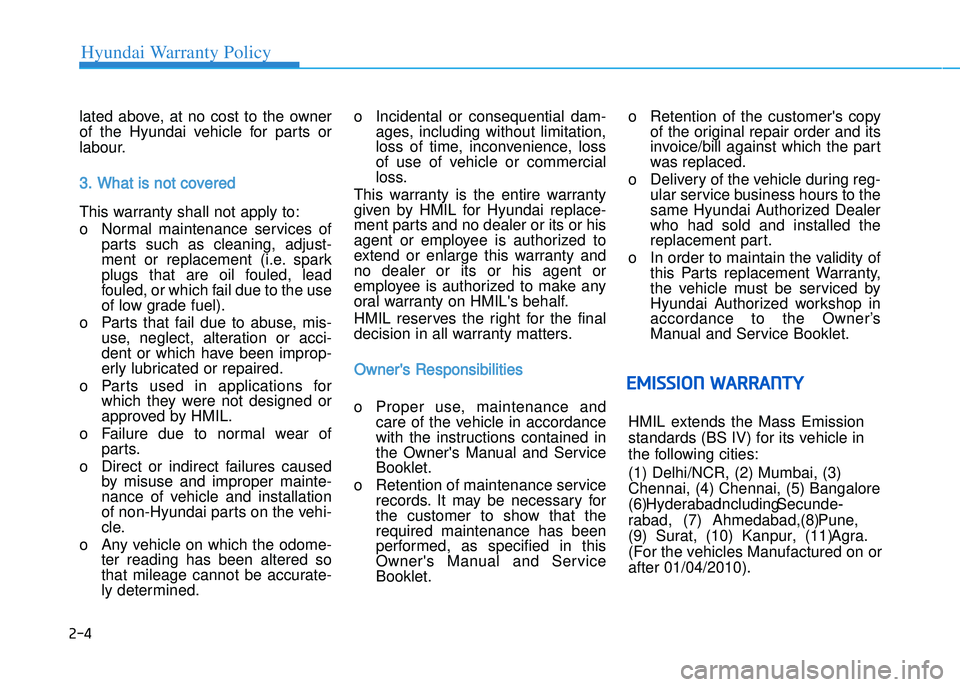

lated above\b at no cost to the owner
of the Hyundai vehicle for parts or
labour.3. What is not covered
This warranty shall not apply to:
o Normal maintenance services of parts such as cleaning\b adjust
ment or replacement (i.e. spark
plugs that are oil fouled\b lead
fouled\b or which fail due to the use
of low grade fuel).
o Parts that fail due to abuse\b mis use\b neglect\b alteration or acci
dent or which have been improp
erly lubricated or repaired.
o Par ts used in applications for which they were not designed or
approved by HMIL.
o Failure due to normal wear of parts.
o Direct or indirect failures caused by misuse and improper mainte
nance of vehicle and installation
of nonHyundai parts on the vehi
cle.
o Any vehicle on which the odome ter reading has been altered so
that mileage cannot be accurate
ly determined. o Incidental or consequential dam
ages\b including without limitation\b
loss of time\b inconvenience\b loss
of use of vehicle or commercial
loss.
This warranty is the entire warranty
given by HMIL for Hyundai replace
ment parts and no dealer or its or his
agent or employee is authorized to
extend or enlarge this warranty and
no dealer or its or his agent or
employee is authorized to make any
oral warranty on HMIL's behalf.
HMIL reserves the right for the final
decision in all warranty matters.
Owner's Responsibilities
o Proper use\b maintenance and care of the vehicle in accordance
with the instructions contained in
the Owner's Manual and Service
Booklet.
o Retention of maintenance service records. It may be necessary for
the customer to show that the
required maintenance has been
performed\b as specified in this
Owner's Manual and Ser vice
Booklet. o Retention of the customer's copy
of the original repair order and its
invoice/bill against which the part
was replaced.
o Delivery of the vehicle during reg ular service business hours to the
same Hyundai Authorized Dealer
who had sold and installed the
replacement part.
o In order to maintain the validity of this Parts replacement Warranty\b
the vehicle must be serviced by
Hyundai Authorized workshop in
accordance to the Owner’s
Manual and Service Booklet.
   HMIL extends the Mass Emission
standards (BS
IV)
for its vehicle in
the following cities: (1)
Delhi/NCR\b (2) Mumbai\b (3)
Chennai\b (4) Chennai\b (5) Bangalore
(6)HyderabadincludingSecund
e-
rabad\b (7) Ahmedabad\b(8)Pune\b
(9) Surat\b (1\f) Kanpur\b (11)Agra.
(For the vehicles Manufactured
on or
after \f1/\f4/2\f1\f).
Hyundai Warran\fy Po\bicy
)%4

(12)
Luckno w (13) Sholapur (For the
v ehicles Manufactured on or after
\f1/\f6/2\f1\f).
(14) Puduchery \b (15) Mathur a\b (16)
vapi \b (17) Jamnagar \b (18)
Ankleshwar\b (19) Hissar\b (2\f)
Bharatpur\b (21) Silvasa\b (22) Daman
& Diu\b (23) Aligarh\b(24)RaeBareilly\b
(25) Unnao\b (26) Karnal\b (27)
Kurukshetra\b (28) Yamunanagar\b
(29 )Valsad\b (3\f) Nizamabad\b(31)
Medak & (3\f) Mehboobnagar (For
the vehicles Manufactured on or
after \f1/1\f/2\f1\f).
The Mass Emissipn Standards (BS
III) shall apply to all the states and
union territories\b except at above. As
and when Govt. of India notifies addi
tional/new cities under Mass
Emission Standards (BS IV)\b Such
cities would be auto matically cov
ered.
Subject to other terms of the warran
ty policy and the conditions and obli
gations laid down hereunder\b
Hyundai Motor India Limited here
inafter called “HMIL”\b certifies that
the components liable to affect the
emission of the gaseous pollutants in
the vehicle in normal use despite the
use to which it may be subjected\b
comply with the provisions of Rule 115(2) of the Central Motor Vehicle
Rules\b 1989 hereinafter referred to
as the “Inuse emission standard”\b
and further warrants that if on exam
ination by a dealer duly authorized
by HMIL\b the vehicle is discovered to
be failing to meet the Inuse emis
sion standard as specified in the said
rule\b our Authorized Dealer shall take
such corrective measures as may be
necessary and shall at its sole dis
cretion either repair or replace free of
charge\b such components of emis
sion control system as are specified
in paragraph 3 hereof.
1. Warranty period
This warranty will be in addition to
and run parallel to the New Vehicle
Warranty and shall exist for a period
of 36 months or until the vehicle has
been driven for a distance of 8\f\b\f\f\f
kilometers from the date of delivery
to the first purchaser\b whichever
occurs first. This warranty is transfer
able to subsequent owner for the
remaining warranty period.
2. What is covered Our Authorized Dealers shall either
repair or replace\b any Hyundai gen
uine part listed in paragraph 3 here
of\b that is acknowledged by HMIL to
be defective in material or workman
ship within the warranty period stipu
lated above\b after examinations car
ried out to confirm that none of the
original settings have been tampered
with\b at no cost to the owner of the
Hyundai vehicle for parts or labour.
Such defective par ts which have
been replaced will become the prop
erty of HMIL.
3. Emission Warranty Parts List
3.1 Engine Control Module System • Engine Control Module
• Crankshaft Position Sensor\bCamshaft Position Sensor\b
Throttle Position Sensor\b MAP
Sensor\b O 2Sensor\b IAT &
ECT Sensor
3.2 Fuel Metering System • Fuel injectors
• Fuel Pumps
3.3 Air Induction System • Air Cleaner Housing Assembly
+$,#-*0-//-,'+0 &*(+


)%5

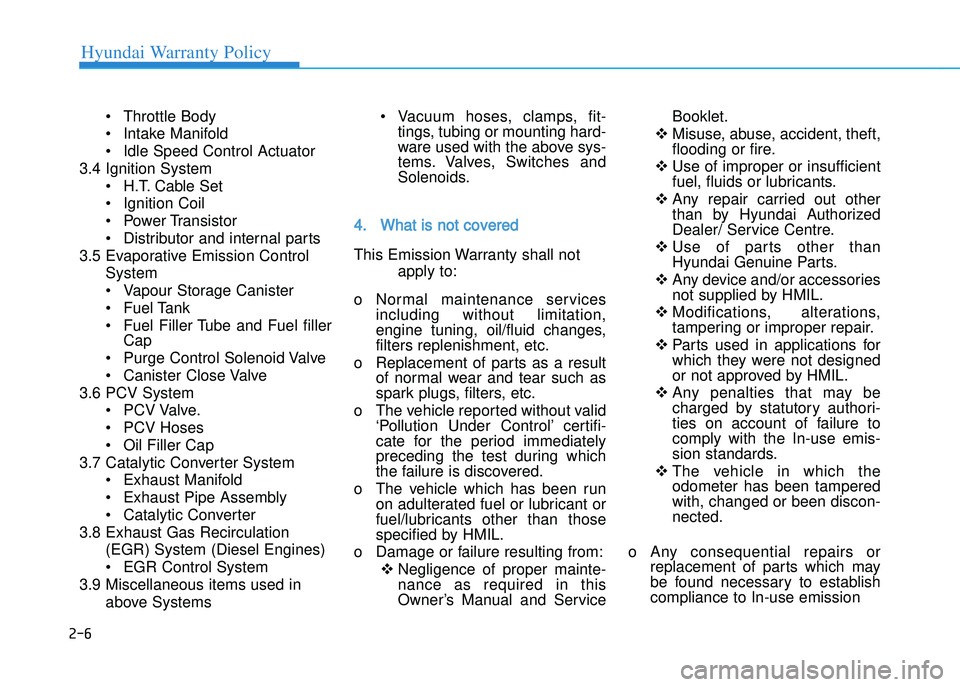

• Throttle Body
• Intake Manifold
• Idle Speed Control Actuator
3.4 Ignition System • H.T. Cable Set
• Ignition Coil
• Power Transistor
• Distributor and internal parts
3.5 Evaporative Emission Control System
• Vapour Storage Canister
• Fuel Tank
• Fuel Filler Tube and Fuel fillerCap
• Purge Control Solenoid Valve
• Canister Close Valve
3.6 PCV System • PCV Valve.
• PCV Hoses
• Oil Filler Cap
3.7 Catalytic Converter System • Exhaust Manifold
• Exhaust Pipe Assembly
• Catalytic Converter
3.8 Exhaust Gas Recirculation (EGR) System (Diesel Engines)
• EGR Control System
3.9 Miscellaneous items used in above Systems • Vacuum hoses\b clamps\b fit
tings\b tubing or mounting hard
ware used with the above sys
tems. Valves\b Switches and
Solenoids.
4. What is not covered
This Emission Warranty shall not apply to:
o Normal maintenance ser vices including without limitation\b
engine tuning\b oil/fluid changes\b
filters replenishment\b etc.
o Replacement of parts as a result of normal wear and tear such as
spark plugs\b filters\b etc.
o The vehicle reported without valid ‘Pollution Under Control’ certifi
cate for the period immediately
preceding the test during which
the failure is discovered.
o The vehicle which has been run on adulterated fuel or lubricant or
fuel/lubricants other than those
specified by HMIL.
o Damage or failure resulting from: vNegligence of proper mainte
nance as required in this
Owner’s Manual and Service Booklet.
v Misuse\b abuse\b accident\b theft\b
flooding or fire.
v Use of improper or insufficient
fuel\b fluids or lubricants.
v Any repair carried out other
than by Hyundai Authorized
Dealer/ Service Centre.
v Use of par ts other than
Hyundai Genuine Parts.
v Any device and/or accessories
not supplied by HMIL.
v Modifications\b alterations\b
tampering or improper repair.
v Parts used in applications for
which they were not designed
or not approved by HMIL.
v Any penalties that may be
charged by statutory authori
ties on account of failure to
comply with the Inuse emis
sion standards.
v The vehicle in which the
odometer has been tampered
with\b changed or been discon
nected.
o Any consequential repairs or replacement of parts which may
be found necessary to establish
compliance to Inuse emission
Hyundai Warran\fy Po\bicy
)%6

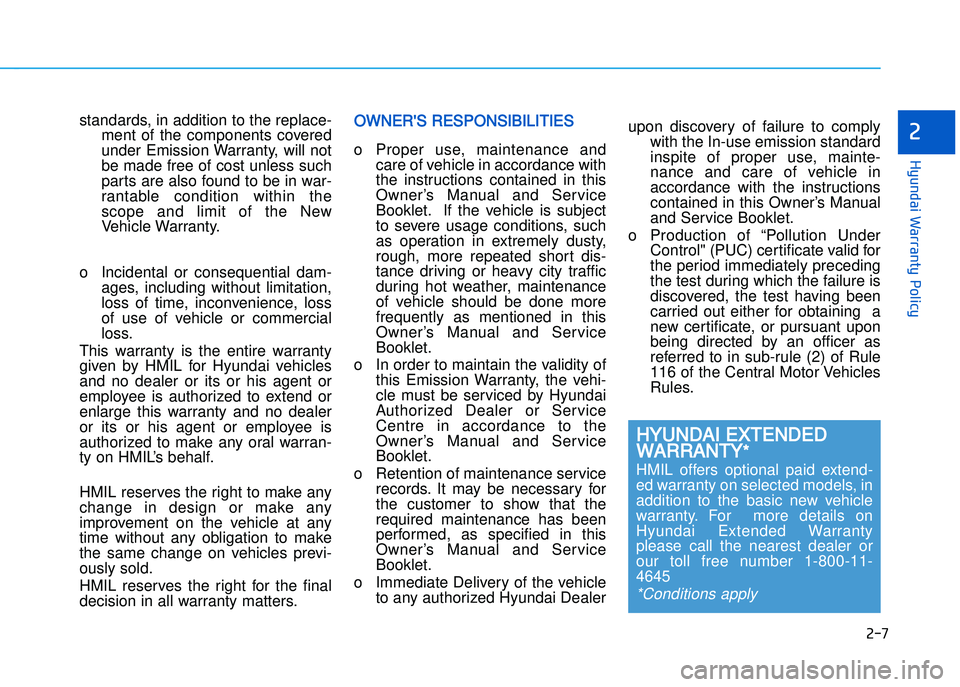

HYUNDAI EXTENDED
WARRANTY
*
HMIL offers optional paid extend
ed warranty on selected models\b in
addition to the basic new vehicle
warranty. For more details on
Hyundai Extended Warranty
please call the nearest dealer or
our toll free number 18\f\f11
4645
*Conditions apply
+$,#-*0-//-,'+0 &*(+


)%

standards\b in addition to the replace
ment of the components covered
under Emission Warranty\b will not
be made free of cost unless such
parts are also found to be in war
rantable condition within the
scope and limit of the New
Vehicle Warranty.
o Incidental or consequential dam ages\b including without limitation\b
loss of time\b inconvenience\b loss
of use of vehicle or commercial
loss.
This warranty is the entire warranty
given by HMIL for Hyundai vehicles
and no dealer or its or his agent or
employee is authorized to extend or
enlarge this warranty and no dealer
or its or his agent or employee is
authorized to make any oral warran
ty on HMIL’s behalf.
HMIL reserves the right to make any
change in design or make any
improvement on the vehicle at any
time without any obligation to make
the same change on vehicles previ
ously sold.
HMIL reserves the right for the final
decision in all warranty matters. OWNER'S RESPONSIBILITIES
o Proper use\b maintenance and care of vehicle in accordance with
the instructions contained in this
Owner’s Manual and Ser vice
Booklet. If the vehicle is subject
to severe usage conditions\b such
as operation in extremely dusty\b
rough\b more repeated short dis
tance driving or heavy city traffic
during hot weather\b maintenance
of vehicle should be done more
frequently as mentioned in this
Owner’s Manual and Ser vice
Booklet.
o In order to maintain the validity of this Emission Warranty\b the vehi
cle must be serviced by Hyundai
Authorized Dealer or Ser vice
Centre in accordance to the
Owner’s Manual and Ser vice
Booklet.
o Retention of maintenance service records. It may be necessary for
the customer to show that the
required maintenance has been
performed\b as specified in this
Owner’s Manual and Ser vice
Booklet.
o Immediate Delivery of the vehicle to any authorized Hyundai Dealer upon discovery of failure to comply
with the Inuse emission standard
inspite of proper use\b mainte
nance and care of vehicle in
accordance with the instructions
contained in this Owner’s Manual
and Service Booklet.
o Production of “Pollution Under Control" (PUC) certificate valid for
the period immediately preceding
the test during which the failure is
discovered\b the test having been
carried out either for obtaining a
new certificate\b or pursuant upon
being directed by an officer as
referred to in subrule (2) of Rule
116 of the Central Motor Vehicles
Rules.

"!!" " " !


ouvhi
t
g
n

!"!!"()

!"!!"()
!"!! 6
!" !"!! 7

!" ! 8
