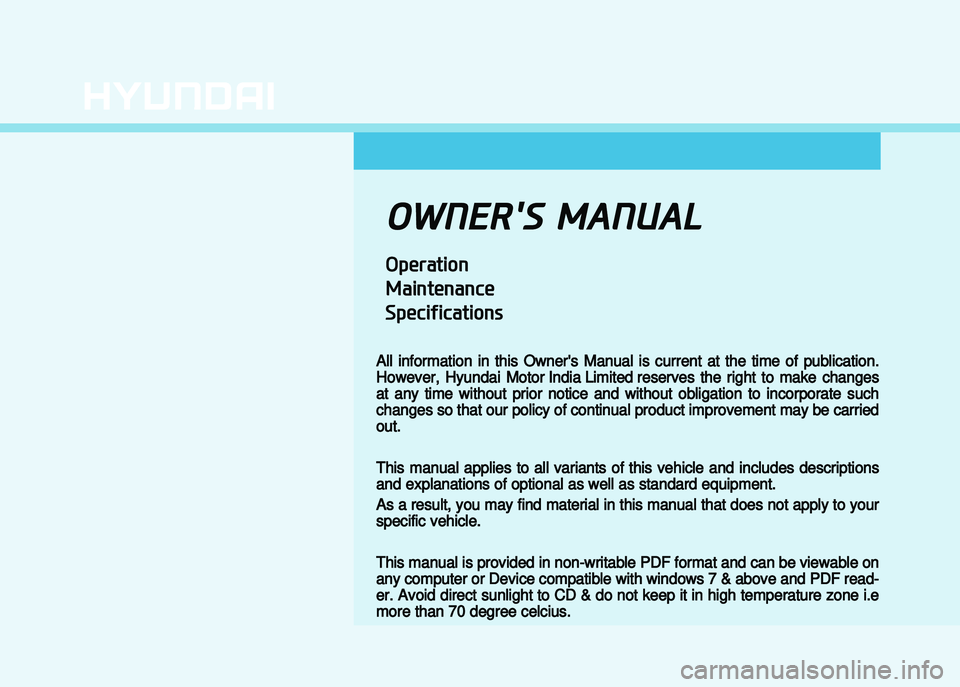

HYUNDAI I20 2014 Owners Manual

OWN! AN A
,+$%'(&*
%(*'+*%*#+
+#((#%'(&*
All information in this Owner's Manual is current at the time of publication.
However\b Hyundai Motor India Limited reserves the right to make changes
at any time without prior notice and without obligation to incorporate such
changes so that our policy of continual product improvement may be carried
out.
This manual applies to all variants of this vehicle and includes descriptions
and explanations

of optional as well as standard equipment.
As a result\b you may find material in this manual that does not apply to your
specific vehicle.
This manual is provided in nonwritable PDF format and can be viewable on
any computer or Device compatible with windows 7 & above and PDF read
er. Avoid direct sunlight to CD & do not keep it in high temperature zone i.e
more than 7\f degree ce
lcius.

Your HYUND
A

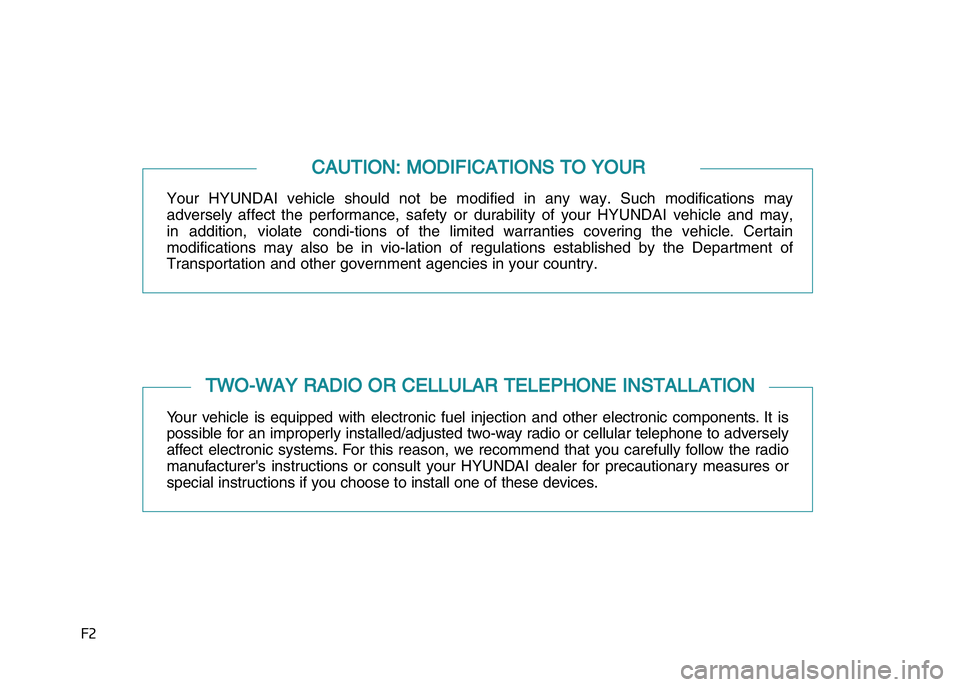

I vehicle should not be modified in any way. Such modifications may
adverse
ly affect the performance, safety or durability of your HYUNDAI vehicle and may,
i
n addition, violate condi-tions of the limited warranties covering the vehicle. Certain
m
odifications may also be in vio-lation of regulations established by the Department of
Transportation and other government
a
gencies in your country.
Your vehicle is equipped with electronic fuel injection and other electronic c\
omponents. It is
possible for an improperly installed/adjusted two-way radio or cellular telephone to adversely
affect electronic systems. For this reason, we recommend that you carefully follow the radio
manufacturer's instructions or consult your HYUNDAI dealer for precautionary measures or
special instructions if you choose to install one of these devices.
CAUTION: MODIFICATIONS TO YOUR
TWO-WAY RADIO OR CELLULAR TELEPHONE INSTALLATION

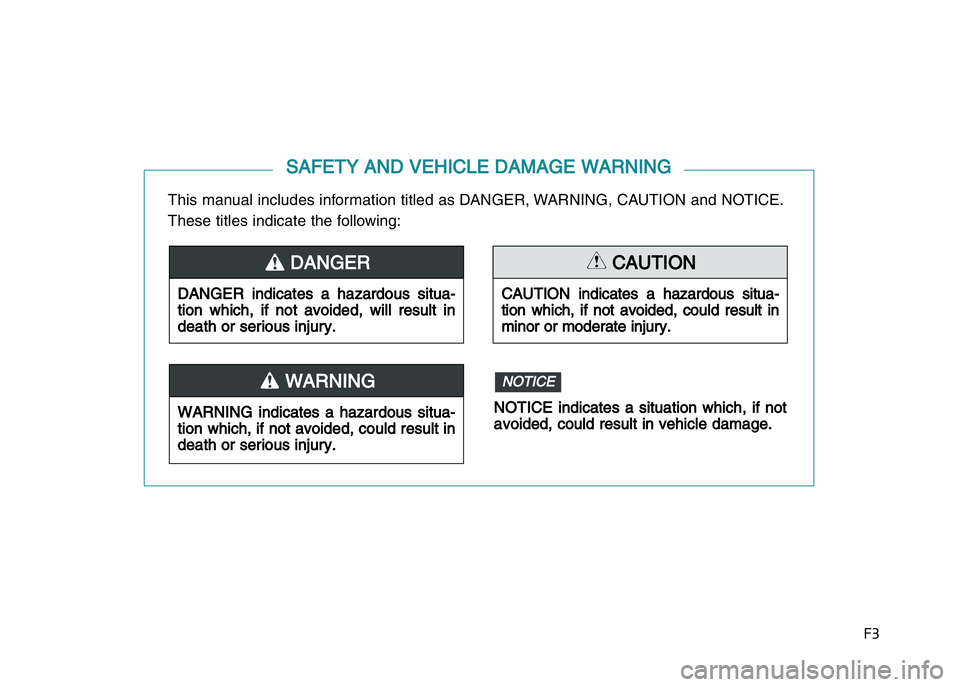

This manual includes information titled as DANGER, WARNING, CAUTION and NOTICE.
These titles indicate the following:
SAFETY AND VEHICLE DAMAGE WARNING
DANGER indicates a hazardous situa-
tion which, if not avoided, will result in
death or serious injury.
DANGER
WARNING indicates a hazardous situa-
tion which, if not avoided, could result in
death or serious injury.
CAUTION indicates a hazardous situa-
tion which, if not avoided, could result in
minor or moderate injury.
CAUTION
NOTICE indicates a situation which, if not
avoided, could result in vehicle damage.
NOTICEWARNING

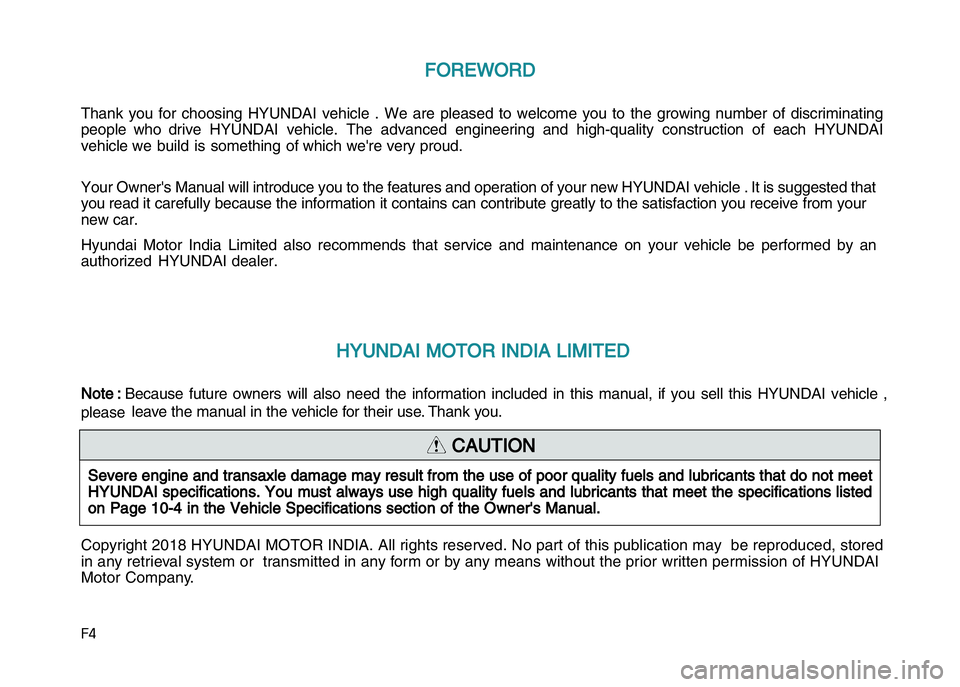

FFOREWORD T
hank you for choosing HYUNDAI vehicle
. We are pleased to welcome you to the growing number of discriminating
p
eople who drive HYUNDAI vehicle. The advanced engineering and high-quality construction of each HYUNDAI
v
ehicle we build is something of which we're very proud. Your Owner'
s Manual will introduce you to the features and operation of your new HYUNDAI vehicle
. It is suggested that
y
ou read it carefully because the information it contains can contribute greatly to the satisfaction you receive from\
your
n
ew car. Hyund
ai Motor India Limited
also recommends that service and maintenance on your vehicle be performe\
d by an
a
uthorized HYUNDAI dealer.
HYUNDAI MOTOR INDIA LIMITED Note :
Becau
se future owners will also need the information included in this manual, if you sell t\
his HYUNDAI vehicle ,
p
leaseleave the manual in the vehicle for their use. Thank you. Copyright 2018
HYUNDAI MOTOR INDIA. All rights reserved. No part of this publication may be reproduced, stored
in any retrieval system or transmitted in any form or by any means without
the prior written permission of HYUNDAI
Motor Compan
y.
Severe engine and transaxle damage may result from the use of poor quality fuels and lubricants that do not meet
HYUNDAI specifications. You must always use high quality fuels and lubricants that meet the specifications listed
on Page 10-4 in the Vehicle Specifications section of the Owner's Manual.
CAUTION

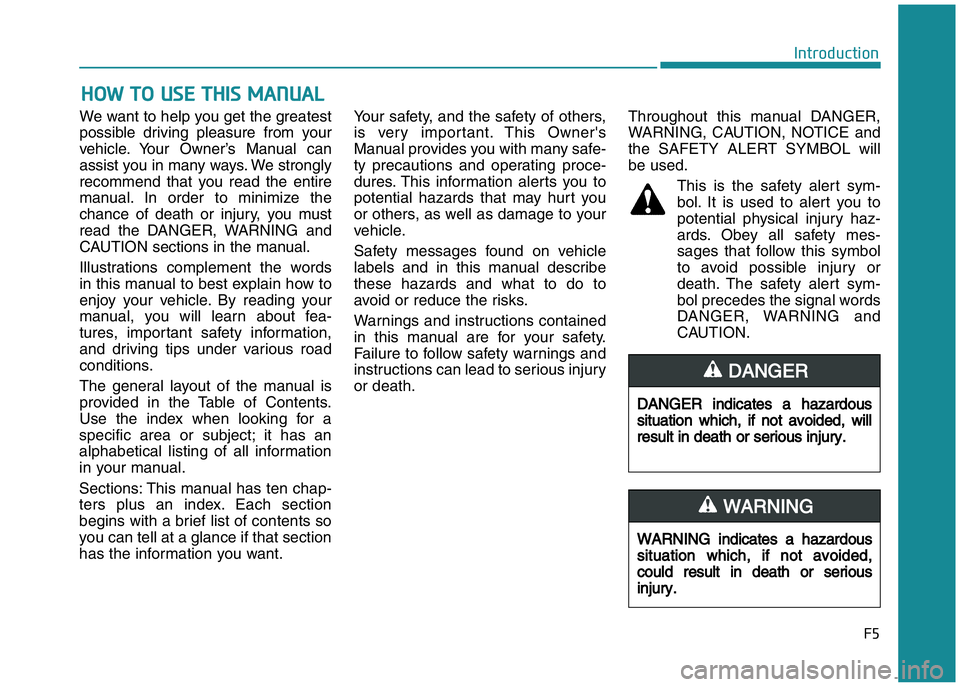

We want to help you get the greatest
possible driving pleasure from your
vehicle. Your Owner’s Manual can
assist you in many ways. We strongly
recommend that you read the entire
manual. In order to minimize the
chance of death or injury, you must
read the DANGER, WARNING and
CAUTION sections in the manual.
Illustrations complement the words
in this manual to best explain how to
enjoy your vehicle. By reading your
manual, you will learn about fea-
tures, important safety information,
and driving tips under various road
conditions.
The general layout of the manual is
provided in the Table of Contents.
Use the index when looking for a
specific area or subject; it has an
alphabetical listing of all information
in your manual.
Sections: This manual has ten chap-
ters plus an index. Each section
begins with a brief list of contents so
you can tell at a glance if that section
has the information you want. Your safety, and the safety of others,
is very important. This Owner's
Manual provides you with many safe-
ty precautions and operating proce-
dures. This information alerts you to
potential hazards that may hurt you
or others, as well as damage to your
vehicle.
Safety messages found on vehicle
labels and in this manual describe
these hazards and what to do to
avoid or reduce the risks.
Warnings and instructions contained
in this manual are for your safety.
Failure to follow safety warnings and
instructions can lead to serious injury
or death.
Throughout this manual DANGER,
WARNING, CAUTION, NOTICE and
the SAFETY ALERT SYMBOL will
be used.
This is the safety alert sym-
bol. It is used to alert you to
potential physical injury haz-
ards. Obey all safety mes-
sages that follow this symbol
to avoid possible injury or
death. The safety alert sym-
bol precedes the signal words
DANGER, WARNING and
CAUTION.



*($'!#(%'*
DANGER indicates a hazardous
situation which, if not avoided, will
result in death or serious injury.
DANGER
WARNING indicates a hazardous
situation which, if not avoided,
could result in death or serious
injury.
WARNING


*($'!#(%'*
N
N OTICE indicates a situation which,
if not avoided, could result in vehicle
damage.

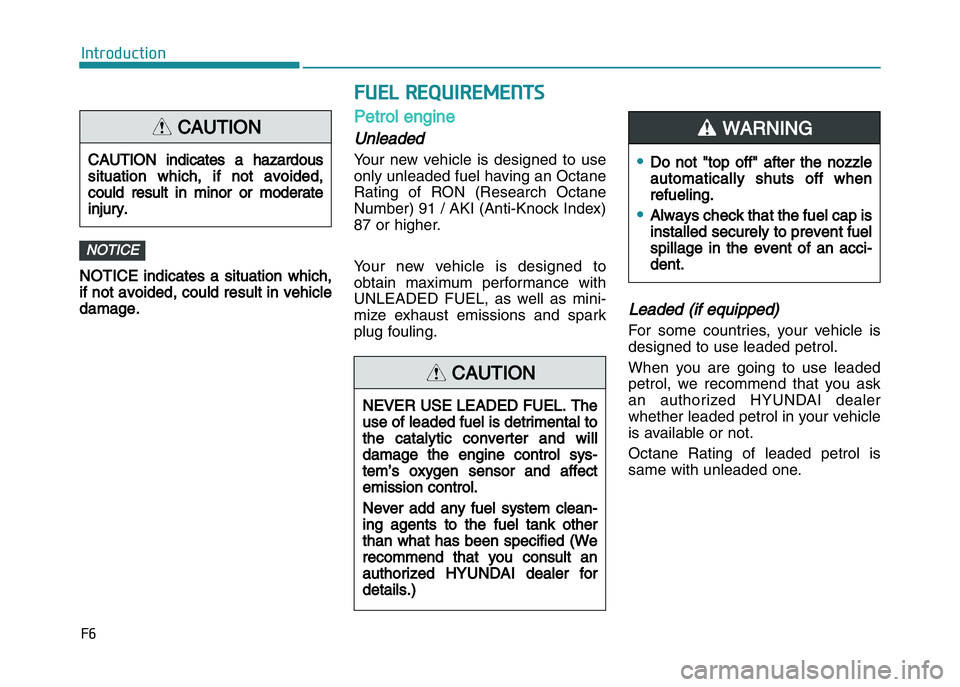

Petrol engine
Unleaded
Your new vehicle is designed to use
only unleaded fuel having an Octane
Rating of RON (Research Octane
Number) 91 / AKI (Anti-Knock Index)
87 or higher.
Your new vehicle is designed to
obtain maximum performance with
UNLEADED FUEL, as well as mini-
mize exhaust emissions and spark
plug fouling.
Leaded (if equipped)
For some countries, your vehicle is
designed to use leaded petrol.
When you are going to use leaded
petrol, we recommend that you ask
an authorized HYUNDAI dealer
whether leaded petrol in your vehicle
is available or not.
Octane Rating of leaded petrol is
same with unleaded one.
NOTICE
NEVER USE LEADED FUEL. The
use of leaded fuel is detrimental to
the catalytic converter and will
damage the engine control sys-
tem’s oxygen sensor and affect
emission control.
Never add any fuel system clean-
ing agents to the fuel tank other
than what has been specified (We
recommend that you consult an
authorized HYUNDAI dealer for
details.)
CAUTION
CAUTION indicates a hazardous
situation which, if not avoided,
could result in minor or moderate
injury.
CAUTION


€Do not "top off" after the nozzle
automatically shuts off when
refueling.
€Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an acci-
dent.
WARNING



*($'!#(%'*

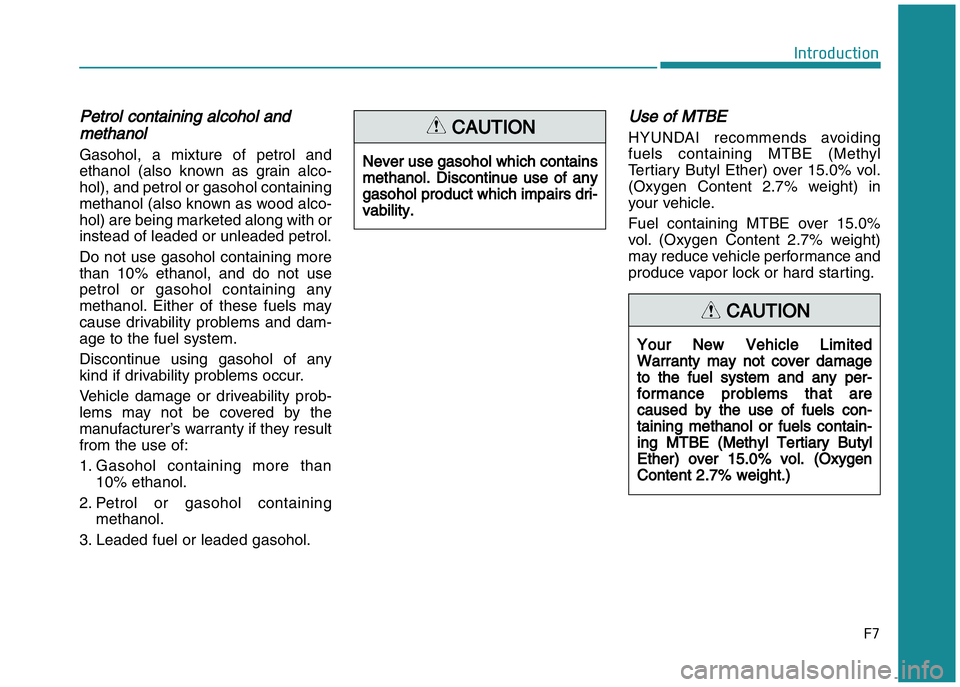

PPetrol containing alcohol andmethanol
Gasohol, a mixture of petrol and
ethanol (also known as grain alco-
hol), and petrol or gasohol containing
methanol (also known as wood alco-
hol) are being marketed along with or
instead of leaded or unleaded petrol.
Do not use gasohol containing more
than 10% ethanol, and do not use
petrol or gasohol containing any
methanol. Either of these fuels may
cause drivability problems and dam-
age to the fuel system.
Discontinue using gasohol of any
kind if drivability problems occur.
Vehicle damage or driveability prob-
lems may not be covered by the
manufacturer’s warranty if they result
from the use of:
1. Gasohol containing more than
10% ethanol.
2. Petrol or gasohol containing methanol.
3. Leaded fuel or leaded gasohol.
Use of MTBE
HYUNDAI recommends avoiding
fuels containing MTBE (Methyl
Tertiary Butyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight) in
your vehicle.
Fuel containing MTBE over 15.0%
vol. (Oxygen Content 2.7% weight)
may reduce vehicle performance and
produce vapor lock or hard starting.
Your New Vehicle Limited
Warranty may not cover damage
to the fuel system and any per-
formance problems that are
caused by the use of fuels con-
taining methanol or fuels contain-
ing MTBE (Methyl Tertiary Butyl
Ether) over 15.0% vol. (Oxygen
Content 2.7% weight.)
CAUTION
Never use gasohol which contains
methanol. Discontinue use of any
gasohol product which impairs dri-
vability.
CAUTION


*($'!#(%'*

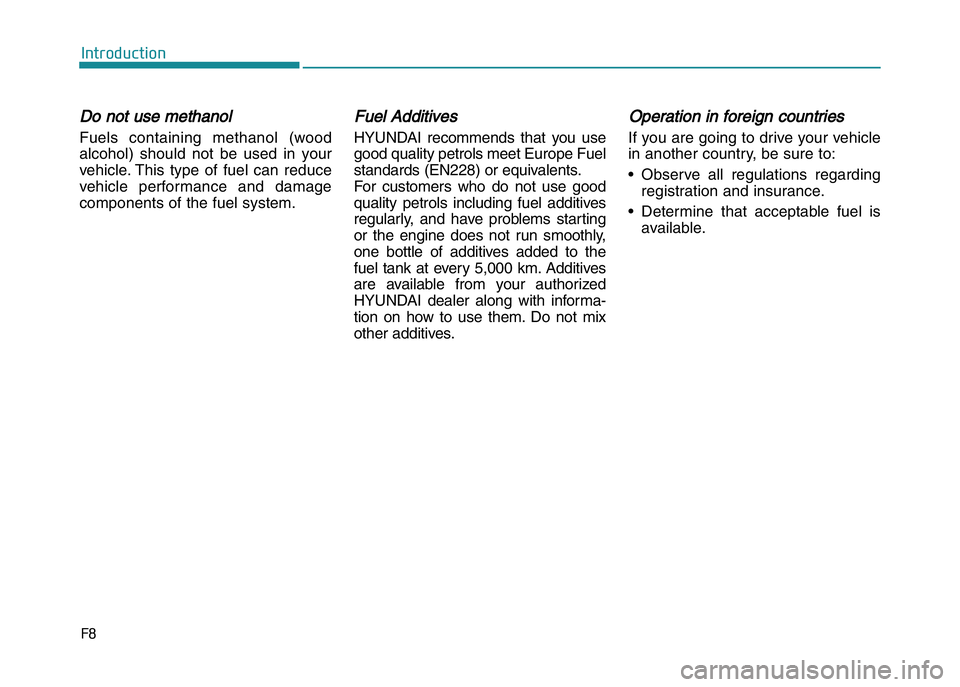

DDo not use methanol
Fuels containing methanol (wood
alcohol) should not be used in your
vehicle. This type of fuel can reduce
vehicle performance and damage
components of the fuel system.
Fu
el Additives
HYUNDAI recommends that you use
good quality petrols meet Europe Fuel
standards (EN228) or equivalents.
For customers who do not use good
quality petrols including fuel additives
regularly, and have problems starting
or the engine does not run smoothly,
one bottle of additives added to the
fuel tank at every 5,000 km. Additives
are available from your authorized
HYUNDAI dealer along with informa-
tion on how to use them. Do not mix
other additives.
Operation in foreign countries
If you are going to drive your vehicle
in another country, be sure to:
• Observe all regulations regarding
registration and insurance.
• Determine that acceptable fuel is available.


*($'!#(%'*

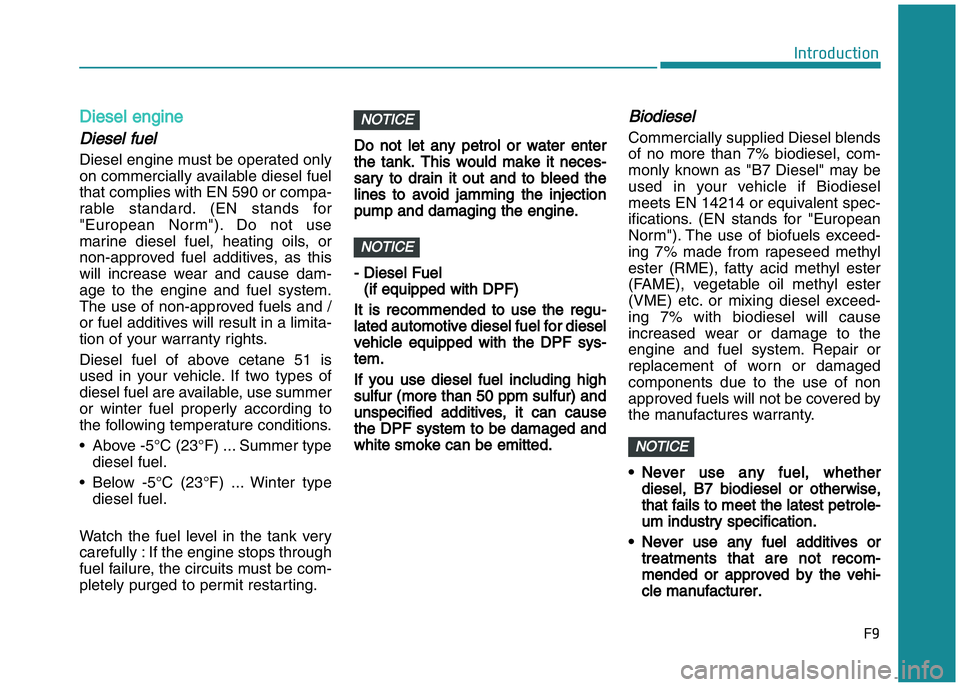

DDiesel engine
Diesel fuel
Diesel engine must be operated only
on commercially available diesel fuel
that complies with EN 590 or compa-
rable standard. (EN stands for
"European Norm"). Do not use
marine diesel fuel, heating oils, or
non-approved fuel additives, as this
will increase wear and cause dam-
age to the engine and fuel system.
The use of non-approved fuels and /
or fuel additives will result in a limita-
tion of your warranty rights.
Diesel fuel of above cetane 51 is
used in your vehicle. If two types of
diesel fuel are available, use summer
or winter fuel properly according to
the following temperature conditions.
• Above -5°C (23°F) ... Summer type
diesel fuel.
• Below -5°C (23°F) ... Winter type diesel fuel.
Watch the fuel level in the tank very
carefully : If the engine stops through
fuel failure, the circuits must be com-
pletely purged to permit restarting.Do not let any petrol or water enter
the tank. This would make it neces-
sary to drain it out and to bleed the
lines to avoid jamming the injection
pump and damaging the engine.
- Diesel Fuel (if equipped with DPF)
It is recommended to use the regu-
lated automotive diesel fuel for diesel
vehicle equipped with the DPF sys-
tem.
If you use diesel fuel including high
sulfur (more than 50 ppm sulfur) and
unspecified additives, it can cause
the DPF system to be damaged and
white smoke can be emitted.
Biodiesel
Commercially supplied Diesel blends
of no more than 7% biodiesel, com-
monly known as "B7 Diesel" may be
used in your vehicle if Biodiesel
meets EN 14214 or equivalent spec-
ifications. (EN stands for "European
Norm"). The use of biofuels exceed-
ing 7% made from rapeseed methyl
ester (RME), fatty acid methyl ester
(FAME), vegetable oil methyl ester
(VME) etc. or mixing diesel exceed-
ing 7% with biodiesel will cause
increased wear or damage to the
engine and fuel system. Repair or
replacement of worn or damaged
components due to the use of non
approved fuels will not be covered by
the manufactures warranty.
• Never use any fuel, whether diesel, B7 biodiesel or otherwise,
that fails to meet the latest petrole-
um industry specification.
• Never use any fuel additives or treatments that are not recom-
mended or approved by the vehi-
cle manufacturer.
NOTICE
NOTICE
NOTICE

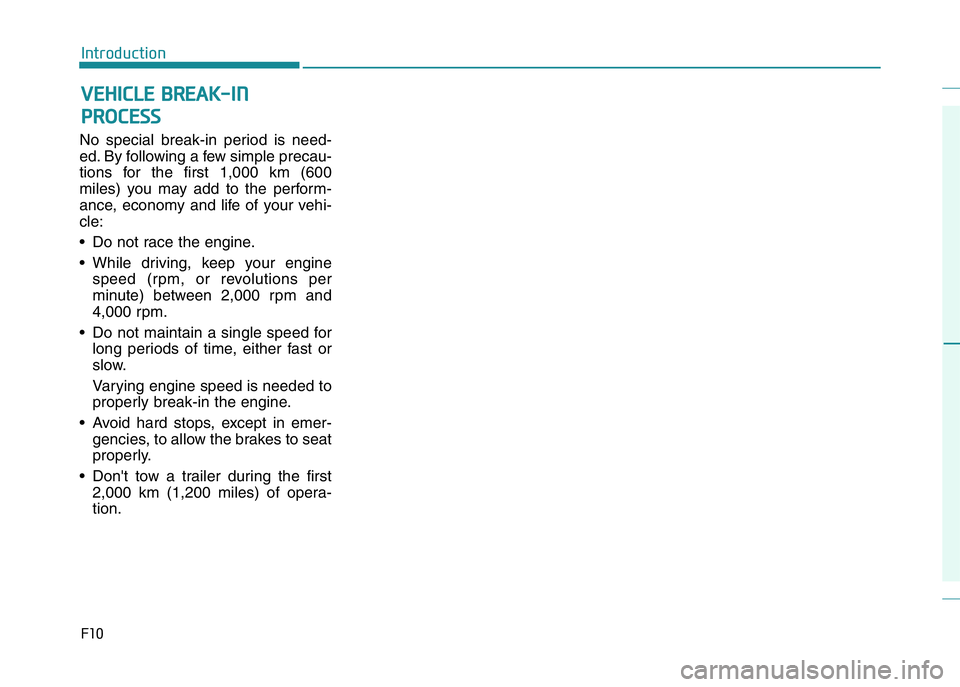

No special break-in period is need-
ed. By following a few simple precau-
tions for the first 1,000 km (600
miles) you may add to the perform-
ance, economy and life of your vehi-
cle:
• Do not race the engine.
• While driving, keep your enginespeed (rpm, or revolutions per
minute) between 2,000 rpm and
4,000 rpm.
• Do not maintain a single speed for long periods of time, either fast or
slow.
Varying engine speed is needed to
properly break-in the engine.
• Avoid hard stops, except in emer- gencies, to allow the brakes to seat
properly.
• Don't tow a trailer during the first 2,000 km (1,200 miles) of opera-
tion.

*($'!#(%'*
