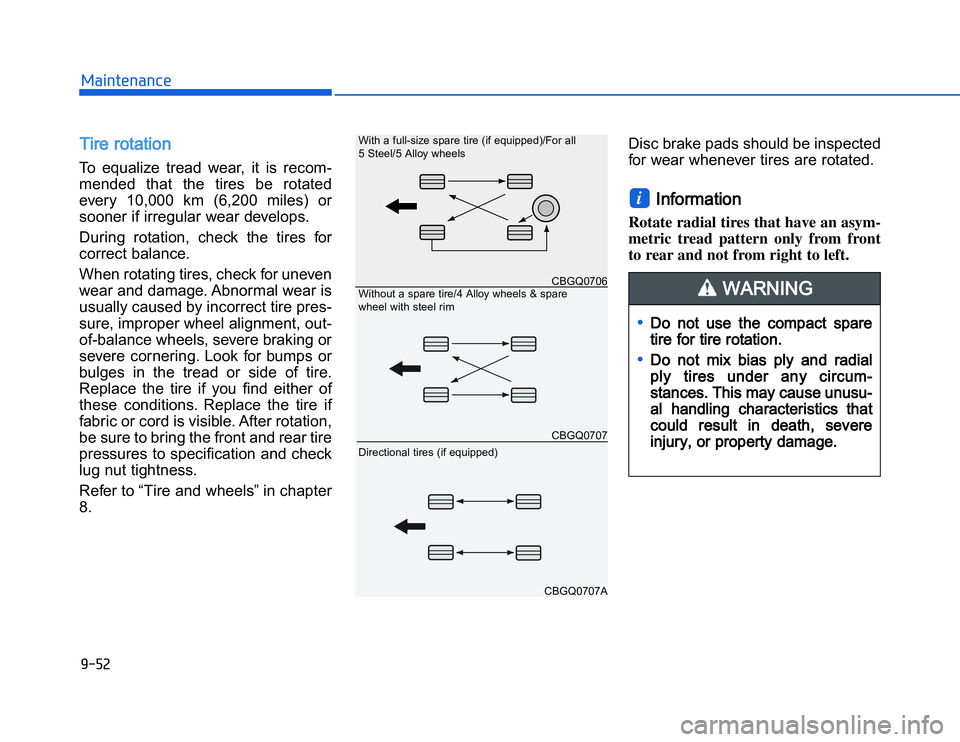

1.(%,204/3424-3TTire rotation To equalize tread wear, it is recom-
mended that the tires be rotated
every 10,000 km (6,200 miles) or
sooner if irregular wear develops.
During rotation, check the tires for
correct balance.
When rotating tires, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tire pres-
sure, improper wheel alignment, out-
of-balance wheels, severe braking or
severe cornering. Look for bumps or
bulges in the tread or side of tire.
Replace the tire if you find either of
these conditions. Replace the tire if
fabric or cord is visible. After rotation,
be sure to bring the front and rear tire
pressures to specification and check
lug nut tightness.
Refer to “Tire and wheels” in chapter
8. Disc brake pads should be inspected
for wear whenever tires are rotated.
Information
Rotate radial tires that have an asym-
metric tread pattern only from front
to rear and not from right to left.i•
Do not use the compact spare
tire for tire rotation.
•
Do not mix bias ply and radial
ply tires under any circum-
stances. This may cause unusu-
al handling ch aracteristics that
could result in death, severe
injury, or property damage.
WARNING
CBGQ0706CBGQ0707CBGQ0707A
Without a spare tire/4 Alloy wheels & spare
wheel with steel rim With a full-size spare tire (if equipped)/For all
5 Steel/5 Alloy wheels
Directional tires (if equipped)
