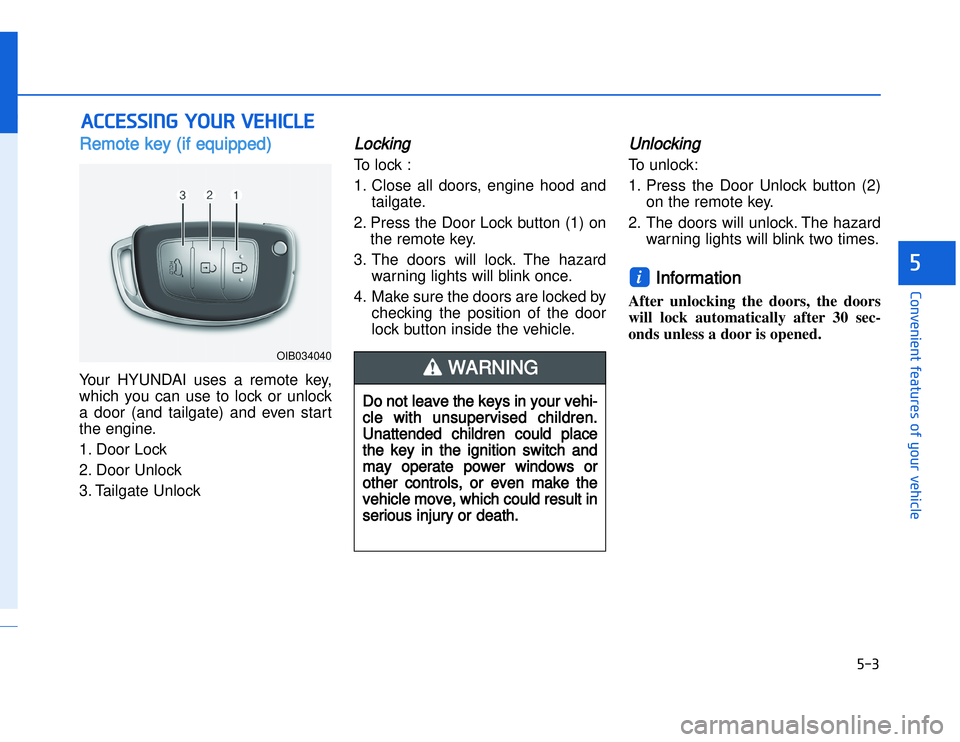

RRemote key (if equipped)Your HYUNDAI uses a remote key,
which you can use to lock or unlock
a door (and tailgate) and even start
the engine.
1. Door Lock
2. Door Unlock
3. Tailgate Unlock
LockingTo lock :
1. Close all doors, engine hood and
tailgate.
2. Press the Door Lock button (1) on the remote key.
3. The doors will lock. The hazard warning lights will blink once.
4. Make sure the doors are locked by checking the position of the door
lock button inside the vehicle.
UnlockingTo unlock:
1. Press the Door Unlock button (2)on the remote key.
2. The doors will unlock. The hazard warning lights will blink two times.
Information
After unlocking the doors, the doors
will lock automatically after 30 sec-
onds unless a door is opened.i
$ + ( ( ' # & " * + ' % +
OIB034040
Do not leave the keys in your vehi-
cle with unsupervised children.
Unattended children could place
the key in the ignition switch and
may operate power windows or
other controls, or even make the
vehicle move, which could result in
serious injury or death.
WARNING
Page 83 of 400
) ' # 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3TTailgate unlockingTo unlock:
1. Press the Tailgate Unlock button
(3) on the remote key for more
than one second.
2. The hazard warning lights will blink two times. Once the tailgate
is opened and then closed, the
tailgate will lock automatically.
Information
After unlocking the tailgate, the tail-gate will lock automatically.
The word "HOLD" is written on the button to inform you that you must
press and hold the button for more
than one second.

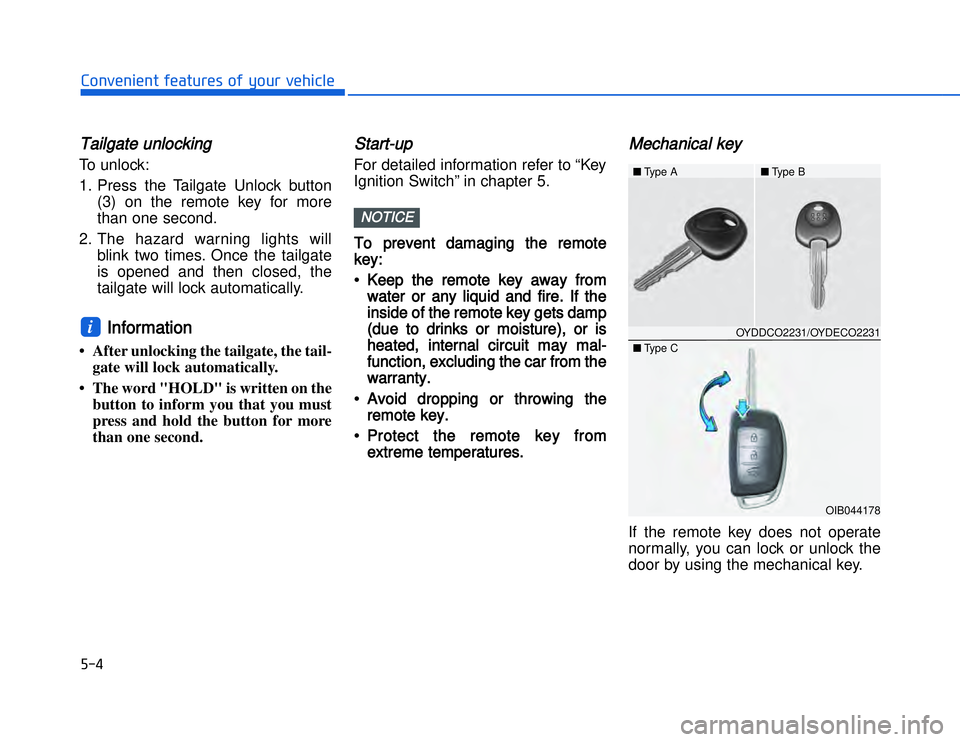

Start-up For detailed information refer to “Key
Ignition Switch” in chapter 5.To prevent damaging the remote
key:
• Keep the remote key away fromwater or any liquid and fire. If the
inside of the remote key gets damp
(due to drinks or moisture), or is
heated, internal circuit may mal-
function, excluding the car from the
warranty.
• Avoid dropping or throwing the remote key.
• Protect the remote key from extreme temperatures.
Mechanical key If the remote key does not operate
normally, you can lock or unlock the
door by using the mechanical key.
NOTICE
i
OYDDCO2231/OYDECO2231
■
Ty p e A ■Ty p e B
OIB044178
■
Type C
Page 84 of 400
) ' )
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

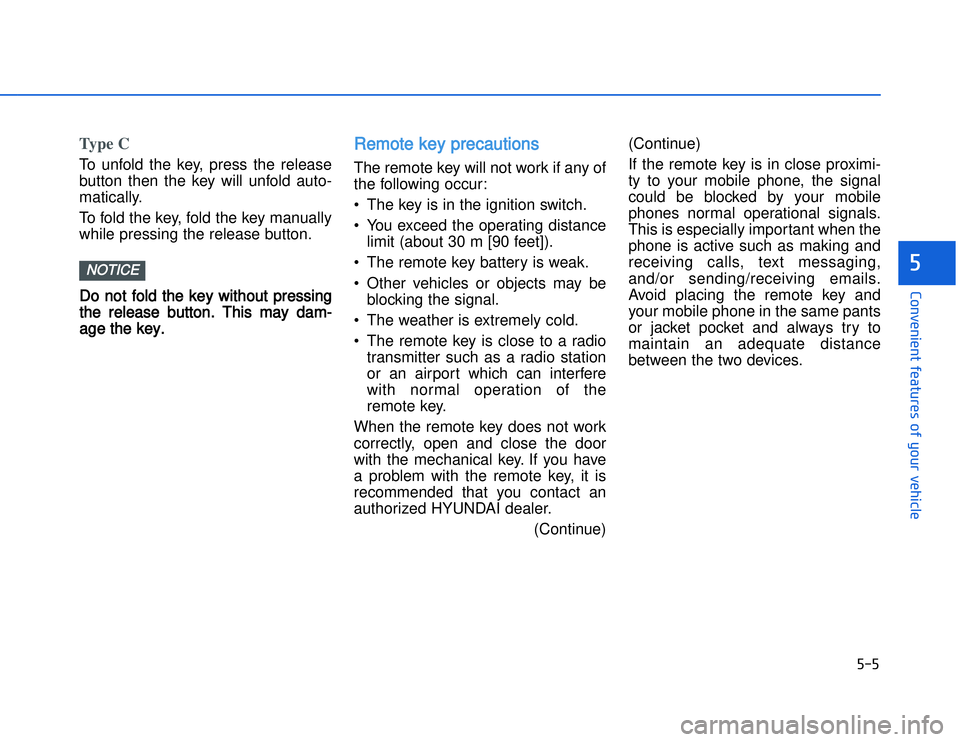

Type CTo unfold the key, press the release
button then the key will unfold auto-
matically.
To fold the key, fold the key manually
while pressing the release button.DD o not fold the key without pressing
the release button. This may dam-
age the key.
Remote key precautionsThe remote key will not work if any of
the following occur:
• The key is in the ignition switch.
• You exceed the operating distance limit (about 30 m [90 feet]).
• The remote key battery is weak.
• Other vehicles or objects may be blocking the signal.
• The weather is extremely cold.
• The remote key is close to a radio transmitter such as a radio station
or an airport which can interfere
with normal operation of the
remote key.
When the remote key does not work
correctly, open and close the door
with the mechanical key. If you have
a problem with the remote key, it is
recommended that you contact an
authorized HYUNDAI dealer. (Continue)(Continue)
If the remote key is in close proximi-
ty to your mobile phone, the signal
could be blocked by your mobile
phones normal operational signals.
This is especially important when the
phone is active such as making and
receiving calls, text messaging,
and/or sending/receiving emails.
Avoid placing the remote key and
your mobile phone in the same pants
or jacket pocket and always try to
maintain an adequate distance
between the two devices.
NOTICE
Page 85 of 400
) ' # 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

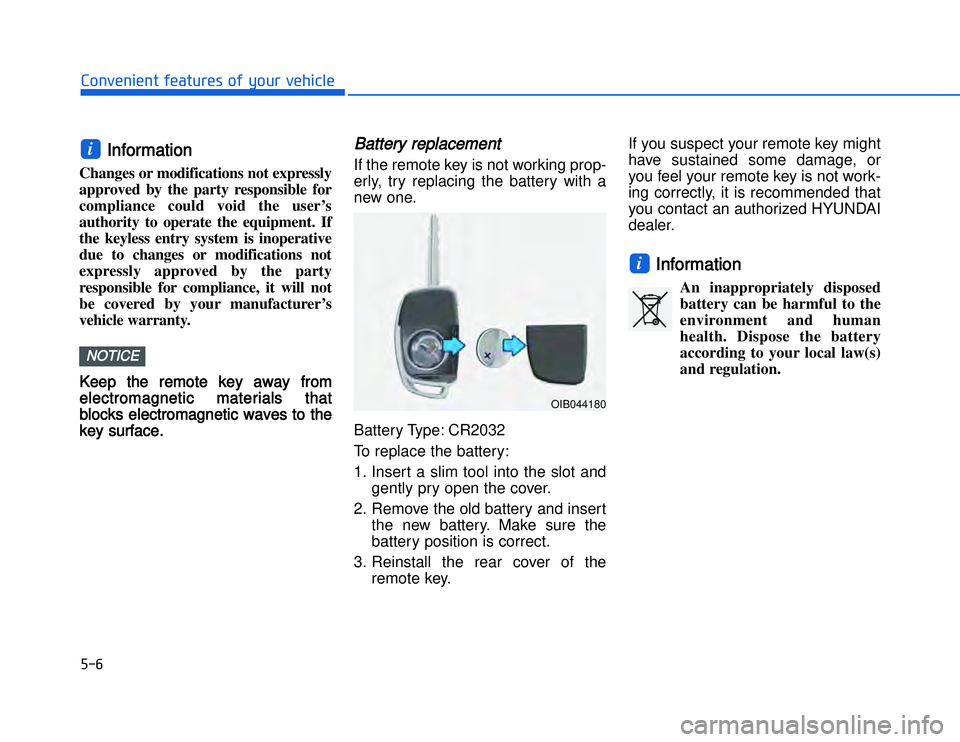

IInformation
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment. If
the keyless entry system is inoperative
due to changes or modifications not
expressly approved by the party
responsible for compliance, it will not
be covered by your manufacturer’s
vehicle warranty.Keep the remote key away from
electromagnetic materials that
blocks electromagnetic waves to the
key surface.
Battery replacement If the remote key is not working prop-
erly, try replacing the battery with a
new one.
Battery Type: CR2032
To replace the battery:
1. Insert a slim tool into the slot and
gently pry open the cover.
2. Remove the old battery and insert the new battery. Make sure the
battery position is correct.
3. Reinstall the rear cover of the remote key. If you suspect your remote key might
have sustained some damage, or
you feel your remote key is not work-
ing correctly, it is recommended that
you contact an authorized HYUNDAI
dealer.
Information
An inappropriately disposed
battery can be harmful to the
environment and human
health. Dispose the battery
according to your local law(s)
and regulation.
i
NOTICEi
OIB044180
Page 86 of 400
) '
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

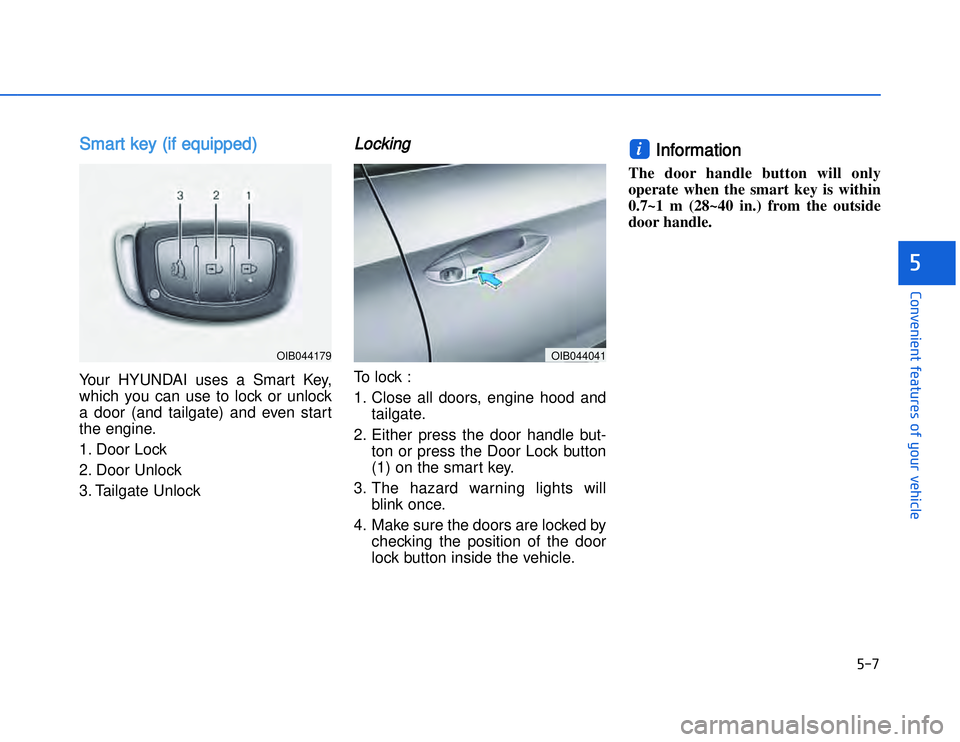

SSmart key (if equipped)Your HYUNDAI uses a Smart Key,
which you can use to lock or unlock
a door (and tailgate) and even start
the engine.
1. Door Lock
2. Door Unlock
3. Tailgate Unlock
Locking To lock :
1. Close all doors, engine hood and
tailgate.
2. Either press the door handle but- ton or press the Door Lock button
(1) on the smart key.
3. The hazard warning lights will blink once.
4. Make sure the doors are locked by checking the position of the door
lock button inside the vehicle.
Information
The door handle button will only
operate when the smart key is within
0.7~1 m (28~40 in.) from the outside
door handle. i
OIB044179
OIB044041
Page 87 of 400
) ' # 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

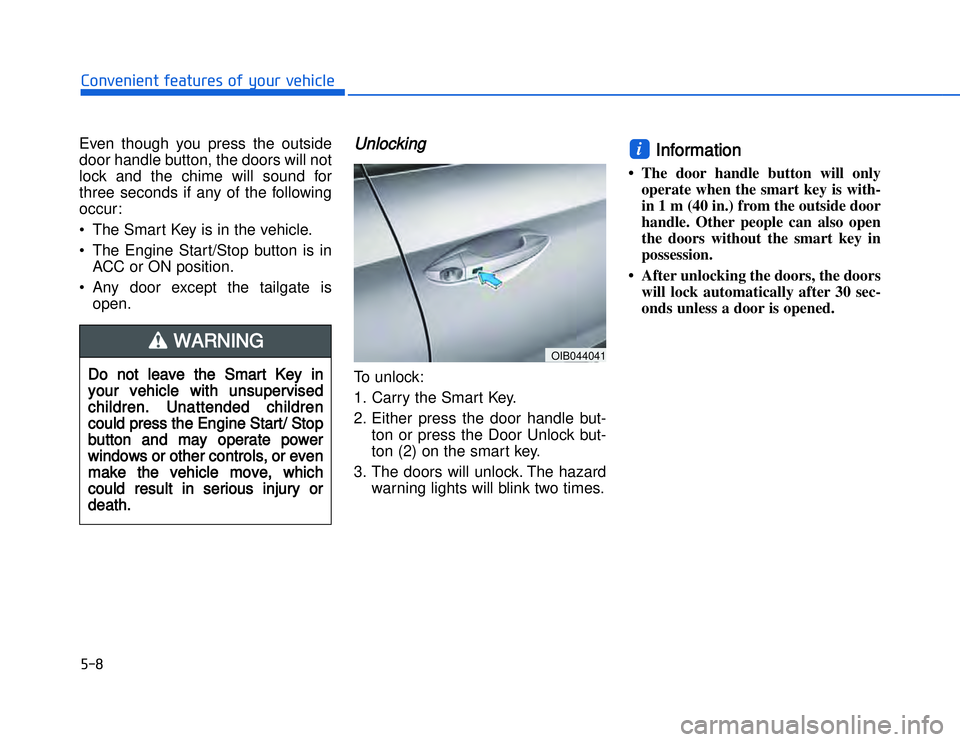

Even though you press the outside
door handle button, the doors will not
loc k and the chime will sound for
three seconds if any of the following
occur:
• The Smart Key is in the vehicle.
• The Engine Start/Stop button is in ACC or ON position.
• Any door except the tailgate is open.
UUnlockingTo unlock:
1. Carry the Smart Key.
2. Either press the door handle but-
ton or press the Door Unlock but-
ton (2) on the smart key.
3. The doors will unlock. The hazard warning lights will blink two times.
Information
The door handle button will onlyoperate when the smart key is with-
in 1 m (40 in.) from the outside door
handle. Other people can also open
the doors without the smart key in
possession.
After unlocking the doors, the doors will lock automatically after 30 sec-
onds unless a door is opened.i
Do not leave the Smart Key in
your vehicle with unsupervised
children. Unattended children
could press the Engine Start/ Stop
button and may operate power
windows or other controls, or even
make the vehicle move, which
could result in serious injury or
death.
WARNING
OIB044041
Page 88 of 400
) '
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

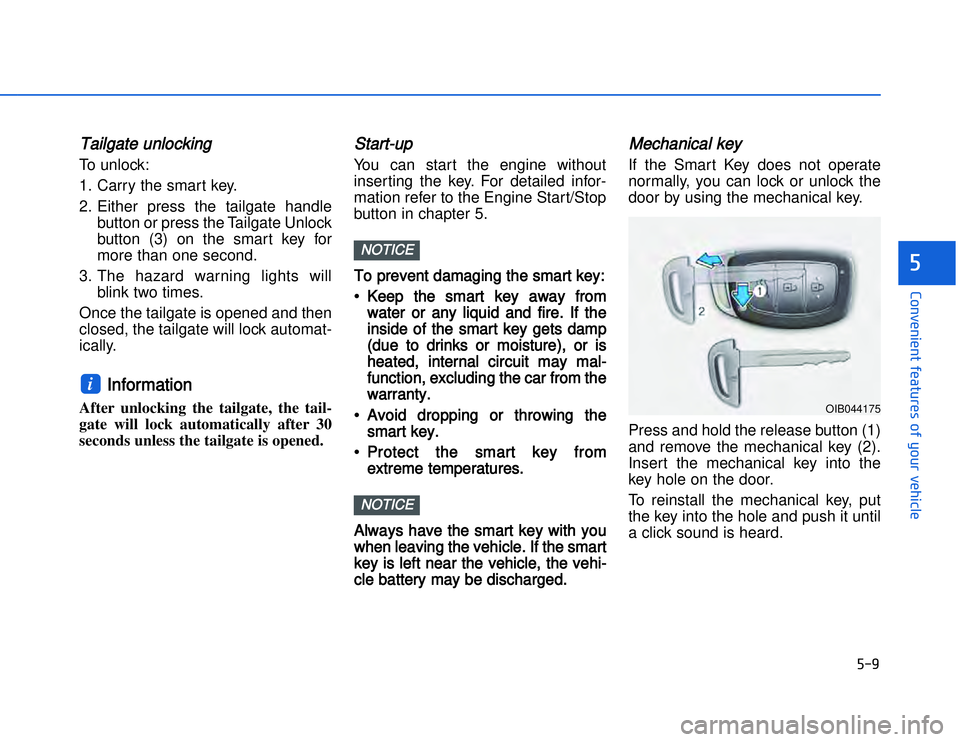

TTailgate unlocking To unlock:
1. Carry the smart key.
2. Either press the tailgate handle
button or press the Tailgate Unlock
button (3) on the smart key for
more than one second.
3. The hazard warning lights will blink two times.
Once the tailgate is opened and then
closed, the tailgate will lock automat-
ically.
Information
After unlocking the tailgate, the tail-
gate will lock automatically after 30
seconds unless the tailgate is opened.
Start-upYou can start the engine without
inserting the key. For detailed infor-
mation refer to the Engine Start/Stop
button in chapter 5.To prevent damaging the smart key:
• Keep the smart key away from water or any liquid and fire. If the
inside of the smart key gets damp
(due to drinks or moisture), or is
heated, internal circuit may mal-
function, excluding the car from the
warranty.
• Avoid dropping or throwing the smart key.
• Protect the smart key from extreme temperatures.
Always have the smart key with you
when leaving the vehicle. If the smart
key is left near the vehicle, the vehi-
cle battery may be discharged.
Mechanical key If the Smart Key does not operate
normally, you can lock or unlock the
door by using the mechanical key.
Press and hold the release button (1)
and remove the mechanical key (2).
Insert the mechanical key into the
key hole on the door.
To reinstall the mechanical key, put
the key into the hole and push it until
a click sound is heard.
NOTICENOTICE
i
OIB044175
Page 89 of 400

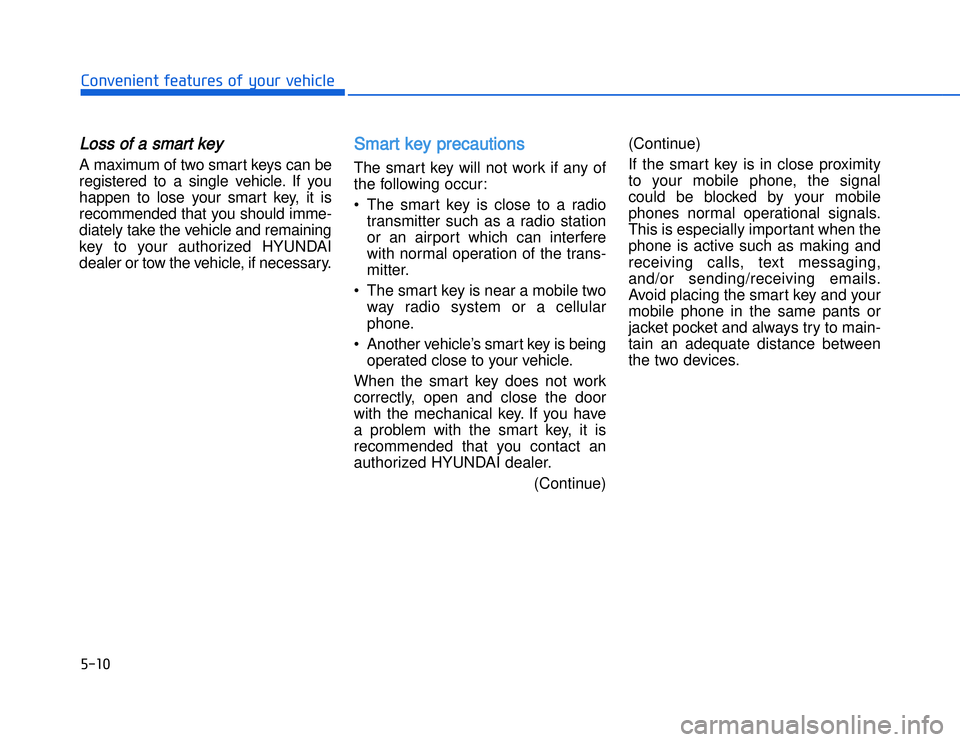

) ' # 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3LLoss of a smart key A maximum of two smart keys can be
registered to a single vehicle. If you
happen to lose your smart key, it is
recommended that you should imme-
diately take the vehicle and remaining
key to your authorized HYUNDAI
dealer or tow the vehicle, if necessary.
Smart key precautionsThe smart key will not work if any of
the following occur:
• The smart key is close to a radio
transmitter such as a radio station
or an airport which can interfere
with normal operation of the trans-
mitter.
• The smart key is near a mobile two way radio system or a cellular
phone.
• Another vehicle’s smart key is being operated close to your vehicle.
When the smart key does not work
correctly, open and close the door
with the mechanical key. If you have
a problem with the smart key, it is
recommended that you contact an
authorized HYUNDAI dealer. (Continue)(Continue)
If the smart key is in close proximity
to your mobile phone, the signal
could be blocked by your mobile
phones normal operational signals.
This is especially important when the
phone is active such as making and
receiving calls, text messaging,
and/or sending/receiving emails.
Avoid placing the smart key and your
mobile phone in the same pants or
jacket pocket and always try to main-
tain an adequate distance between
the two devices.
Page 90 of 400
) '
# 1 0 * 3 0 - 3 0 . 2 + 3 % . , / 3 ( 2 1 + 2 " 1 , / 2 * 3 ! - $ & 3

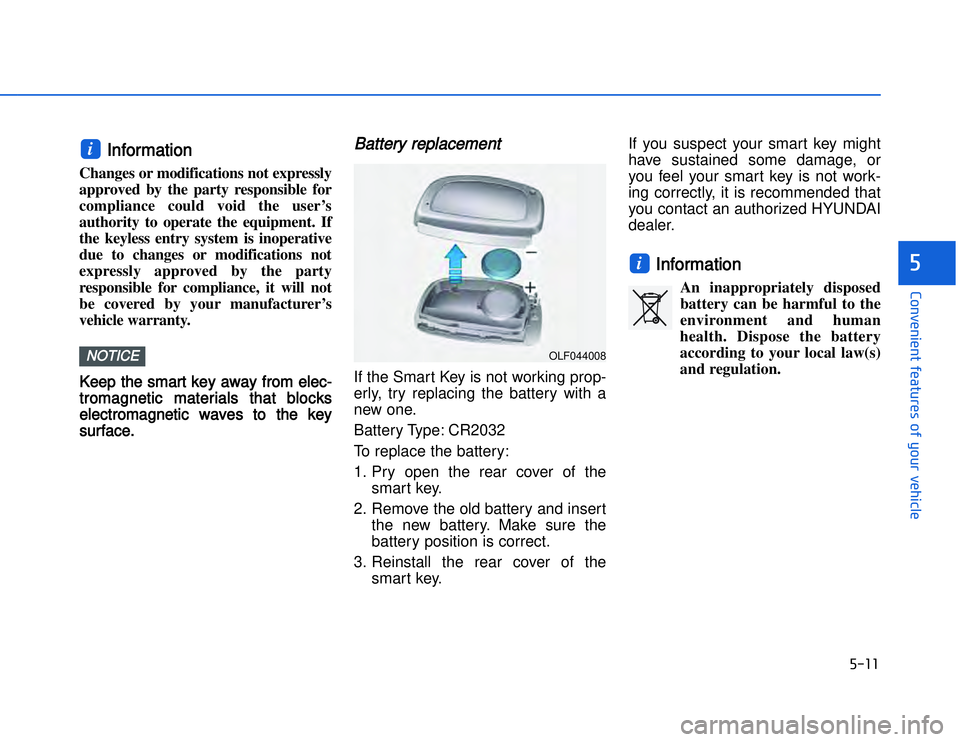

IInformation
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the equipment. If
the keyless entry system is inoperative
due to changes or modifications not
expressly approved by the party
responsible for compliance, it will not
be covered by your manufacturer’s
vehicle warranty.Keep the smart key away from elec-
tromagnetic materials that blocks
electromagnetic waves to the key
surface.
Battery replacement If the Smart Key is not working prop-
erly, try replacing the battery with a
new one.
Battery Type: CR2032
To replace the battery:
1. Pry open the rear cover of the
smart key.
2. Remove the old battery and insert the new battery. Make sure the
battery position is correct.
3. Reinstall the rear cover of the smart key. If you suspect your smart key might
have sustained some damage, or
you feel your smart key is not work-
ing correctly, it is recommended that
you contact an authorized HYUNDAI
dealer.
Information
An inappropriately disposed
battery can be harmful to the
environment and human
health. Dispose the battery
according to your local law(s)
and regulation.
i
NOTICEi
OLF044008
