3-4
Vehicle information
The actual shape may differ from the illustration.
OBI3010003OBI3010003

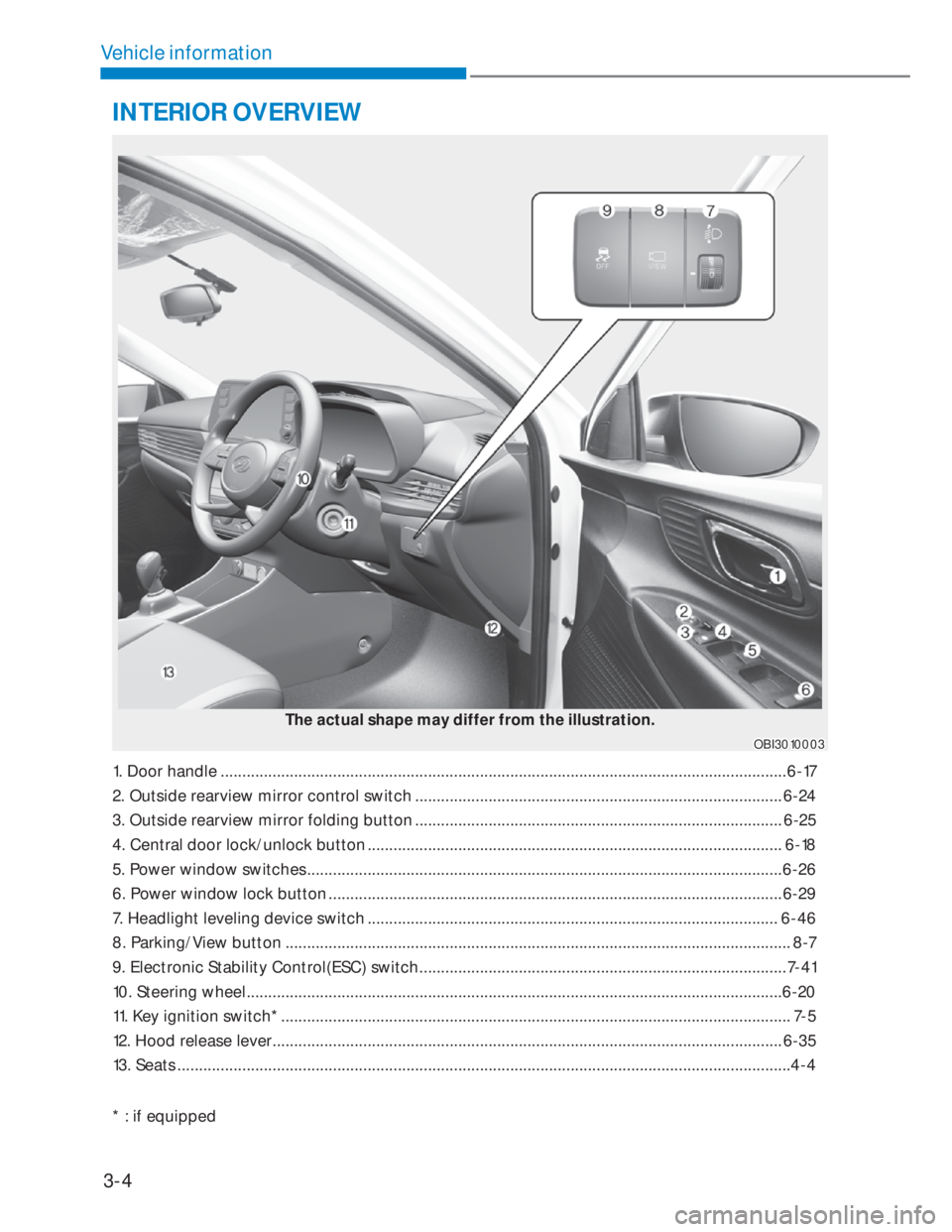

INTERIOR OVERVIEW
1. Door handle ...................................................................................................................................6-17
2. Outside rearview mirror control switch
..................................................................................... 6-24
3. Outside rearview mirror folding button
..................................................................................... 6-25
4. Central door lock/unlock button
................................................................................................ 6-18
5. Power window switches
..............................................................................................................6-26
6. Power window lock button
.........................................................................................................6-29
7. Headlight leveling device switch
............................................................................................... 6-46
8. Parking/View button
..................................................................................................................... 8-7
9. Electronic Stability Control(ESC) switch
..................................................................................... 7-41
10. Steering wheel
............................................................................................................................6-20
11. Key ignition switch*
...................................................................................................................... 7-5
12. Hood release lever...................................................................................................................... 6-35
13. Seats
..............................................................................................................................................4-4
* : if equipped

3-5
03
The actual shape may differ from the illustration.
OBI3010004OBI3010004
INSTRUMENT PANEL OVERVIEW
1. Lighting control/Turn signals switch ...........................................................................................6-42
2. Driver Assist button
....................................................................................................................... 8-2
3. Instrument cluster
......................................................................................................................... 5-2
4. Horn
.............................................................................................................................................. 6-22
5. Driver’s air bag
.............................................................................................................................4-42
6. Wipers and Washers switch
....................................................................................................... 6-50
7. Steering wheel audio controls*
.................................................................................................. 6-88
8. Engine Start/Stop button*
............................................................................................................ 7-9
9. Shift lever
...................................................................................................................................... 7-15
10. USB port
......................................................................................................................................6-87
11. Power outlet
............................................................................................................................... 6-80
12. Climate control system*
............................................................................................................6-53
13. Infotainment system
..................................................................................................................6-87
14. Hazard warning light button
....................................................................................................... 9-2
15. Passenger’s front air bag
...........................................................................................................4-43
16. Glove box
.................................................................................................................................... 6-78
* : if equipped

4-5
04

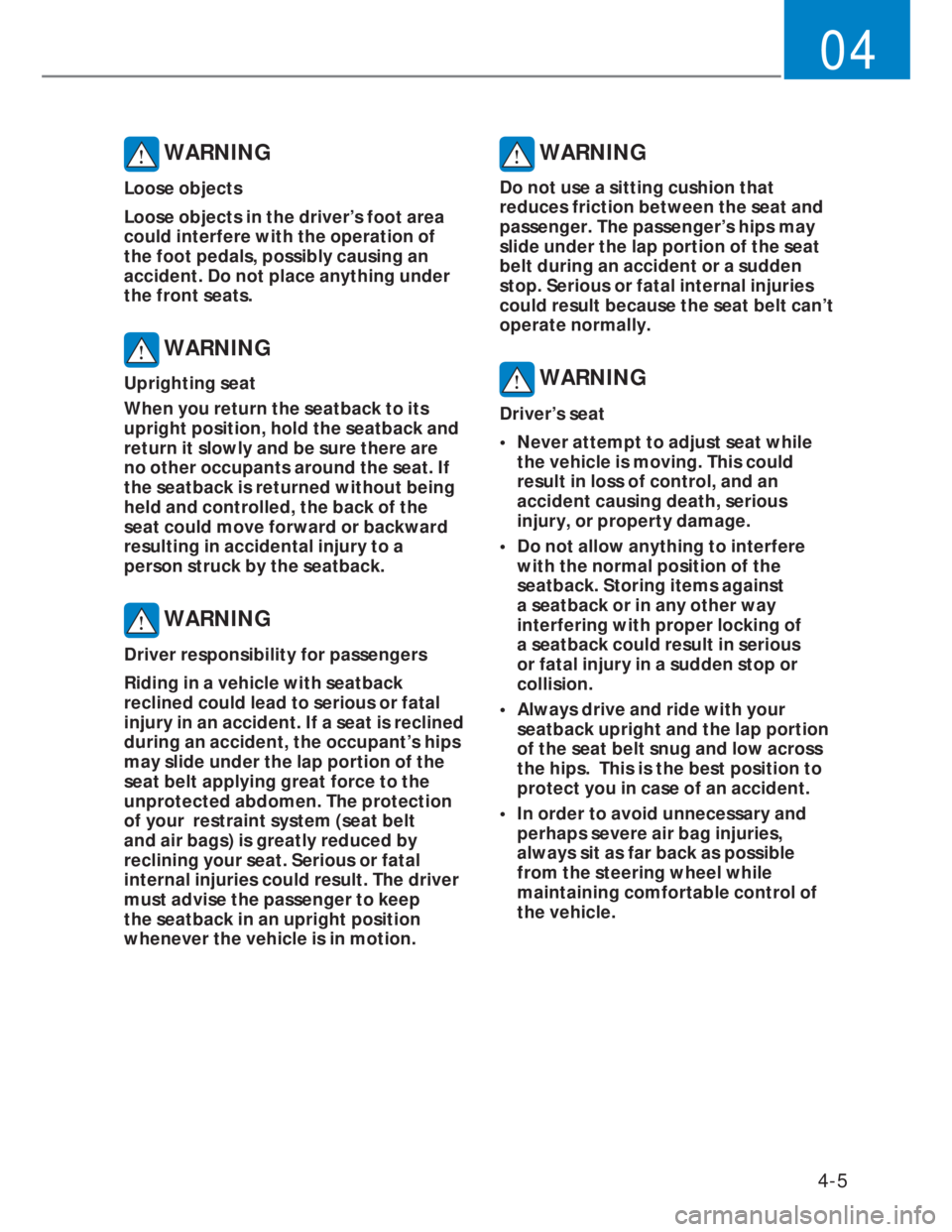

WARNING
Loose objects
Loose objects in the driver’s foot area
could interfere with the operation of
the foot pedals, possibly causing an
accident. Do not place anything under
the front seats.
WARNING
Uprighting seat
When you return the seatback to its
upright position, hold the seatback and
return it slowly and be sure there are
no other occupants around the seat. If
the seatback is returned without being
held and controlled, the back of the
seat could move forward or backward
resulting in accidental injury to a
person struck by the seatback.
WARNING
Driver responsibility for passengers
Riding in a vehicle with seatback
reclined could lead to serious or fatal
injury in an accident. If a seat is reclined
during an accident, the occupant’s hips
may slide under the lap portion of the
seat belt applying great force to the
unprotected abdomen. The protection
of your restraint system (seat belt
and air bags) is greatly reduced by
reclining your seat. Serious or fatal
internal injuries could result. The driver
must advise the passenger to keep
the seatback in an upright position
whenever the vehicle is in motion.
WARNING
Do not use a sitting cushion that
reduces friction between the seat and
passenger. The passenger’s hips may
slide under the lap portion of the seat
belt during an accident or a sudden
stop. Serious or fatal internal injuries
could result because the seat belt can’t
operate normally.
WARNING
Driver’s seat
• Never attempt to adjust seat while
the vehicle is moving. This could
result in loss of control, and an
accident causing death, serious
injury, or property damage.
• Do not allow anything to interfere
with the normal position of the
seatback. Storing items against
a seatback or in any other way
interfering with proper locking of
a seatback could result in serious
or fatal injury in a sudden stop or
collision.
• Always drive and ride with your
seatback upright and the lap portion
of the seat belt snug and low across
the hips. This is the best position to
protect you in case of an accident.
• In order to avoid unnecessary and
perhaps severe air bag injuries,
always sit as far back as possible
from the steering wheel while
maintaining comfortable control of
the vehicle.

4-39
04

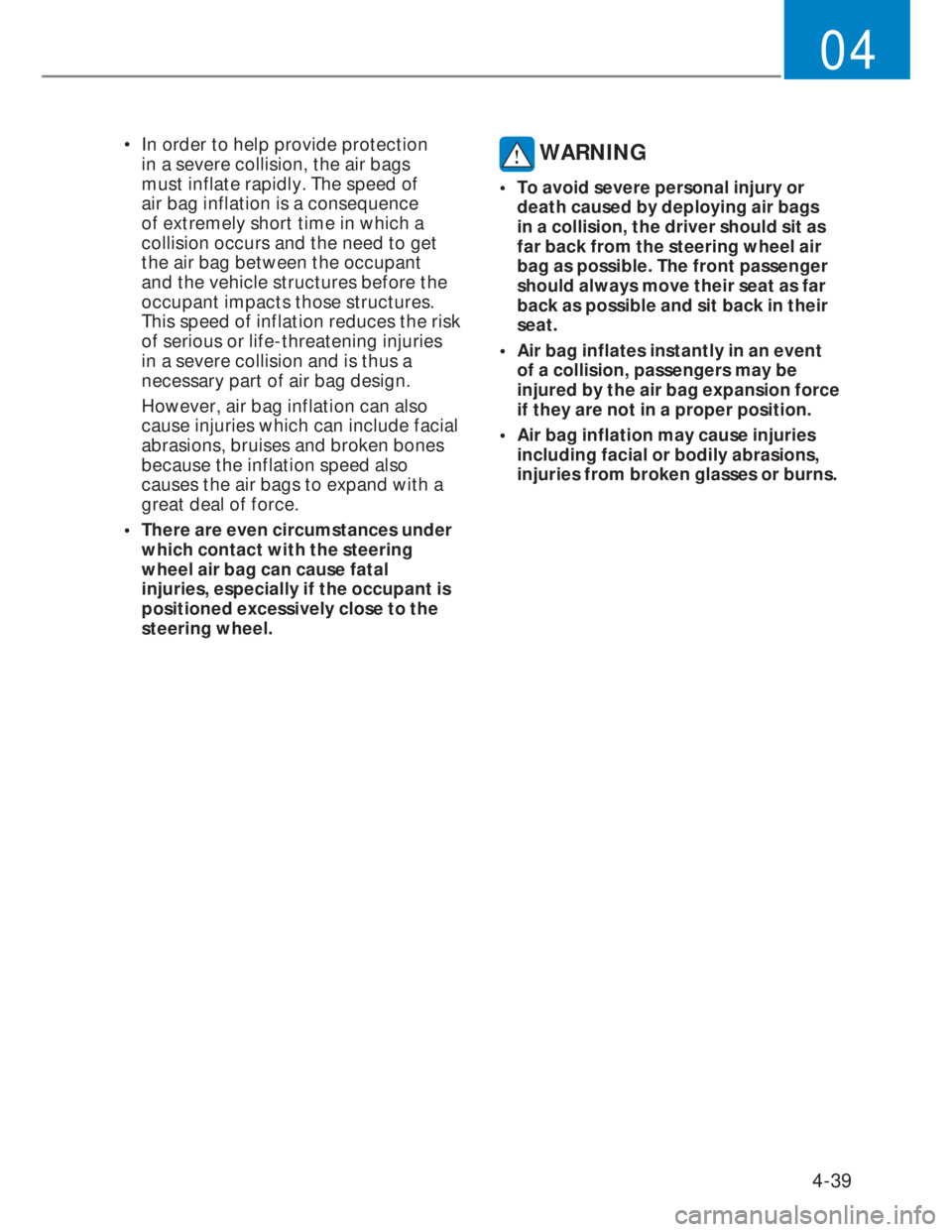

• In order to help provide protection
in a severe collision, the air bags
must inflate rapidly. The speed of
air bag inflation is a consequence
of extremely short time in which a
collision occurs and the need to get
the air bag between the occupant
and the vehicle structures before the
occupant impacts those structures.
This speed of inflation reduces the risk
of serious or life-threatening injuries
in a severe collision and is thus a
necessary part of air bag design.
However, air bag inflation can also
cause injuries which can include facial
abrasions, bruises and broken bones
because the inflation speed also
causes the air bags to expand with a
great deal of force.
• There are even circumstances under
which contact with the steering
wheel air bag can cause fatal
injuries, especially if the occupant is
positioned excessively close to the
steering wheel. WARNING
• To avoid severe personal injury or
death caused by deploying air bags
in a collision, the driver should sit as
far back from the steering wheel air
bag as possible. The front passenger
should always move their seat as far
back as possible and sit back in their
seat.
• Air bag inflates instantly in an event
of a collision, passengers may be
injured by the air bag expansion force
if they are not in a proper position.
• Air bag inflation may cause injuries
including facial or bodily abrasions,
injuries from broken glasses or burns.

4-40
Safety system

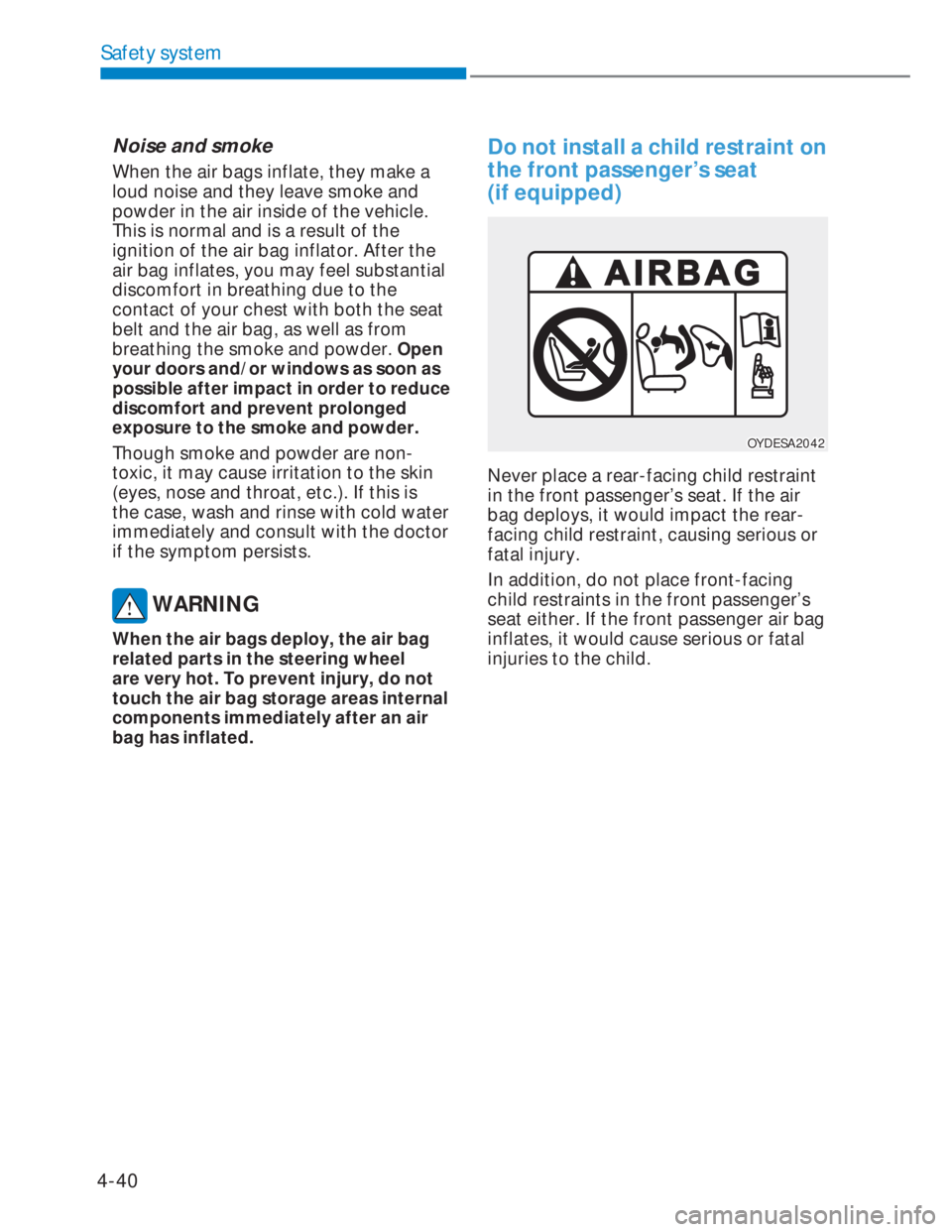

Noise and smoke
When the air bags inflate, they make a
loud noise and they leave smoke and
powder in the air inside of the vehicle.
This is normal and is a result of the
ignition of the air bag inflator. After the
air bag inflates, you may feel substantial
discomfort in breathing due to the
contact of your chest with both the seat
belt and the air bag, as well as from
breathing the smoke and powder. Open
your doors and/or windows as soon as
possible after impact in order to reduce
discomfort and prevent prolonged
exposure to the smoke and powder.
Though smoke and powder are non-
toxic, it may cause irritation to the skin
(eyes, nose and throat, etc.). If this is
the case, wash and rinse with cold water
immediately and consult with the doctor
if the symptom persists.
WARNING
When the air bags deploy, the air bag
related parts in the steering wheel
are very hot. To prevent injury, do not
touch the air bag storage areas internal
components immediately after an air
bag has inflated.
Do not install a child restraint on
the front passenger’s seat
(if equipped)
OYDESA2042OYDESA2042
Never place a rear-facing child restraint
in the front passenger’s seat. If the air
bag deploys, it would impact the rear-
facing child restraint, causing serious or
fatal injury.
In addition, do not place front-facing
child restraints in the front passenger’s
seat either. If the front passenger air bag
inflates, it would cause serious or fatal
injuries to the child.

4-43
04
B240B01LB240B01L

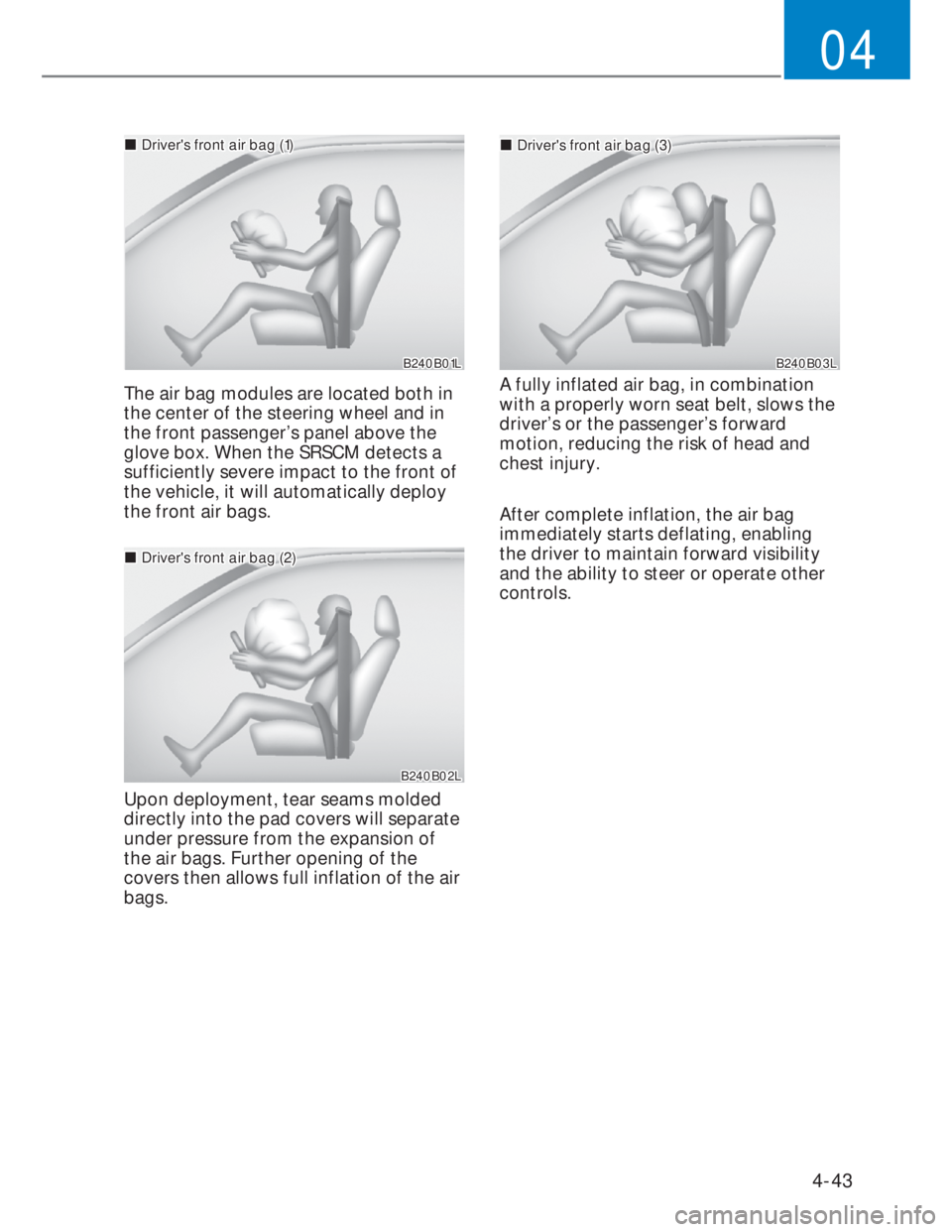

„„Driver's front air bag (1)Driver's front air bag (1)
The air bag modules are located both in
the center of the steering wheel and in
the front passenger’s panel above the
glove box. When the SRSCM detects a
sufficiently severe impact to the front of
the vehicle, it will automatically deploy
the front air bags.
B240B02LB240B02L
„„Driver's front air bag (2)Driver's front air bag (2)
Upon deployment, tear seams molded
directly into the pad covers will separate
under pressure from the expansion of
the air bags. Further opening of the
covers then allows full inflation of the air
bags.
B240B03LB240B03L
„„Driver's front air bag (3)Driver's front air bag (3)
A fully inflated air bag, in combination
with a properly worn seat belt, slows the
driver’s or the passenger’s forward
motion, reducing the risk of head and
chest injury.
After complete inflation, the air bag
immediately starts deflating, enabling
the driver to maintain forward visibility
and the ability to steer or operate other
controls.

4-45
04

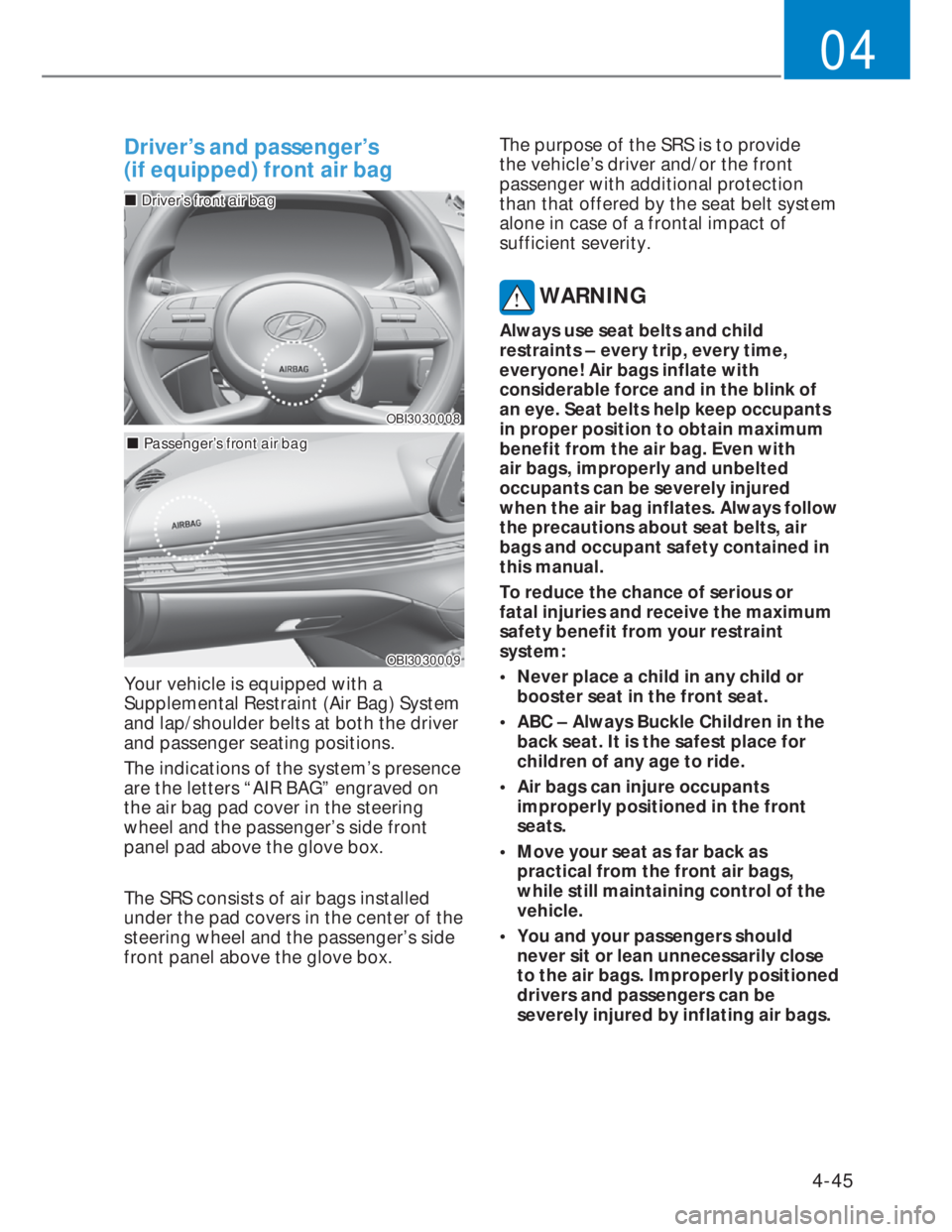

Driver’s and passenger’s
(if equipped) front air bag
OBI3030008OBI3030008
„„Driver’s front air bagDriver’s front air bag
„„Passenger’s front air bagPassenger’s front air bag
OBI3030009OBI3030009
Your vehicle is equipped with a
Supplemental Restraint (Air Bag) System
and lap/shoulder belts at both the driver
and passenger seating positions.
The indications of the system’s presence
are the letters “AIR BAG” engraved on
the air bag pad cover in the steering
wheel and the passenger’s side front
panel pad above the glove box.
The SRS consists of air bags installed
under the pad covers in the center of the
steering wheel and the passenger’s side
front panel above the glove box. The purpose of the SRS is to provide
the vehicle’s driver and/or the front
passenger with additional protection
than that offered by the seat belt system
alone in case of a frontal impact of
sufficient severity.
WARNING
Always use seat belts and child
restraints – every trip, every time,
everyone! Air bags inflate with
considerable force and in the blink of
an eye. Seat belts help keep occupants
in proper position to obtain maximum
benefit from the air bag. Even with
air bags, improperly and unbelted
occupants can be severely injured
when the air bag inflates. Always follow
the precautions about seat belts, air
bags and occupant safety contained in
this manual.
To reduce the chance of serious or
fatal injuries and receive the maximum
safety benefit from your restraint
system:
• Never place a child in any child or
booster seat in the front seat.
• ABC – Always Buckle Children in the
back seat. It is the safest place for
children of any age to ride.
• Air bags can injure occupants
improperly positioned in the front
seats.
• Move your seat as far back as
practical from the front air bags,
while still maintaining control of the
vehicle.
• You and your passengers should
never sit or lean unnecessarily close
to the air bags. Improperly positioned
drivers and passengers can be
severely injured by inflating air bags.

4-46
Safety system
• Never lean against the door or center
console – always sit in an upright
position.
• No objects (such as crash pad cover,
cellular phone holder, cup holder,
perfume or stickers) should be placed
over or near the air bag modules
on the steering wheel, instrument
panel, windshield glass, and the front
passenger’s panel above the glove
box. Such objects could cause harm
if the vehicle is in a crash severe
enough to cause the air bags to
deploy.
• Do not attach any objects on the
front windshield and inside mirror.
• Do not tamper with or disconnect
SRS wiring or other components
of the SRS system. Doing so could
result in injury, due to accidental
deployment of the air bags or by
rendering the SRS inoperative.
• If the SRS air bag warning light
remains illuminated while the vehicle
is being driven, we recommend
that the system be inspected by an
authorized HYUNDAI dealer.
• Air bags can only be used once –
we recommend that the system be
replaced by an authorized HYUNDAI
dealer.
• The SRS is designed to deploy the
front air bags only when an impact is
sufficiently severe. Additionally, the
air bags will only deploy once. Seat
belts must be worn at all times.
• Front air bags are not intended to
deploy in side-impact, rear-impact or
rollover crashes. In addition, front air
bags will not deploy in frontal crashes
below the deployment threshold.• A child restraint system must never
be placed in the front seat. The infant
or child could be severely injured or
killed by an air bag deployment in
case of an accident.
• Children age 12 and under must
always be properly restrained in the
rear seat. Never allow children to
ride in the front passenger seat. If a
child over 12 must be seated in the
front seat, he or she must be properly
belted and the seat should be moved
as far back as possible.
• For maximum safety protection in
all types of crashes, all occupants
including the driver should always
wear their seat belts whether or not
an air bag is also provided at their
seating position to minimize the
risk of severe injury or death in the
event of a crash. Do not sit or lean
unnecessarily close to the air bag
while the vehicle is in motion.
• Sitting improperly or out of position
can result in serious or fatal injury
in a crash. All occupants should sit
upright with the seat back in an
upright position, centered on the seat
cushion with their seat belt on, legs
comfortably extended and their feet
on the floor until the vehicle is parked
and the ignition key is removed.
• The SRS air bag system must deploy
very rapidly to provide protection
in a crash. If an occupant is out of
position because of not wearing a
seat belt, the air bag may forcefully
contact the occupant causing serious
or fatal injuries.

4-47
04
Why didn’t my air bag go off in a
collision? (Inflation and non-inflation
conditions of the air bag)
There are many types of accidents
in which the air bag would not be
expected to provide additional
protection.
These include rear impacts, second
or third collisions in multiple impact
accidents, as well as low speed
impacts.
Side air bag (if equipped)
OIB034021OIB034021
OJK032063OJK032063
The actual air bags in the vehicle may differ
from the illustration.
Your vehicle is equipped with a side air
bag in each front seat.
The purpose of the air bag is to provide
the vehicle’s driver and/or the front
passenger with additional protection
than that offered by the seat belt alone. The side air bags are designed to
deploy only during certain side-
impact collisions, depending on the
crash severity, angle, speed and point
of impact. The side air bags are not
designed to deploy in all side impact
situations.
WARNING
Do not allow the passengers to lean
their heads or bodies onto doors,
put their arms on the doors, stretch
their arms out of the window, or
place objects between the doors and
passengers when they are seated
on seats equipped with side and/or
curtain air bags.
WARNING
• The side air bag is supplemental to
the driver’s and the passenger’s seat
belt systems and is not a substitute
for them. Therefore your seat belts
must be worn at all times while the
vehicle is in motion. The air bags
deploy only in certain side impact
conditions severe enough to cause
significant injury to the vehicle
occupants.
• For best protection from the side
air bag system and to avoid being
injured by the deploying side air bag,
both front seat occupants should sit
in an upright position with the seat
belt properly fastened. The driver’s
hands should be placed on the
steering wheel at the 9:00 and 3:00
positions. The passenger’s arms and
hands should be placed on their laps.
• Do not use any accessory seat covers.
• Use of seat covers could reduce or
prevent the effectiveness of the
system.
• Do not install any accessories on the
side or near the side air bag.

4-54
Safety system
OBC3030033OBC3030033
• Air bags may not inflate if the vehicle
collides with objects such as utility
poles or trees, where the point of
impact is concentrated and the
collision energy is absorbed by the
vehicle structure.
SRS Care
The SRS is virtually maintenance-
free and so there are no parts you
can safely service by yourself. If the
SRS air bag warning light does not
illuminate, or continuously remains
on, we recommend that the system be
inspected by an authorized HYUNDAI
dealer.
We recommend that the any work on
the SRS system, such as removing,
installing, repairing, or any work on the
steering wheel, the front passenger’s
panel, front seats and roof rails be
performed by an authorized HYUNDAI
dealer. Improper handling of the SRS
system may result in serious personal
injury.
WARNING
• Modification to SRS components
or wiring, including the addition
of any kind of badges to the pad
covers or modifications to the body
structure, can adversely affect SRS
performance and lead to possible
injury.
• For cleaning the air bag pad covers,
use only a soft, dry cloth or one which
has been moistened with plain water.
Solvents or cleaners could adversely
affect the air bag covers and proper
deployment of the system.
