10
While operating your vehicle:
• Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.
• Check for vibrations in the steering
wheel. Notice any increased steering
effort or looseness in the steering
wheel, or change in its straight-ahead
position.
• Notice if your vehicle constantly turns
slightly or “pulls” to one side when
traveling on smooth, level road.
• When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.
• If any slipping or changes in the
operation of your transmission occurs,
check the transmission fluid level.
• Check the parking brake.
• Check for fluid leaks under your
vehicle (water dripping from the air
conditioning system during or after
use is normal).
At least monthly:
• Check the coolant level in the engine
coolant reservoir.
• Check the operation of all exterior
lights, including the stoplights, turn
signals and hazard warning flashers.
• Check the inflation pressures of all
tires including the spare for tires that
are worn, show uneven wear, or are
damaged.
• Check for loose wheel lug nuts.
At least twice a year
(i.e., every Spring and Fall):
• Check the radiator, heater and air
conditioning hoses for leaks or
damage.
• Check the windshield washer spray
and wiper operation. Clean wiper
blades with clean cloth dampened
with washer fluid.
• Check the headlight alignment.
• Check the muffler, exhaust pipes,
shields and clamps.
• Check the lap/shoulder belts for wear
and function.
At least once a year:
• Clean the body and door drain holes.
• Lubricate the door hinges and checks,
and hood hinges.
• Lubricate the door and hood locks and
latches.
• Lubricate the door rubber
weatherstrips.
• Check the air conditioning system.
• Inspect and lubricate Automated
manual transmission linkage and
controls.
• Clean the battery and terminals.
• Check the brake/clutch fluid level.

10-14
Maintenance
MAINTENANCE
INTERVALS
MAINTENANCE ITEMNumber of months or driving distance, whichever comes first
Kmsx1,000
1.51020304050607080
Months
2 1224364860728496
Years
- 12345678
Tyre Pressure,condition & rotation - I,TR I,TR I,TR I,TR I,TR I,TR I,TR I,TR
Fuel lines, hoses and connections IIIIIIII
iMT system clutch tube and line - I IIIIIII
Driveshafts & bootsIIIIIIIII
Fluid leakages IIIIIIIII
Front and rear wheel bearings & bushes Inspect if reqd.
Parking brake (disc/drum ,shoe & operation) - CCCCCCCC
Wheel Alignment & Balancing - Inspect if reqd.
FINAL CHECKS
Bolt and nuts on chasis and body I I IIIIIII
Lubricate locks & hinges ILLLLLLLL
Check all electrical systems (Drive belts ,alterna-
tor)*
9
IIIIIIIII
Warning lights operation & GDS system check I IIIIIIII
Ext & int. lights, horn & gaugesIIIIIIIII
NORMAL MAINTENANCE SCHEDULE - PETROL ENGINE (CONT.)
I : Inspect and if necessary adjust,top-up, clean or replace
R : ReplaceC : Clean and Replace if necessary
TR : Tyre Rotation L : Lubricate

10-20
Maintenance

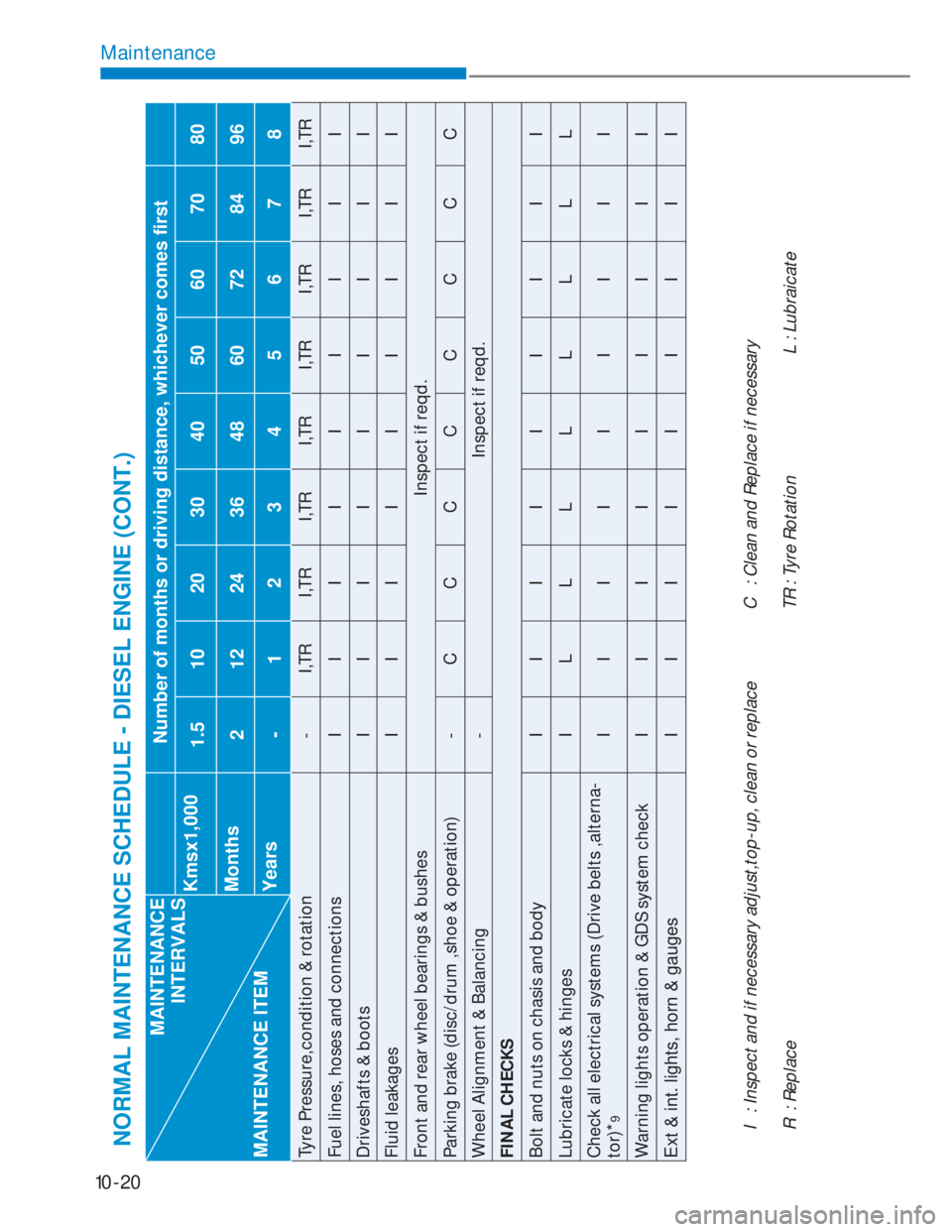

NORMAL MAINTENANCE SCHEDULE - DIESEL ENGINE (CONT.)
MAINTENANCE
INTERVALS
MAINTENANCE ITEMNumber of months or driving distance, whichever comes first
Kmsx1,000
1.51020304050607080
Months
2 1224364860728496
Years
- 12345678
Tyre Pressure,condition & rotation - I,TR I,TR I,TR I,TR I,TR I,TR I,TR I,TR
Fuel lines, hoses and connectionsIIIIIIIII
Driveshafts & bootsIIIIIIIII
Fluid leakages I IIIIIIII
Front and rear wheel bearings & bushes Inspect if reqd.
Parking brake (disc/drum ,shoe & operation) - C CCCCCCC
Wheel Alignment & Balancing - Inspect if reqd.
FINAL CHECKS
Bolt and nuts on chasis and body I I IIIIIII
Lubricate locks & hinges ILLLLLLLL
Check all electrical systems (Drive belts ,alterna-
tor)*
9
IIIIIIIII
Warning lights operation & GDS system check I IIIIIIII
Ext & int. lights, horn & gaugesIIIIIIIII
C : Clean and Replace if necessary
TR : Tyre Rotation L : Lubraicate I : Inspect and if necessary adjust,top-up, clean or replace
R : Replace

10-54
Maintenance

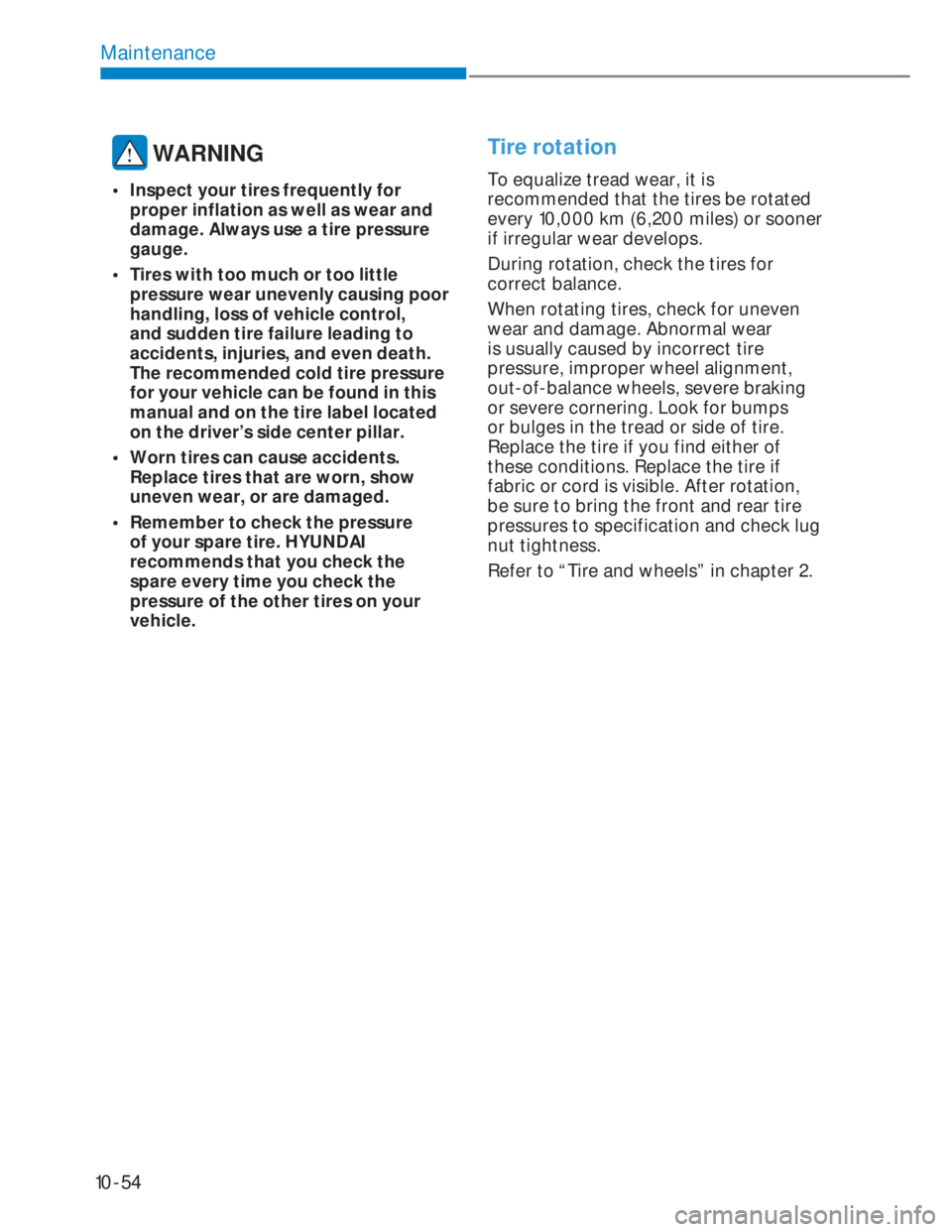

WARNING
• Inspect your tires frequently for
proper inflation as well as wear and
damage. Always use a tire pressure
gauge.
• Tires with too much or too little
pressure wear unevenly causing poor
handling, loss of vehicle control,
and sudden tire failure leading to
accidents, injuries, and even death.
The recommended cold tire pressure
for your vehicle can be found in this
manual and on the tire label located
on the driver’s side center pillar.
• Worn tires can cause accidents.
Replace tires that are worn, show
uneven wear, or are damaged.
• Remember to check the pressure
of your spare tire. HYUNDAI
recommends that you check the
spare every time you check the
pressure of the other tires on your
vehicle.
Tire rotation
To equalize tread wear, it is
recommended that the tires be rotated
every 10,000 km (6,200 miles) or sooner
if irregular wear develops.
During rotation, check the tires for
correct balance.
When rotating tires, check for uneven
wear and damage. Abnormal wear
is usually caused by incorrect tire
pressure, improper wheel alignment,
out-of-balance wheels, severe braking
or severe cornering. Look for bumps
or bulges in the tread or side of tire.
Replace the tire if you find either of
these conditions. Replace the tire if
fabric or cord is visible. After rotation,
be sure to bring the front and rear tire
pressures to specification and check lug
nut tightness.
Refer to “Tire and wheels” in chapter 2.

10-55
10
CBGQ0706CBGQ0706

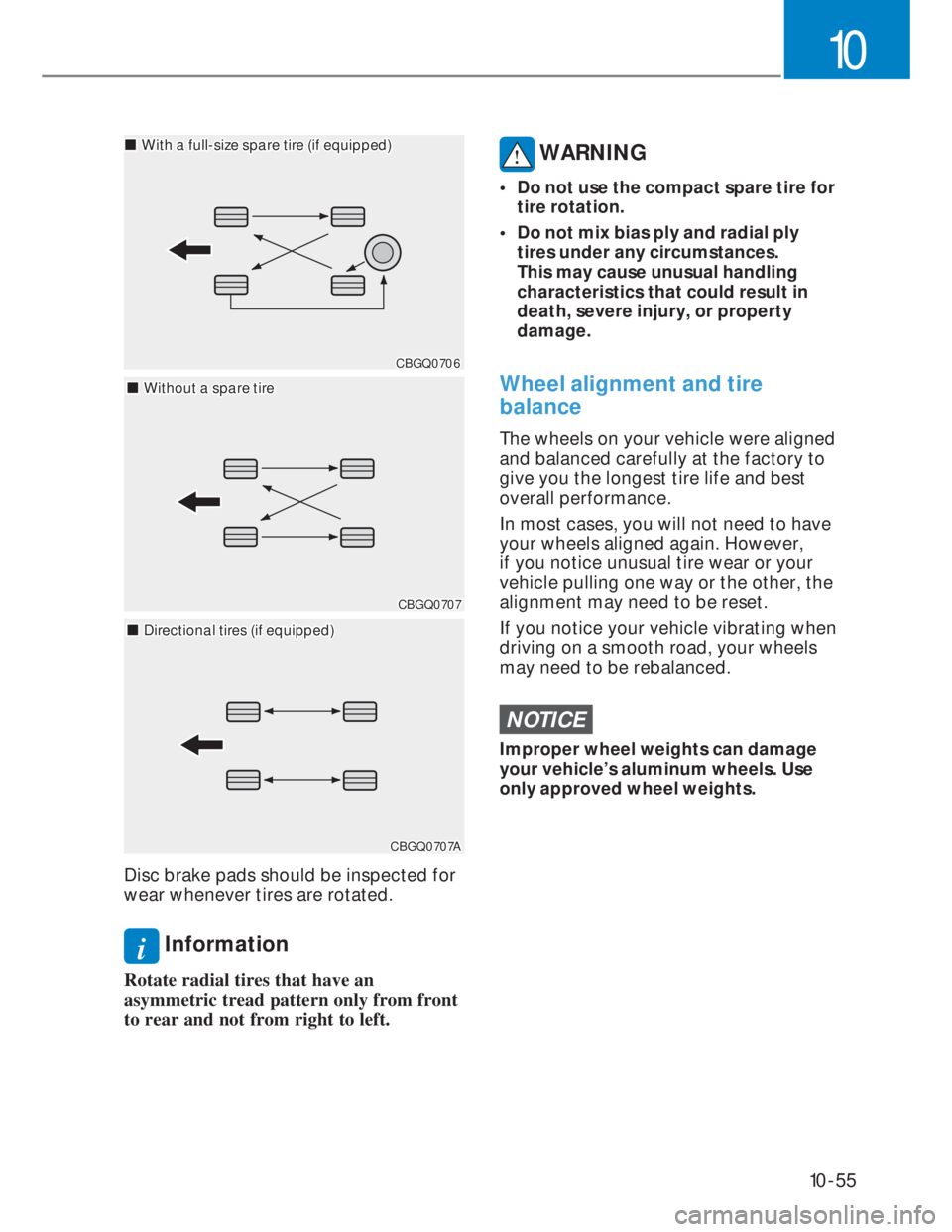

„„With a full-size spare tire (if equipped)With a full-size spare tire (if equipped)
„„Without a spare tireWithout a spare tire
CBGQ0707CBGQ0707
„„Directional tires (if equipped)Directional tires (if equipped)
CBGQ0707ACBGQ0707A
Disc brake pads should be inspected for
wear whenever tires are rotated.
i Information
Rotate radial tires that have an
asymmetric tread pattern only from front
to rear and not from right to left.
WARNING
• Do not use the compact spare tire for
tire rotation.
• Do not mix bias ply and radial ply
tires under any circumstances.
This may cause unusual handling
characteristics that could result in
death, severe injury, or property
damage.
Wheel alignment and tire
balance
The wheels on your vehicle were aligned
and balanced carefully at the factory to
give you the longest tire life and best
overall performance.
In most cases, you will not need to have
your wheels aligned again. However,
if you notice unusual tire wear or your
vehicle pulling one way or the other, the
alignment may need to be reset.
If you notice your vehicle vibrating when
driving on a smooth road, your wheels
may need to be rebalanced.
NOTICE
Improper wheel weights can damage
your vehicle’s aluminum wheels. Use
only approved wheel weights.

10-58
Maintenance
Tire maintenance
In addition to proper inflation, correct
wheel alignment helps decrease tire
wear. If you find a tire worn unevenly,
have your dealer check the wheel
alignment.
When you have new tires installed,
make sure they are balanced. This will
increase vehicle ride comfort and tire
life. Additionally, a tire should always
be rebalanced if it is removed from the
wheel.
Tire sidewall labeling
I030B04JMI030B04JM
22
11
77
5,65,6
33
44
11
This information identifies and describes
the fundamental characteristics of
the tire and also provides the tire
identification number (TIN) for safety
standard certification. The TIN can be
used to identify the tire in case of a
recall.
1. Manufacturer or brand name
Manufacturer or Brand name is shown.
2. Tire size designation
A tire’s sidewall is marked with a tire
size designation. You will need this
information when selecting replacement
tires for your car. The following explains
what the letters and numbers in the tire
size designation mean.
Example tire size designation:
(These numbers are provided as an
example only; your tire size designator
could vary depending on your vehicle.)
185/65R15 88 H
185 - Tire width in millimeters.
65 - Aspect ratio. The tire’s section
height as a percentage of its width.
R - Tire construction code (Radial).
15 - Rim diameter in inches.
88 - Load Index, a numerical code
associated with the maximum load
the tire can carry.
H - Speed Rating Symbol. See the
speed rating chart in this section for
additional information.
