3-3
03
1. Antenna .........................................................................................................................................6-87
2. Doors............................................................................................................................................. 6-15
3. Fuel filler door
..............................................................................................................................6-39
4. Rear ultrasonic sensors
............................................................................................................... 8-10
5. High mounted stop light
........................................................................................................... 10-85
6. Rear view camera*
....................................................................................................................... 8-6
7. Rear window wiper blade*
........................................................................................................ 10-45
8. Tailgate
.........................................................................................................................................6-36
* : if equipped
( ; 7 ( 5 , 2 5 2 9 ( 5 9 , ( :
Page 22 of 444
3-4
Vehicle information
The actual shape may differ from the illustration.
OBI3010003OBI3010003

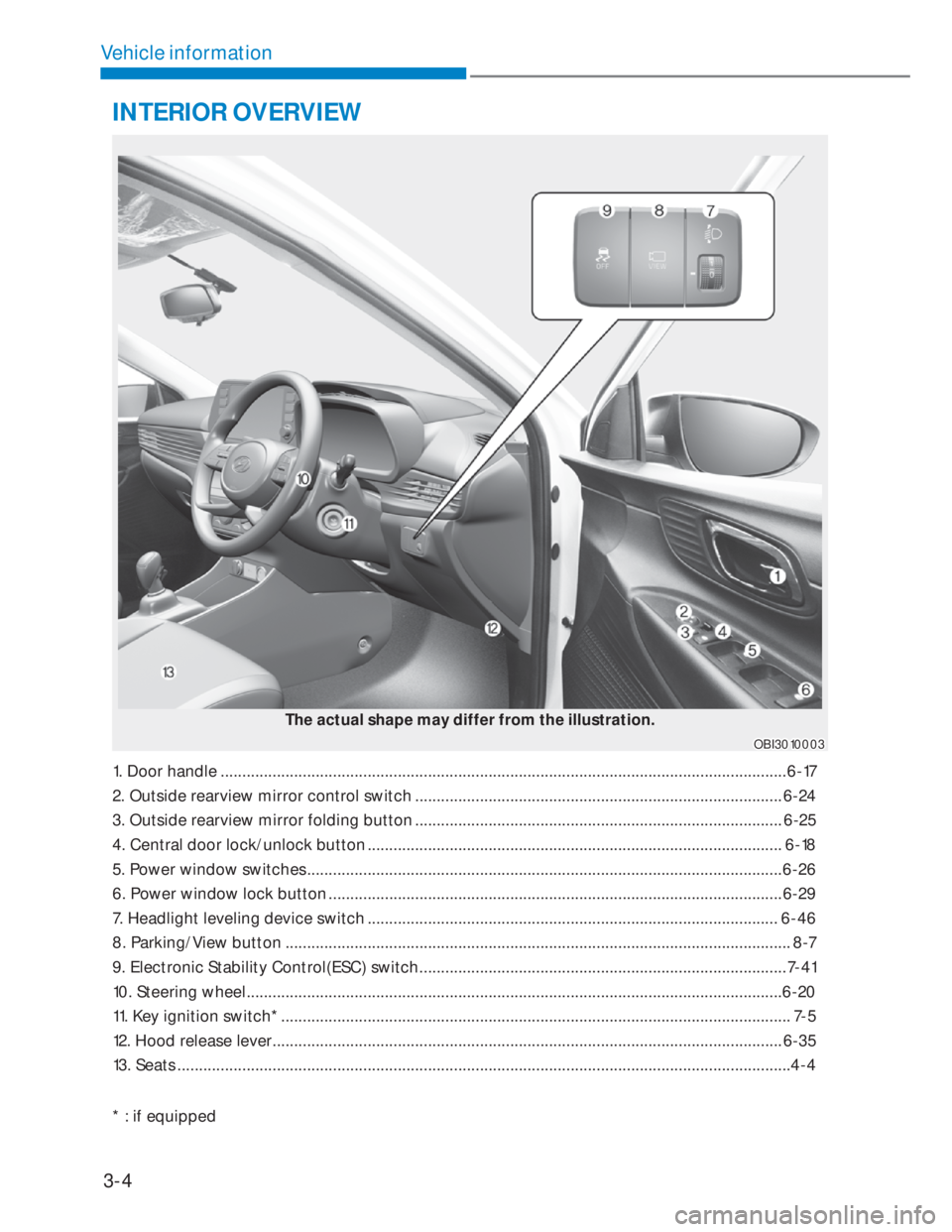

INTERIOR OVERVIEW
1. Door handle ...................................................................................................................................6-17
2. Outside rearview mirror control switch
..................................................................................... 6-24
3. Outside rearview mirror folding button
..................................................................................... 6-25
4. Central door lock/unlock button
................................................................................................ 6-18
5. Power window switches
..............................................................................................................6-26
6. Power window lock button
.........................................................................................................6-29
7. Headlight leveling device switch
............................................................................................... 6-46
8. Parking/View button
..................................................................................................................... 8-7
9. Electronic Stability Control(ESC) switch
..................................................................................... 7-41
10. Steering wheel
............................................................................................................................6-20
11. Key ignition switch*
...................................................................................................................... 7-5
12. Hood release lever...................................................................................................................... 6-35
13. Seats
..............................................................................................................................................4-4
* : if equipped
Page 23 of 444
3-5
03
The actual shape may differ from the illustration.
OBI3010004OBI3010004
INSTRUMENT PANEL OVERVIEW
1. Lighting control/Turn signals switch ...........................................................................................6-42
2. Driver Assist button
....................................................................................................................... 8-2
3. Instrument cluster
......................................................................................................................... 5-2
4. Horn
.............................................................................................................................................. 6-22
5. Driver’s air bag
.............................................................................................................................4-42
6. Wipers and Washers switch
....................................................................................................... 6-50
7. Steering wheel audio controls*
.................................................................................................. 6-88
8. Engine Start/Stop button*
............................................................................................................ 7-9
9. Shift lever
...................................................................................................................................... 7-15
10. USB port
......................................................................................................................................6-87
11. Power outlet
............................................................................................................................... 6-80
12. Climate control system*
............................................................................................................6-53
13. Infotainment system
..................................................................................................................6-87
14. Hazard warning light button
....................................................................................................... 9-2
15. Passenger’s front air bag
...........................................................................................................4-43
16. Glove box
.................................................................................................................................... 6-78
* : if equipped
Page 24 of 444
3-6
Vehicle information
1. Engine coolant reservoir ............................................................................................................ 10-30
2. Engine oil filler cap
................................................................................................................... 10-26
3. Brake/clutch* fluid reservoir
.................................................................................................... 10-33
4. Air cleaner
................................................................................................................................. 10-39
5. Fuse box
.....................................................................................................................................10-61
6. Battery
....................................................................................................................................... 10-46
7. Windshield washer fluid reservoir ............................................................................................ 10-36
8. Radiator cap
................................................................................................................................ 10-31
9. Engine oil dipstick
..................................................................................................................... 10-26
ENGINE COMPARTMENT
The actual engine room in the vehicle may differ from the illustration.
OBI3090001/OBC3090003ROBI3090001/OBC3090003R
„ „Petrol Engine (1.0 T-GDi)Petrol Engine (1.0 T-GDi)
„ „Petrol Engine (Smartstream G1.2)Petrol Engine (Smartstream G1.2)
Page 25 of 444
3-7
03
1. Engine coolant reservoir ............................................................................................................ 10-30
2. Engine oil filler cap
................................................................................................................... 10-26
3. Brake/clutch* fluid reservoir
.................................................................................................... 10-33
4. Air cleaner
................................................................................................................................. 10-39
5. Fuse box
.....................................................................................................................................10-61
6. Battery
....................................................................................................................................... 10-46
7. Windshield washer fluid reservoir ............................................................................................ 10-36
8. Radiator cap
................................................................................................................................ 10-31
9. Engine oil dipstick
..................................................................................................................... 10-26
The actual engine room in the vehicle may differ from the illustration.
OBI3090002OBI3090002
„ „Diesel Engine (1.5 WGT)Diesel Engine (1.5 WGT)
Page 26 of 444
3-8
Vehicle information
DIMENSIONS
ENGINE SPECIFICATION
ItemPetrol Engine Diesel Engine
1.0 T-GDi Smartstream G1.2 1.5 WGT
Displacement
cc998 1,197 1,493
Bore x Stroke
mm71 x 84 71 x 75.6 75 X 84.5
Firing order In-line In-line In-line
No. of cylinders 3 4 4
Items5 Door
Overall length3,995 (157.28)
Overall width1,775 (69.88)
Overall height 1,505 (59.25)
Front tread185/70R14 1,549 (60.98)
185/65R15 1,549 (60.98)
195/55R16 1,537 (60.51)
Rear tread 185/70R14 1,558 (61.34)
185/65R15 1,558 (61.34)
195/55R16 1,546 (60.87)
Wheelbase 2,580 (101.57)
mm (in.)
Page 27 of 444
3-9
03

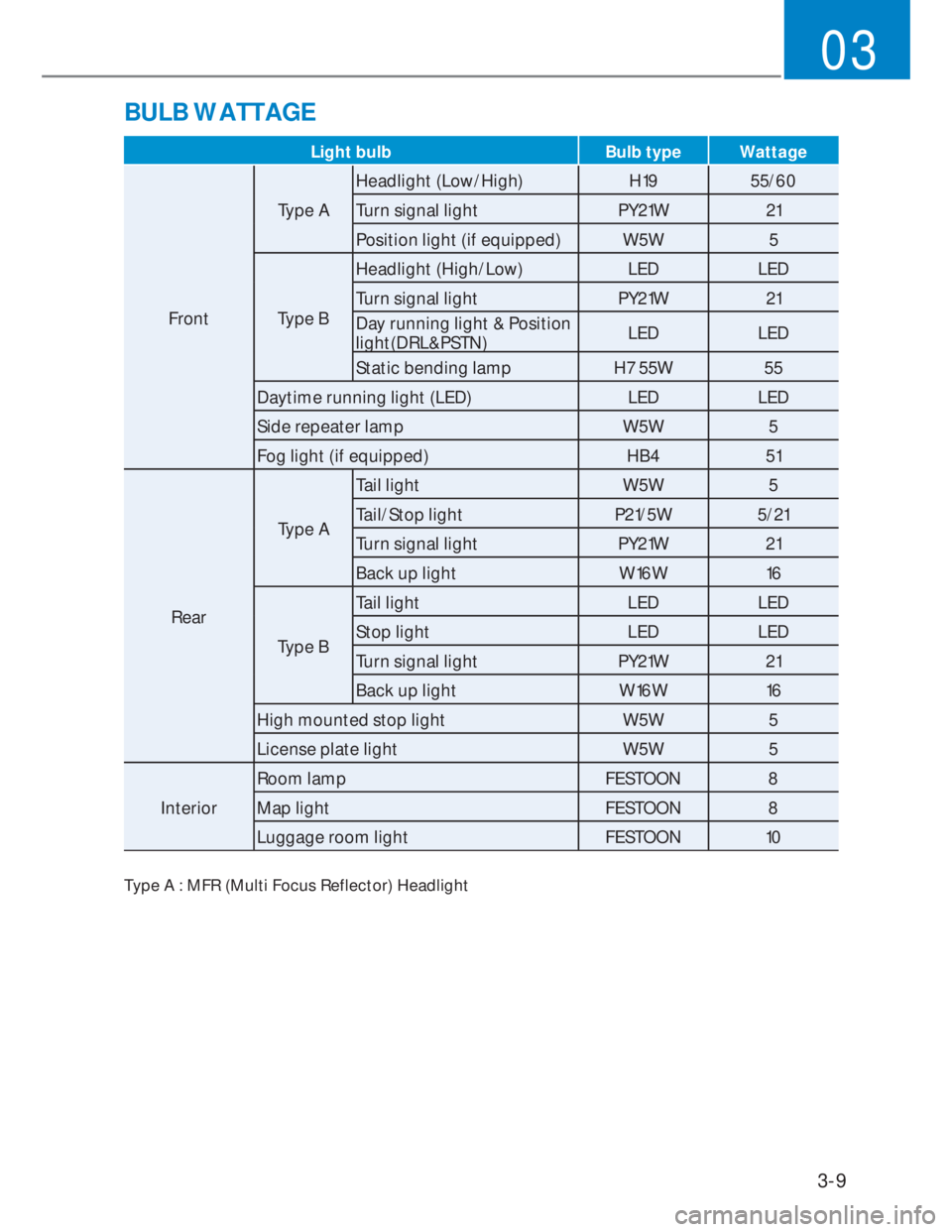

BULB WATTAGE
Light bulb Bulb type Wattage
FrontType AHeadlight (Low/High) H19 55/60
Turn signal light PY21W 21
Position light (if equipped) W5W 5
Type BHeadlight (High/Low) LED LED
Turn signal light PY21W 21
Day running light & Position
light(DRL&PSTN)LED LED
Static bending lamp H7 55W 55
Daytime running light (LED) LED LED
Side repeater lamp W5W 5
Fog light (if equipped) HB4 51
RearType ATail light W5W 5
Tail/Stop light P21/5W 5/21
Turn signal light PY21W 21
Back up light W16W 16
Type BTail light LED LED
Stop light LED LED
Turn signal light PY21W 21
Back up light W16W 16
High mounted stop light W5W 5
License plate light W5W 5
InteriorRoom lamp FESTOON 8
Map light FESTOON 8
Luggage room light FESTOON 10
Type A : MFR (Multi Focus Reflector) Headlight
Page 28 of 444
3-10
Vehicle information
TIRES AND WHEELS
Item Tire sizeWheel
sizeInflation pressure kPa (psi)
Wheel lug nut
torque kgf·m
(lbf·ft, N·m) Normal load *1Maximum load
Front Rear Front Rear
Full size
tire5 Door185/70R14 5.5J x 14230
(33)215
(31)230
(33)230
(33)
11~13
(79~94, 107~127) 185/65R15 5.5J x 15230
(33)215
(31)230
(33)230
(33)
195/55R16 6.0J x 16230
(33)215
(31)230
(33)230
(33)
NOTICE
• It is permissible to add 20 kPa (3 psi) to the standard tire pressure specification if
colder temperatures are expected soon. Tires typically lose 7 kPa (1 psi) for every
7°C (12°F) temperature drop. If extreme temperature variations are expected,
recheck your tire pressure as necessary to keep them properly inflated.
• An air pressure generally decreases, as you drive up to a high-altitude area above
sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures
in advance. If necessary, inflate them to a proper level (Air inflation per altitude:
+10 kPa/1 km (+2.4 psi/1 mile).
• Spare wheel are intended for emergency purpose.
• Only Steel wheel is provided as spare wheel. Spare tires can be from any
manuafacturer.
CAUTION
When replacing tires, always use tires of the same type, size, brand, construction
and tread pattern.
Using tires of a different size can damage the related parts or make it work
irregularly.
*1 : Normal load : Up to 3 persons
Page 29 of 444
3-11
03
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *2 *4
(drain and refill)Petrol 1.0 T-GDi b ACEA C2
Petrol Smartstream G1.2 bSAE 0W20, API SN PLUS/SP
or ILSAC GF-6
(Diesel) 1.5 WGT bACEA C5, 0W-20
Manual
transmission fluid
(Intelligent manual
transmission fluid)Petrol 1.0 T-GDi a b
API GL-4, SAE 70W Petrol Smartstream G1.2 a b
(Diesel) 1.5 WGT a b
Intelligent manual
transmission
system actuator
fluidPetrol 1.0 T-GDi b SAE J1704 DOT-4 LV,
ISO4925 CLASS-6,
FMVSS116 DOT-4,
FMVSS116 DOT-3
Dual clutch
transmission fluidPetrol 1.0 T-GDi a bAPI GL-4, SAE 70W
Intelligent variable
transmission fluidPetrol Smartstream G1.2 bCVTF SP-CVT1 *
3
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*
2 : Requires
including Semi-synthetic other than API SN plus) is used, then the engine oil and engine oil
filter must be replaced as indicated severe maintenance condition.
*
3 : Use only specified genuine Intelligent Variable Transmission fluid. The use of non-specified
fluid (even marked as compatible with genuine) could result in shift quality deterioration and
vibrations, eventually, the transmission failure.
*
4 :We recommend that you use the engine oils approved by HYUNDAI Motor India Ltd. We
recommend that you consult an authorized HYUNDAI dealer for details.
CoolantPetrol 1.0 T-GDi b
MIXTURE, Antifreeze with
water (Ethylene glycol base
coolant for aluminum radiator) Petrol Smartstream G1.2 b
Diesel 1.5 WGT b
Brake/Clutch fluid a b FMVSS116 DOT-4
Fuel 37b-
Page 30 of 444
3-12
Vehicle information
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher
viscosity engine oils are required for satisfactory lubrication in hot weather.
Using oils of any viscosity other than those recommended could result in engine
damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended oil
viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40
-10 0 20 40 60 80 100
0W-20/30
5W-30(Diesel) 1.5 WGT
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Petrol
Engine
Oil
0W-20
20W-50
10W-30
15W-40
0W-30, 5W-30, 5W-40
1.0 T-GDi
Smartstream
G1.2 *1
*1 : If mineral oil or semi-synthetic oil is used, it is a severe maintenance condition in
terms of engine oil change.
Recommended SAE viscosity number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick
before checking or draining any lubricant. This is especially important in dusty or
sandy areas and when the vehicle is used on unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt and grit from entering the engine and other
mechanisms that could be damaged.
An engine oil displaying this American Petroleum Institute(API)
Certification Mark conforms to the International Lubricant
Specification Advisory Committee (ILSAC). It is recommended to only
use engine oils that uphold this API Certification Mark.
