Instrument cluster
Master Warning Light
(if equipped)
This indicator light illuminates :
• When the remaining mileage or time
is 0 on the “Service Interval” in the
cluster.
If the service interval setting is reset,
the master warning light turns off.

KEY OUT Indicator Light
(if equipped)
KEY
OUT
When the Engine Start/Stop button is
in the ACC or ON position, if any door is
open, the system checks for the smart
key.
This indicator light blinks:
When the smart key is not in the vehicle
and any door is open with the ignition
switch or Engine Start/Stop button in the
ACC or ON position.
- At this time, if you close all doors,
the chime will also sound for
approximately 5 seconds.
- The indicator will go off while the
vehicle is moving.
Low Tire Pressure
Warning Light
(if equipped)
This warning light illuminates:
• When you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3
seconds and then goes off.
• When one or more of your tires
are significantly underinflated (The
location of the underinflated tires are
displayed on the LCD display).
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
This warning light remains on after
blinking for approximately 60 seconds
or repeatedly blinks on and off at
approximately 3 second intervals:
• When there is a malfunction with the
TPMS.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
WARNING
Safe Stopping
• The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.
• If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.

5-21
05
Wiper mode
OCN7040039LOCN7040039L
This indicator displays which wiper
speed is selected using the wiper
control.
Turn on FUSE SWITCH
This warning message is displayed if
the fuse switch located on the fuse box
under the steering wheel is OFF.
You should turn the fuse switch on.
For more details, refer to “Fuses”
Section in chapter 9.
Low pressure (if equipped)
OBI3040008OBI3040008
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
Heated Steering Wheel turned off
(if equipped)
This message illuminates if the heated
steering wheel will turn off automatically
approximately 30 minutes after the
heated steering wheel is turned on.
For more details, refer to “Heated
Steering Wheel” in chapter 5.
Low fuel
This warning message is displayed if the
fuel tank is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the
nearest fueling station and refuel as
soon as possible.

5-24
Instrument cluster

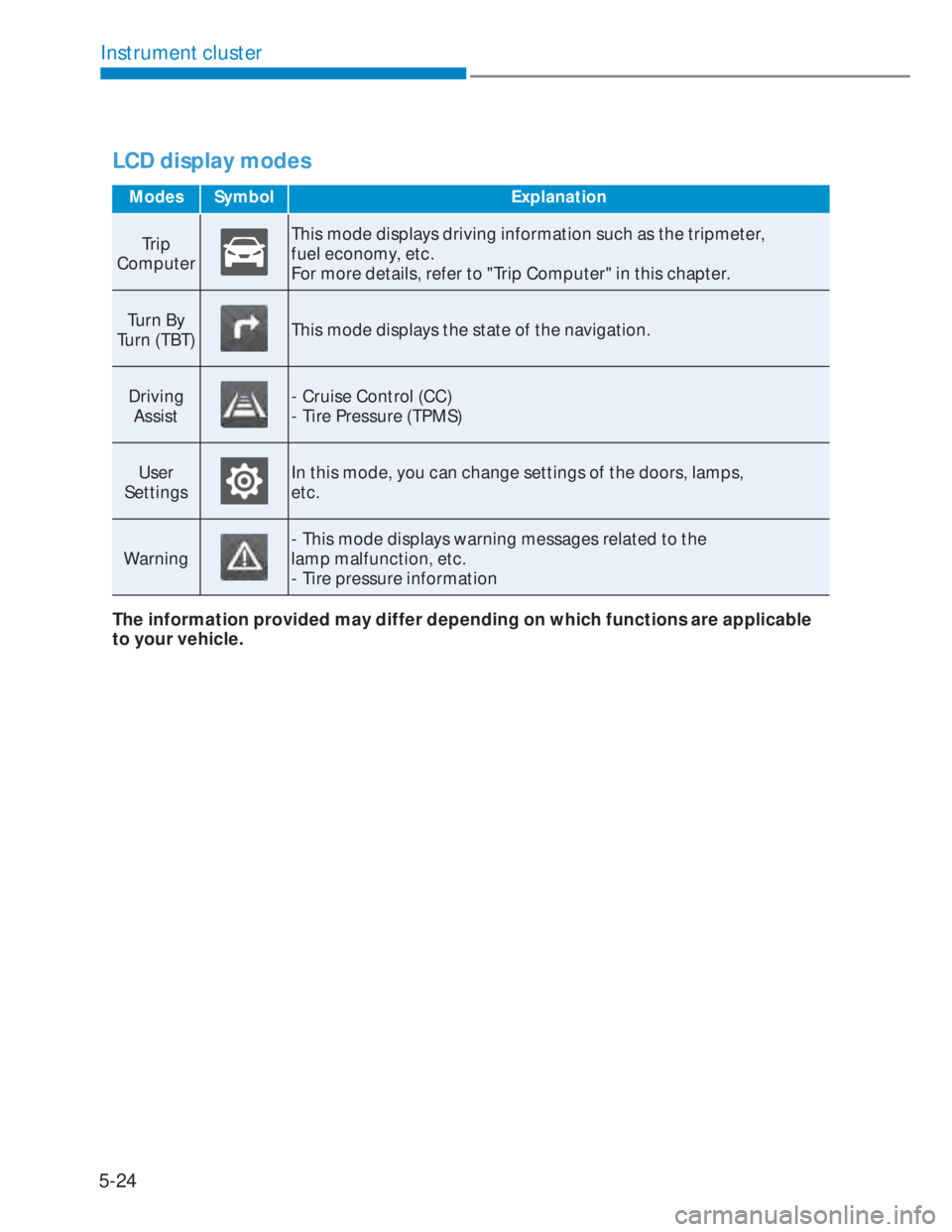

LCD display modes
Modes Symbol Explanation
Trip
ComputerThis mode displays driving information such as the tripmeter,
fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By
Turn (TBT)
This mode displays the state of the navigation.
Driving
Assist
- Cruise Control (CC)
- Tire Pressure (TPMS)
User
Settings
In this mode, you can change settings of the doors, lamps,
etc.
Warning
- This mode displays warning messages related to the
lamp malfunction, etc.
- Tire pressure information
The information provided may differ depending on which functions are applicable
to your vehicle.

5-25
05
Trip computer mode
OIK047124LOIK047124L
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle speed.
For more details, refer to "Trip
Computer" in this chapter.
Turn By Turn (TBT) group
OCN7060149OCN7060149
This group displays the state of the
navigation.
Driving Assist mode
OSU2I049039OSU2I049039
CC
This mode displays the state of Cruise
Control (CC).
For more details, refer to “Cruise
Control” in chapter 7.
OBI3040009OBI3040009
Tire Pressure
This mode displays information related
to Tire Pressure.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” in chapter
8.

Hazard warning flasher................................................................................... 9-2
In case of an emergency while driving
.......................................................... 9-2
If the engine stalls while driving .............................................................................. 9-2
If the engine stalls at a crossroad or crossing ......................................................... 9-2
If you have a flat tire while driving
.......................................................................... 9-3
If the engine will not start .............................................................................. 9-3
If the engine doesn’t turn over or turns over slowly ............................................... 9-3
If the engine turns over normally but doesn’t start ................................................ 9-3
Jump starting .................................................................................................. 9-4
If the engine overheats
................................................................................... 9-7
Tire pressure monitoring system (TPMS)
......................................................9-9
Check tire pressure ................................................................................................... 9-9
Tire pressure monitoring system .............................................................................9-10
Low tire pressure telltale..........................................................................................9-11
Low tire pressure position telltale and tire pressure telltale
..................................9-11
TPMS (Tire Pressure Monitoring System) malfunction indicator
.......................... 9-12
Changing a tire with TPMS ...................................................................................... 9-12
If you have a flat tire ......................................................................................9-14
Jack and tools........................................................................................................... 9-14
Removing and storing the spare tire....................................................................... 9-14
Changing tires
.......................................................................................................... 9-15
Jack label .................................................................................................................. 9-19
EC Declaration of conformity for Jack................................................................... 9-20
Towing ............................................................................................................ 9-21
Towing service .......................................................................................................... 9-21
Removable towing hook ......................................................................................... 9-22
Emergency towing .................................................................................................. 9-23
Emergency commodity ................................................................................ 9-25
First aid kit ............................................................................................................... 9-25
Triangle reflector ..................................................................................................... 9-25
9. Emergency situations
9

9-9
09
OBI3080002OBI3080002
OSU2I049052OSU2I049052

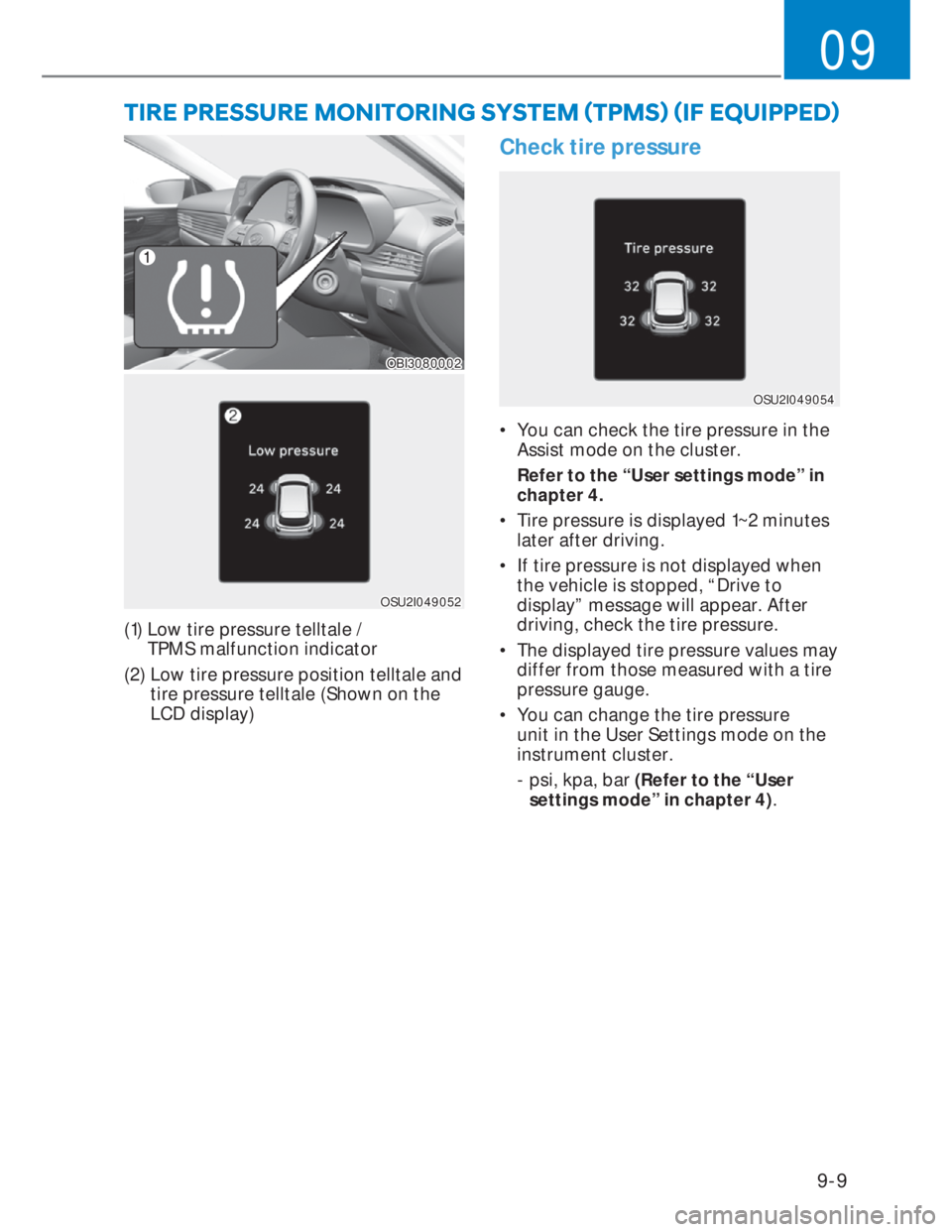

(1) Low tire pressure telltale /
TPMS malfunction indicator
(2) Low tire pressure position telltale and
tire pressure telltale (Shown on the
LCD display)
Check tire pressure
OSU2I049054OSU2I049054
• You can check the tire pressure in the
Assist mode on the cluster.
Refer to the “User settings mode” in
chapter 4.
• Tire pressure is displayed 1~2 minutes
later after driving.
• If tire pressure is not displayed when
the vehicle is stopped, “Drive to
display” message will appear. After
driving, check the tire pressure.
• The displayed tire pressure values may
differ from those measured with a tire
pressure gauge.
• You can change the tire pressure
unit in the User Settings mode on the
instrument cluster.
- psi, kpa, bar (Refer to the “User
settings mode” in chapter 4).

7,5(35(6685(021,725,1*6<67(0

9-10
Emergency situations
Tire pressure monitoring system
WARNING
Over-inflation or under-inflation can
reduce tire life, adversely affect vehicle
handling, and lead to sudden tire
failure that may cause loss of vehicle
control resulting in an accident.
Each tire, including the spare (if
provided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehicle
manufacturer on the vehicle placard
or tire inflation pressure label. (If your
vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label,
you should determine the proper tire
inflation pressure for those tires.)
As an added safety feature, your
vehicle has been equipped with a tire
pressure monitoring system (TPMS)
that illuminates a low tire pressure
telltale when one or more of your tires is
significantly under-inflated.
Accordingly, when the low tire pressure
telltale illuminates, you should stop and
check your tires as soon as possible,
and inflate them to the proper pressure.
Driving on a significantly under-inflated
tire causes the tire to overheat and can
lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling
and stopping ability.
Please note that the TPMS is not a
substitute for proper tire maintenance,
and it is the driver’s responsibility to
maintain correct tire pressure, even if
under-inflation has not reached the level
to trigger illumination of the TPMS low
tire pressure telltale.Your vehicle has also been equipped
with a TPMS malfunction indicator
to indicate when the system is
not operating properly. The TPMS
malfunction indicator is combined with
the low tire pressure telltale. When
the system detects a malfunction, the
telltale will flash for approximately one
minute and then remain continuously
illuminated. This sequence will continue
upon subsequent vehicle start-ups as
long as the malfunction exists. When
the malfunction indicator is illuminated,
the system may not be able to detect
or signal low tire pressure as intended.
TPMS malfunctions may occur for
a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that
prevent the TPMS from functioning
properly. Always check the TPMS
malfunction telltale after replacing
one or more tires or wheels on your
vehicle to ensure that the replacement
or alternate tires and wheels allow the
TPMS to continue to function properly.
i Information
If the TPMS indicator does not illuminate
for 3 seconds when the ignition switch
is turned to the ON position or engine
is running, or if it comes on after
blinking for approximately one minute,
we recommend that you contact an
authorized HYUNDAI dealer.

9-11
09
Low tire pressure
telltale
Low tire pressure position
telltale and tire pressure telltale
OSU2I049054OSU2I049054
When the tire pressure monitoring
system warning indicators are
illuminated and a warning message
displayed on the cluster LCD display,
one or more of your tires is significantly
under-inflated. The low tire pressure
position telltale light will indicate which
tire is significantly under-inflated by
illuminating the corresponding position
light.
If either telltale illuminates, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping
distances. You should stop and check
your tires as soon as possible. Inflate
the tires to the proper pressure as
indicated on the vehicle’s placard or tire
inflation pressure label located on the
driver’s side center pillar outer panel.
If you cannot reach a service station or
if the tire cannot hold the newly added
air, replace the low pressure tire with a
spare tire.
If you drive the vehicle for about 10
minutes at speeds above 25 km/h after
replacing the low pressure tire with the
spare tire, the following will happen:
• The TPMS malfunction indicator may
blink for approximately 1 minute and
then remain continuously illuminated
because the TPMS sensor is not
mounted on the spare wheel.
NOTICE
In winter or cold weather, the low tire
pressure telltale may be illuminated if
the tire pressure was adjusted to the
recommended tire inflation pressure
in warm weather. It does not mean
your TPMS is malfunctioning because
the decreased temperature leads to a
proportional lowering of tire pressure.
When you drive your vehicle from a
warm area to a cold area or from a cold
area to a warm area, or the outside
temperature is greatly higher or lower,
you should check the tire inflation
pressure and adjust the tires to the
recommended tire inflation pressure.
WARNING
Low pressure damage
Significantly low tire pressure makes
the vehicle unstable and can contribute
to loss of vehicle control and increased
braking distances.
Continued driving on low pressure tires
can cause the tires to overheat and fail.

9-12
Emergency situations
TPMS (Tire Pressure
Monitoring System)
malfunction indicator
The TPMS malfunction indicator
will illuminate after it blinks for
approximately one minute when there
is a problem with the Tire Pressure
Monitoring System. If the system is able
to correctly detect an under inflation
warning at the same time as system
failure then it will illuminate the TPMS
malfunction indicator.
We recommend that the system be
checked by an authorized HYUNDAI
dealer.
NOTICE
If there is a malfunction with the TPMS,
the low tire pressure position telltale
will not be displayed even though the
vehicle has an under-inflated tire.
CAUTION
• The TPMS malfunction indicator
may be illuminated if the vehicle is
moving around electric power supply
cables or radios transmitter such as
at police stations, government and
public offices, broadcasting stations,
military installations, airports, or
transmitting towers, etc. This can
interfere with normal operation of
the Tire Pressure Monitoring System
(TPMS).
• The TPMS malfunction indicator may
illuminate if snow chains or some
separately purchased devices such
as notebook computers, mobile
charger, remote starter, navigation
etc. are used in the vehicle. This can
interfere with normal operation of
the Tire Pressure Monitoring System
(TPMS).
Changing a tire with TPMS
If you have a flat tire, the Low Tire
Pressure will come on. We recommend
that the flat tire be checked by an
authorized HYUNDAI dealer.
NOTICE
We recommend that you use a
puncture-repairing agent approved by
HYUNDAI.
The sealant on the tire pressure sensor
and wheel shall be eleminated when
you replace the tire with a new one.
Each wheel is equipped with a tire
pressure sensor mounted inside
the tire behind the valve stem. You
must use TPMS specific wheels. It is
recommended that you have your tires
serviced by an authorized HYUNDAI
dealer.
Even if you replace the low pressure tire
with the spare tire, the Low Tire Pressure
Telltale will blink or remain on until the
low pressure tire is repaired and placed
on the vehicle.
After you replace the low pressure tire
with the spare tire, the Low Tire Pressure
Telltale may blink or illuminate after a
few minutes because the TPMS sensor
mounted on the spare wheel is not
initiated.
Once the low pressure tire is re-inflated
to the recommended pressure and
installed on the vehicle or the new TPMS
sensor mounted on the wheel, the TPMS
malfunction indicator and the low tire
pressure and position telltales will turn
off within a few minutes of driving.
If the indicator does not turn off after a
few minutes of driving, we recommend
that the system be checked by an
authorized HYUNDAI dealer.

9-13
09
NOTICE
If original mounted tire is replaced
with the spare tire, the TPMS sensor
on the replaced spare wheel should be
initiated and we recommend that the
TPMS sensor on the original mounted
wheel be deactivated by a HYUNDAI
dealer. If the TPMS sensor on the
original mounted wheel located in the
spare tire carrier still activates, the
tire pressure monitoring system may
not operate properly. We recommend
that the system be serviced by an
authorized HYUNDAI dealer.
You may not be able to identify a low
tire by simply looking at it. Always use
a good quality tire pressure gauge to
measure the tire’s inflation pressure.
Please note that a tire that is hot (from
being driven) will have a higher pressure
measurement than a tire that is cold.
A cold tire means the vehicle is in parked
position for at least 3 hours or driven
less than 1.6 km (1 mile) in that period.
Allow the tire to cool before measuring
the inflation pressure. Always be sure
the tire is cold before inflating to the
recommended pressure.
NOTICE
We recommend that you use the tire
sealant approved by HYUNDAI if your
vehicle is equipped with a Tire Pressure
Monitoring System. The liquid sealant
can damage the tire pressure sensors.
WARNING
TPMS
• The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors such as nails or road
debris.
• If you feel any vehicle instability,
immediately take your foot off
the accelerator, apply the brakes
gradually and with light force, and
slowly move to a safe position off the
road.
WARNING
Protecting TPMS
Tampering with, modifying, or disabling
the Tire Pressure Monitoring System
(TPMS) components may interfere with
the system’s ability to warn the driver
of low tire pressure conditions and/
or TPMS malfunctions. Tamper-ing
with, modifying, or disabling the Tire
Pressure Monitoring System (TPMS)
components may void the war-ranty for
that portion of the vehicle.
