HYUNDAI I20 2022 Owners Manual

10-82
Maintenance

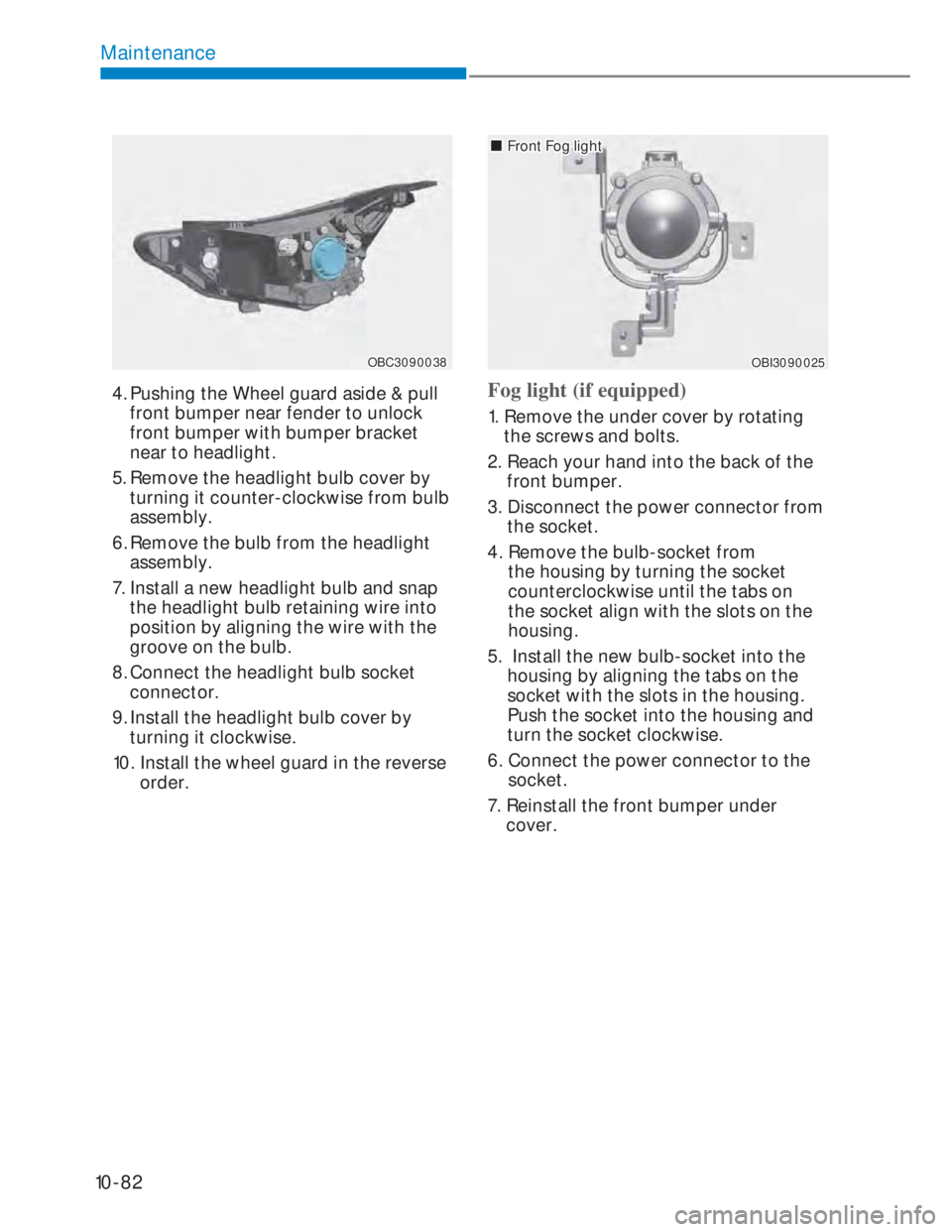

OBC3090038OBC3090038
4. Pushing the Wheel guard aside & pull
front bumper near fender to unlock
front bumper with bumper bracket
near to headlight.
5. Remove the headlight bulb cover by
turning it counter-clockwise from bulb
assembly.
6. Remove the bulb from the headlight
assembly.
7. Install a new headlight bulb and snap
the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
8. Connect the headlight bulb socket
connector.
9. Install the headlight bulb cover by
turning it clockwise.
10. Install the wheel guard in the reverse
order.
„„Front Fog lightFront Fog light
OBI3090025OBI3090025
Fog light (if equipped)
1. Remove the under cover by rotating
the screws and bolts.
2. Reach your hand into the back of the
front bumper.
3. Disconnect the power connector from
the socket.
4. Remove the bulb-socket from
the housing by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
housing.
5. Install the new bulb-socket into the
housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
6. Connect the power connector to the
socket.
7. Reinstall the front bumper under
cover.

10-83
10

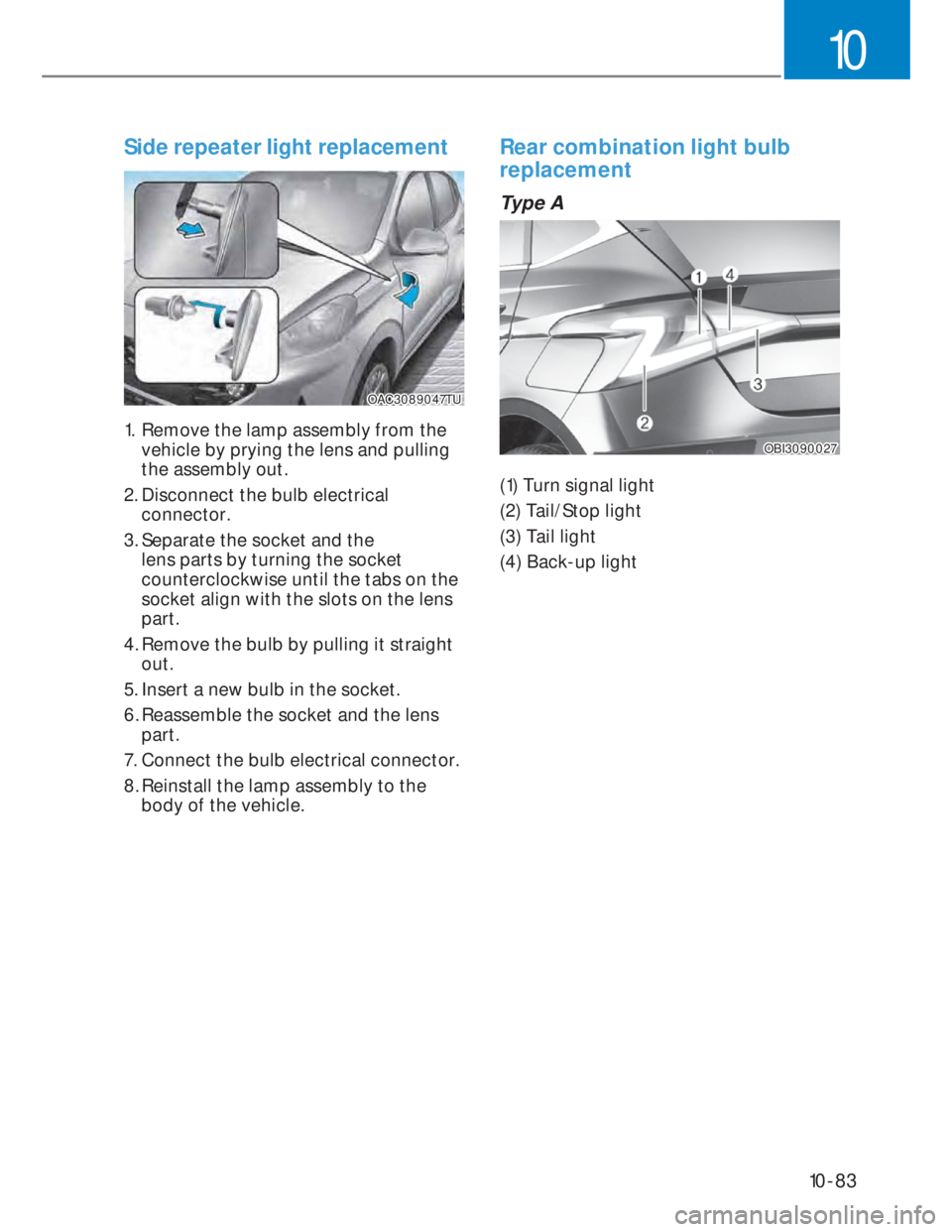

Side repeater light replacement
OAC3089047TUOAC3089047TU
1. Remove the lamp assembly from the
vehicle by prying the lens and pulling
the assembly out.
2. Disconnect the bulb electrical
connector.
3. Separate the socket and the
lens parts by turning the socket
counterclockwise until the tabs on the
socket align with the slots on the lens
part.
4. Remove the bulb by pulling it straight
out.
5. Insert a new bulb in the socket.
6. Reassemble the socket and the lens
part.
7. Connect the bulb electrical connector.
8. Reinstall the lamp assembly to the
body of the vehicle.
Rear combination light bulb
replacement
Type A
OBI3090027OBI3090027
(1) Turn signal light
(2) Tail/Stop light
(3) Tail light
(4) Back-up light

10-84
Maintenance

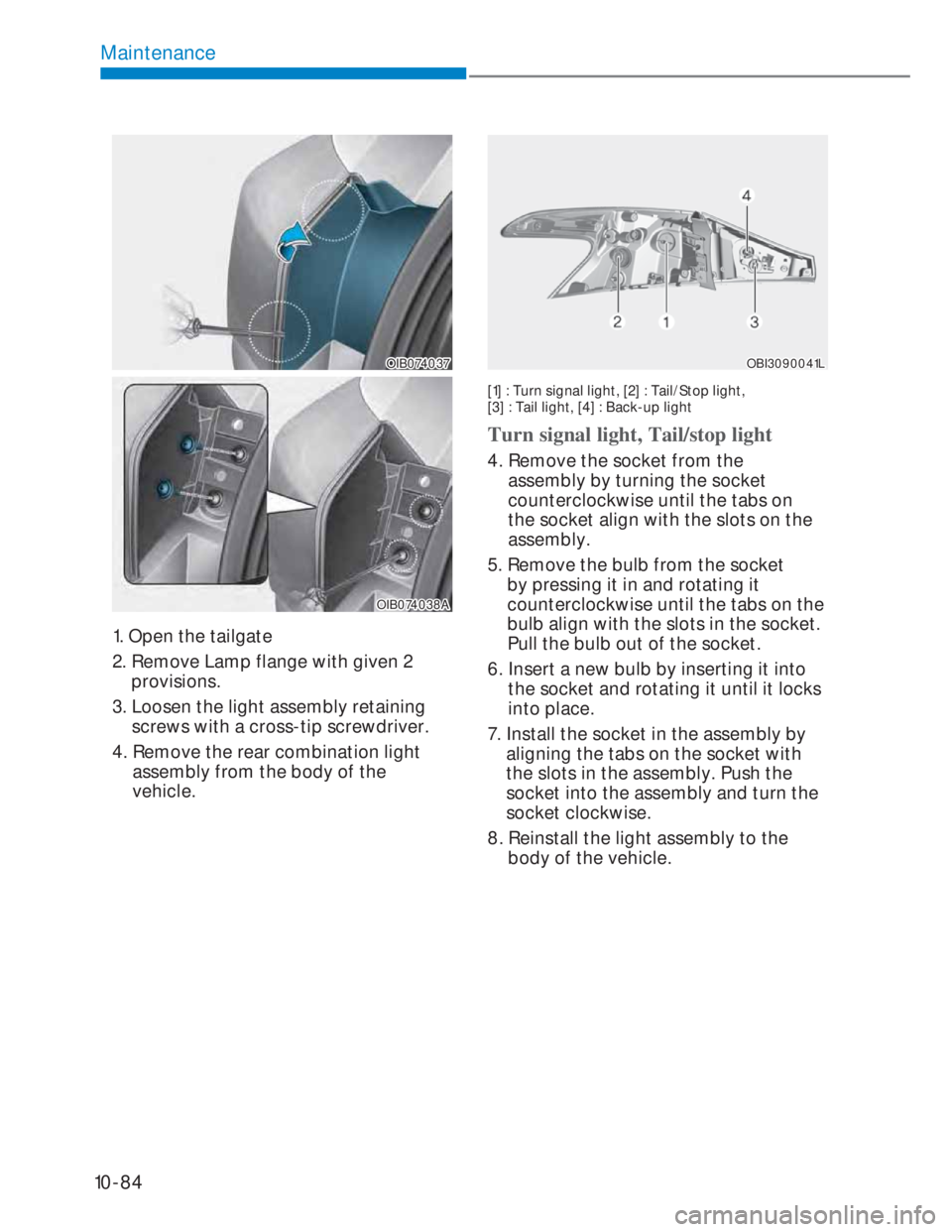

OIB074037OIB074037
OIB074038AOIB074038A
1. Open the tailgate
2. Remove Lamp flange with given 2
provisions.
3. Loosen the light assembly retaining
screws with a cross-tip screwdriver.
4. Remove the rear combination light
assembly from the body of the
vehicle.
OBI3090041LOBI3090041L
[1] : Turn signal light, [2] : Tail/Stop light,
[3] : Tail light, [4] : Back-up light
Turn signal light, Tail/stop light
4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
5. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
6. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
7. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
8. Reinstall the light assembly to the
body of the vehicle.

10-85
10
Tail light & Back-up light
1. Open the tailgate and remove the
tailgate trim.
2. Loosen the retaining screw of the
tailgate lid cover and then remove the
cover.
3. Disconnect the connector and then
remove the bulbs by rotating them in
counter clock wise direction.
4. Replace with new bulbs into the
sockets and then fix it in their
positions respectively.
Type B
OBI3090028OBI3090028
(1) Turn signal light
(2) Tail light
(3) Tail light
(4) Back-up light
(5) Stop light
OIB074037OIB074037
OIB074038AOIB074038A
1. Open the tailgate
2. Remove Lamp flange with given 2
provisions.
3. Loosen the light assembly retaining
screws with a cross-tip screwdriver.
4. Remove the rear combination light
assembly from the body of the
vehicle.

10-86
Maintenance

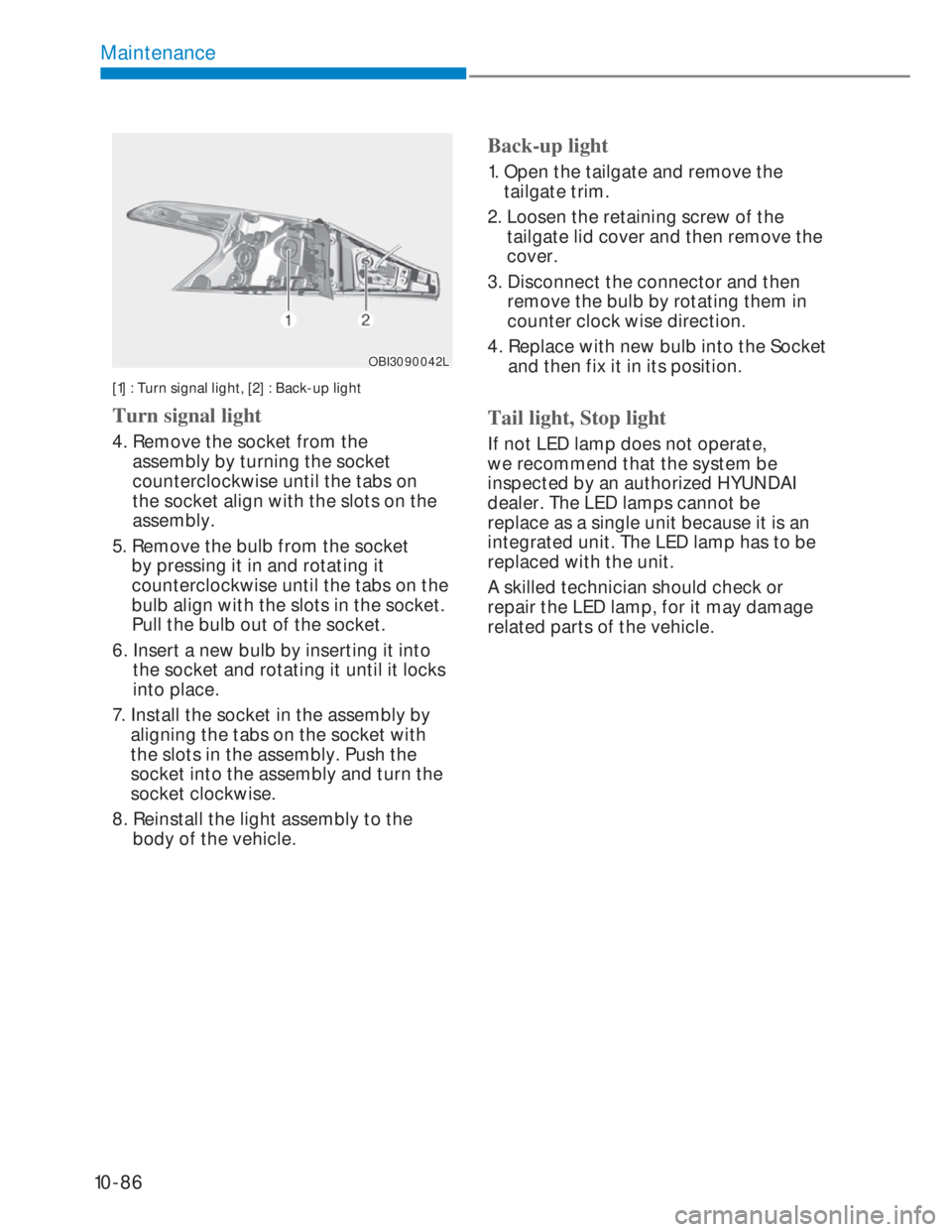

OBI3090042LOBI3090042L
[1] : Turn signal light, [2] : Back-up light
Turn signal light
4. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
5. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
6. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
7. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
8. Reinstall the light assembly to the
body of the vehicle.
Back-up light
1. Open the tailgate and remove the
tailgate trim.
2. Loosen the retaining screw of the
tailgate lid cover and then remove the
cover.
3. Disconnect the connector and then
remove the bulb by rotating them in
counter clock wise direction.
4. Replace with new bulb into the Socket
and then fix it in its position.
Tail light, Stop light
If not LED lamp does not operate,
we recommend that the system be
inspected by an authorized HYUNDAI
dealer. The LED lamps cannot be
replace as a single unit because it is an
integrated unit. The LED lamp has to be
replaced with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.

10-87
10

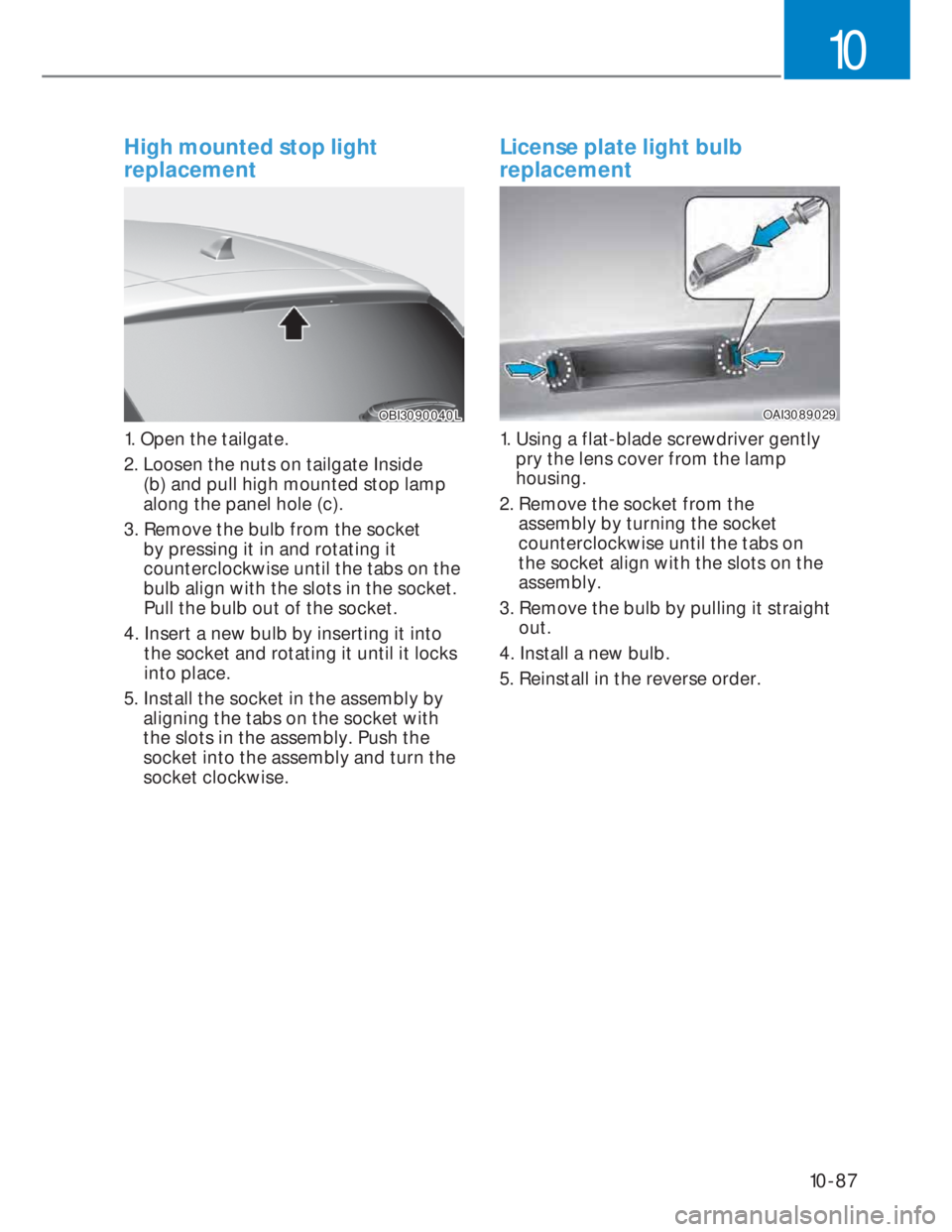

High mounted stop light
replacement
OBI3090040LOBI3090040L
1. Open the tailgate.
2. Loosen the nuts on tailgate Inside
(b) and pull high mounted stop lamp
along the panel hole (c).
3. Remove the bulb from the socket
by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
4. Insert a new bulb by inserting it into
the socket and rotating it until it locks
into place.
5. Install the socket in the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
License plate light bulb
replacement
OAI3089029OAI3089029
1. Using a flat-blade screwdriver gently
pry the lens cover from the lamp
housing.
2. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
3. Remove the bulb by pulling it straight
out.
4. Install a new bulb.
5. Reinstall in the reverse order.

10-88
Maintenance

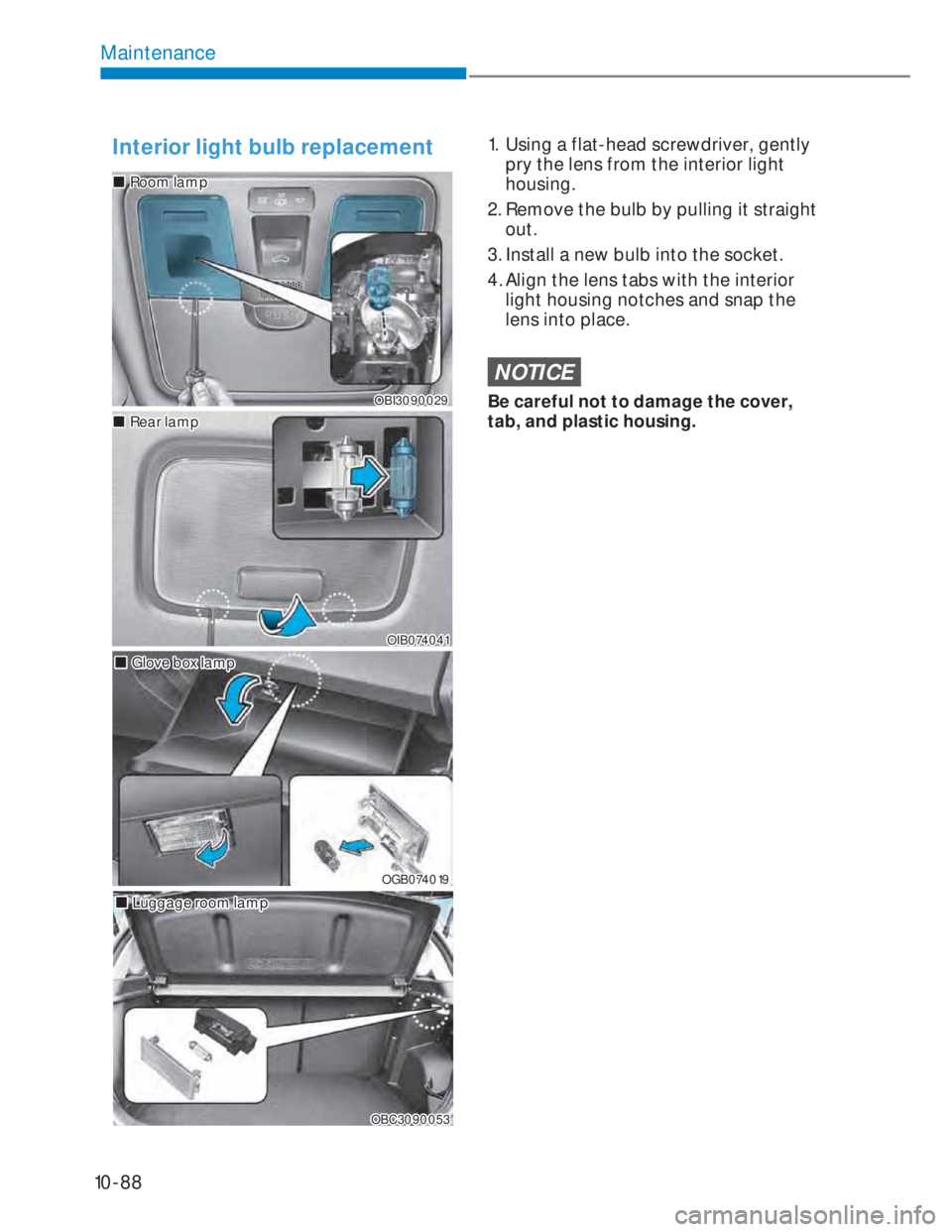

Interior light bulb replacement
OBI3090029OBI3090029
„„Room lamp Room lamp
„„Luggage room lampLuggage room lamp
OBC3090053OBC3090053
„„Glove box lampGlove box lamp
OGB074019OGB074019
OIB074041OIB074041
„„Rear lampRear lamp
1. Using a flat-head screwdriver, gently
pry the lens from the interior light
housing.
2. Remove the bulb by pulling it straight
out.
3. Install a new bulb into the socket.
4. Align the lens tabs with the interior
light housing notches and snap the
lens into place.
NOTICE
Be careful not to damage the cover,
tab, and plastic housing.

10-89
10
NOTICE
If you park your vehicle near a stainless
steel sign or glass facade building, the
vehicle’s exterior plastic parts such
as a bumper, spoiler, garnish, lamp
or outside rearview mirror might be
damaged due to sunlight reflected
from the sign or building. To prevent
damage of the exterior plastic parts,
you should avoid parking in areas
where light may be reflected or use a
car cover. (The exterior plastic parts
applied to your vehicle may vary.)
Exterior care
Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
High-pressure washing
• When using high-pressure washers,
make sure to maintain sufficient
distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
• Do not spray the camera, sensors or
its surrounding area directly with a
high pressure washer. Shock applied
from high pressure water may cause
the device to not operate normally.
• Do not bring the nozzle tip close to
boots (rubber or plastic covers) or
connectors as they may be damaged
if they come into contact with high
pressure water.
Finish maintenance
Washing
To help protect your vehicle’s finish
from rust and deterioration, wash it
thoroughly and frequently at least once
a month with lukewarm or cold water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges
of the doors and rocker panels are kept
clear and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.
Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, may be used.
After washing, rinse the vehicle
thoroughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
NOTICE
• Do not use strong soap, chemical
detergents or hot water, and do not
wash the vehicle in direct sunlight
or when the body of the vehicle is
warm.
• Be careful when washing the side
windows of your vehicle.
Especially, with high-pressure water,
water may leak through the windows
and wet the interior.
• To prevent damage to the plastic
parts and lamps, do not clean
with chemical solvents or strong
detergents.
APPEARANCE CARE

10-90
Maintenance
WARNING
Wet brakes
After washing the vehicle, test the
brakes while driving slowly to see if
they have been affected by water. If
braking performance is impaired, dry
the brakes by applying them lightly
while maintaining a slow forward
speed.
OBI3090045LOBI3090045L
NOTICE
• Water washing in the engine
compartment including high pressure
water washing may cause the failure
of electrical circuits located in the
engine compartment.
• Never allow water or other liquids
to come in contact with electrical/
electronic components inside the
vehicle as this may damage them.
NOTICE
Matte paint finish vehicle
(if equipped)
Automatic car wash which uses
rotating brushes should not be used
as this can damage the surface of your
vehicle. A steam cleaner which washes
the vehicle surface at high temperature
may result the oil to adhere and leave
stains that is difficult to remove.
Use a soft cloth (e.g. microfiber towel
or sponge) when washing your vehicle
and dry with a microfiber towel. When
you hand wash your vehicle, you should
not use a cleaner that finishes with
wax. If the vehicle surface is too dirty
(sand, dirt, dust, contaminant, etc.),
clean the surface with water before
washing the car.
Waxing
Wax the vehicle when water will no
longer bead on the paint.
Always wash and dry the vehicle
before waxing. Use a good quality
liquid or paste wax, and follow the
manufacturer’s instructions. Wax all
metal trim to protect it and to maintain
its luster.
Removing oil, tar, and similar materials
with a spot remover will usually strip the
wax from the finish. Be sure to re-wax
these areas even if the rest of the vehicle
does not yet need waxing.

10-91
10

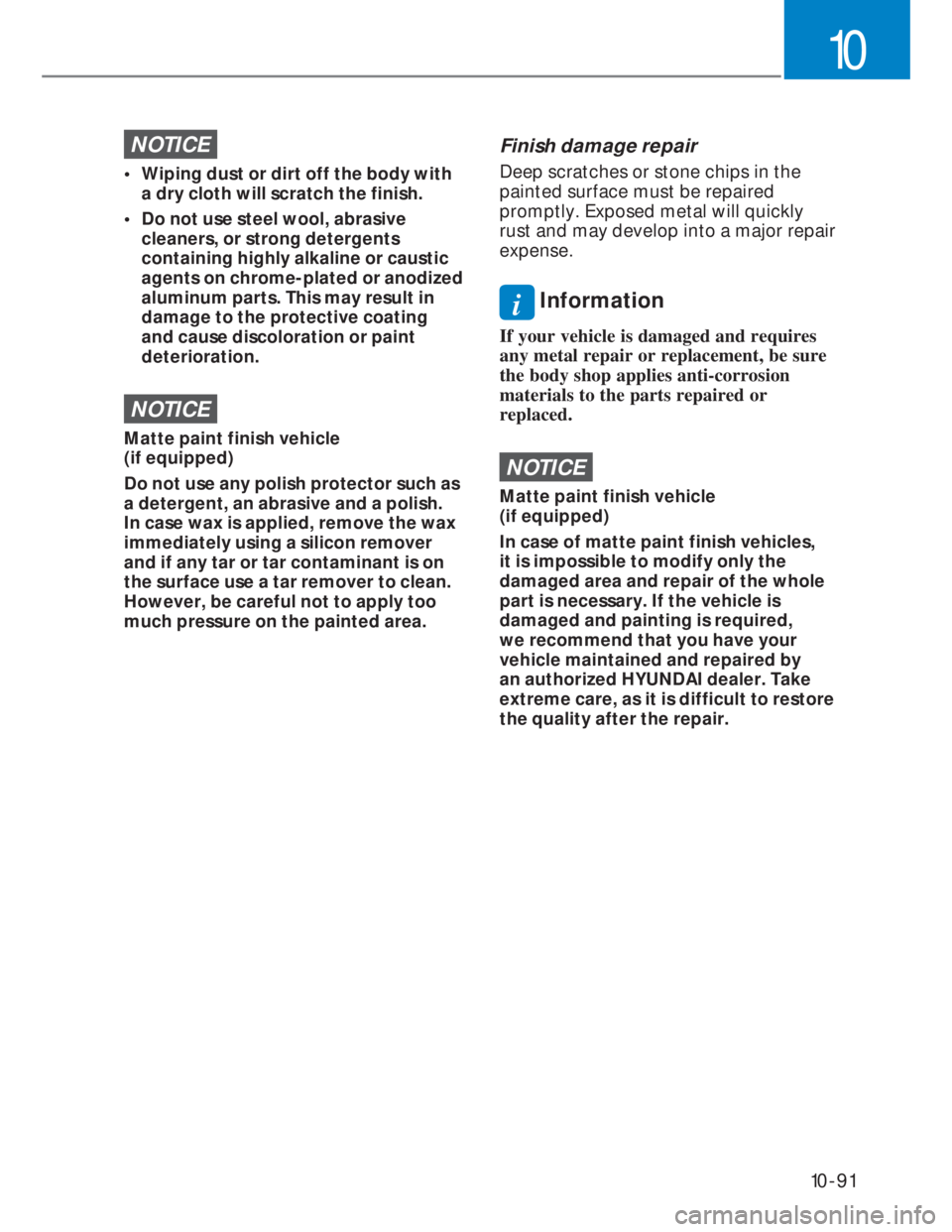

NOTICE
• Wiping dust or dirt off the body with
a dry cloth will scratch the finish.
• Do not use steel wool, abrasive
cleaners, or strong detergents
containing highly alkaline or caustic
agents on chrome-plated or anodized
aluminum parts. This may result in
damage to the protective coating
and cause discoloration or paint
deterioration.
NOTICE
Matte paint finish vehicle
(if equipped)
Do not use any polish protector such as
a detergent, an abrasive and a polish.
In case wax is applied, remove the wax
immediately using a silicon remover
and if any tar or tar contaminant is on
the surface use a tar remover to clean.
However, be careful not to apply too
much pressure on the painted area.
Finish damage repair
Deep scratches or stone chips in the
painted surface must be repaired
promptly. Exposed metal will quickly
rust and may develop into a major repair
expense.
i Information
If your vehicle is damaged and requires
any metal repair or replacement, be sure
the body shop applies anti-corrosion
materials to the parts repaired or
replaced.
NOTICE
Matte paint finish vehicle
(if equipped)
In case of matte paint finish vehicles,
it is impossible to modify only the
damaged area and repair of the whole
part is necessary. If the vehicle is
damaged and painting is required,
we recommend that you have your
vehicle maintained and repaired by
an authorized HYUNDAI dealer. Take
extreme care, as it is difficult to restore
the quality after the repair.
