6

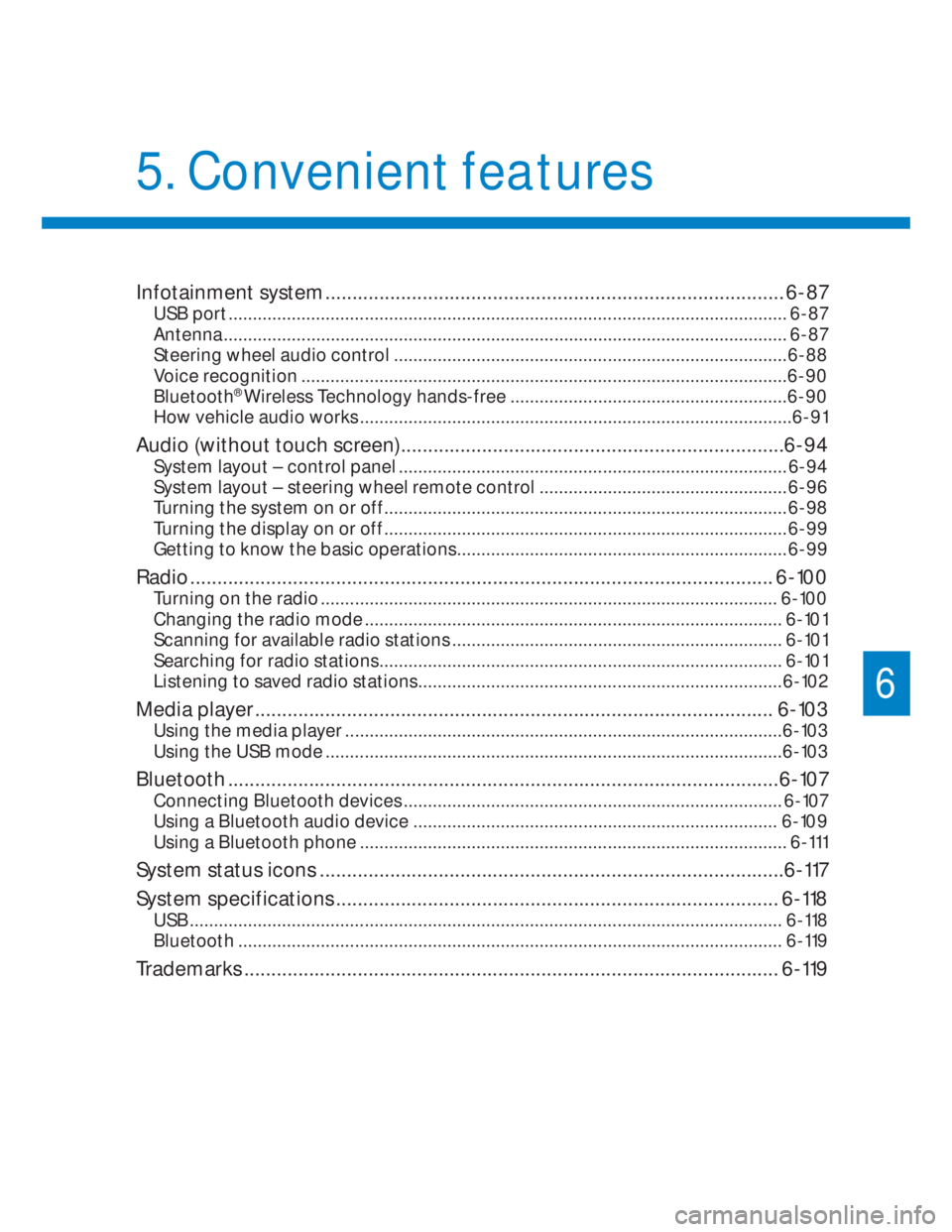

5. Convenient features
Infotainment system ..................................................................................... 6-87
USB port ................................................................................................................... 6-87
Antenna .................................................................................................................... 6-87
Steering wheel audio control .................................................................................6-88
Voice recognition ....................................................................................................6-90
Bluetooth
® Wireless Technology hands-free .........................................................6-90
How vehicle audio works
.........................................................................................6-91
Audio (without touch screen) .......................................................................6-94
System layout – control panel ................................................................................ 6-94
System layout – steering wheel remote control
................................................... 6-96
Turning the system on or off ...................................................................................6-98
Turning the display on or off ................................................................................... 6-99
Getting to know the basic operations
.................................................................... 6-99
Radio ............................................................................................................ 6-100
Turning on the radio .............................................................................................. 6-100
Changing the radio mode ...................................................................................... 6-101
Scanning for available radio stations
.................................................................... 6-101
Searching for radio stations................................................................................... 6-101
Listening to saved radio stations...........................................................................6-102
Media player ................................................................................................ 6-103
Using the media player ..........................................................................................6-103
Using the USB mode ..............................................................................................6-103
Bluetooth ......................................................................................................6-107
Connecting Bluetooth devices .............................................................................. 6-107
Using a Bluetooth audio device
........................................................................... 6-109
Using a Bluetooth phone ........................................................................................ 6-111
System status icons ......................................................................................6-117
System specifications
.................................................................................. 6-118
USB .......................................................................................................................... 6-118
Bluetooth ................................................................................................................ 6-119
Trademarks ................................................................................................... 6-119

6-89
06

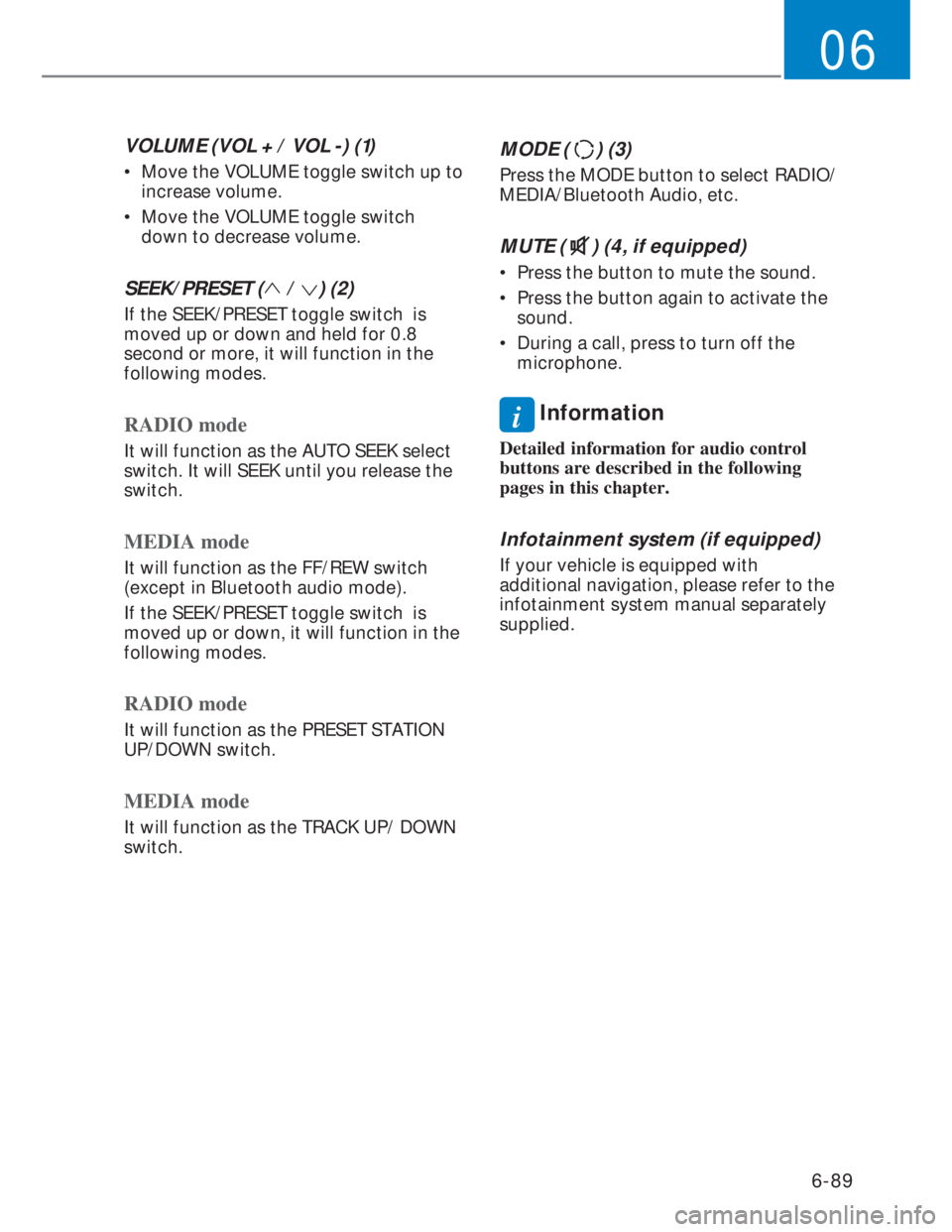

VOLUME (VOL + / VOL -) (1)
• Move the VOLUME toggle switch up to
increase volume.
• Move the VOLUME toggle switch
down to decrease volume.
SEEK/PRESET ( / ) (2)
If the SEEK/PRESET toggle switch is
moved up or down and held for 0.8
second or more, it will function in the
following modes.
RADIO mode
It will function as the AUTO SEEK select
switch. It will SEEK until you release the
switch.
MEDIA mode
It will function as the FF/REW switch
(except in Bluetooth audio mode).
If the SEEK/PRESET toggle switch is
moved up or down, it will function in the
following modes.
RADIO mode
It will function as the PRESET STATION
UP/DOWN switch.
MEDIA mode
It will function as the TRACK UP/ DOWN
switch.
MODE () (3)
Press the MODE button to select RADIO/
MEDIA/Bluetooth Audio, etc.
MUTE () (4, if equipped)
• Press the button to mute the sound.
• Press the button again to activate the
sound.
• During a call, press to turn off the
microphone.
i Information
Detailed information for audio control
buttons are described in the following
pages in this chapter.
Infotainment system (if equipped)
If your vehicle is equipped with
additional navigation, please refer to the
infotainment system manual separately
supplied.

6-90
Convenient features

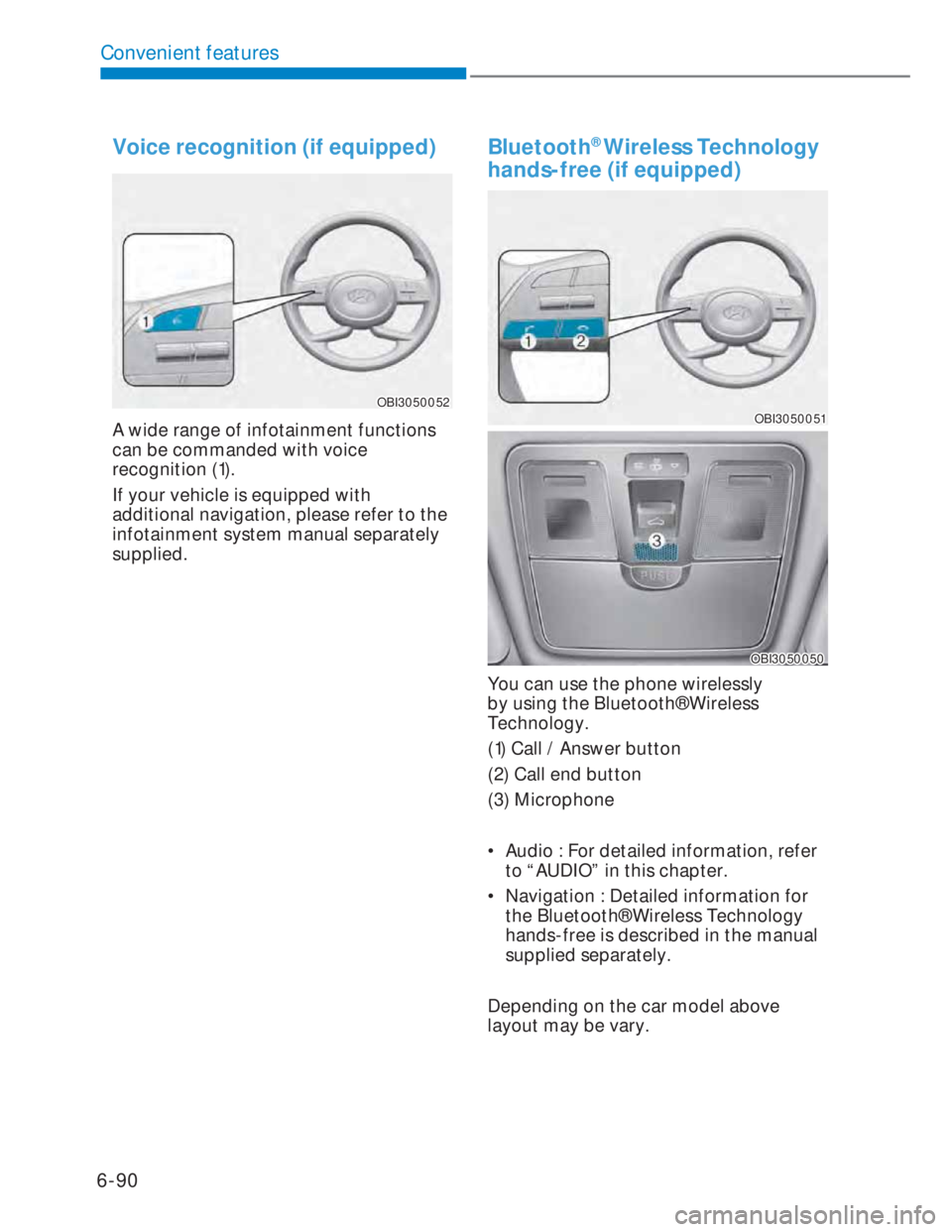

Voice recognition (if equipped)
OBI3050052OBI3050052
A wide range of infotainment functions
can be commanded with voice
recognition (1).
If your vehicle is equipped with
additional navigation, please refer to the
infotainment system manual separately
supplied.
Bluetooth® Wireless Technology
hands-free (if equipped)
OBI3050051OBI3050051
OBI3050050OBI3050050
You can use the phone wirelessly
by using the Bluetooth® Wireless
Technology.
(1) Call / Answer button
(2) Call end button
(3) Microphone
• Audio : For detailed information, refer
to “AUDIO” in this chapter.
• Navigation : Detailed information for
the Bluetooth® Wireless Technology
hands-free is described in the manual
supplied separately.
Depending on the car model above
layout may be vary.

6-93
06

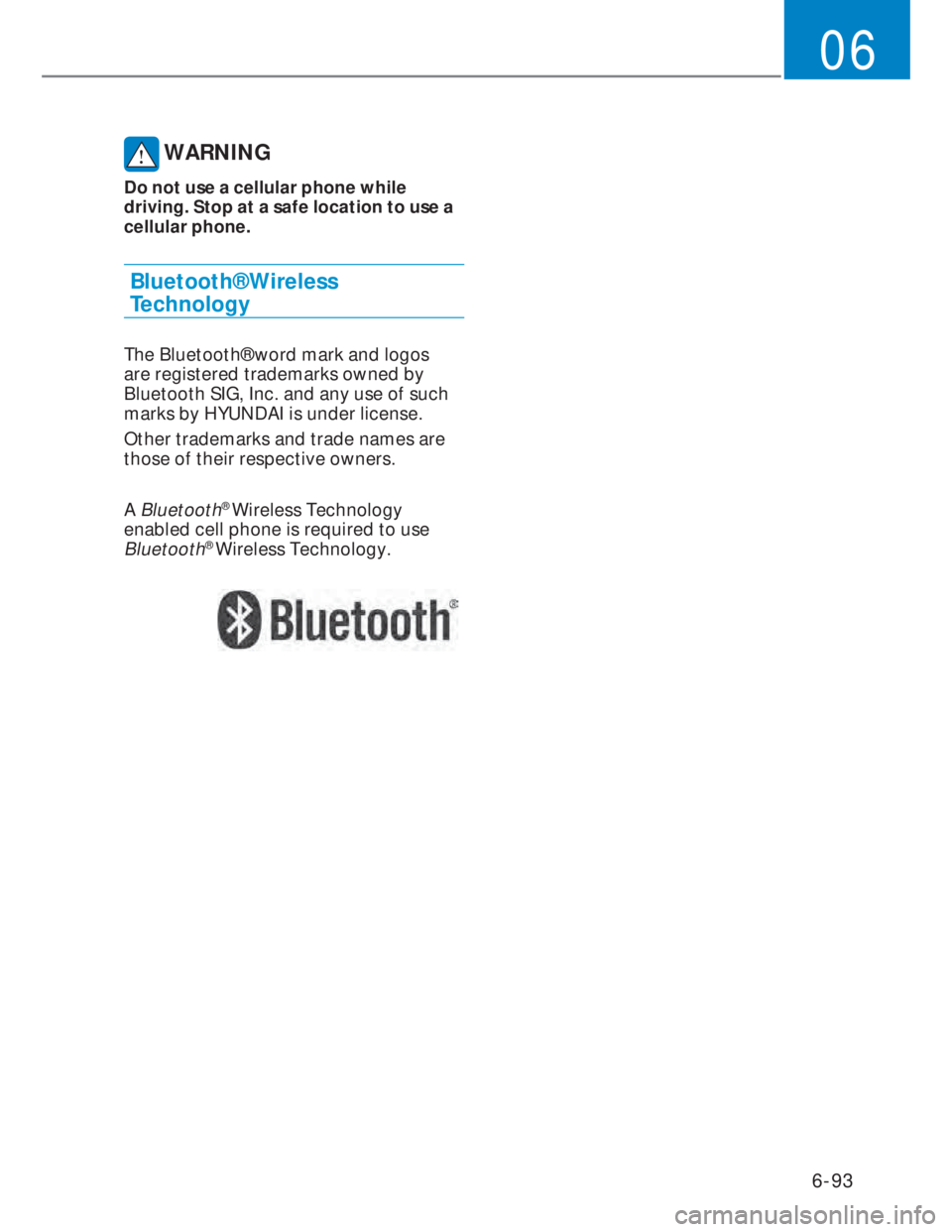

WARNING
Do not use a cellular phone while
driving. Stop at a safe location to use a
cellular phone.
Bluetooth® Wireless
Technology
The Bluetooth® word mark and logos
are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such
marks by HYUNDAI is under license.
Other trademarks and trade names are
those of their respective owners.
A
Bluetooth® Wireless Technology
enabled cell phone is required to use
Bluetooth® Wireless Technology.

6-94
Convenient features

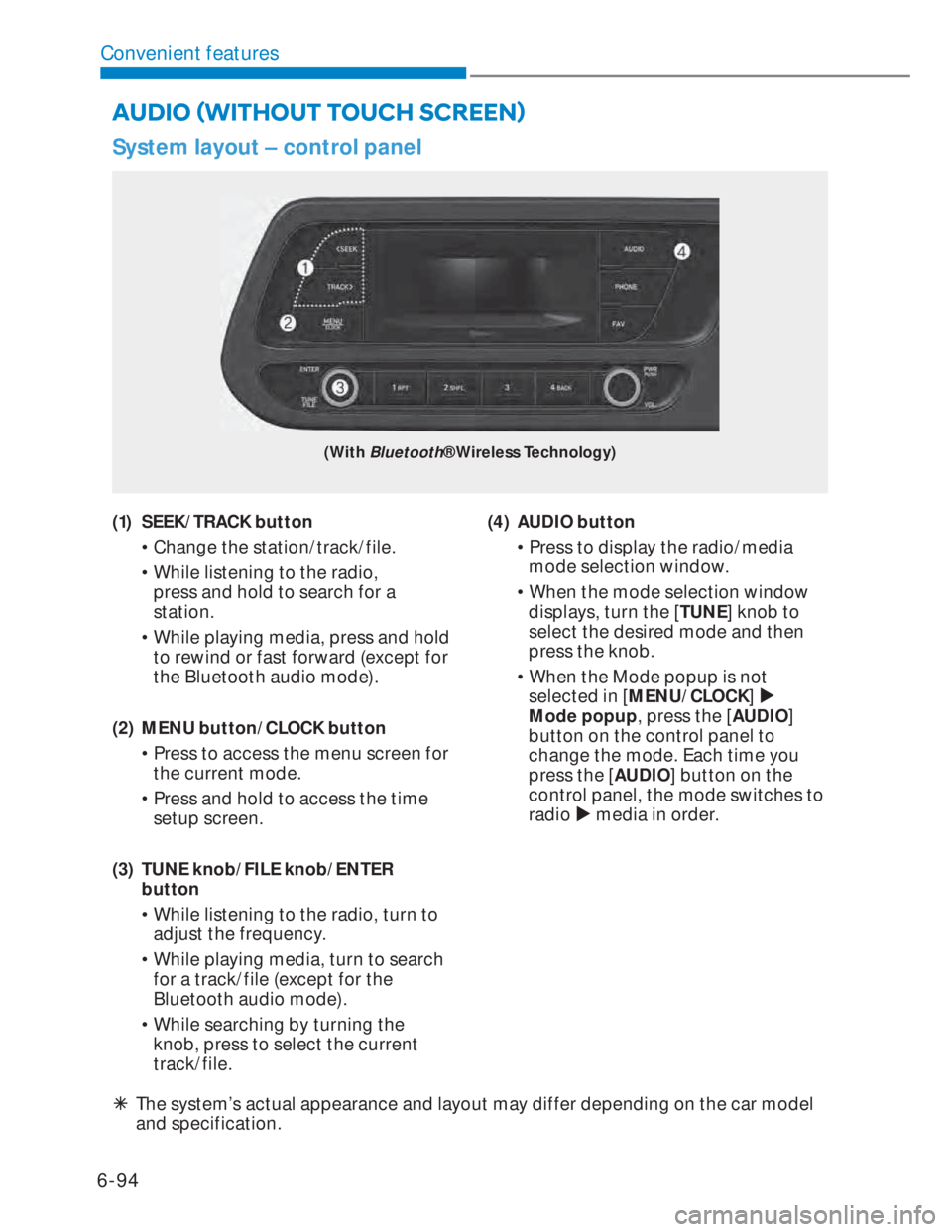

System layout – control panel
(With Bluetooth® Wireless Technology)
$8',2

6-95
06

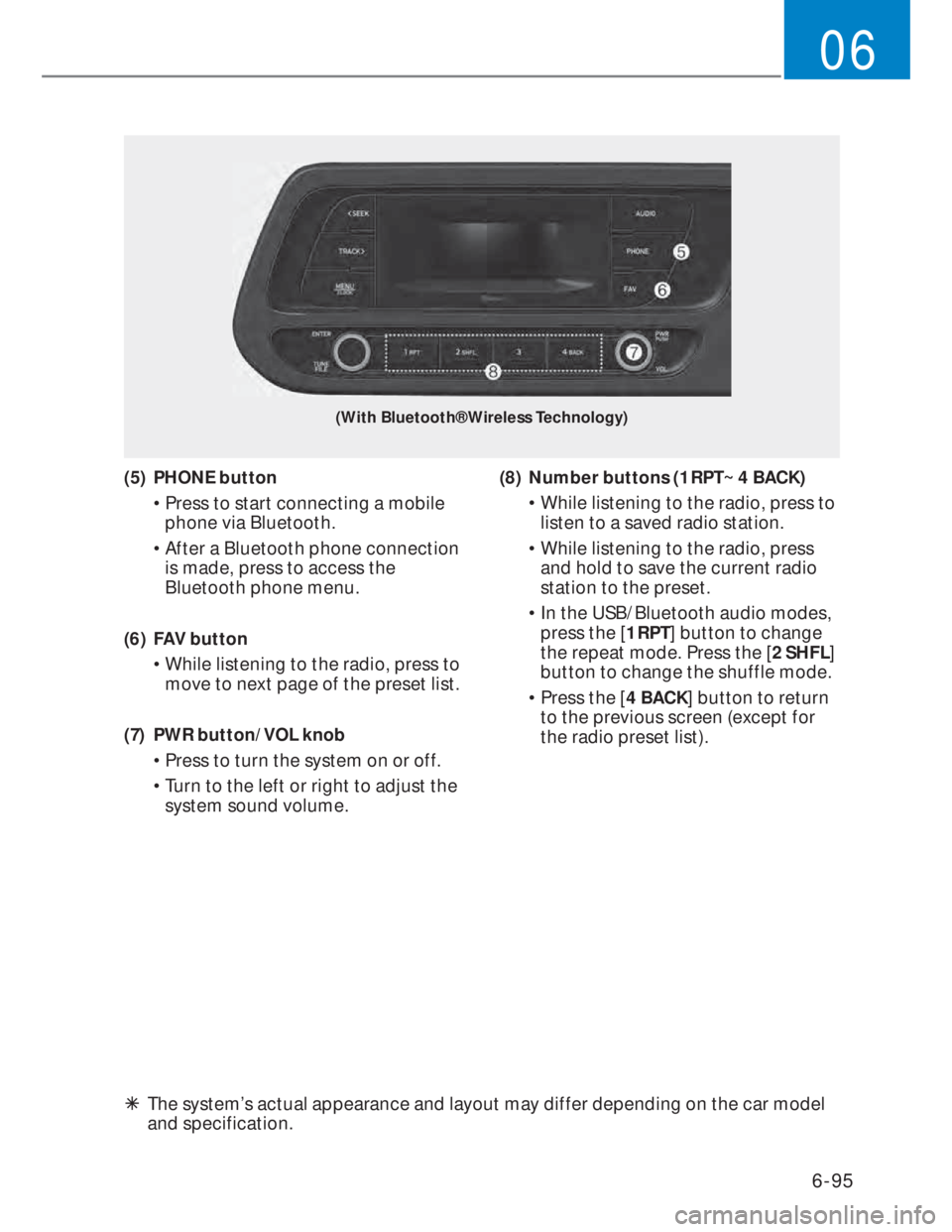

(With Bluetooth® Wireless Technology)
(5) PHONE button
• Press to start connecting a mobile
phone via Bluetooth.
• After a Bluetooth phone connection
is made, press to access the
Bluetooth phone menu.
(6) FAV button
• While listening to the radio, press to
move to next page of the preset list.
(7) PWR button/VOL knob
• Press to turn the system on or off.
• Turn to the left or right to adjust the
system sound volume.(8) Number buttons (1 RPT~ 4 BACK)
• While listening to the radio, press to
listen to a saved radio station.
• While listening to the radio, press
and hold to save the current radio
station to the preset.
• In the USB/Bluetooth audio modes,
press the [1 RPT] button to change
the repeat mode. Press the [2 SHFL]
button to change the shuffle mode.
• Press the [4 BACK] button to return
to the previous screen (except for
the radio preset list).
ÃThe system’s actual appearance and layout may differ depending on the car model
and specification.

6-96
Convenient features

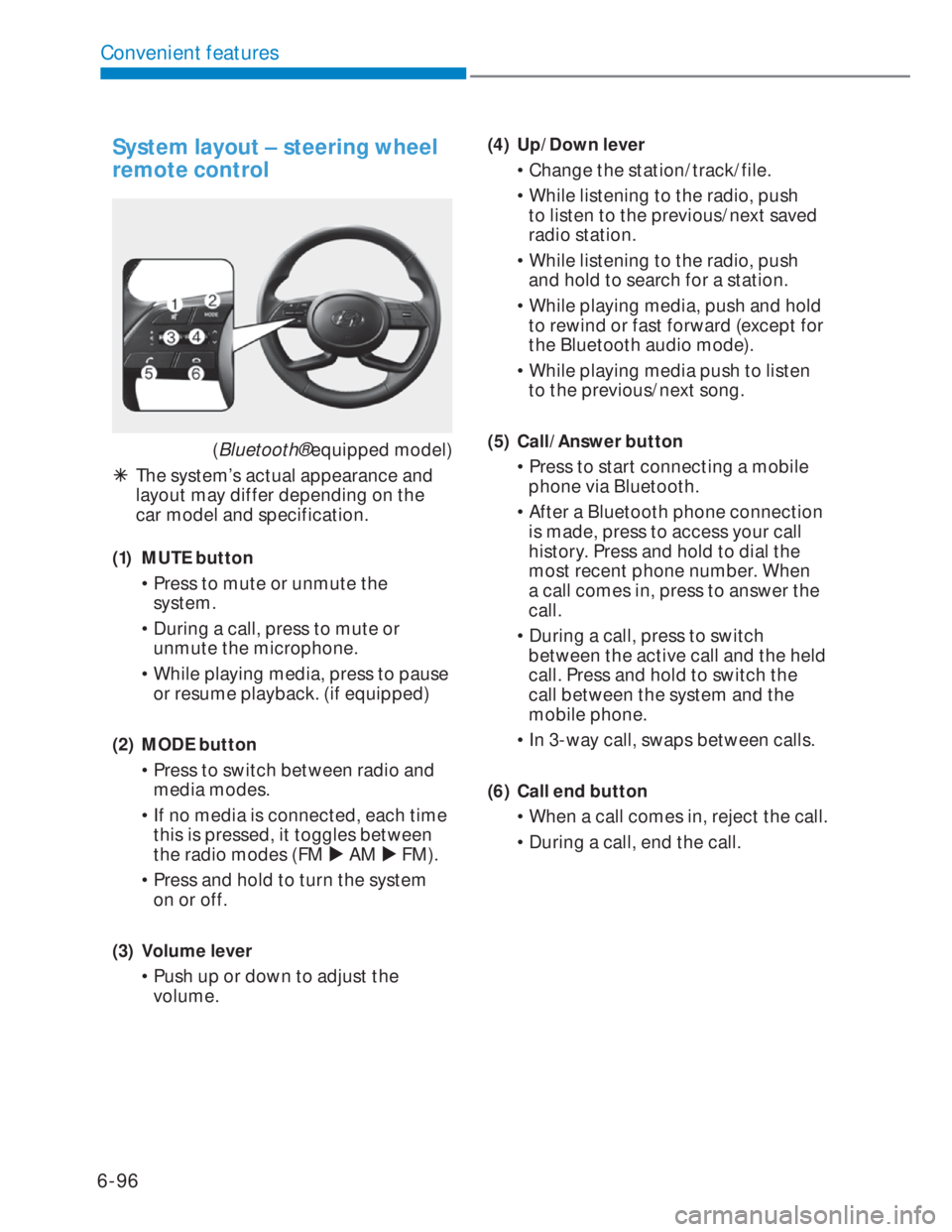

System layout – steering wheel
remote control
(Bluetooth® equipped model)
ÃThe system’s actual appearance and
layout may differ depending on the
car model and specification.
(1) MUTE button
• Press to mute or unmute the
system.
• During a call, press to mute or
unmute the microphone.
• While playing media, press to pause
or resume playback. (if equipped)
(2) MODE button
• Press to switch between radio and
media modes.
• If no media is connected, each time
this is pressed, it toggles between
the radio modes (FM X AM X FM).
• Press and hold to turn the system
on or off.
(3) Volume lever
• Push up or down to adjust the
volume.(4) Up/Down lever
• Change the station/track/file.
• While listening to the radio, push
to listen to the previous/next saved
radio station.
• While listening to the radio, push
and hold to search for a station.
• While playing media, push and hold
to rewind or fast forward (except for
the Bluetooth audio mode).
• While playing media push to listen
to the previous/next song.
(5) Call/Answer button
• Press to start connecting a mobile
phone via Bluetooth.
• After a Bluetooth phone connection
is made, press to access your call
history. Press and hold to dial the
most recent phone number. When
a call comes in, press to answer the
call.
• During a call, press to switch
between the active call and the held
call. Press and hold to switch the
call between the system and the
mobile phone.
• In 3-way call, swaps between calls.
(6) Call end button
• When a call comes in, reject the call.
• During a call, end the call.

6-97
06

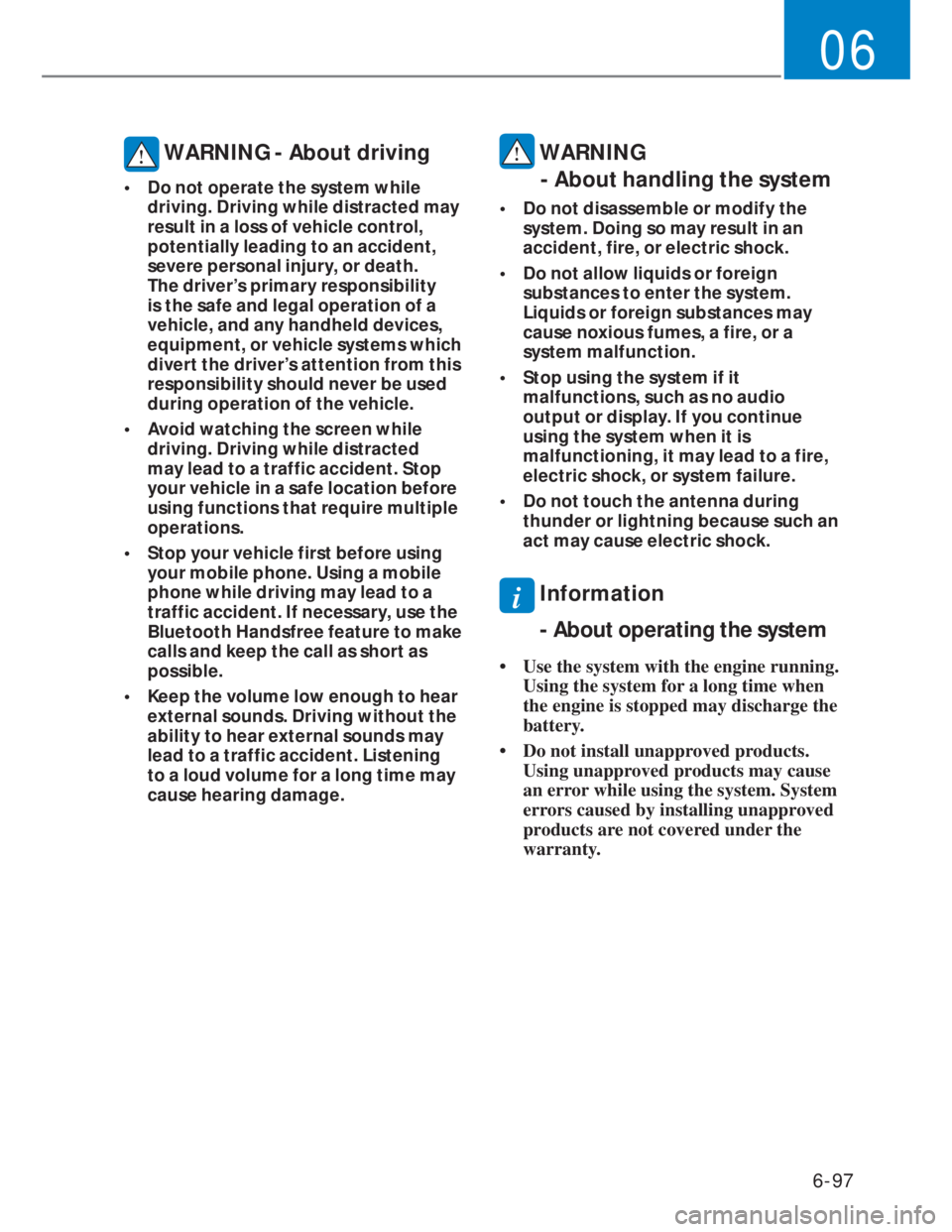

WARNING - About driving
• Do not operate the system while
driving. Driving while distracted may
result in a loss of vehicle control,
potentially leading to an accident,
severe personal injury, or death.
The driver’s primary responsibility
is the safe and legal operation of a
vehicle, and any handheld devices,
equipment, or vehicle systems which
divert the driver’s attention from this
responsibility should never be used
during operation of the vehicle.
• Avoid watching the screen while
driving. Driving while distracted
may lead to a traffic accident. Stop
your vehicle in a safe location before
using functions that require multiple
operations.
• Stop your vehicle first before using
your mobile phone. Using a mobile
phone while driving may lead to a
traffic accident. If necessary, use the
Bluetooth Handsfree feature to make
calls and keep the call as short as
possible.
• Keep the volume low enough to hear
external sounds. Driving without the
ability to hear external sounds may
lead to a traffic accident. Listening
to a loud volume for a long time may
cause hearing damage.
WARNING
- About handling the system
• Do not disassemble or modify the
system. Doing so may result in an
accident, fire, or electric shock.
• Do not allow liquids or foreign
substances to enter the system.
Liquids or foreign substances may
cause noxious fumes, a fire, or a
system malfunction.
• Stop using the system if it
malfunctions, such as no audio
output or display. If you continue
using the system when it is
malfunctioning, it may lead to a fire,
electric shock, or system failure.
• Do not touch the antenna during
thunder or lightning because such an
act may cause electric shock.
i Information
- About operating the system
• Use the system with the engine running.
Using the system for a long time when
the engine is stopped may discharge the
battery.
• Do not install unapproved products.
Using unapproved products may cause
an error while using the system. System
errors caused by installing unapproved
products are not covered under the
warranty.

6-100
Convenient features
5$',2

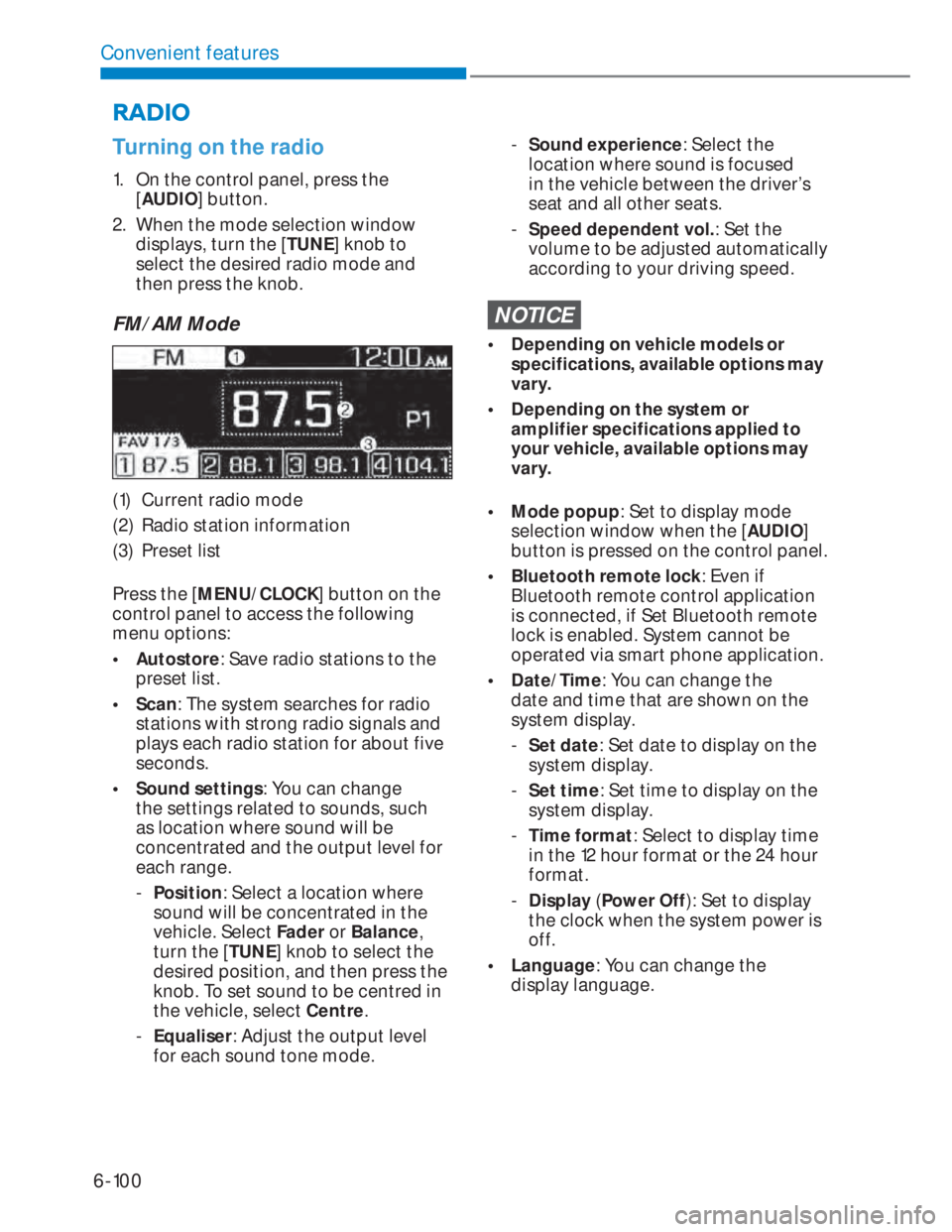

Turning on the radio
1. On the control panel, press the
[AUDIO] button.
2. When the mode selection window
displays, turn the [TUNE] knob to
select the desired radio mode and
then press the knob.
FM/AM Mode
(1) Current radio mode
(2) Radio station information
(3) Preset list
Press the [MENU/CLOCK] button on the
control panel to access the following
menu options:
• Autostore: Save radio stations to the
preset list.
• Scan: The system searches for radio
stations with strong radio signals and
plays each radio station for about five
seconds.
• Sound settings: You can change
the settings related to sounds, such
as location where sound will be
concentrated and the output level for
each range.
-Position: Select a location where
sound will be concentrated in the
vehicle. Select Fader or Balance,
turn the [TUNE] knob to select the
desired position, and then press the
knob. To set sound to be centred in
the vehicle, select Centre.
-Equaliser: Adjust the output level
for each sound tone mode.
-Sound experience: Select the
location where sound is focused
in the vehicle between the driver’s
seat and all other seats.
-Speed dependent vol.: Set the
volume to be adjusted automatically
according to your driving speed.
NOTICE
• Depending on vehicle models or
specifications, available options may
vary.
• Depending on the system or
amplifier specifications applied to
your vehicle, available options may
vary.
• Mode popup: Set to display mode
selection window when the [AUDIO]
button is pressed on the control panel.
• Bluetooth remote lock: Even if
Bluetooth remote control application
is connected, if Set Bluetooth remote
lock is enabled. System cannot be
operated via smart phone application.
• Date/Time: You can change the
date and time that are shown on the
system display.
-Set date: Set date to display on the
system display.
-Set time: Set time to display on the
system display.
-Time format: Select to display time
in the 12 hour format or the 24 hour
format.
- Display (Power Off): Set to display
the clock when the system power is
off.
• Language: You can change the
display language.

6-103
06
0(',$3/$<(5
Using the media player
You can play music stored in various
media storage devices, such as USB
storage devices, smartphones.
1. Connect a device to the USB port in
your vehicle.
• Playback may start immediately
depending on the device that you
connect to the system.
2. On the control panel, press the
[AUDIO] button.
3. When the mode selection window
displays, turn the [TUNE] knob to
select the desired mode and then
press the knob.
NOTICE
• To start the media player, press the
[AUDIO] button on the control panel.
• You can also change the mode by
press the [MODE] button repeatedly
on the steering wheel.
• Make sure to connect or disconnect
external USB devices with the system
power turned off.
• When the Mode popup is not
selected in [MENU/CLOCK] X Mode
popup, press the [AUDIO] button
on the control panel to change the
media player.
Each time you press the [AUDIO]
button on the control panel, the
media mode switches to USB X
Bluetooth audio in order.
• Depending on vehicle models and
specifications, available buttons or
the appearance and layout of the
USB port in your vehicle may vary.• Do not connect a smartphone or
an MP3 device to the system via
multiple methods such as USB and
Bluetooth simultaneously. Doing
so may cause a distorted noise or a
system malfunction.
• When the equaliser function of the
connected device and Equaliser
settings of the system are both
activated, the effects may interfere
with each other and may lead to
sound degradation or distortion.
Deactivate the device’s equaliser
function if possible.
Using the USB mode
You can play media files stored in
portable devices, such as USB storage
devices and MP3 players. Check
compatible USB storage devices and
file specifications before using the USB
mode.
Connect your USB device to the USB port
in the vehicle.
• Playback starts immediately.
• Press the [AUDIO] button on the
control panel to display the mode
selection window, turn the [TUNE]
knob to select USB and then press the
knob.
