odometer HYUNDAI I20 2022 Owners Manual

5-6
Instrument cluster
Engine Coolant Temperature Gauge
OIB044113OIB044113
„„Type AType A
„„Type BType B
OBI3040006OBI3040006
This gauge shows the temperature of the
engine coolant when the ignition switch
is in the ON position.
NOTICE
If the gauge pointer moves beyond the
normal range area toward the “130”
position, it indicates overheating that
may damage the engine.
Do not continue driving with an
overheated engine. If your vehicle
overheats, refer to “If the Engine
Overheats” in chapter 8.
WARNING
Never remove the radiator cap or
reservoir cap when the engine is hot.
The engine coolant is under pressure
and could cause severe burns. Wait
until the engine is cool before adding
coolant to the reservoir.
Odometer
OIB044116OIB044116
„„ Type A Type A
OIB044115OIB044115
„„Type BType B
The odometer indicates the total
distance that the vehicle has been
driven and should be used to determine
when periodic maintenance should be
performed.
- Odometer range : 0 ~ 1599999
kilometers or 999999 miles.
i Information
It is forbidden to alter the odometer of
all vehicles with the intent to change
the mileage registered on the odometer.
The alteration may void your warranty
coverage.

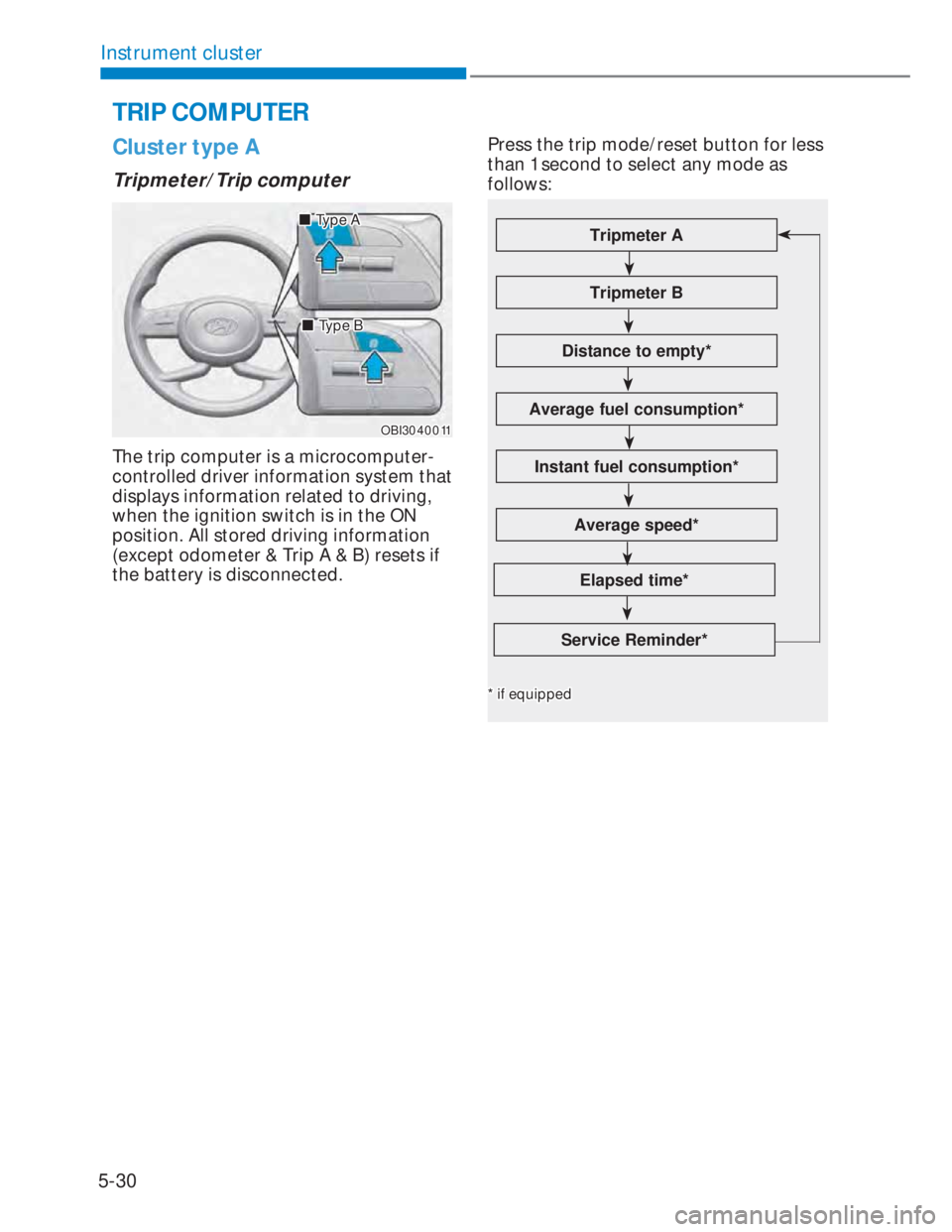

5-30
Instrument cluster
Cluster type A
Tripmeter/Trip computer
OBI3040011OBI3040011
„„Type AType A
„„Type BType B
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving,
when the ignition switch is in the ON
position. All stored driving information
(except odometer & Trip A & B) resets if
the battery is disconnected.Press the trip mode/reset button for less
than 1 second to select any mode as
follows:
* if equipped* if equipped
Tripmeter A
Tripmeter B
Distance to empty*
Average fuel consumption*
Instant fuel consumption*
Average speed*
Elapsed time*
Service Reminder*
TRIP COMPUTER

10-57
10
Compact spare tire replacement
(if equipped)
A compact spare tire has a shorter tread
life than a regular size tire. Replace
it when you can see the tread wear
indicator bars on the tire. The replaced
compact spare tire should be the same
size and design tire as the one provided
with your new vehicle and should be
mounted on the same compact spare
tire wheel. The compact spare tire is not
designed to be mounted on a regular
size wheel, and the compact spare tire
wheel is not designed to mount a regular
size tire.
Wheel replacement
When replacing the metal wheels for any
reason, make sure the new wheels are
equivalent to the original factory units in
diameter, rim width and offset.
WARNING
A wheel that is not the correct size may
adversely affect wheel and bearing life,
braking and stopping abilities, handling
characteristics, ground clearance,
body-to-tire clearance, snow chain
clearance, speedometer and odometer
calibration, headlight aim and bumper
height.
Tire traction
Tire traction can be reduced if you drive
on worn tires, tires that are improperly
inflated or on slippery road surfaces.
Tires should be replaced when tread
wear indicators appear. Slow down
whenever there is rain, snow or ice on
the road, to reduce the possibility of
losing control of the vehicle.
