Page 11 of 444
![HYUNDAI I20 2022 Owners Manual 1-7
01
Diesel engine
Diesel fuel
Diesel engine must be operated only on
commercially available diesel fuel that
complies with EN 590 or comparable
standard. (EN stands for “European
Norm”). Do HYUNDAI I20 2022 Owners Manual 1-7
01
Diesel engine
Diesel fuel
Diesel engine must be operated only on
commercially available diesel fuel that
complies with EN 590 or comparable
standard. (EN stands for “European
Norm”). Do](/img/35/56130/w960_56130-10.png)

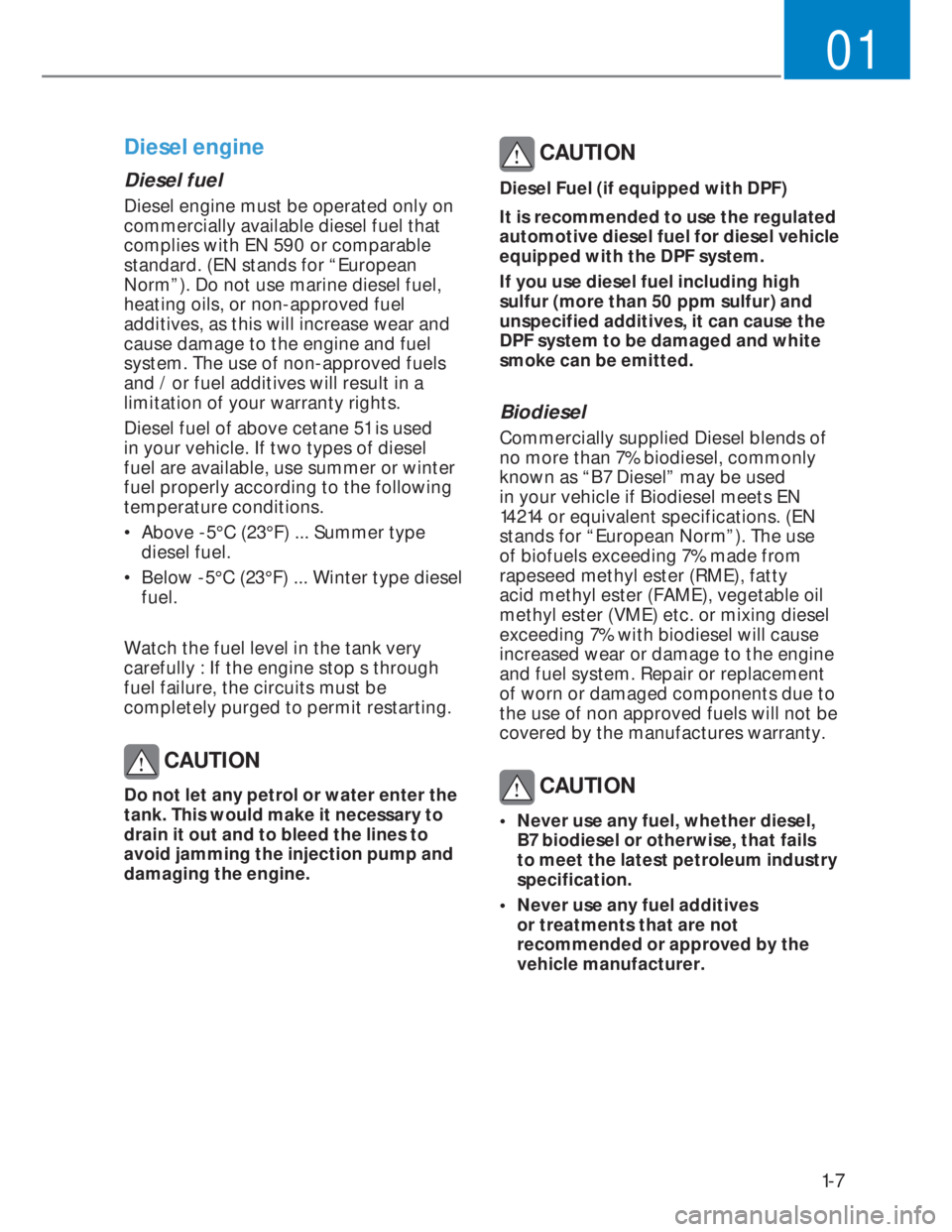

1-7
01
Diesel engine
Diesel fuel
Diesel engine must be operated only on
commercially available diesel fuel that
complies with EN 590 or comparable
standard. (EN stands for “European
Norm”). Do not use marine diesel fuel,
heating oils, or non-approved fuel
additives, as this will increase wear and
cause damage to the engine and fuel
system. The use of non-approved fuels
and / or fuel additives will result in a
limitation of your warranty rights.
Diesel fuel of above cetane 51 is used
in your vehicle. If two types of diesel
fuel are available, use summer or winter
fuel properly according to the following
temperature conditions.
• Above -5°C (23°F) ... Summer type
diesel fuel.
• Below -5°C (23°F) ... Winter type diesel
fuel.
Watch the fuel level in the tank very
carefully : If the engine stop s through
fuel failure, the circuits must be
completely purged to permit restarting.
CAUTION
Do not let any petrol or water enter the
tank. This would make it necessary to
drain it out and to bleed the lines to
avoid jamming the injection pump and
damaging the engine.
CAUTION
Diesel Fuel (if equipped with DPF)
It is recommended to use the regulated
automotive diesel fuel for diesel vehicle
equipped with the DPF system.
If you use diesel fuel including high
sulfur (more than 50 ppm sulfur) and
unspecified additives, it can cause the
DPF system to be damaged and white
smoke can be emitted.
Biodiesel
Commercially supplied Diesel blends of
no more than 7% biodiesel, commonly
known as “B7 Diesel” may be used
in your vehicle if Biodiesel meets EN
14214 or equivalent specifications. (EN
stands for “European Norm”). The use
of biofuels exceeding 7% made from
rapeseed methyl ester (RME), fatty
acid methyl ester (FAME), vegetable oil
methyl ester (VME) etc. or mixing diesel
exceeding 7% with biodiesel will cause
increased wear or damage to the engine
and fuel system. Repair or replacement
of worn or damaged components due to
the use of non approved fuels will not be
covered by the manufactures warranty.
CAUTION
• Never use any fuel, whether diesel,
B7 biodiesel or otherwise, that fails
to meet the latest petroleum industry
specification.
• Never use any fuel additives
or treatments that are not
recommended or approved by the
vehicle manufacturer.
Page 23 of 444
![HYUNDAI I20 2022 Owners Manual 3-5
03
The actual shape may differ from the illustration.
OBI3010004OBI3010004

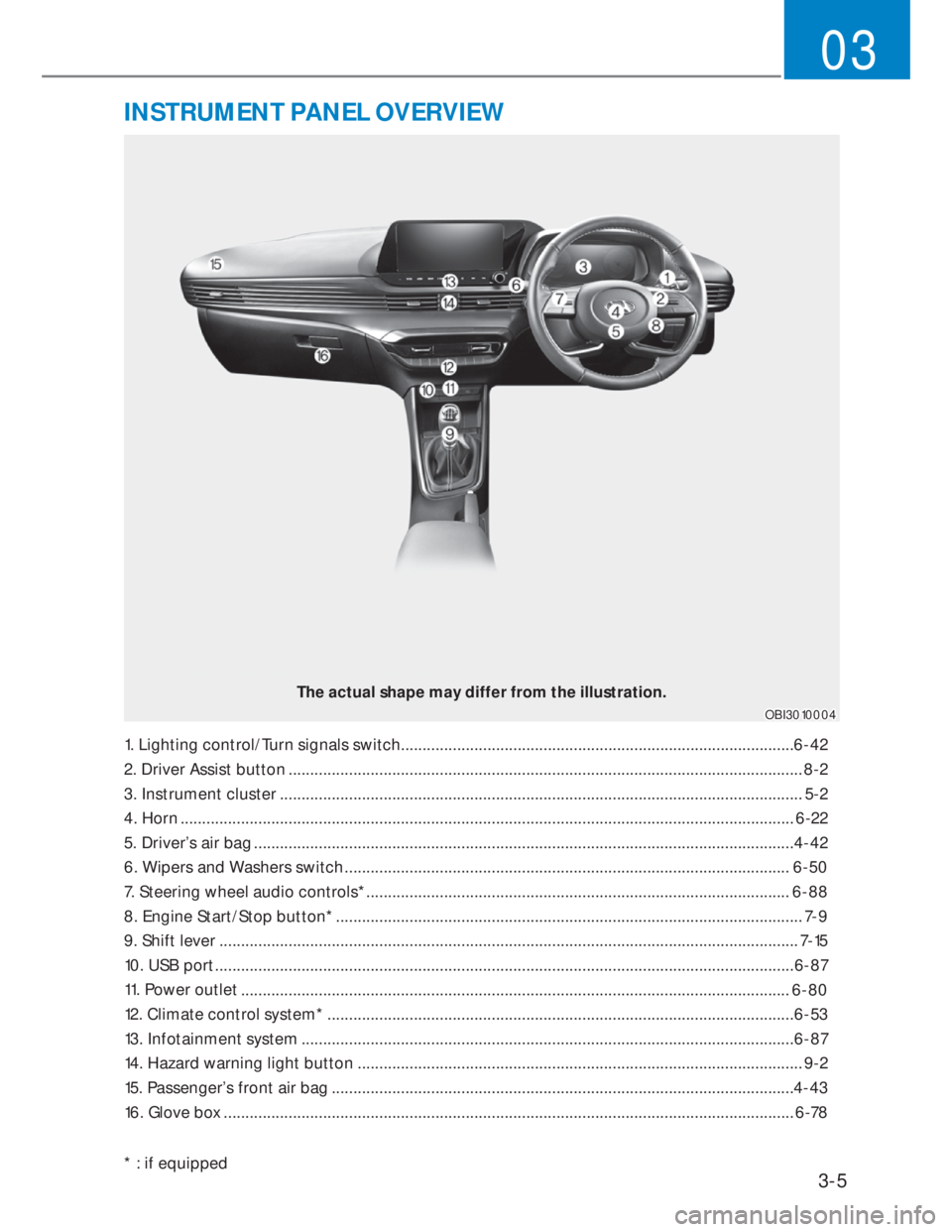

INSTRUMENT PANEL OVERVIEW
1. Lighting control/Turn signals switch ....................................................... HYUNDAI I20 2022 Owners Manual 3-5
03
The actual shape may differ from the illustration.
OBI3010004OBI3010004
INSTRUMENT PANEL OVERVIEW
1. Lighting control/Turn signals switch .......................................................](/img/35/56130/w960_56130-22.png)
3-5
03
The actual shape may differ from the illustration.
OBI3010004OBI3010004
INSTRUMENT PANEL OVERVIEW
1. Lighting control/Turn signals switch ...........................................................................................6-42
2. Driver Assist button
....................................................................................................................... 8-2
3. Instrument cluster
......................................................................................................................... 5-2
4. Horn
.............................................................................................................................................. 6-22
5. Driver’s air bag
.............................................................................................................................4-42
6. Wipers and Washers switch
....................................................................................................... 6-50
7. Steering wheel audio controls*
.................................................................................................. 6-88
8. Engine Start/Stop button*
............................................................................................................ 7-9
9. Shift lever
...................................................................................................................................... 7-15
10. USB port
......................................................................................................................................6-87
11. Power outlet
............................................................................................................................... 6-80
12. Climate control system*
............................................................................................................6-53
13. Infotainment system
..................................................................................................................6-87
14. Hazard warning light button
....................................................................................................... 9-2
15. Passenger’s front air bag
...........................................................................................................4-43
16. Glove box
.................................................................................................................................... 6-78
* : if equipped
Page 88 of 444
![HYUNDAI I20 2022 Owners Manual 4-55
04
• No objects should be placed over
or near the air bag modules on the
steering wheel, instrument panel,
and the front passenger’s panel
above the glove box, because any
such object c HYUNDAI I20 2022 Owners Manual 4-55
04
• No objects should be placed over
or near the air bag modules on the
steering wheel, instrument panel,
and the front passenger’s panel
above the glove box, because any
such object c](/img/35/56130/w960_56130-87.png)

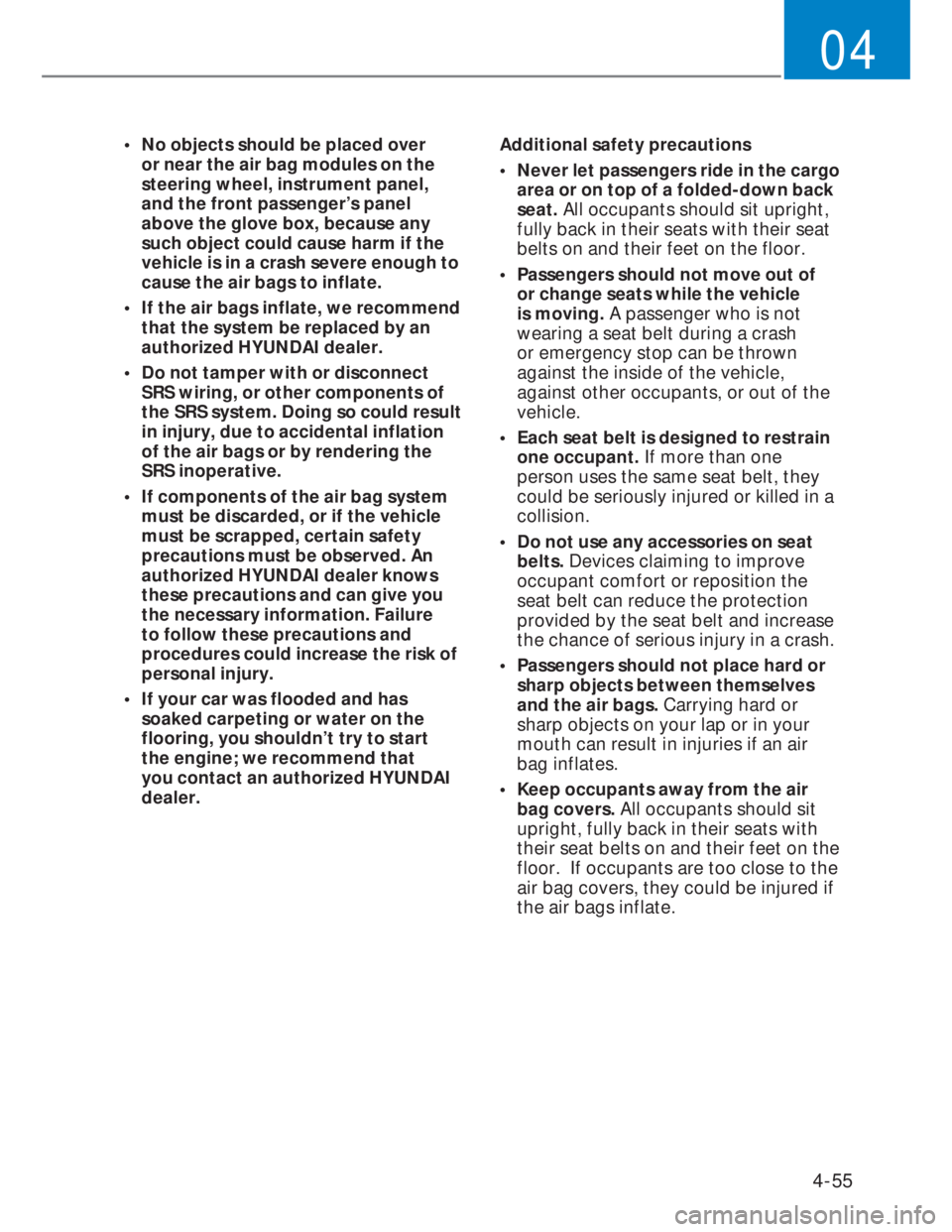

4-55
04
• No objects should be placed over
or near the air bag modules on the
steering wheel, instrument panel,
and the front passenger’s panel
above the glove box, because any
such object could cause harm if the
vehicle is in a crash severe enough to
cause the air bags to inflate.
• If the air bags inflate, we recommend
that the system be replaced by an
authorized HYUNDAI dealer.
• Do not tamper with or disconnect
SRS wiring, or other components of
the SRS system. Doing so could result
in injury, due to accidental inflation
of the air bags or by rendering the
SRS inoperative.
• If components of the air bag system
must be discarded, or if the vehicle
must be scrapped, certain safety
precautions must be observed. An
authorized HYUNDAI dealer knows
these precautions and can give you
the necessary information. Failure
to follow these precautions and
procedures could increase the risk of
personal injury.
• If your car was flooded and has
soaked carpeting or water on the
flooring, you shouldn’t try to start
the engine; we recommend that
you contact an authorized HYUNDAI
dealer.Additional safety precautions
• Never let passengers ride in the cargo
area or on top of a folded-down back
seat. All occupants should sit upright,
fully back in their seats with their seat
belts on and their feet on the floor.
• Passengers should not move out of
or change seats while the vehicle
is moving. A passenger who is not
wearing a seat belt during a crash
or emergency stop can be thrown
against the inside of the vehicle,
against other occupants, or out of the
vehicle.
• Each seat belt is designed to restrain
one occupant. If more than one
person uses the same seat belt, they
could be seriously injured or killed in a
collision.
• Do not use any accessories on seat
belts. Devices claiming to improve
occupant comfort or reposition the
seat belt can reduce the protection
provided by the seat belt and increase
the chance of serious injury in a crash.
• Passengers should not place hard or
sharp objects between themselves
and the air bags. Carrying hard or
sharp objects on your lap or in your
mouth can result in injuries if an air
bag inflates.
• Keep occupants away from the air
bag covers. All occupants should sit
upright, fully back in their seats with
their seat belts on and their feet on the
floor. If occupants are too close to the
air bag covers, they could be injured if
the air bags inflate.
Page 99 of 444
![HYUNDAI I20 2022 Owners Manual 5-9
05
Warning and indicator lights
i Information
Make sure that all warning lights are
OFF after starting the engine. If any light
is still ON, this indicates a situation that
needs attention.
Air HYUNDAI I20 2022 Owners Manual 5-9
05
Warning and indicator lights
i Information
Make sure that all warning lights are
OFF after starting the engine. If any light
is still ON, this indicates a situation that
needs attention.
Air](/img/35/56130/w960_56130-98.png)

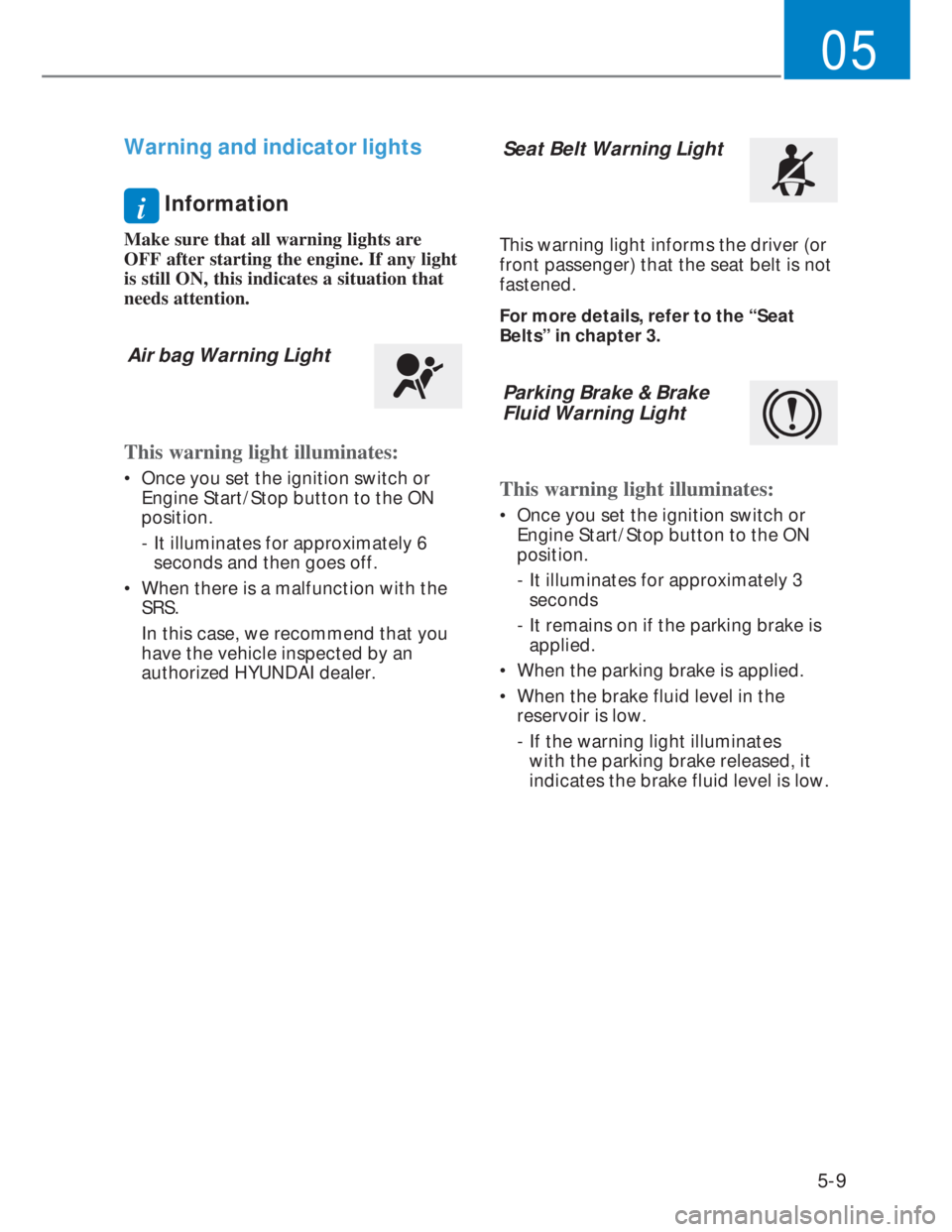

5-9
05
Warning and indicator lights
i Information
Make sure that all warning lights are
OFF after starting the engine. If any light
is still ON, this indicates a situation that
needs attention.
Air bag Warning Light
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 6
seconds and then goes off.
• When there is a malfunction with the
SRS.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
Seat Belt Warning Light
This warning light informs the driver (or
front passenger) that the seat belt is not
fastened.
For more details, refer to the “Seat
Belts” in chapter 3.
Parking Brake & Brake
Fluid Warning Light
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3
seconds
- It remains on if the parking brake is
applied.
• When the parking brake is applied.
• When the brake fluid level in the
reservoir is low.
- If the warning light illuminates
with the parking brake released, it
indicates the brake fluid level is low.
Page 100 of 444
![HYUNDAI I20 2022 Owners Manual 5-10
Instrument cluster
If the brake fluid level in the reser-
voir is low:
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. With the engine stopped, check the
brake fluid HYUNDAI I20 2022 Owners Manual 5-10
Instrument cluster
If the brake fluid level in the reser-
voir is low:
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. With the engine stopped, check the
brake fluid](/img/35/56130/w960_56130-99.png)

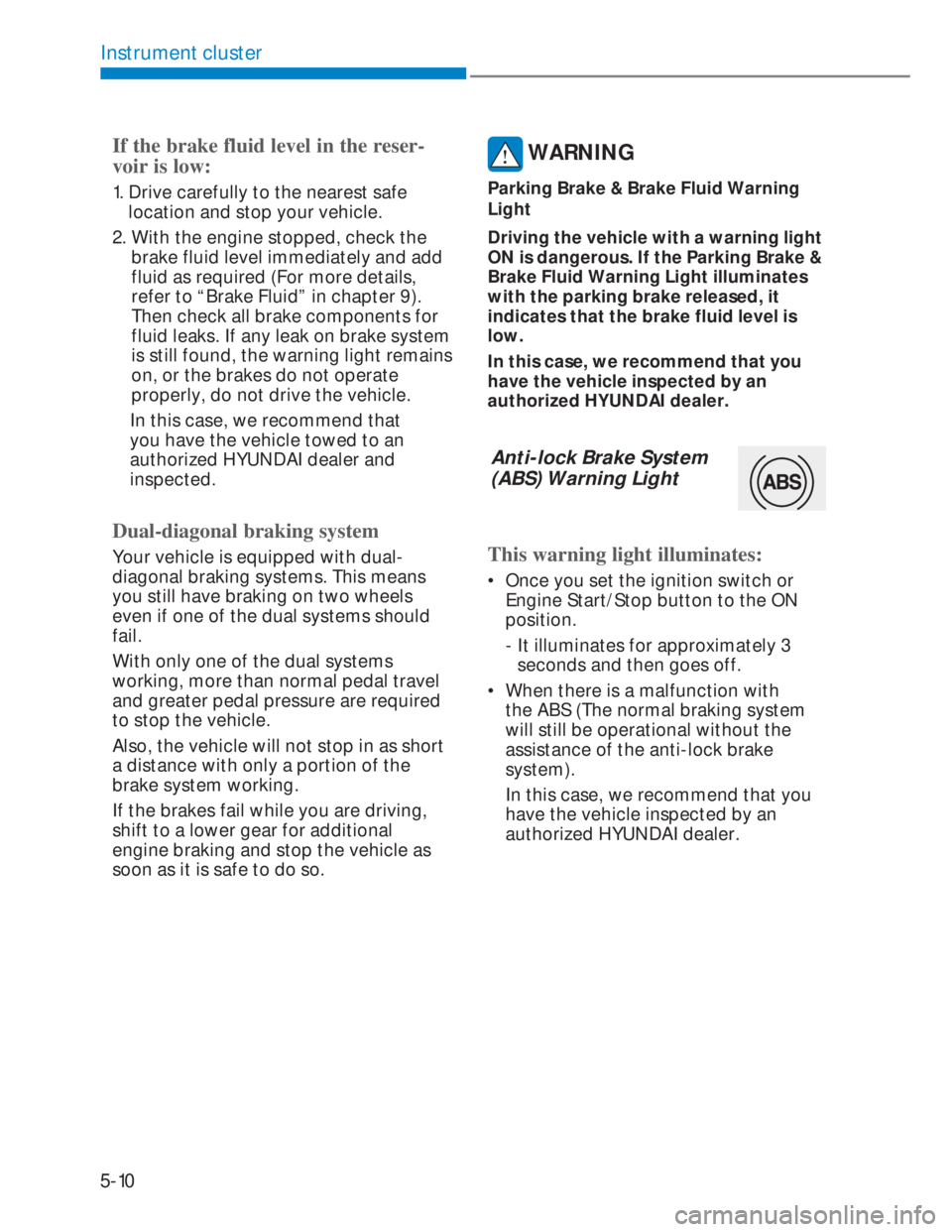

5-10
Instrument cluster
If the brake fluid level in the reser-
voir is low:
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. With the engine stopped, check the
brake fluid level immediately and add
fluid as required (For more details,
refer to “Brake Fluid” in chapter 9).
Then check all brake components for
fluid leaks. If any leak on brake system
is still found, the warning light remains
on, or the brakes do not operate
properly, do not drive the vehicle.
In this case, we recommend that
you have the vehicle towed to an
authorized HYUNDAI dealer and
inspected.
Dual-diagonal braking system
Your vehicle is equipped with dual-
diagonal braking systems. This means
you still have braking on two wheels
even if one of the dual systems should
fail.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal pressure are required
to stop the vehicle.
Also, the vehicle will not stop in as short
a distance with only a portion of the
brake system working.
If the brakes fail while you are driving,
shift to a lower gear for additional
engine braking and stop the vehicle as
soon as it is safe to do so.
WARNING
Parking Brake & Brake Fluid Warning
Light
Driving the vehicle with a warning light
ON is dangerous. If the Parking Brake &
Brake Fluid Warning Light illuminates
with the parking brake released, it
indicates that the brake fluid level is
low.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
Anti-lock Brake System
(ABS) Warning Light
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3
seconds and then goes off.
• When there is a malfunction with
the ABS (The normal braking system
will still be operational without the
assistance of the anti-lock brake
system).
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
Page 101 of 444
![HYUNDAI I20 2022 Owners Manual 5-11
05
Electric Power Steering
(EPS) Warning Light
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for app HYUNDAI I20 2022 Owners Manual 5-11
05
Electric Power Steering
(EPS) Warning Light
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for app](/img/35/56130/w960_56130-100.png)

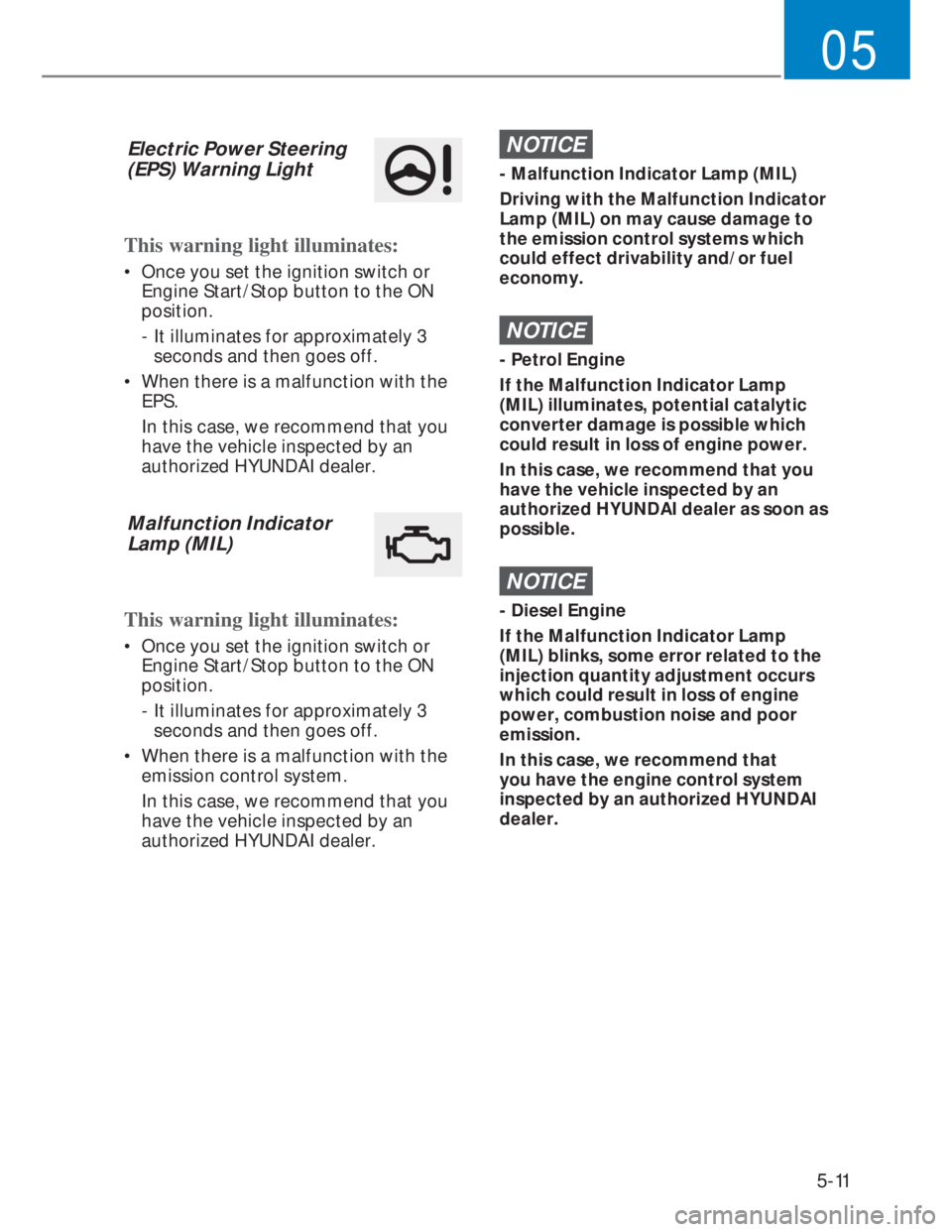

5-11
05
Electric Power Steering
(EPS) Warning Light
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3
seconds and then goes off.
• When there is a malfunction with the
EPS.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
Malfunction Indicator
Lamp (MIL)
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3
seconds and then goes off.
• When there is a malfunction with the
emission control system.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
NOTICE
- Malfunction Indicator Lamp (MIL)
Driving with the Malfunction Indicator
Lamp (MIL) on may cause damage to
the emission control systems which
could effect drivability and/or fuel
economy.
NOTICE
- Petrol Engine
If the Malfunction Indicator Lamp
(MIL) illuminates, potential catalytic
converter damage is possible which
could result in loss of engine power.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
NOTICE
- Diesel Engine
If the Malfunction Indicator Lamp
(MIL) blinks, some error related to the
injection quantity adjustment occurs
which could result in loss of engine
power, combustion noise and poor
emission.
In this case, we recommend that
you have the engine control system
inspected by an authorized HYUNDAI
dealer.
Page 102 of 444
![HYUNDAI I20 2022 Owners Manual 5-12
Instrument cluster
Charging System
Warning Light
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It remains on until HYUNDAI I20 2022 Owners Manual 5-12
Instrument cluster
Charging System
Warning Light
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It remains on until](/img/35/56130/w960_56130-101.png)

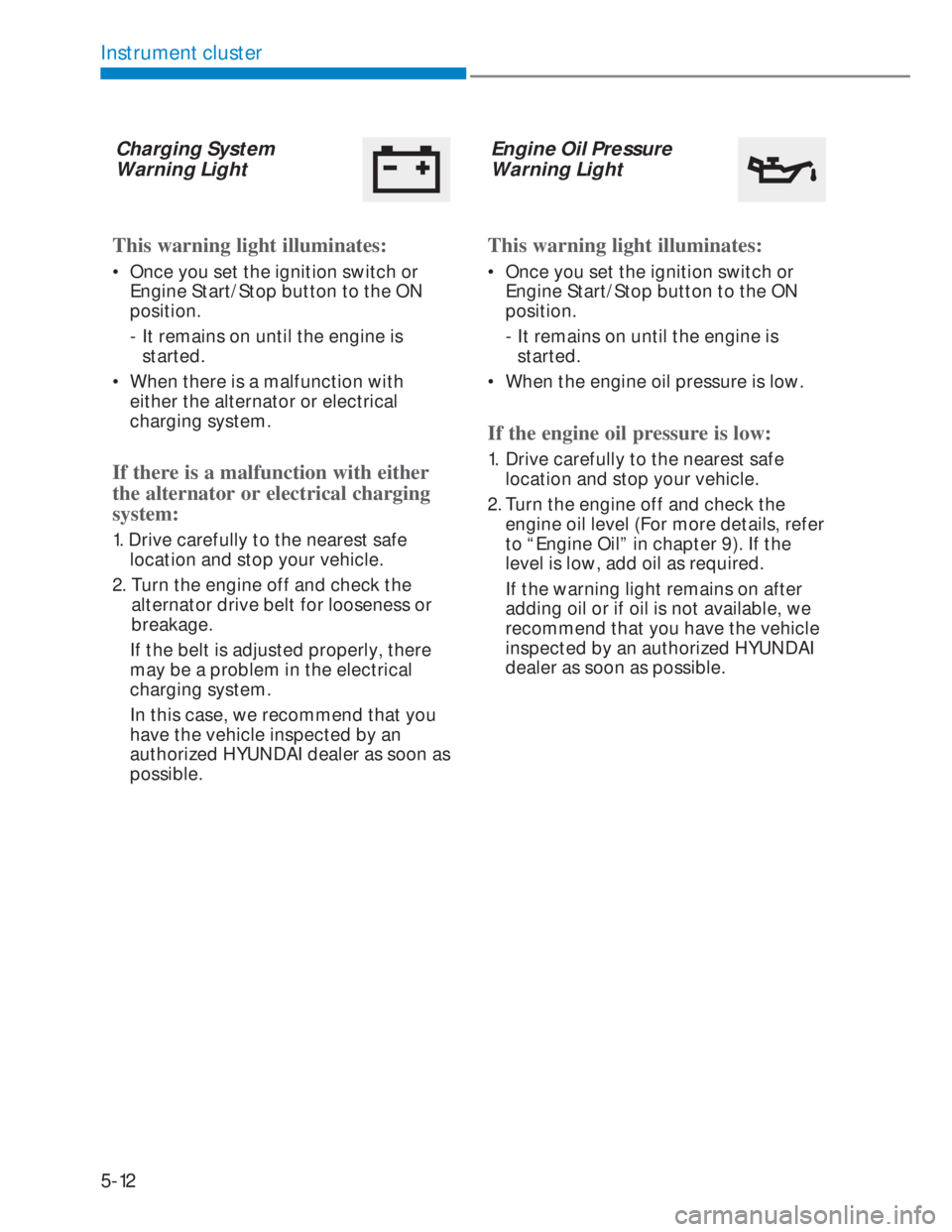

5-12
Instrument cluster
Charging System
Warning Light
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It remains on until the engine is
started.
• When there is a malfunction with
either the alternator or electrical
charging system.
If there is a malfunction with either
the alternator or electrical charging
system:
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. Turn the engine off and check the
alternator drive belt for looseness or
breakage.
If the belt is adjusted properly, there
may be a problem in the electrical
charging system.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
Engine Oil Pressure
Warning Light
This warning light illuminates:
• Once you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It remains on until the engine is
started.
• When the engine oil pressure is low.
If the engine oil pressure is low:
1. Drive carefully to the nearest safe
location and stop your vehicle.
2. Turn the engine off and check the
engine oil level (For more details, refer
to “Engine Oil” in chapter 9). If the
level is low, add oil as required.
If the warning light remains on after
adding oil or if oil is not available, we
recommend that you have the vehicle
inspected by an authorized HYUNDAI
dealer as soon as possible.
Page 103 of 444
![HYUNDAI I20 2022 Owners Manual 5-13
05
NOTICE
- Engine Oil Pressure Warning Light
• If the engine does not stop
immediately after the Engine Oil
Pressure Warning Light is illuminated,
severe damage could result.
• If the HYUNDAI I20 2022 Owners Manual 5-13
05
NOTICE
- Engine Oil Pressure Warning Light
• If the engine does not stop
immediately after the Engine Oil
Pressure Warning Light is illuminated,
severe damage could result.
• If the](/img/35/56130/w960_56130-102.png)

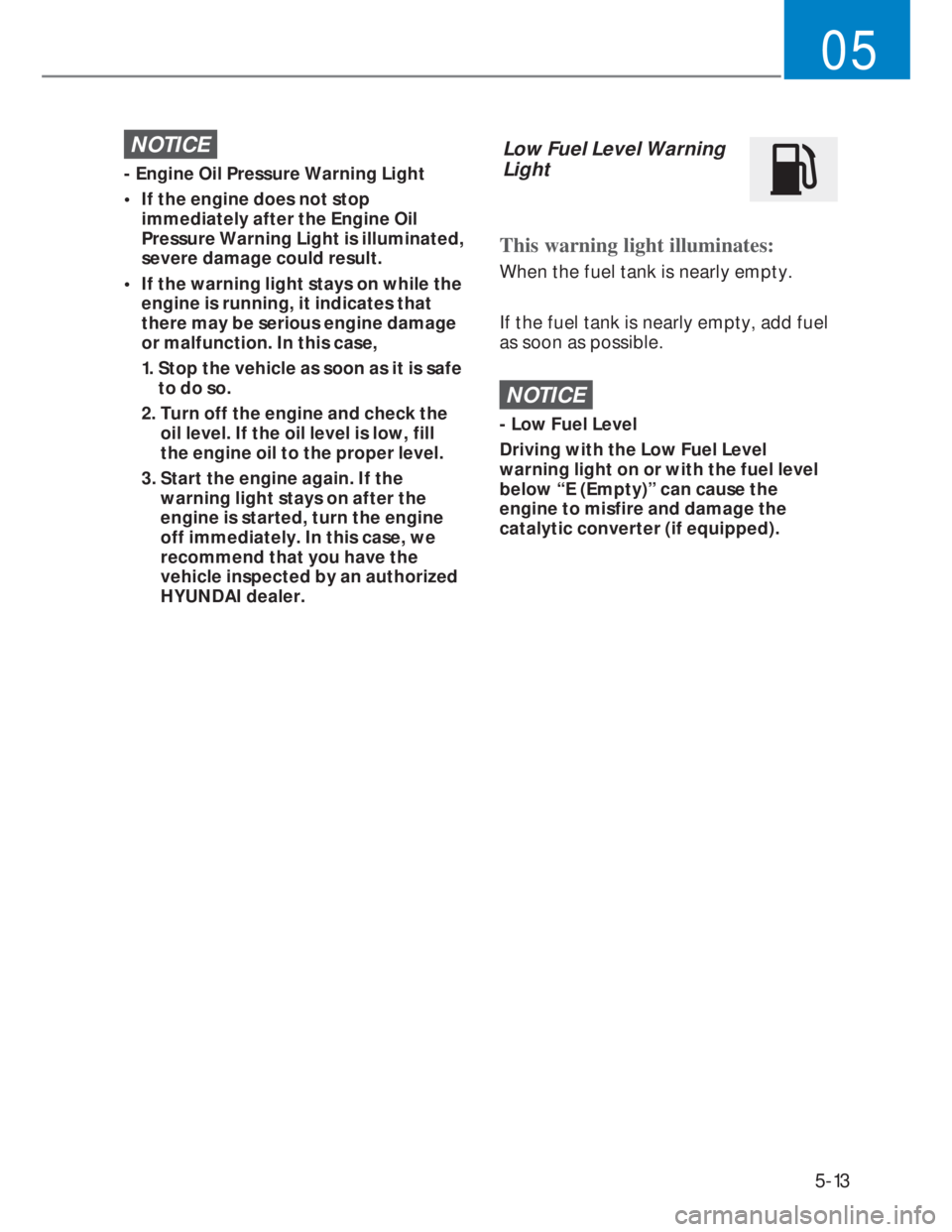

5-13
05
NOTICE
- Engine Oil Pressure Warning Light
• If the engine does not stop
immediately after the Engine Oil
Pressure Warning Light is illuminated,
severe damage could result.
• If the warning light stays on while the
engine is running, it indicates that
there may be serious engine damage
or malfunction. In this case,
1. Stop the vehicle as soon as it is safe
to do so.
2. Turn off the engine and check the
oil level. If the oil level is low, fill
the engine oil to the proper level.
3. Start the engine again. If the
warning light stays on after the
engine is started, turn the engine
off immediately. In this case, we
recommend that you have the
vehicle inspected by an authorized
HYUNDAI dealer.
Low Fuel Level Warning
Light
This warning light illuminates:
When the fuel tank is nearly empty.
If the fuel tank is nearly empty, add fuel
as soon as possible.
NOTICE
- Low Fuel Level
Driving with the Low Fuel Level
warning light on or with the fuel level
below “E (Empty)” can cause the
engine to misfire and damage the
catalytic converter (if equipped).
Page 105 of 444
![HYUNDAI I20 2022 Owners Manual 5-15
05
Electronic Stability
Control (ESC) Indicator
Light (if equipped)
This indicator light illuminates:
• When you set the ignition switch to
the ON position.
- It illuminates for approxim HYUNDAI I20 2022 Owners Manual 5-15
05
Electronic Stability
Control (ESC) Indicator
Light (if equipped)
This indicator light illuminates:
• When you set the ignition switch to
the ON position.
- It illuminates for approxim](/img/35/56130/w960_56130-104.png)

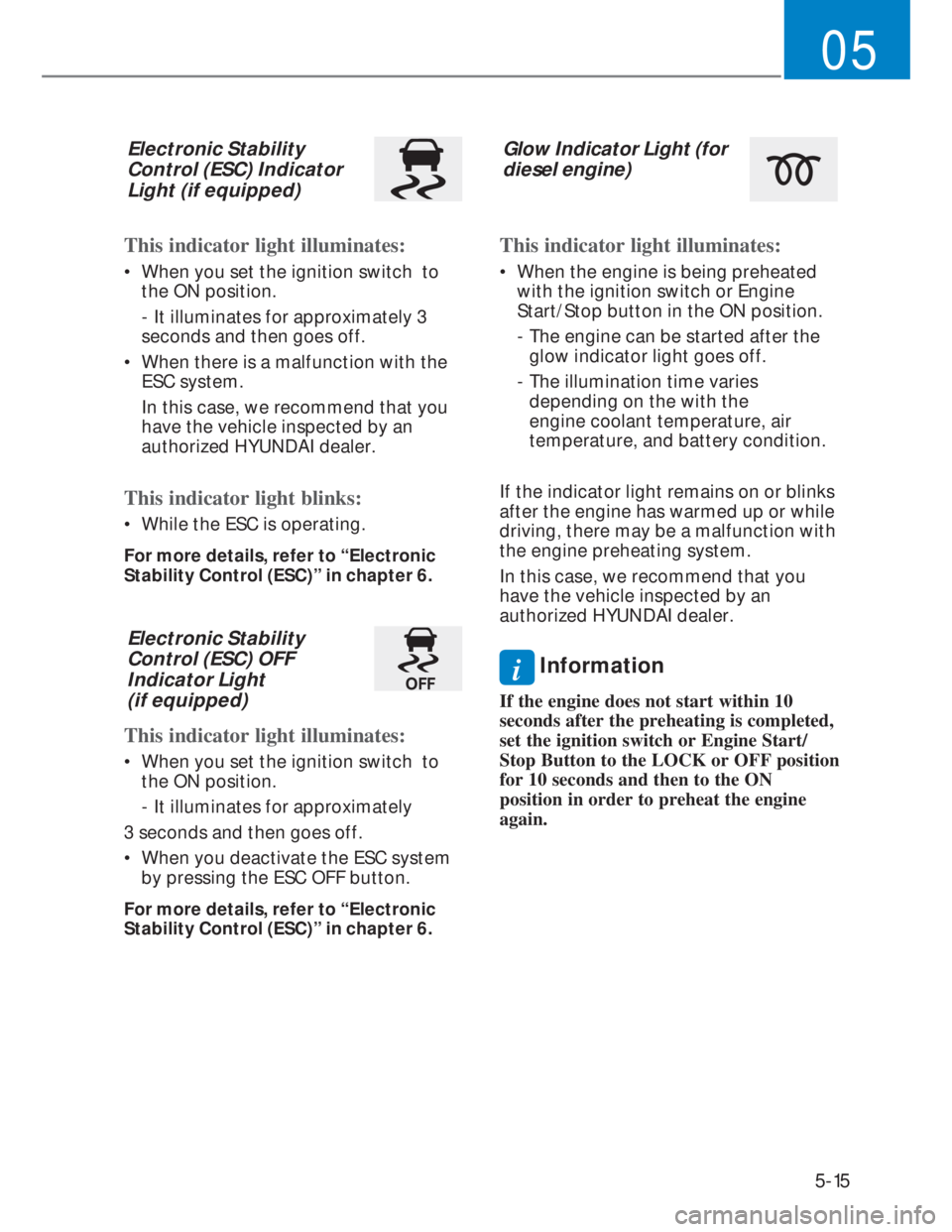

5-15
05
Electronic Stability
Control (ESC) Indicator
Light (if equipped)
This indicator light illuminates:
• When you set the ignition switch to
the ON position.
- It illuminates for approximately 3
seconds and then goes off.
• When there is a malfunction with the
ESC system.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
This indicator light blinks:
• While the ESC is operating.
For more details, refer to “Electronic
Stability Control (ESC)” in chapter 6.
Electronic Stability
Control (ESC) OFF
Indicator Light
(if equipped)
This indicator light illuminates:
• When you set the ignition switch to
the ON position.
- It illuminates for approximately
3 seconds and then goes off.
• When you deactivate the ESC system
by pressing the ESC OFF button.
For more details, refer to “Electronic
Stability Control (ESC)” in chapter 6.
Glow Indicator Light (for
diesel engine)
This indicator light illuminates:
• When the engine is being preheated
with the ignition switch or Engine
Start/Stop button in the ON position.
- The engine can be started after the
glow indicator light goes off.
- The illumination time varies
depending on the with the
engine coolant temperature, air
temperature, and battery condition.
If the indicator light remains on or blinks
after the engine has warmed up or while
driving, there may be a malfunction with
the engine preheating system.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
i Information
If the engine does not start within 10
seconds after the preheating is completed,
set the ignition switch or Engine Start/
Stop Button to the LOCK or OFF position
for 10 seconds and then to the ON
position in order to preheat the engine
again.
Page 106 of 444
![HYUNDAI I20 2022 Owners Manual 5-16
Instrument cluster
Door Ajar Warning Light
This warning light illuminates:
When a door is not close securely.
Tailgate Open Warning
Light
This warning light illuminates:
When the tailgate is not HYUNDAI I20 2022 Owners Manual 5-16
Instrument cluster
Door Ajar Warning Light
This warning light illuminates:
When a door is not close securely.
Tailgate Open Warning
Light
This warning light illuminates:
When the tailgate is not](/img/35/56130/w960_56130-105.png)
5-16
Instrument cluster
Door Ajar Warning Light
This warning light illuminates:
When a door is not close securely.
Tailgate Open Warning
Light
This warning light illuminates:
When the tailgate is not close securely.
Immobilizer Indicator
Light (without smart key)
This indicator light illuminates:
When the vehicle detects the
immobilizer in your key properly while
the ignition switch is ON.
- At this time, you can start the engine.
- The indicator light goes off after
starting the engine.
This indicator light blinks:
When there is a malfunction with the
immobilizer system.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
Immobilizer Indicator
Light (with smart key)
This indicator light illuminates for up
to 30 seconds:
When the vehicle detects the smart key
in the vehicle properly while the Engine
Start/Stop button is ACC or ON.
- At this time, you can start the engine.
- The indicator light goes off after
starting the engine.
This indicator light blinks for a few
seconds:
When the smart key is not in the vehicle.
- At this time, you can not start the
engine.
This indicator light illuminates for 2
seconds and goes off:
When the vehicle can not detect the
smart key which is in the vehicle while
the Engine Start/Stop button is ON.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer.
