3-12
Vehicle information
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher
viscosity engine oils are required for satisfactory lubrication in hot weather.
Using oils of any viscosity other than those recommended could result in engine
damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended oil
viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40
-10 0 20 40 60 80 100
0W-20/30
5W-30(Diesel) 1.5 WGT
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Petrol
Engine
Oil
0W-20
20W-50
10W-30
15W-40
0W-30, 5W-30, 5W-40
1.0 T-GDi
Smartstream
G1.2 *1
*1 : If mineral oil or semi-synthetic oil is used, it is a severe maintenance condition in
terms of engine oil change.
Recommended SAE viscosity number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick
before checking or draining any lubricant. This is especially important in dusty or
sandy areas and when the vehicle is used on unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt and grit from entering the engine and other
mechanisms that could be damaged.
An engine oil displaying this American Petroleum Institute(API)
Certification Mark conforms to the International Lubricant
Specification Advisory Committee (ILSAC). It is recommended to only
use engine oils that uphold this API Certification Mark.

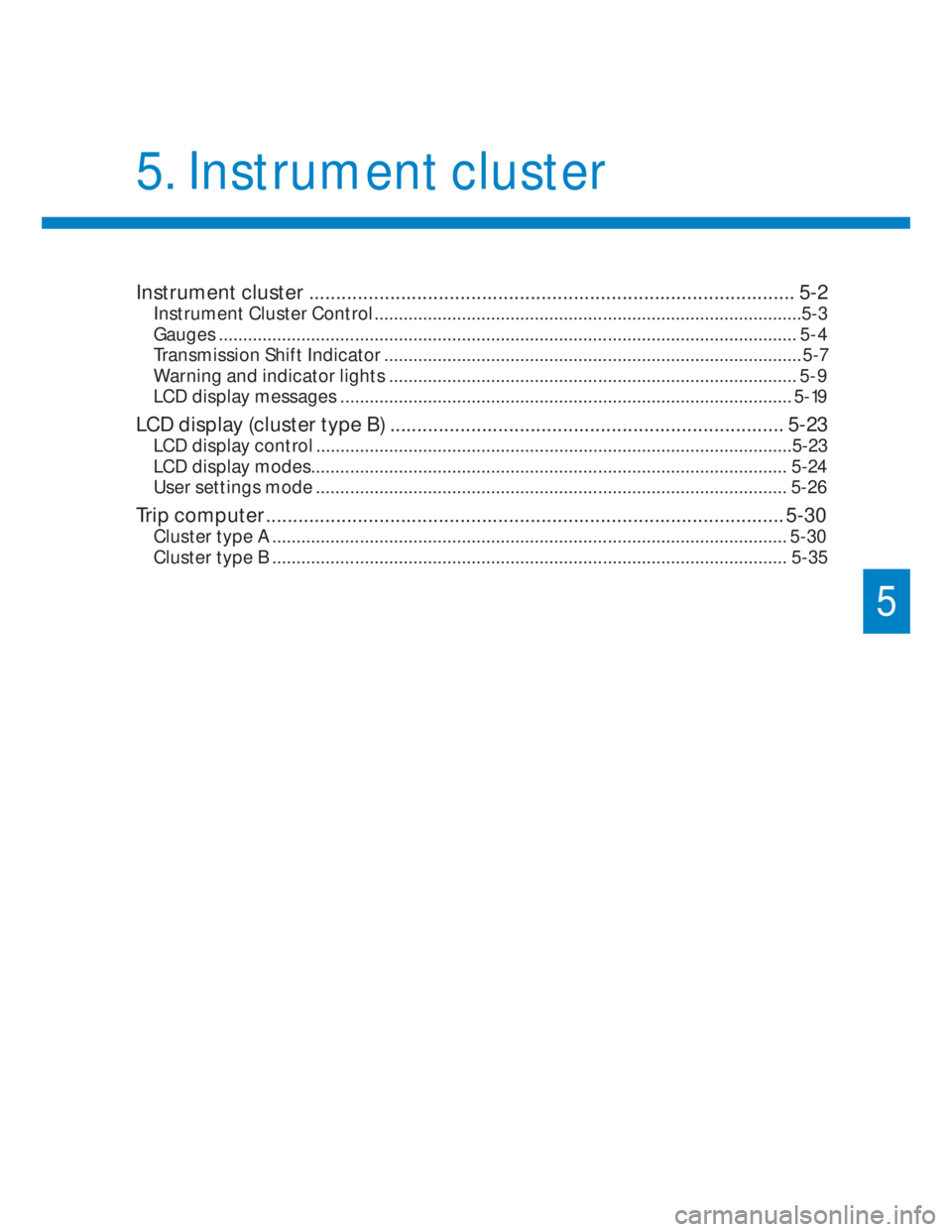

Instrument cluster .......................................................................................... 5-2
Instrument Cluster Control ........................................................................................5-3
Gauges ....................................................................................................................... 5-4
Transmission Shift Indicator ...................................................................................... 5-7
Warning and indicator lights .................................................................................... 5-9
LCD display messages
............................................................................................. 5-19
LCD display (cluster type B) ......................................................................... 5-23
LCD display control ..................................................................................................5-23
LCD display modes.................................................................................................. 5-24
User settings mode
................................................................................................. 5-26
Trip computer ................................................................................................ 5-30
Cluster type A .......................................................................................................... 5-30
Cluster type B
.......................................................................................................... 5-35
5. Instrument cluster
5

5-3
05
Instrument Cluster Control
You can adjust the brightness of the
instrument panel illumination form the
User Settings Mode on the LCD display
when the ignition switch is on (‘Lights
J Illumination’). When the vehicle’s
parking lights or headlamps are on,
interior switch illumination intensity and
mood lamps are also adjusted.
If your vehicle is equipped with
additional navigation, please refer
to the infotainment system manual
separately supplied.
WARNING
Never adjust the instrument cluster
while driving. This could result in loss
of control and lead to an accident that
may cause death, serious injury, or
property damage.
OHCR046110OHCR046110
• The brightness of the instrument panel
illumination is displayed.
• If the brightness reaches to the
maximum or minimum level, an alarm
will sound (if equipped).

5-7
05

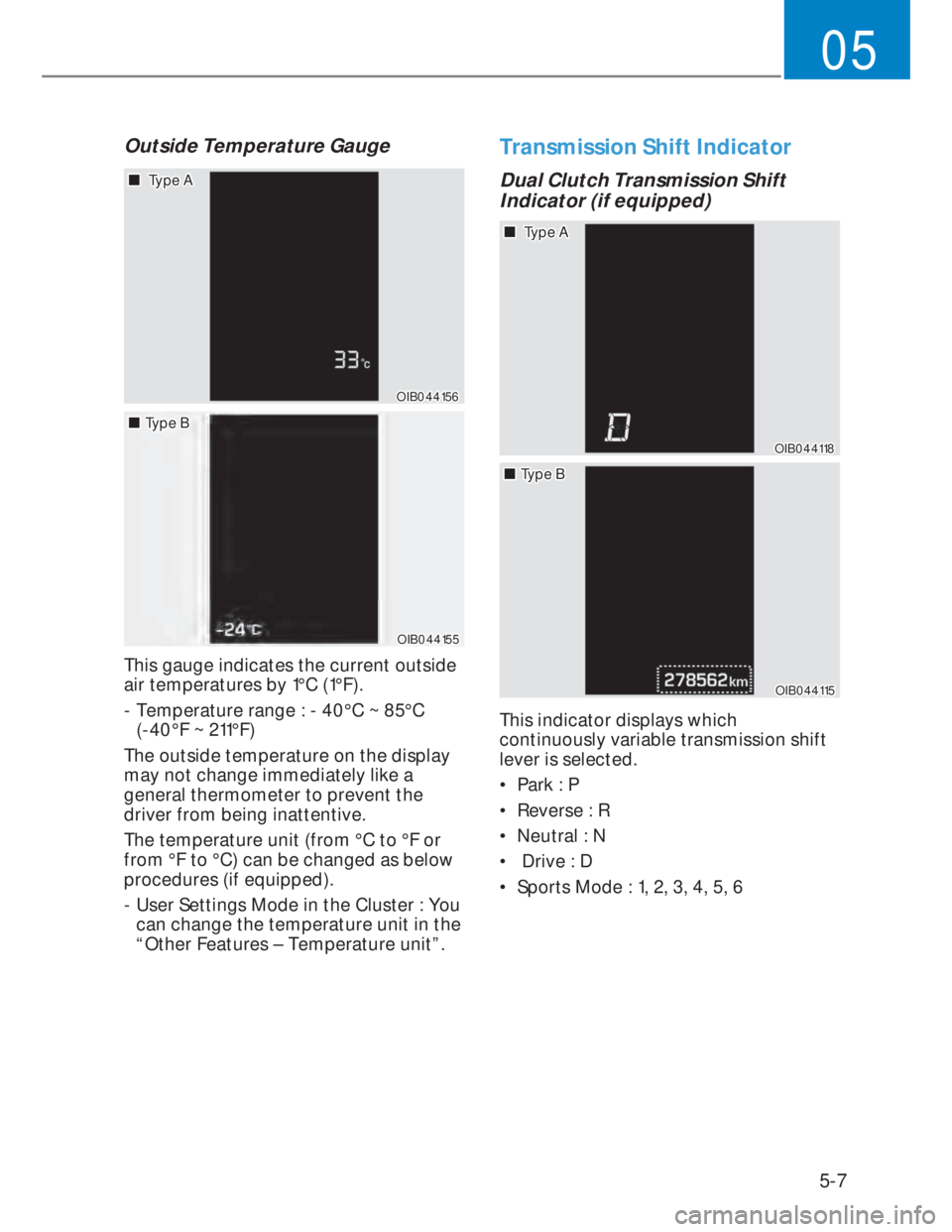

Outside Temperature Gauge
OIB044156OIB044156
„„ Type A Type A
OIB044155OIB044155
„„Type BType B
This gauge indicates the current outside
air temperatures by 1°C (1°F).
- Temperature range : - 40°C ~ 85°C
(-40°F ~ 211°F)
The outside temperature on the display
may not change immediately like a
general thermometer to prevent the
driver from being inattentive.
The temperature unit (from °C to °F or
from °F to °C) can be changed as below
procedures (if equipped).
- User Settings Mode in the Cluster : You
can change the temperature unit in the
“Other Features – Temperature unit”.
Transmission Shift Indicator
Dual Clutch Transmission Shift
Indicator (if equipped)
OIB044118OIB044118
„„ Type A Type A
OIB044115OIB044115
„„Type BType B
This indicator displays which
continuously variable transmission shift
lever is selected.
• Park : P
• Reverse : R
• Neutral : N
• Drive : D
• Sports Mode : 1, 2, 3, 4, 5, 6

5-8
Instrument cluster

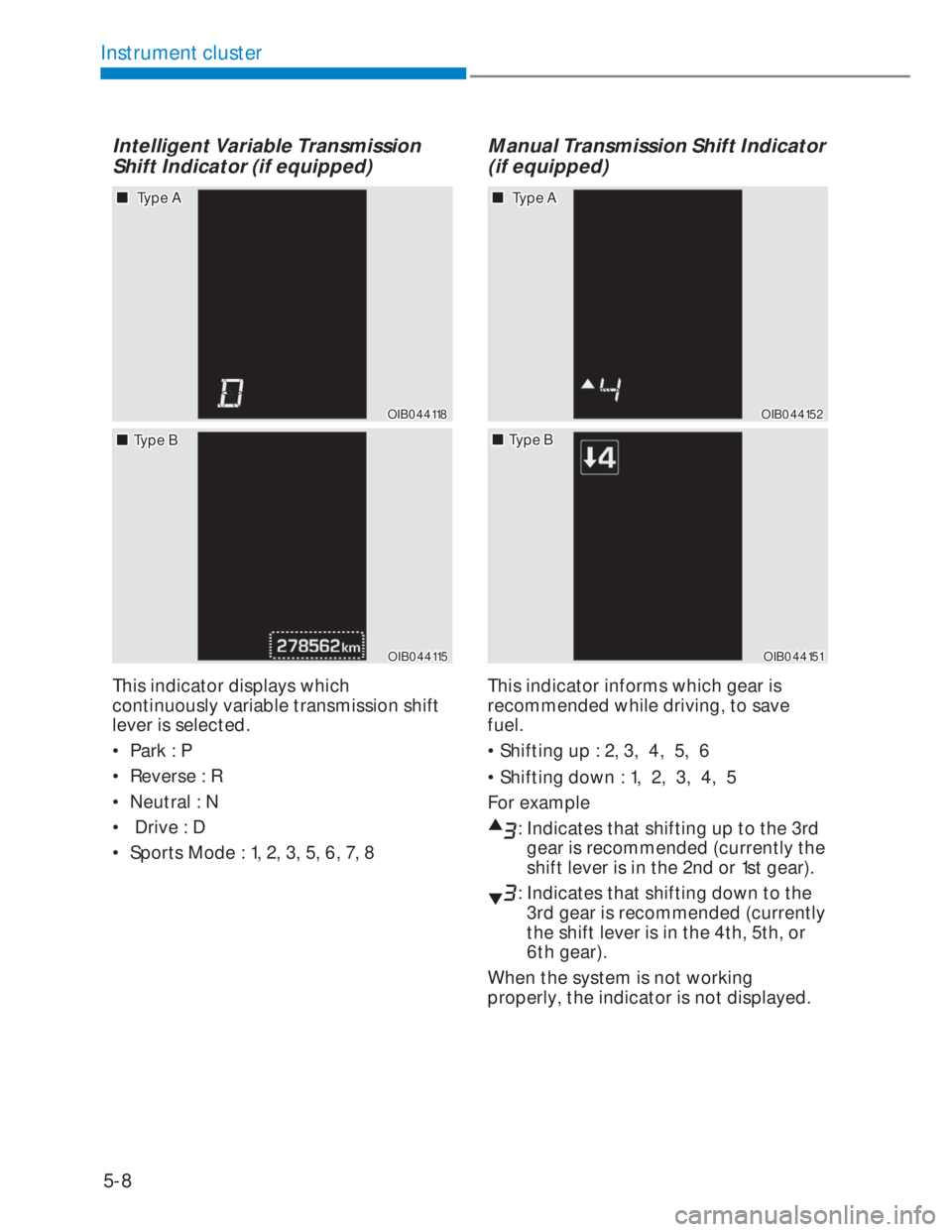

Intelligent Variable Transmission
Shift Indicator (if equipped)
OIB044118OIB044118
„„ Type A Type A
OIB044115OIB044115
„„Type BType B
This indicator displays which
continuously variable transmission shift
lever is selected.
• Park : P
• Reverse : R
• Neutral : N
• Drive : D
• Sports Mode : 1, 2, 3, 5, 6, 7, 8
Manual Transmission Shift Indicator
(if equipped)
OIB044152OIB044152
„„ Type A Type A
OIB044151OIB044151
„„Type BType B
This indicator informs which gear is
recommended while driving, to save
fuel.
• Shifting up : 2, 3,
%4,
%5,
%6
• Shifting down :
'1,
'2,
'3,
'4,
'5
For example
: Indicates that shifting up to the 3rd
gear is recommended (currently the
shift lever is in the 2nd or 1st gear).
: Indicates that shifting down to the
3rd gear is recommended (currently
the shift lever is in the 4th, 5th, or
6th gear).
When the system is not working
properly, the indicator is not displayed.

5-18
Instrument cluster
Master Warning Light
(if equipped)
This indicator light illuminates :
• When the remaining mileage or time
is 0 on the “Service Interval” in the
cluster.
If the service interval setting is reset,
the master warning light turns off.

KEY OUT Indicator Light
(if equipped)
KEY
OUT
When the Engine Start/Stop button is
in the ACC or ON position, if any door is
open, the system checks for the smart
key.
This indicator light blinks:
When the smart key is not in the vehicle
and any door is open with the ignition
switch or Engine Start/Stop button in the
ACC or ON position.
- At this time, if you close all doors,
the chime will also sound for
approximately 5 seconds.
- The indicator will go off while the
vehicle is moving.
Low Tire Pressure
Warning Light
(if equipped)
This warning light illuminates:
• When you set the ignition switch or
Engine Start/Stop button to the ON
position.
- It illuminates for approximately 3
seconds and then goes off.
• When one or more of your tires
are significantly underinflated (The
location of the underinflated tires are
displayed on the LCD display).
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
This warning light remains on after
blinking for approximately 60 seconds
or repeatedly blinks on and off at
approximately 3 second intervals:
• When there is a malfunction with the
TPMS.
In this case, we recommend that you
have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
WARNING
Safe Stopping
• The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.
• If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.

5-19
05
LCD display messages
Key not in vehicle
(for smart key system)
This warning message is displayed if the
smart key is not in the vehicle when you
open or close door in the ACC position
or ON position. The warning sound is
heard when you close door without a
smart key in vehicle.
When attempting to start the vehicle
always have the smart key with you.
Key not detected
(for smart key system)
This warning message is displayed if
the smart key is not detected when you
press the Engine Start/Stop button.
Press START button with key (for
smart key system)
This warning message is displayed if
you press the Engine Start/Stop button
while the warning message “Key not
detected” is displayed.
At this time, the immobilizer indicator
light blinks.
Low key battery
(for smart key system)
This warning message is displayed if the
battery of the smart key is discharged
while changing the Engine Start/Stop
button to the OFF position.
Press brake pedal to start engine
(for smart key system and
Automatic transmission/Dual clutch
transmission)
This warning message is displayed if the
Engine Start/Stop button changes to
the ACC position twice by pressing the
button repeatedly without depressing
the brake pedal.
You can start the vehicle by depressing
the brake pedal.
Press clutch pedal to start engine
(for smart key system and Manual
transmission)
This warning message is displayed if the
Engine Start/Stop button is in the ACC
position twice by pressing the button
repeatedly without depressing the clutch
pedal.
Depress the clutch pedal to start the
engine.
Press START button again
(for smart key system)
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, we recommend that you have
your vehicle inspected by an authorized
HYUNDAI dealer.

5-20
Instrument cluster
Shift to N to start engine
(for smart key system and
Automatic transmission/Dual clutch
transmission) / iMT (intelligent
manual transmission))
This warning message is displayed if
you try to start the engine with the shift
button not in the N (Neutral) position.
i Information
You can start the engine with the shift
lever in the N (Neutral) position.
Check BRAKE SWITCH fuse (for
smart key system and Automatic
transmission/Dual clutch
transmission)
This warning message is displayed if the
brake switch fuse is disconnected.
You need to replace the fuse with a new
one. If that is not possible, you can start
the engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.
Lights mode
OIK047163LOIK047163L
This indicator displays which exterior
light is selected using the lighting
control.

5-21
05
Wiper mode
OCN7040039LOCN7040039L
This indicator displays which wiper
speed is selected using the wiper
control.
Turn on FUSE SWITCH
This warning message is displayed if
the fuse switch located on the fuse box
under the steering wheel is OFF.
You should turn the fuse switch on.
For more details, refer to “Fuses”
Section in chapter 9.
Low pressure (if equipped)
OBI3040008OBI3040008
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
Heated Steering Wheel turned off
(if equipped)
This message illuminates if the heated
steering wheel will turn off automatically
approximately 30 minutes after the
heated steering wheel is turned on.
For more details, refer to “Heated
Steering Wheel” in chapter 5.
Low fuel
This warning message is displayed if the
fuel tank is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the
nearest fueling station and refuel as
soon as possible.

5-22
Instrument cluster
Low engine oil (if equipped)
This warning message is displayed when
the engine oil level should be checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel.
Use only the specified engine oil. (Refer
to "Recommended lubricants and
capacities" section in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
NOTICE
If the message is displayed
continuously after adding the engine
oil and travelling approximately
50~100 km after the engine warms up,
we recommend that the system be
checked by an authorized HYUNDAI
dealer.
Engine has overheated
(if equipped)
This warning message is displayed
when the engine coolant temperature
is above 120°C (248°F). This means that
the engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check headlight (if equipped)
This warning message is displayed if the
headlamps are not operating properly.
In addition, if a specific lamp(turn signal
lamp etc.) is not operating properly, the
warning message according to a specific
lamp (turn signal lamp etc.) is displayed.
A corresponding bulb may need to be
replaced.
Make sure to replace the burned out
bulb with a new one of the same
wattage rating.
Check brake light (if equipped)
This warning message is displayed if the
stop lamps are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same
wattage rating.
