5-130
Convenient features
7 5 $ ' ( 0 $ 5 . 6
NOTICE
[ 2 S H U D W L R Q L V J X D U D Q W H H G R Q O \ I R U D
P H W D O F R Y H U W \ S H 8 6 % V W R U D J H G H Y L F H
Z L W K D S O X J W \ S H F R Q Q H F W R U
- 8 6 % V W R U D J H G H Y L F H V Z L W K D S O D V W L F
S O X J P D \ Q R W E H U H F R J Q L V H G
- 8 6 % V W R U D J H G H Y L F H V L Q P H P R U \
F D U G W \ S H V V X F K D V & ) F D U G R U 6 '
F D U G V P D \ Q R W E H U H F R J Q L V H G
[ 8 6 % K D U G G L V N G U L Y H V P D \ Q R W E H
U H F R J Q L V H G
[ : K H Q \ R X X V H D O D U J H F D S D F L W \ 8 6 %
V W R U D J H G H Y L F H Z L W K P X O W L S O H O R J L F D O
G U L Y H V R Q O \ I L O H V V W R U H G R Q W K H I L U V W
G U L Y H Z L O O E H U H F R J Q L V H G
[ , I D Q D S S O L F D W L R Q S U R J U D P L V O R D G H G
R Q D 8 6 % V W R U D J H G H Y L F H W K H
F R U U H V S R Q G L Q J P H G L D I L O H V P D \ Q R W
S O D \
[ 8 V H 8 6 % G H Y L F H V I R U E H W W H U
F R P S D W L E L O L W \

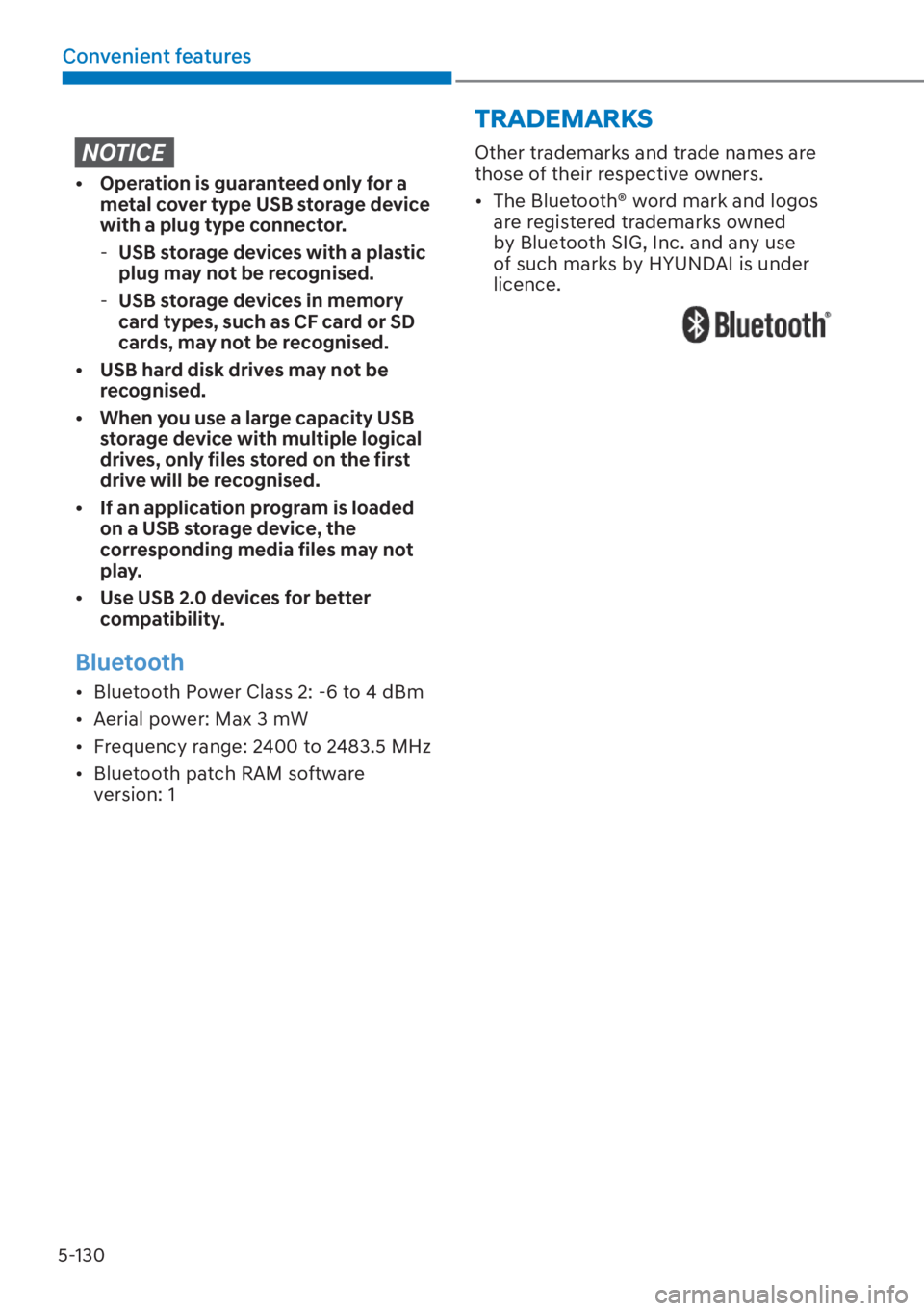

% O X H W R R W K
[ Bluetooth Power Class 2: -6 to 4 dBm
[ Aerial power: Max 3 mW
[ Frequency range: 2400 to 2483.5 MHz
[ Bluetooth patch RAM software
version: 1Other trademarks and trade names are
those of their respective owners.
[ The Bluetooth® word mark and logos
are registered trademarks owned
by Bluetooth SIG, Inc. and any use
of such marks by HYUNDAI is under
licence.
Page 272 of 649
5-131
05
& (

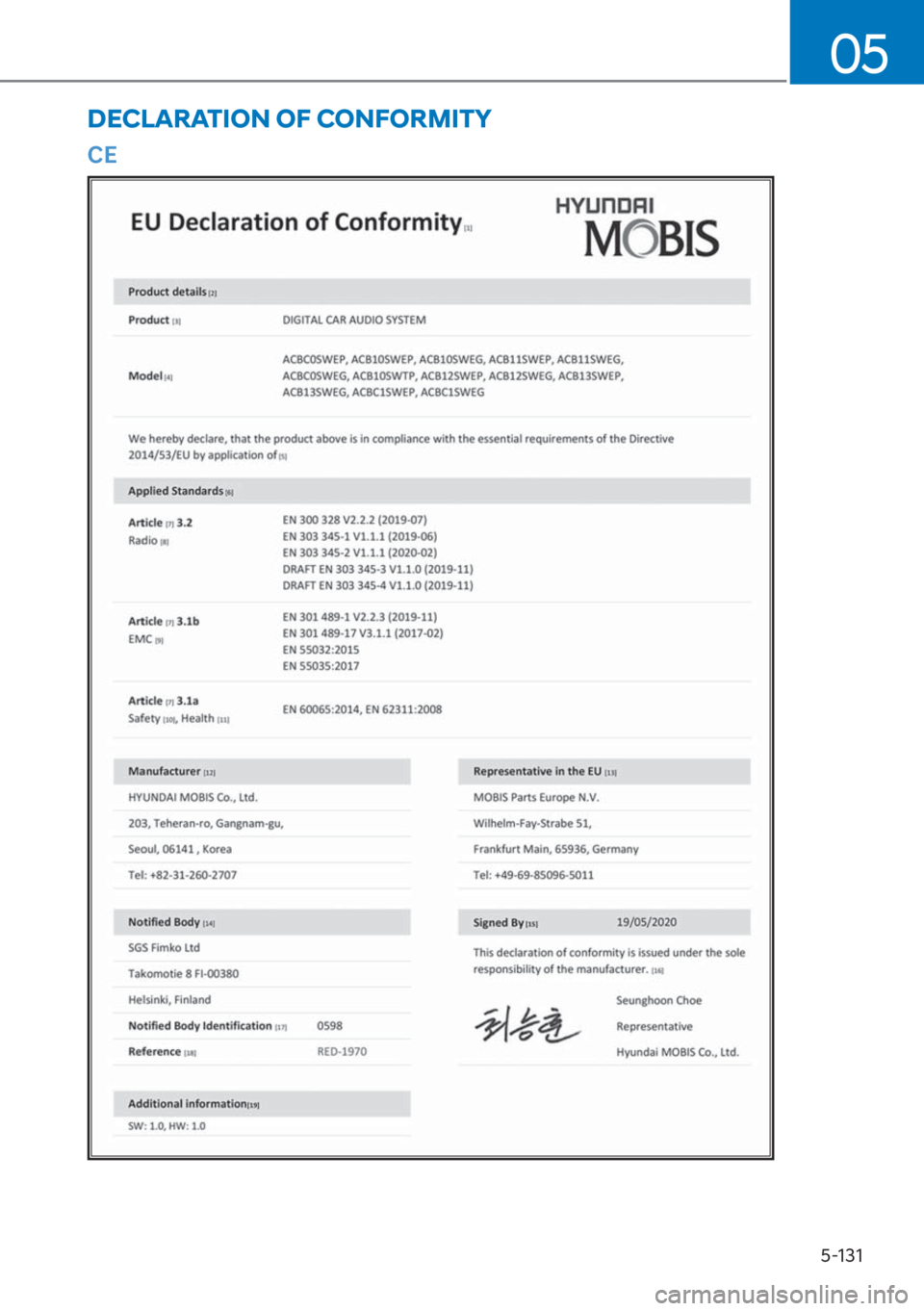

' ( & / $ 5 $ 7 , 2 1 2 ) & 2 1 ) 2 5 0 , 7 <
Page 273 of 649
5-132
Convenient features
( $ &

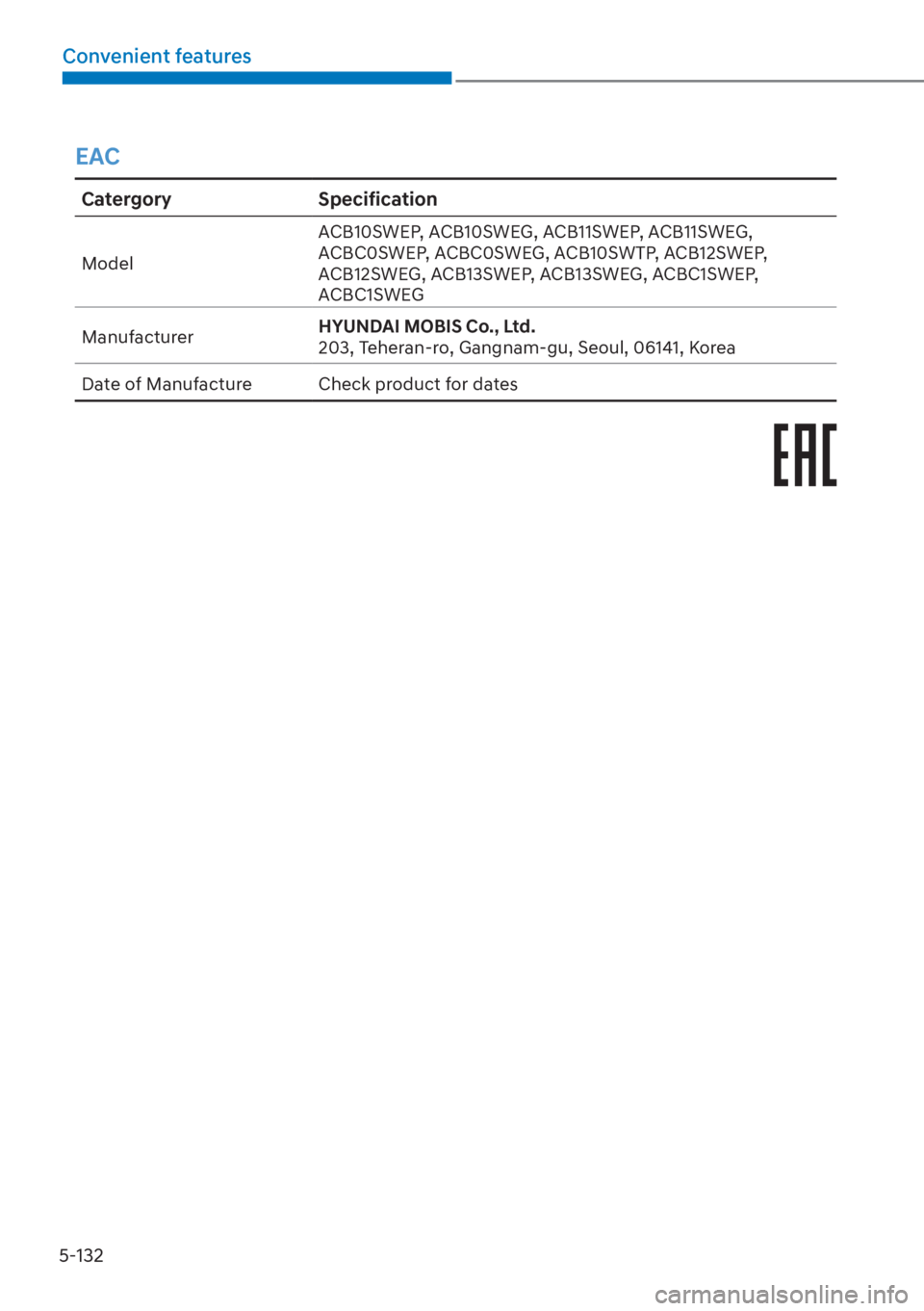

& D W H U J R U \ 6 S H F L I L F D W L R Q
ModelACB10SWEP, ACB10SWEG, ACB11SWEP, ACB11SWEG,
ACBC0SWEP, ACBC0SWEG, ACB10SWTP, ACB12SWEP,
ACB12SWEG, ACB13SWEP, ACB13SWEG, ACBC1SWEP,
ACBC1SWEG
Manufacturer + < 8 1 ' $ , 0 2 % , 6 & R / W G
203, Teheran-ro, Gangnam-gu, Seoul, 06141, Korea
Date of Manufacture Check product for dates
Page 274 of 649
Before driving .................................................................................................. 6-4Before entering the vehicle ...................................................................................... 6-4
Before starting ........................................................................................................... 6-4
Ignition switch ................................................................................................. 6-5Key ignition switch .................................................................................................... 6-5
Engine Start/Stop button .......................................................................................... 6-8
Manual transmission .....................................................................................6-13Manual transmission operation ............................................................................... 6-13
Good driving practices ............................................................................................. 6-15
Intelligent Manual Transmission (iMT) .........................................................6-16Intelligent Manual Transmission (iMT) operation .................................................. 6-16
Automatic transmission ............................................................................... 6-20Automatic transmission operation ......................................................................... 6-20
Good driving practices ............................................................................................ 6-24
Dual clutch transmission .............................................................................. 6-26Dual clutch transmission operation ....................................................................... 6-26
Parking ..................................................................................................................... 6-33
Good driving practices ............................................................................................ 6-34
Braking system .............................................................................................. 6-35Power brakes ........................................................................................................... 6-35
Disc brakes wear indicator ..................................................................................... 6-35
Rear drum brakes .................................................................................................... 6-36
Parking brake ........................................................................................................... 6-36
Anti-lock Brake System (ABS) ..................................................................................6-37
Electronic Stability Control (ESC) .......................................................................... 6-39
Vehicle Stability Management (VSM) .....................................................................6-41
Hill-Start Assist Control (HAC) ................................................................................ 6-43
Emergency Stop Signal (ESS) ................................................................................. 6-43
Multi-Collision Brake (MCB) ................................................................................... 6-44
Good braking practices ........................................................................................... 6-45
Idle Stop and Go (ISG) system .....................................................................6-46Activating the ISG .................................................................................................... 6-46
Deactivating the ISG ............................................................................................... 6-46
Condition of ISG system operation ........................................................................ 6-50
ISG Indication ........................................................................................................... 6-51
ISG malfunction ....................................................................................................... 6-52
6. Driving your vehicle
6
Page 275 of 649
6
Start Stop Coasting (SSC) (for 48V MHEV) ................................................. 6-54SSC operating conditions ...................................................................................... 6-54
Engine restarting conditions ................................................................................. 6-54
Drive mode integrated control system ........................................................ 6-55
Special driving conditions ............................................................................6-58
Hazardous driving conditions ................................................................................ 6-58
Rocking the vehicle ................................................................................................. 6-58
Smooth cornering ................................................................................................... 6-59
Driving at night ........................................................................................................ 6-59
Driving in the rain .................................................................................................... 6-59
Driving in flooded areas ..........................................................................................6-60
Highway driving ......................................................................................................6-60
Winter driving ................................................................................................ 6-61Snow or icy conditions .............................................................................................6-61
Winter Precautions .................................................................................................. 6-63
Trailer towing (for europe) ............................................................................6-65If you decide to pull a trailer? ................................................................................. 6-66
Trailer towing equipment........................................................................................ 6-69
Driving with a trailer ................................................................................................ 6-70
Maintenance when towing a trailer ........................................................................6-72
Vehicle weight ............................................................................................... 6-73Overloading ..............................................................................................................6-73
Page 276 of 649
6-3
06

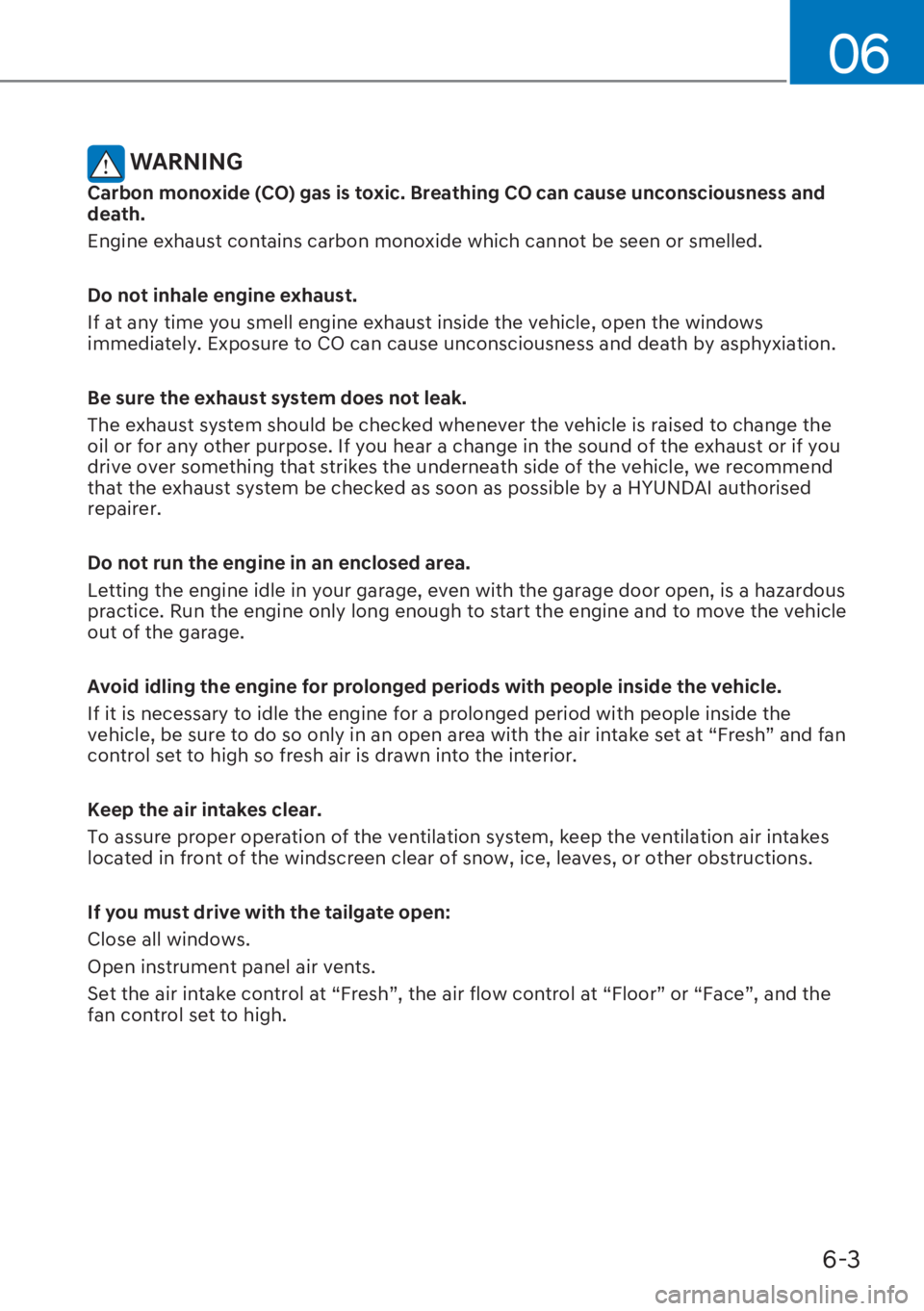

WARNING
Carbon monoxide (CO) gas is toxic. Breathing CO can cause unconsciousness and
death.
Engine exhaust contains carbon monoxide which cannot be seen or smelled.
Do not inhale engine exhaust.
If at any time you smell engine exhaust inside the vehicle, open the windows
immediately. Exposure to CO can cause unconsciousness and death by asphyxiation.
Be sure the exhaust system does not leak.
The exhaust system should be checked whenever the vehicle is raised to change the
oil or for any other purpose. If you hear a change in the sound of the exhaust or if you
drive over something that strikes the underneath side of the vehicle, we recommend
that the exhaust system be checked as soon as possible by a HYUNDAI authorised
repairer.
Do not run the engine in an enclosed area.
Letting the engine idle in your garage, even with the garage door open, is a hazardous
practice. Run the engine only long enough to start the engine and to move the vehicle
out of the garage.
Avoid idling the engine for prolonged periods with people inside the vehicle.
If it is necessary to idle the engine for a prolonged period with people inside the
vehicle, be sure to do so only in an open area with the air intake set at “Fresh” and fan
control set to high so fresh air is drawn into the interior.
Keep the air intakes clear.
To assure proper operation of the ventilation system, keep the ventilation air intakes
located in front of the windscreen clear of snow, ice, leaves, or other obstructions.
If you must drive with the tailgate open:
Close all windows.
Open instrument panel air vents.
Set the air intake control at “Fresh”, the air flow control at “Floor” or “Face”, and the
fan control set to high.
Page 277 of 649
6-4
Driving your vehicle

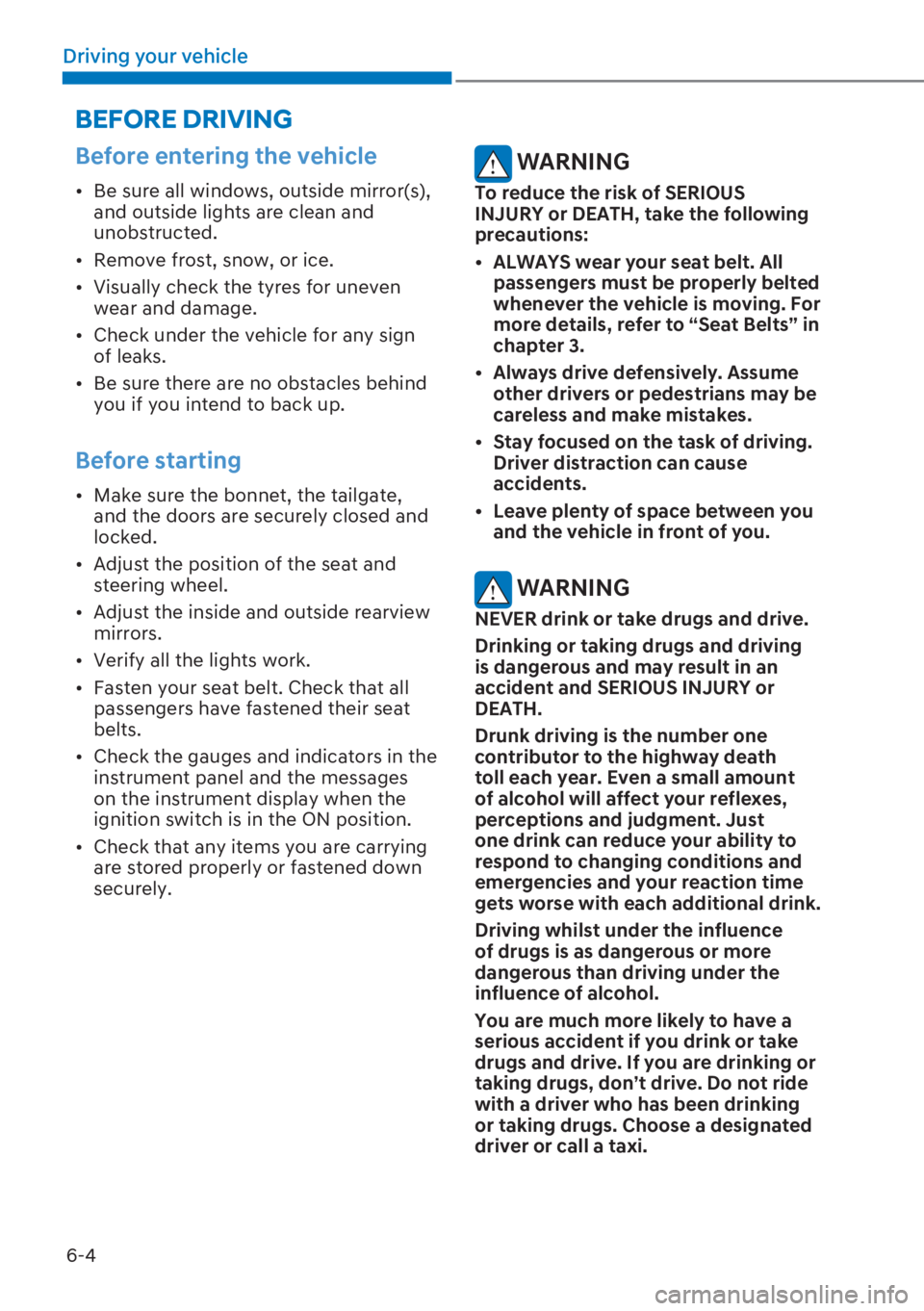

Before entering the vehicle
[ Be sure all windows, outside mirror(s),
and outside lights are clean and
unobstructed.
[ Remove frost, snow, or ice.
[ Visually check the tyres for uneven
wear and damage.
[ Check under the vehicle for any sign
of leaks.
[ Be sure there are no obstacles behind
you if you intend to back up.
Before starting
[ Make sure the bonnet, the tailgate,
and the doors are securely closed and
locked.
[ Adjust the position of the seat and
steering wheel.
[ Adjust the inside and outside rearview
mirrors.
[ Verify all the lights work.
[ Fasten your seat belt. Check that all
passengers have fastened their seat
belts.
[ Check the gauges and indicators in the
instrument panel and the messages
on the instrument display when the
ignition switch is in the ON position.
[ Check that any items you are carrying
are stored properly or fastened down
securely.
WARNING
To reduce the risk of SERIOUS
INJURY or DEATH, take the following
precautions:
[ ALWAYS wear your seat belt. All
passengers must be properly belted
whenever the vehicle is moving. For
more details, refer to “Seat Belts” in
chapter 3.
[ Always drive defensively. Assume
other drivers or pedestrians may be
careless and make mistakes.
[ Stay focused on the task of driving.
Driver distraction can cause
accidents.
[ Leave plenty of space between you
and the vehicle in front of you.
WARNING
NEVER drink or take drugs and drive.
Drinking or taking drugs and driving
is dangerous and may result in an
accident and SERIOUS INJURY or
DEATH.
Drunk driving is the number one
contributor to the highway death
toll each year. Even a small amount
of alcohol will affect your reflexes,
perceptions and judgment. Just
one drink can reduce your ability to
respond to changing conditions and
emergencies and your reaction time
gets worse with each additional drink.
Driving whilst under the influence
of drugs is as dangerous or more
dangerous than driving under the
influence of alcohol.
You are much more likely to have a
serious accident if you drink or take
drugs and drive. If you are drinking or
taking drugs, don’t drive. Do not ride
with a driver who has been drinking
or taking drugs. Choose a designated
driver or call a taxi.
BEFORE DRIVING
Page 278 of 649
6-5
06
IGNITION SWITCH
WARNING
To reduce the risk of SERIOUS
INJURY or DEATH, take the following
precautions:
[ NEVER allow children or any person
who is unfamiliar with the vehicle to
touch the ignition switch or related
parts. Unexpected and sudden
vehicle movement can occur.
[ NEVER reach through the steering
wheel for the ignition switch, or any
other control, whilst the vehicle is in
motion. The presence of your hand
or arm in this area may cause a loss
of vehicle control resulting in an
accident.

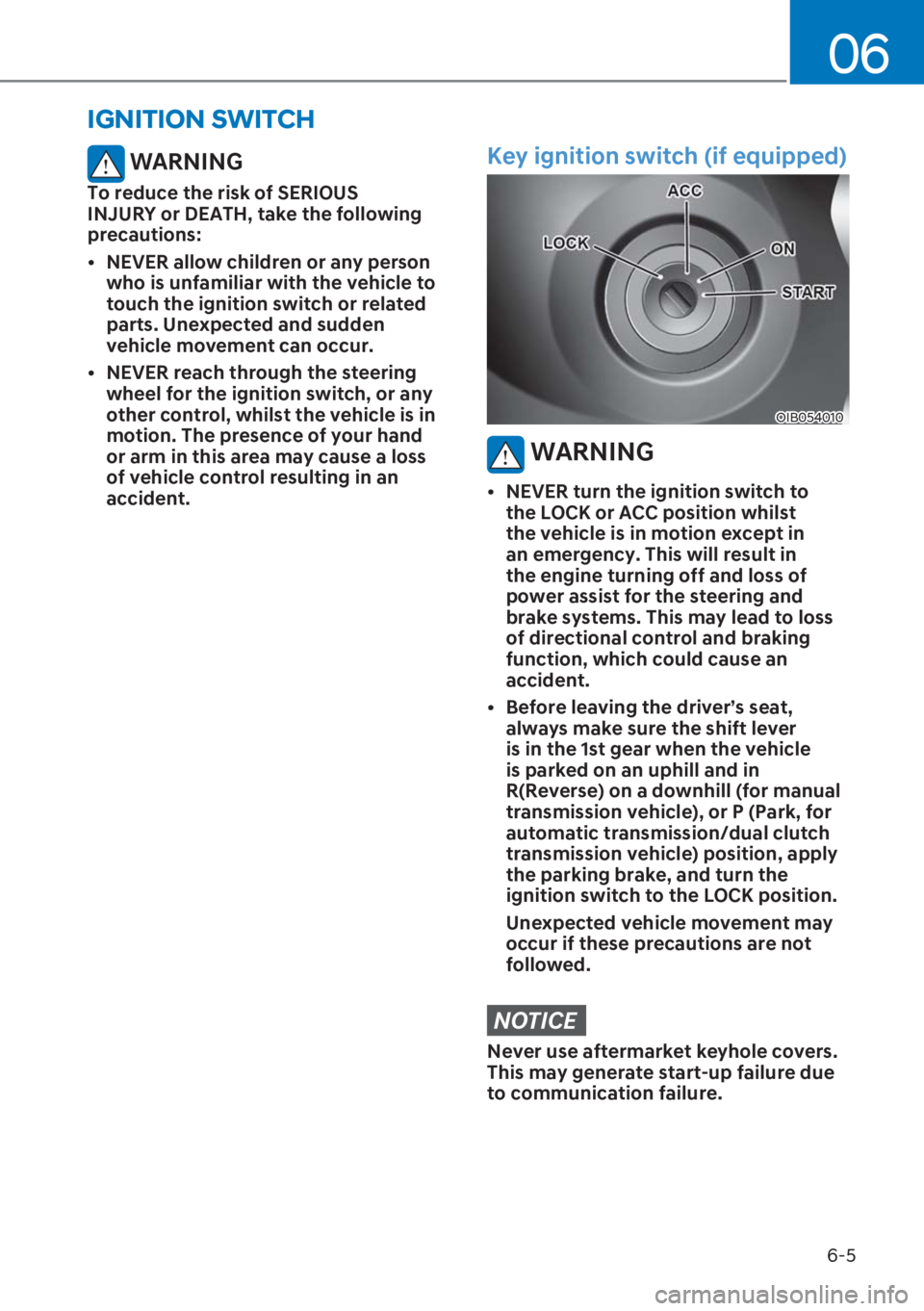

Key ignition switch (if equipped)
OIB054010
WARNING
[ NEVER turn the ignition switch to
the LOCK or ACC position whilst
the vehicle is in motion except in
an emergency. This will result in
the engine turning off and loss of
power assist for the steering and
brake systems. This may lead to loss
of directional control and braking
function, which could cause an
accident.
[ Before leaving the driver’s seat,
always make sure the shift lever
is in the 1st gear when the vehicle
is parked on an uphill and in
R(Reverse) on a downhill (for manual
transmission vehicle), or P (Park, for
automatic transmission/dual clutch
transmission vehicle) position, apply
the parking brake, and turn the
ignition switch to the LOCK position.
Unexpected vehicle movement may
occur if these precautions are not
followed.
NOTICE
Never use aftermarket keyhole covers.
This may generate start-up failure due
to communication failure.
Page 279 of 649
6-6
Driving your vehicle

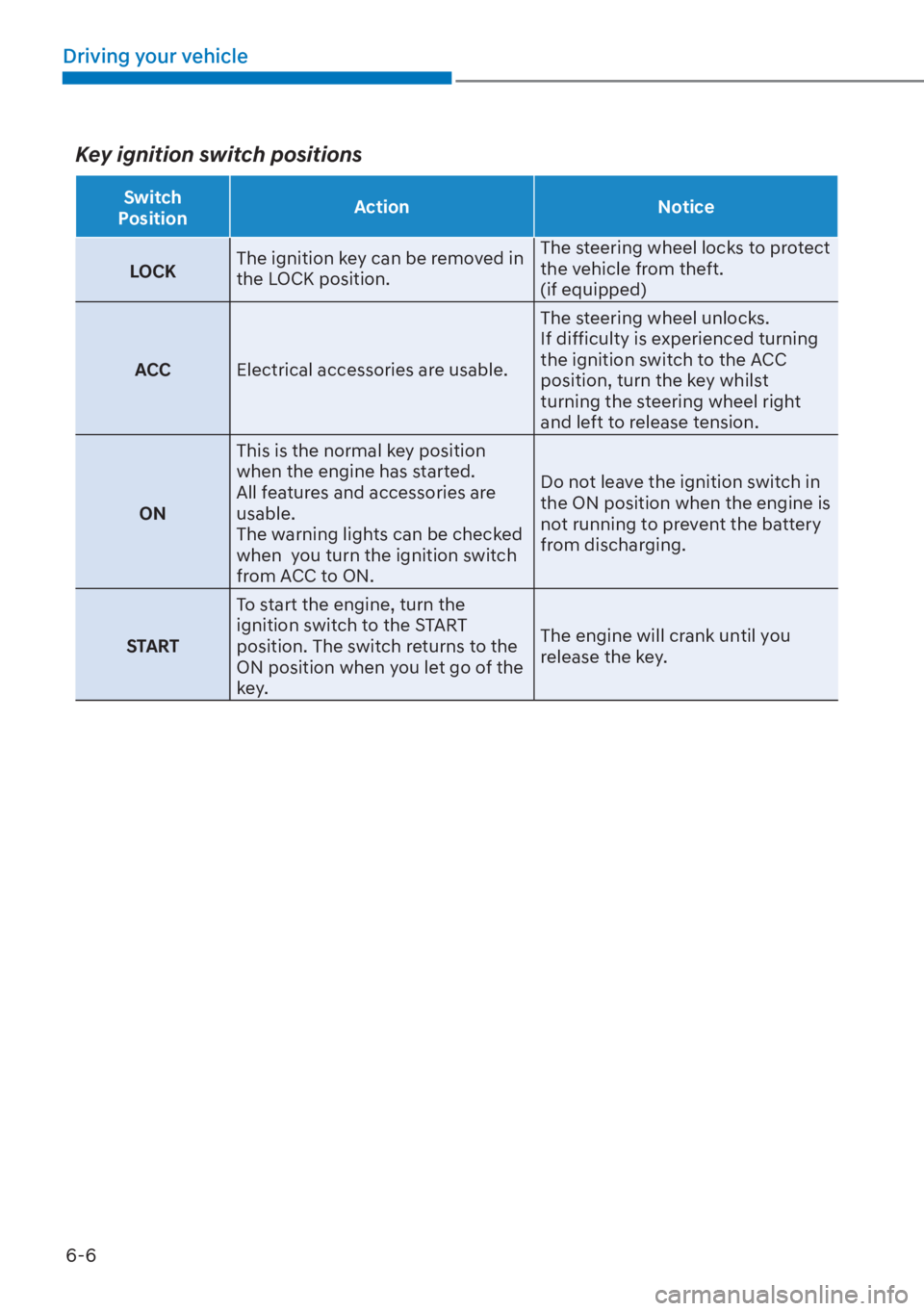

Key ignition switch positions
Switch
PositionAction Notice
LOCKThe ignition key can be removed in
the LOCK position.The steering wheel locks to protect
the vehicle from theft.
(if equipped)
ACCElectrical accessories are usable.The steering wheel unlocks.
If difficulty is experienced turning
the ignition switch to the ACC
position, turn the key whilst
turning the steering wheel right
and left to release tension.
ONThis is the normal key position
when the engine has started.
All features and accessories are
usable.
The warning lights can be checked
when you turn the ignition switch
from ACC to ON.Do not leave the ignition switch in
the ON position when the engine is
not running to prevent the battery
from discharging.
STARTTo start the engine, turn the
ignition switch to the START
position. The switch returns to the
ON position when you let go of the
key.The engine will crank until you
release the key.
Page 280 of 649
6-7
06

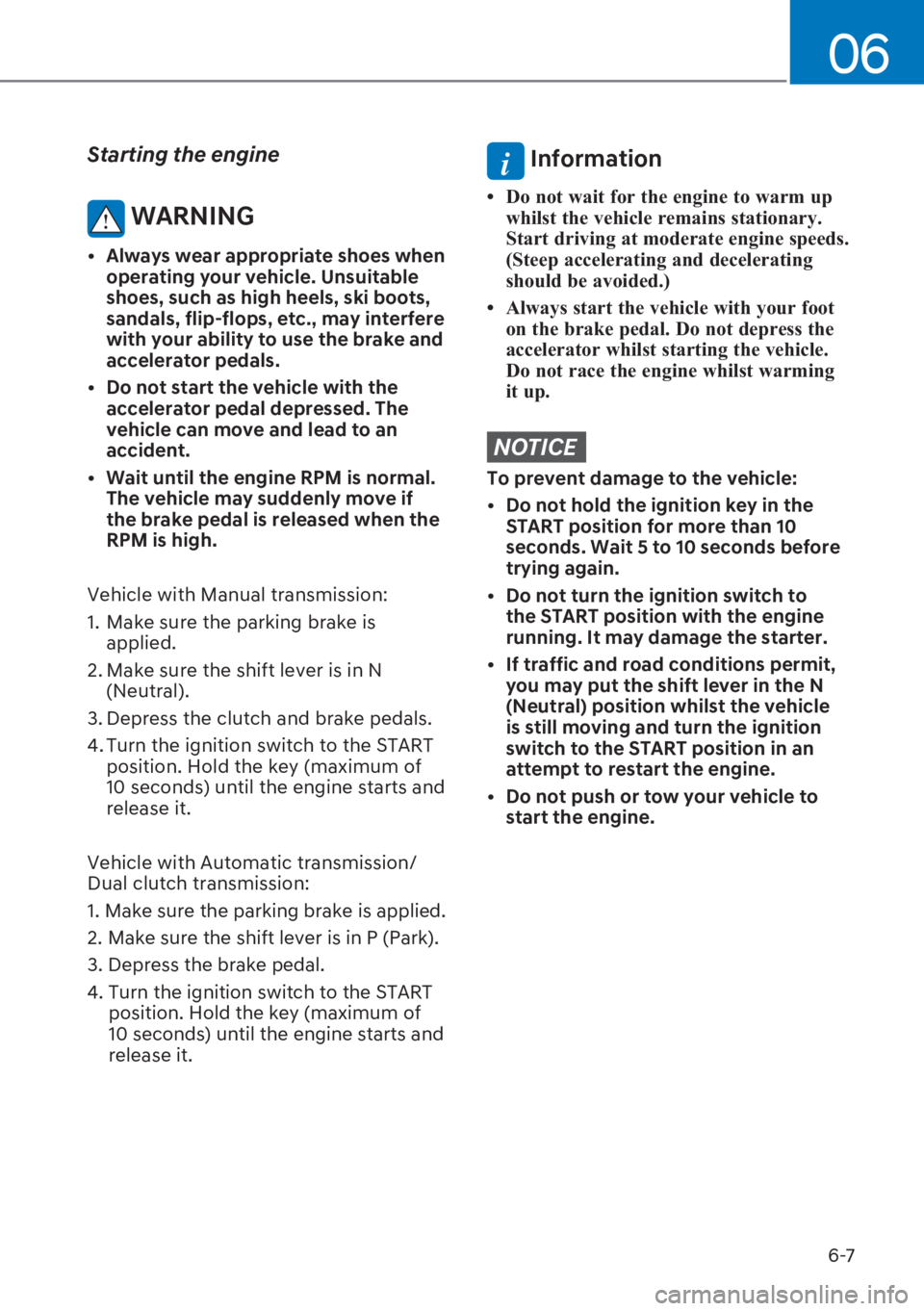

Starting the engine
WARNING
[ Always wear appropriate shoes when
operating your vehicle. Unsuitable
shoes, such as high heels, ski boots,
sandals, flip-flops, etc., may interfere
with your ability to use the brake and
accelerator pedals.
[ Do not start the vehicle with the
accelerator pedal depressed. The
vehicle can move and lead to an
accident.
[ Wait until the engine RPM is normal.
The vehicle may suddenly move if
the brake pedal is released when the
RPM is high.
Vehicle with Manual transmission:
1. Make sure the parking brake is
applied.
2. Make sure the shift lever is in N
(Neutral).
3. Depress the clutch and brake pedals.
4. Turn the ignition switch to the START
position. Hold the key (maximum of
10 seconds) until the engine starts and
release it.
Vehicle with Automatic transmission/
Dual clutch transmission:
1. Make sure the parking brake is applied.
2. Make sure the shift lever is in P (Park).
3. Depress the brake pedal.
4. Turn the ignition switch to the START
position. Hold the key (maximum of
10 seconds) until the engine starts and
release it.
i Information
