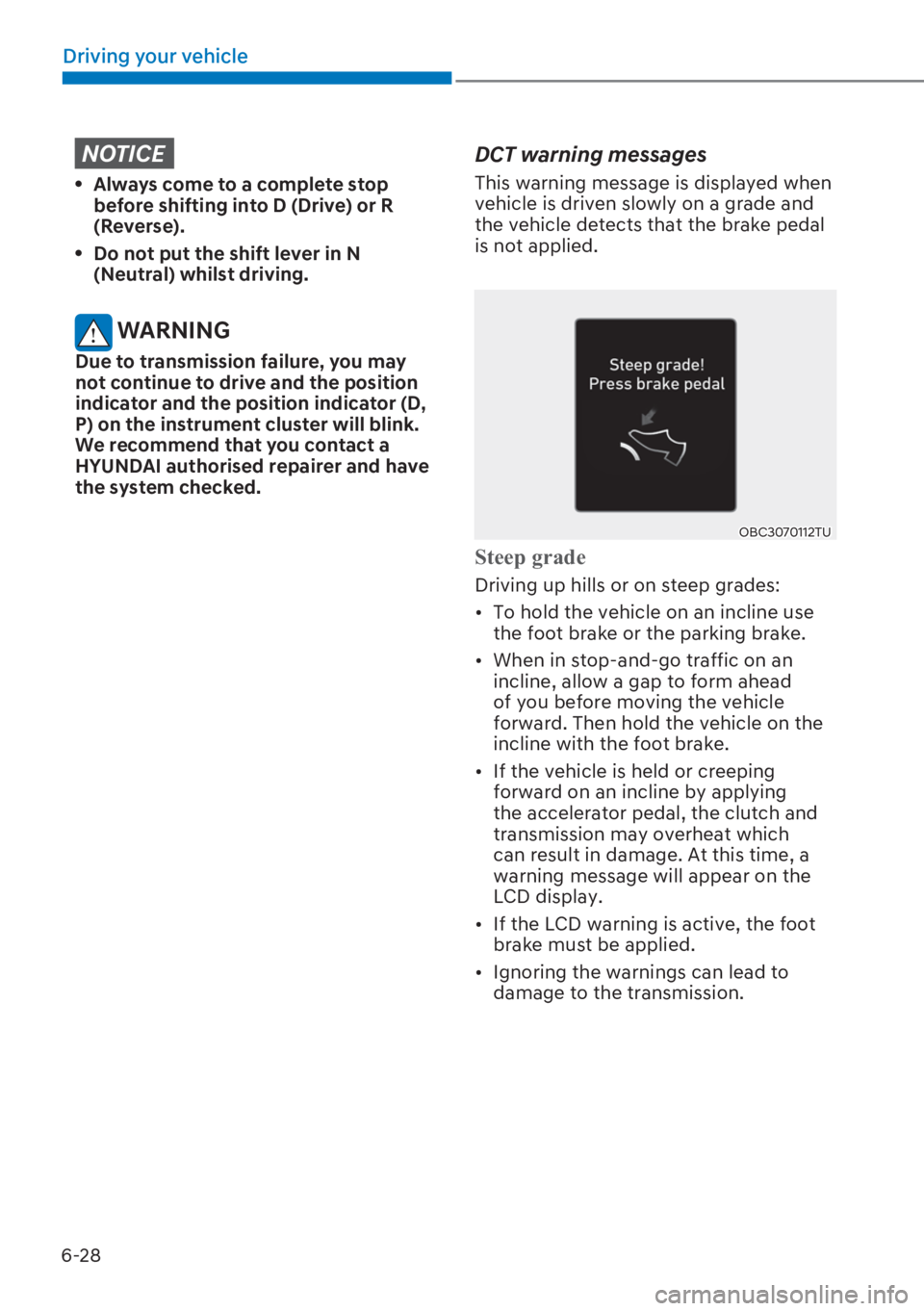

6-28
Driving your vehicle
NOTICE
V Always come to a complete stop
before shifting into D (Drive) or R
(Reverse).
V Do not put the shift lever in N
(Neutral) whilst driving.
WARNING
Due to transmission failure, you may
not continue to drive and the position
indicator and the position indicator (D,
P) on the instrument cluster will blink.
We recommend that you contact a
HYUNDAI authorised repairer and have
the system checked.
DCT warning messages
This warning message is displayed when
vehicle is driven slowly on a grade and
the vehicle detects that the brake pedal
is not applied.
OBC3070112TU
6 W H H S J U D G H
Driving up hills or on steep grades:
[ To hold the vehicle on an incline use
the foot brake or the parking brake.
[ When in stop-and-go traffic on an
incline, allow a gap to form ahead
of you before moving the vehicle
forward. Then hold the vehicle on the
incline with the foot brake.
[ If the vehicle is held or creeping
forward on an incline by applying
the accelerator pedal, the clutch and
transmission may overheat which
can result in damage. At this time, a
warning message will appear on the
LCD display.
[ If the LCD warning is active, the foot
brake must be applied.
[ Ignoring the warnings can lead to
damage to the transmission.
Page 302 of 649

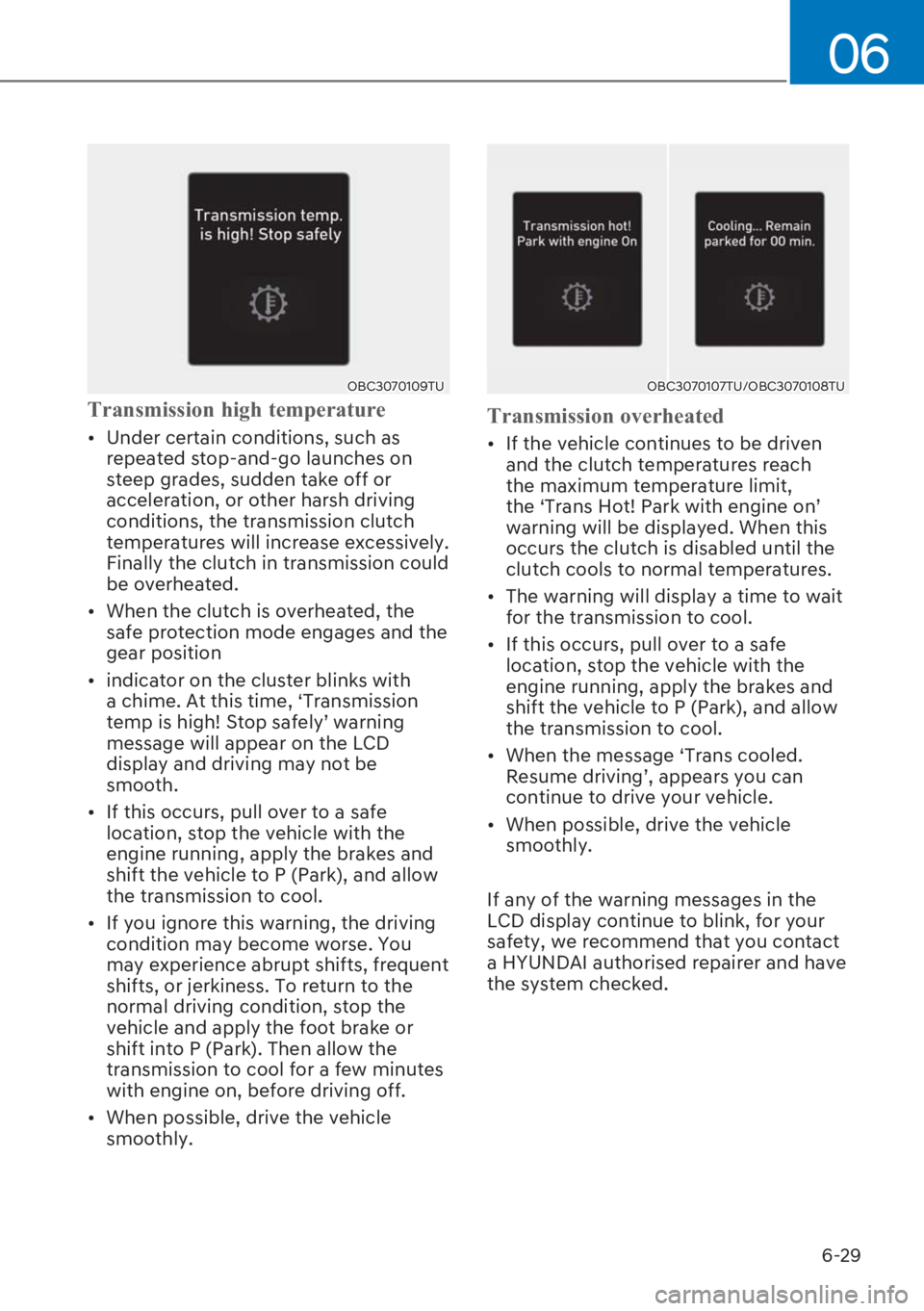

6-29
06
OBC3070109TU
7 U D Q V P L V V L R Q K L J K W H P S H U D W X U H
[ Under certain conditions, such as
repeated stop-and-go launches on
steep grades, sudden take off or
acceleration, or other harsh driving
conditions, the transmission clutch
temperatures will increase excessively.
Finally the clutch in transmission could
be overheated.
[ When the clutch is overheated, the
safe protection mode engages and the
gear position
[ indicator on the cluster blinks with
a chime. At this time, ‘Transmission
temp is high! Stop safely’ warning
message will appear on the LCD
display and driving may not be
smooth.
[ If this occurs, pull over to a safe
location, stop the vehicle with the
engine running, apply the brakes and
shift the vehicle to P (Park), and allow
the transmission to cool.
[ If you ignore this warning, the driving
condition may become worse. You
may experience abrupt shifts, frequent
shifts, or jerkiness. To return to the
normal driving condition, stop the
vehicle and apply the foot brake or
shift into P (Park). Then allow the
transmission to cool for a few minutes
with engine on, before driving off.
[ When possible, drive the vehicle
smoothly.
OBC3070107TU/OBC3070108TU
7 U D Q V P L V V L R Q R Y H U K H D W H G
[ If the vehicle continues to be driven
and the clutch temperatures reach
the maximum temperature limit,
the ‘Trans Hot! Park with engine on’
warning will be displayed. When this
occurs the clutch is disabled until the
clutch cools to normal temperatures.
[ The warning will display a time to wait
for the transmission to cool.
[ If this occurs, pull over to a safe
location, stop the vehicle with the
engine running, apply the brakes and
shift the vehicle to P (Park), and allow
the transmission to cool.
[ When the message ‘Trans cooled.
Resume driving’, appears you can
continue to drive your vehicle.
[ When possible, drive the vehicle
smoothly.
If any of the warning messages in the
LCD display continue to blink, for your
safety, we recommend that you contact
a HYUNDAI authorised repairer and have
the system checked.
Page 303 of 649

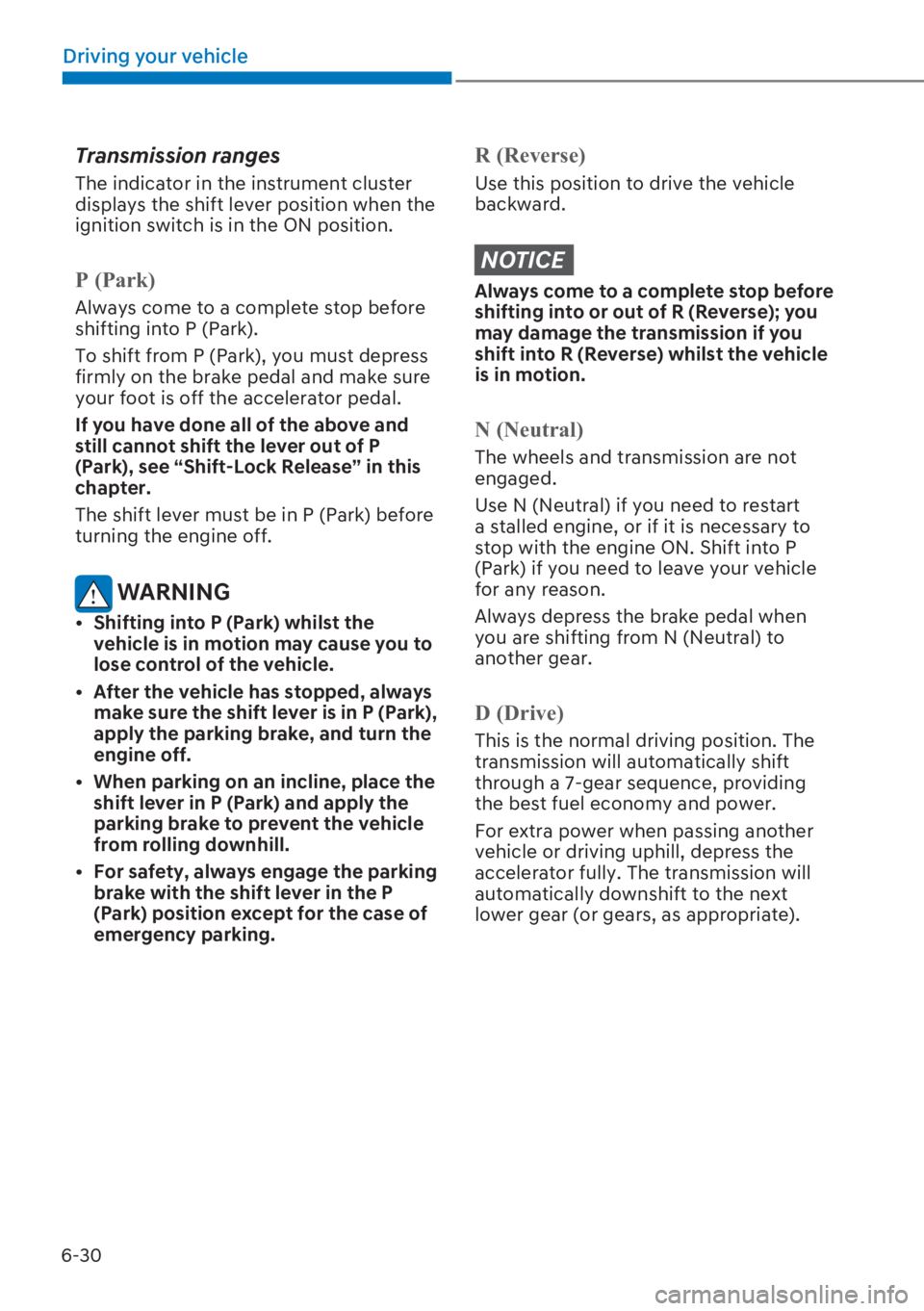

6-30
Driving your vehicle
Transmission ranges
The indicator in the instrument cluster
displays the shift lever position when the
ignition switch is in the ON position.
3 3 D U N
Always come to a complete stop before
shifting into P (Park).
To shift from P (Park), you must depress
firmly on the brake pedal and make sure
your foot is off the accelerator pedal.
If you have done all of the above and
still cannot shift the lever out of P
(Park), see “Shift-Lock Release” in this
chapter.
The shift lever must be in P (Park) before
turning the engine off.
WARNING
[ Shifting into P (Park) whilst the
vehicle is in motion may cause you to
lose control of the vehicle.
[ After the vehicle has stopped, always
make sure the shift lever is in P (Park),
apply the parking brake, and turn the
engine off.
[ When parking on an incline, place the
shift lever in P (Park) and apply the
parking brake to prevent the vehicle
from rolling downhill.
[ For safety, always engage the parking
brake with the shift lever in the P
(Park) position except for the case of
emergency parking.
5 5 H Y H U V H
Use this position to drive the vehicle
backward.
NOTICE
Always come to a complete stop before
shifting into or out of R (Reverse); you
may damage the transmission if you
shift into R (Reverse) whilst the vehicle
is in motion.
1 1 H X W U D O
The wheels and transmission are not
engaged.
Use N (Neutral) if you need to restart
a stalled engine, or if it is necessary to
stop with the engine ON. Shift into P
(Park) if you need to leave your vehicle
for any reason.
Always depress the brake pedal when
you are shifting from N (Neutral) to
another gear.
' ' U L Y H
This is the normal driving position. The
transmission will automatically shift
through a 7-gear sequence, providing
the best fuel economy and power.
For extra power when passing another
vehicle or driving uphill, depress the
accelerator fully. The transmission will
automatically downshift to the next
lower gear (or gears, as appropriate).
Page 304 of 649

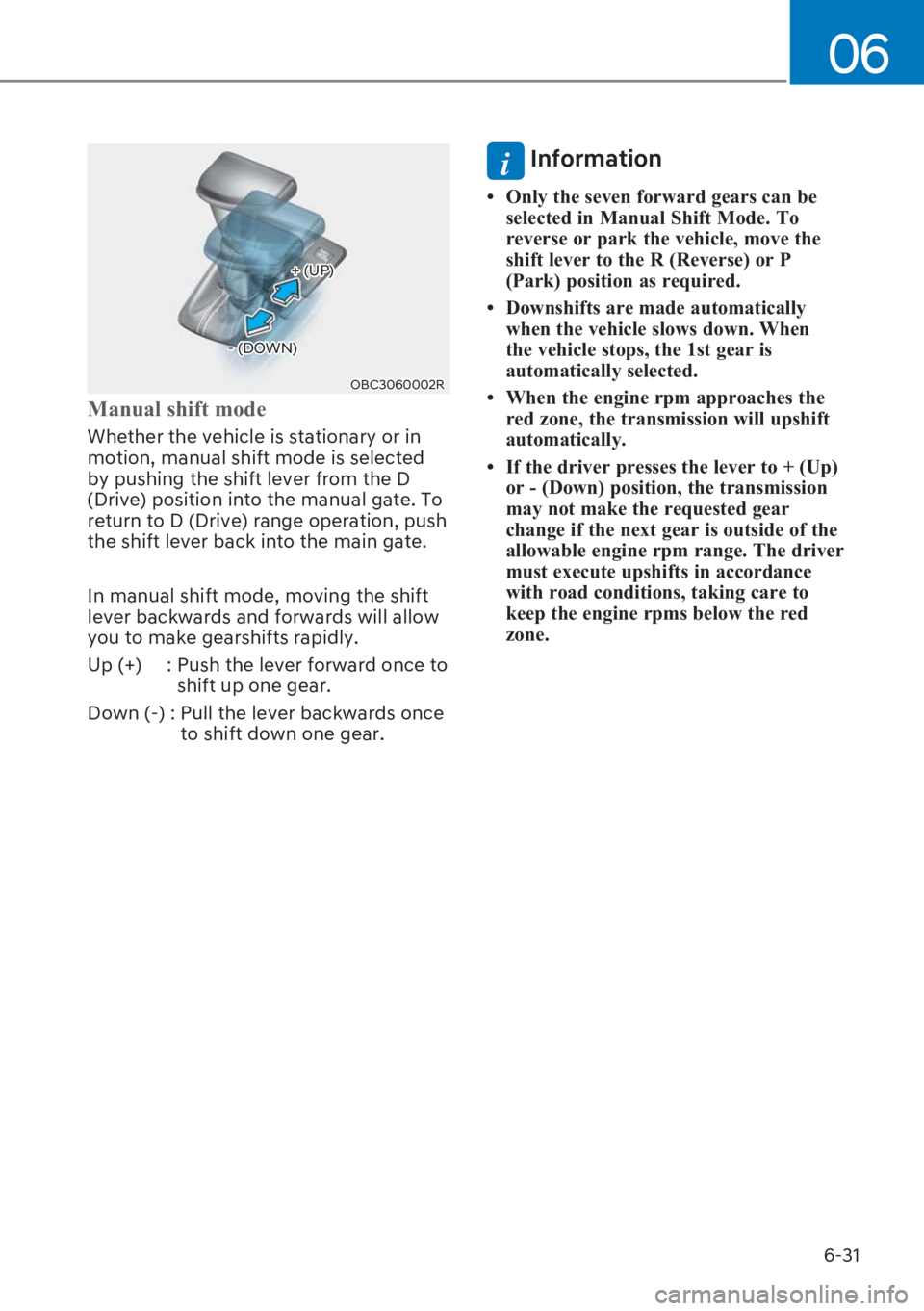

6-31
06
OBC3060002R
+ (UP)
- (DOWN)
0 D Q X D O V K L I W P R G H
Whether the vehicle is stationary or in
motion, manual shift mode is selected
by pushing the shift lever from the D
(Drive) position into the manual gate. To
return to D (Drive) range operation, push
the shift lever back into the main gate.
In manual shift mode, moving the shift
lever backwards and forwards will allow
you to make gearshifts rapidly.
Up (+) : Push the lever forward once to
shift up one gear.
Down (-) : Pull the lever backwards once
to shift down one gear.
i Information
Page 305 of 649

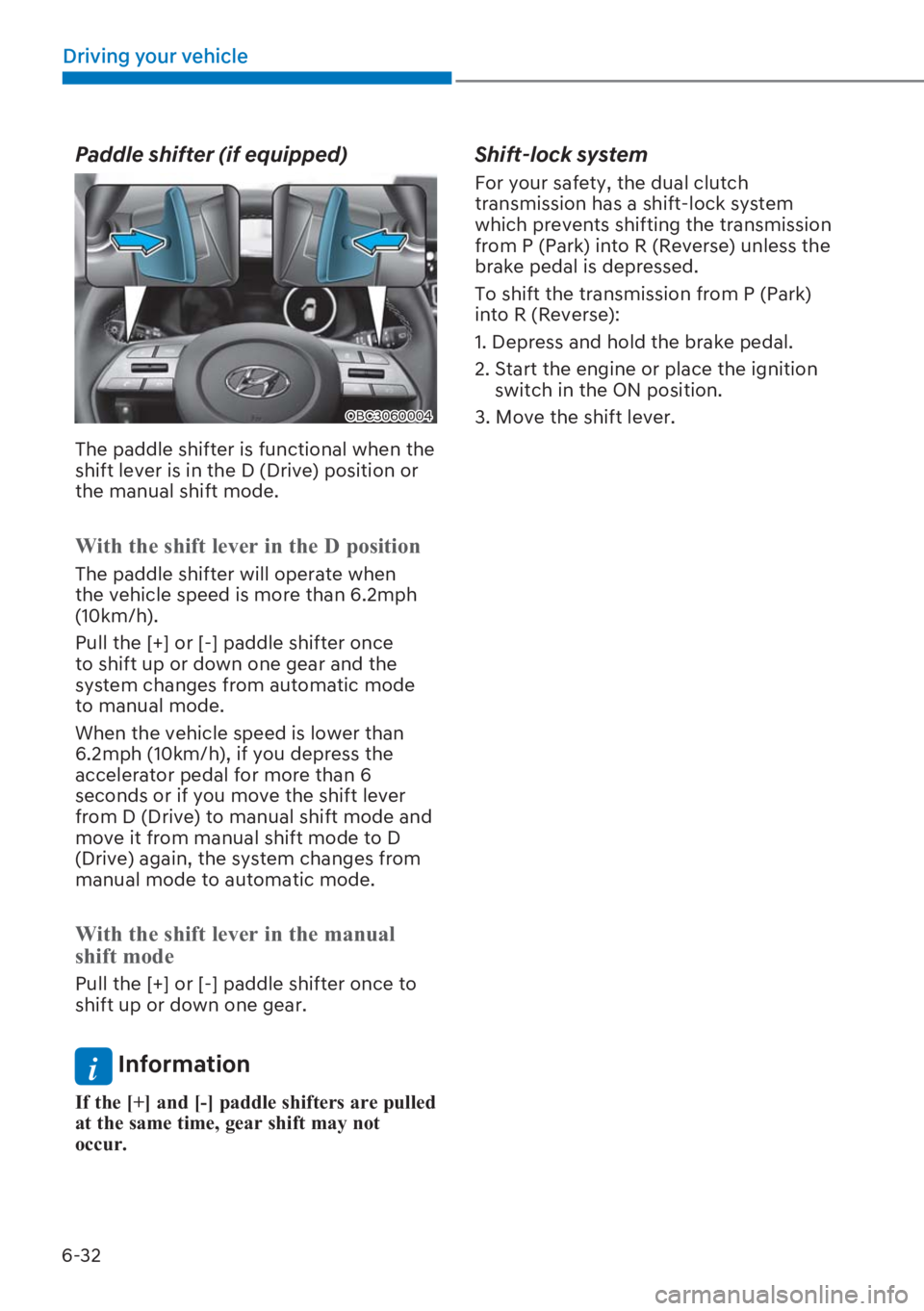

6-32
Driving your vehicle
Paddle shifter (if equipped)
OBC3060004
The paddle shifter is functional when the
shift lever is in the D (Drive) position or
the manual shift mode.
: L W K W K H V K L I W O H Y H U L Q W K H ' S R V L W L R Q
The paddle shifter will operate when
the vehicle speed is more than 6.2mph
(10km/h).
Pull the [+] or [-] paddle shifter once
to shift up or down one gear and the
system changes from automatic mode
to manual mode.
When the vehicle speed is lower than
6.2mph (10km/h), if you depress the
accelerator pedal for more than 6
seconds or if you move the shift lever
from D (Drive) to manual shift mode and
move it from manual shift mode to D
(Drive) again, the system changes from
manual mode to automatic mode.
: L W K W K H V K L I W O H Y H U L Q W K H P D Q X D O
V K L I W P R G H
Pull the [+] or [-] paddle shifter once to
shift up or down one gear.
i Information
, I W K H > @ D Q G > @ S D G G O H V K L I W H U V D U H S X O O H G
D W W K H V D P H W L P H J H D U V K L I W P D \ Q R W
R F F X U
Shift-lock system
For your safety, the dual clutch
transmission has a shift-lock system
which prevents shifting the transmission
from P (Park) into R (Reverse) unless the
brake pedal is depressed.
To shift the transmission from P (Park)
into R (Reverse):
1. Depress and hold the brake pedal.
2. Start the engine or place the ignition
switch in the ON position.
3. Move the shift lever.
Page 306 of 649

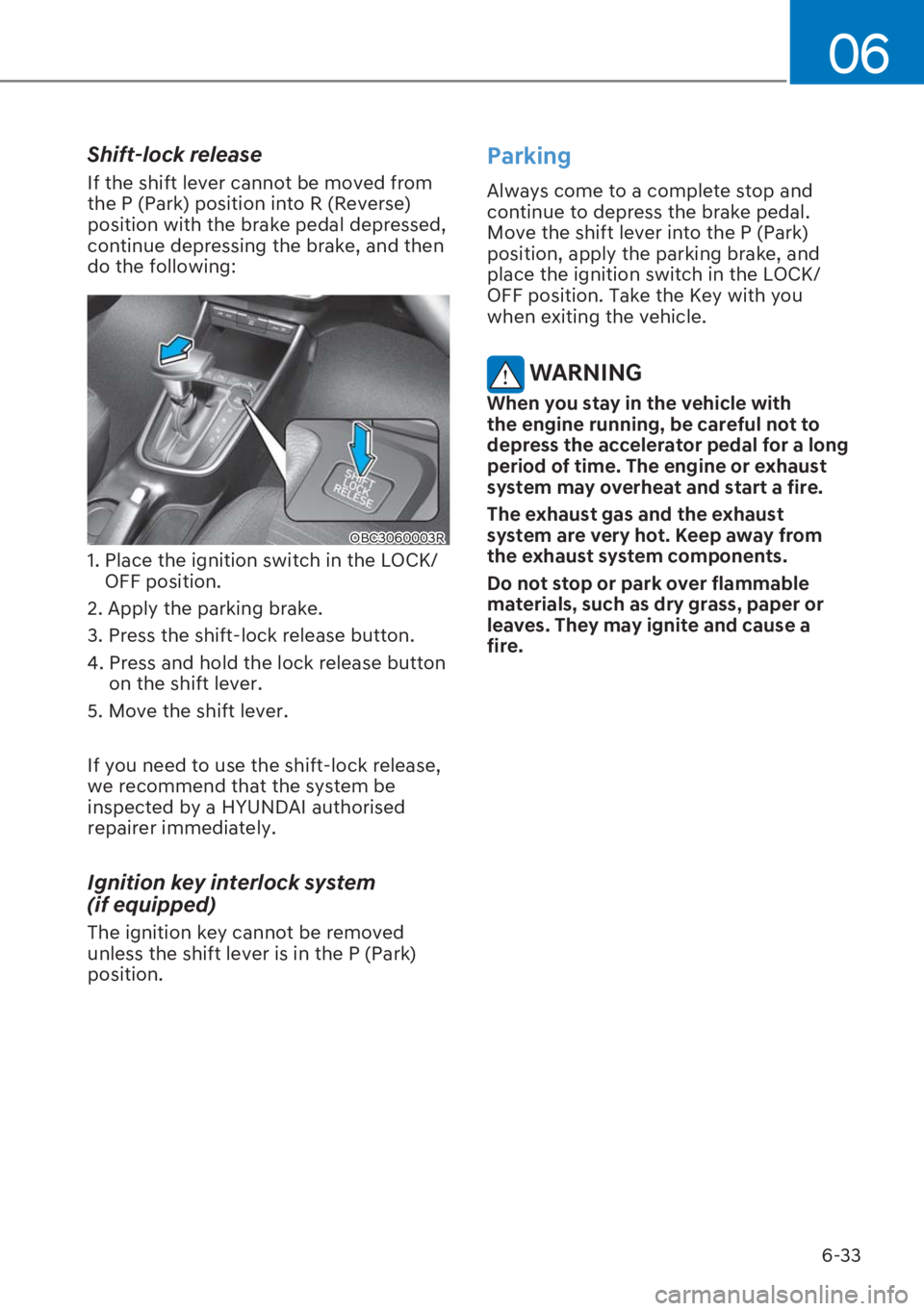

6-33
06
Shift-lock release
If the shift lever cannot be moved from
the P (Park) position into R (Reverse)
position with the brake pedal depressed,
continue depressing the brake, and then
do the following:
OBC3060003R
1. Place the ignition switch in the LOCK/
OFF position.
2. Apply the parking brake.
3. Press the shift-lock release button.
4. Press and hold the lock release button
on the shift lever.
5. Move the shift lever.
If you need to use the shift-lock release,
we recommend that the system be
inspected by a HYUNDAI authorised
repairer immediately.
Ignition key interlock system
(if equipped)
The ignition key cannot be removed
unless the shift lever is in the P (Park)
position.
Parking
Always come to a complete stop and
continue to depress the brake pedal.
Move the shift lever into the P (Park)
position, apply the parking brake, and
place the ignition switch in the LOCK/
OFF position. Take the Key with you
when exiting the vehicle.
WARNING
When you stay in the vehicle with
the engine running, be careful not to
depress the accelerator pedal for a long
period of time. The engine or exhaust
system may overheat and start a fire.
The exhaust gas and the exhaust
system are very hot. Keep away from
the exhaust system components.
Do not stop or park over flammable
materials, such as dry grass, paper or
leaves. They may ignite and cause a
fire.
Page 307 of 649

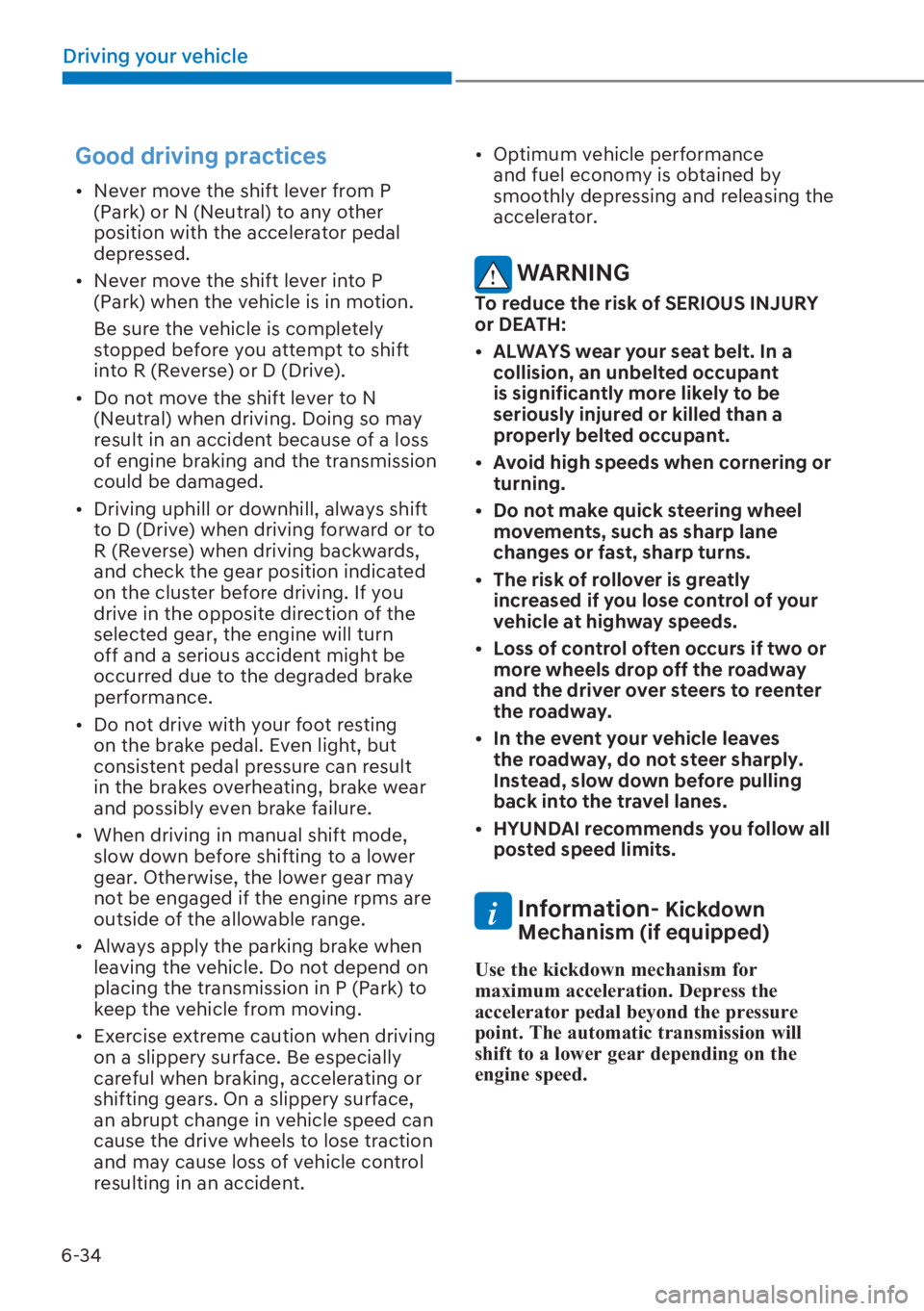

6-34
Driving your vehicle
Good driving practices
[ Never move the shift lever from P
(Park) or N (Neutral) to any other
position with the accelerator pedal
depressed.
[ Never move the shift lever into P
(Park) when the vehicle is in motion.
Be sure the vehicle is completely
stopped before you attempt to shift
into R (Reverse) or D (Drive).
[ Do not move the shift lever to N
(Neutral) when driving. Doing so may
result in an accident because of a loss
of engine braking and the transmission
could be damaged.
[ Driving uphill or downhill, always shift
to D (Drive) when driving forward or to
R (Reverse) when driving backwards,
and check the gear position indicated
on the cluster before driving. If you
drive in the opposite direction of the
selected gear, the engine will turn
off and a serious accident might be
occurred due to the degraded brake
performance.
[ Do not drive with your foot resting
on the brake pedal. Even light, but
consistent pedal pressure can result
in the brakes overheating, brake wear
and possibly even brake failure.
[ When driving in manual shift mode,
slow down before shifting to a lower
gear. Otherwise, the lower gear may
not be engaged if the engine rpms are
outside of the allowable range.
[ Always apply the parking brake when
leaving the vehicle. Do not depend on
placing the transmission in P (Park) to
keep the vehicle from moving.
[ Exercise extreme caution when driving
on a slippery surface. Be especially
careful when braking, accelerating or
shifting gears. On a slippery surface,
an abrupt change in vehicle speed can
cause the drive wheels to lose traction
and may cause loss of vehicle control
resulting in an accident.[ Optimum vehicle performance
and fuel economy is obtained by
smoothly depressing and releasing the
accelerator.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH:
[ ALWAYS wear your seat belt. In a
collision, an unbelted occupant
is significantly more likely to be
seriously injured or killed than a
properly belted occupant.
[ Avoid high speeds when cornering or
turning.
[ Do not make quick steering wheel
movements, such as sharp lane
changes or fast, sharp turns.
[ The risk of rollover is greatly
increased if you lose control of your
vehicle at highway speeds.
[ Loss of control often occurs if two or
more wheels drop off the roadway
and the driver over steers to reenter
the roadway.
[ In the event your vehicle leaves
the roadway, do not steer sharply.
Instead, slow down before pulling
back into the travel lanes.
[ HYUNDAI recommends you follow all
posted speed limits.
i Information- Kickdown
Mechanism (if equipped)
8 V H W K H N L F N G R Z Q P H F K D Q L V P I R U
P D [ L P X P D F F H O H U D W L R Q ' H S U H V V W K H
D F F H O H U D W R U S H G D O E H \ R Q G W K H S U H V V X U H
S R L Q W 7 K H D X W R P D W L F W U D Q V P L V V L R Q Z L O O
V K L I W W R D O R Z H U J H D U G H S H Q G L Q J R Q W K H
H Q J L Q H V S H H G
Page 308 of 649

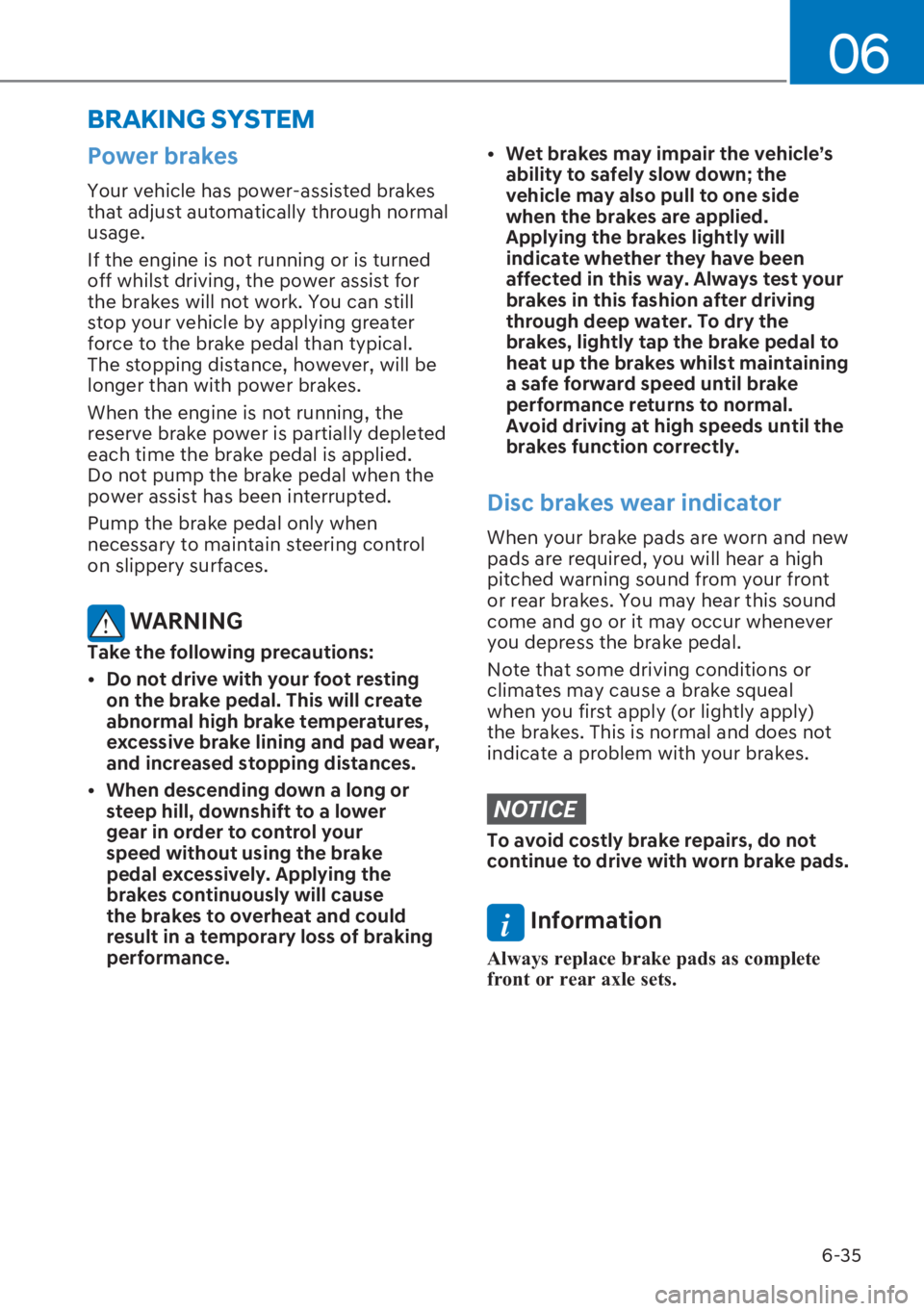

6-35
06
Power brakes
Your vehicle has power-assisted brakes
that adjust automatically through normal
usage.
If the engine is not running or is turned
off whilst driving, the power assist for
the brakes will not work. You can still
stop your vehicle by applying greater
force to the brake pedal than typical.
The stopping distance, however, will be
longer than with power brakes.
When the engine is not running, the
reserve brake power is partially depleted
each time the brake pedal is applied.
Do not pump the brake pedal when the
power assist has been interrupted.
Pump the brake pedal only when
necessary to maintain steering control
on slippery surfaces.
WARNING
Take the following precautions:
[ Do not drive with your foot resting
on the brake pedal. This will create
abnormal high brake temperatures,
excessive brake lining and pad wear,
and increased stopping distances.
[ When descending down a long or
steep hill, downshift to a lower
gear in order to control your
speed without using the brake
pedal excessively. Applying the
brakes continuously will cause
the brakes to overheat and could
result in a temporary loss of braking
performance.
[ Wet brakes may impair the vehicle’s
ability to safely slow down; the
vehicle may also pull to one side
when the brakes are applied.
Applying the brakes lightly will
indicate whether they have been
affected in this way. Always test your
brakes in this fashion after driving
through deep water. To dry the
brakes, lightly tap the brake pedal to
heat up the brakes whilst maintaining
a safe forward speed until brake
performance returns to normal.
Avoid driving at high speeds until the
brakes function correctly.
Disc brakes wear indicator
When your brake pads are worn and new
pads are required, you will hear a high
pitched warning sound from your front
or rear brakes. You may hear this sound
come and go or it may occur whenever
you depress the brake pedal.
Note that some driving conditions or
climates may cause a brake squeal
when you first apply (or lightly apply)
the brakes. This is normal and does not
indicate a problem with your brakes.
NOTICE
To avoid costly brake repairs, do not
continue to drive with worn brake pads.
i Information
$ O Z D \ V U H S O D F H E U D N H S D G V D V F R P S O H W H
I U R Q W R U U H D U D [ O H V H W V
BRAKING SYSTEM
Page 309 of 649

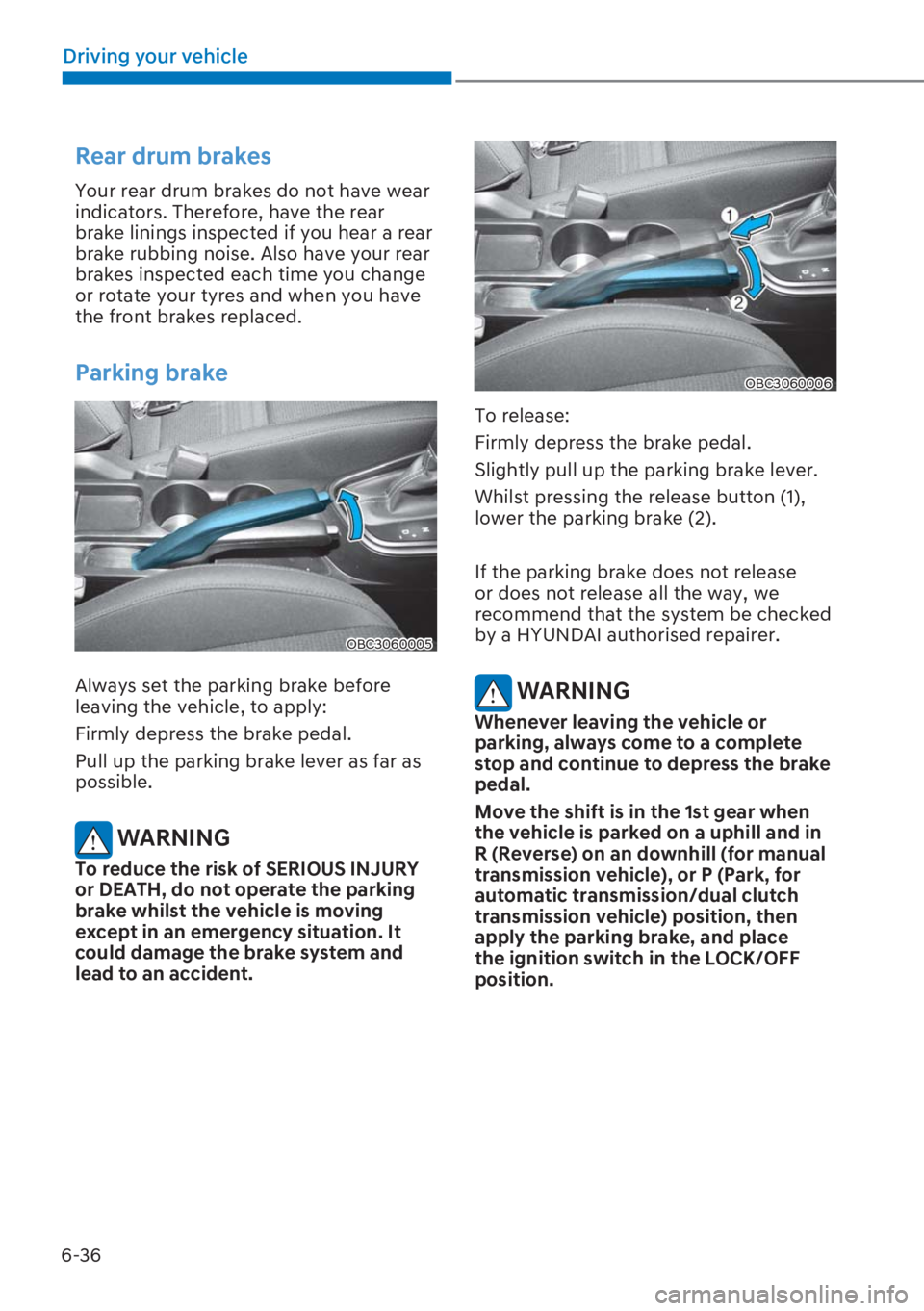

6-36
Driving your vehicle
Rear drum brakes
Your rear drum brakes do not have wear
indicators. Therefore, have the rear
brake linings inspected if you hear a rear
brake rubbing noise. Also have your rear
brakes inspected each time you change
or rotate your tyres and when you have
the front brakes replaced.
Parking brake
OBC3060005
Always set the parking brake before
leaving the vehicle, to apply:
Firmly depress the brake pedal.
Pull up the parking brake lever as far as
possible.
WARNING
To reduce the risk of SERIOUS INJURY
or DEATH, do not operate the parking
brake whilst the vehicle is moving
except in an emergency situation. It
could damage the brake system and
lead to an accident.
OBC3060006
To release:
Firmly depress the brake pedal.
Slightly pull up the parking brake lever.
Whilst pressing the release button (1),
lower the parking brake (2).
If the parking brake does not release
or does not release all the way, we
recommend that the system be checked
by a HYUNDAI authorised repairer.
WARNING
Whenever leaving the vehicle or
parking, always come to a complete
stop and continue to depress the brake
pedal.
Move the shift is in the 1st gear when
the vehicle is parked on a uphill and in
R (Reverse) on an downhill (for manual
transmission vehicle), or P (Park, for
automatic transmission/dual clutch
transmission vehicle) position, then
apply the parking brake, and place
the ignition switch in the LOCK/OFF
position.
Page 310 of 649
6-37
06
Parking brake warning light
Check the Parking Brake
Warning Light by placing the
ignition switch to the ON
position (do not start the
engine).
This light will illuminate when the
parking brake is applied with the ignition
switch in the START or ON position.
Before driving, be sure the parking brake
is released and the Brake Warning Light
is OFF.
If the Parking Brake Warning Light
remains on after the parking brake is
released whilst the engine is running,
there may be a malfunction in the
brake system. Immediate attention is
necessary.
If at all possible, cease driving the
vehicle immediately. If that is not
possible, use extreme caution whilst
operating the vehicle and only continue
to drive the vehicle until you can reach a
safe location.
Anti-lock Brake System (ABS)
WARNING
An Anti-Lock Braking System (ABS) or
an Electronic Stability Control (ESC)
system will not prevent accidents
due to improper or dangerous driving
manoeuvres. Even though vehicle
control is improved during emergency
braking, always maintain a safe
distance between you and objects
ahead of you. Vehicle speeds should
always be reduced during extreme
road conditions. The braking distance
for vehicles equipped with ABS or ESC
may be longer than for those without
these systems in the following road
conditions.
Drive your vehicle at reduced speeds
during the following conditions:
[ Rough, gravel or snow-covered
roads.
[ On roads where the road surface is
pitted or has different surface height.
[ Tyre chains are installed on your
vehicle.
The safety features of an ABS or ESC
equipped vehicle should not be tested
by high speed driving or cornering. This
could endanger the safety of yourself
or others.
ABS is an electronic braking system that
helps prevent a braking skid. ABS allows
the driver to steer and brake at the same
time.
