Page 21 of 649
2-10
Vehicle information

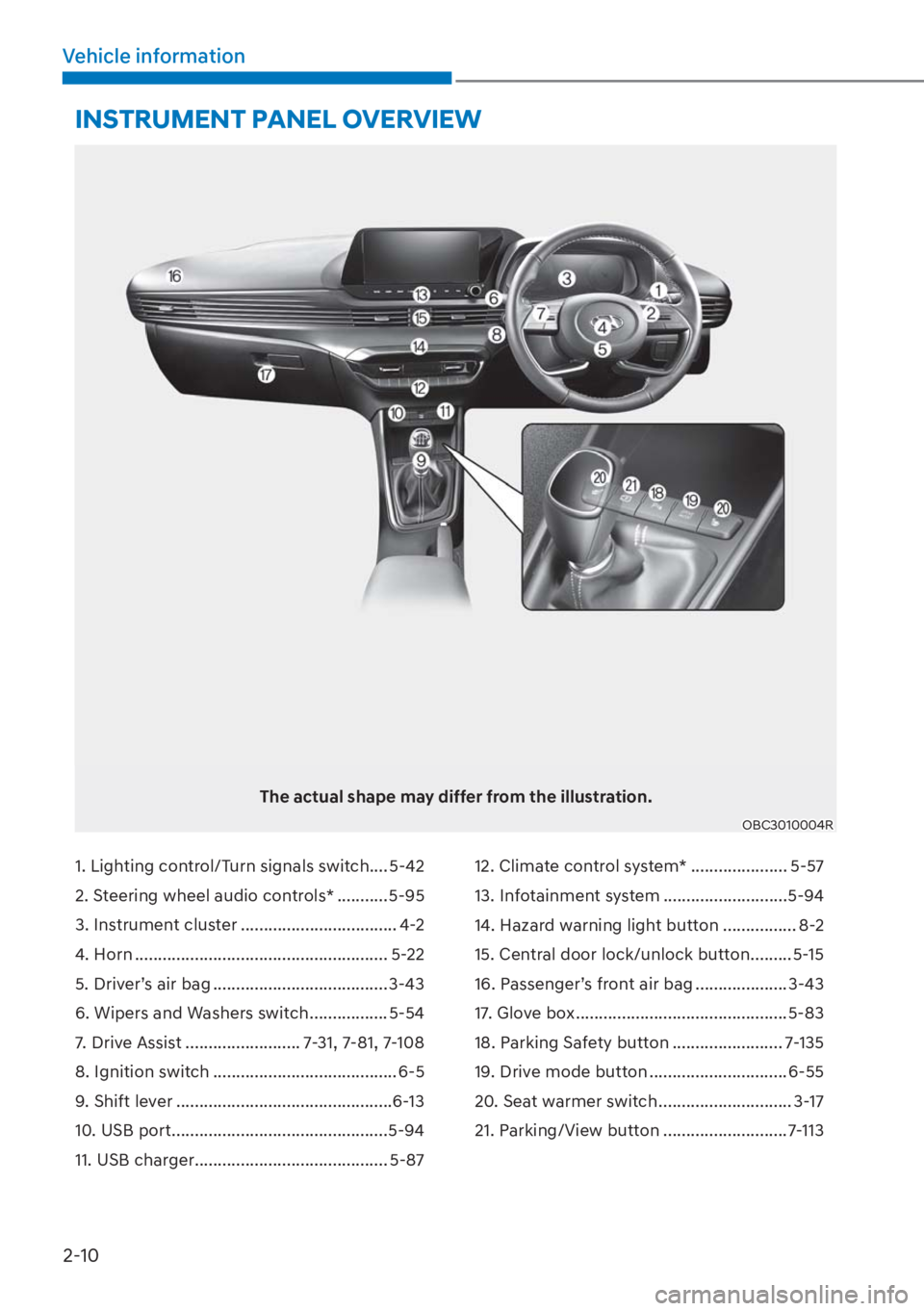

INSTRUMENT PANEL OVERVIEW
1. Lighting control/Turn signals switch .... 5-42
2. Steering wheel audio controls* ........... 5-95
3. Instrument cluster .................................. 4-2
4. Horn ....................................................... 5-22
5. Driver’s air bag ...................................... 3-43
6. Wipers and Washers switch ................. 5-54
7. Drive Assist ......................... 7-31, 7-81, 7-108
8. Ignition switch ........................................ 6-5
9. Shift lever ...............................................6-13
10. USB port ...............................................5-94
11. USB charger .......................................... 5-8712. Climate control system* ..................... 5-57
13. Infotainment system ...........................5-94
14. Hazard warning light button ................ 8-2
15. Central door lock/unlock button ......... 5-15
16. Passenger’s front air bag .................... 3-43
17. Glove box ..............................................5-83
18. Parking Safety button ........................ 7-135
19. Drive mode button .............................. 6-55
20. Seat warmer switch ............................. 3-17
21. Parking/View button ...........................7-113
The actual shape may differ from the illustration.
OBC3010004R
Page 22 of 649
2-11
02

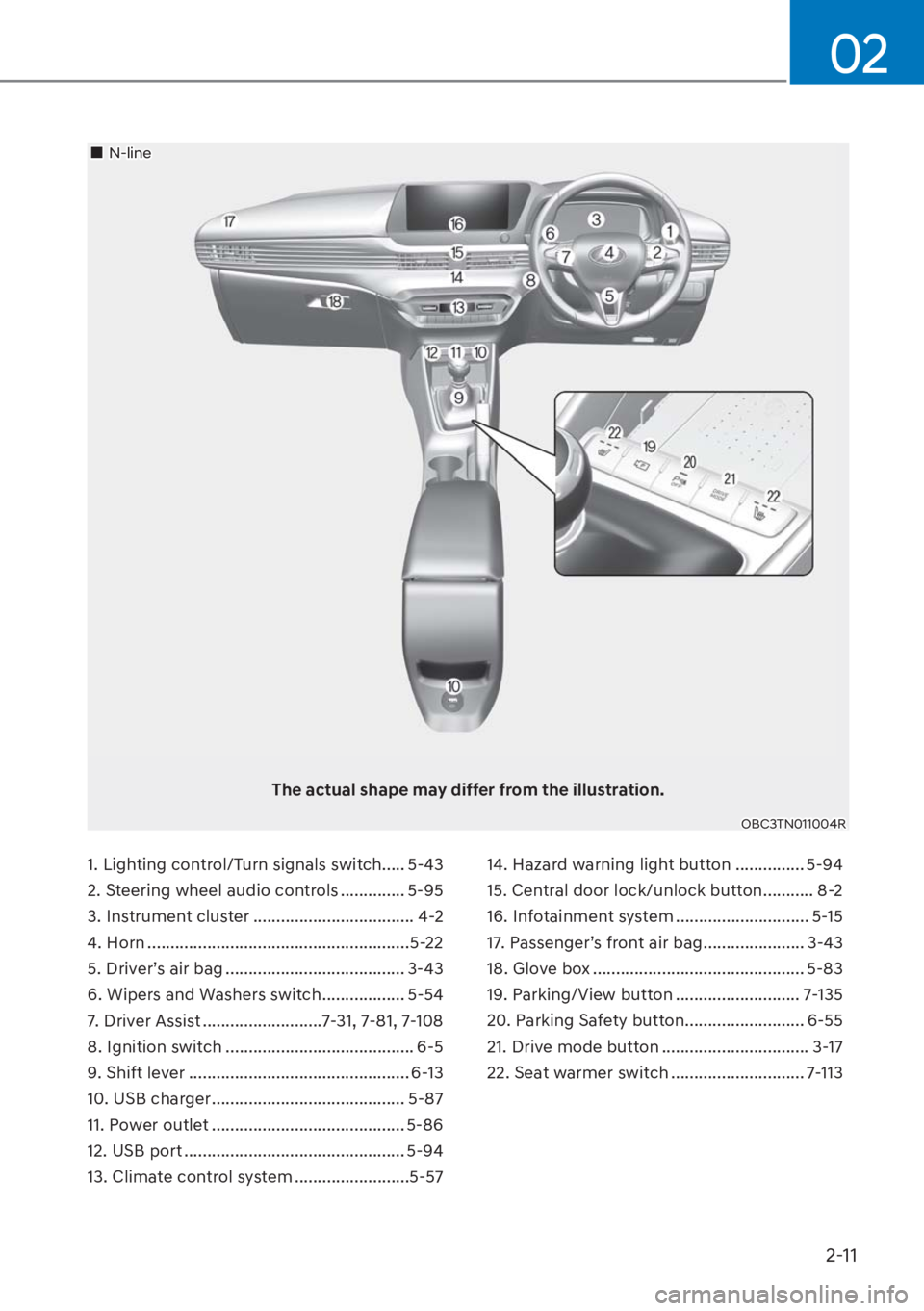

1. Lighting control/Turn signals switch ..... 5-43
2. Steering wheel audio controls .............. 5-95
3. Instrument cluster ................................... 4-2
4. Horn .........................................................5-22
5. Driver’s air bag ....................................... 3-43
6. Wipers and Washers switch .................. 5-54
7. Driver Assist ..........................7-31, 7-81, 7-108
8. Ignition switch ......................................... 6-5
9. Shift lever ................................................ 6-13
10. USB charger .......................................... 5-87
11. Power outlet .......................................... 5-86
12. USB port ................................................ 5-94
13. Climate control system .........................5-5714. Hazard warning light button ............... 5-94
15. Central door lock/unlock button ........... 8-2
16. Infotainment system ............................. 5-15
17. Passenger’s front air bag ...................... 3-43
18. Glove box .............................................. 5-83
19. Parking/View button ........................... 7-135
20. Parking Safety button .......................... 6-55
21. Drive mode button ................................ 3-17
22. Seat warmer switch ............................. 7-113
The actual shape may differ from the illustration.
OBC3TN011004R
„ 1 O L Q H
Page 23 of 649
2-12
Vehicle information

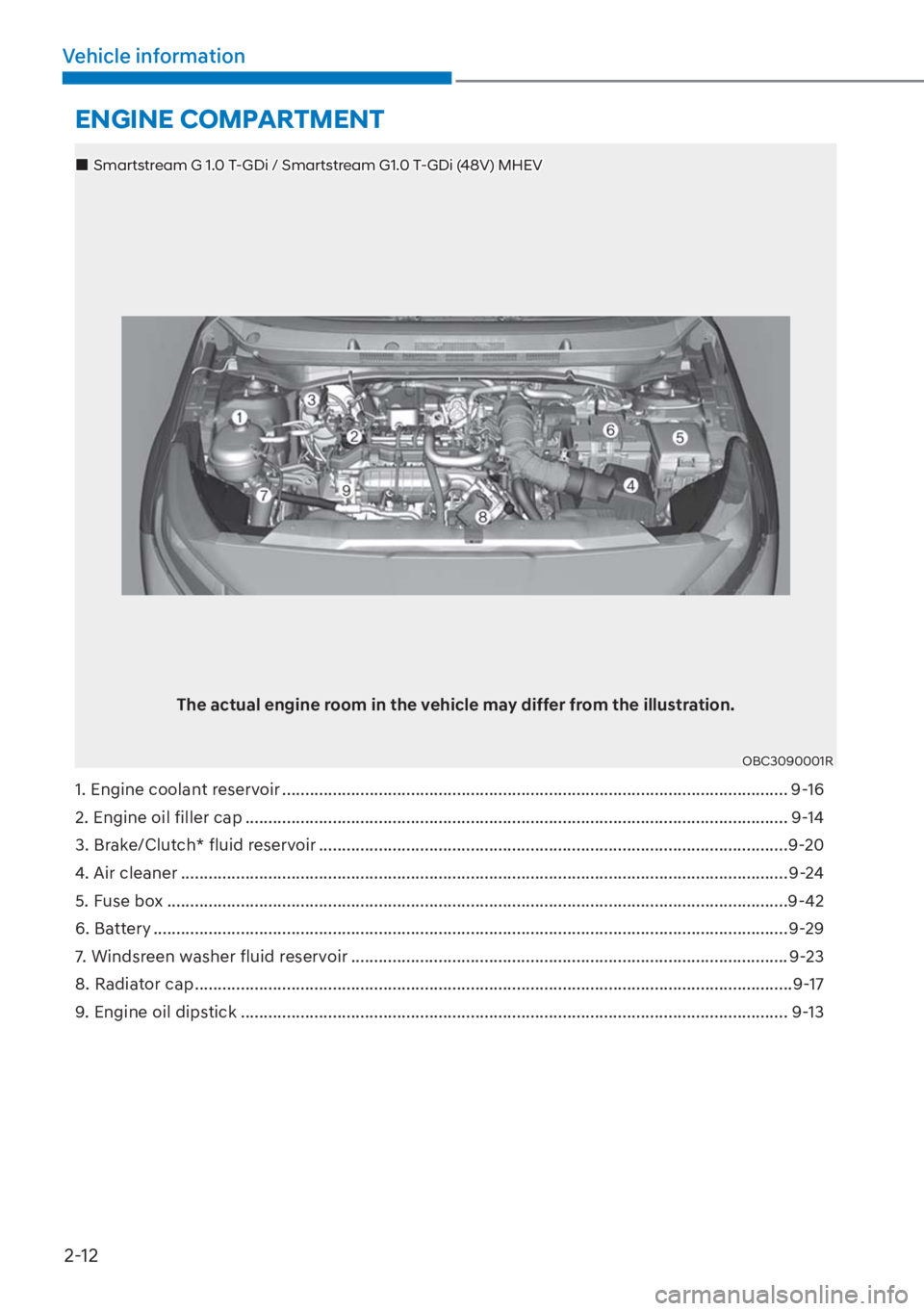

ENGINE COMPARTMENT
1. Engine coolant reservoir .............................................................................................................. 9-16
2. Engine oil filler cap ...................................................................................................................... 9-14
3. Brake/Clutch* fluid reservoir ......................................................................................................9-20
4. Air cleaner .................................................................................................................................... 9-24
5. Fuse box .......................................................................................................................................9-42
6. Battery ..........................................................................................................................................9-29
7. Windsreen washer fluid reservoir ............................................................................................... 9-23
8. Radiator cap ..................................................................................................................................9-17
9. Engine oil dipstick ....................................................................................................................... 9-13
The actual engine room in the vehicle may differ from the illustration.
OBC3090001R
„ 6 P D U W V W U H D P * 7 * ' L 6 P D U W V W U H D P * 7 * ' L 9 0 + ( 9
Page 24 of 649
2-13
02

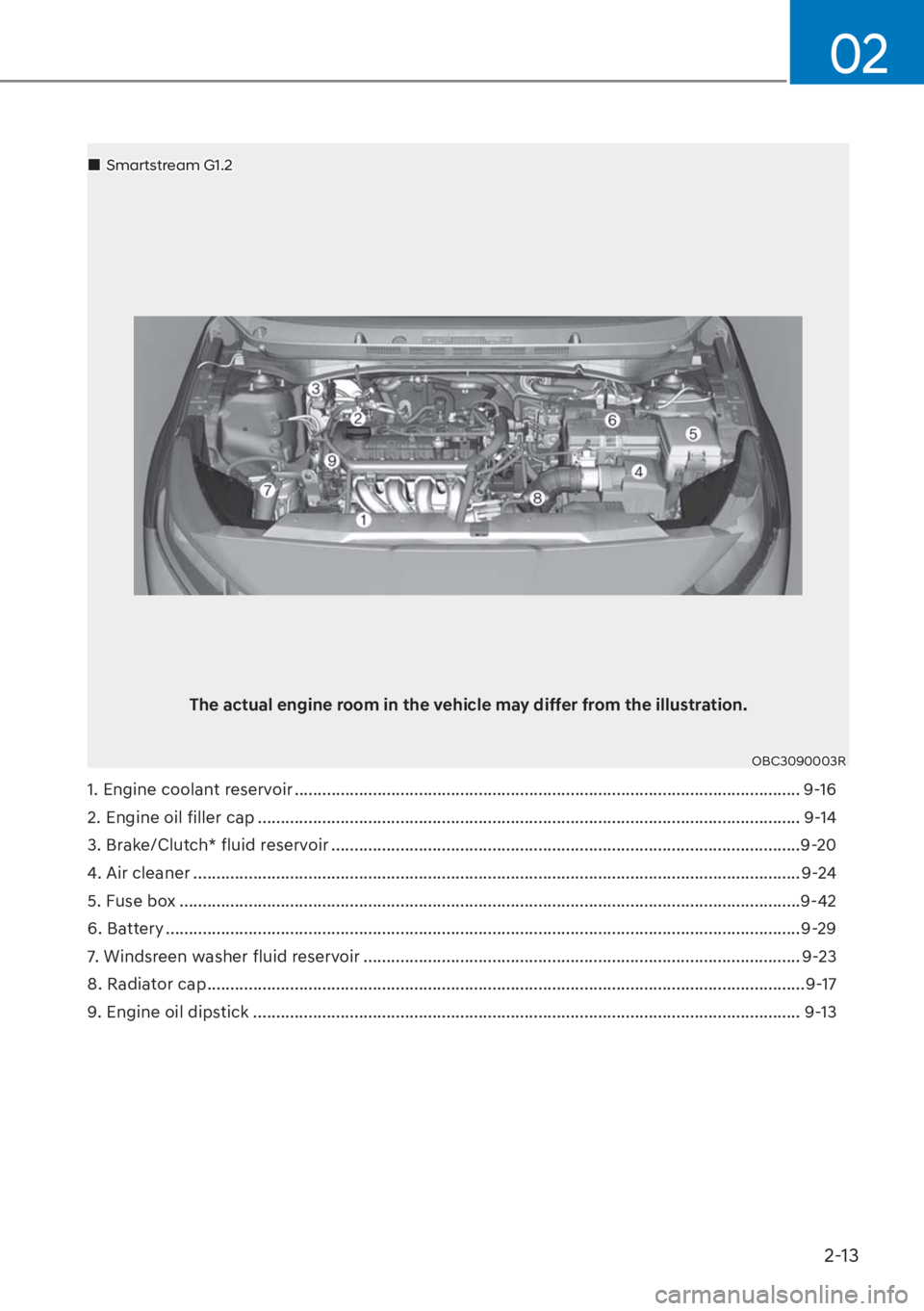

1. Engine coolant reservoir .............................................................................................................. 9-16
2. Engine oil filler cap ...................................................................................................................... 9-14
3. Brake/Clutch* fluid reservoir ......................................................................................................9-20
4. Air cleaner .................................................................................................................................... 9-24
5. Fuse box .......................................................................................................................................9-42
6. Battery ..........................................................................................................................................9-29
7. Windsreen washer fluid reservoir ............................................................................................... 9-23
8. Radiator cap ..................................................................................................................................9-17
9. Engine oil dipstick ....................................................................................................................... 9-13
The actual engine room in the vehicle may differ from the illustration.
OBC3090003R
„Smartstream G1.2
Page 25 of 649
2-14
Vehicle information

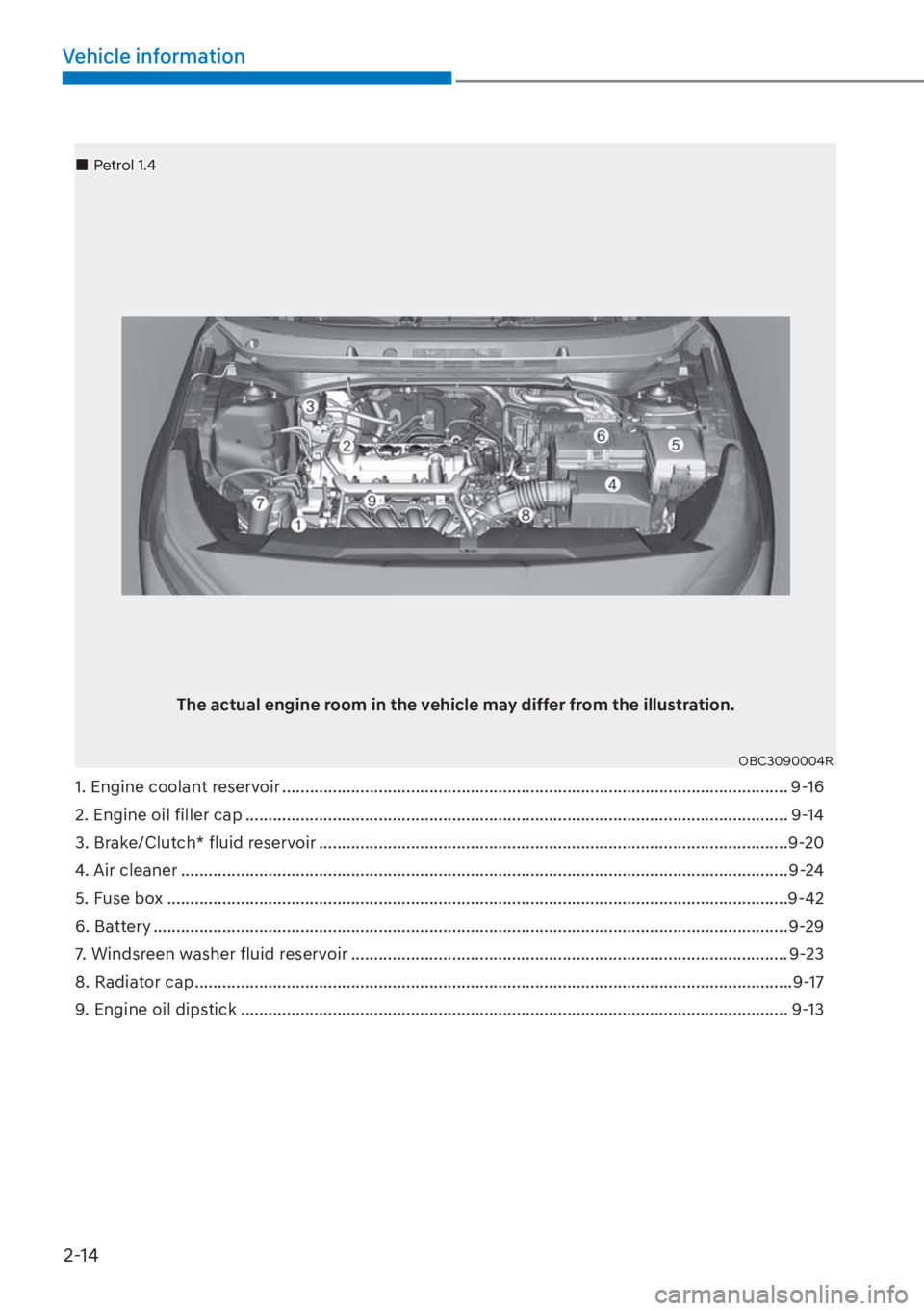

1. Engine coolant reservoir .............................................................................................................. 9-16
2. Engine oil filler cap ...................................................................................................................... 9-14
3. Brake/Clutch* fluid reservoir ......................................................................................................9-20
4. Air cleaner .................................................................................................................................... 9-24
5. Fuse box .......................................................................................................................................9-42
6. Battery ..........................................................................................................................................9-29
7. Windsreen washer fluid reservoir ............................................................................................... 9-23
8. Radiator cap ..................................................................................................................................9-17
9. Engine oil dipstick ....................................................................................................................... 9-13
The actual engine room in the vehicle may differ from the illustration.
OBC3090004R
„ 3 H W U R O
Page 26 of 649
2-15
02

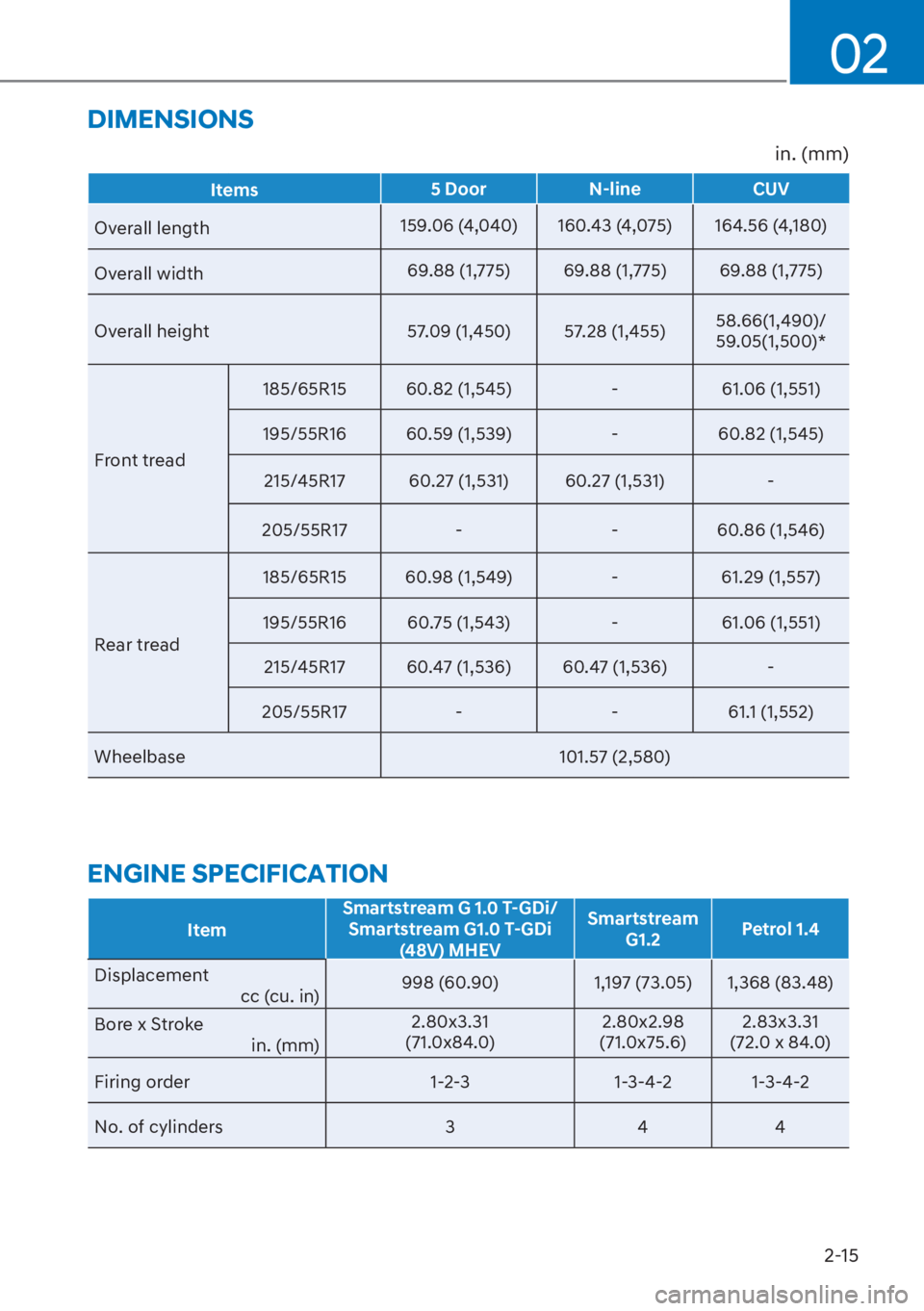

DIMENSIONS
ItemSmartstream G 1.0 T-GDi/
Smartstream G1.0 T-GDi
(48V) MHEVSmartstream
G1.2Petrol 1.4
Displacement
cc (cu. in) 998 (60.90) 1,197 (73.05) 1,368 (83.48)
Bore x Stroke
in. (mm)2.80x3.31
(71.0x84.0)2.80x2.98
(71.0x75.6)2.83x3.31
(72.0 x 84.0)
Firing order 1-2-3 1-3-4-2 1-3-4-2
No. of cylinders 3 4 4
ENGINE SPECIFICATION
Items5 Door N-line CUV
Overall length159.06 (4,040) 160.43 (4,075) 164.56 (4,180)
Overall width69.88 (1,775) 69.88 (1,775) 69.88 (1,775)
Overall height 57.09 (1,450) 57.28 (1,455)58.66(1,490)/
59.05(1,500)*
Front tread185/65R15 60.82 (1,545) - 61.06 (1,551)
195/55R16 60.59 (1,539) - 60.82 (1,545)
215/45R17 60.27 (1,531) 60.27 (1,531) -
205/55R17 - - 60.86 (1,546)
Rear tread 185/65R15 60.98 (1,549) - 61.29 (1,557)
195/55R16 60.75 (1,543) - 61.06 (1,551)
215/45R17 60.47 (1,536) 60.47 (1,536) -
205/55R17 - - 61.1 (1,552)
Wheelbase 101.57 (2,580)
in. (mm)
Page 27 of 649
2-16
Vehicle information

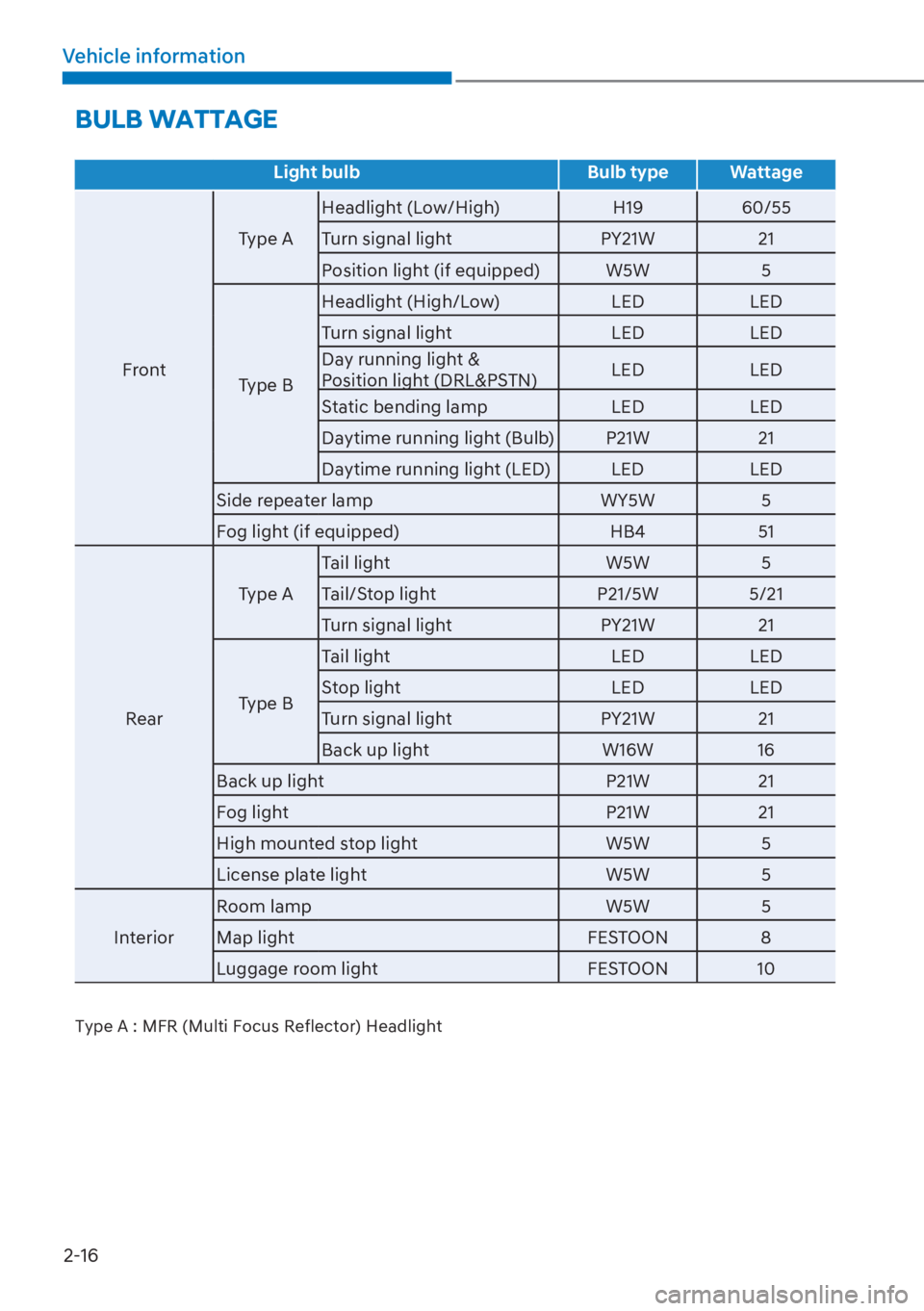

BULB WATTAGE
Light bulb Bulb type Wattage
FrontType AHeadlight (Low/High) H19 60/55
Turn signal light PY21W 21
Position light (if equipped) W5W 5
Type BHeadlight (High/Low) LED LED
Turn signal light LED LED
Day running light &
Position light (DRL&PSTN)LED LED
Static bending lamp LED LED
Daytime running light (Bulb) P21W 21
Daytime running light (LED) LED LED
Side repeater lamp WY5W 5
Fog light (if equipped) HB4 51
RearType ATail light W5W 5
Tail/Stop light P21/5W 5/21
Turn signal light PY21W 21
Type BTail light LED LED
Stop light LED LED
Turn signal light PY21W 21
Back up light W16W 16
Back up light P21W 21
Fog light P21W 21
High mounted stop light W5W 5
License plate light W5W 5
InteriorRoom lamp W5W 5
Map light FESTOON 8
Luggage room light FESTOON 10
Type A : MFR (Multi Focus Reflector) Headlight
Page 28 of 649
2-17
02
TYRES AND WHEELS
ItemTyre sizeWheel
sizeInflation pressure, bar (psi, kPa)Wheel lug
nut torque
kgf·m
O E I w I W 1[ P Normal load *1Maximum load
Front Rear Front Rear
Full size
tyre185/65R15
(5DR/CUV)6.0J X 152.35
(34, 235)2.15
(31, 215)2.4
(35, 240)2.5
(36, 250)
11~13
(79~94,
107~127) 195/55R16
(5DR/CUV)6.0J X 162.35
(34, 235)2.15
(31, 215)2.4
(35, 240)2.6
(38, 260)
215/45R17
(5DR/
N-line)7.0J X 172.35
(34, 235)2.15
(31, 215)2.4
(35, 240)2.6
(38, 260)
205/55R17
(CUV)6.5J X 172.35
(34, 235)2.15
(31, 215)2.4
(35, 240)2.6
(38, 260)
Full size
tyre (ECO
pack)185/65R15 6.0J X 15 2.5
(36, 250) 2.3
(33, 230)2.5
(36, 250) 2.5
(36, 250)
Temporary
tyreT125/80D15 3.5JX15 4.2 (60, 420)
T125/80D16
(CUV)4.0T X 16 4.2 (60, 420)
*1 : Normal load : Up to 3 persons
NOTICE
[ , W L V S H U P L V V L E O H W R D G G N 3 D S V L W R W K H V W D Q G D U G W \ U H S U H V V X U H V S H F L I L F D W L R Q L I
colder temperatures are expected soon. Tyres typically lose 7 kPa (1 psi) for every
7°C (12°F) temperature drop. If extreme temperature variations are expected,
recheck your tyre pressure as necessary to keep them properly inflated.
[ $ Q D L U S U H V V X U H J H Q H U D O O \ G H F U H D V H V D V \ R X G U L Y H X S W R D K L J K D O W L W X G H D U H D D E R Y H
sea level. Thus, if you plan to drive a high-altitude area, check the tyre pressures in
advance.
, I Q H F H V V D U \ L Q I O D W H W K H P W R D S U R S H U O H Y H O $ L U L Q I O D W L R Q S H U D O W L W X G H N 3 D N P
psi/1 mile).
& $ 8 7 , 2 1
: K H Q U H S O D F L Q J W \ U H V $ / : $ < 6 X V H W K H V D P H V L ] H W \ S H E U D Q G F R Q V W U X F W L R Q D Q G
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
Page 29 of 649

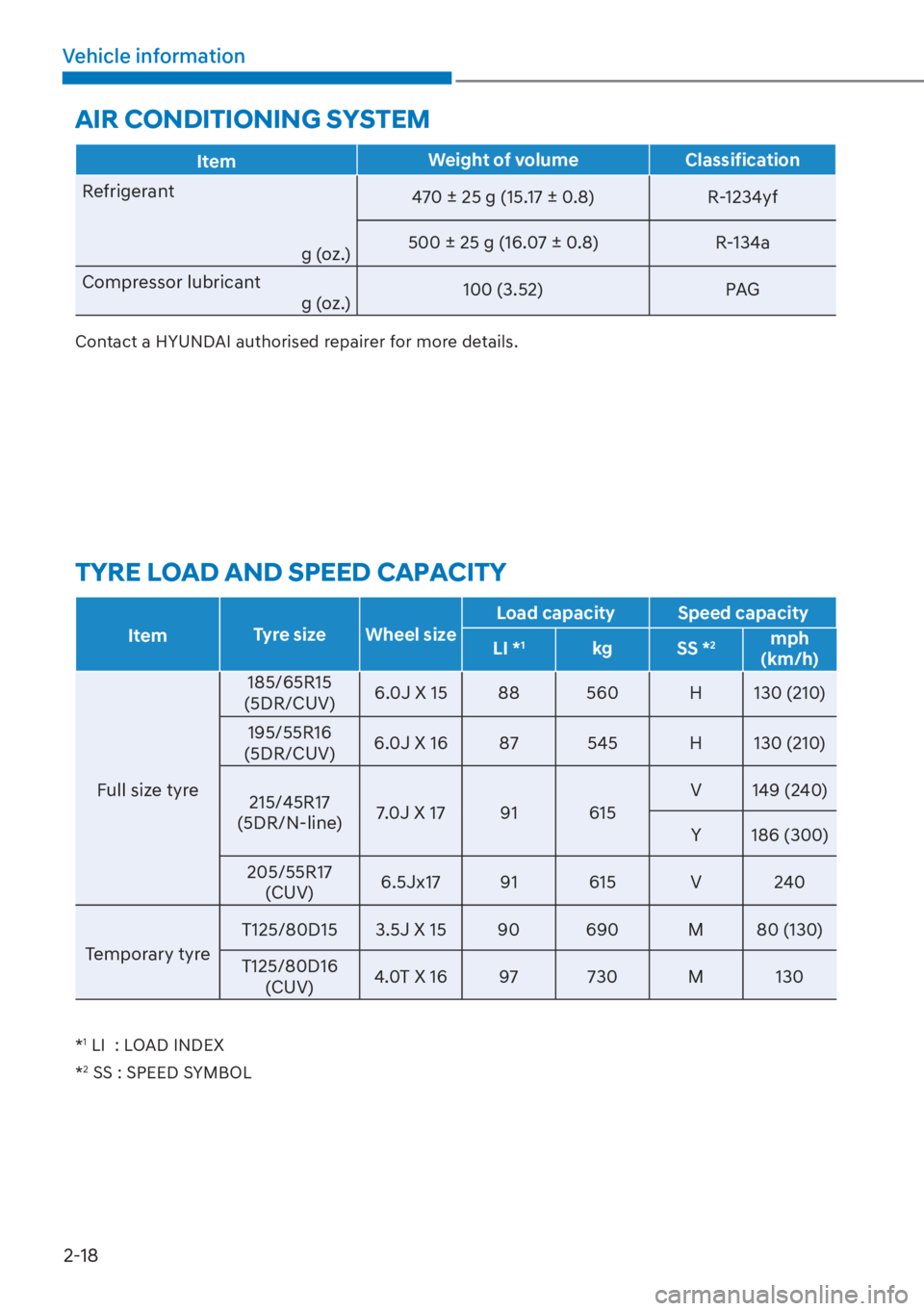

2-18
Vehicle information
AIR CONDITIONING SYSTEM
TYRE LOAD AND SPEED CAPACITY
ItemWeight of volume Classification
Refrigerant
g (oz.)470 ± 25 g (15.17 ± 0.8) R-1234yf
500 ± 25 g (16.07 ± 0.8) R-134a
Compressor lubricant
g (oz.)100 (3.52) PAG
Contact a HYUNDAI authorised repairer for more details.
ItemTyre size Wheel sizeLoad capacity Speed capacity
LI *1kg SS *2mph
(km/h)
Full size tyre185/65R15
(5DR/CUV)6.0J X 15 88 560 H 130 (210)
195/55R16
(5DR/CUV)6.0J X 16 87 545 H 130 (210)
215/45R17
(5DR/N-line)7.0J X 17 91 615V 149 (240)
Y 186 (300)
205/55R17
(CUV)6.5Jx17 91 615 V 240
Temporary tyreT125/80D15 3.5J X 15 90 690 M 80 (130)
T125/80D16
(CUV)4.0T X 16 97 730 M 130
*1 LI : LOAD INDEX
*2 SS : SPEED SYMBOL
Page 30 of 649
2-19
02

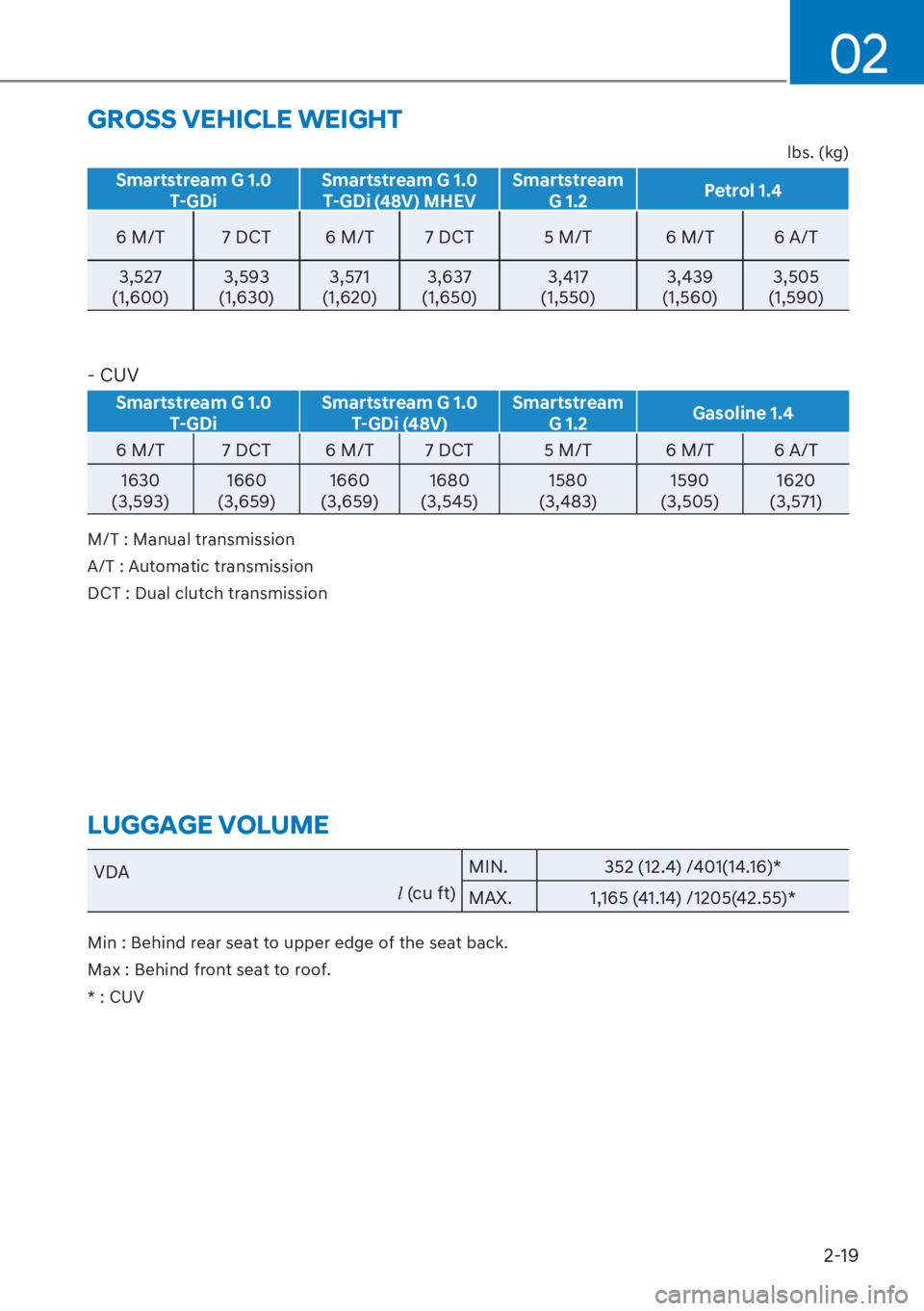

LUGGAGE VOLUME GROSS VEHICLE WEIGHT
lbs. (kg)
Smartstream G 1.0
T-GDiSmartstream G 1.0
T-GDi (48V) MHEVSmartstream
G 1.2Petrol 1.4
6 M/T 7 DCT 6 M/T 7 DCT 5 M/T 6 M/T 6 A/T
3,527
(1,600)3,593
(1,630)3,571
(1,620)3,637
(1,650)3,417
(1,550)3,439
(1,560)3,505
(1,590)
- CUV
Smartstream G 1.0
T-GDiSmartstream G 1.0
T-GDi (48V)Smartstream
G 1.2 Gasoline 1.4
6 M/T 7 DCT 6 M/T 7 DCT 5 M/T 6 M/T 6 A/T
1630
(3,593)1660
(3,659)1660
(3,659)1680
(3,545)1580
(3,483)1590
(3,505)1620
(3,571)
M/T : Manual transmission
A/T : Automatic transmission
DCT : Dual clutch transmission
VDA
l (cu ft)MIN. 352 (12.4) /401(14.16)*
MAX. 1,165 (41.14) /1205(42.55)*
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
* : CUV
