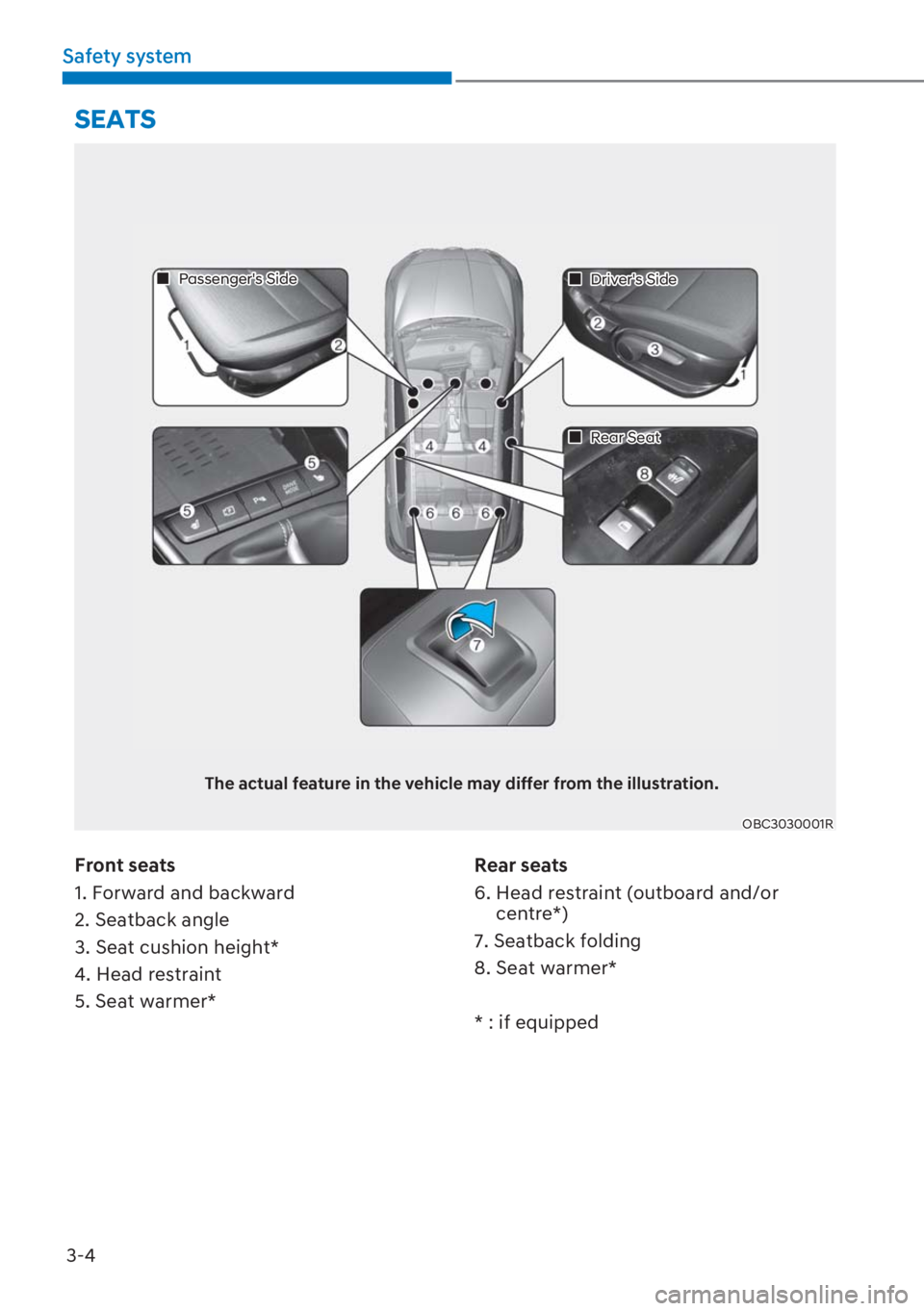

Page 41 of 649
3-4
Safety system
Front seats
1. Forward and backward
2. Seatback angle
3. Seat cushion height*
4. Head restraint
5. Seat warmer*Rear seats
6. Head restraint (outboard and/or
centre*)
7. Seatback folding
8. Seat warmer*
* : if equipped
The actual feature in the vehicle may differ from the illustration.
OBC3030001R
SEATS
„ Passenger's Side
„ Driver's Side
„ Rear Seat
Page 42 of 649
3-5
03
Safety precautions
Adjusting the seats so that you are
sitting in a safe, comfortable position
plays an important role for the safety
of the driver and passengers, along
with seat belts and air bags when in an
accident.
WARNING
Do not use a cushion that reduces
friction between the seat and the
passenger. The passenger’s hips may
slide under the lap portion of the seat
belt during an accident or a sudden
stop. Serious or fatal internal injuries
could result because the seat belt
cannot operate properly.
Air bags
You can take steps to reduce the risk
of being injured by an inflating air bag.
Sitting too close to an air bag greatly
increases the risk of injury in the event
the air bag inflates. Move your seat as
far back as possible from front air bags,
whilst still maintaining control of the
vehicle.
WARNING
To reduce the risk of serious injury or
death from an inflating air bag, take the
following precautions:
[ Adjust the driver’s seat as far to the
rear as possible whilst maintaining
the ability to maintain full control of
the vehicle.
[ Adjust the front passenger seat as far
to the rear as possible.
[ Hold the steering wheel by the rim
with hands at the 9 o’clock and 3
o’clock positions to minimise the risk
of injuries to your hands and arms.
[ NEVER place anything or anyone
between the air bag.
[ Do not allow the front passenger to
place feet or legs on the dashboard
to minimise the risk of leg injuries.

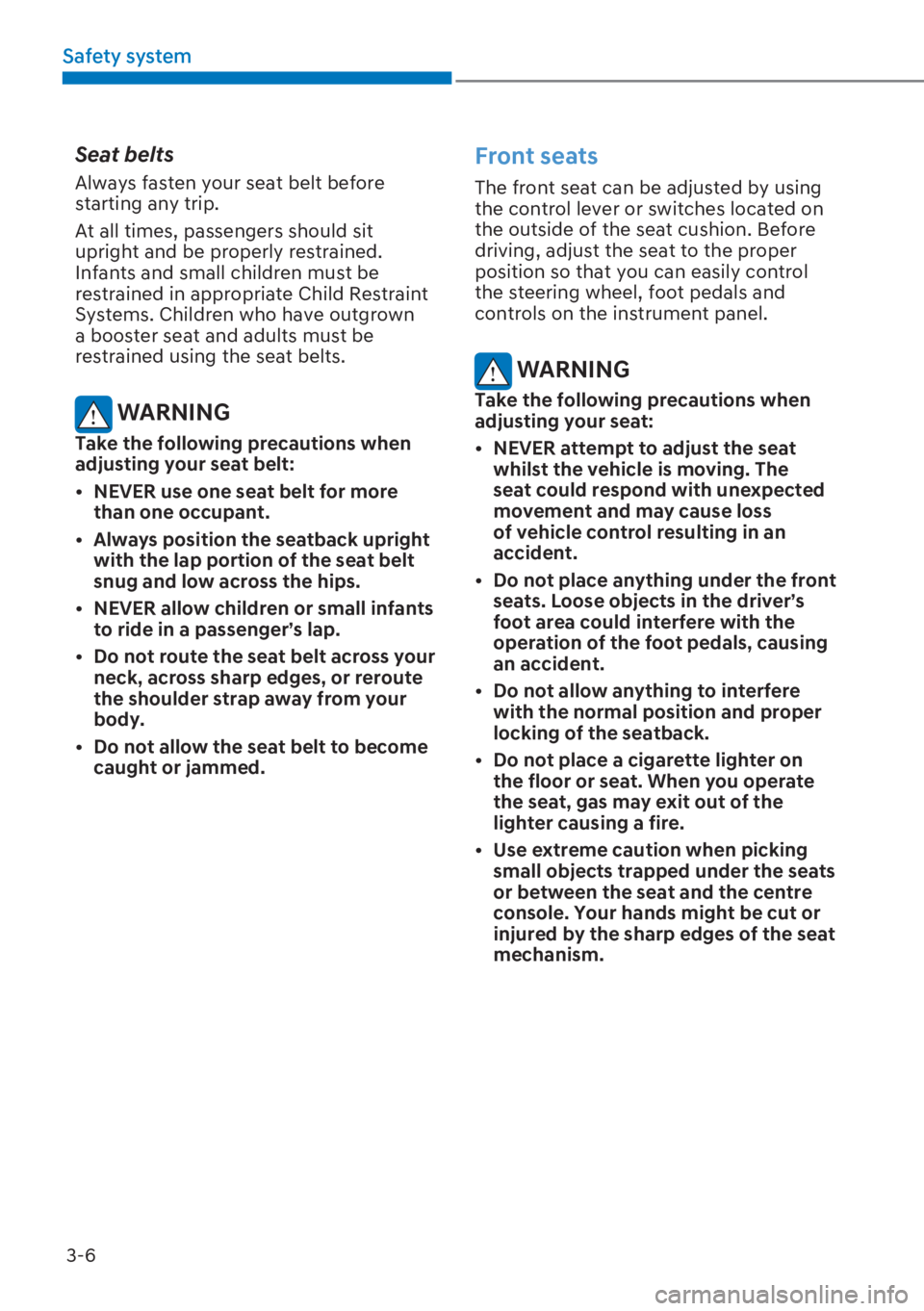

Page 43 of 649
3-6
Safety system
Seat belts
Always fasten your seat belt before
starting any trip.
At all times, passengers should sit
upright and be properly restrained.
Infants and small children must be
restrained in appropriate Child Restraint
Systems. Children who have outgrown
a booster seat and adults must be
restrained using the seat belts.
WARNING
Take the following precautions when
adjusting your seat belt:
[ NEVER use one seat belt for more
than one occupant.
[ Always position the seatback upright
with the lap portion of the seat belt
snug and low across the hips.
[ NEVER allow children or small infants
to ride in a passenger’s lap.
[ Do not route the seat belt across your
neck, across sharp edges, or reroute
the shoulder strap away from your
body.
[ Do not allow the seat belt to become
caught or jammed.
Front seats
The front seat can be adjusted by using
the control lever or switches located on
the outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control
the steering wheel, foot pedals and
controls on the instrument panel.
WARNING
Take the following precautions when
adjusting your seat:
[ NEVER attempt to adjust the seat
whilst the vehicle is moving. The
seat could respond with unexpected
movement and may cause loss
of vehicle control resulting in an
accident.
[ Do not place anything under the front
seats. Loose objects in the driver’s
foot area could interfere with the
operation of the foot pedals, causing
an accident.
[ Do not allow anything to interfere
with the normal position and proper
locking of the seatback.
[ Do not place a cigarette lighter on
the floor or seat. When you operate
the seat, gas may exit out of the
lighter causing a fire.
[ Use extreme caution when picking
small objects trapped under the seats
or between the seat and the centre
console. Your hands might be cut or
injured by the sharp edges of the seat
mechanism.
