07
7-45
WARNING

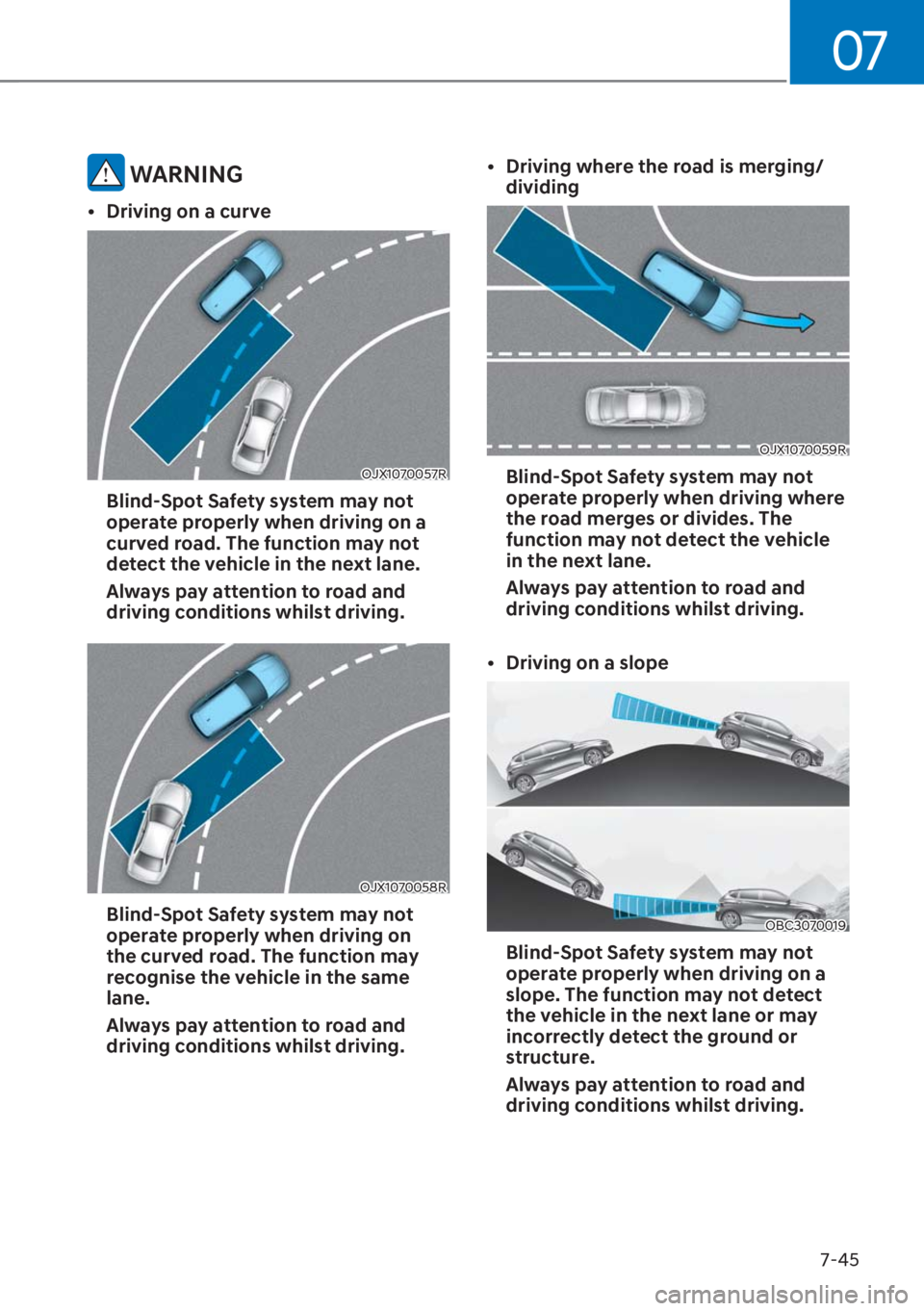

[ Driving on a curve
OJX1070057R
Blind-Spot Safety system may not
operate properly when driving on a
curved road. The function may not
detect the vehicle in the next lane.
Always pay attention to road and
driving conditions whilst driving.
OJX1070058R
Blind-Spot Safety system may not
operate properly when driving on
the curved road. The function may
recognise the vehicle in the same
lane.
Always pay attention to road and
driving conditions whilst driving.[ Driving where the road is merging/
dividing
OJX1070059R
Blind-Spot Safety system may not
operate properly when driving where
the road merges or divides. The
function may not detect the vehicle
in the next lane.
Always pay attention to road and
driving conditions whilst driving.
[ Driving on a slope
OBC3070019
Blind-Spot Safety system may not
operate properly when driving on a
slope. The function may not detect
the vehicle in the next lane or may
incorrectly detect the ground or
structure.
Always pay attention to road and
driving conditions whilst driving.
Page 392 of 649
Driver assistance system
7-46

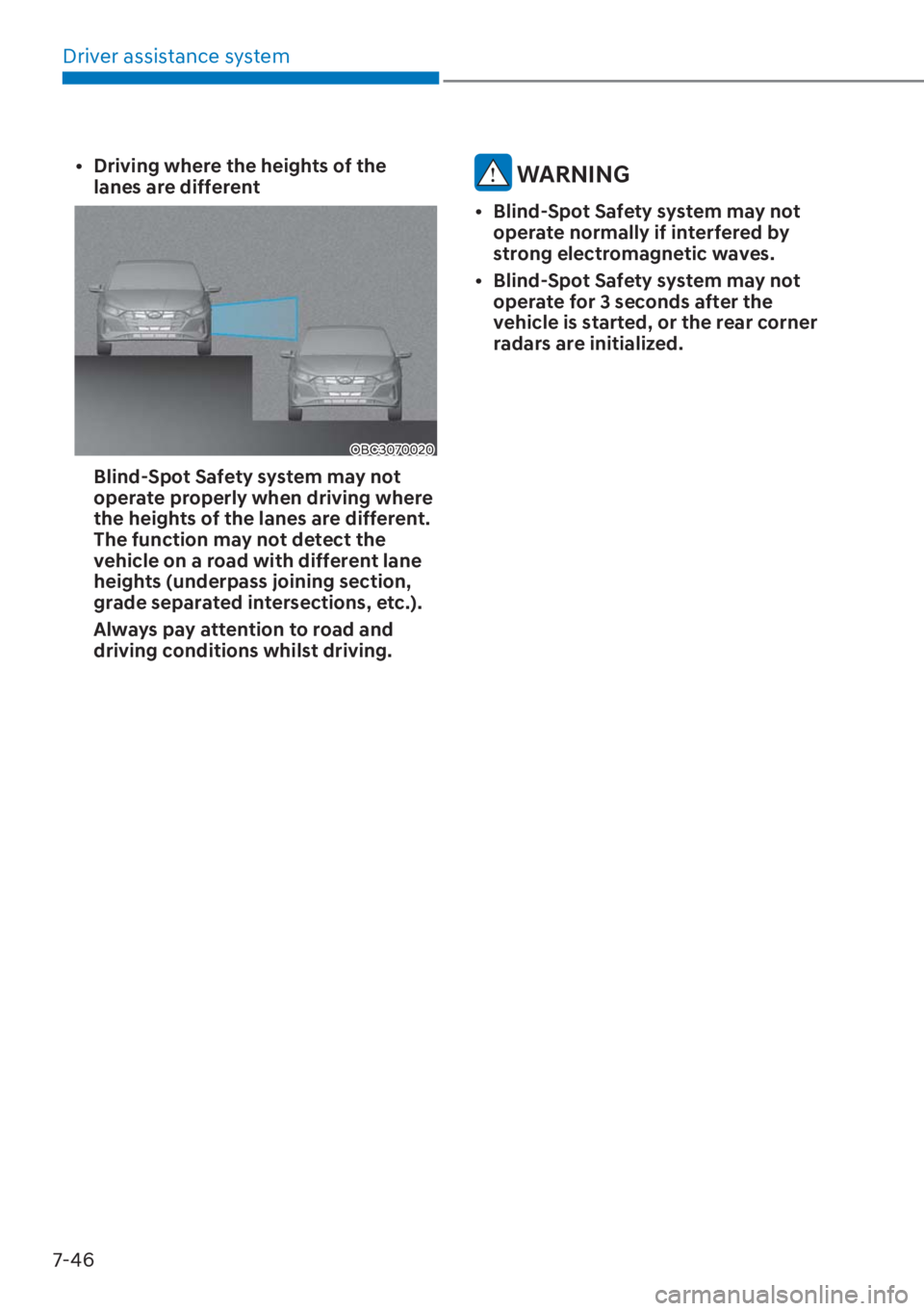

[ Driving where the heights of the
lanes are different
OBC3070020
Blind-Spot Safety system may not
operate properly when driving where
the heights of the lanes are different.
The function may not detect the
vehicle on a road with different lane
heights (underpass joining section,
grade separated intersections, etc.).
Always pay attention to road and
driving conditions whilst driving.
WARNING
[ Blind-Spot Safety system may not
operate normally if interfered by
strong electromagnetic waves.
[ Blind-Spot Safety system may not
operate for 3 seconds after the
vehicle is started, or the rear corner
radars are initialized.
Page 393 of 649

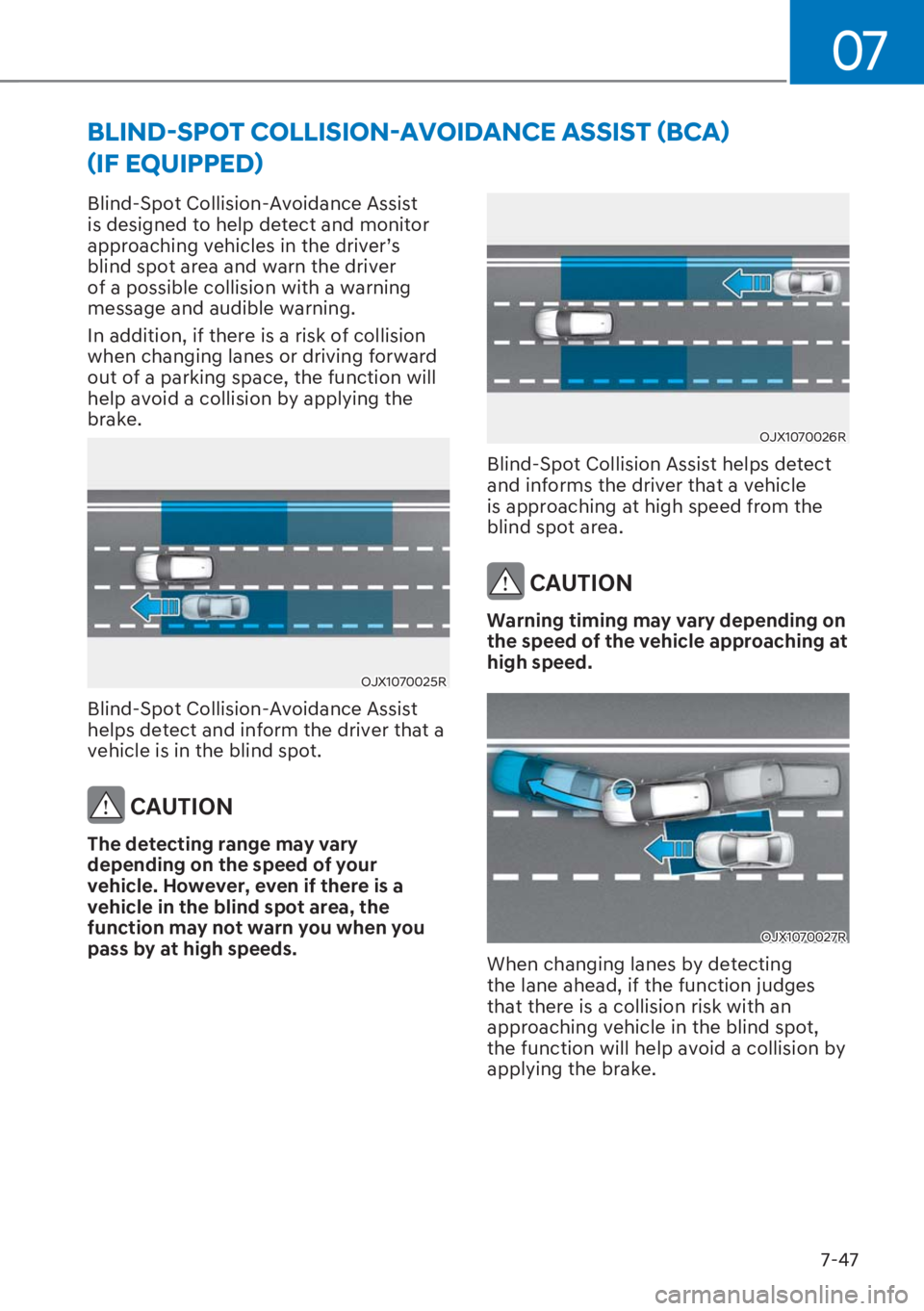

07
7-47
% / , 1 '
Page 394 of 649
Driver assistance system
7-48
OJX1070028R
When you are driving forward out of a
parking space, if the function judges
that there is a collision risk with an
approaching vehicle in the blind spot,
the function will help avoid a collision by
applying the brake.
Information
In the following text, Blind-Spot Collision-
Avoidance Assist will be referred as
Blind-Spot Safety system.
Detecting sensor
OBC3070001
OBC3070018TU
[1] : Front view camera,
[2] : Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:
[ Never disassemble the rear corner
radar or radar assembly, or apply any
impact on it.
[ If there is impact on the rear corner
radar or near the radar, even though
the warning message does not
appear on the cluster, Blind-Spot
Safety system may not operate
properly. We recommend that the
function be inspected by a HYUNDAI
authorised repairer.
Page 395 of 649

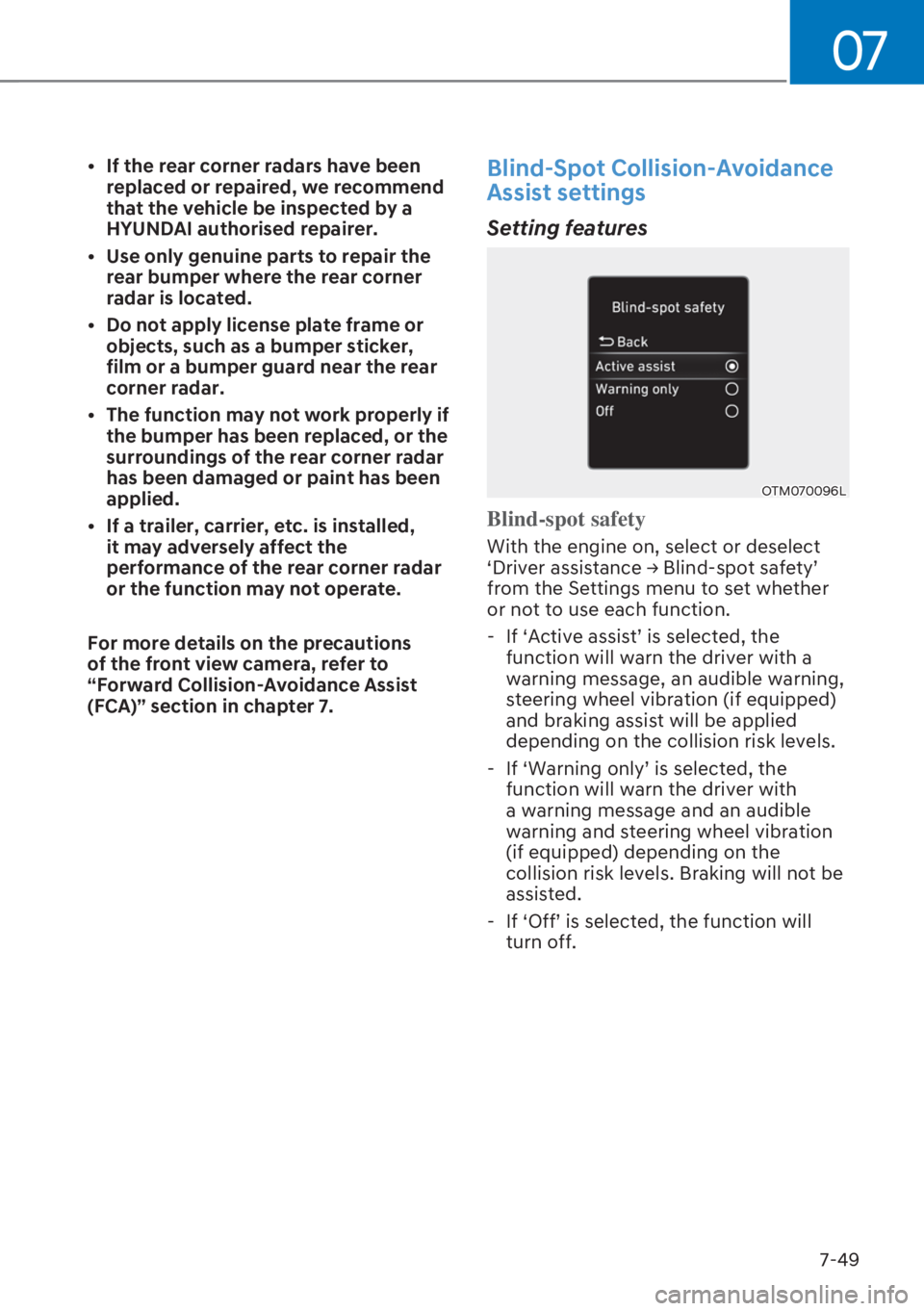

07
7-49 [ If the rear corner radars have been
replaced or repaired, we recommend
that the vehicle be inspected by a
HYUNDAI authorised repairer.
[ Use only genuine parts to repair the
rear bumper where the rear corner
radar is located.
[ Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard near the rear
corner radar.
[ The function may not work properly if
the bumper has been replaced, or the
surroundings of the rear corner radar
has been damaged or paint has been
applied.
[ If a trailer, carrier, etc. is installed,
it may adversely affect the
performance of the rear corner radar
or the function may not operate.
For more details on the precautions
of the front view camera, refer to
“Forward Collision-Avoidance Assist
(FCA)” section in chapter 7.
Blind-Spot Collision-Avoidance
Assist settings
Setting features
OTM070096L
Blind-spot safety
With the engine on, select or deselect
S ' U L Y H U D V V L V W D Q F H
Page 396 of 649
Driver assistance system
7-50

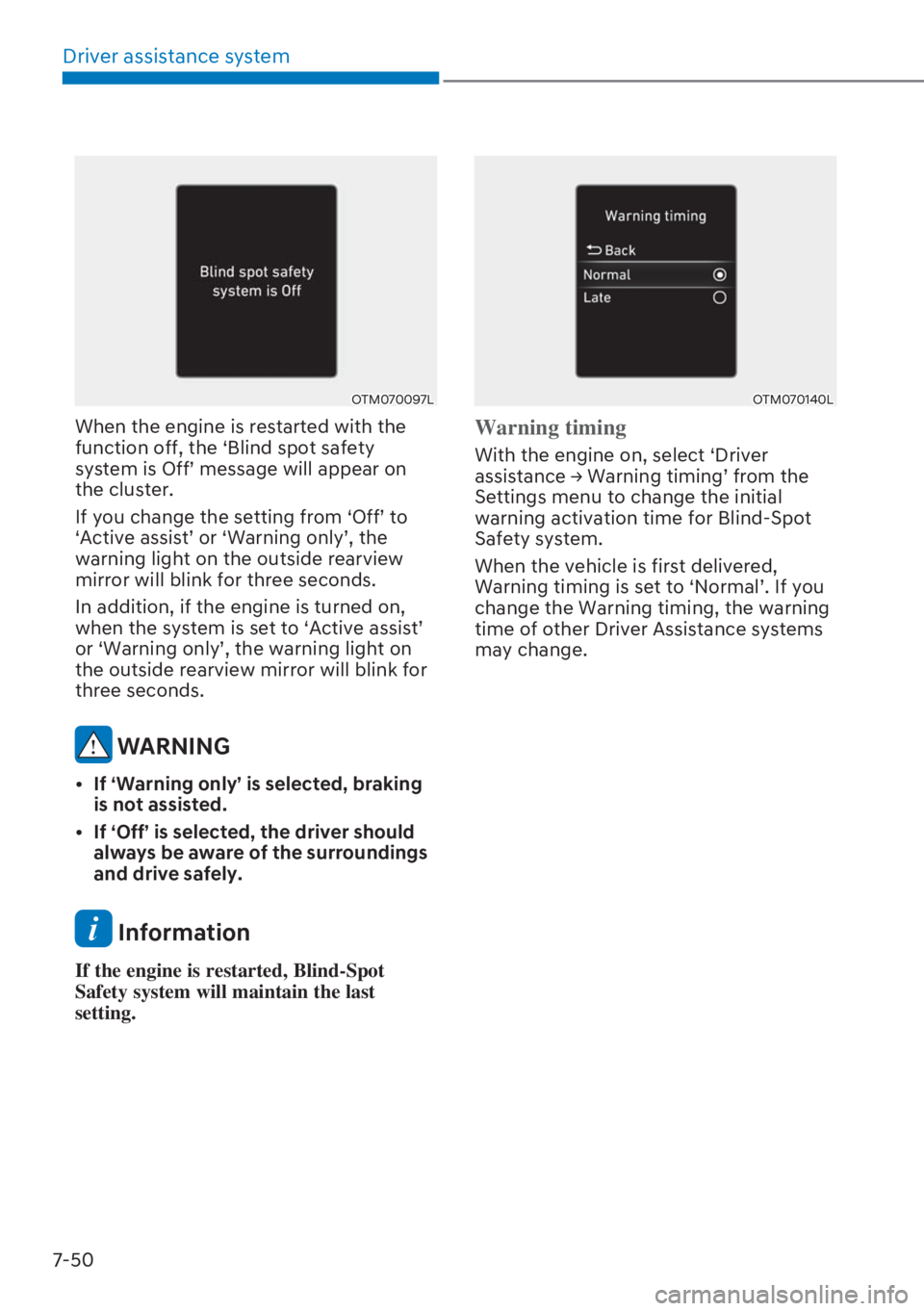

OTM070097L
When the engine is restarted with the
function off, the ‘Blind spot safety
V \ V W H P L V 2 I IT P H V V D J H Z L O O D S S H D U R Q
the cluster.
, I \ R X F K D Q J H W K H V H W W L Q J I U R P S 2 I IT W R
S $ F W L Y H D V V L V WT R U S : D U Q L Q J R Q O \T W K H
warning light on the outside rearview
mirror will blink for three seconds.
In addition, if the engine is turned on,
Z K H Q W K H V \ V W H P L V V H W W R S $ F W L Y H D V V L V WT
R U S : D U Q L Q J R Q O \T W K H Z D U Q L Q J O L J K W R Q
the outside rearview mirror will blink for
three seconds.
WARNING
[ If ‘Warning only’ is selected, braking
is not assisted.
[ If ‘Off’ is selected, the driver should
always be aware of the surroundings
and drive safely.
Information
If the engine is restarted, Blind-Spot
Safety system will maintain the last
setting.
OTM070140L
Warning timing
With the engine on, select ‘Driver
D V V L V W D Q F H
Page 397 of 649
07
7-51

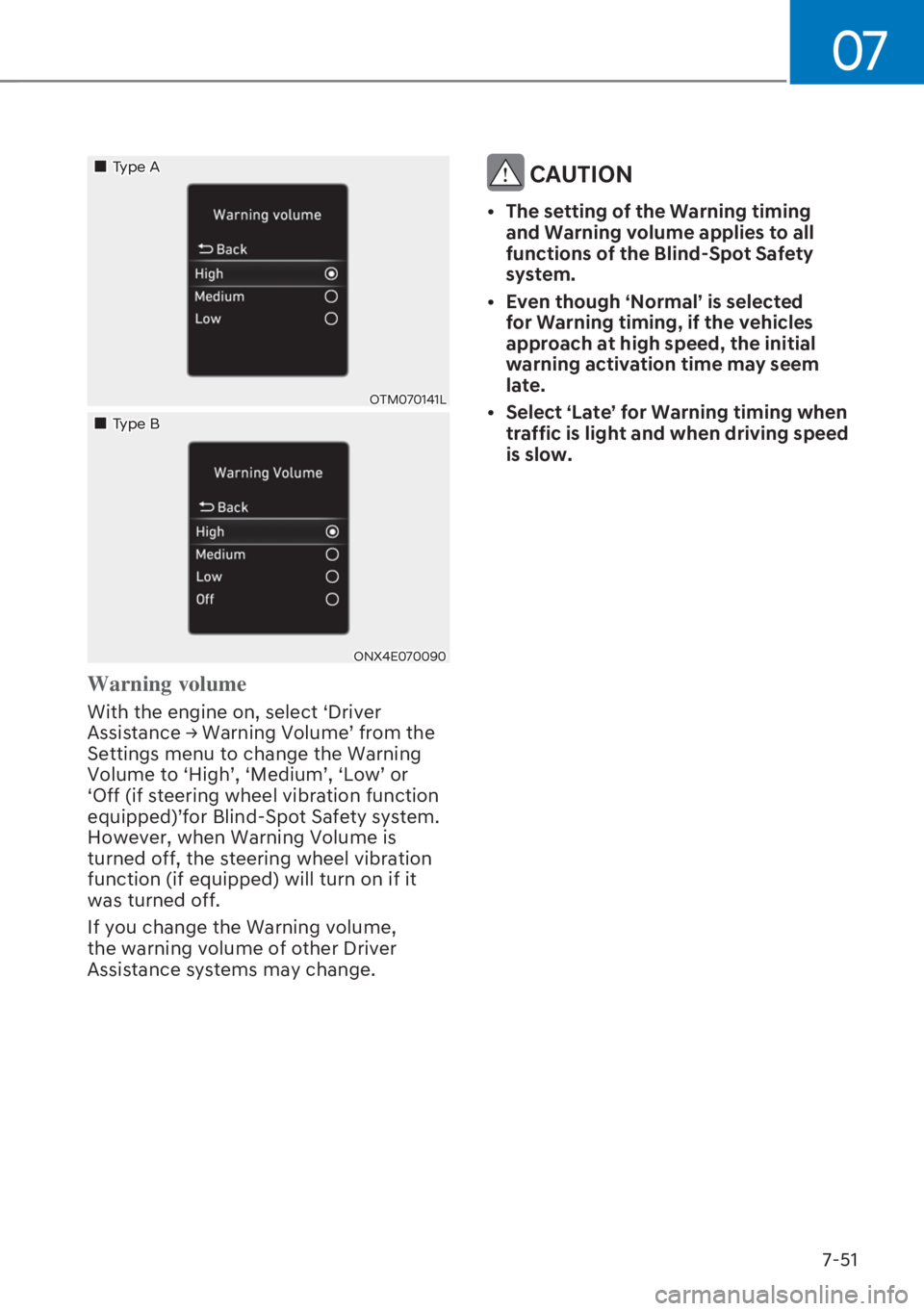

„Type A
OTM070141L
„Type B
ONX4E070090
Warning volume
With the engine on, select ‘Driver
$ V V L V W D Q F H
Page 398 of 649
Driver assistance system
7-52

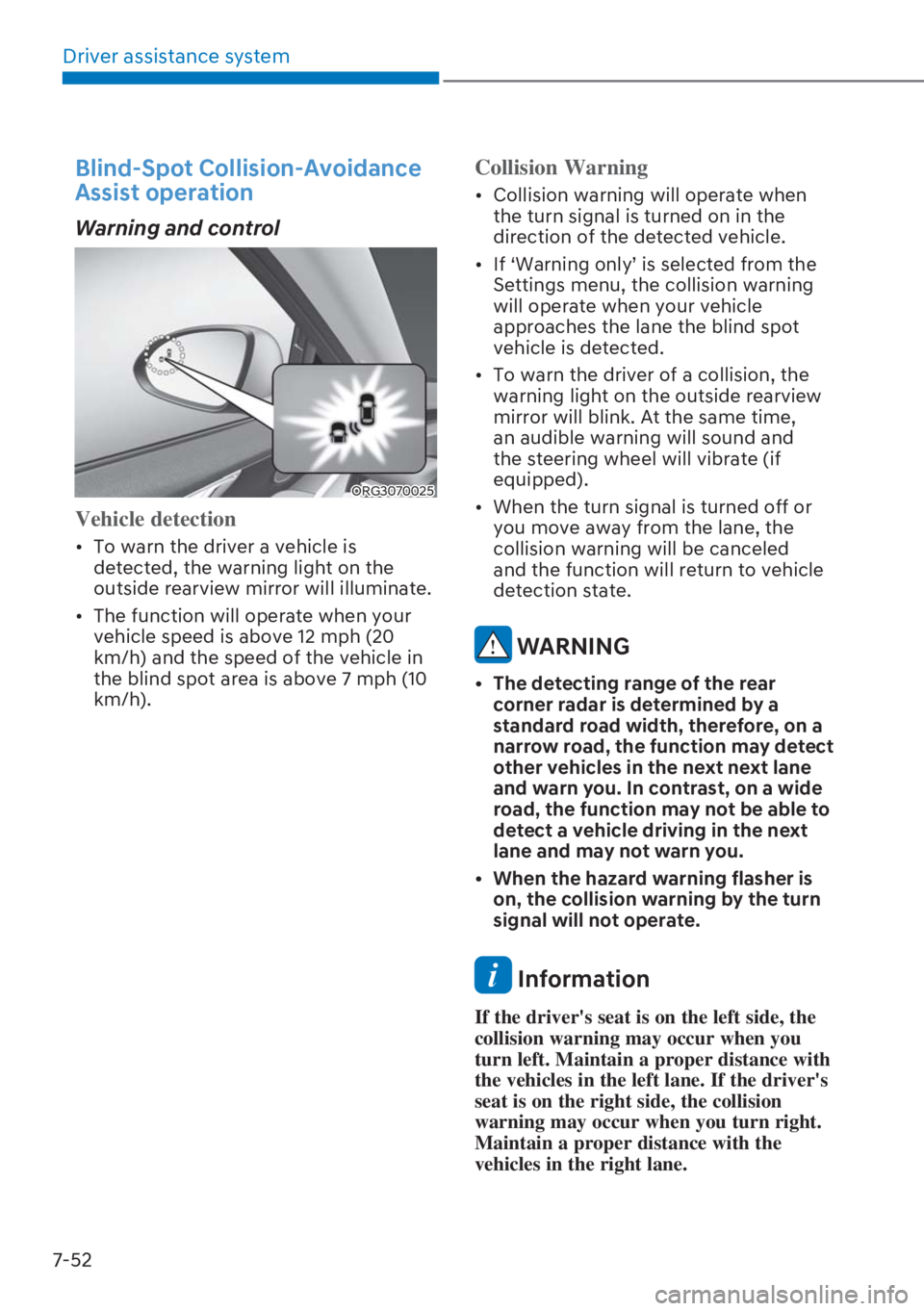

Blind-Spot Collision-Avoidance
Assist operation
Warning and control
ORG3070025
Vehicle detection
[ To warn the driver a vehicle is
detected, the warning light on the
outside rearview mirror will illuminate.
[ The function will operate when your
vehicle speed is above 12 mph (20
km/h) and the speed of the vehicle in
the blind spot area is above 7 mph (10
km/h).
Collision Warning
[ Collision warning will operate when
the turn signal is turned on in the
direction of the detected vehicle.
[ , I S : D U Q L Q J R Q O \T L V V H O H F W H G I U R P W K H
Settings menu, the collision warning
will operate when your vehicle
approaches the lane the blind spot
vehicle is detected.
[ To warn the driver of a collision, the
warning light on the outside rearview
mirror will blink. At the same time,
an audible warning will sound and
the steering wheel will vibrate (if
equipped).
[ When the turn signal is turned off or
you move away from the lane, the
collision warning will be canceled
and the function will return to vehicle
detection state.
WARNING
[ The detecting range of the rear
corner radar is determined by a
standard road width, therefore, on a
narrow road, the function may detect
other vehicles in the next next lane
and warn you. In contrast, on a wide
road, the function may not be able to
detect a vehicle driving in the next
lane and may not warn you.
[ When the hazard warning flasher is
on, the collision warning by the turn
signal will not operate.
Information
If the driver's seat is on the left side, the
collision warning may occur when you
turn left. Maintain a proper distance with
the vehicles in the left lane. If the driver's
seat is on the right side, the collision
warning may occur when you turn right.
Maintain a proper distance with the
vehicles in the right lane.
Page 399 of 649
07
7-53
OBC3070125R

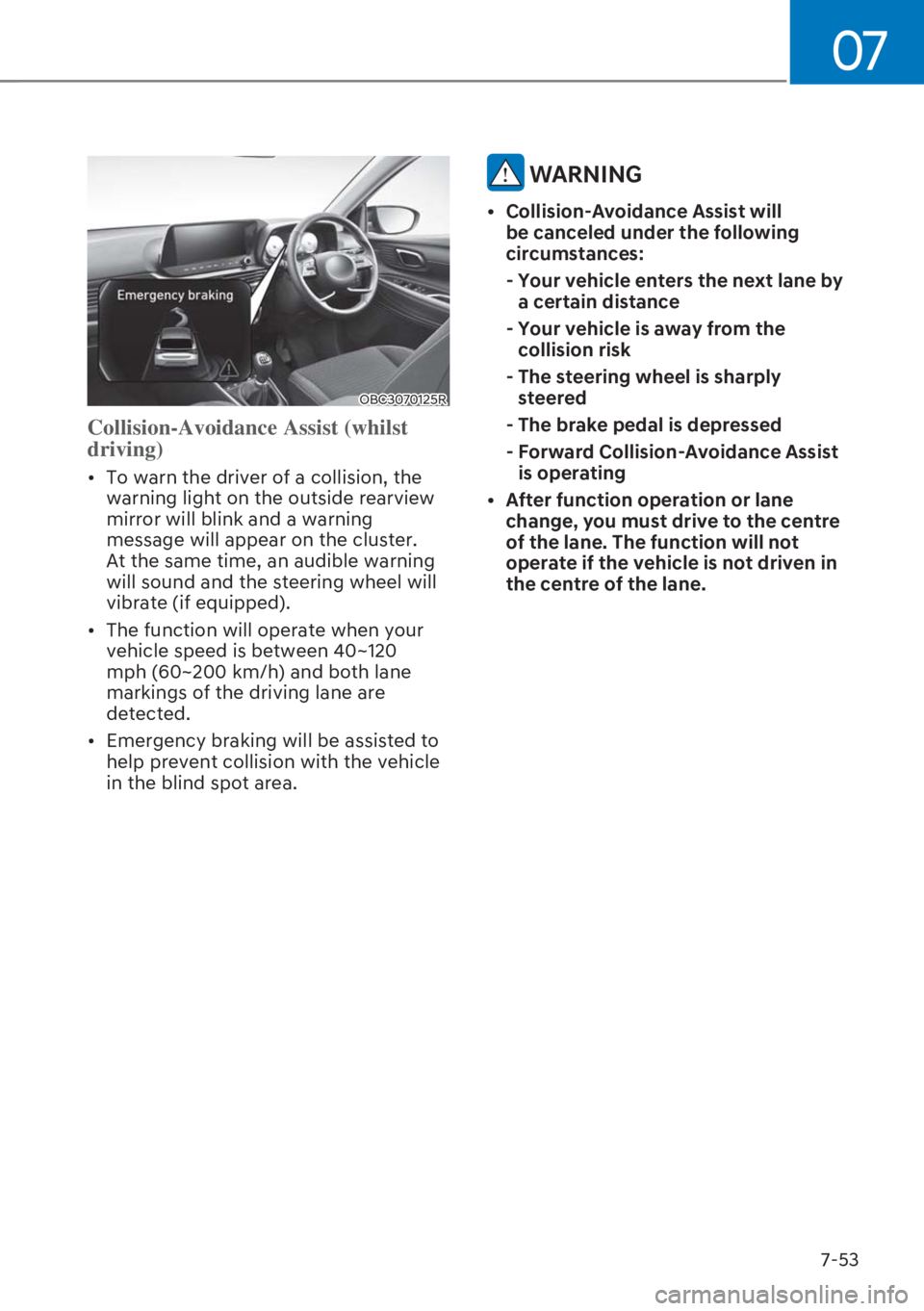

Collision-Avoidance Assist (whilst
driving)
[ To warn the driver of a collision, the
warning light on the outside rearview
mirror will blink and a warning
message will appear on the cluster.
At the same time, an audible warning
will sound and the steering wheel will
vibrate (if equipped).
[ The function will operate when your
vehicle speed is between 40~120
mph (60~200 km/h) and both lane
markings of the driving lane are
detected.
[ Emergency braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.
WARNING
[ Collision-Avoidance Assist will
be canceled under the following
circumstances:
- Your vehicle enters the next lane by
a certain distance
- Your vehicle is away from the
collision risk
- The steering wheel is sharply
steered
- The brake pedal is depressed
- Forward Collision-Avoidance Assist
is operating
[ After function operation or lane
change, you must drive to the centre
of the lane. The function will not
operate if the vehicle is not driven in
the centre of the lane.
Page 400 of 649
Driver assistance system
7-54
OBC3070125R

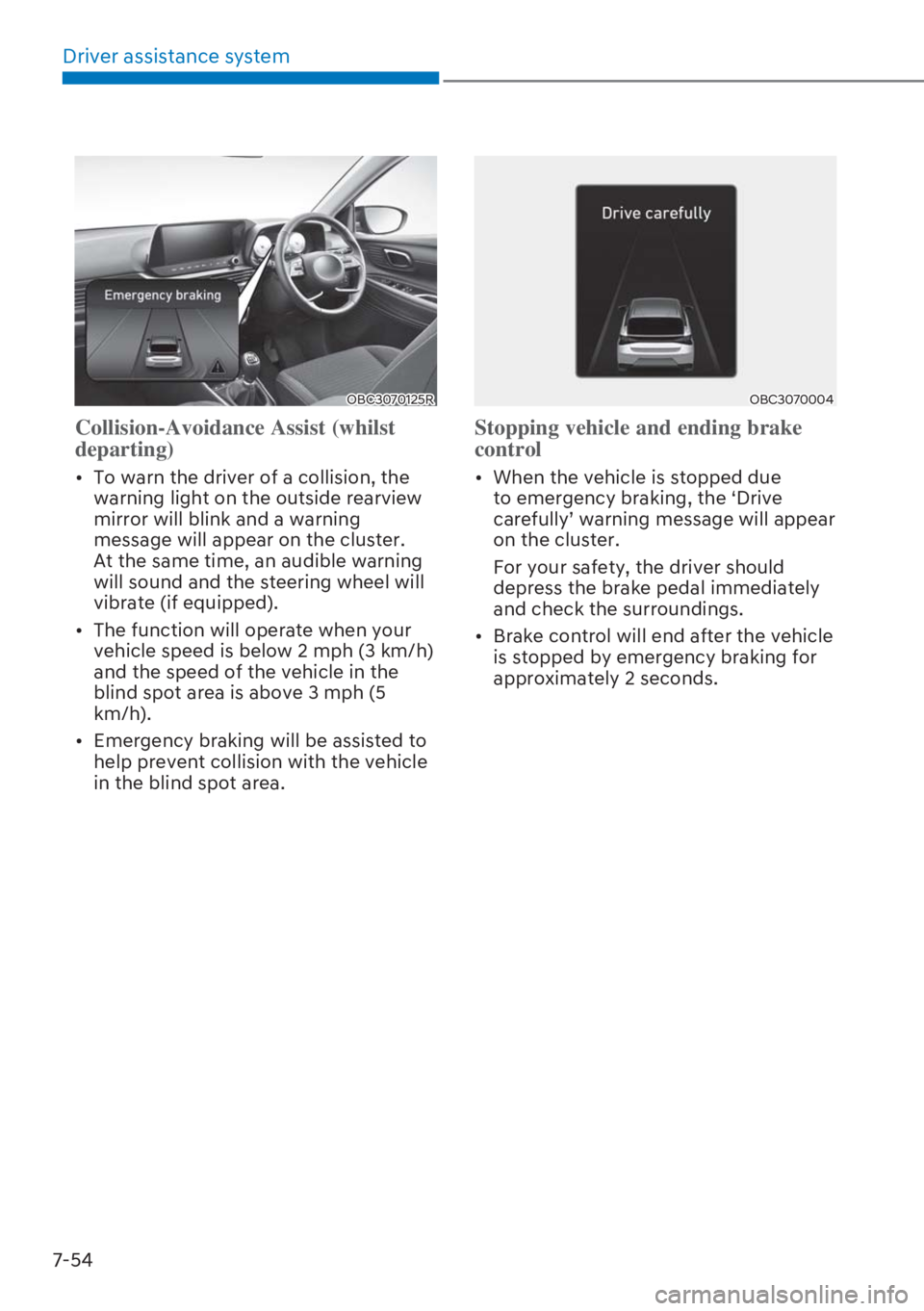

Collision-Avoidance Assist (whilst
departing)
[ To warn the driver of a collision, the
warning light on the outside rearview
mirror will blink and a warning
message will appear on the cluster.
At the same time, an audible warning
will sound and the steering wheel will
vibrate (if equipped).
[ The function will operate when your
vehicle speed is below 2 mph (3 km/h)
and the speed of the vehicle in the
blind spot area is above 3 mph (5
km/h).
[ Emergency braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.
OBC3070004
Stopping vehicle and ending brake
control
[ When the vehicle is stopped due
to emergency braking, the ‘Drive
F D U H I X O O \T Z D U Q L Q J P H V V D J H Z L O O D S S H D U
on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.
[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
