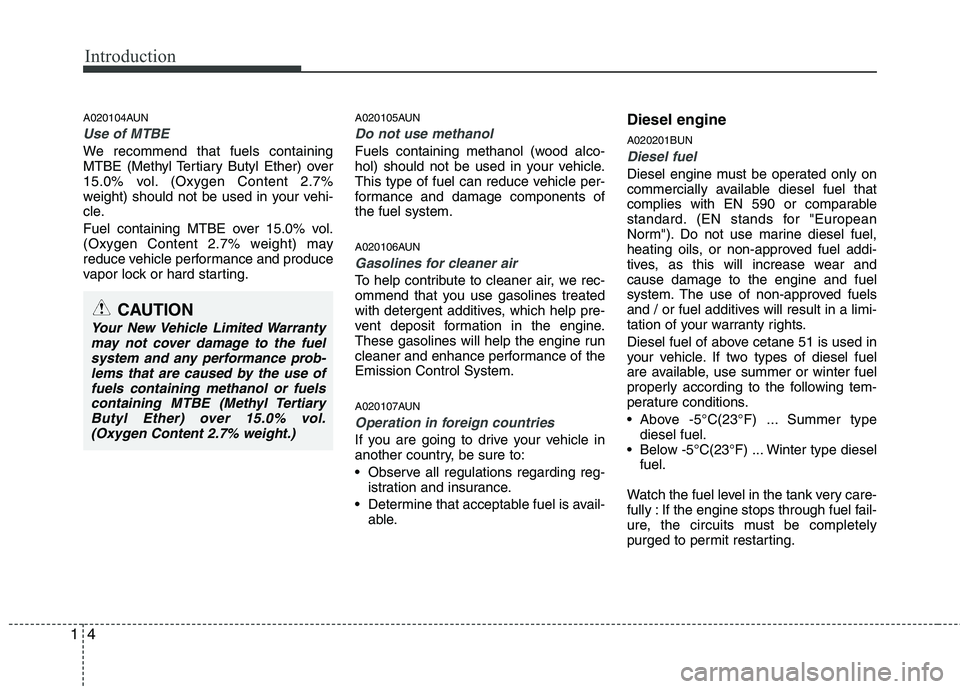

Introduction
4
1
A020104AUN
Use of MTBE
We recommend that fuels containing
MTBE (Methyl Tertiary Butyl Ether) over
15.0% vol. (Oxygen Content 2.7%
weight) should not be used in your vehi-
cle.
Fuel containing MTBE over 15.0% vol.
(Oxygen Content 2.7% weight) may
reduce vehicle performance and produce
vapor lock or hard starting. A020105AUN
Do not use methanol
Fuels containing methanol (wood alco-
hol) should not be used in your vehicle.
This type of fuel can reduce vehicle per-
formance and damage components ofthe fuel system.
A020106AUN
Gasolines for cleaner air
To help contribute to cleaner air, we rec-
ommend that you use gasolines treated
with detergent additives, which help pre-
vent deposit formation in the engine.
These gasolines will help the engine run
cleaner and enhance performance of theEmission Control System.
A020107AUN
Operation in foreign countries
If you are going to drive your vehicle in
another country, be sure to:
Observe all regulations regarding reg-
istration and insurance.
Determine that acceptable fuel is avail- able. Diesel engine
A020201BUN
Diesel fuel
Diesel engine must be operated only on
commercially available diesel fuel that
complies with EN 590 or comparable
standard. (EN stands for "European
Norm"). Do not use marine diesel fuel,
heating oils, or non-approved fuel addi-
tives, as this will increase wear andcause damage to the engine and fuel
system. The use of non-approved fuels
and / or fuel additives will result in a limi-
tation of your warranty rights.
Diesel fuel of above cetane 51 is used in
your vehicle. If two types of diesel fuel
are available, use summer or winter fuel
properly according to the following tem-
perature conditions.
Above -5°C(23°F) ... Summer type
diesel fuel.
Below -5°C(23°F) ... Winter type diesel fuel.
Watch the fuel level in the tank very care-
fully : If the engine stops through fuel fail-
ure, the circuits must be completely
purged to permit restarting.
CAUTION
Your New Vehicle Limited Warranty may not cover damage to the fuelsystem and any performance prob-
lems that are caused by the use offuels containing methanol or fuelscontaining MTBE (Methyl TertiaryButyl Ether) over 15.0% vol.
(Oxygen Content 2.7% weight.)
Page 12 of 635

15
Introduction
A020202BUN
Biodiesel
Commercially supplied Diesel blends of no more than 7% biodiesel, commonly
known as "B7 Diesel" may be used in
your vehicle if Biodiesel meets EN 14214
or equivalent specifications. (EN stands
for "European Norm"). The use of biofu-
els exceeding 7% made from rapeseed
methyl ester (RME), fatty acid methyl
ester (FAME), vegetable oil methyl ester
(VME) etc. or mixing diesel exceeding7% with biodiesel will cause increased
wear or damage to the engine and fuel
system. Repair or replacement of worn ordamaged components due to the use of
non approved fuels will not be covered by
the manufactures warranty.
Biodiesel (for New Zealand)
Commercially supplied Diesel blends of no more than 7% biodiesel, commonly
known as "B7 Diesel" may be used in
your vehicle if Biodiesel meets EN 14214
or equivalent specifications. (EN stands
for "European Norm"). The use of biofu-
els exceeding 7%, made from rapeseed
methyl ester (RME), vegetable oil methyl
ester (VME) etc. or mixing diesel exceed- ing 7% with biodiesel will cause
increased wear or damage to the engine
and fuel system. Repair or replacement
of worn or damaged components due to
the use of non approved fuels will not be
covered by the manufactures warranty. .CAUTION
Do not let any gasoline or waterenter the tank. This would make it
necessary to drain it out and tobleed the lines to avoid jammingthe injection pump and damaging the engine.
In winter, in order to cut down incidents due to freezing, paraffinoil may be added to the fuel if the temperature drops to below -10°C
(14°F). Never use more than 20%paraffin oil.
CAUTION - Diesel Fuel
(if equipped with DPF)
It is recommended to use the regu- lated automotive diesel fuel fordiesel vehicle equipped with theDPF system.
If you use diesel fuel including highsulfur (more than 50 ppm sulfur)
and unspecified additives, it cancause the DPF system to be dam-aged and white smoke can be emit- ted.CAUTION
Never use any fuel, whether diesel, B7 biodiesel or otherwise,
that fails to meet the latest petro- leum industry specification.
Never use any fuel additives or treatments that are not recom-mended or approved by the vehi-
cle manufacturer.CAUTION
Never use any fuel, whether diesel, B7 biodiesel or otherwise,that fails to meet the latest petro-leum industry specification.
Never use any fuel additives or treatments that are not recom-
mended or approved by the vehi- cle manufacturer.
Page 13 of 635

Introduction
6
1

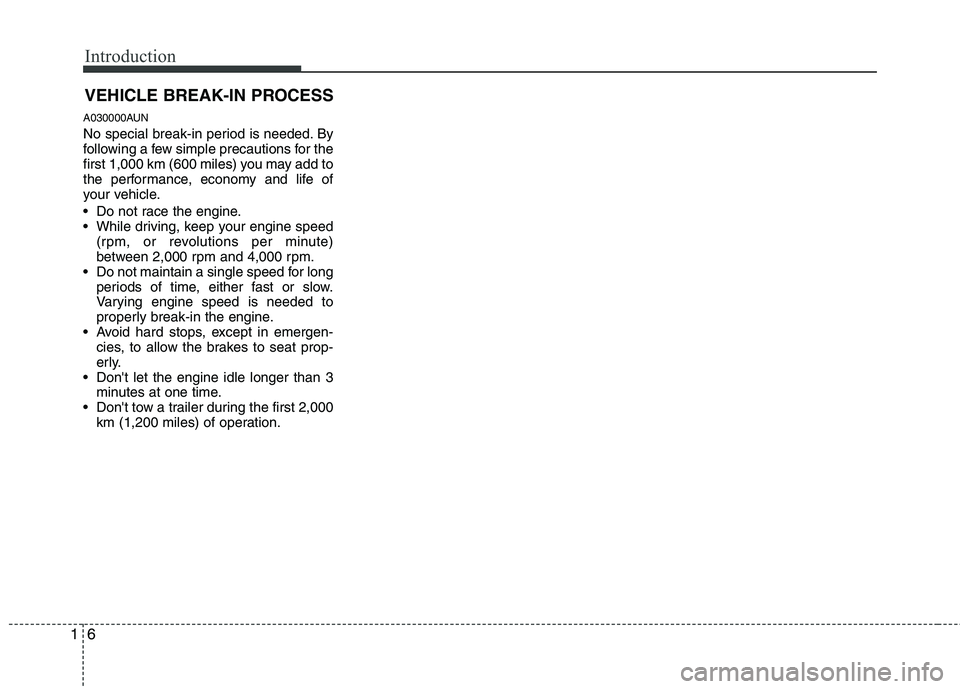

VEHICLE BREAK-IN PROCESS
A030000AUN
No special break-in period is needed. By
following a few simple precautions for the
first 1,000 km (600 miles) you may add to
the performance, economy and life of
your vehicle.
Do not race the engine.
While driving, keep your engine speed (rpm, or revolutions per minute)
between 2,000 rpm and 4,000 rpm.
Do not maintain a single speed for long
periods of time, either fast or slow.
Varying engine speed is needed to
properly break-in the engine.
Avoid hard stops, except in emergen-
cies, to allow the brakes to seat prop-
erly.
Don't let the engine idle longer than 3 minutes at one time.
Don't tow a trailer during the first 2,000 km (1,200 miles) of operation.
Page 14 of 635

17
Introduction

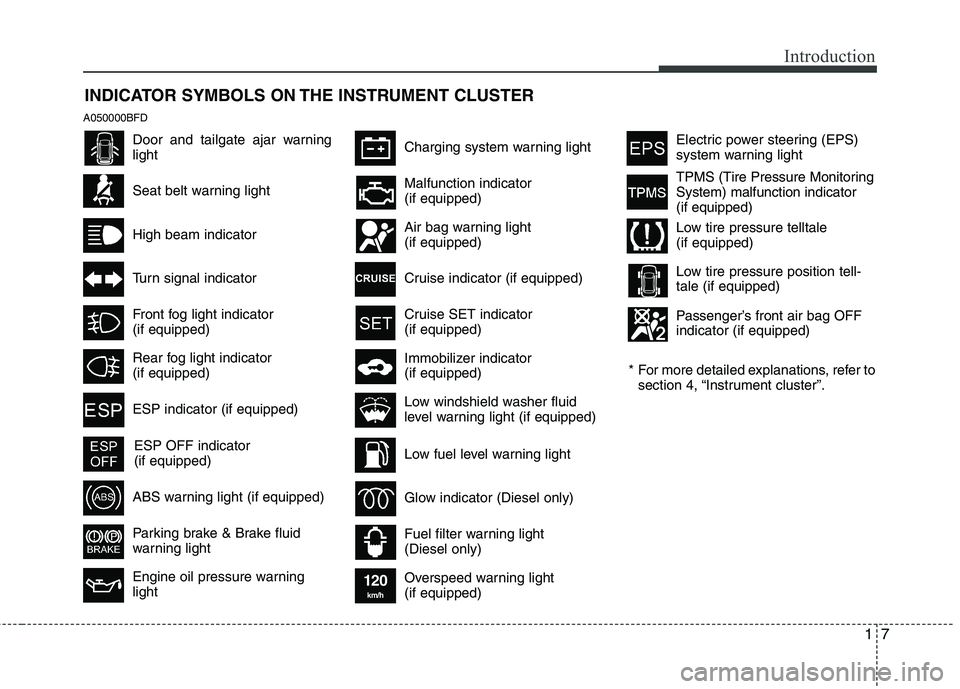

A050000BFDINDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Door and tailgate ajar warning light
Seat belt warning light
High beam indicator
Turn signal indicator
Front fog light indicator (if equipped)
Rear fog light indicator (if equipped)
ABS warning light (if equipped)
Parking brake & Brake fluid
warning light
Engine oil pressure warning light
Charging system warning light
ESP indicator (if equipped)
ESP OFF indicator (if equipped)
Malfunction indicator (if equipped)
Air bag warning light (if equipped)
Cruise indicator (if equipped)
Cruise SET indicator (if equipped)
Immobilizer indicator (if equipped)
Low fuel level warning light
Glow indicator (Diesel only)
Fuel filter warning light (Diesel only)
Electric power steering (EPS)
system warning light
Low windshield washer fluid
level warning light (if equipped) * For more detailed explanations, refer to
section 4, “Instrument cluster”.
TPMS (Tire Pressure Monitoring System) malfunction indicator (if equipped)
Low tire pressure telltale (if equipped)
Low tire pressure position tell- tale (if equipped)
Passenger’s front air bag OFF indicator (if equipped)
Overspeed warning light(if equipped)
120 km/h
Page 15 of 635

2
Interior overview / 2-2
Instrument panel overview / 2-4
Your vehicle at a glance
Page 16 of 635

Your vehicle at a glance
2
2

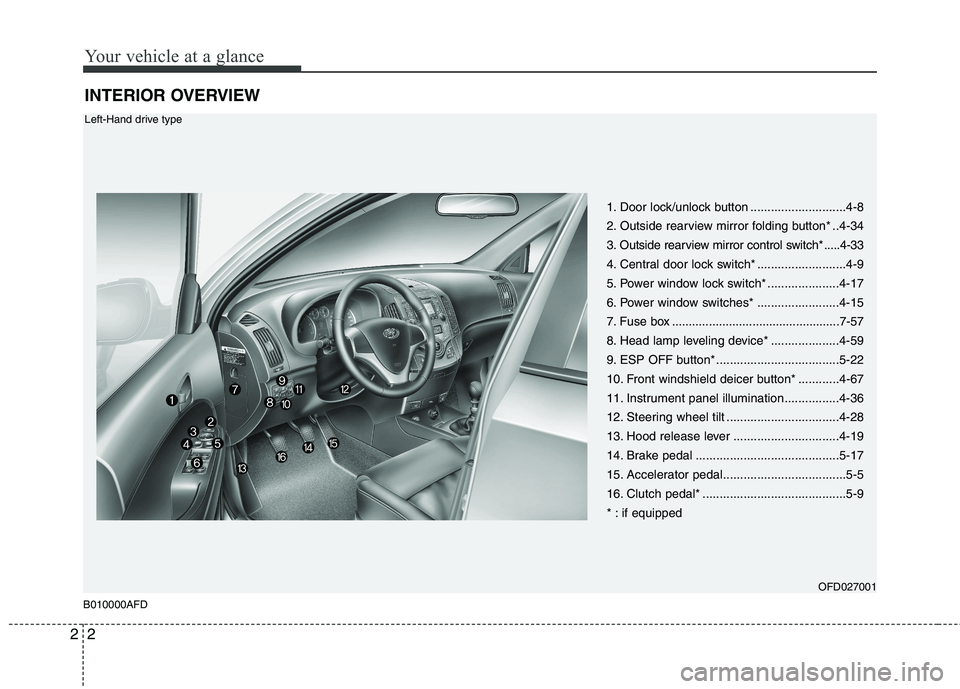

INTERIOR OVERVIEW
1. Door lock/unlock button ............................4-8
2. Outside rearview mirror folding button* ..4-34
3. Outside rearview mirror control switch* .....4-33
4. Central door lock switch* ..........................4-9
5. Power window lock switch* .....................4-17
6. Power window switches* ........................4-15
7. Fuse box ..................................................7-57
8. Head lamp leveling device* ....................4-59
9. ESP OFF button* ....................................5-22
10. Front windshield deicer button* ............4-67
11. Instrument panel illumination................4-36
12. Steering wheel tilt .................................4-28
13. Hood release lever ...............................4-19
14. Brake pedal ..........................................5-17
15. Accelerator pedal....................................5-5
16. Clutch pedal* ..........................................5-9
* : if equipped
OFD027001
B010000AFD
Left-Hand drive type
Page 17 of 635

23
Your vehicle at a glance
B010001AFD

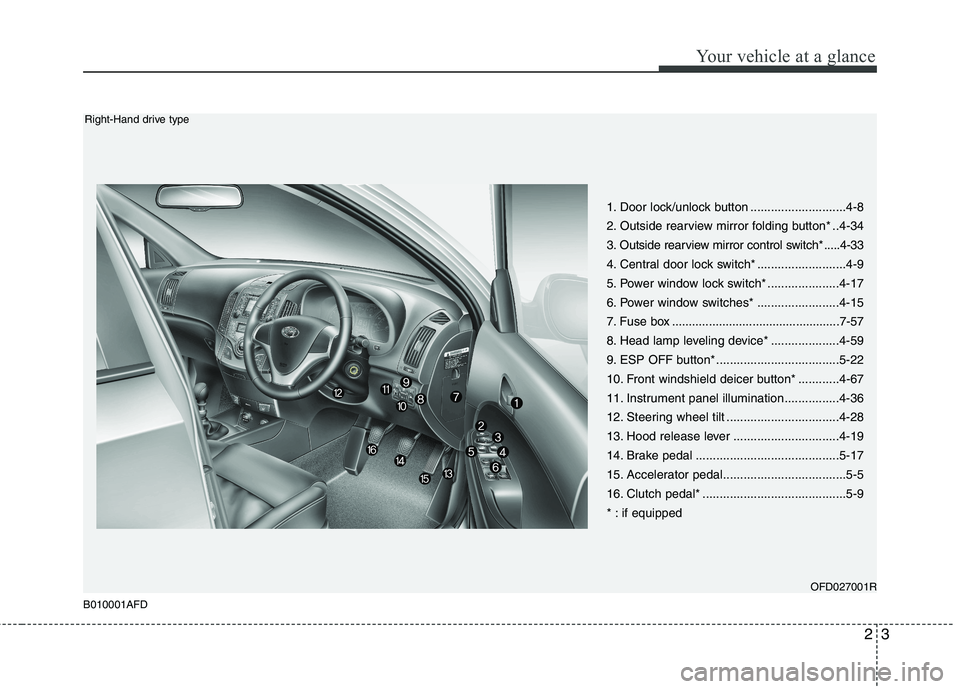

1. Door lock/unlock button ............................4-8
2. Outside rearview mirror folding button* ..4-34
3. Outside rearview mirror control switch* .....4-33
4. Central door lock switch* ..........................4-9
5. Power window lock switch* .....................4-17
6. Power window switches* ........................4-15
7. Fuse box ..................................................7-57
8. Head lamp leveling device* ....................4-59
9. ESP OFF button* ....................................5-22
10. Front windshield deicer button* ............4-67
11. Instrument panel illumination................4-36
12. Steering wheel tilt .................................4-28
13. Hood release lever ...............................4-19
14. Brake pedal ..........................................5-17
15. Accelerator pedal....................................5-5
16. Clutch pedal* ..........................................5-9
* : if equipped
OFD027001R
Right-Hand drive type
Page 18 of 635

Your vehicle at a glance
4
2

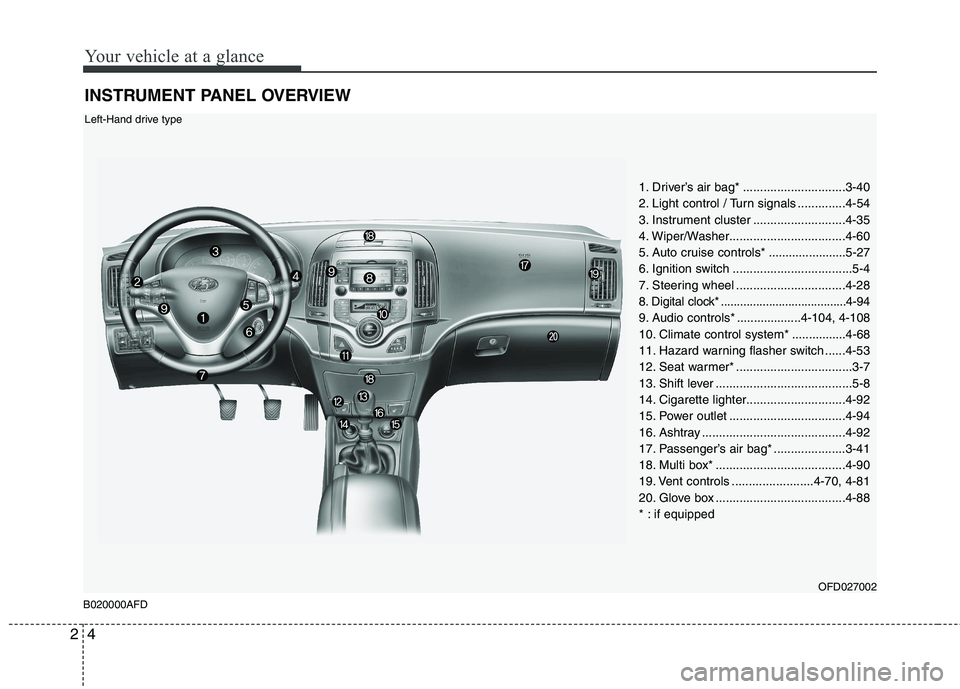

INSTRUMENT PANEL OVERVIEW
1. Driver’s air bag* ..............................3-40
2. Light control / Turn signals ..............4-54
3. Instrument cluster ...........................4-35
4. Wiper/Washer..................................4-60
5. Auto cr uise controls * .......................5-27
6. Ignition switch ...................................5-4
7. Steering wheel ................................4-28
8. Digital clock* .......................................4-94
9. Audio controls * ...................4-104, 4-108
10. Climate control system * ................4-68
11. Hazard warning flasher switch ......4-53
12. Seat warmer* ..................................3-7
13. Shift lever ........................................5-8
14. Cigarette lighter.............................4-92
15. Power outlet ..................................4-94
16. Ashtray ..........................................4-92
17. Passenger’s air bag* .....................3-41
18. Multi box* ......................................4-90
19. Vent controls ........................4-70, 4-81
20. Glove box ......................................4-88
* : if equipped
OFD027002
Left-Hand drive type
B020000AFD
Page 19 of 635

25
Your vehicle at a glance

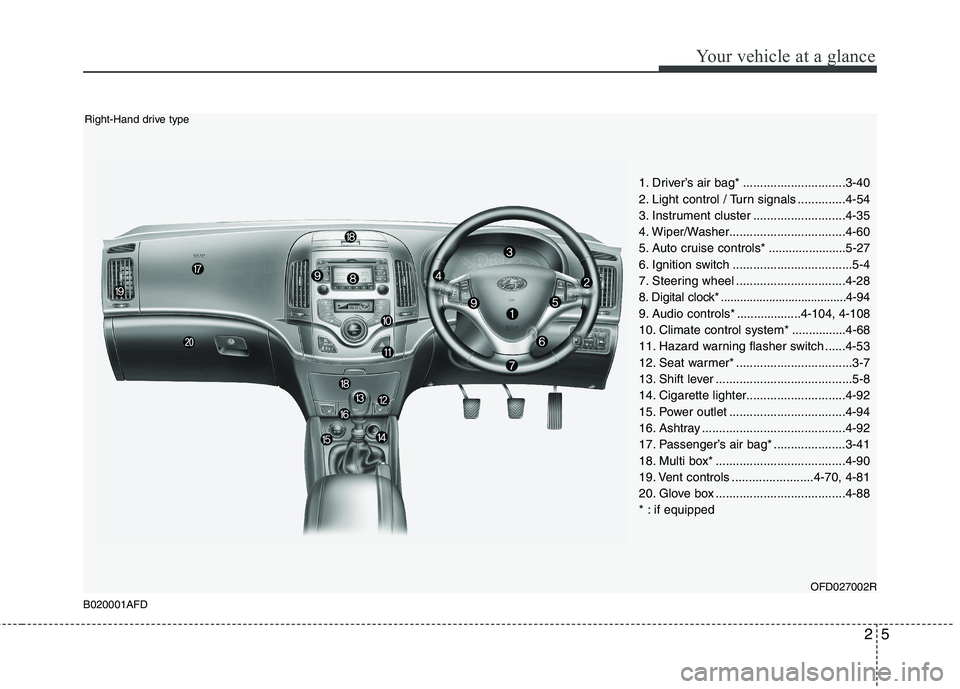

1. Driver’s air bag* ..............................3-40
2. Light control / Turn signals ..............4-54
3. Instrument cluster ...........................4-35
4. Wiper/Washer..................................4-60
5. Auto cruise controls * .......................5-27
6. Ignition switch ...................................5-4
7. Steering wheel ................................4-28
8. Digital clock* .......................................4-94
9. Audio controls * ...................4-104, 4-108
10. Climate control system * ................4-68
11. Hazard warning flasher switch ......4-53
12. Seat warmer* ..................................3-7
13. Shift lever ........................................5-8
14. Cigarette lighter.............................4-92
15. Power outlet ..................................4-94
16. Ashtray ..........................................4-92
17. Passenger’s air bag* .....................3-41
18. Multi box* ......................................4-90
19. Vent controls ........................4-70, 4-81
20. Glove box ......................................4-88
* : if equipped
OFD027002R
Right-Hand drive type
B020001AFD
Page 20 of 635

3
Seat / 3-2 Seat belts / 3-14
Child restraint system / 3-28
Airbag-supplemental restraint system / 3-37
Safety system of your vehicle
FDE ENG 3.QXP 9/3/2010 3:32 PM Page 1
