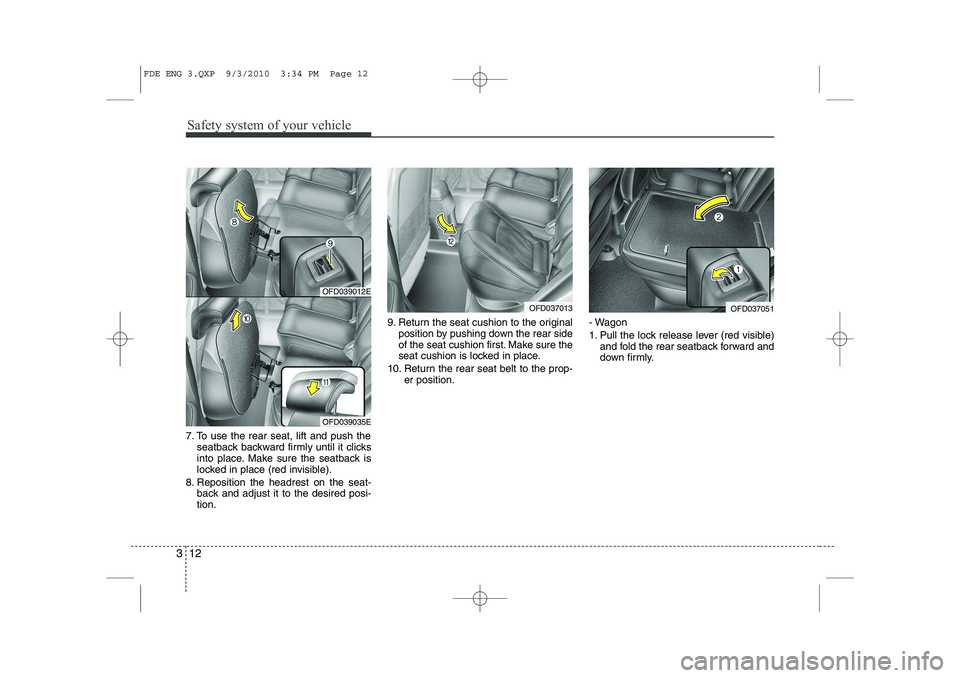

Page 31 of 635

HYUNDAI I30 2013 Owners Guide Safety system of your vehicle
12
3
7. To use the rear seat, lift and push the
seatback backward firmly until it clicks
into place. Make sure the seatback is
locked in place (red invisible).
8. Reposi

Page 32 of 635

HYUNDAI I30 2013 Owners Guide 313
Safety system of your vehicle
2. To use the rear seat, lift and push theseatback backward firmly until it clicks
into place. Make sure the seatback is
locked in place (red invisible).
3. Return t

Page 33 of 635

HYUNDAI I30 2013 Owners Guide Safety system of your vehicle
14
3
C020100AUN Seat belt restraint system SEAT BELTS(Continued)
 Avoid wearing twisted seat belts.
A twisted belt cant do its job as
well. In a collision, it could e

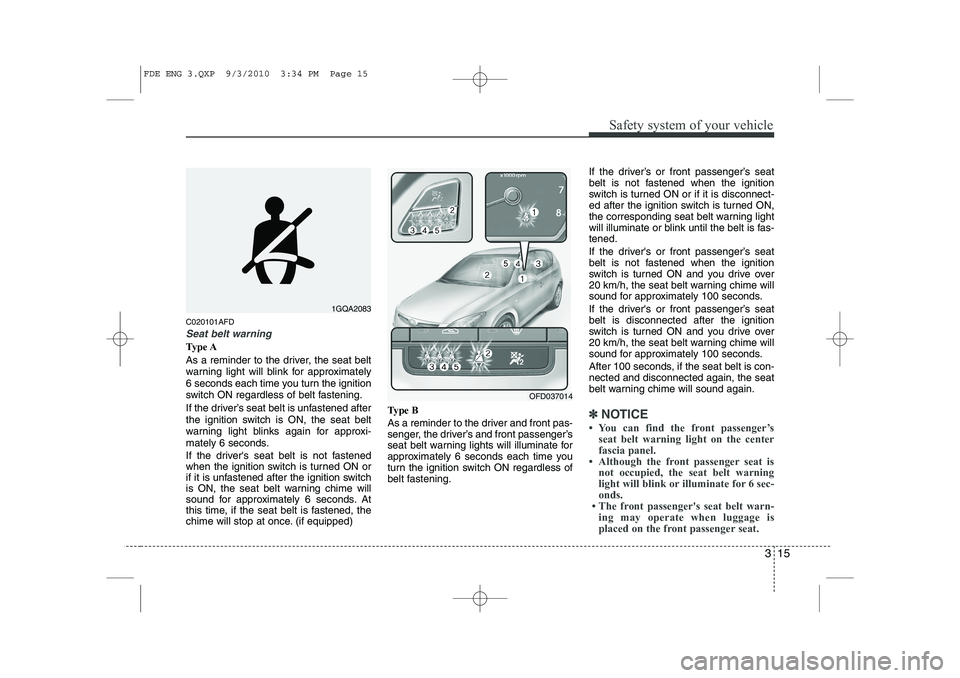

Page 34 of 635

HYUNDAI I30 2013 Owners Guide 315
Safety system of your vehicle
C020101AFD
Seat belt warning
Type A
As a reminder to the driver, the seat belt
warning light will blink for approximately
6 seconds each time you turn the ignition

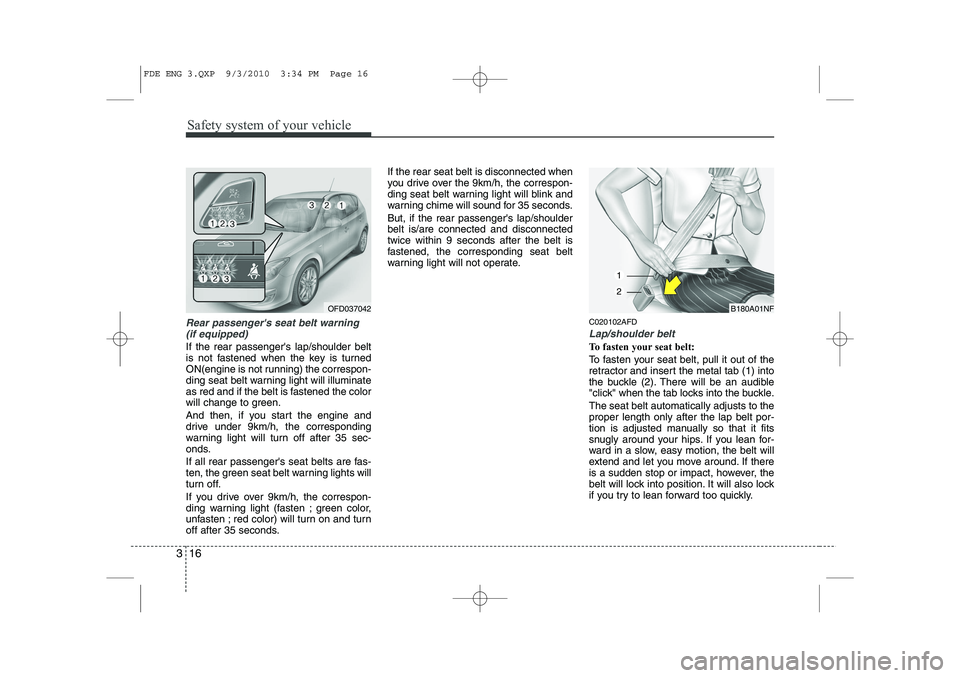

Page 35 of 635

HYUNDAI I30 2013 Owners Guide Safety system of your vehicle
16
3
Rear passengers seat belt warning
(if equipped)
If the rear passengers lap/shoulder belt
is not fastened when the key is turned
ON(engine is not running) the corr

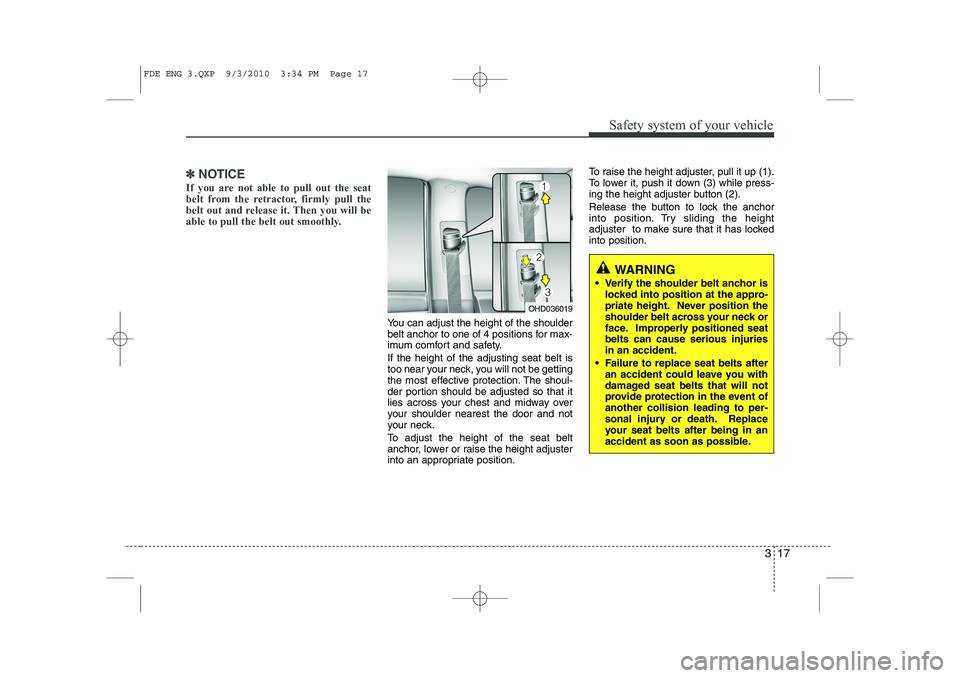

Page 36 of 635

HYUNDAI I30 2013 Owners Guide 317
Safety system of your vehicle
✽✽NOTICE
If you are not able to pull out the seat
belt from the retractor, firmly pull the
belt out and release it. Then you will be
able to pull the belt out sm

Page 37 of 635

HYUNDAI I30 2013 Owners Guide Safety system of your vehicle
18
3
To release the seat belt:
The seat belt is released by pressing the
release button (1) in the locking buckle.When it is released, the belt should auto-
matically d

Page 38 of 635

HYUNDAI I30 2013 Owners Guide 319
Safety system of your vehicle
With a 2-point static type seat belt, the
length must be adjusted manually so it
fits snugly around your body. Fasten thebelt and pull on the loose end to tighten.
T

Page 39 of 635

HYUNDAI I30 2013 Owners Guide Safety system of your vehicle
20
3
C020104AUN
3-point rear center seat belt
(if equipped)
To fasten the rear center seat belt:
1. Pull the webbing slowly out from the retractor on the top of the sea

Page 40 of 635

HYUNDAI I30 2013 Owners Guide 321
Safety system of your vehicle
There will be an audible “click” when the
tab locks in the buckle. The seat beltautomatically adjusts to the proper length
only after the lap belt is adjusted m
