Page 121 of 635

HYUNDAI I30 2015  Owners Manual 443
Features of your vehicle
D150302AFD

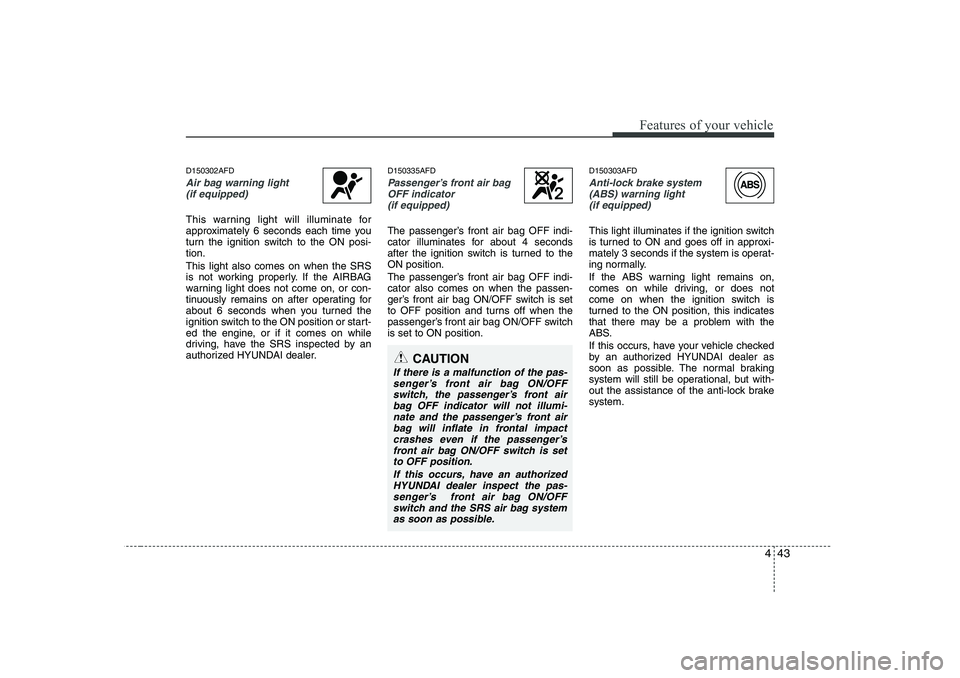

Air bag warning light (if equipped)
This warning light will illuminate for
approximately 6 seconds each time you
turn the ignition switch to the ON posi-tion.

Page 122 of 635

HYUNDAI I30 2015  Owners Manual Features of your vehicle
44
4
Electronic brake force distri- bution (EBD) system warninglight
If two warning lights illumi- nate at the same time while
driving, your vehicle may
have a malfunction wi

Page 123 of 635

HYUNDAI I30 2015  Owners Manual 445
Features of your vehicle
D150305AFD

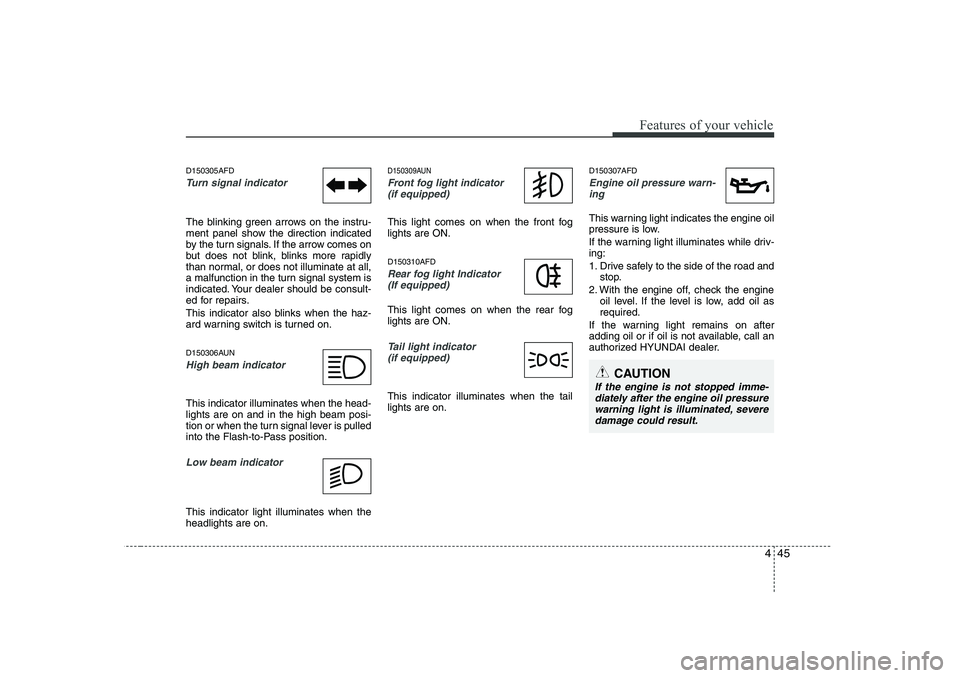

Turn signal indicator
The blinking green arrows on the instru-
ment panel show the direction indicated
by the turn signals. If the arrow comes on
but does not

Page 124 of 635

HYUNDAI I30 2015  Owners Manual Features of your vehicle
46
4
D150350AFD

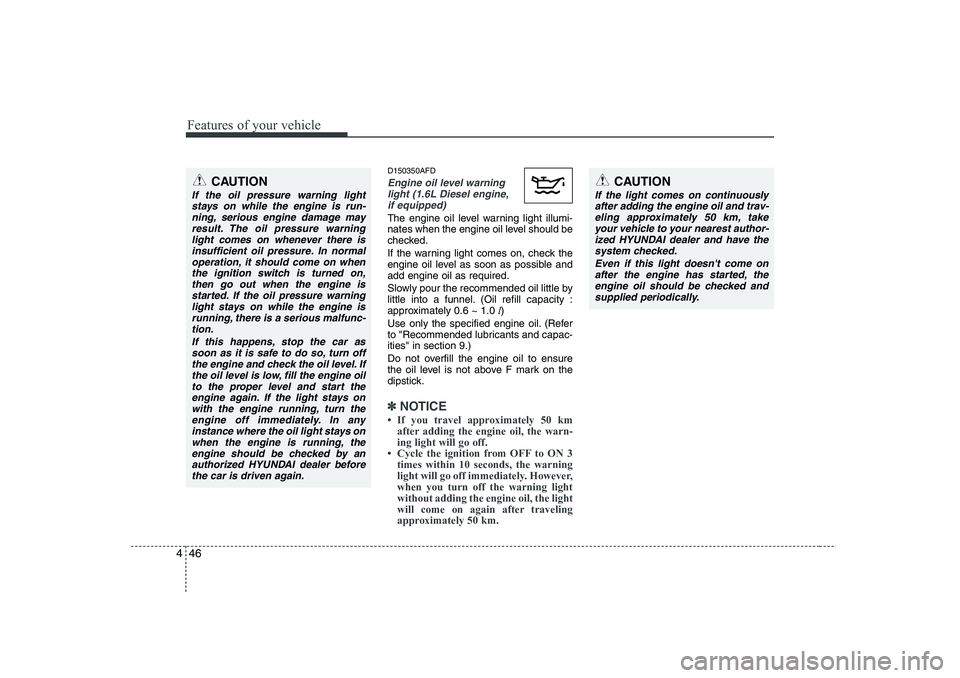

Engine oil level warning
light (1.6L Diesel engine,
if equipped)
The engine oil level warning light illumi-
nates when the engine oil level should be
checked.

Page 125 of 635

HYUNDAI I30 2015  Owners Manual 447
Features of your vehicle
Engine coolant temperature warninglight (if equipped)
The warning light shows the temperature of the engine coolant when the ignition
switch is ON.
The warning light illu

Page 126 of 635

HYUNDAI I30 2015  Owners Manual Features of your vehicle
48
4
D150331AFD

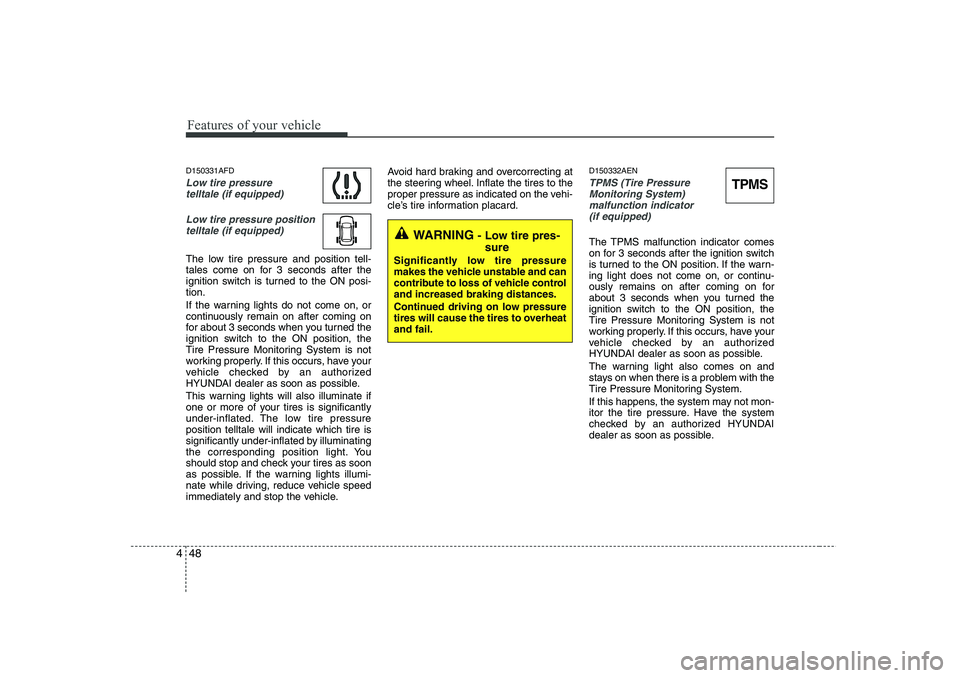

Low tire pressure
telltale (if equipped)
Low tire pressure positiontelltale (if equipped)
The low tire pressure and position tell-
tales come on for 3 second

Page 127 of 635

HYUNDAI I30 2015  Owners Manual 449
Features of your vehicle
D150312AUN

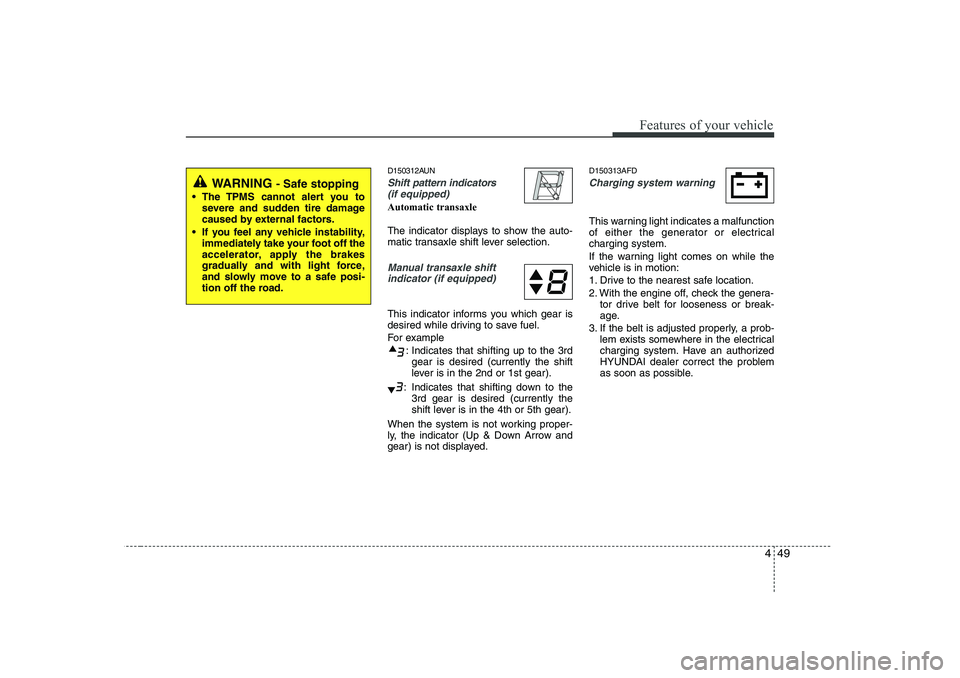

Shift pattern indicators(if equipped)
Automatic transaxle
The indicator displays to show the auto-
matic transaxle shift lever selection.
Manual transaxle shi

Page 128 of 635

HYUNDAI I30 2015  Owners Manual Features of your vehicle
50
4

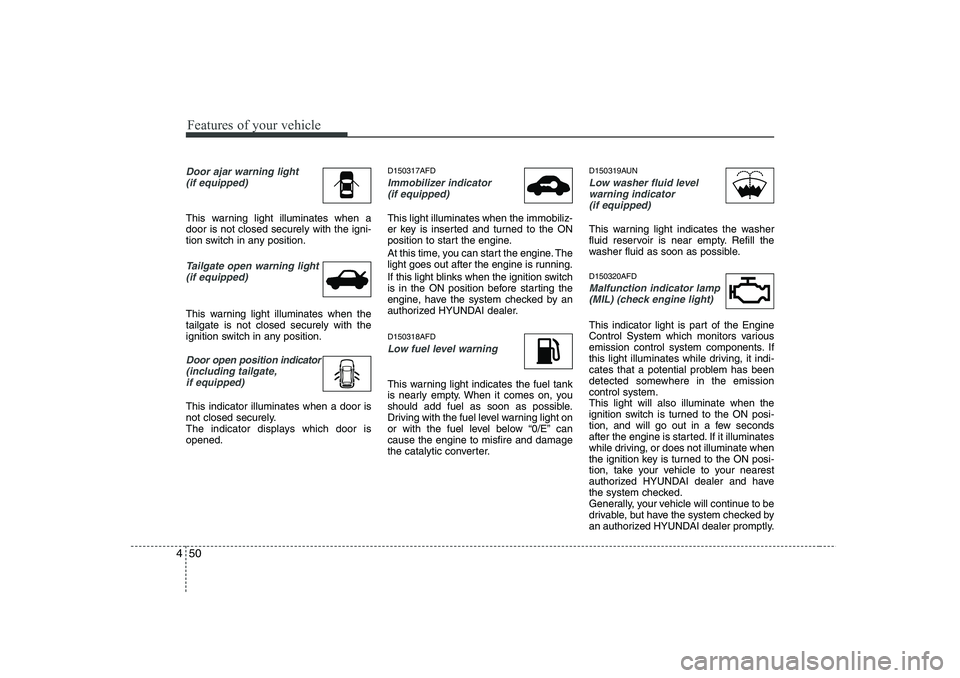

Door ajar warning light
(if equipped)
This warning light illuminates when a door is not closed securely with the igni-
tion switch in any position.
Tailgate open warning

Page 129 of 635

HYUNDAI I30 2015  Owners Manual 451
Features of your vehicle
D150340AFD

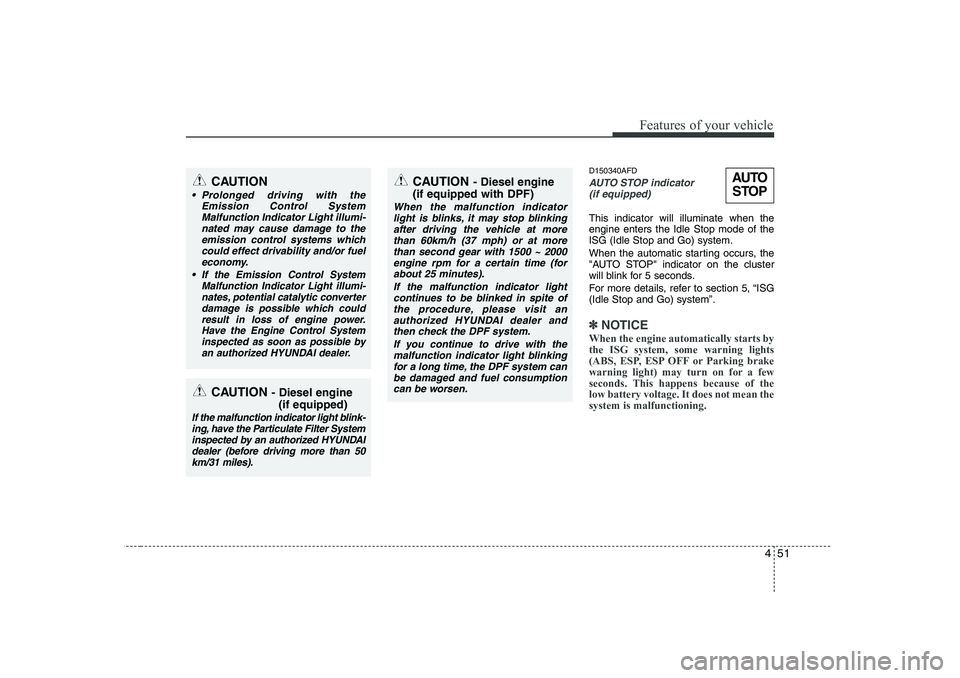

AUTO STOP indicator (if equipped)
This indicator will illuminate when the engine enters the Idle Stop mode of theISG (Idle Stop and Go) system.
When the automa

Page 130 of 635

HYUNDAI I30 2015  Owners Manual Features of your vehicle
52
4
D150323AUN-EE

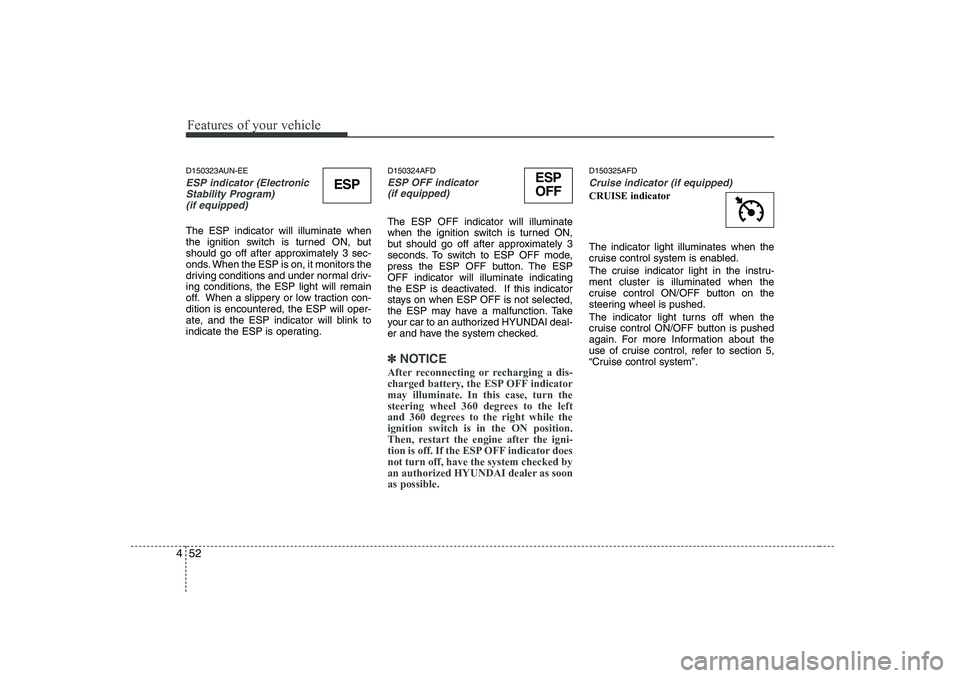

ESP indicator (Electronic
Stability Program)
(if equipped)
The ESP indicator will illuminate when
the ignition switch is turned ON, but
should go off afte
