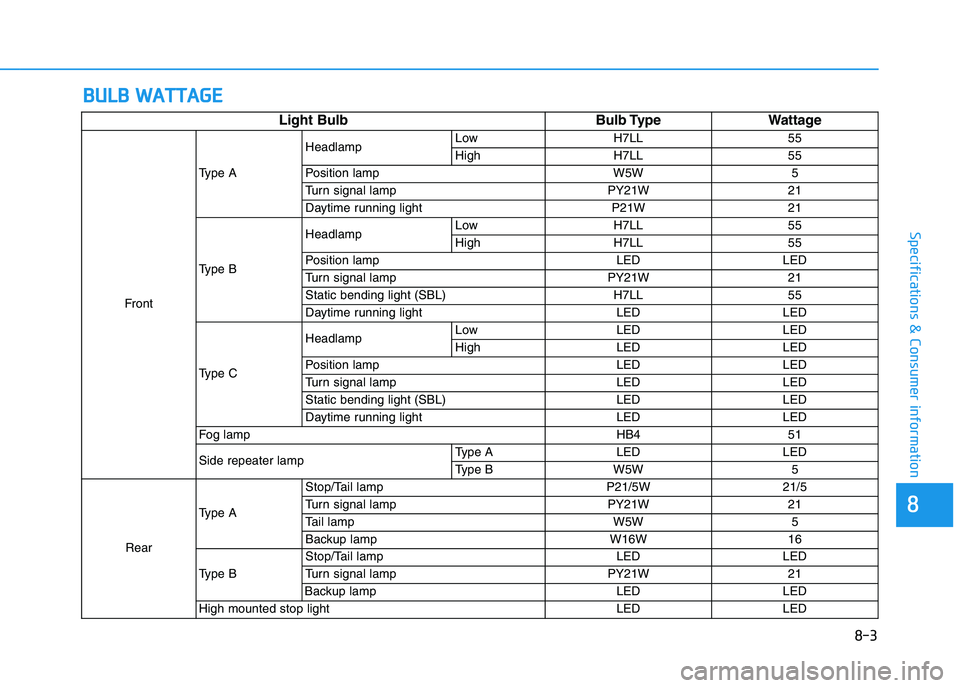

Light Bulb Bulb Type Wattage
Front Type A
Headlamp
Low H7LL 55
High H7LL 55
Position lamp W5W 5
Turn signal lamp PY21W 21
Daytime running light P21W 21
Type B Headlamp
Low H7LL 55
High H7LL 55
Position lamp LED LED
Turn signal lamp PY21W 21
Static bending light (SBL) H7LL 55
Daytime running light LED LED
Type C Headlamp
Low LED LED
High LED LED
Position lamp LED LED
Turn signal lamp LED LED
Static bending light (SBL) LED LED
Daytime running light LED LED
Fog lamp HB4 51
Side repeater lamp Type A LED LED
Type B W5W 5
Rear Type A
Stop/Tail lamp P21/5W 21/5
Turn signal lampPY21W21
Tail lamp W5W 5
Backup lamp W16W 16
Type B Stop/Tail lamp LED LED
Turn signal lamp PY21W 21
Backup lamp LED LED
High mounted stop light LED LED
8-3
Page 632 of 659

8-4
Specifications & Consumer information

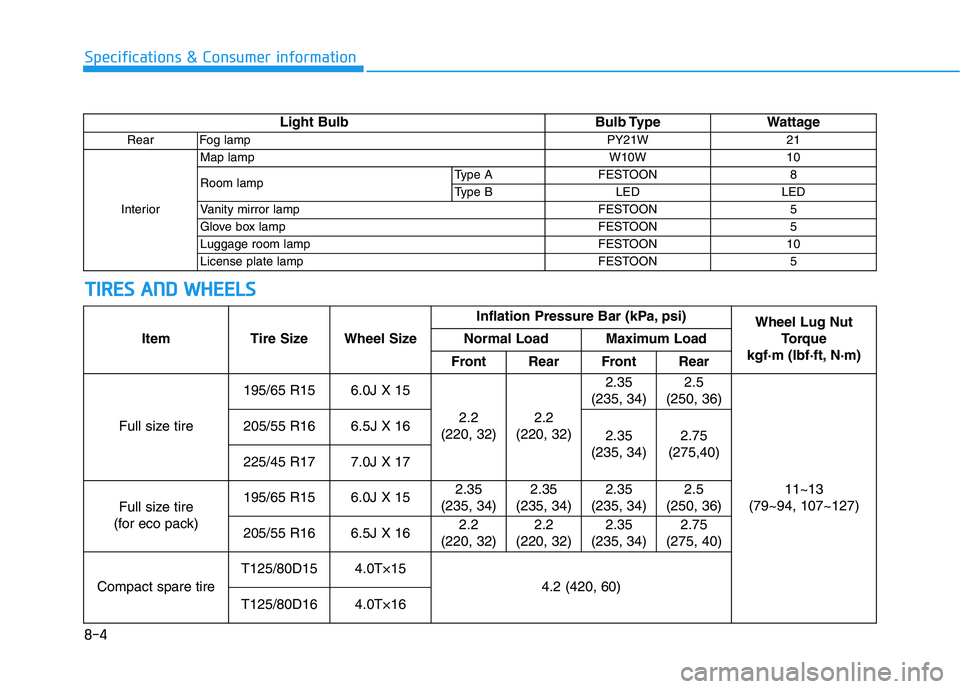

ItemTire Size Wheel Size Inflation Pressure Bar (kPa, psi)
Wheel Lug Nut
Torque
kgf·m (lbf·ft, N·m)
Normal Load Maximum Load
Front Rear Front Rear
Full size tire 195/65 R15 6.0J X 15
2.2
(220, 32) 2.2
(220, 32) 2.35
(235, 34) 2.5
(250, 36)
11~13
(79~94, 107~127)
205/55 R16 6.5J X 16
2.35
(235, 34) 2.75
(275,40)
225/45 R17 7.0J X 17
Full size tire
(for eco pack) 195/65 R15 6.0J X 15
2.35
(235, 34) 2.35
(235, 34) 2.35
(235, 34) 2.5
(250, 36)
205/55 R16 6.5J X 16 2.2
(220, 32) 2.2
(220, 32) 2.35
(235, 34) 2.75
(275, 40)
Compact spare tire T125/80D15 4.0T×15
4.2 (420, 60)
T125/80D16 4.0T×16
T
T I
I R
R E
E S
S
A
A N
N D
D
W
W H
H E
E E
E L
L S
S
Light Bulb Bulb TypeWattage
RearFog lampPY21W21
Interior Map lamp W10W 10
Room lamp
Type A FESTOON 8
Type B LED LED
Vanity mirror lamp FESTOON 5
Glove box lamp FESTOON 5
Luggage room lamp FESTOON 10
License plate lamp FESTOON 5
Page 633 of 659

8-5
8
Specifications & Consumer information
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or make it work irregularly.
CAUTION
It is permissible to add 20 kPa (3 psi) to the standard tire pressure specification if colder temperatures are expected soon. Tires typically lose 7 kPa (1 psi) for every 7°C (12°F) temperature drop. If extreme tempera-
ture variations are expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a proper level
(Air inflation per altitude: +10 kPa/1 km (+2.4 psi/1 mile)).
NOTICE
*1LI : LOAD INDEX
*2SS : SPEED SYMBOL
Item Tire Size Wheel Size Load Capacity Speed Capacity
LI *1kg SS *2km/h
Full size tire 195/65 R15 6.0J X 15 91 615 H 210
205/55 R16 6.5J X 16 91 615 H 210
225/45 R177.0J X 1791615W270
L
L O
O A
A D
D
A
A N
N D
D
S
S P
P E
E E
E D
D
C
C A
A P
P A
A C
C I
I T
T Y
Y
T
T I
I R
R E
E S
S
(
( F
F O
O R
R
E
E U
U R
R O
O P
P E
E )
)
Page 634 of 659

8-6
Specifications & Consumer information
A
A I
I R
R
C
C O
O N
N D
D I
I T
T I
I O
O N
N I
I N
N G
G
S
S Y
Y S
S T
T E
E M
M

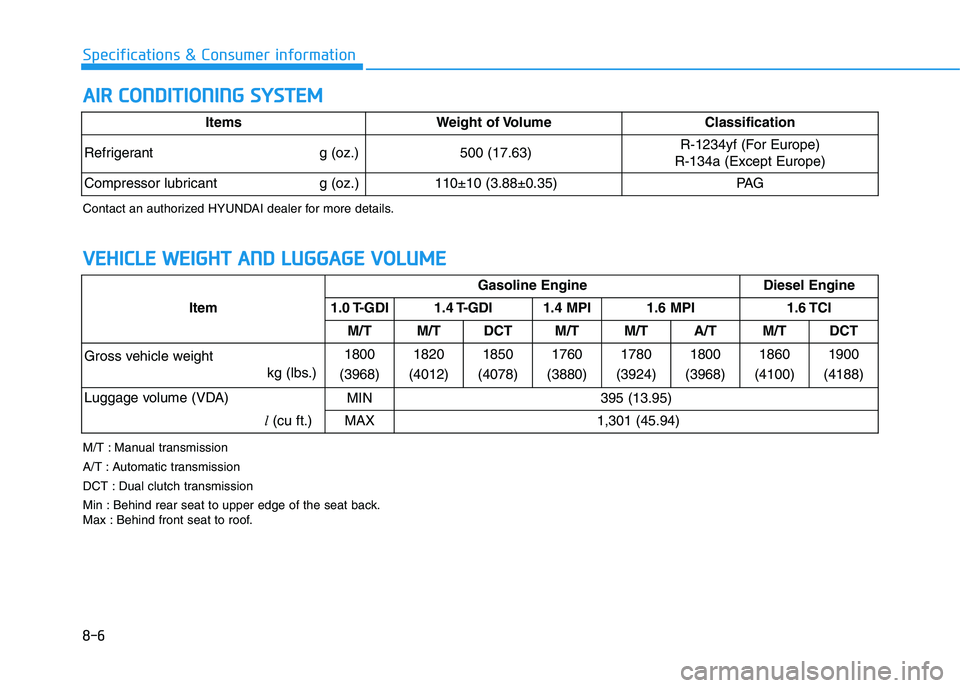

Item Gasoline Engine Diesel Engine
1.0 T-GDI 1.4 T-GDI 1.4 MPI 1.6 MPI 1.6 TCI M/T M/T DCT M/T M/T A/T M/T DCT
Gross vehicle weight kg (lbs.)1800
(3968) 1820
(4012) 1850
(4078) 1760
(3880) 1780
(3924) 1800
(3968) 1860
(4100) 1900
(4188)
Luggage volume (VDA) l(cu ft.) MIN 395 (13.95)
MAX 1,301 (45.94)
V
V E
E H
H I
I C
C L
L E
E
W
W E
E I
I G
G H
H T
T
A
A N
N D
D
L
L U
U G
G G
G A
A G
G E
E
V
V O
O L
L U
U M
M E
E
ItemsWeight of Volume Classification
Refrigerant g (oz.)500 (17.63)R-1234yf (For Europe)
R-134a (Except Europe)
Compressor lubricant g (oz.)110±10 (3.88±0.35)PA G
Contact an authorized HYUNDAI dealer for more details.
M/T : Manual transmission
A/T : Automatic transmission
DCT : Dual clutch transmission
Min : Behind rear seat to upper edge of the seat back.
Max : Behind front seat to roof.
Page 635 of 659

8-7
Specifications & Consumer information
R
R E
E C
C O
O M
M M
M E
E N
N D
D E
E D
D
L
L U
U B
B R
R I
I C
C A
A N
N T
T S
S
A
A N
N D
D
C
C A
A P
P A
A C
C I
I T
T I
I E
E S
S
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.

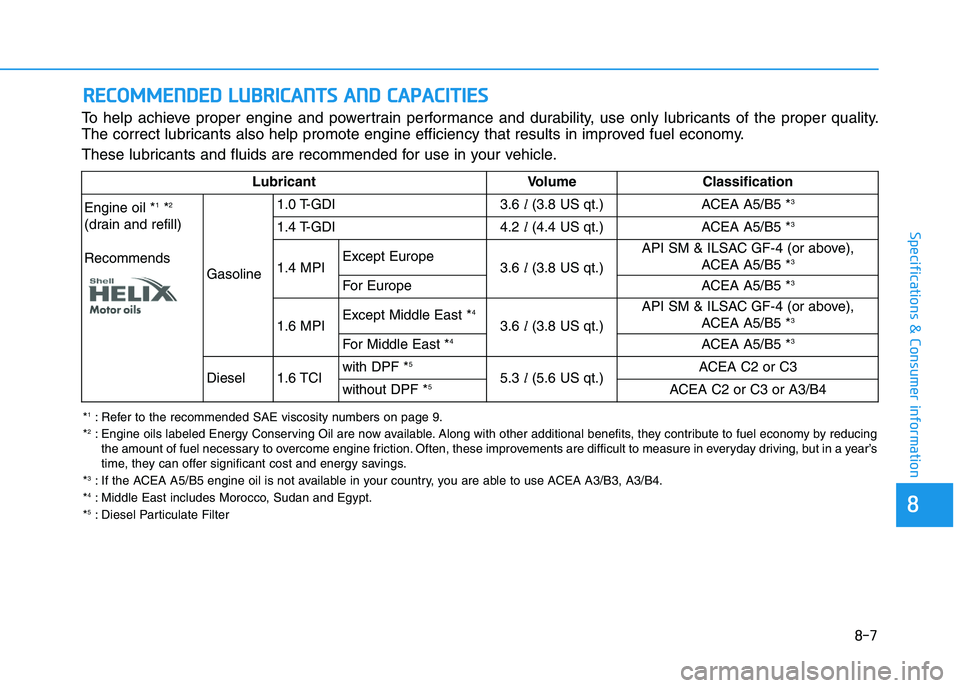

Lubricant Volume Classification
Engine oil *
1*2
(drain and refill)
Recommends Gasoline1.0 T-GDI
3.6
l(3.8 US qt.)
ACEA A5/B5 *
3
1.4 T-GDI 4.2
l(4.4 US qt.)
ACEA A5/B5 *3
1.4 MPIExcept Europe
3.6 l(3.8 US qt.) API SM & ILSAC GF-4 (or above),
ACEA A5/B5 *3
For Europe ACEA A5/B5 *3
1.6 MPI Except Middle East *
4
3.6
l(3.8 US qt.) API SM & ILSAC GF-4 (or above),
ACEA A5/B5 *3
For Middle East *4ACEA A5/B5 *3
Diesel 1.6 TCI with DPF *
5
5.3
l(5.6 US qt.) ACEA C2 or C3
without DPF *5ACEA C2 or C3 or A3/B4
8
*1: Refer to the recommended SAE viscosity numbers on page 9.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ omy by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving , but in a year’s
time, they can offer significant cost and energy savings.
*
3: If the ACEA A5/B5 engine oil is not available in your country, you are able to use ACEA A3/B3, A3/B4.
*4: Middle East includes Morocco, Sudan and Egypt.
*5: Diesel Particulate Filter
Page 636 of 659

8-8
Specifications & Consumer information

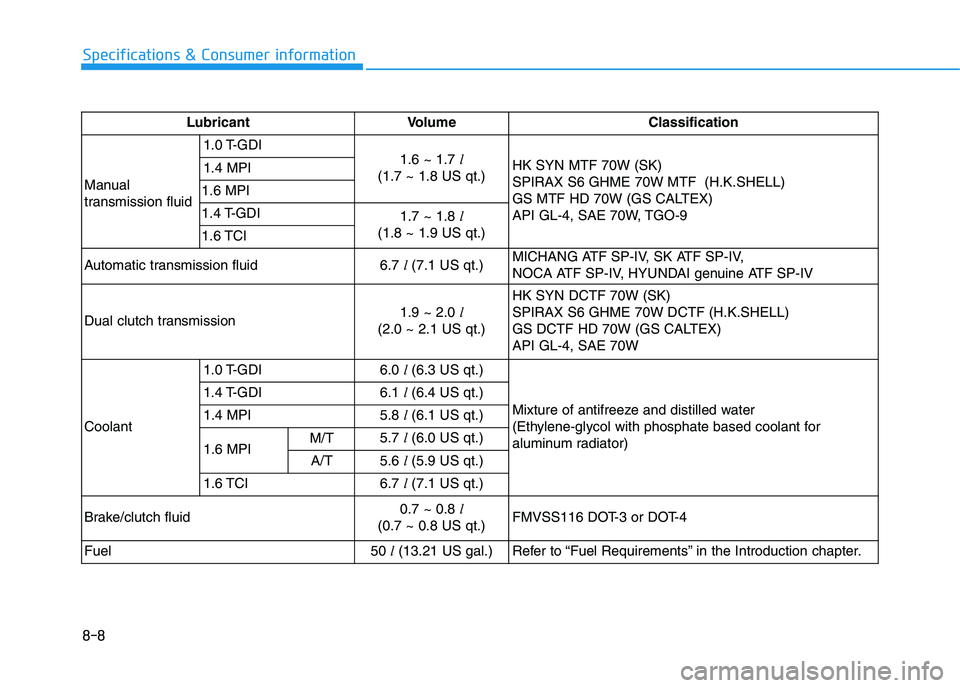

Lubricant Volume Classification
Manual
transmission fluid 1.0 T-GDI
1.6 ~ 1.7 l
(1.7 ~ 1.8 US qt.) HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W MTF (H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
API GL-4, SAE 70W, TGO-9
1.4 MPI
1.6 MPI
1.4 T-GDI1.7 ~ 1.8
l
(1.8 ~ 1.9 US qt.)
1.6 TCI
Automatic transmission fluid 6.7
l(7.1 US qt.) MICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, HYUNDAI genuine ATF SP-IV
Dual clutch transmission 1.9 ~ 2.0
l
(2.0 ~ 2.1 US qt.) HK SYN DCTF 70W (SK)
SPIRAX S6 GHME 70W DCTF (H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)
API GL-4, SAE 70W
Coolant 1.0 T-GDI
6.0
l(6.3 US qt.)
Mixture of antifreeze and distilled water
(Ethylene-glycol with phosphate based coolant for
aluminum radiator)
1.4 T-GDI
6.1
l(6.4 US qt.)
1.4 MPI 5.8
l(6.1 US qt.)
1.6 MPI M/T
5.7
l(6.0 US qt.)
A/T 5.6
l(5.9 US qt.)
1.6 TCI 6.7
l(7.1 US qt.)
Brake/clutch fluid 0.7 ~ 0.8
l
(0.7 ~ 0.8 US qt.) FMVSS116 DOT-3 or DOT-4
Fuel 50
l(13.21 US gal.)
Refer to “Fuel Requirements” in the Introduction chapter.
Page 637 of 659

8-9
8
Specifications & Consumer information

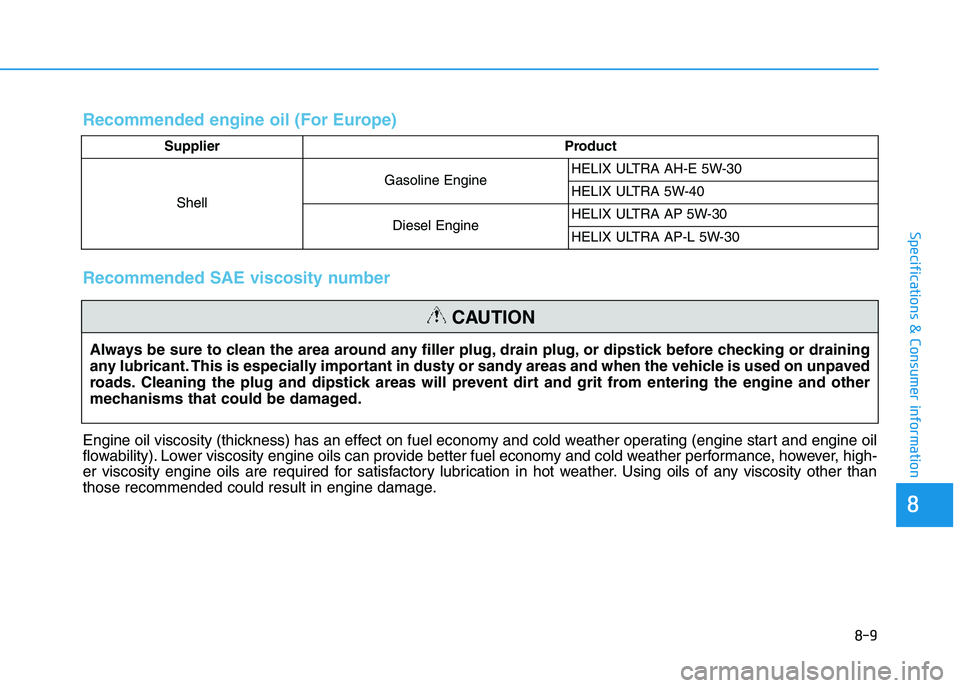

Recommended engine oil (For Europe)
Supplier ProductShell Gasoline Engine
HELIX ULTRA AH-E 5W-30
HELIX ULTRA 5W-40
Diesel Engine HELIX ULTRA AP 5W-30
HELIX ULTRA AP-L 5W-30
Always be sure to clean the area around any filler plug, drain plug, or dipstick before checking or draining
any lubricant. This is especially important in dusty or sandy areas and when the vehicle is used on unpaved
roads. Cleaning the plug and dipstick areas will prevent dirt and grit from entering the engine and other
mechanisms that could be damaged.
CAUTION
Recommended SAE viscosity number
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operating (engine start and engine oil
flowability). Lower viscosity engine oils can provide better fuel economy and cold weather performance, however, high-
er viscosity engine oils are required for satisfactory lubrication in hot weather. Using oils of any viscosity other than
those recommended could result in engine damage.
Page 638 of 659

8-10
Specifications & Consumer information

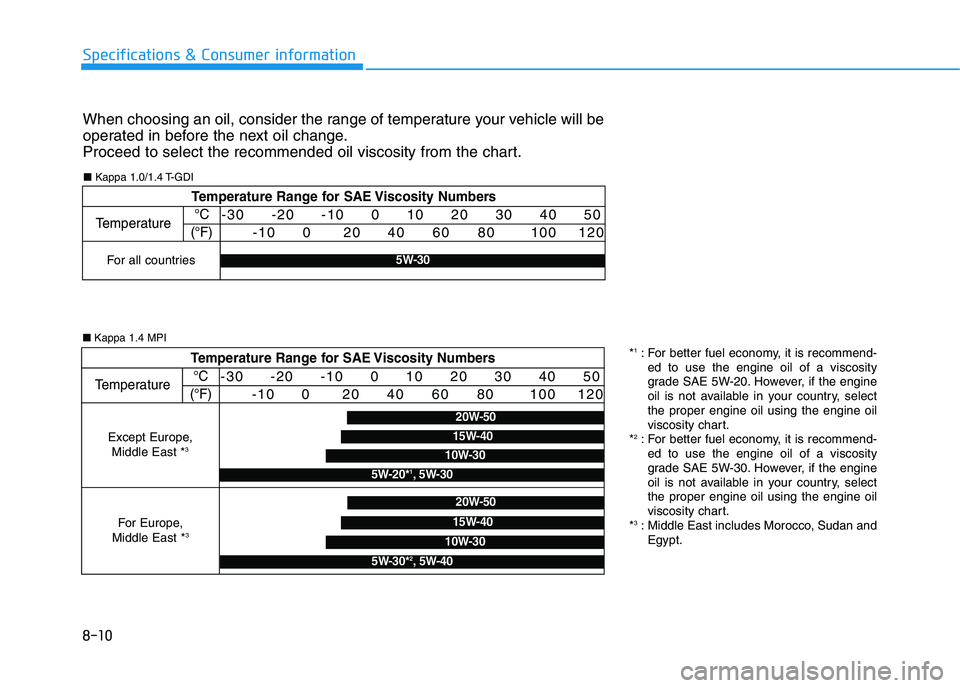

When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change.
Proceed to select the recommended oil viscosity from the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
For all countries5W-30
■Kappa 1.0/1.4 T-GDI
■ Kappa 1.4 MPI
Temperature Range for SAE Viscosity Numbers
Temperature °C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
20W-50
10W-30
15W-40
5W-30*2, 5W-40
20W-50
15W-40
10W-30
5W-20*1, 5W-30
Except Europe, Middle East *3
For Europe,
Middle East *3
*1: For better fuel economy, it is recommend- ed to use the engine oil of a viscosity
grade SAE 5W-20. However, if the engine
oil is not available in your country, select
the proper engine oil using the engine oil
viscosity chart.
*
2: For better fuel economy, it is recommend- ed to use the engine oil of a viscosity
grade SAE 5W-30. However, if the engine
oil is not available in your country, select
the proper engine oil using the engine oil
viscosity chart.
*
3: Middle East includes Morocco, Sudan and Egypt.
Page 639 of 659

8-11
8
Specifications & Consumer information

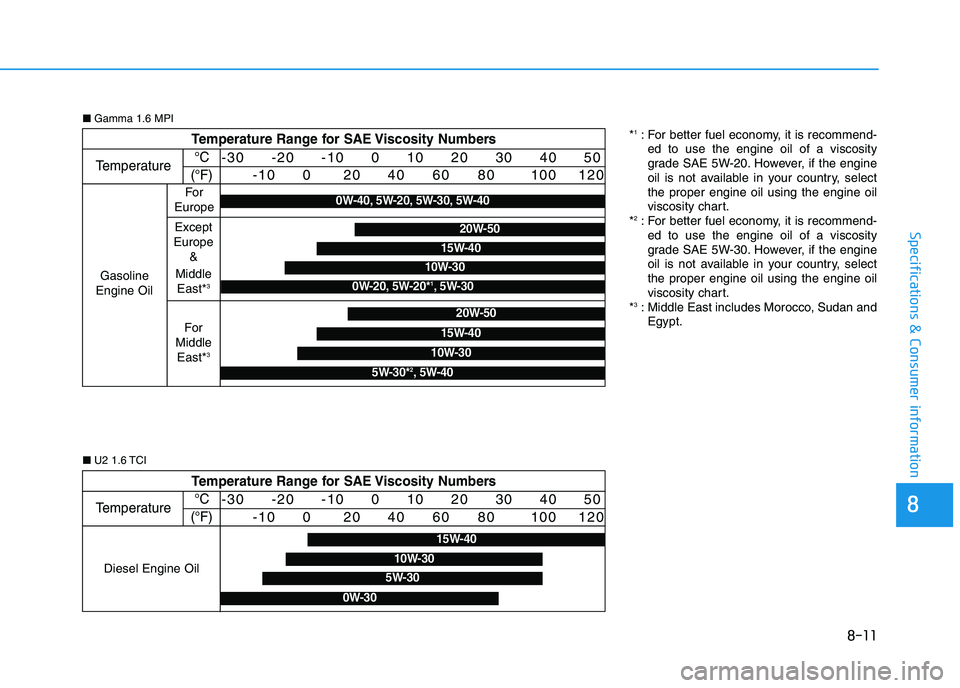

Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
5W-30
15W-40
10W-30
0W-30
Diesel Engine Oil
■U2 1.6 TCI
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil
°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
For
Europe
20W-50
10W-30
15W-40
5W-30*2, 5W-40
0W-40, 5W-20, 5W-30, 5W-40
20W-50
15W-40
10W-30
0W-20, 5W-20*1, 5W-30
Except
Europe &
Middle East*
3
For
Middle East*
3
■ Gamma 1.6 MPI
*1: For better fuel economy, it is recommend-
ed to use the engine oil of a viscosity
grade SAE 5W-20. However, if the engine
oil is not available in your country, select
the proper engine oil using the engine oil
viscosity chart.
*
2: For better fuel economy, it is recommend- ed to use the engine oil of a viscosity
grade SAE 5W-30. However, if the engine
oil is not available in your country, select
the proper engine oil using the engine oil
viscosity chart.
*
3: Middle East includes Morocco, Sudan and Egypt.
Page 640 of 659

8-12
Specifications & Consumer information

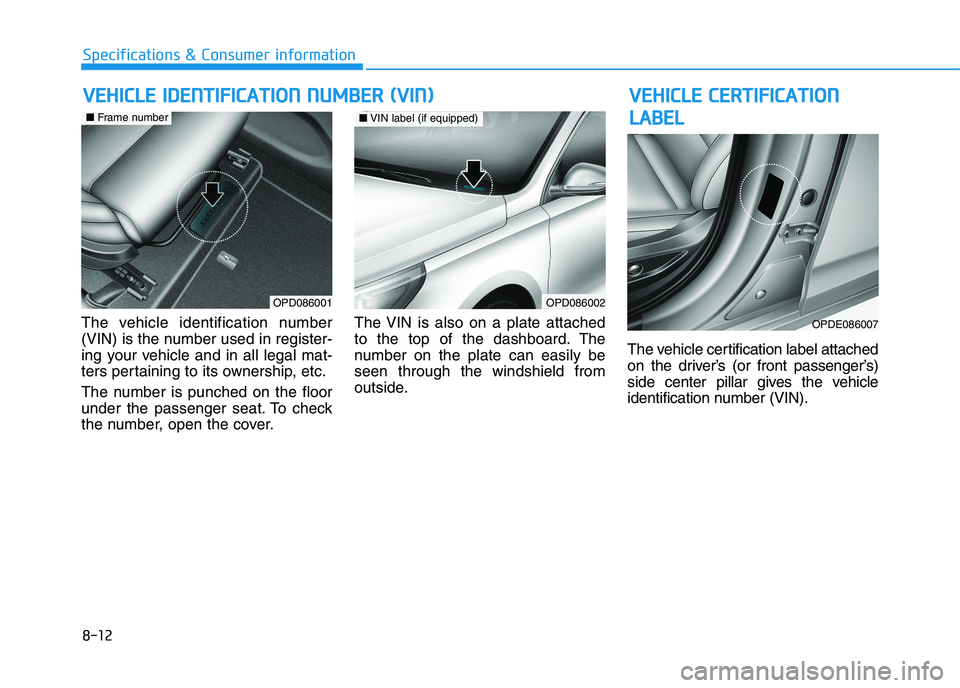

The vehicle identification number
(VIN) is the number used in register-
ing your vehicle and in all legal mat-
ters pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover. The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).
V
V E
E H
H I
I C
C L
L E
E
I
I D
D E
E N
N T
T I
I F
F I
I C
C A
A T
T I
I O
O N
N
N
N U
U M
M B
B E
E R
R
(
( V
V I
I N
N )
) V
V E
E H
H I
I C
C L
L E
E
C
C E
E R
R T
T I
I F
F I
I C
C A
A T
T I
I O
O N
N
L
L A
A B
B E
E L
L
OPD086002
■ VIN label (if equipped)
OPDE086007
OPD086001
■ Frame number
