Page 621 of 659

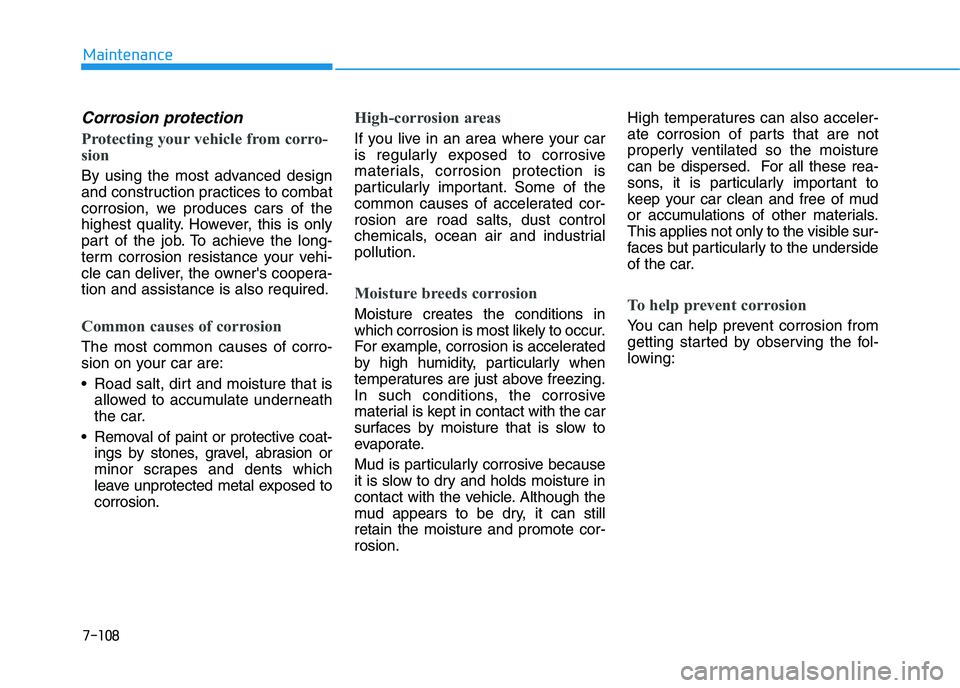

HYUNDAI I30 2020  Owners Manual 7-108
Maintenance
Corrosion protection
Protecting your vehicle from corro-
sion
By using the most advanced design
and construction practices to combat
corrosion, we produces cars of the
highest qualit

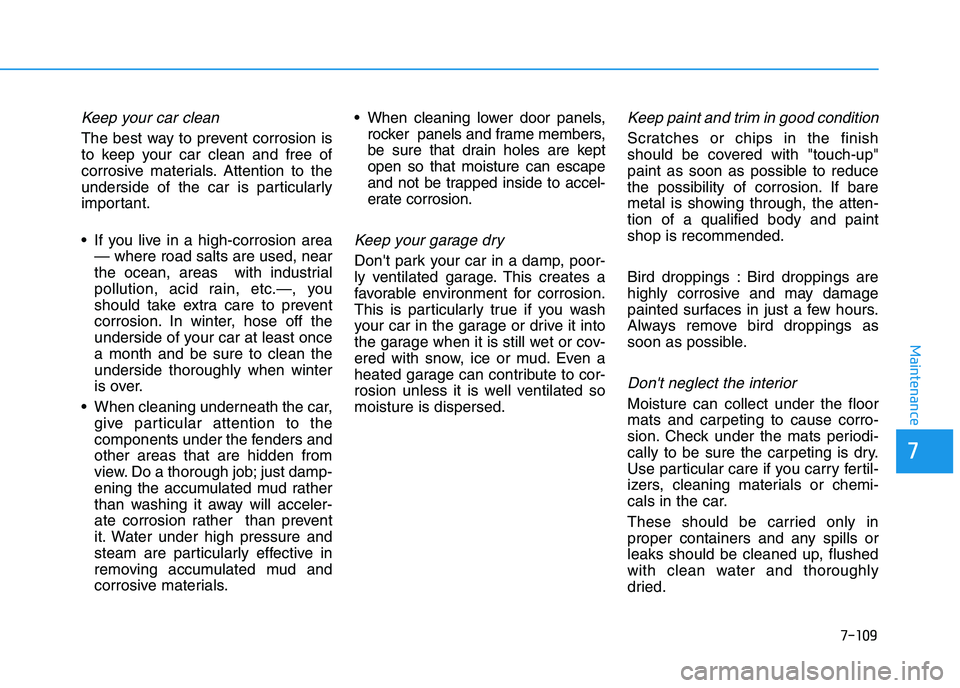

Page 622 of 659

HYUNDAI I30 2020  Owners Manual 7-109
7
Maintenance
Keep your car clean
The best way to prevent corrosion is
to keep your car clean and free of
corrosive materials. Attention to the
underside of the car is particularly
important.
 I

Page 623 of 659

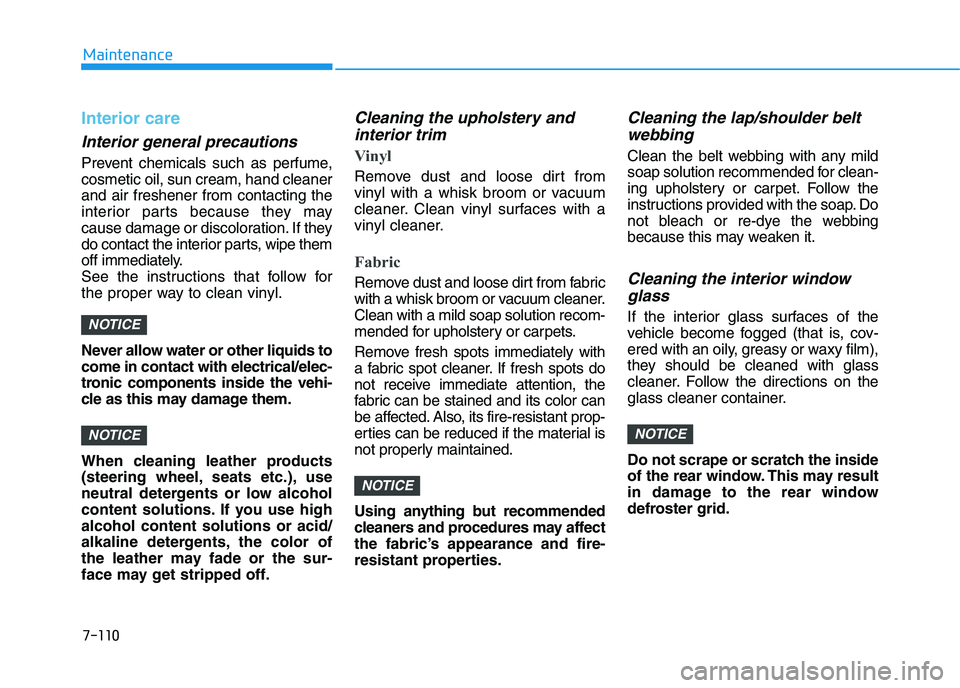

HYUNDAI I30 2020  Owners Manual 7-110
Maintenance
Interior care
Interior general precautions
Prevent chemicals such as perfume,
cosmetic oil, sun cream, hand cleaner
and air freshener from contacting the
interior parts because they

Page 624 of 659

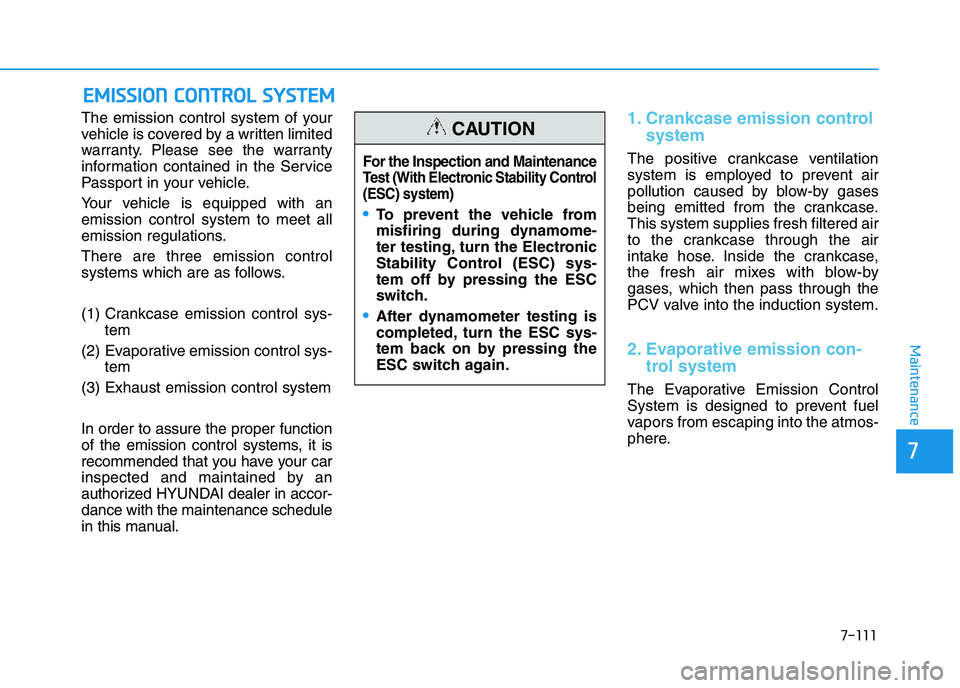

HYUNDAI I30 2020  Owners Manual 7-111
7
Maintenance
E
E M
M I
I S
S S
S I
I O
O N
N
  C
C O
O N
N T
T R
R O
O L
L
  S
S Y
Y S
S T
T E
E M
M
The emission control system of your
vehicle is covered by a written limited
warranty. Pl

Page 625 of 659

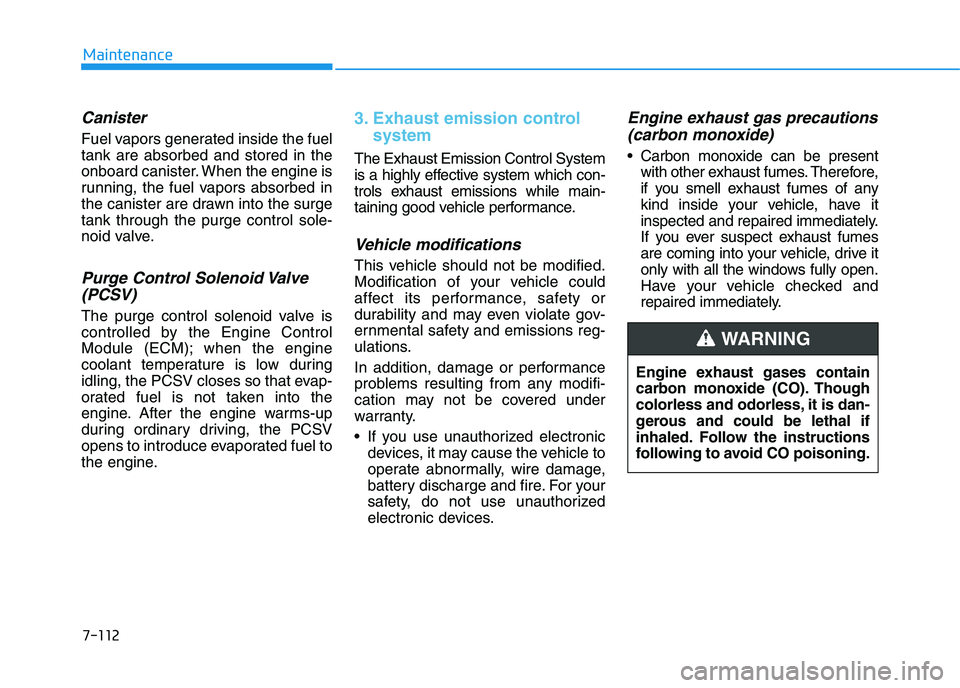

HYUNDAI I30 2020  Owners Manual 7-112
MaintenanceEngine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is dan-
gerous and could be lethal if
inhaled. Follow the instructions
following to avoid CO poiso

Page 626 of 659

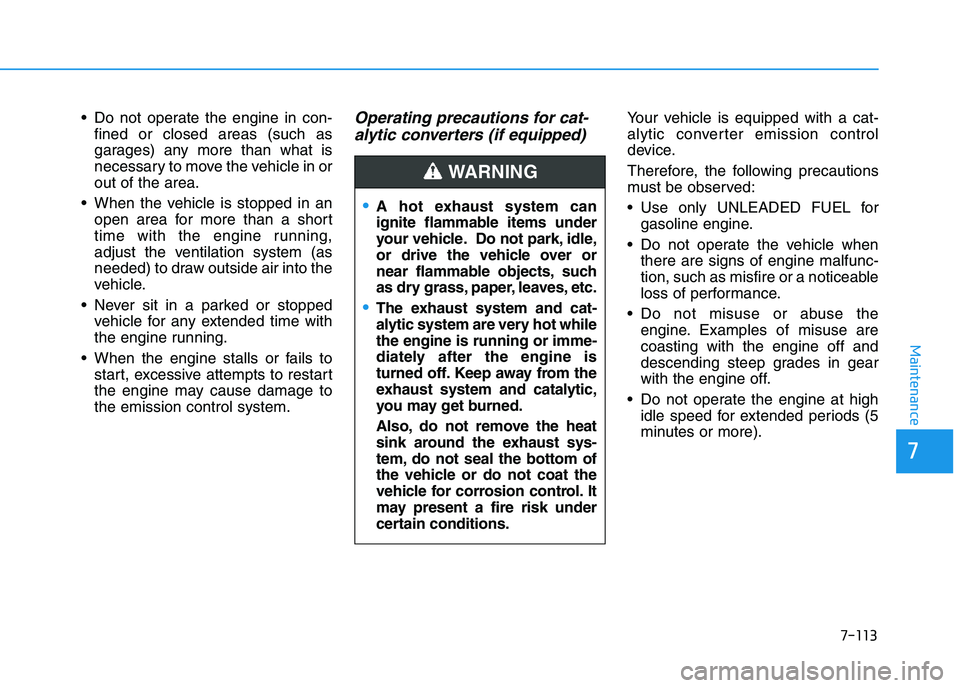

HYUNDAI I30 2020  Owners Manual 7-113
7
Maintenance
 Do not operate the engine in con-fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
 When the vehicle is stopped in

Page 627 of 659

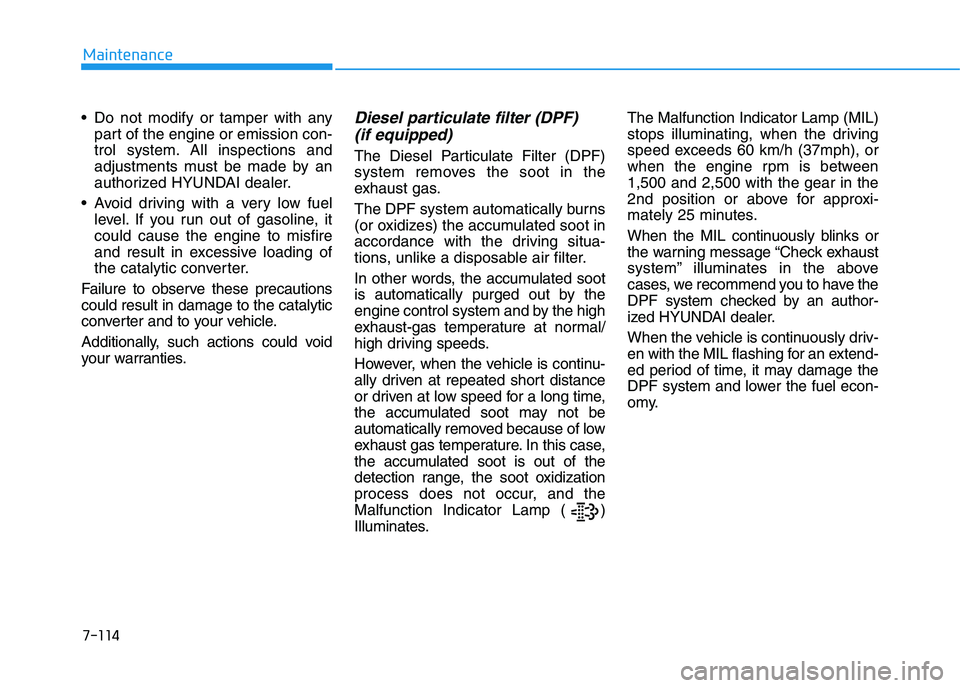

HYUNDAI I30 2020  Owners Manual 7-114
Maintenance
 Do not modify or tamper with any part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer.
 Avoid driving with a

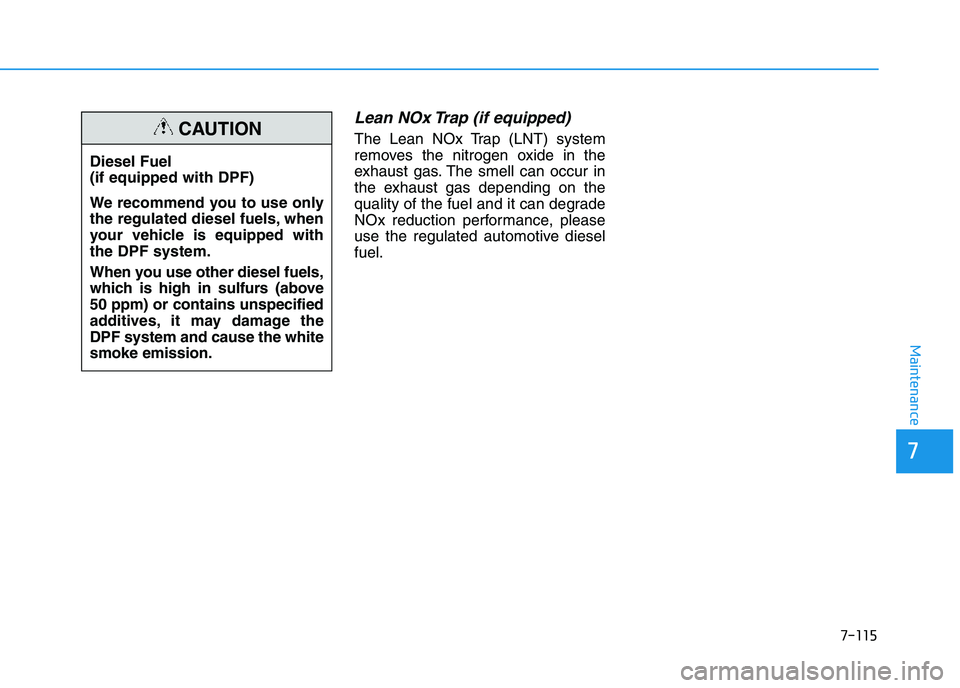

Page 628 of 659

HYUNDAI I30 2020  Owners Manual 7-115
7
Maintenance
Lean NOx Trap (if equipped)
The Lean NOx Trap (LNT) system
removes the nitrogen oxide in the
exhaust gas. The smell can occur in
the exhaust gas depending on the
quality of the fue

Page 629 of 659

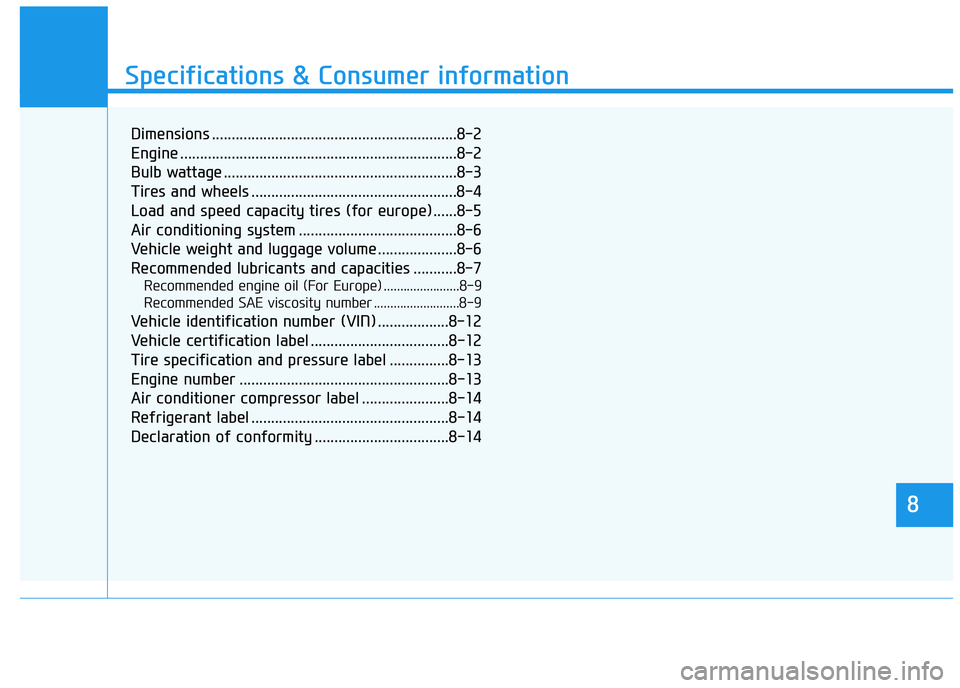

HYUNDAI I30 2020  Owners Manual 8
Specifications & Consumer information
8
Specifications & Consumer information
8
Dimensions ..............................................................8-2
Engine ..................................

Page 630 of 659

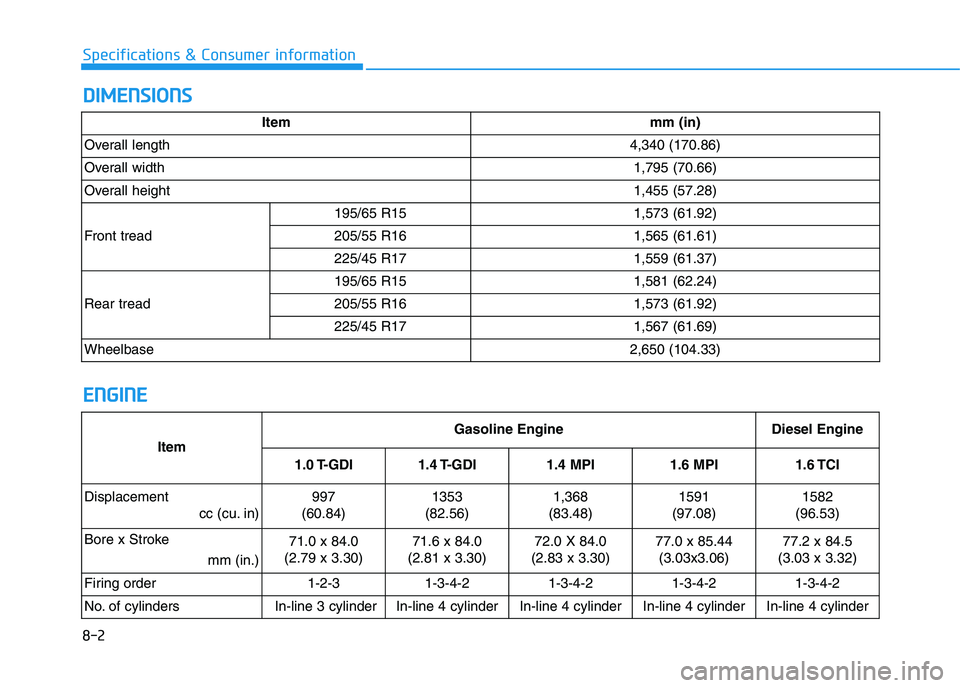

HYUNDAI I30 2020  Owners Manual 8-2
Specifications & Consumer information
D
D I
I M
M E
E N
N S
S I
I O
O N
N S
S
E
E N
N G
G I
I N
N E
E
Item mm (in)
Overall length  4,340 (170.86)
Overall width 1,795 (70.66)
Overall height  1,455
