Specifications & Consumer information
Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-
ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, ordipstick before checking or drain- ing any lubricant. This is especiallyimportant in dusty or sandy areasand when the vehicle is used onunpaved roads. Cleaning the plugand dipstick areas will prevent dirtand grit from entering the engineand other mechanisms that couldbe damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil °C
(°F)
GDI
MPI *
1
-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil (1.7L)
5W-30
15W-40
10W-30
0W-30
0W-40, 5W-30, 5W-40
5W-20*2, 5W-30
*1For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20*2(API SM / ILSAC GF-4). However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
*
2In the Middle East, do not use the engine oil viscosity grade SAE 5W-20.

Downloaded from www.Manualslib.com manuals search engine Specifications & Consumer information
88
The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, open the cover.The VIN is also on a plate attached to the
top of the dashboard. The number on the
plate can easily be seen through the
windshield from outside.
The vehicle certification label attached
on the driver’s (or front passenger’s) side
center pillar gives the vehicle identifica-
tion number (VIN).
VEHICLE IDENTIFICATION NUMBER (VIN)
OVF081001
Frame number
VEHICLE CERTIFICATION
LABEL
OYN089002
VIN label (if equipped)
OMD081002L
OMD080002
■Type A
■Type B

Downloaded from www.Manualslib.com manuals search engine I3
Index
Emergency Stop Signal (ESS).....................................5-45
Hill-start assist control (HAC) ....................................5-45
Power brakes ...............................................................5-29
Vehicle stability management......................................5-44
Brakes/clutch fluid .........................................................7-48
Bulb replacement ...........................................................7-85
Bulb wattage ....................................................................8-3
Button start/stop, see engine start/stop button.................5-8
Camera (Rear view) .......................................................4-94
Capacities (Lubricants) ....................................................8-5
Care Exterior care ................................................................7-99
Interior care ...............................................................7-104
Tire care .......................................................................7\
-61
Cargo security screen...................................................4-147
Center console storage .................................................4-136
Central door lock switch................................................4-16
Certification label ............................................................8-8
Chains Tire chains ...................................................................5-70
Changing tires ..................................................................6-9
Checking tire inflation pressure.....................................7-63
Child restraint system ....................................................3-29 ISOFIX system ............................................................3-35 Seat belt .......................................................................3\
-30
Tether anchor system ...................................................3-33
Child-protector rear door lock .......................................4-19
Cigarette lighter ...........................................................4-140
Climate control air filter ......................................4-120, 131
Climate control air filter ................................................7-53
Clothes hanger .............................................................4-144
Combined instrument, see instrument cluster ...............4-48
Compact spare tire .........................................................6-14
Compact spare tire replacement ....................................7-66
Cool box.......................................................................4\
-137
Coolant ........................................................................\
...7-45
Cooling fluid, see engine coolant ..................................7-45
Crankcase emission control system .............................7-105
Cruise control system ....................................................5-48
Cup holder ...................................................................4-141\
Curtain air bag ...............................................................3-54
Dashboard illumination, see instrument panel illumination . ........................................................................\
......................4-49
Dashboard, see instrument cluster .................................4-48
Daytime running light..................................................4-102
Deadlocks.......................................................................4\
-18
Defogging (Windshield) ..............................................4-133
Defroster (Rear window) .............................................4-111
C
D

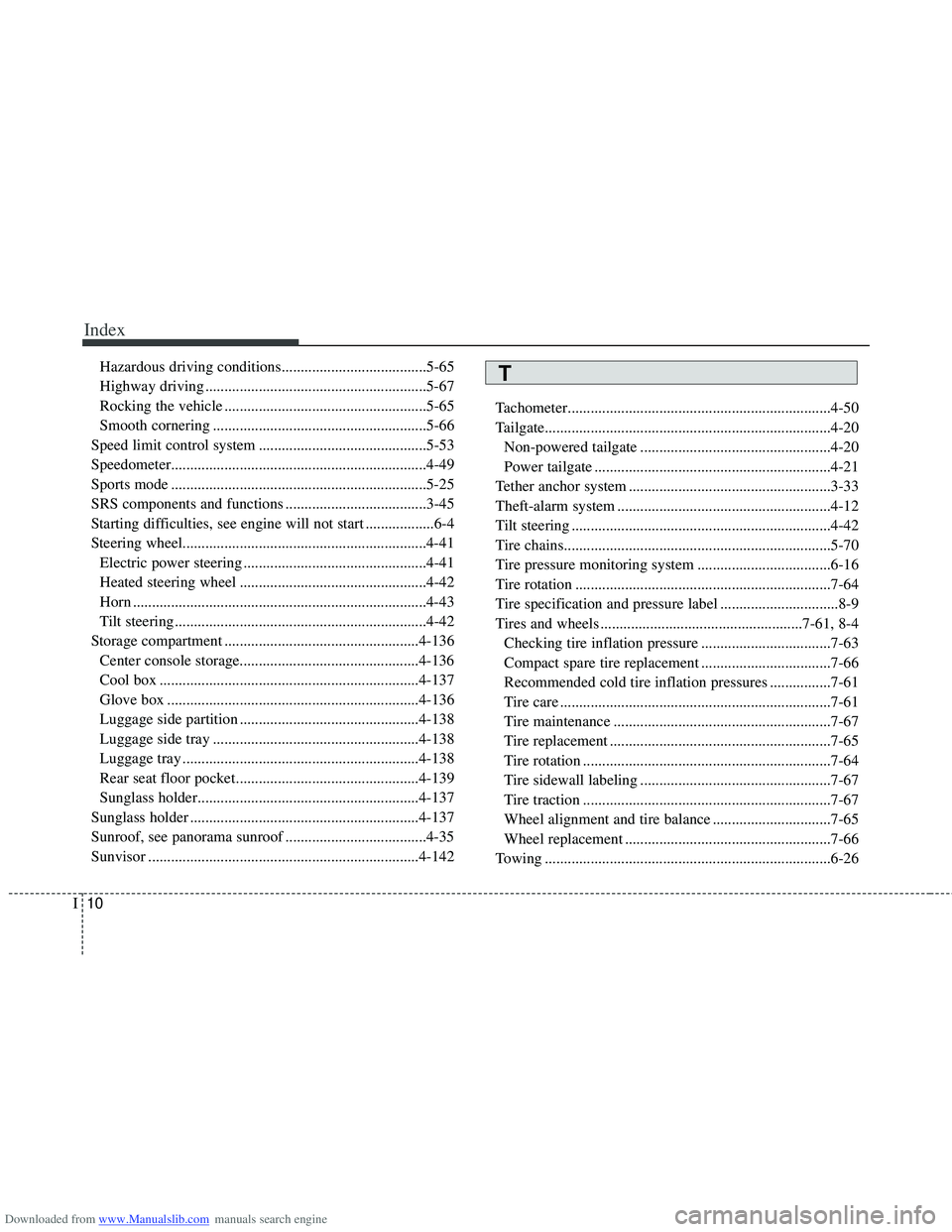

Downloaded from www.Manualslib.com manuals search engine Index
10I
Hazardous driving conditions......................................5-65
Highway driving ..........................................................5-67
Rocking the vehicle .....................................................5-65
Smooth cornering ........................................................5-66
Speed limit control system ............................................5-53
Speedometer...................................................................4-49
Sports mode ...................................................................5-25
SRS components and functions .....................................3-45
Starting difficulties, see engine will not start ..................6-4
Steering wheel...........................................................\
.....4-41 Electric power steering ................................................4-41
Heated steering wheel .................................................4-42
Horn ........................................................................\
.....4-43
Tilt steering ..................................................................4-42
Storage compartment ...................................................4-136 Center console storage...............................................4-1\
36
Cool box ....................................................................4-13\
7
Glove box ..................................................................4-136
Luggage side partition ...............................................4-138
Luggage side tray ......................................................4-138
Luggage tray ..............................................................4-138
Rear seat floor pocket................................................4-139
Sunglass holder..........................................................4-137
Sunglass holder ............................................................4-137
Sunroof, see panorama sunroof .....................................4-35
Sunvisor .......................................................................4\
-142 Tachometer.....................................................................4-5\
0
Tailgate........................................................................\
...4-20
Non-powered tailgate ..................................................4-20
Power tailgate ..............................................................4-21
Tether anchor system .....................................................3-33
Theft-alarm system ........................................................4-12
Tilt steering ....................................................................4-42\
Tire chains......................................................................5-\
70
Tire pressure monitoring system ...................................6-16
Tire rotation ...................................................................7-64
Tire specification and pressure label ...............................8-9
Tires and wheels .....................................................7-61, 8-4 Checking tire inflation pressure ..................................7-63
Compact spare tire replacement ..................................7-66
Recommended cold tire inflation pressures ................7-61
Tire care .......................................................................7\
-61
Tire maintenance .........................................................7-67
Tire replacement ..........................................................7-65
Tire rotation .................................................................7-64
Tire sidewall labeling ..................................................7-67
Tire traction .................................................................7-67
Wheel alignment and tire balance ...............................7-65
Wheel replacement ......................................................7-66
Towing ........................................................................\
...6-26T
