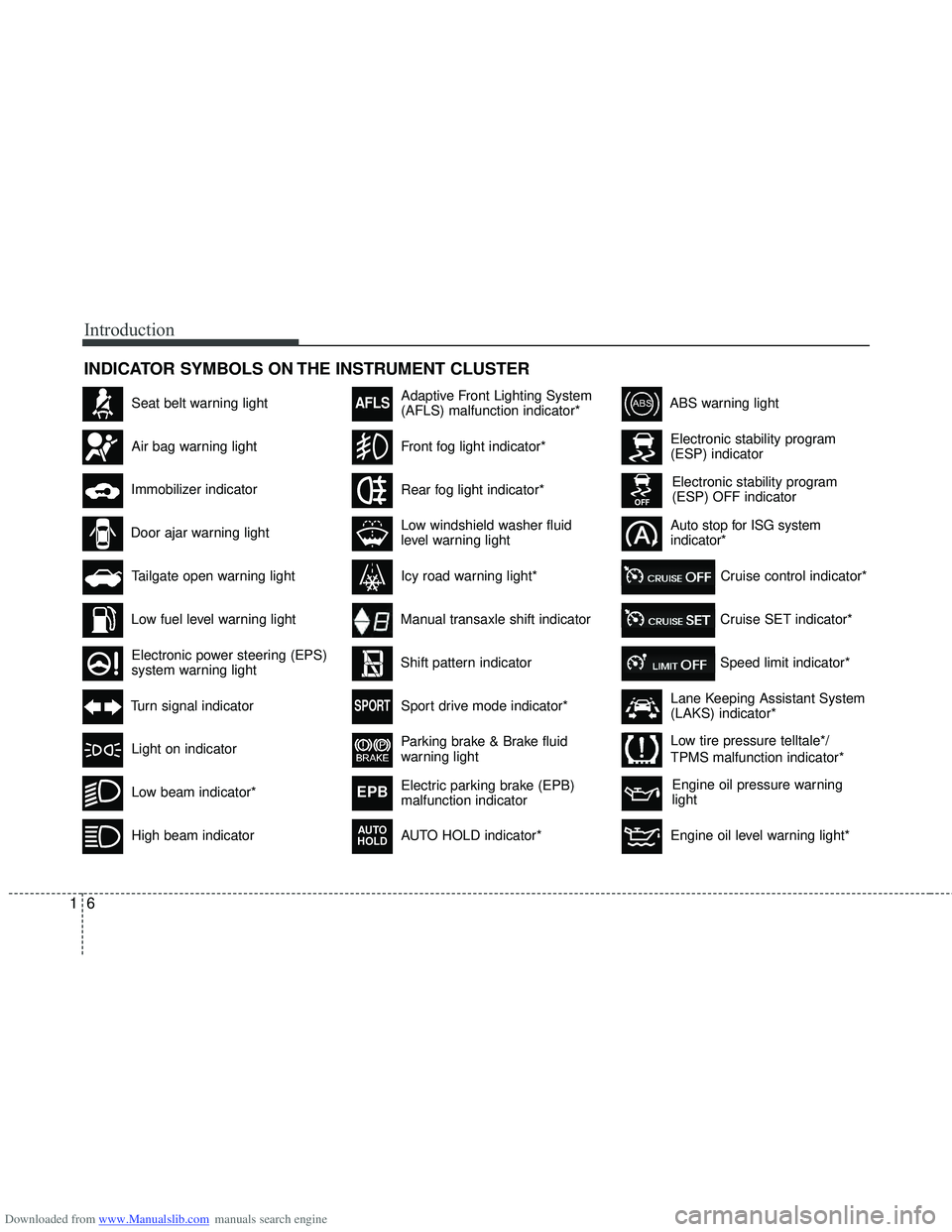

INDICATOR SYMBOLS ON THE INSTRUMENT CLUSTER
Seat belt warning light
High beam indicator
Light on indicator
Turn signal indicator
ABS warning light
Air bag warning light
Low fuel level warning light
Electronic stability program
(ESP) indicator
Electronic stability program
(ESP) OFF indicatorImmobilizer indicator
Low beam indicator*
Tailgate open warning light
Door ajar warning light
Electronic power steering (EPS)
system warning lightAdaptive Front Lighting System
(AFLS) malfunction indicator*
AFLS
Front fog light indicator*
Rear fog light indicator*
Low windshield washer fluid
level warning light
Icy road warning light*
Shift pattern indicator
Manual transaxle shift indicator
Parking brake & Brake fluid
warning light
AUTO HOLD indicator*
AUTO
HOLD
Electric parking brake (EPB)
malfunction indicatorEPB
Sport drive mode indicator*SPORT
Auto stop for ISG system
indicator*
Cruise control indicator*
Cruise SET indicator*
Speed limit indicator*
Lane Keeping Assistant System
(LAKS) indicator*
Engine oil pressure warning
light
Engine oil level warning light*
Low tire pressure telltale*/
TPMS malfunction indicator*

Downloaded from www.Manualslib.com manuals search engine 23

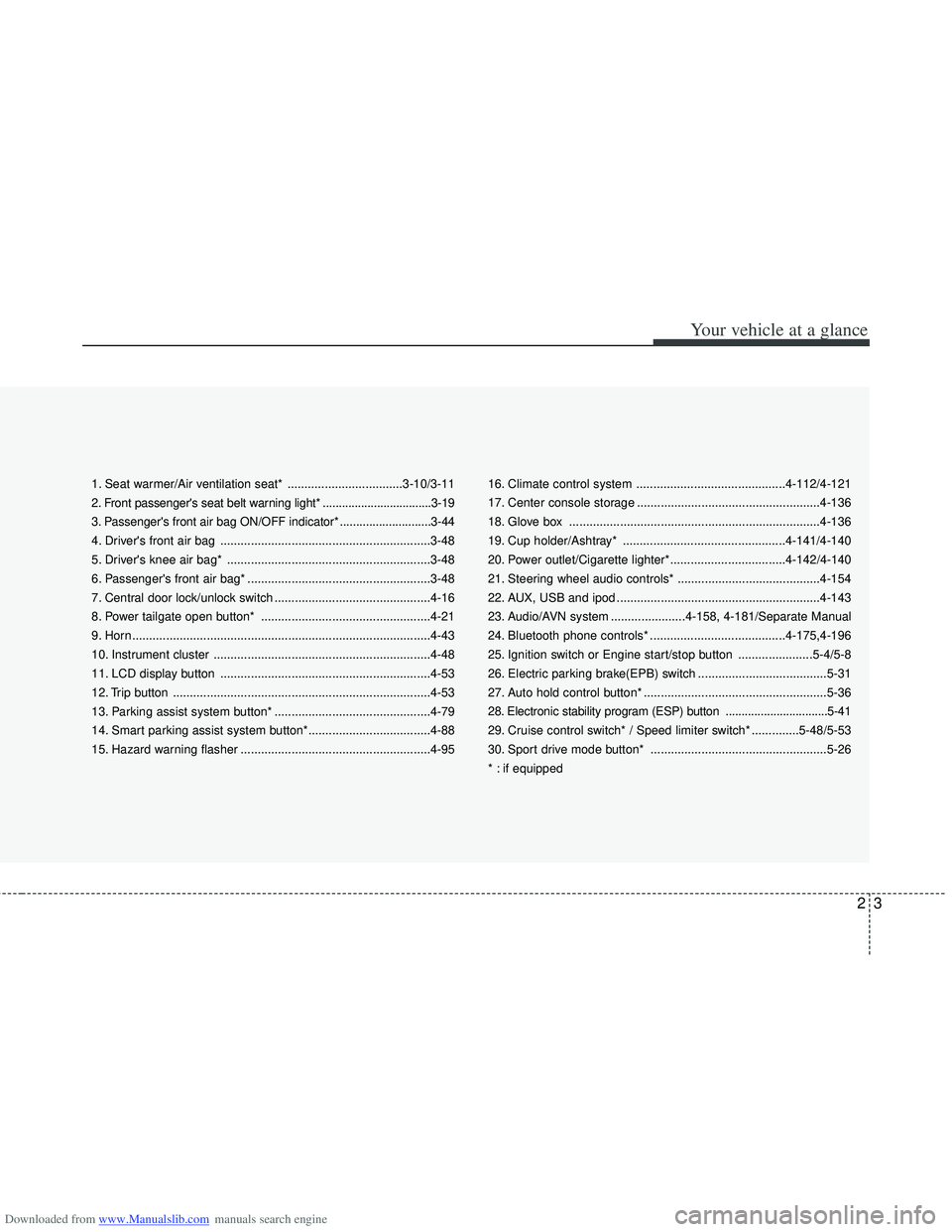

Your vehicle at a glance
1. Seat warmer/Air ventilation seat* ..................................3-10/3-11
2. Front passenger's seat belt warning light* ..................................3-19
3. Passenger's front air bag ON/OFF indicator* ............................3-44
4. Driver's front air bag ..............................................................3-48
5. Driver's knee air bag* ............................................................3-48
6. Passenger's front air bag* ......................................................3-48
7. Central door lock/unlock switch ..............................................4-16
8. Power tailgate open button* ..................................................4-21
9. Horn........................................................................\
................4-43
10. Instrument cluster ................................................................4-48
11. LCD display button ..............................................................4-53
12. Trip button ........................................................................\
....4-53
13. Parking assist system button* ..............................................4-79
14. Smart parking assist system button*....................................4-88
15. Hazard warning flasher ........................................................4-9516. Climate control system ............................................4-112/4-121
17. Center console storage ......................................................4-136
18. Glove box ........................................................................\
..4-136
19. Cup holder/Ashtray* ................................................4-141/4-140
20. Power outlet/Cigarette lighter*..................................4-142/4-140
21. Steering wheel audio controls* ..........................................4-154
22. AUX, USB and ipod ............................................................4-143
23. Audio/AVN system ......................4-158, 4-181/Separate Manual
24. Bluetooth phone controls* ........................................4-175,4-196
25. Ignition switch or Engine start/stop button ......................5-4/5-8
26. Electric parking brake(EPB) switch ......................................5-31
27. Auto hold control button* ......................................................5-36
28. Electronic stability program (ESP) button ................................5-41
29. Cruise control switch* / Speed limiter switch* ..............5-48/5-53
30. Sport drive mode button* ....................................................5-26
* : if equipped

Downloaded from www.Manualslib.com manuals search engine 25
Your vehicle at a glance
1. Seat warmer/Air ventilation seat* ..................................3-10/3-11
2. Front passenger's seat belt warning light* ..................................3-19
3. Passenger's front air bag ON/OFF indicator* ............................3-44
4. Driver's front air bag ..............................................................3-48
5. Driver's knee air bag* ............................................................3-48
6. Passenger's front air bag* ......................................................3-48
7. Central door lock/unlock switch ..............................................4-16
8. Power tailgate open button* ..................................................4-21
9. Horn........................................................................\
................4-43
10. Instrument cluster ................................................................4-48
11. LCD display button ..............................................................4-53
12. Trip button ........................................................................\
....4-53
13. Parking assist system button* ..............................................4-79
14. Smart parking assist system button*....................................4-88
15. Hazard warning flasher ........................................................4-9516. Climate control system ............................................4-112/4-121
17. Center console storage ......................................................4-136
18. Glove box ........................................................................\
..4-136
19. Cup holder/Ashtray* ................................................4-141/4-140
20. Power outlet/Cigarette lighter*..................................4-142/4-140
21. Steering wheel audio controls* ..........................................4-154
22. AUX, USB and ipod ............................................................4-143
23. Audio/AVN system ......................4-158, 4-181/Separate Manual
24. Bluetooth phone controls* ........................................4-175,4-196
25. Ignition switch or Engine start/stop button ......................5-4/5-8
26. Electric parking brake(EPB) switch ......................................5-31
27. Auto hold control button* ......................................................5-36
28. Electronic stability program (ESP) button ................................5-41
29. Cruise control switch* / Speed limiter switch* ..............5-48/5-53
30. Sport drive mode button* ....................................................5-26
* : if equipped

Downloaded from www.Manualslib.com manuals search engine Features of your vehicle
72
4
ESP (Electronic Stability
Program) indicator
The ESP indicator will illuminate when
the ignition switch is turned ON, but
should go off after approximately 3 sec-
onds. When the ESP is on, it monitors the
driving conditions. Under normal driving
conditions, the ESP indicator will remain
off. When a slippery or low traction con-
dition is encountered, the ESP will oper-
ate, and the ESP indicator will blink to
indicate the ESP is operating.
But, if the ESP system malfunctions the
indicator illuminates and stays on. Take
your vehicle to an authorized HYUNDAI
dealer and have the system checked.
ESP OFF indicator
The ESP OFF indicator will illuminate
when the ignition switch is turned ON,
but should go off after approximately 3
seconds. To switch to ESP OFF mode,
press the ESP OFF button. The ESP
OFF indicator will illuminate indicating
the ESP is deactivated.
Auto stop indicator(if equipped)
This indicator will illuminate when the
engine enters the Idle Stop mode of the
ISG (Idle Stop and Go) system.
When the automatic starting occurrs, the
auto stop indicator on the cluster will
blink for 5 seconds.
For more details, refer to the ISG (Idle
Stop and Go) system in section 5.
For vehicles equipped with instrument
cluster type B, the indicator illuminates
on the LCD display.
✽ ✽ NOTICE
When the engine automatically starts by
the ISG system, some warning lights
(ABS, ESP, ESP OFF, EPS or Parking
brake warning light) may turn on for a
few seconds.
This happens because of low battery
voltage. It does not mean the system is
malfunctioning.
SPORT indicator
(if equipped)
The SPORT indicator light will illuminate
when the SPORT button is pressed. The
indicator light turns off when the SPORT
button is pressed again.
For more details, refer to "Automatic
transaxle" in section 5.
SPORT

Downloaded from www.Manualslib.com manuals search engine Driving your vehicle
24
5
R (Reverse)
Use this position to drive the vehicle
backward. N (Neutral)
The wheels and transaxle are not
engaged. The vehicle will roll freely even
on the slightest incline unless the parking
brake or service brakes are applied.
D (Drive)
This is the normal forward driving posi-
tion. The transaxle will automatically shift
through a 6-gear sequence, providing the
best fuel economy and power.
For extra power when passing another
vehicle or climbing grades, depress the
accelerator pedal fully (more than 80%)
until the kick down mechanism works
with a clicking noise, at which time the
transaxle will automatically downshift to
the next lower gear.
✽ ✽
NOTICE
• Always come to a complete stop
before shifting into D (Drive).
• A clicking noise heard from the kick down mechanism by depressing the
accelerator pedal fully is a normal
condition.

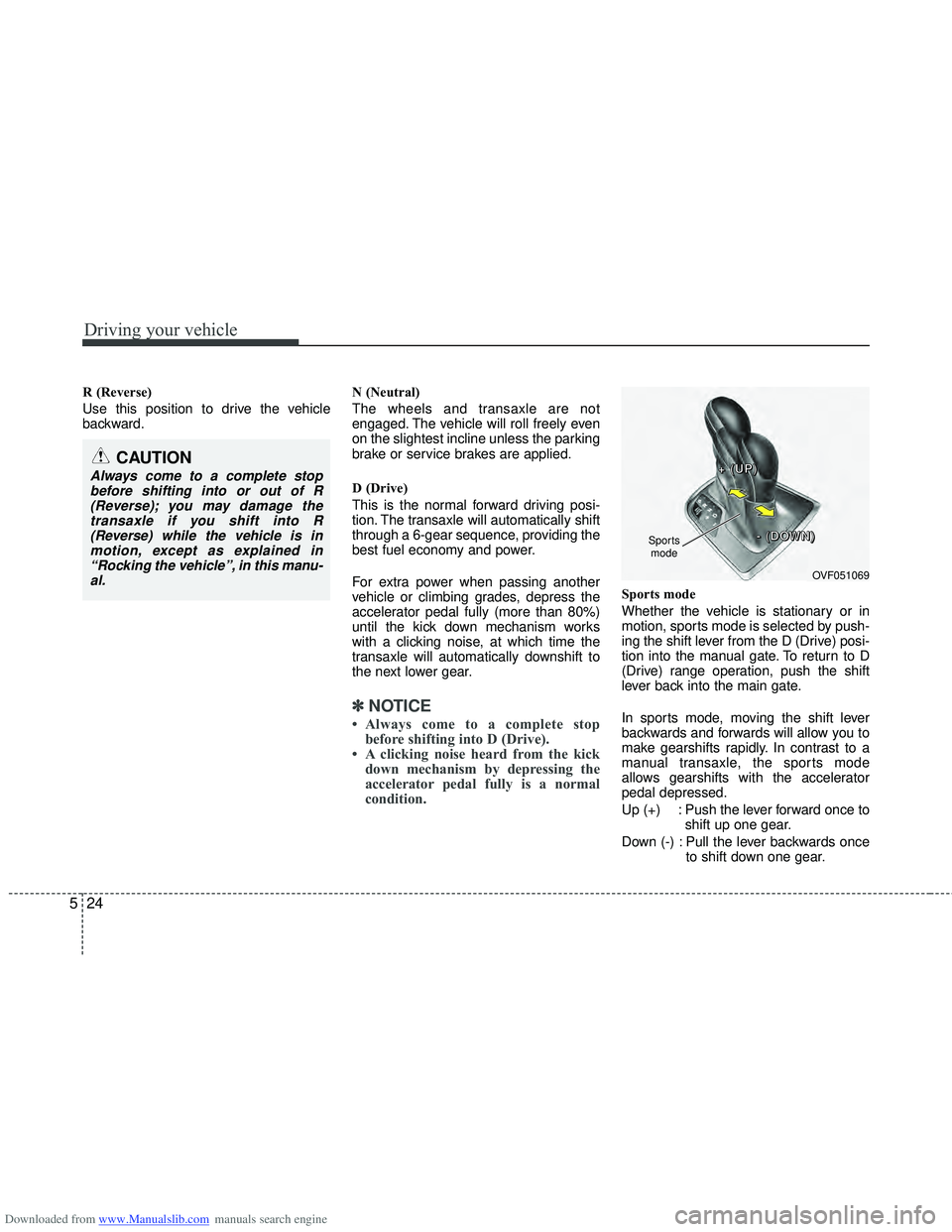

Sports mode
Whether the vehicle is stationary or in
motion, sports mode is selected by push-
ing the shift lever from the D (Drive) posi-
tion into the manual gate. To return to D
(Drive) range operation, push the shift
lever back into the main gate.
In sports mode, moving the shift lever
backwards and forwards will allow you to
make gearshifts rapidly. In contrast to a
manual transaxle, the sports mode
allows gearshifts with the accelerator
pedal depressed.
Up (+) : Push the lever forward once to
shift up one gear.
Down (-) : Pull the lever backwards once to shift down one gear.
CAUTION
Always come to a complete stopbefore shifting into or out of R(Reverse); you may damage thetransaxle if you shift into R (Reverse) while the vehicle is inmotion, except as explained in“Rocking the vehicle”, in this manu-al.
OVF051069
Sports
mode
+
+
+
+




(
(
(
(
U
U
U
U
P
P
P
P
)
)
)
)
-
-
-
-




(
(
(
(
D
D
D
D
O
O
O
O
W
W
W
W
N
N
N
N
)
)
)
)

Downloaded from www.Manualslib.com manuals search engine 525
Driving your vehicle
✽
✽NOTICE
• In sports mode, the driver must exe-
cute upshifts in accordance with road
conditions, taking care to keep the
engine speed below the red zone.
• In sports mode, only the 6 forward gears can be selected. To reverse or
park the vehicle, move the shift lever
to the R (Reverse) or P (Park) position
as required.
• In sports mode, downshifts are made automatically when the vehicle slows
down. When the vehicle stops, 1st gear
is automatically selected.
• In sports mode, when the engine rpm approaches the red zone shift points
are varied to upshift automatically.
• To maintain the required levels of vehicle performance and safety, the
system may not execute certain
gearshifts when the shift lever is oper-
ated.
• When driving on a slippery road, push the shift lever forward into the
+(up) position. This causes the
transaxle to shift into the 2nd gear
which is better for smooth driving on
a slippery road. Push the shift lever to
the -(down) side to shift back to the 1st
gear.

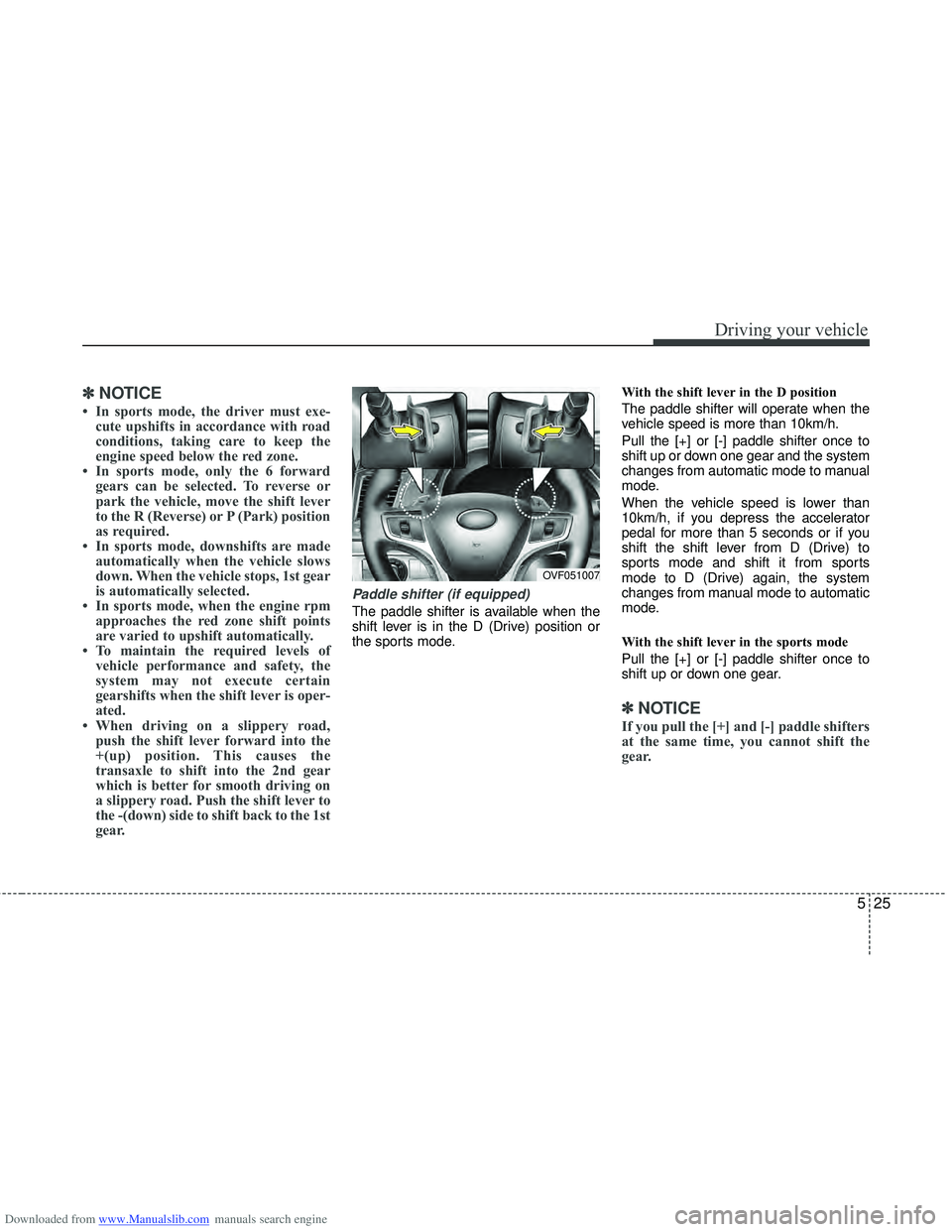

Paddle shifter (if equipped)
The paddle shifter is available when the
shift lever is in the D (Drive) position or
the sports mode. With the shift lever in the D position
The paddle shifter will operate when the
vehicle speed is more than 10km/h.
Pull the [+] or [-] paddle shifter once to
shift up or down one gear and the system
changes from automatic mode to manual
mode.
When the vehicle speed is lower than
10km/h, if you depress the accelerator
pedal for more than 5 seconds or if you
shift the shift lever from D (Drive) to
sports mode and shift it from sports
mode to D (Drive) again, the system
changes from manual mode to automatic
mode.
With the shift lever in the sports mode
Pull the [+] or [-] paddle shifter once to
shift up or down one gear.
✽ ✽
NOTICE
If you pull the [+] and [-] paddle shifters
at the same time, you cannot shift the
gear.
OVF051007

Downloaded from www.Manualslib.com manuals search engine Driving your vehicle
26
5

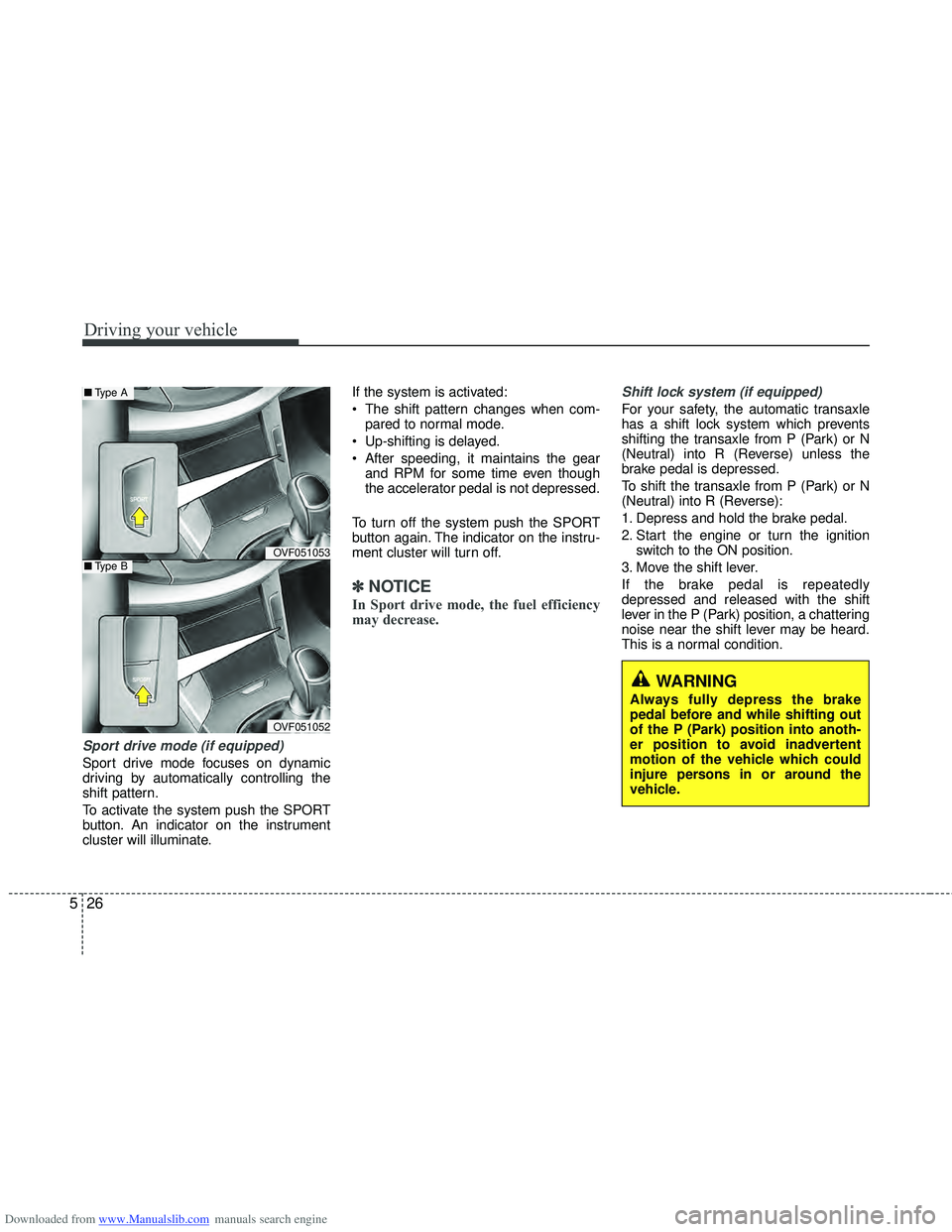

Sport drive mode (if equipped)
Sport drive mode focuses on dynamic
driving by automatically controlling the
shift pattern.
To activate the system push the SPORT
button. An indicator on the instrument
cluster will illuminate. If the system is activated:
The shift pattern changes when com-
pared to normal mode.
Up-shifting is delayed.
After speeding, it maintains the gear and RPM for some time even though
the accelerator pedal is not depressed.
To turn off the system push the SPORT
button again. The indicator on the instru-
ment cluster will turn off.
✽ ✽ NOTICE
In Sport drive mode, the fuel efficiency
may decrease.
Shift lock system (if equipped)
For your safety, the automatic transaxle
has a shift lock system which prevents
shifting the transaxle from P (Park) or N
(Neutral) into R (Reverse) unless the
brake pedal is depressed.
To shift the transaxle from P (Park) or N
(Neutral) into R (Reverse):
1. Depress and hold the brake pedal.
2. Start the engine or turn the ignition
switch to the ON position.
3. Move the shift lever.
If the brake pedal is repeatedly
depressed and released with the shift
lever in the P (Park) position, a chattering
noise near the shift lever may be heard.
This is a normal condition.
WARNING
Always fully depress the brake
pedal before and while shifting out
of the P (Park) position into anoth-
er position to avoid inadvertent
motion of the vehicle which could
injure persons in or around the
vehicle.
OVF051053
OVF051052
■ Type A
■Type B

Downloaded from www.Manualslib.com manuals search engine Driving your vehicle
32
5

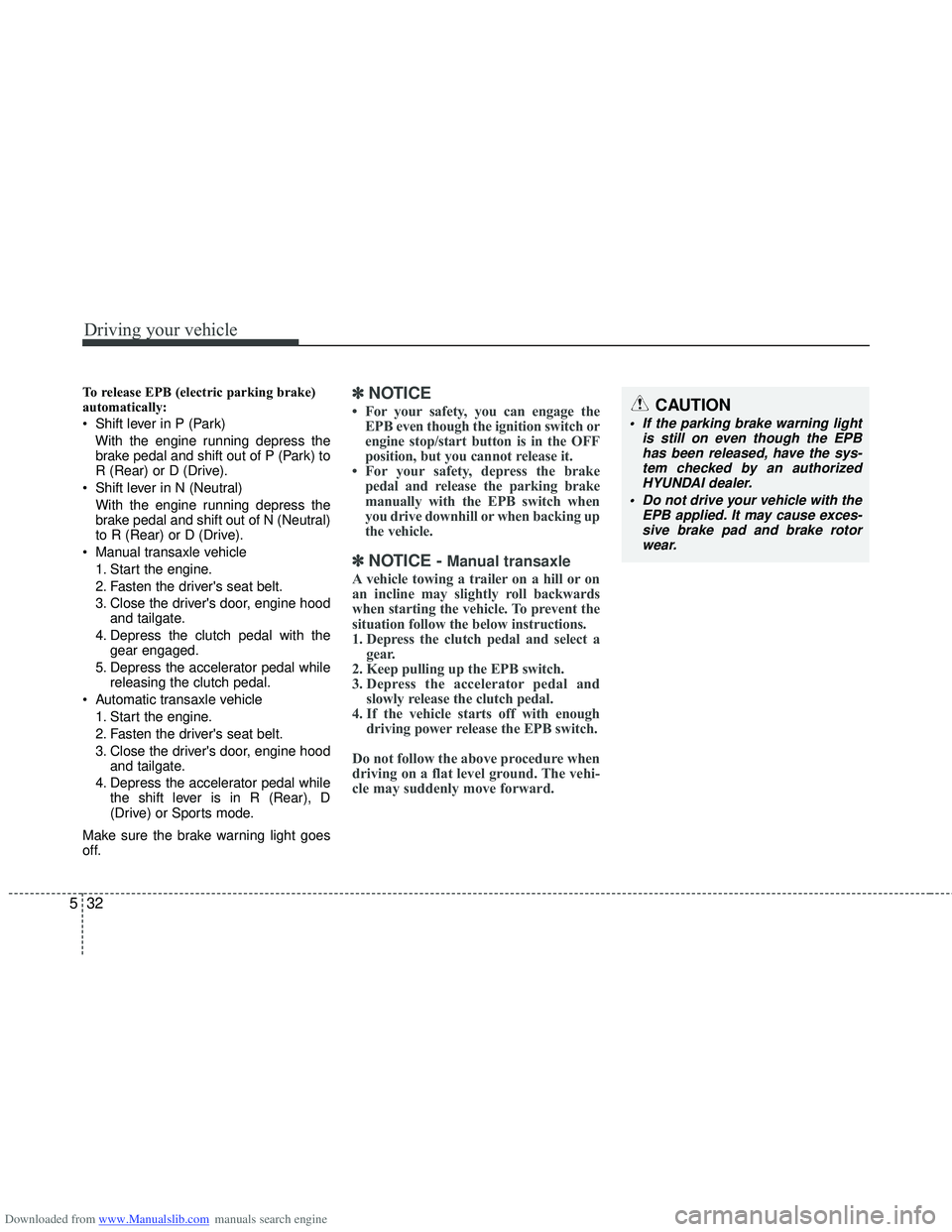

To release EPB (electric parking brake)
automatically:
Shift lever in P (Park)
With the engine running depress thebrake pedal and shift out of P (Park) to
R (Rear) or D (Drive).
Shift lever in N (Neutral) With the engine running depress the
brake pedal and shift out of N (Neutral)
to R (Rear) or D (Drive).
Manual transaxle vehicle 1. Start the engine.
2. Fasten the driver's seat belt.
3. Close the driver's door, engine hood and tailgate.
4. Depress the clutch pedal with the gear engaged.
5. Depress the accelerator pedal while releasing the clutch pedal.
Automatic transaxle vehicle 1. Start the engine.
2. Fasten the driver's seat belt.
3. Close the driver's door, engine hood and tailgate.
4. Depress the accelerator pedal while the shift lever is in R (Rear), D
(Drive) or Sports mode.
Make sure the brake warning light goes
off.✽ ✽ NOTICE
• For your safety, you can engage the
EPB even though the ignition switch or
engine stop/start button is in the OFF
position, but you cannot release it.
• For your safety, depress the brake pedal and release the parking brake
manually with the EPB switch when
you drive downhill or when backing up
the vehicle.
✽ ✽ NOTICE -Manual transaxle
A vehicle towing a trailer on a hill or on
an incline may slightly roll backwards
when starting the vehicle. To prevent the
situation follow the below instructions.
1. Depress the clutch pedal and select a
gear.
2. Keep pulling up the EPB switch.
3. Depress the accelerator pedal and slowly release the clutch pedal.
4. If the vehicle starts off with enough driving power release the EPB switch.
Do not follow the above procedure when
driving on a flat level ground. The vehi-
cle may suddenly move forward.
CAUTION
If the parking brake warning light is still on even though the EPBhas been released, have the sys- tem checked by an authorizedHYUNDAI dealer.
Do not drive your vehicle with the EPB applied. It may cause exces-sive brake pad and brake rotorwear.

Downloaded from www.Manualslib.com manuals search engine 537
Driving your vehicle

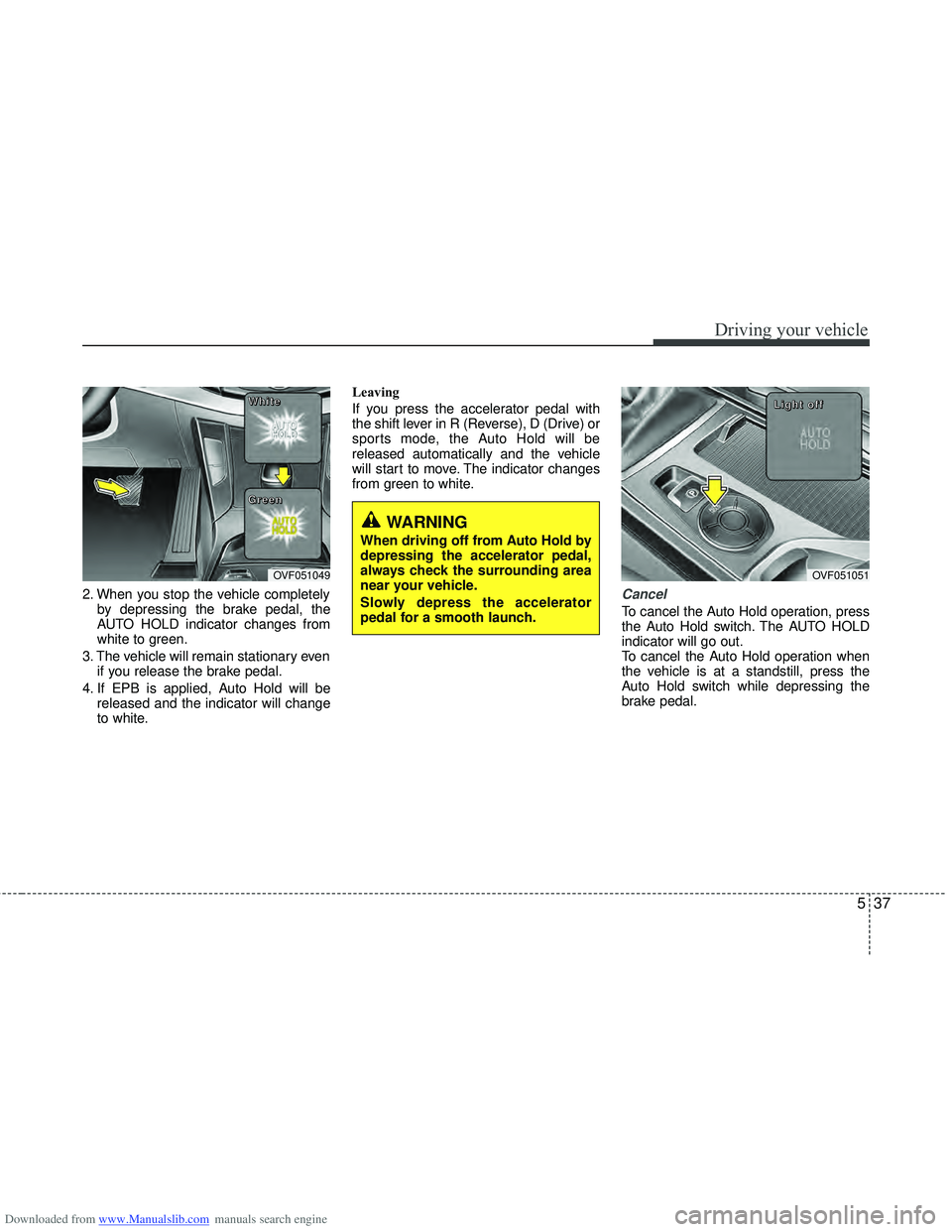

2. When you stop the vehicle completelyby depressing the brake pedal, the
AUTO HOLD indicator changes from
white to green.
3. The vehicle will remain stationary even if you release the brake pedal.
4. If EPB is applied, Auto Hold will be released and the indicator will change
to white. Leaving
If you press the accelerator pedal with
the shift lever in R (Reverse), D (Drive) or
sports mode, the Auto Hold will be
released automatically and the vehicle
will start to move. The indicator changes
from green to white.Cancel
To cancel the Auto Hold operation, press
the Auto Hold switch. The AUTO HOLD
indicator will go out.
To cancel the Auto Hold operation when
the vehicle is at a standstill, press the
Auto Hold switch while depressing the
brake pedal.
OVF051049
W
W
W
W
h
h
h
h
i
i
i
i
t
t
t
t
e
e
e
e
G
G
G
G
r
r
r
r
e
e
e
e
e
e
e
e
n
n
n
nOVF051051
L
L
L
L
i
i
i
i
g
g
g
g
h
h
h
h
t
t
t
t




o
o
o
o
f
f
f
f
f
f
f
f
WARNING
When driving off from Auto Hold by
depressing the accelerator pedal,
always check the surrounding area
near your vehicle.
Slowly depress the accelerator
pedal for a smooth launch.

Downloaded from www.Manualslib.com manuals search engine 777
Maintenance

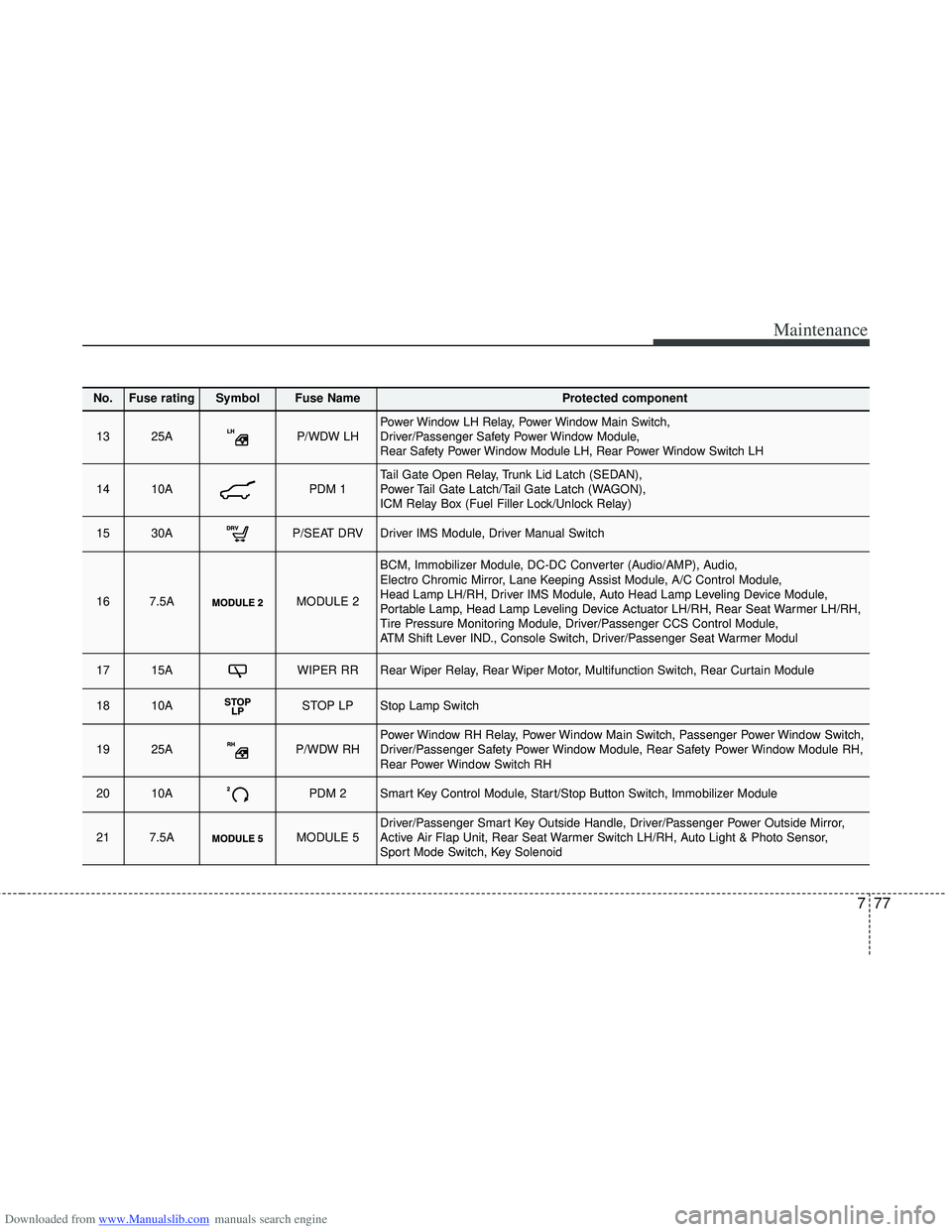

No.Fuse ratingSymbol Fuse NameProtected component
1325AP/WDW LHPower Window LH Relay, Power Window Main Switch,
Driver/Passenger Safety Power Window Module,
Rear Safety Power Window Module LH, Rear Power Window Switch LH
1410APDM 1Tail Gate Open Relay, Trunk Lid Latch (SEDAN),
Power Tail Gate Latch/Tail Gate Latch (WAGON),
ICM Relay Box (Fuel Filler Lock/Unlock Relay)
1530AP/SEAT DRVDriver IMS Module, Driver Manual Switch
167.5AMODULE 2
BCM, Immobilizer Module, DC-DC Converter (Audio/AMP), Audio,
Electro Chromic Mirror, Lane Keeping Assist Module, A/C Control Module,
Head Lamp LH/RH, Driver IMS Module, Auto Head Lamp Leveling Device Module,
Portable Lamp, Head Lamp Leveling Device Actuator LH/RH, Rear Seat Warmer LH/RH,
Tire Pressure Monitoring Module, Driver/Passenger CCS Control Module,
ATM Shift Lever IND., Console Switch, Driver/Passenger Seat Warmer Modul
1715AWIPER RRRear Wiper Relay, Rear Wiper Motor, Multifunction Switch, Rear Curtain Module
1810ASTOP LPStop Lamp Switch
1925AP/WDW RHPower Window RH Relay, Power Window Main Switch, Passenger Power Window Switch,
Driver/Passenger Safety Power Window Module, Rear Safety Power Window Module RH,
Rear Power Window Switch RH
2010APDM 2Smart Key Control Module, Start/Stop Button Switch, Immobilizer Module
217.5AMODULE 5Driver/Passenger Smart Key Outside Handle, Driver/Passenger Power Outside Mirror,
Active Air Flap Unit, Rear Seat Warmer Switch LH/RH, Auto Light & Photo Sensor,
Sport Mode Switch, Key Solenoid
