Vehicle identification number (VIN) / 8-2
Vehicle certification label / 8-2
Tyre specification and pressure label / 8-3
Engine number / 8-3
Declaration of conformity / 8-3
Consumer information
procarmanuals.com

Consumer information
2 8
VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number (VIN) is
the number used in registering your vehi-
cle and in all legal matters pertaining to
its ownership, etc.The VIN is also on a plate attached to the
top of the instrument panel. The number
on the plate can easily be seen through
the windscreen from outside.The vehicle certification label attached
on the driver’s (or front passenger’s) side
centre pillar gives the vehicle identifica-
tion number (VIN).
OTQ087001OEN086004N
VIN label (if equipped)Frame number
OTQ087002
VEHICLE CERTIFICATION
LABEL
procarmanuals.com

83
Consumer information
The tyres supplied on your new vehicle
are chosen to provide the best perform-
ance for normal driving.
The tyre label located on the driver's side
centre pillar gives the tyre pressures rec-
ommended for your car.

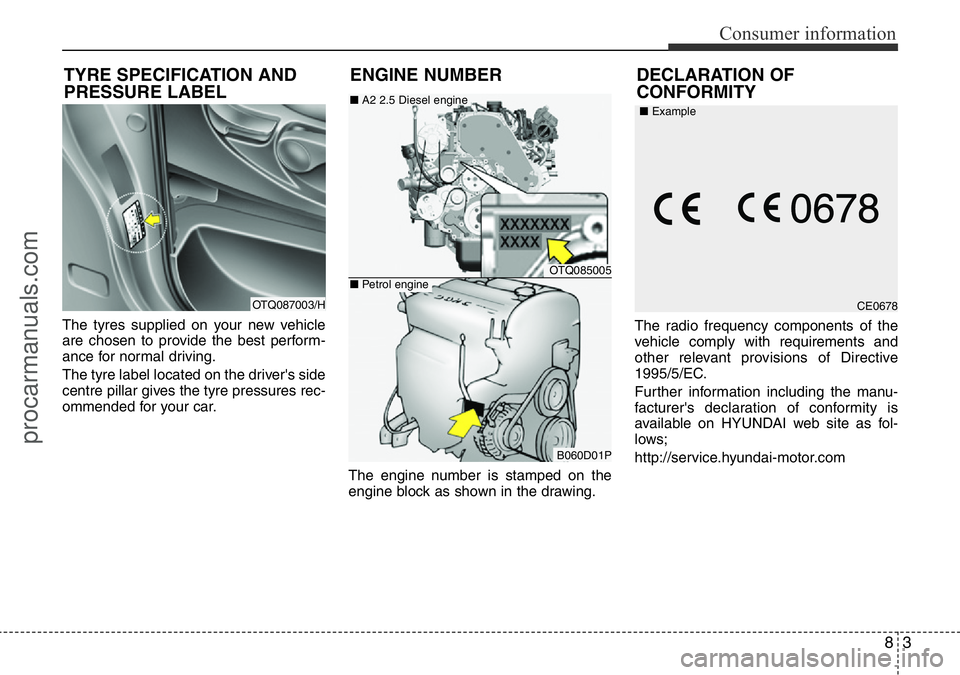

The engine number is stamped on the
engine block as shown in the drawing.The radio frequency components of the
vehicle comply with requirements and
other relevant provisions of Directive
1995/5/EC.
Further information including the manu-
facturer's declaration of conformity is
available on HYUNDAI web site as fol-
lows;
http://service.hyundai-motor.com
OTQ087003/HCE0678 ■Example
TYRE SPECIFICATION AND
PRESSURE LABELDECLARATION OF
CONFORMITY ENGINE NUMBER
OTQ085005
B060D01P ■A2 2.5 Diesel engine
■Petrol engine
procarmanuals.com

9
Dimensions / 9-2
Bulb wattage / 9-2
Tyres and wheels / 9-3
Load and speed capacity of tyre / 9-3
Recommended lubricants and capacities / 9-4
Specifications
procarmanuals.com

Specifications
2 9

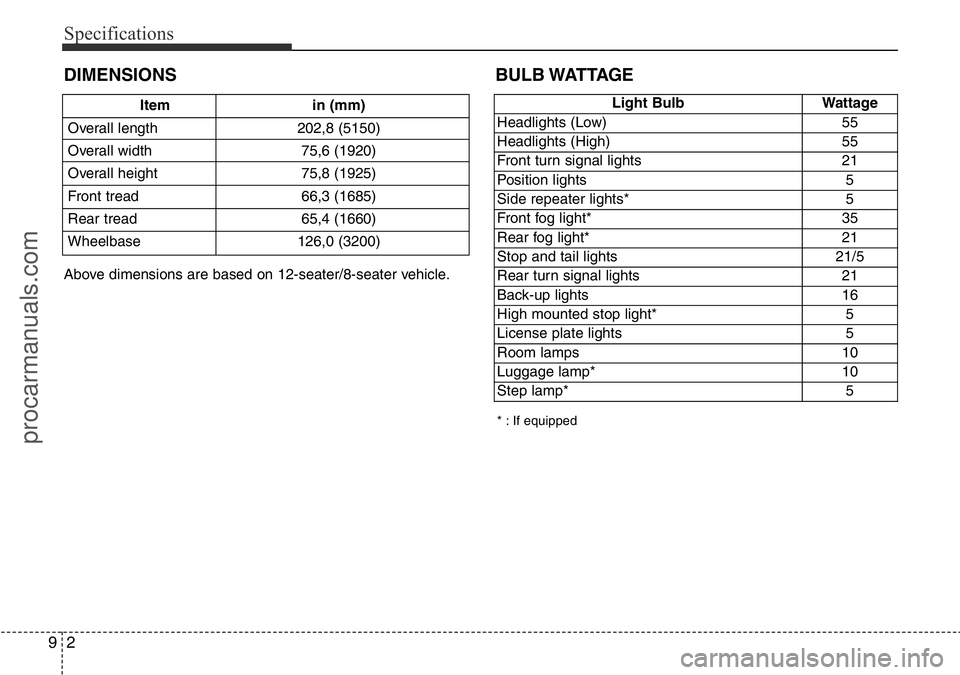

DIMENSIONS
Item in (mm)
Overall length 202,8 (5150)
Overall width 75,6 (1920)
Overall height 75,8 (1925)
Front tread 66,3 (1685)
Rear tread 65,4 (1660)
Wheelbase 126,0 (3200)
BULB WATTAGE
* : If equipped
Above dimensions are based on 12-seater/8-seater vehicle.
Light BulbWattage
Headlights (Low)55
Headlights (High)55
Front turn signal lights21
Position lights5
Side repeater lights* 5
Front fog light*35
Rear fog light*21
Stop and tail lights21/5
Rear turn signal lights21
Back-up lights16
High mounted stop light*5
License plate lights5
Room lamps10
Luggage lamp*10
Step lamp*5
procarmanuals.com

93
Specifications

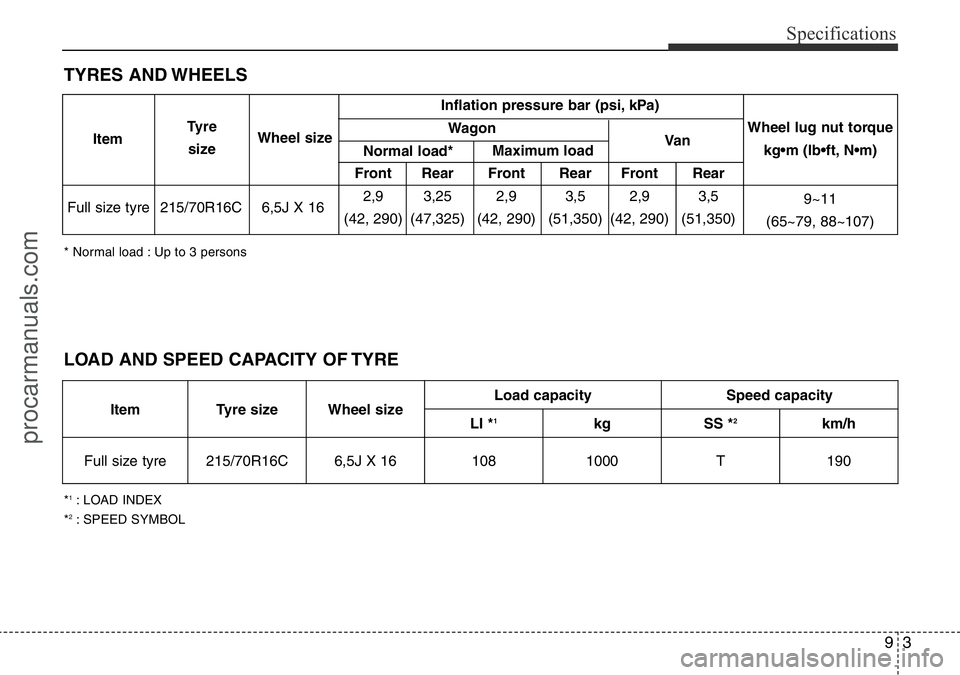

TYRES AND WHEELS
* Normal load : Up to 3 persons
*
1: LOAD INDEX
*2: SPEED SYMBOL
Inflation pressure bar (psi, kPa)
Wagon
Front Rear Front Rear Front Rear
215/70R16C 6,5J X 162,9 3,25 2,9 3,5 2,9 3,5
(42, 290) (47,325) (42, 290) (51,350) (42, 290) (51,350)
Full size tyreWheel lug nut torque
kg•m (lb•ft, N•m)
9~11
(65~79, 88~107) ItemTyre
sizeWheel size
Normal load*Maximum loadVa n
ItemTyre sizeWheel sizeLoad capacitySpeed capacity
LI *1kgSS *2km/h
Full size tyre215/70R16C6,5J X 161081000T190
LOAD AND SPEED CAPACITY OF TYRE
procarmanuals.com

Specifications
4 9

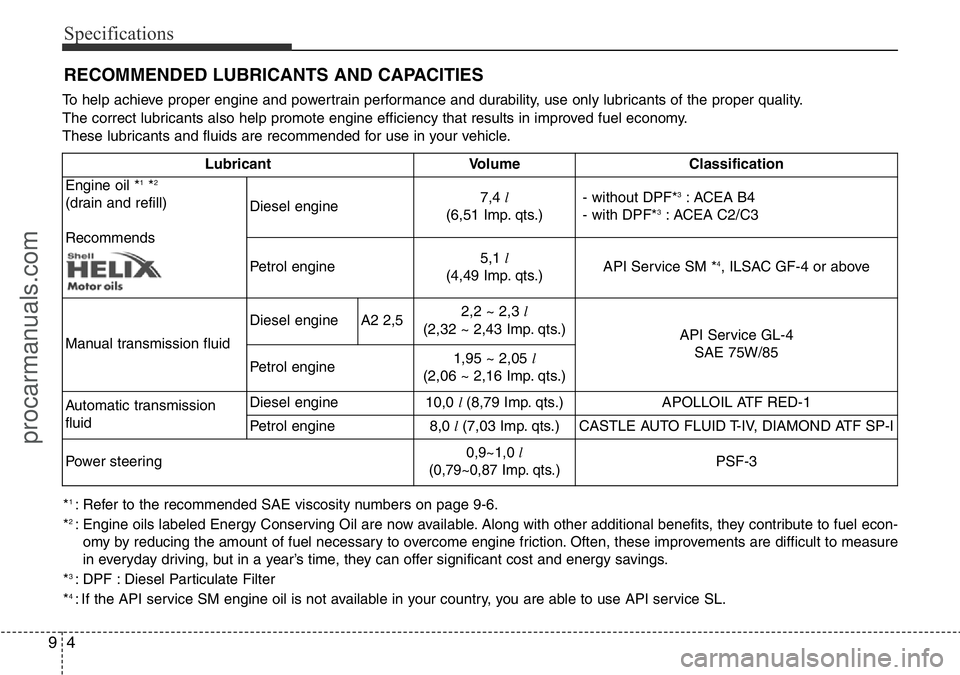

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*
1 : Refer to the recommended SAE viscosity numbers on page 9-6.
*2 : Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*
3 : DPF : Diesel Particulate Filter
*4 : If the API service SM engine oil is not available in your country, you are able to use API service SL.Lubricant Volume Classification
Engine oil *
1*2
(drain and refill)
RecommendsDiesel engine7,4 l
(6,51 Imp. qts.)- without DPF*3: ACEA B4
- with DPF*3: ACEA C2/C3
Petrol engine5,1 l
(4,49 Imp. qts.)API Service SM *
4, ILSAC GF-4 or above
Manual transmission fluid Diesel engine A2 2,52,2 ~ 2,3l
(2,32 ~ 2,43 Imp. qts.)
API Service GL-4
SAE 75W/85
Petrol engine1,95 ~ 2,05l
(2,06 ~ 2,16 Imp. qts.)
Automatic transmission
fluidDiesel engine10,0 l (8,79 Imp. qts.)
APOLLOIL ATF RED-1
Petrol engine8,0 l (7,03 Imp. qts.)
CASTLE AUTO FLUID T-IV, DIAMOND ATF SP-I
Power steering0,9~1,0 l
(0,79~0,87 Imp. qts.)PSF-3
procarmanuals.com

95
Specifications

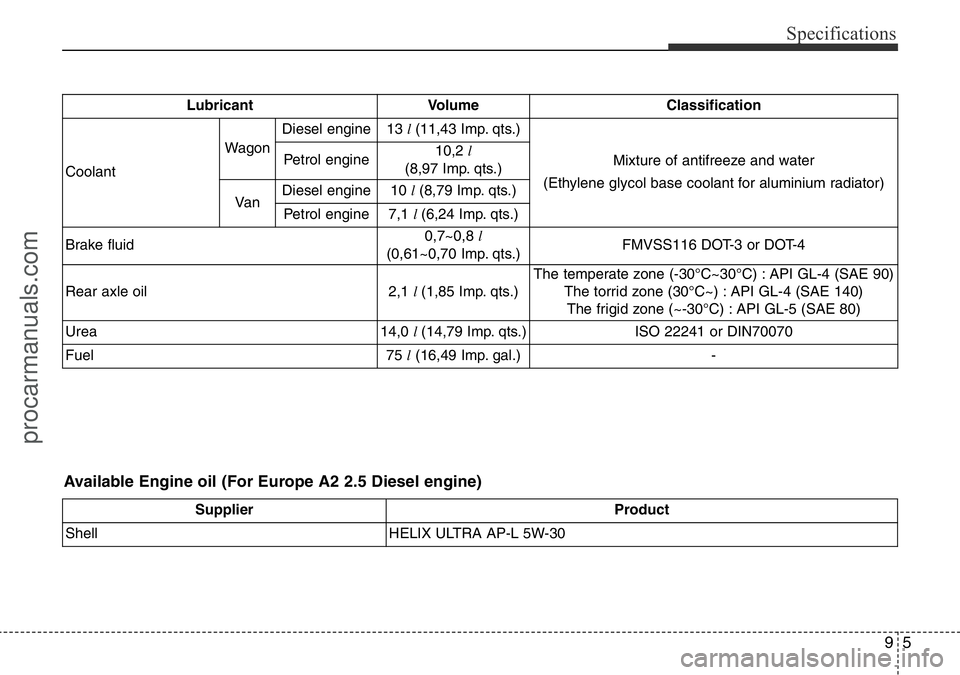

Available Engine oil (For Europe A2 2.5 Diesel engine)
Supplier Product
Shell HELIX ULTRA AP-L 5W-30
Lubricant Volume Classification
CoolantWagonDiesel engine13 l (11,43 Imp. qts.)
Mixture of antifreeze and water
(Ethylene glycol base coolant for aluminium radiator) Petrol engine10,2 l
(8,97 Imp. qts.)
Va nDiesel engine10 l (8,79 Imp. qts.)
Petrol engine7,1 l (6,24 Imp. qts.)
Brake fluid0,7~0,8 l
(0,61~0,70 Imp. qts.)FMVSS116 DOT-3 or DOT-4
Rear axle oil2,1l (1,85 Imp. qts.)The temperate zone (-30°C~30°C) : API GL-4 (SAE 90)
The torrid zone (30°C~) : API GL-4 (SAE 140)
The frigid zone (~-30°C) : API GL-5 (SAE 80)
Urea14,0l (14,79 Imp. qts.)ISO 22241 or DIN70070
Fuel75 l(16,49 Imp. gal.)
-
procarmanuals.com

Specifications
6 9

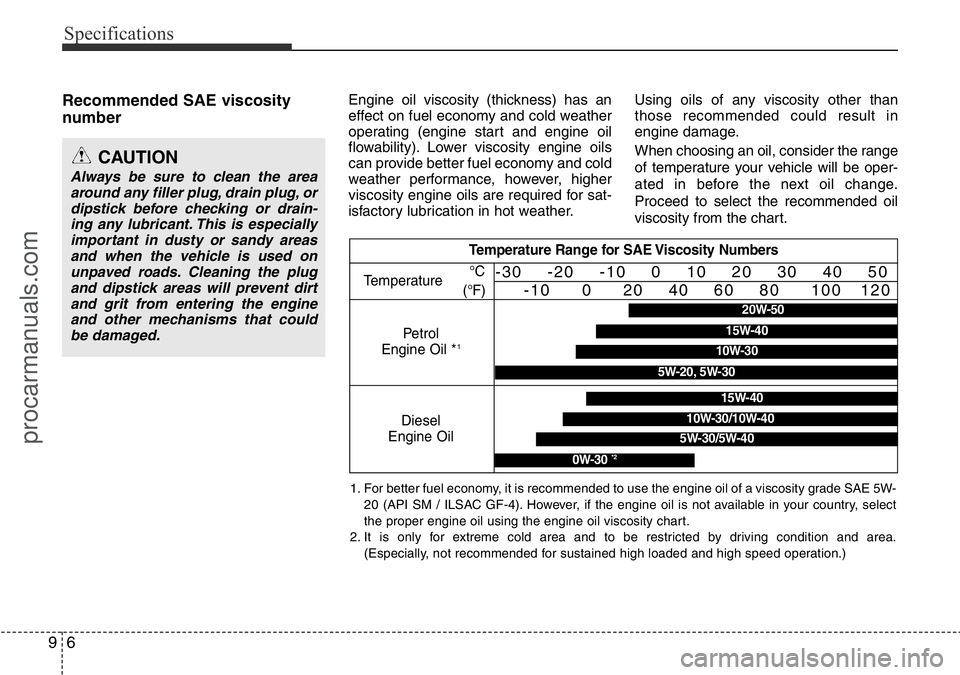

Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather.Using oils of any viscosity other than
those recommended could result in
engine damage.
When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.
Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-
ing any lubricant. This is especially
important in dusty or sandy areas
and when the vehicle is used on
unpaved roads. Cleaning the plug
and dipstick areas will prevent dirt
and grit from entering the engine
and other mechanisms that could
be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Petrol
Engine Oil *
1
°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Diesel
Engine Oil
5W-30/5W-40
15W-40
10W-30/10W-40
0W-30 *2
1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20 (API SM / ILSAC GF-4). However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
2. It is only for extreme cold area and to be restricted by driving condition and area.
(Especially, not recommended for sustained high loaded and high speed operation.)
20W-50
10W-30
15W-40
5W-20, 5W-30
