05
5-79

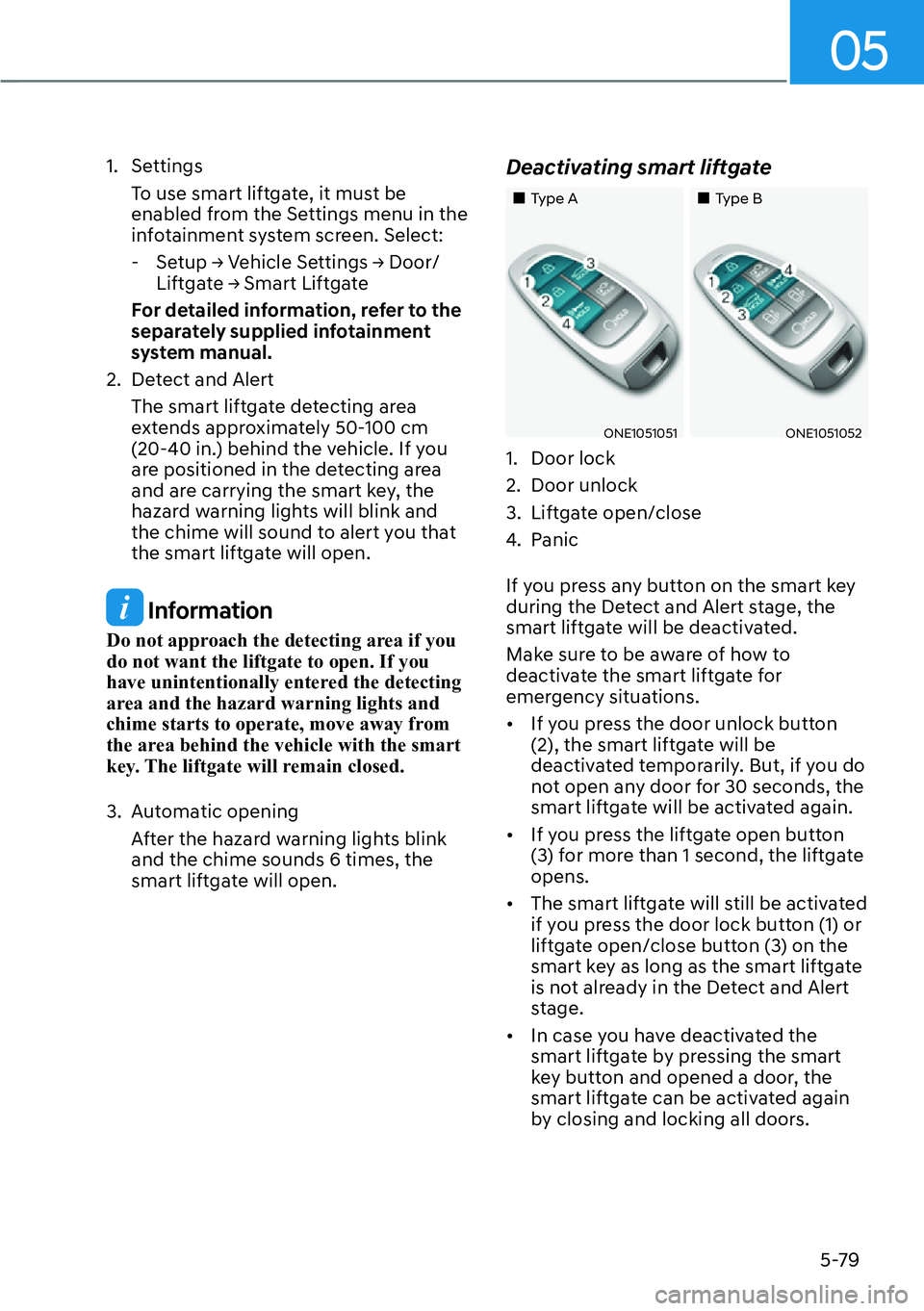

1. Settings
To use smart liftgate, it must be
enabled from the Settings menu in the
infotainment system screen. Select:
-6HWXS

Convenience Features
5-80

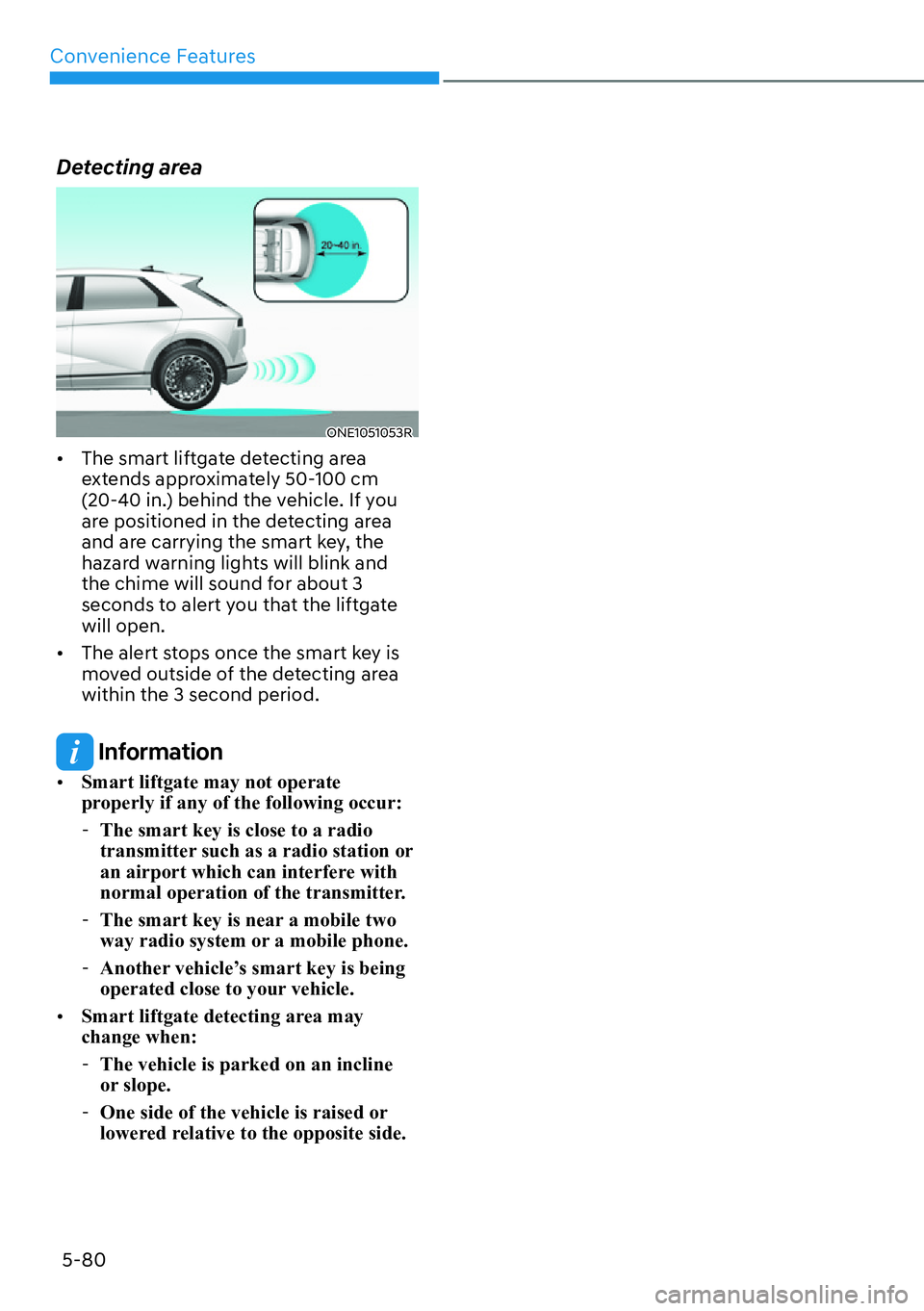

Detecting area
ONE1051053R

[The smart liftgate detecting area
extends approximately 50-100 cm
(20-40 in.) behind the vehicle. If you
are positioned in the detecting area
and are carrying the smart key, the
hazard warning lights will blink and
the chime will sound for about 3
seconds to alert you that the liftgate
will open.

[The alert stops once the smart key is
moved outside of the detecting area
within the 3 second period.
Information

[Smart liftgate may not operate
properly if any of the following occur:
-The smart key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the transmitter.
-The smart key is near a mobile two
way radio system or a mobile phone.
-Another vehicle’s smart key is being
operated close to your vehicle.

[Smart liftgate detecting area may
change when:
-The vehicle is parked on an incline
or slope.
-One side of the vehicle is raised or
lowered relative to the opposite side.

05
5-81

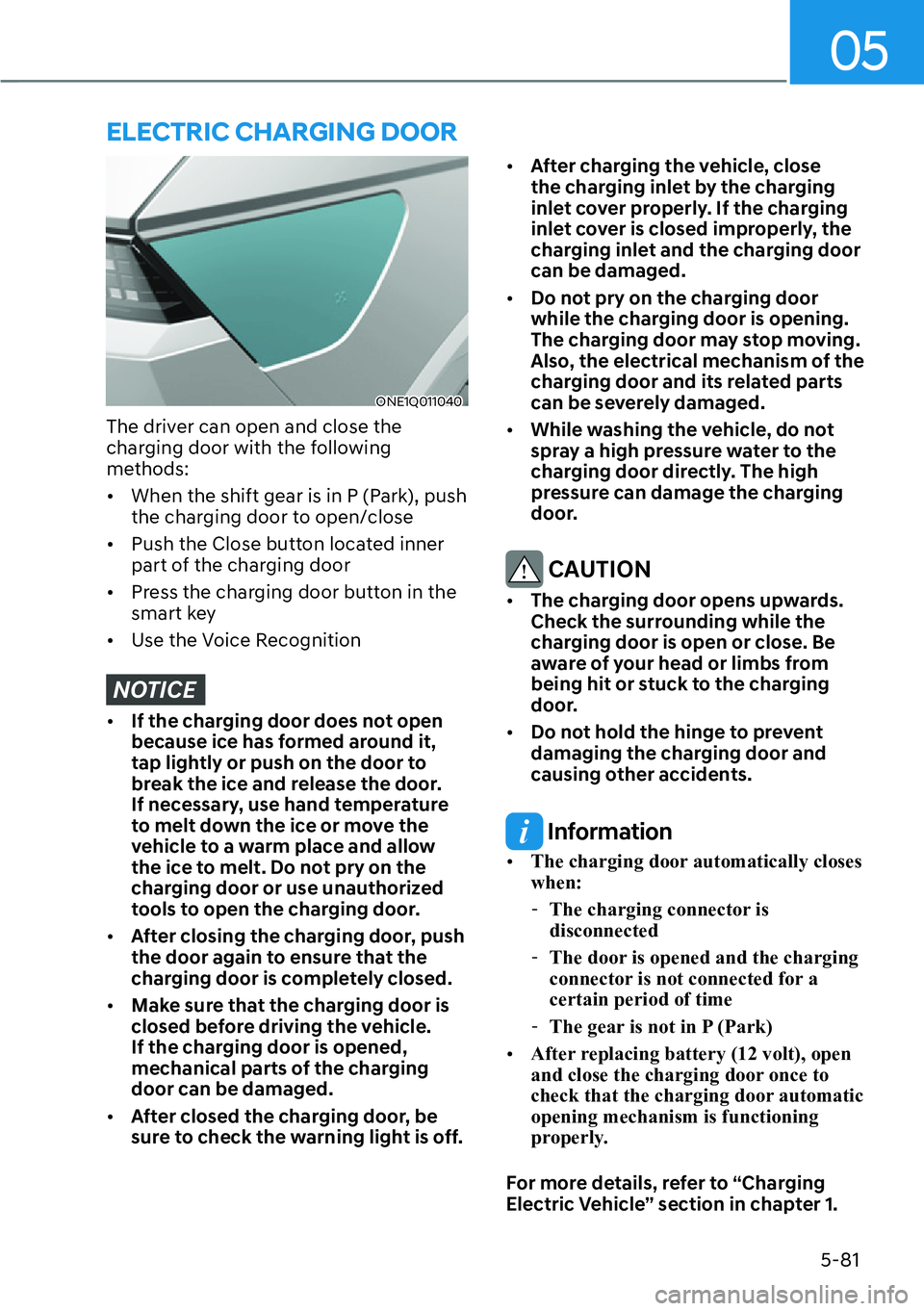

ELECTRIC CHARGING DOOR
ONE1Q011040
The driver can open and close the
charging door with the following
methods:

[When the shift gear is in P (Park), push
the charging door to open/close

[Push the Close button located inner
part of the charging door

[Press the charging door button in the
smart key

[Use the Voice Recognition
NOTICE

[If the charging door does not open
because ice has formed around it,
tap lightly or push on the door to
break the ice and release the door.
If necessary, use hand temperature
to melt down the ice or move the
vehicle to a warm place and allow
the ice to melt. Do not pry on the
charging door or use unauthorized
tools to open the charging door.

[After closing the charging door, push
the door again to ensure that the
charging door is completely closed.

[Make sure that the charging door is
closed before driving the vehicle.
If the charging door is opened,
mechanical parts of the charging
door can be damaged.

[After closed the charging door, be
sure to check the warning light is off.
[After charging the vehicle, close
the charging inlet by the charging
inlet cover properly. If the charging
inlet cover is closed improperly, the
charging inlet and the charging door
can be damaged.

[Do not pry on the charging door
while the charging door is opening.
The charging door may stop moving.
Also, the electrical mechanism of the
charging door and its related parts
can be severely damaged.

[While washing the vehicle, do not
spray a high pressure water to the
charging door directly. The high
pressure can damage the charging
door.
CAUTION

[The charging door opens upwards.
Check the surrounding while the
charging door is open or close. Be
aware of your head or limbs from
being hit or stuck to the charging
door.

[Do not hold the hinge to prevent
damaging the charging door and
causing other accidents.
Information

[The charging door automatically closes
when:
-The charging connector is
disconnected
-The door is opened and the charging
connector is not connected for a
certain period of time
-7KHJHDULVQRWLQ33DUN

[After replacing battery (12 volt), open
and close the charging door once to
check that the charging door automatic
opening mechanism is functioning
properly.
For more details, refer to “Charging
Electric Vehicle” section in chapter 1.

Convenience Features
5-82
ONE1051214R

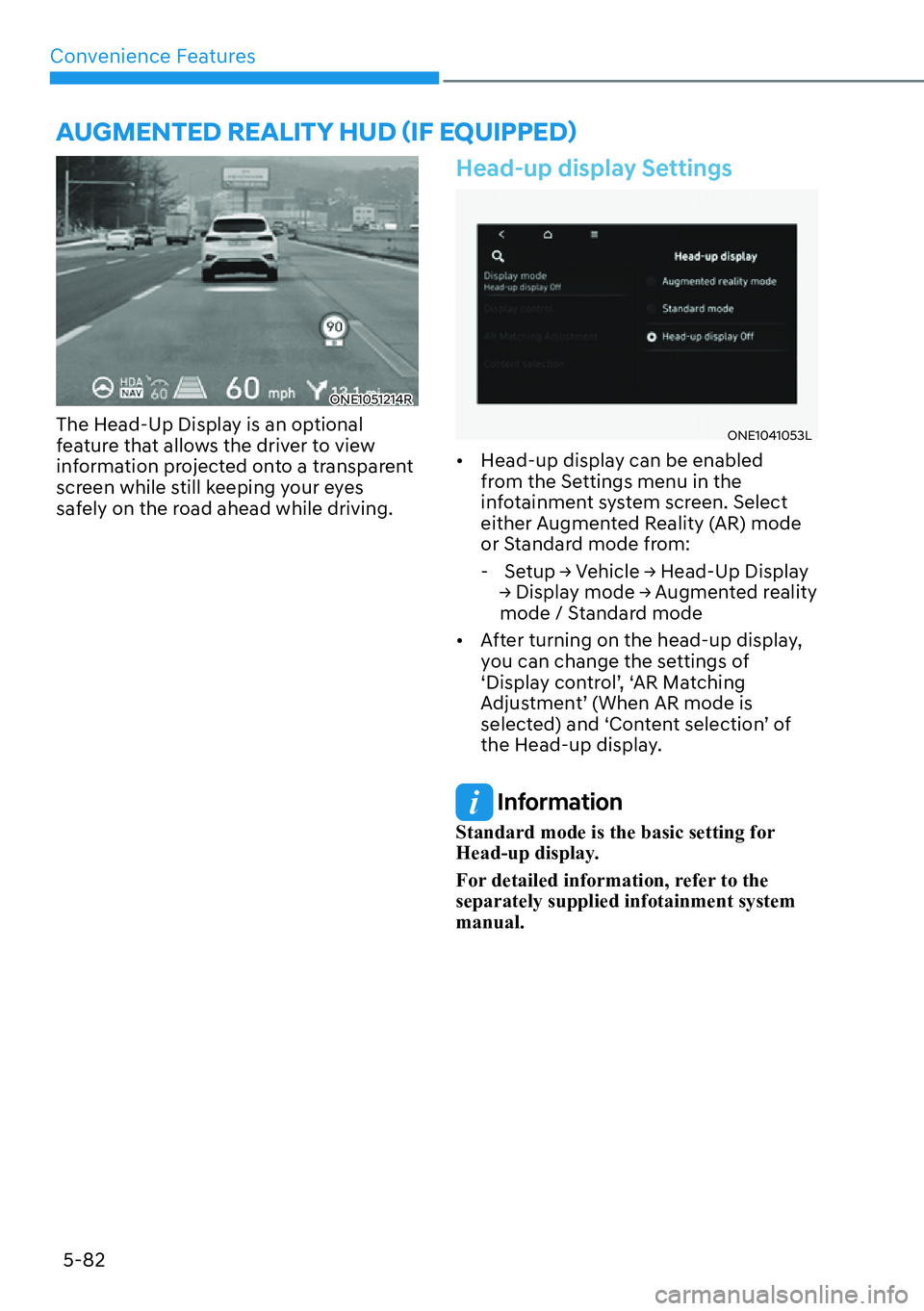

The Head-Up Display is an optional
feature that allows the driver to view
information projected onto a transparent
screen while still keeping your eyes
safely on the road ahead while driving.
Head-up display Settings
ONE1041053L

[Head-up display can be enabled
from the Settings menu in the
infotainment system screen. Select
either Augmented Reality (AR) mode
or Standard mode from:
-6HWXS

05
5-83

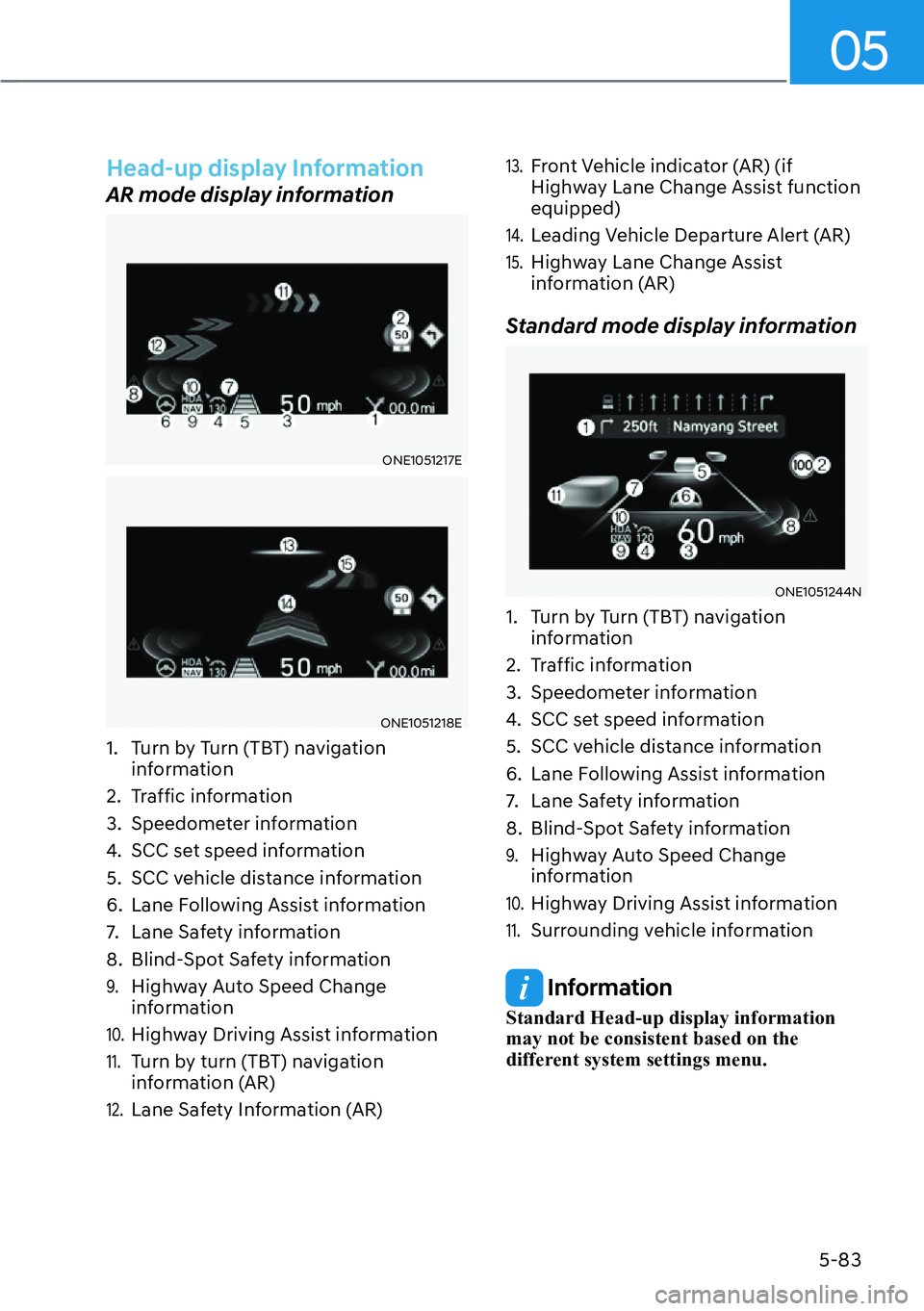

Head-up display Information
AR mode display information
ONE1051217E
ONE1051218E
1. Turn by Turn (TBT) navigation
information
2. Traffic information
3. Speedometer information
4. SCC set speed information
5. SCC vehicle distance information
6. Lane Following Assist information
7. Lane Safety information
8. Blind-Spot Safety information
9. Highway Auto Speed Change
information
10. Highway Driving Assist information
11. Turn by turn (TBT) navigation
information (AR)
12. Lane Safety Information (AR)
13. Front Vehicle indicator (AR) (if
Highway Lane Change Assist function
equipped)
14. Leading Vehicle Departure Alert (AR)
15. Highway Lane Change Assist
information (AR)
Standard mode display information
ONE1051244N
1. Turn by Turn (TBT) navigation
information
2. Traffic information
3. Speedometer information
4. SCC set speed information
5. SCC vehicle distance information
6. Lane Following Assist information
7. Lane Safety information
8. Blind-Spot Safety information
9. Highway Auto Speed Change
information
10. Highway Driving Assist information
11. Surrounding vehicle information
Information
Standard Head-up display information
may not be consistent based on the
different system settings menu.

Convenience Features
5-84

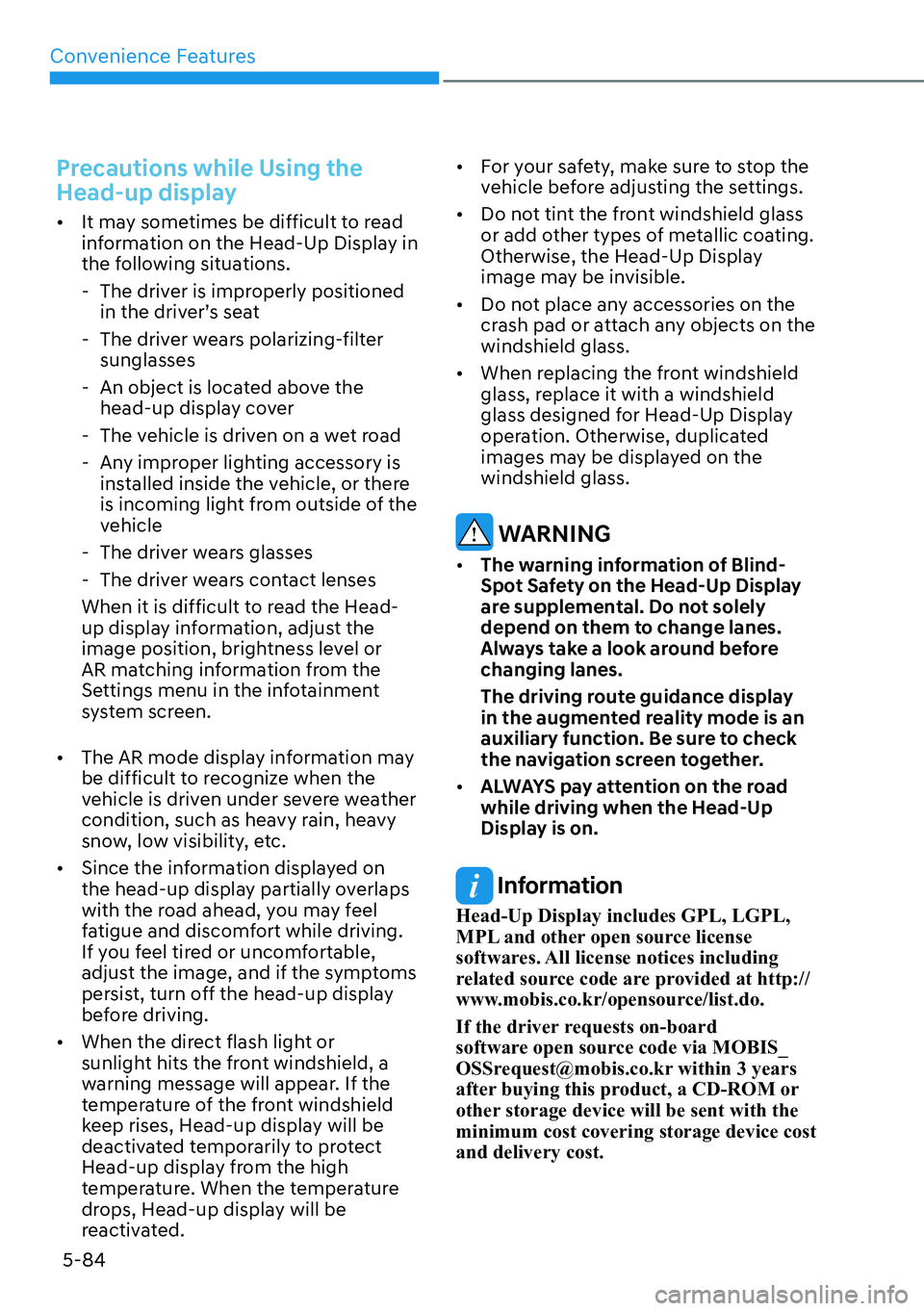

Precautions while Using the
Head-up display

[It may sometimes be difficult to read
information on the Head-Up Display in
the following situations.
- The driver is improperly positioned
in the driver’s seat
- The driver wears polarizing-filter
sunglasses
- An object is located above the
head-up display cover
- The vehicle is driven on a wet road
- Any improper lighting accessory is
installed inside the vehicle, or there
is incoming light from outside of the
vehicle
- The driver wears glasses
- The driver wears contact lenses
When it is difficult to read the Head-
up display information, adjust the
image position, brightness level or
AR matching information from the
Settings menu in the infotainment
system screen.

[The AR mode display information may
be difficult to recognize when the
vehicle is driven under severe weather
condition, such as heavy rain, heavy
snow, low visibility, etc.

[Since the information displayed on
the head-up display partially overlaps
with the road ahead, you may feel
fatigue and discomfort while driving.
If you feel tired or uncomfortable,
adjust the image, and if the symptoms
persist, turn off the head-up display
before driving.

[When the direct flash light or
sunlight hits the front windshield, a
warning message will appear. If the
temperature of the front windshield
keep rises, Head-up display will be
deactivated temporarily to protect
Head-up display from the high
temperature. When the temperature
drops, Head-up display will be
reactivated.
[For your safety, make sure to stop the
vehicle before adjusting the settings.

[Do not tint the front windshield glass
or add other types of metallic coating.
Otherwise, the Head-Up Display
image may be invisible.

[Do not place any accessories on the
crash pad or attach any objects on the
windshield glass.

[When replacing the front windshield
glass, replace it with a windshield
glass designed for Head-Up Display
operation. Otherwise, duplicated
images may be displayed on the
windshield glass.
WARNING

[The warning information of Blind-
Spot Safety on the Head-Up Display
are supplemental. Do not solely
depend on them to change lanes.
Always take a look around before
changing lanes.
The driving route guidance display
in the augmented reality mode is an
auxiliary function. Be sure to check
the navigation screen together.

[ALWAYS pay attention on the road
while driving when the Head-Up
Display is on.
Information
+HDG8S'LVSOD\LQFOXGHV*3//*3/
03/DQGRWKHURSHQVRXUFHOLFHQVH
softwares. All license notices including
related source code are provided at http://
www.mobis.co.kr/opensource/list.do.
If the driver requests on-board
VRIWZDUHRSHQVRXUFHFRGHYLD02%,6B
[email protected] within 3 years
DIWHUEX\LQJWKLVSURGXFWD&'520RU
other storage device will be sent with the
minimum cost covering storage device cost
and delivery cost.

05
5-85

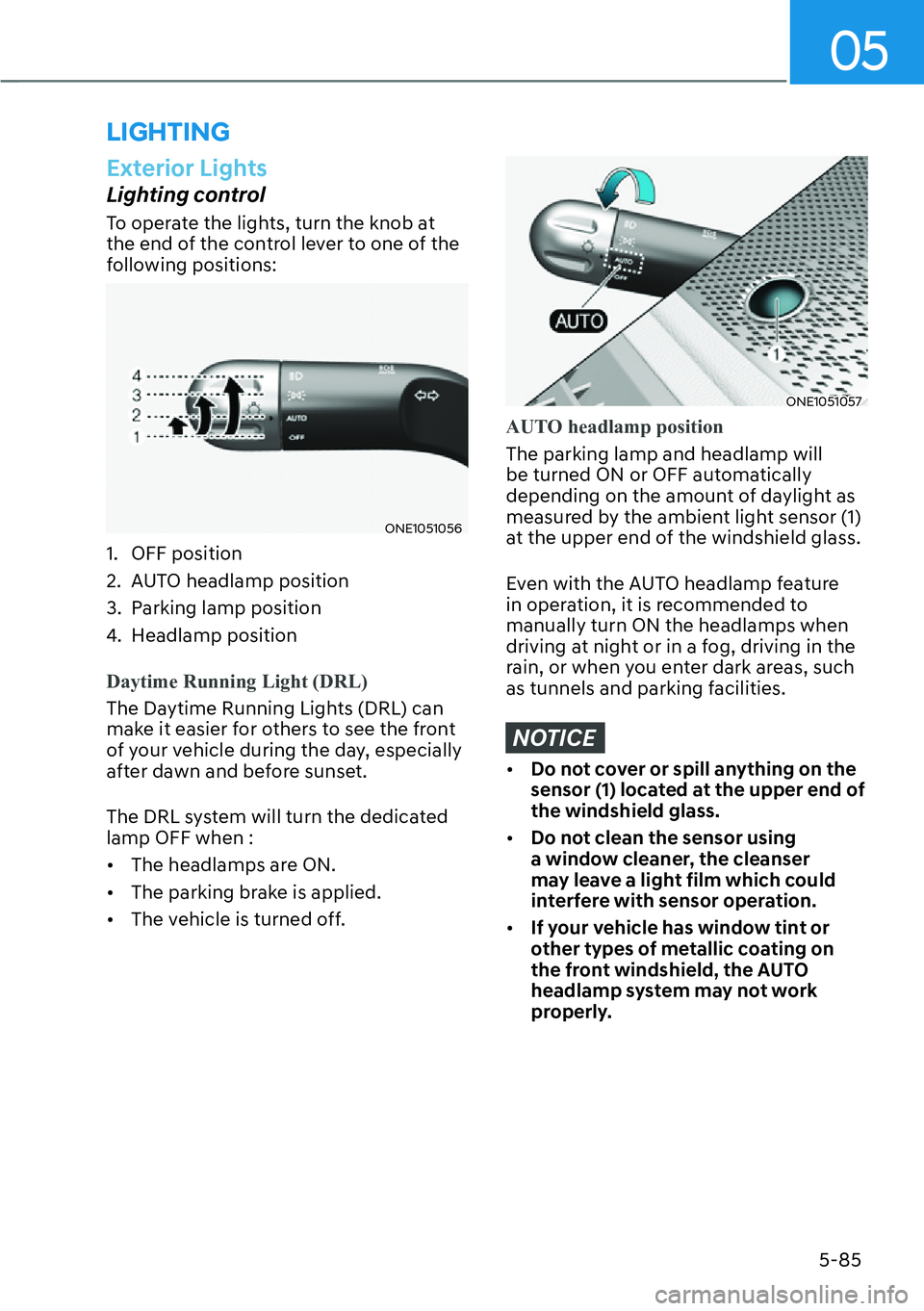

Exterior Lights
Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
ONE1051056
1. OFF position
2. AUTO headlamp position
3. Parking lamp position
4. Headlamp position
Daytime Running Light (DRL)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when :

[The headlamps are ON.

[The parking brake is applied.

[The vehicle is turned off.
ONE1051057
AUTO headlamp position
The parking lamp and headlamp will
be turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor (1)
at the upper end of the windshield glass.
Even with the AUTO headlamp feature
in operation, it is recommended to
manually turn ON the headlamps when
driving at night or in a fog, driving in the
rain, or when you enter dark areas, such
as tunnels and parking facilities.
NOTICE

[Do not cover or spill anything on the
sensor (1) located at the upper end of
the windshield glass.

[Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.

[If your vehicle has window tint or
other types of metallic coating on
the front windshield, the AUTO
headlamp system may not work
properly.
LIGHTING

Convenience Features
5-86
ONE1051058

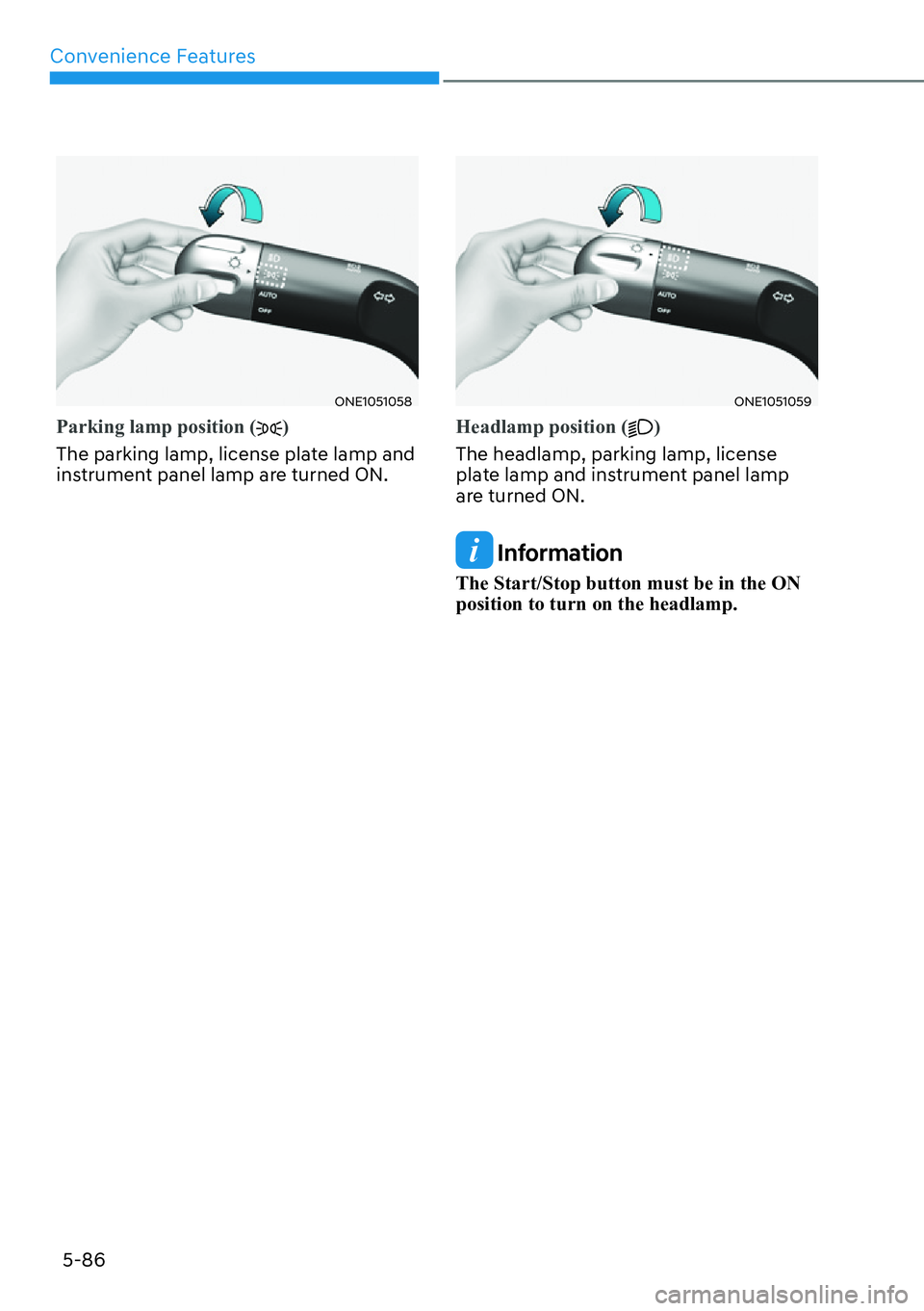

3DUNLQJODPSSRVLWLRQ()
The parking lamp, license plate lamp and
instrument panel lamp are turned ON.
ONE1051059
Headlamp position ()
The headlamp, parking lamp, license
plate lamp and instrument panel lamp
are turned ON.
Information
The Start/Stop button must be in the ON
position to turn on the headlamp.

05
5-87
High beam operation
ONE1051061
To turn on the high beam headlamp,
push the lever away from you. The lever
will return to its original position.
The high beam indicator will light when
the headlamp high beams are switched
on.
To turn off the high beam headlamp, pull
the lever towards you. The low beams
will turn on.
ONE1051060
To flash the high beam headlamp, pull
the lever towards you, then release the
lever. The high beams will remain ON as
long as you hold the lever towards you.
Turn signals and lane change signals
ONE1051062
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position (A).
If an indicator stays on and does not flash
or if it flashes abnormally, one of the turn
signal bulbs may be burned out and will
require replacement.
One touch turn signal
To use One Touch Turn Signal push the
turn signal lever up or down to position
(B) and then release it.
The lane change signals will blink 3, 5 or
7 times.
You can enable the One Touch Turn
Signal function or choose the number
RIEOLQNLQJE\VHOHFWLQJ
S6HWXS

Convenience Features
5-88
Battery saver function
The purpose of this feature is to prevent
the battery from being discharged.
The system automatically turns off the
Parking lamp when the driver turns the
vehicle off and opens the driver-side
door.
With this feature, the Parking lamps will
turn off automatically if the driver parks
on the side of road at night.
However, the Parking lamps stay ON
even when the driver-side door is
opened if the light headlamp switch is
turned to the Parking lamp or AUTO (if
equipped) position after the vehicle is
turned off.
If necessary, to keep the lamps on
turn the Parking lamps OFF and ON
again using the headlamp switch on
the steering column after the vehicle is
turned off.
Headlamp delay function
If the Start/Stop button is in the ACC
position or the OFF position with the
headlamps ON, the headlamps (and/
or Parking lamps) remain on for about
5 minutes. However, if the driver’s door
is opened and closed, the headlamps
are turned off after 15 seconds. Also,
with the vehicle off if the driver’s door is
opened and closed, the headlamps (and/
or Parking lamps) are turned off after 15
seconds.
The headlamps (and/or Parking lamps)
can be turned off by pressing the lock
button on the smart key twice or turning
the headlamp switch to the OFF or AUTO
position.
You can enable the headlamp delay
IXQFWLRQE\VHOHFWLQJ
S6HWXS
