HYUNDAI IONIQ 5 2022 Owners Manual

05
5-59

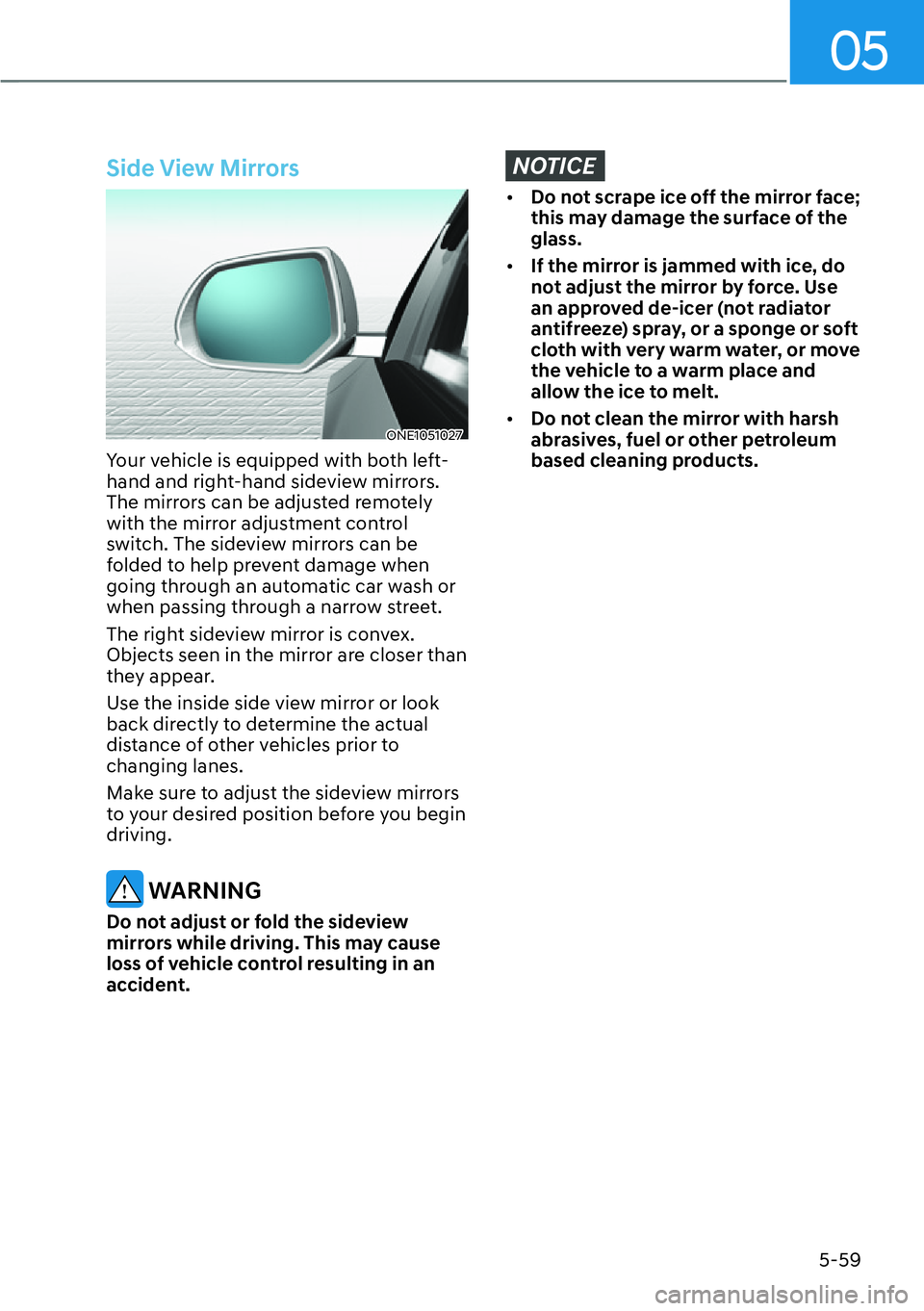

Side View Mirrors
ONE1051027
Your vehicle is equipped with both left-
hand and right-hand sideview mirrors.
The mirrors can be adjusted remotely
with the mirror adjustment control
switch. The sideview mirrors can be
folded to help prevent damage when
going through an automatic car wash or
when passing through a narrow street.
The right sideview mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside side view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
Make sure to adjust the sideview mirrors
to your desired position before you begin
driving.
WARNING
Do not adjust or fold the sideview
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE

[Do not scrape ice off the mirror face;
this may damage the surface of the
glass.

[If the mirror is jammed with ice, do
not adjust the mirror by force. Use
an approved de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.

[Do not clean the mirror with harsh
abrasives, fuel or other petroleum
based cleaning products.

Convenience Features
5-60

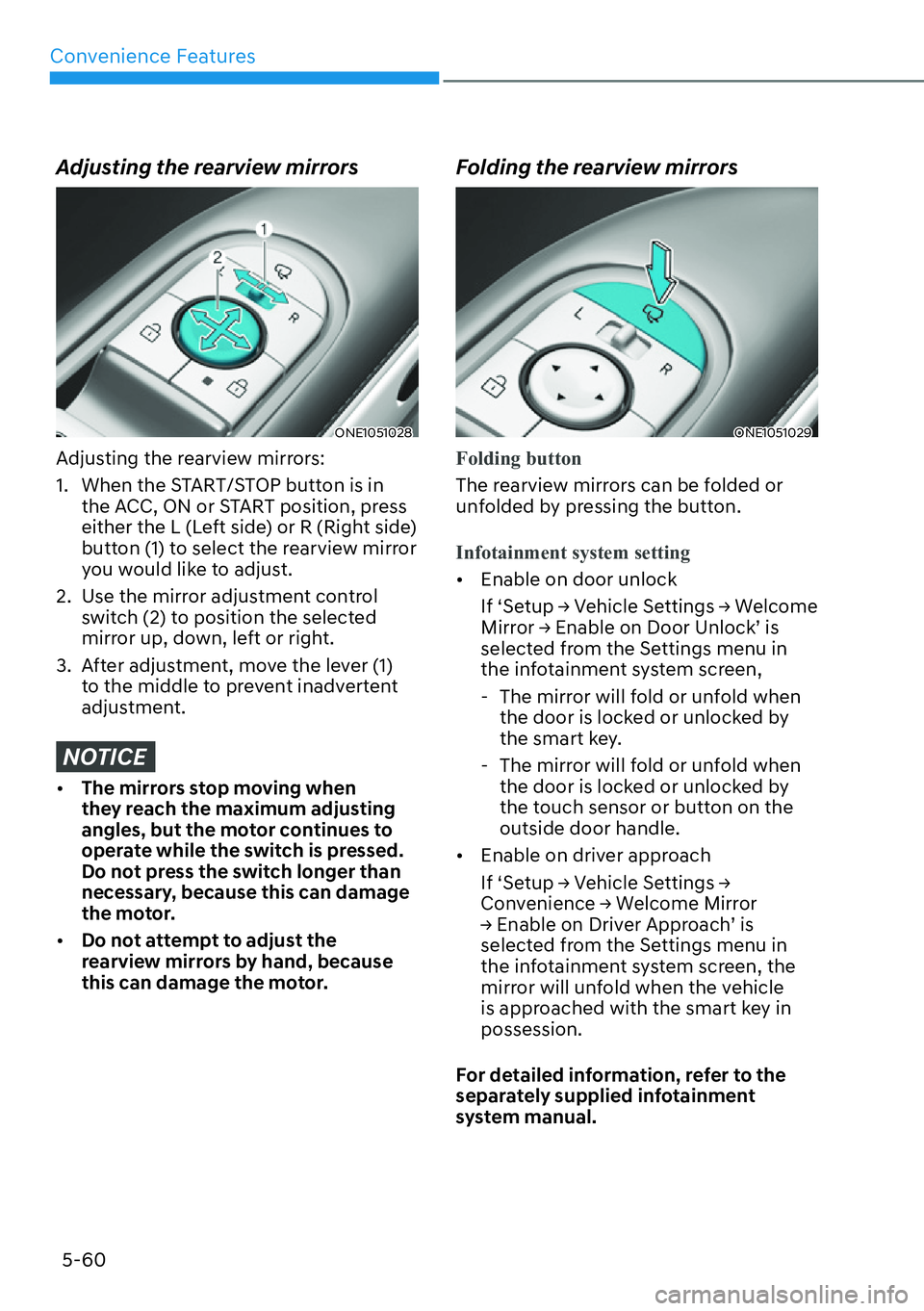

Adjusting the rearview mirrors
ONE1051028
Adjusting the rearview mirrors:
1. When the START/STOP button is in
the ACC, ON or START position, press
either the L (Left side) or R (Right side)
button (1) to select the rearview mirror
you would like to adjust.
2. Use the mirror adjustment control
switch (2) to position the selected
mirror up, down, left or right.
3. After adjustment, move the lever (1)
to the middle to prevent inadvertent
adjustment.
NOTICE

[The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer than
necessary, because this can damage
the motor.

[Do not attempt to adjust the
rearview mirrors by hand, because
this can damage the motor.
Folding the rearview mirrors
ONE1051029
Folding button
The rearview mirrors can be folded or
unfolded by pressing the button.
Infotainment system setting

[Enable on door unlock
,I
S6HWXS

05
5-61
Information
For your safety, the side view mirrors
cannot be folded automatically when
driving at a speed of 9 mph (15 km/h) or
faster.
NOTICE
The electric type side view mirror
operates even though the Start/Stop
button is in the OFF position. However,
to prevent unnecessary battery
discharge, do not adjust the mirrors
longer than necessary while the vehicle
is not running.
NOTICE
Do not fold the electric type side view
mirror by hand. It could cause motor
failure.

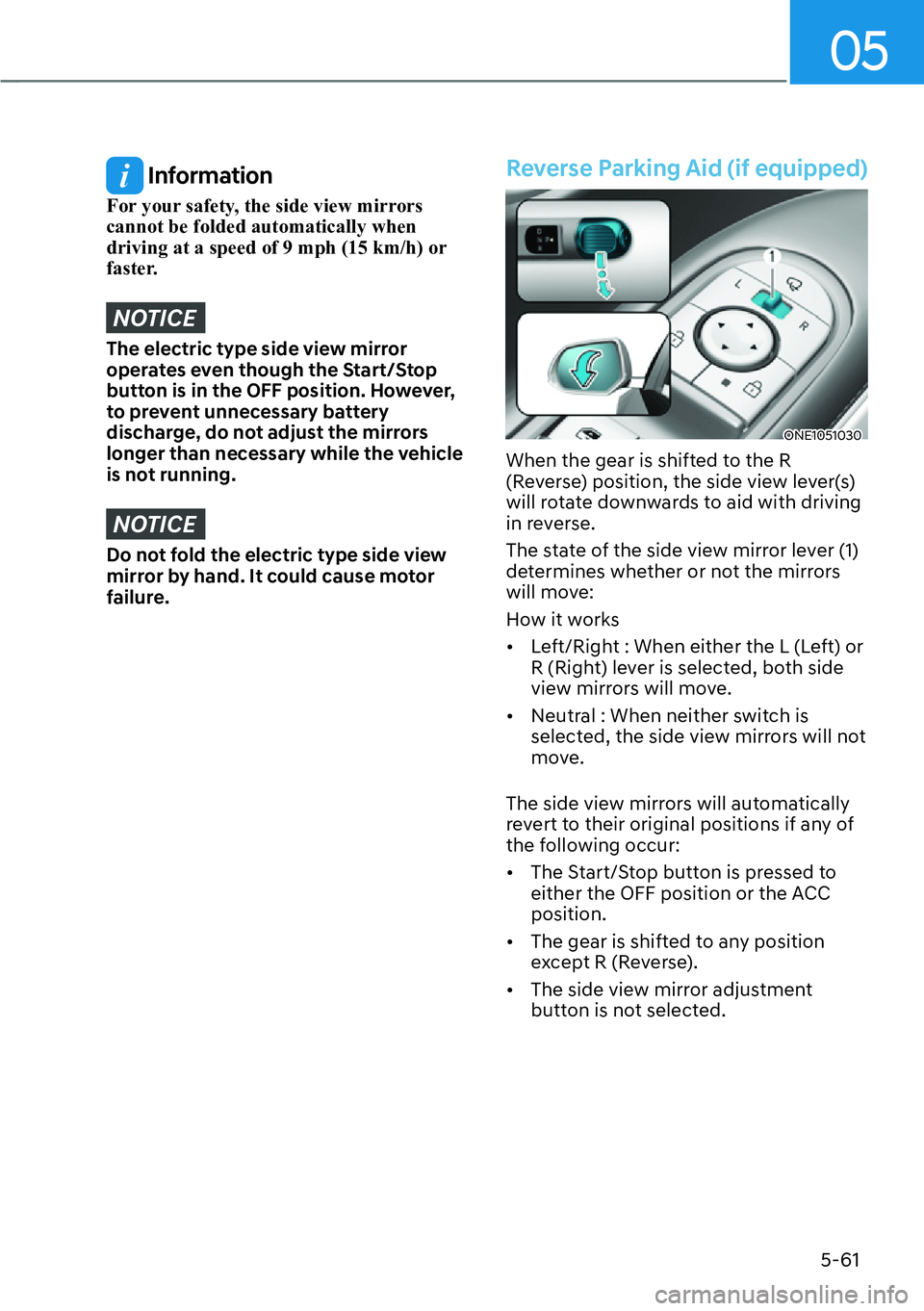

Reverse Parking Aid (if equipped)
ONE1051030
When the gear is shifted to the R
(Reverse) position, the side view lever(s)
will rotate downwards to aid with driving
in reverse.
The state of the side view mirror lever (1)
determines whether or not the mirrors
will move:
How it works

[Left/Right : When either the L (Left) or
R (Right) lever is selected, both side
view mirrors will move.

[Neutral : When neither switch is
selected, the side view mirrors will not
move.
The side view mirrors will automatically
revert to their original positions if any of
the following occur:

[The Start/Stop button is pressed to
either the OFF position or the ACC
position.

[The gear is shifted to any position
except R (Reverse).

[The side view mirror adjustment
button is not selected.

Convenience Features
5-62

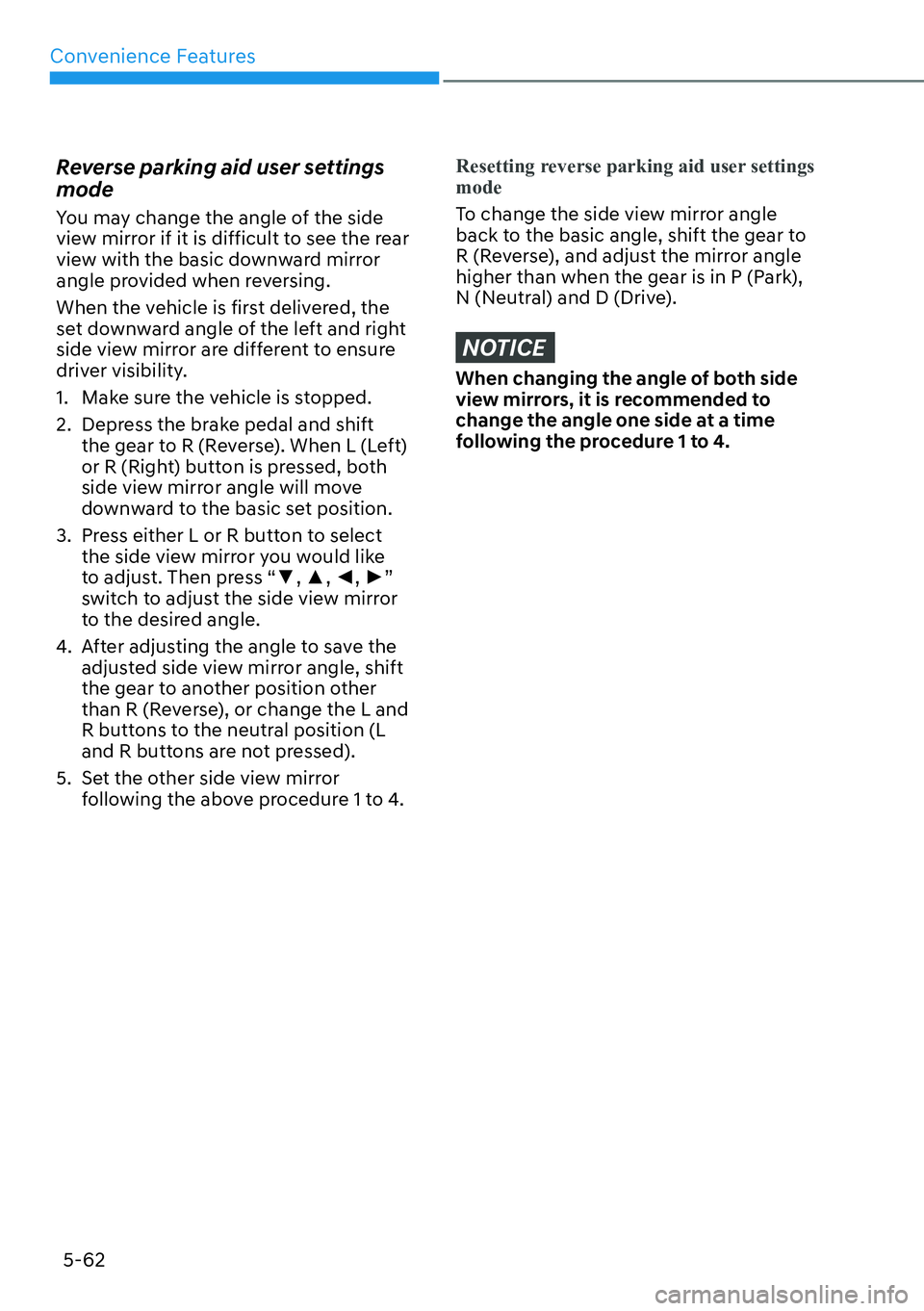

Reverse parking aid user settings
mode
You may change the angle of the side
view mirror if it is difficult to see the rear
view with the basic downward mirror
angle provided when reversing.
When the vehicle is first delivered, the
set downward angle of the left and right
side view mirror are different to ensure
driver visibility.
1. Make sure the vehicle is stopped.
2. Depress the brake pedal and shift
the gear to R (Reverse). When L (Left)
or R (Right) button is pressed, both
side view mirror angle will move
downward to the basic set position.
3. Press either L or R button to select
the side view mirror you would like
to adjust. Then press “
z,
x,
{,
y”
switch to adjust the side view mirror
to the desired angle.
4. After adjusting the angle to save the
adjusted side view mirror angle, shift
the gear to another position other
than R (Reverse), or change the L and
R buttons to the neutral position (L
and R buttons are not pressed).
5. Set the other side view mirror
following the above procedure 1 to 4.
Resetting reverse parking aid user settings
mode
To change the side view mirror angle
back to the basic angle, shift the gear to
R (Reverse), and adjust the mirror angle
higher than when the gear is in P (Park),
N (Neutral) and D (Drive).
NOTICE
When changing the angle of both side
view mirrors, it is recommended to
change the angle one side at a time
following the procedure 1 to 4.

05
5-63
ONE1051032N

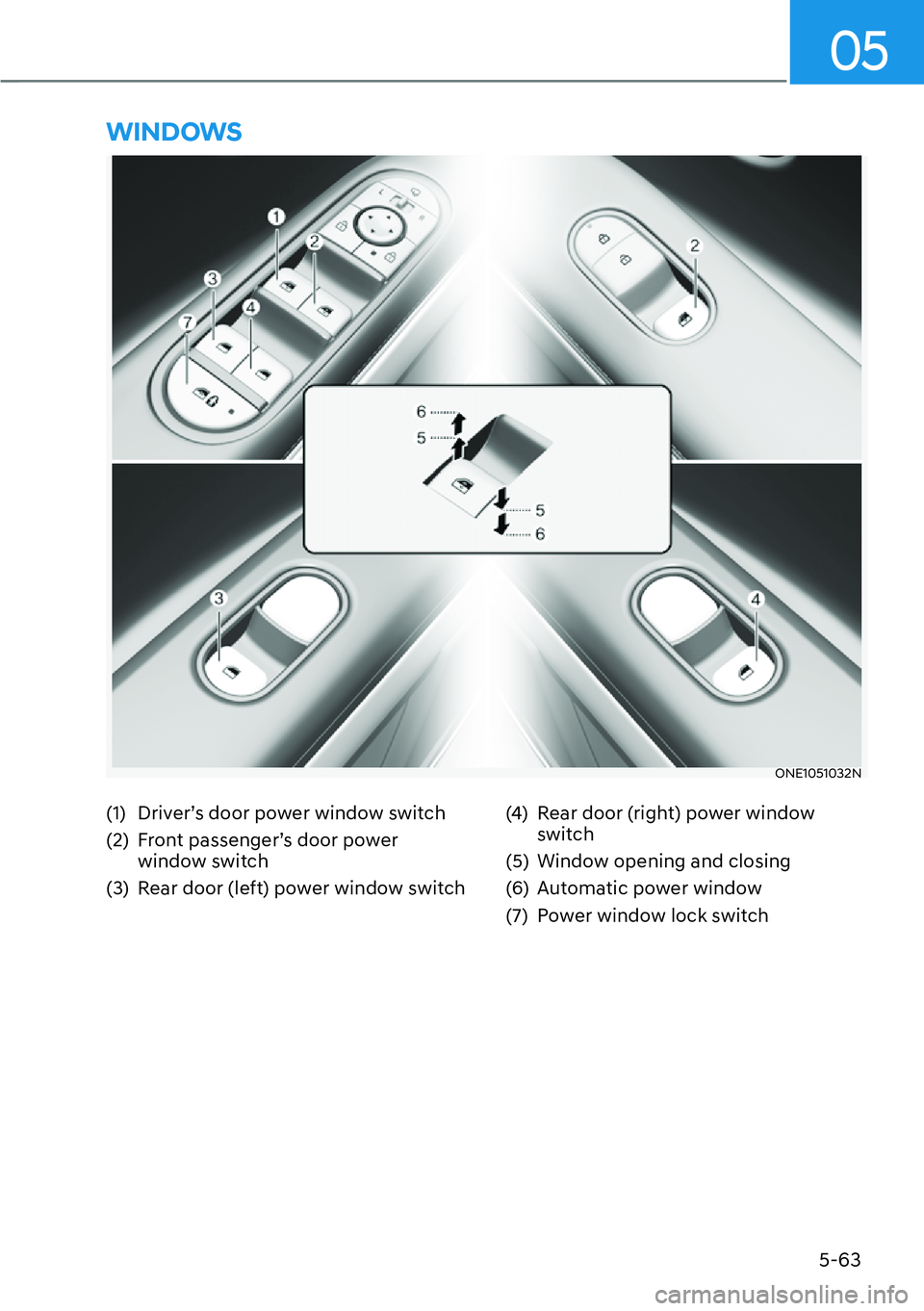

WINDOWS
(1) Driver’s door power window switch
(2) Front passenger’s door power
window switch
(3) Rear door (left) power window switch(4) Rear door (right) power window
switch
(5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch

Convenience Features
5-64
Power Windows
The Start/Stop button must be in the
ON position to be able to raise or lower
the windows. Each door has a Power
Window switch to control that door’s
window. The driver has a Power Window
Lock button which can block the
operation of rear passenger windows.
The power windows will operate for
approximately 3 minutes after the
Start/Stop button is in the ACC or OFF
position. However, if the front doors are
opened, the Power Windows will not
operate even within the 3 minute period.
Window opening and closing
ONE1051033
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
Auto up/down window
Pressing the power window switch
momentarily to the second detent
position (6) completely lowers or lifts
the window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
WARNING

[Do not leave the vehicle running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the window,
which could result in serious injury.

[Do not extend your head, arms or any
other body parts or objects outside
the window while driving to avoid
serious injury.
Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Press the Start/Stop button to the ON
position.
2. Close the window and continue
pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
inspected by an authorized HYUNDAI
dealer.
WARNING
The automatic reverse feature doesn’t
activate while resetting the power
window system.Make sure body parts
or other objects are safely out of the
way before closing the windows to
avoid injuries or vehicle damage.

05
5-65

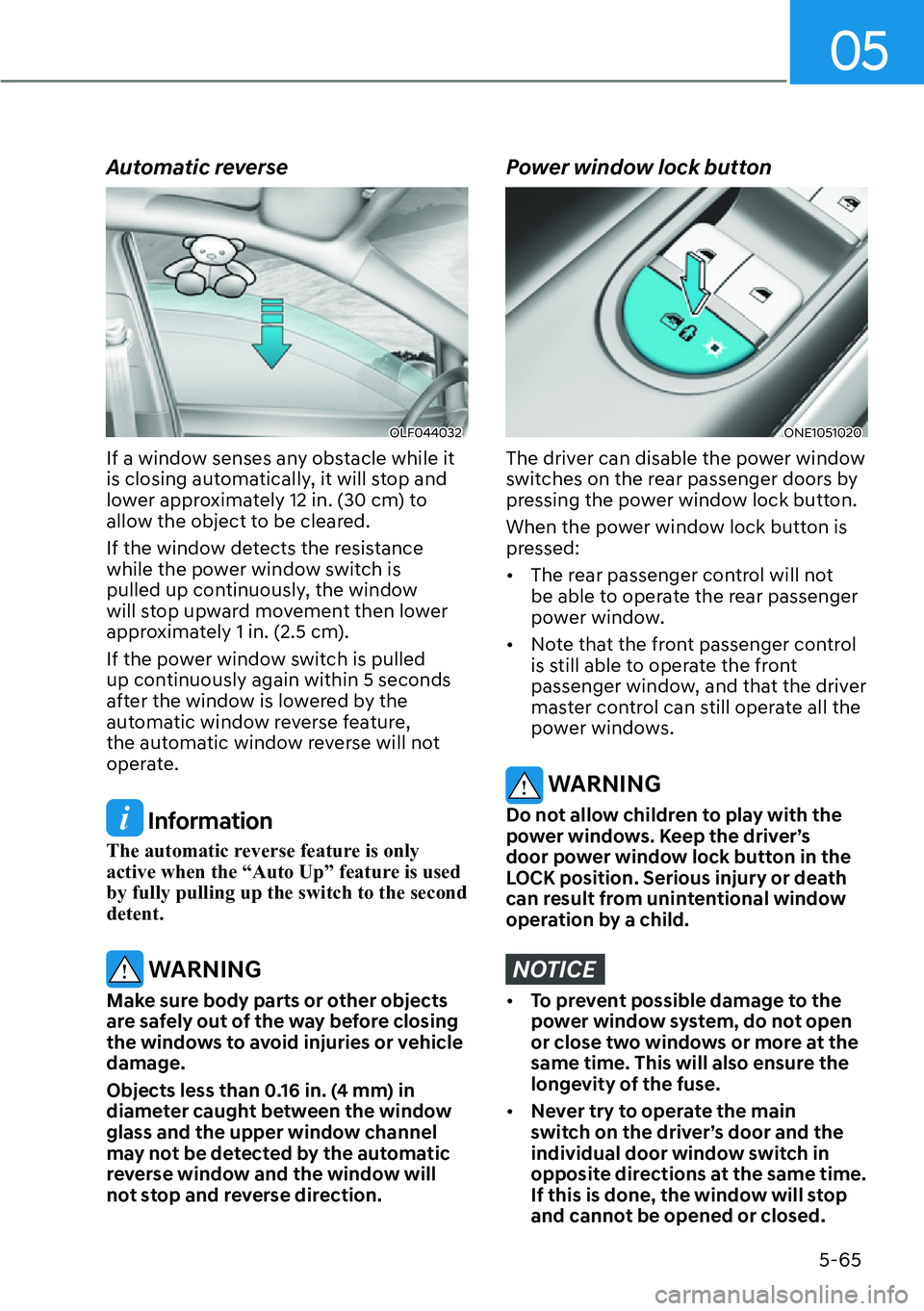

Automatic reverse
OLF044032
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 in. (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 in. (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
The automatic reverse feature is only
DFWLYHZKHQWKH

Convenience Features
5-66

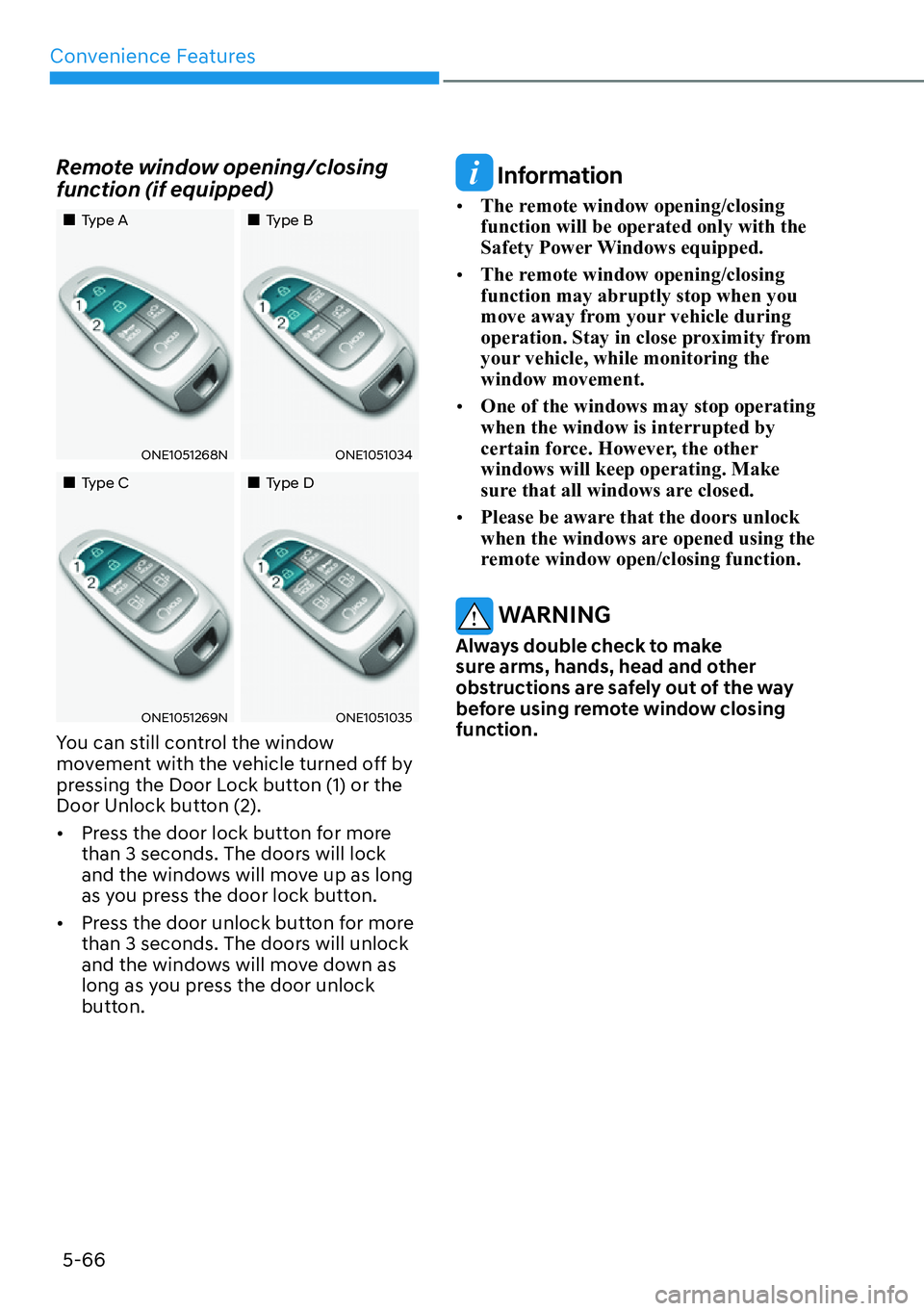

Remote window opening/closing
function (if equipped)
„Type A„Type B
ONE1051268NONE1051034
„Type C„Type D
ONE1051269NONE1051035
You can still control the window
movement with the vehicle turned off by
pressing the Door Lock button (1) or the
Door Unlock button (2).

[Press the door lock button for more
than 3 seconds. The doors will lock
and the windows will move up as long
as you press the door lock button.

[Press the door unlock button for more
than 3 seconds. The doors will unlock
and the windows will move down as
long as you press the door unlock
button.
Information

[The remote window opening/closing
function will be operated only with the
6DIHW\3RZHU:LQGRZVHTXLSSHG

[The remote window opening/closing
function may abruptly stop when you
move away from your vehicle during
operation. Stay in close proximity from
your vehicle, while monitoring the
window movement.

[One of the windows may stop operating
when the window is interrupted by
certain force. However, the other
ZLQGRZVZLOONHHSRSHUDWLQJ0DNH
sure that all windows are closed.

[3OHDVHEHDZDUHWKDWWKHGRRUVXQORFN
when the windows are opened using the
remote window open/closing function.
WARNING
Always double check to make
sure arms, hands, head and other
obstructions are safely out of the way
before using remote window closing
function.

05
5-67
ONE1051036

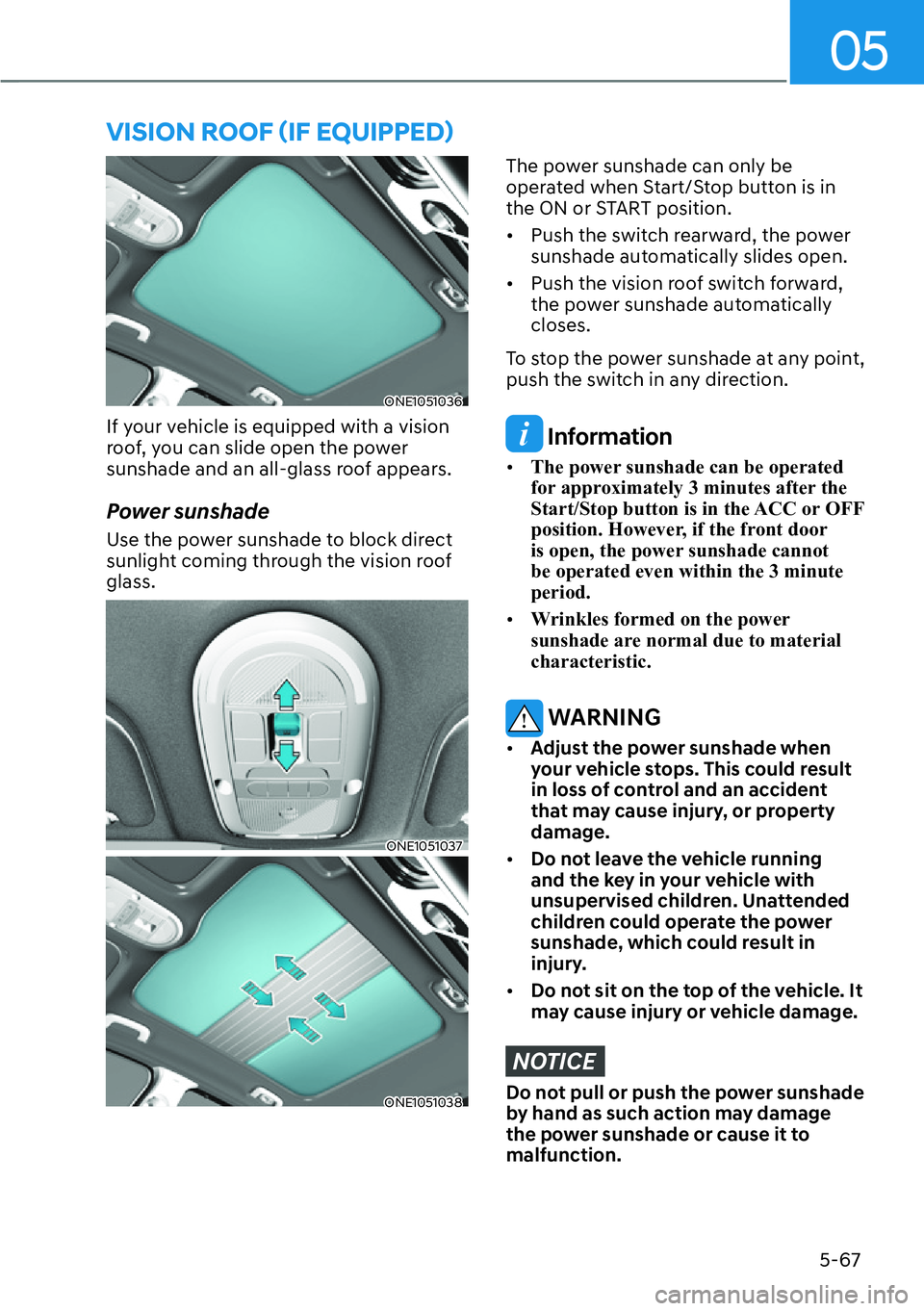

If your vehicle is equipped with a vision
roof, you can slide open the power
sunshade and an all-glass roof appears.
Power sunshade
Use the power sunshade to block direct
sunlight coming through the vision roof
glass.
ONE1051037
ONE1051038
The power sunshade can only be
operated when Start/Stop button is in
the ON or START position.

[Push the switch rearward, the power
sunshade automatically slides open.

[Push the vision roof switch forward,
the power sunshade automatically
closes.
To stop the power sunshade at any point,
push the switch in any direction.
Information

[The power sunshade can be operated
for approximately 3 minutes after the
Start/Stop button is in the ACC or OFF
position. However, if the front door
is open, the power sunshade cannot
be operated even within the 3 minute
period.

[:ULQNOHVIRUPHGRQWKHSRZHU
sunshade are normal due to material
characteristic.
WARNING

[Adjust the power sunshade when
your vehicle stops. This could result
in loss of control and an accident
that may cause injury, or property
damage.

[Do not leave the vehicle running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the power
sunshade, which could result in
injury.

[Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not pull or push the power sunshade
by hand as such action may damage
the power sunshade or cause it to
malfunction.
9,6,21522)

Convenience Features
5-68

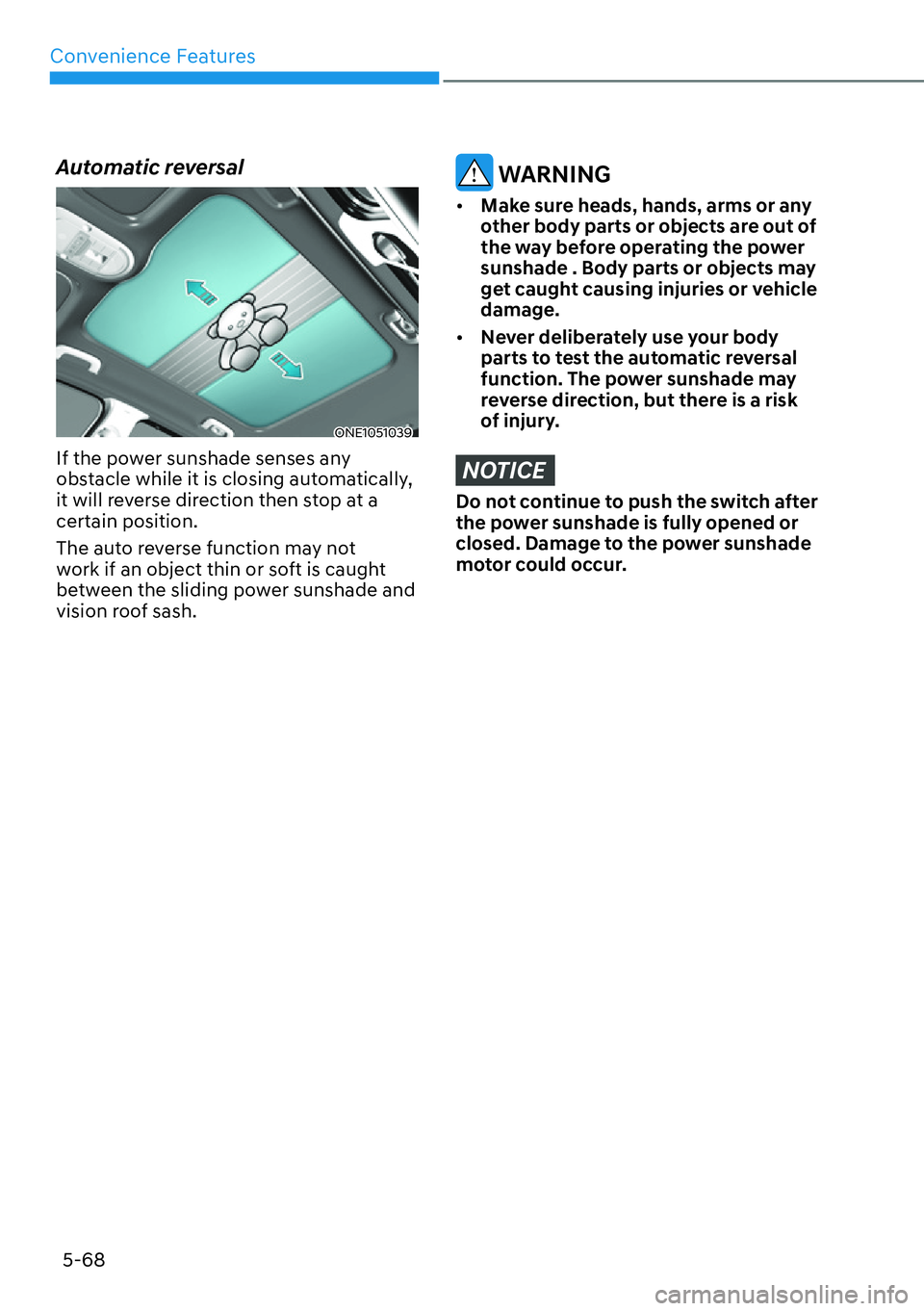

Automatic reversal
ONE1051039
If the power sunshade senses any
obstacle while it is closing automatically,
it will reverse direction then stop at a
certain position.
The auto reverse function may not
work if an object thin or soft is caught
between the sliding power sunshade and
vision roof sash.
WARNING

[Make sure heads, hands, arms or any
other body parts or objects are out of
the way before operating the power
sunshade . Body parts or objects may
get caught causing injuries or vehicle
damage.

[Never deliberately use your body
parts to test the automatic reversal
function. The power sunshade may
reverse direction, but there is a risk
of injury.
NOTICE
Do not continue to push the switch after
the power sunshade is fully opened or
closed. Damage to the power sunshade
motor could occur.
