1. Connect to the power outlet located
in bottom of the rear seat with the
Vehicle Stop/Start button in the ON
position.
ONE1Q011089
2. Use the smart key to unlock the power
outlet cover.
ONE1Q011090N
3. Check the operation status through
the front indicator of the power outlet.
- Blue: Standby
- Red: No power supply even the
power outlet is connected
- Green: Normal power supply
through the normal connection of
the power outlet.
Information
When the used power is exceeded due to
overload, the use of V2L is stopped and
the “V2L function is stopped due to excess
power“ message appears in the cluster.
Disconnect the electronic product to reset
the V2L and follow as below.
-After removing the outdoor V2L
connector, it can be used again by
reconnecting it.
-When using only indoor V2L with the
vehicle ON, if V2L is terminated due
to overload, it can be used only after
restarting.
Information

[V2L discharging mode will shut off if
the vehicle is off using indoor V2L on
the vehicle state of ON.

[Opening the charging door or
connecting the V2L connector to the
charging inlet, the V2L discharging
mode will shut off. If you want to
use the indoor and outdoor V2L
simultaneously, firstly connect the V2L
connector to the charging inlet and use
the indoor V2L.
CAUTION

[Be well-informed of the manual to
prevent accidents.

[The V2L discharging mode is
blocked automatically in case of
overheating. (When the discharging
mode is blocked, check whether
the V2L connector or power plug
is contaminated, worn, corroded
or broken or the home appliance
capacity is over 16 A. If the
temperature falls to proper level
after it is left unattended, you can
use it again. Use proper home
appliances.)

01
1-17

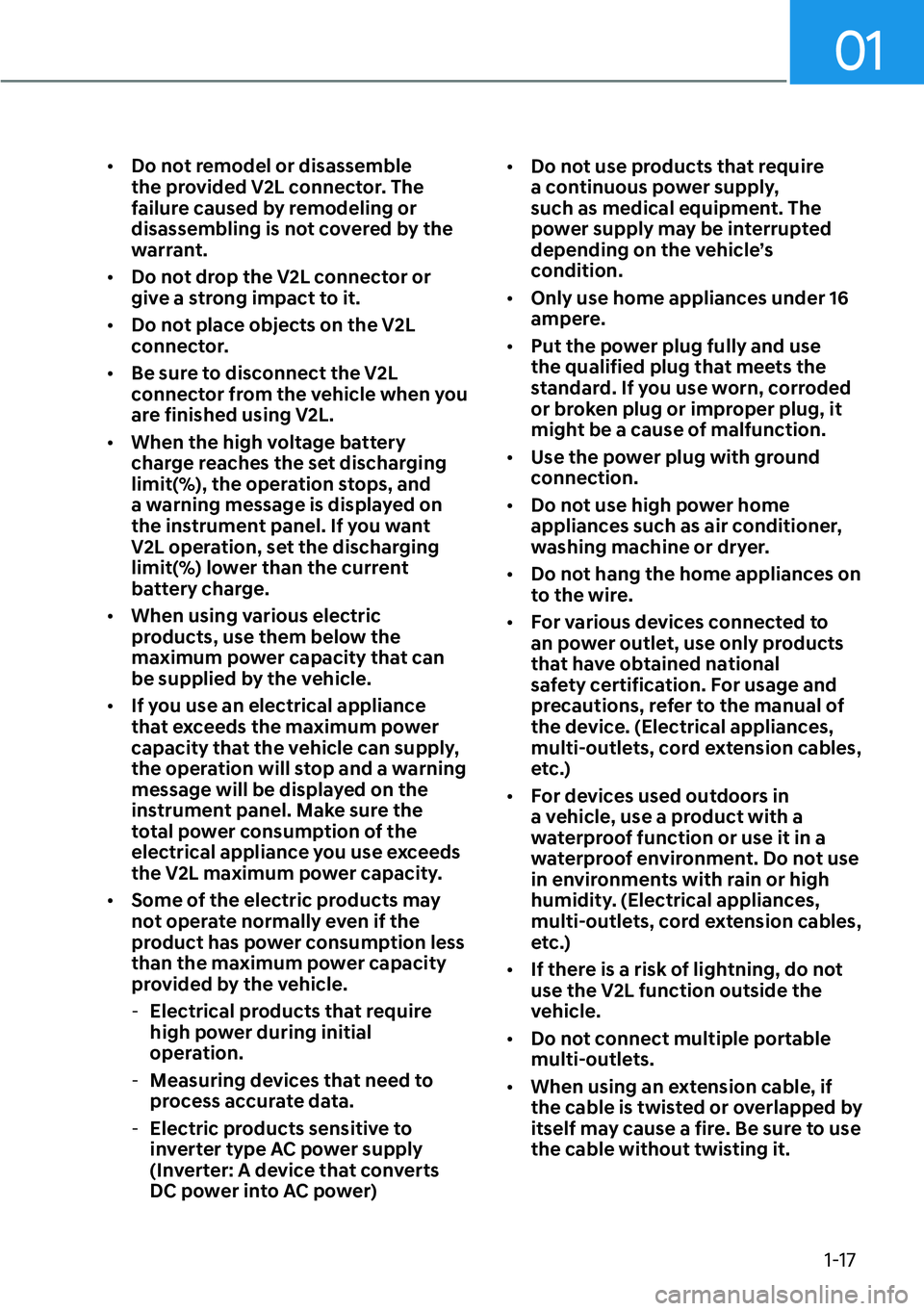

[Do not remodel or disassemble
the provided V2L connector. The
failure caused by remodeling or
disassembling is not covered by the
warrant.

[Do not drop the V2L connector or
give a strong impact to it.

[Do not place objects on the V2L
connector.

[Be sure to disconnect the V2L
connector from the vehicle when you
are finished using V2L.

[When the high voltage battery
charge reaches the set discharging
limit(%), the operation stops, and
a warning message is displayed on
the instrument panel. If you want
V2L operation, set the discharging
limit(%) lower than the current
battery charge.

[When using various electric
products, use them below the
maximum power capacity that can
be supplied by the vehicle.

[If you use an electrical appliance
that exceeds the maximum power
capacity that the vehicle can supply,
the operation will stop and a warning
message will be displayed on the
instrument panel. Make sure the
total power consumption of the
electrical appliance you use exceeds
the V2L maximum power capacity.

[Some of the electric products may
not operate normally even if the
product has power consumption less
than the maximum power capacity
provided by the vehicle.
-Electrical products that require
high power during initial
operation.
-Measuring devices that need to
process accurate data.
-Electric products sensitive to
inverter type AC power supply
(Inverter: A device that converts
DC power into AC power)
[Do not use products that require
a continuous power supply,
such as medical equipment. The
power supply may be interrupted
depending on the vehicle’s
condition.

[Only use home appliances under 16
ampere.

[Put the power plug fully and use
the qualified plug that meets the
standard. If you use worn, corroded
or broken plug or improper plug, it
might be a cause of malfunction.

[Use the power plug with ground
connection.

[Do not use high power home
appliances such as air conditioner,
washing machine or dryer.

[Do not hang the home appliances on
to the wire.

[For various devices connected to
an power outlet, use only products
that have obtained national
safety certification. For usage and
precautions, refer to the manual of
the device. (Electrical appliances,
multi-outlets, cord extension cables,
etc.)

[For devices used outdoors in
a vehicle, use a product with a
waterproof function or use it in a
waterproof environment. Do not use
in environments with rain or high
humidity. (Electrical appliances,
multi-outlets, cord extension cables,
etc.)

[If there is a risk of lightning, do not
use the V2L function outside the
vehicle.

[Do not connect multiple portable
multi-outlets.

[When using an extension cable, if
the cable is twisted or overlapped by
itself may cause a fire. Be sure to use
the cable without twisting it.

Foreword / Starting your Electric vehicle
1-18

[When using the vehicle’s outdoor
V2L connector, power is also
supplied to the vehicle’s indoor
power outlet. Unplug electrical
appliances that are not in use from
the indoor power outlet.

[When using the V2L, the cooling fan
in the vehicle motor compartment
can operate automatically even if the
vehicle is turned off. Do not put your
hand near the cooling fan in the V2L
operating state.
WARNING

[Do not touch the V2L connector of
the terminal of the vehicle charging
inlet.

[Do not put metal objects to the V2L
connector or charging inlet. It might
be a cause of electric shock.

[Do not touch the V2L connector,
charging inlet or power plug with
a wet hand. It might be a cause of
electric shock. Please handle with a
dry hand all the time.

[Confirm whether there is foreign
substance such as water or dust on
the V2L connector, charging inlet or
power plug before connecting. If you
connect it with foreign substances,
it may be a cause of fire or electric
shock.

[Do not remodel or disassemble the
V2L connector. There is a risk of fire,
electric shock or injury.

[When the power plug is connected or
disconnected to the V2L connector
or open or close the connector
cover of the V2L, be careful not to be
scratched on the hand.
[Do not charge in the following
conditions. The accident might
occur.
-The V2L connector, charging inlet,
power plug or cable is damaged,
corroded or rusted.
-The connection part is loose.

[Do not use if the sheath of home
appliance cables is damaged or
broken. There is a risk of fire, electric
shock or injury.

[Never use an electric heating
appliance like iron, coffee pot, and
toaster in the vehicle. It may cause a
fire and injury.
LCD display messages
ONE1Q011077L
V2L has ended. Battery level has reached
the set value
When the high voltage battery level
reaches the discharging limit set level,
the V2L will stop and the warning will
be displayed. If you want to use the V2L
continuously, make the discharging limit
set level lower than the present battery
level.

01
1-19

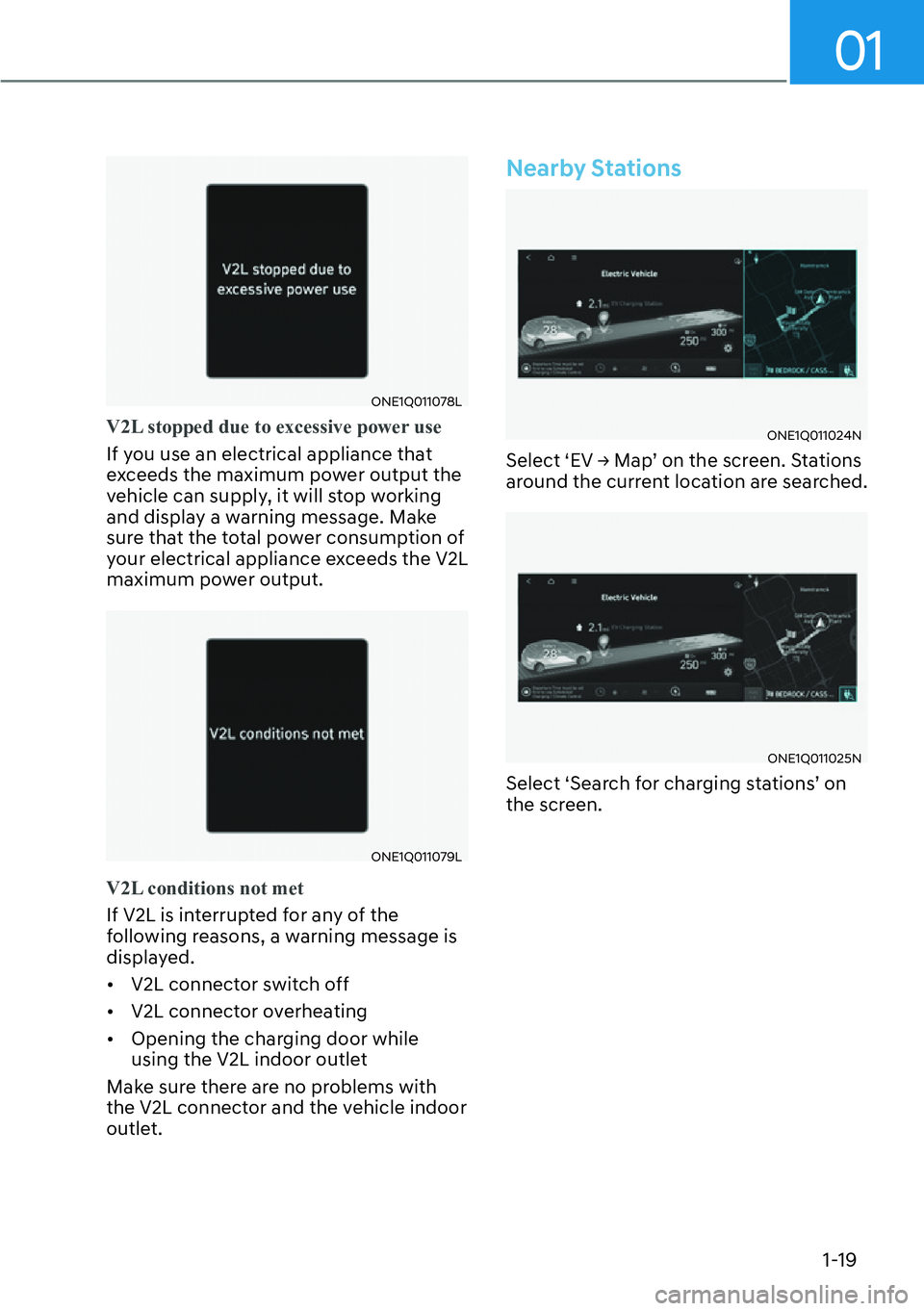

ONE1Q011078L
V2L stopped due to excessive power use
If you use an electrical appliance that
exceeds the maximum power output the
vehicle can supply, it will stop working
and display a warning message. Make
sure that the total power consumption of
your electrical appliance exceeds the V2L
maximum power output.
ONE1Q011079L
V2L conditions not met
If V2L is interrupted for any of the
following reasons, a warning message is
displayed.

[V2L connector switch off

[V2L connector overheating

[Opening the charging door while
using the V2L indoor outlet
Make sure there are no problems with
the V2L connector and the vehicle indoor
outlet.
Nearby Stations
ONE1Q011024N
6HOHFW
S(9

Foreword / Starting your Electric vehicle
1-20

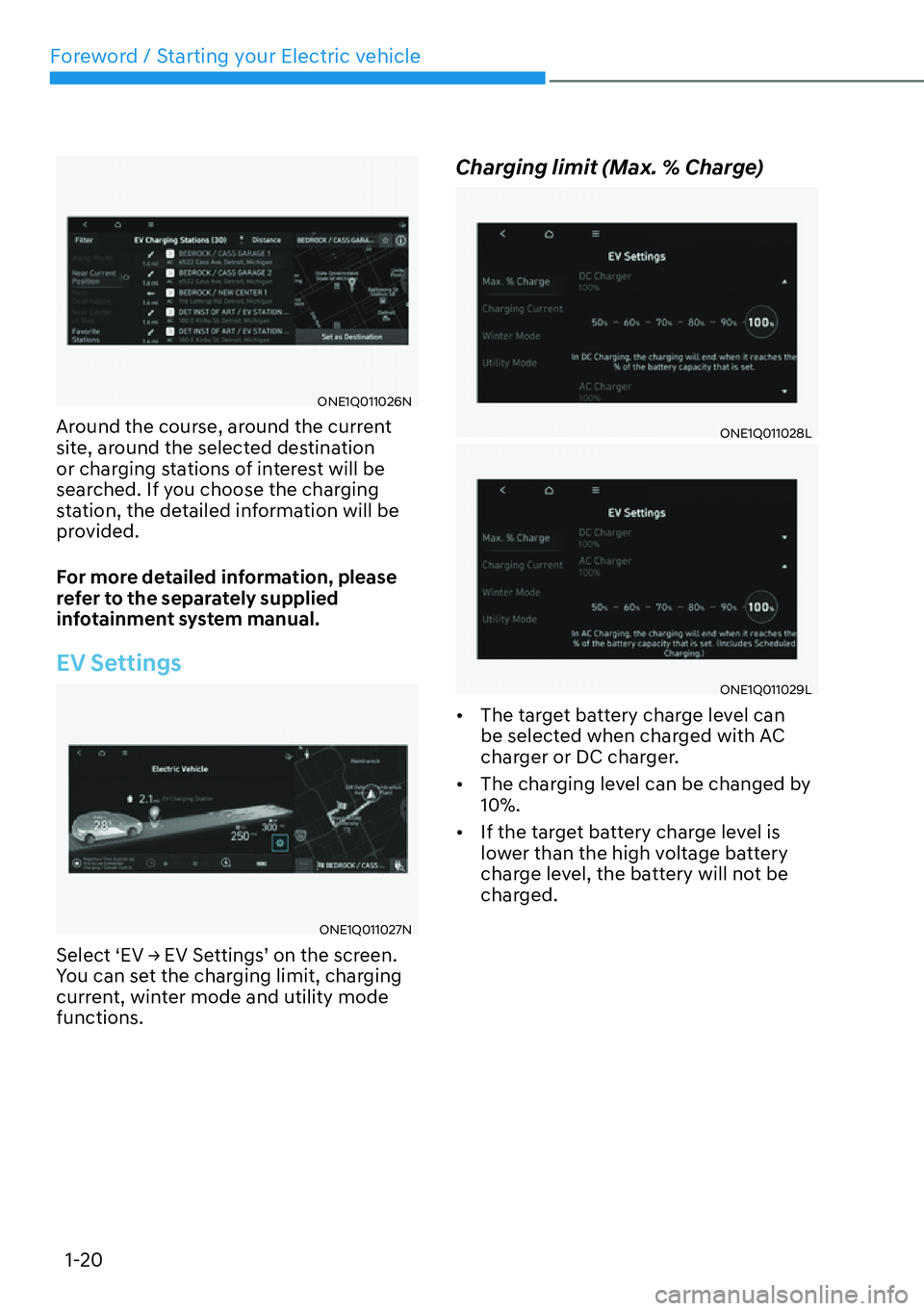

ONE1Q011026N
Around the course, around the current
site, around the selected destination
or charging stations of interest will be
searched. If you choose the charging
station, the detailed information will be
provided.
For more detailed information, please
refer to the separately supplied
infotainment system manual.
EV Settings
ONE1Q011027N
6HOHFW
S(9

01
1-21
Charging current
ONE1Q011030L

[You can adjust the charging
current for an AC charger. Select an
appropriate charging current.

[If the charging process does not
start or abruptly stops in the middle,
reselect another proper current and
re-try charging the vehicle.

[Charging time varies depending on
which charging current is selected.
Winter Mode
ONE1Q011031L
You can select or deselect the Winter
mode.
The Winter mode is efficient during
the winter time when the high voltage
battery temperature is low.
This mode is recommended to improve
driving and DC charging performances
during winter by raising the battery
temperature to an adequate level.
However, the driving distance may be
reduced as the energy is required to
increase battery temperature.
Also, if the battery temperature is low
during driving or when scheduled air
conditioner/heater is activated, this
mode is operated to improve driving
performance.
However, the mode is not operated to
ensure driving distance when the battery
level is low.
Information
This mode is available for the vehicles
equipped with the battery heater.

Foreword / Starting your Electric vehicle
1-22
Utility Mode
The high voltage battery is used instead
of the 12V auxiliary battery for operating
the convenient features of the vehicle.
When driving is not necessary such as
while camping or when stopping the
vehicle for a long time, it is possible to
use the electrical devices (audio, lights,
air conditioner, heater, etc.) for long
hours.

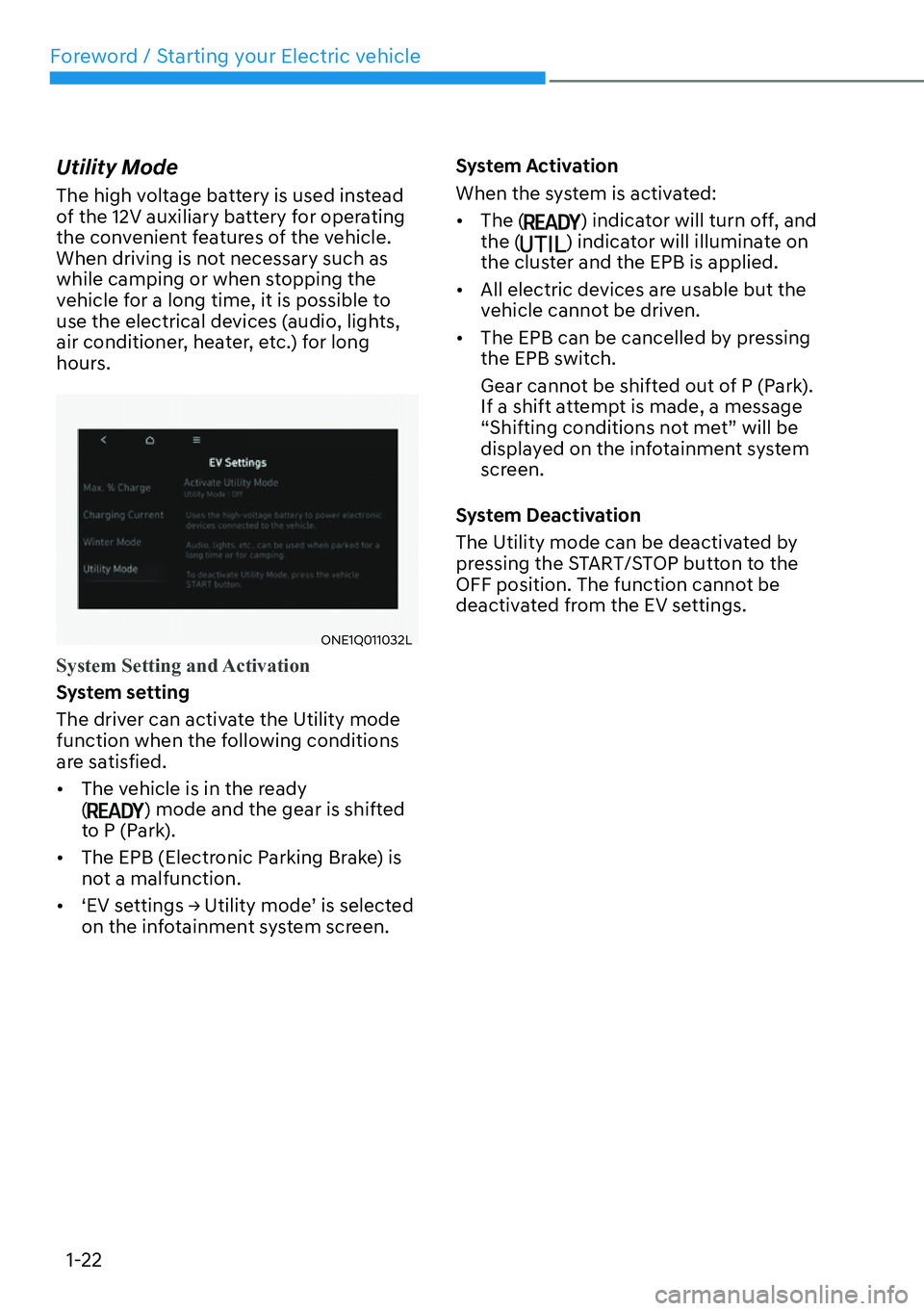

ONE1Q011032L
System Setting and Activation
System setting
The driver can activate the Utility mode
function when the following conditions
are satisfied.

[The vehicle is in the ready
(
) mode and the gear is shifted
to P (Park).

[The EPB (Electronic Parking Brake) is
not a malfunction.

[
S(9VHWWLQJV

01
1-23

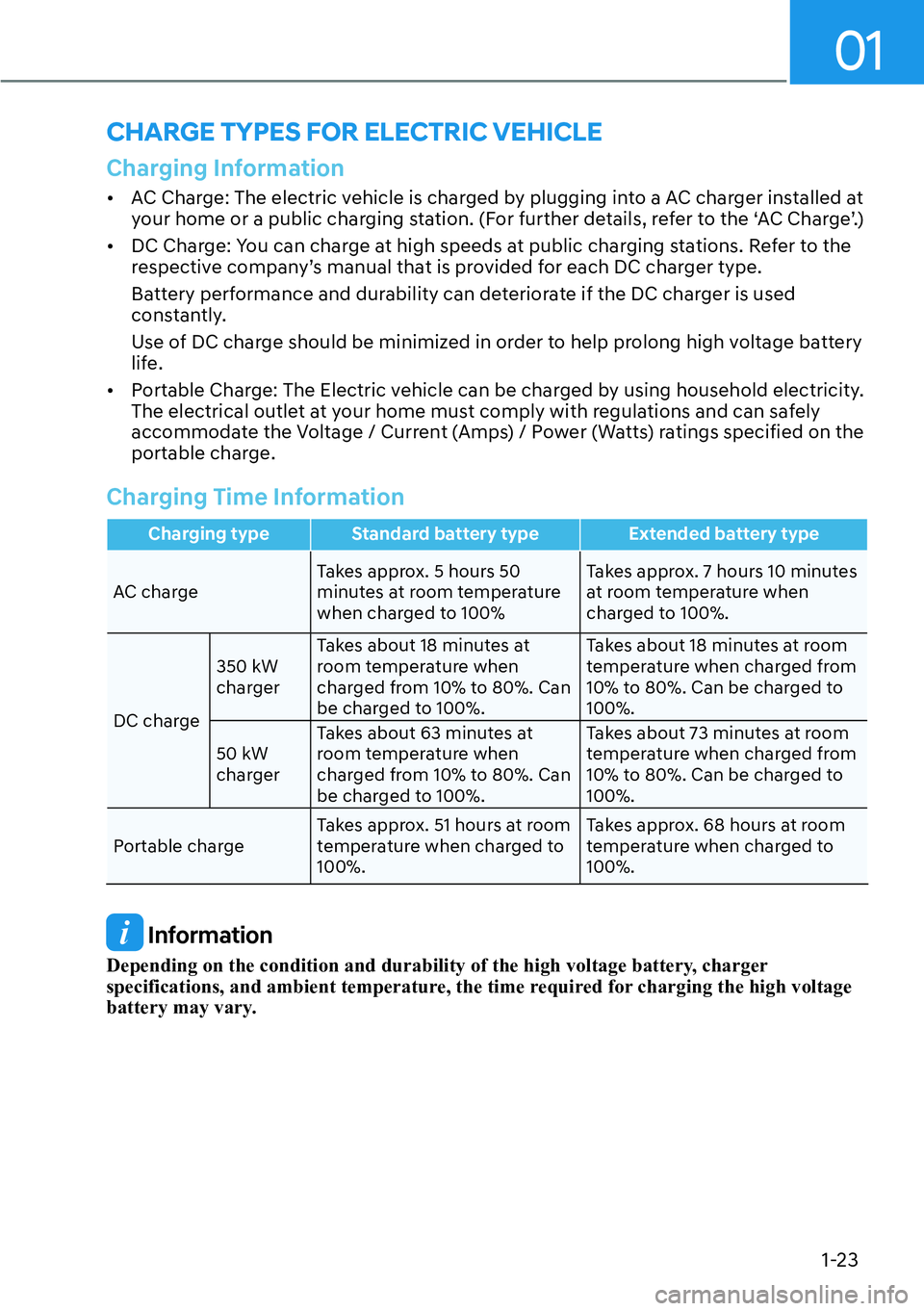

CHARGE TYPES FOR ELECTRIC VEHICLE
Charging Information

[AC Charge: The electric vehicle is charged by plugging into a AC charger installed at
your home or a public charging station. (For further details, refer to the ‘AC Charge’.)

[DC Charge: You can charge at high speeds at public charging stations. Refer to the
respective company’s manual that is provided for each DC charger type.
Battery performance and durability can deteriorate if the DC charger is used
constantly.
Use of DC charge should be minimized in order to help prolong high voltage battery
life.

[Portable Charge: The Electric vehicle can be charged by using household electricity.
The electrical outlet at your home must comply with regulations and can safely
accommodate the Voltage / Current (Amps) / Power (Watts) ratings specified on the
portable charge.
Charging Time Information
Charging type Standard battery type Extended battery type
AC chargeTakes approx. 5 hours 50
minutes at room temperature
when charged to 100%Takes approx. 7 hours 10 minutes
at room temperature when
charged to 100%.
DC charge350 kW
chargerTakes about 18 minutes at
room temperature when
charged from 10% to 80%. Can
be charged to 100%.Takes about 18 minutes at room
temperature when charged from
10% to 80%. Can be charged to
100%.
50 kW
chargerTakes about 63 minutes at
room temperature when
charged from 10% to 80%. Can
be charged to 100%.Takes about 73 minutes at room
temperature when charged from
10% to 80%. Can be charged to
100%.
Portable chargeTakes approx. 51 hours at room
temperature when charged to
100%.Takes approx. 68 hours at room
temperature when charged to
100%.
Information
<002700480053004800510047004c0051004a00030052005100030057004b004800030046005200510047004c0057004c005200510003004400510047000300470058005500440045004c004f004c0057005c00030052004900030057004b00480003004b00
4c004a004b000300590052004f00570044004a004800030045[attery, charger
specifications, and ambient temperature, the time required for charging the high voltage
battery may vary.

Foreword / Starting your Electric vehicle
1-24

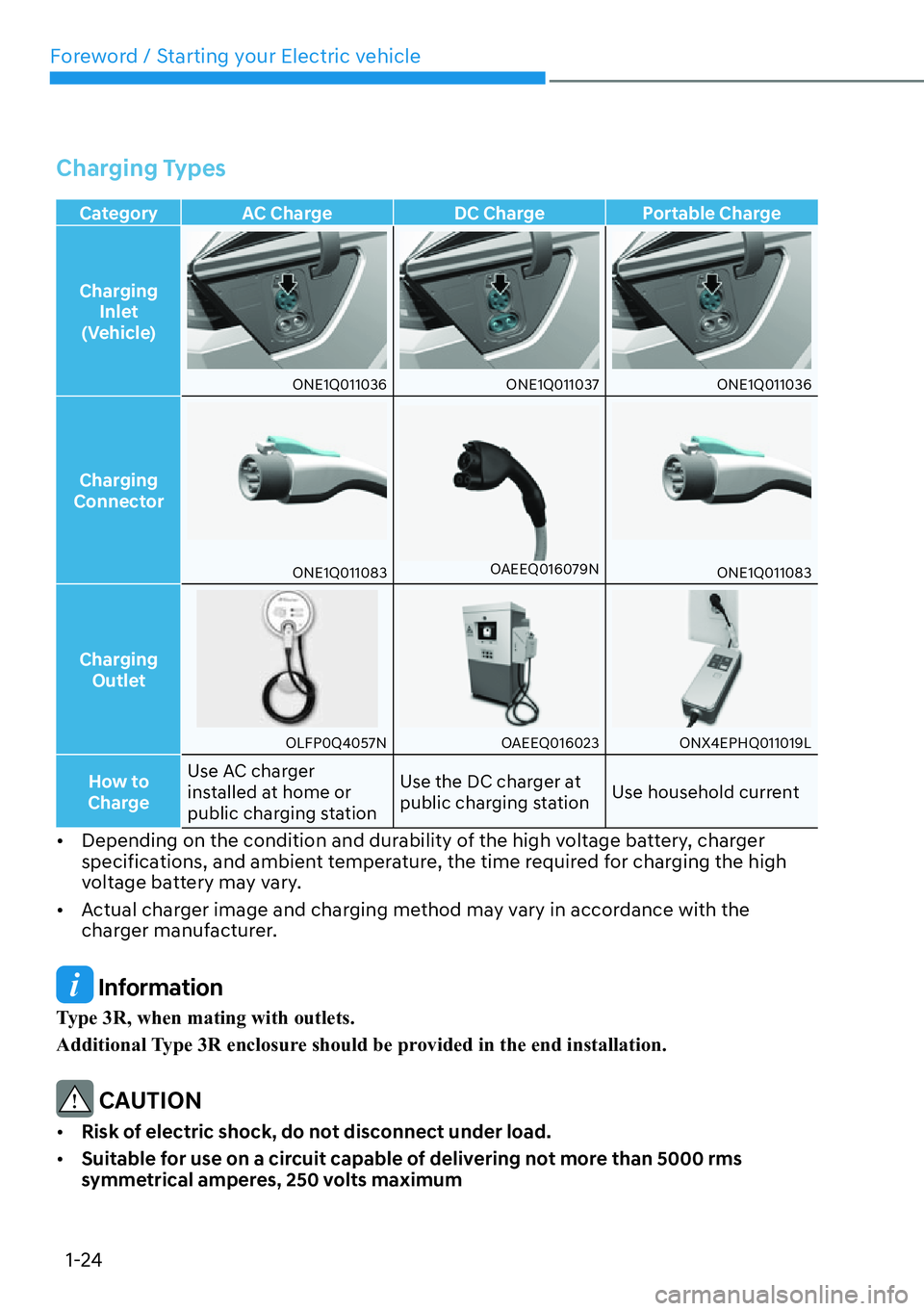

Charging Types
Category AC Charge DC Charge Portable Charge
Charging
Inlet
(Vehicle)
ONE1Q011036ONE1Q011037ONE1Q011036
Charging
Connector
ONE1Q011083OAEEQ016079NONE1Q011083
Charging
Outlet
OLFP0Q4057NOAEEQ016023ONX4EPHQ011019L
How to
ChargeUse AC charger
installed at home or
public charging stationUse the DC charger at
public charging stationUse household current

[Depending on the condition and durability of the high voltage battery, charger
specifications, and ambient temperature, the time required for charging the high
voltage battery may vary.

[Actual charger image and charging method may vary in accordance with the
charger manufacturer.
Information
Type 3R, when mating with outlets.
Additional Type 3R enclosure should be provided in the end installation.
CAUTION

[Risk of electric shock, do not disconnect under load.

[Suitable for use on a circuit capable of delivering not more than 5000 rms
symmetrical amperes, 250 volts maximum

01
1-25

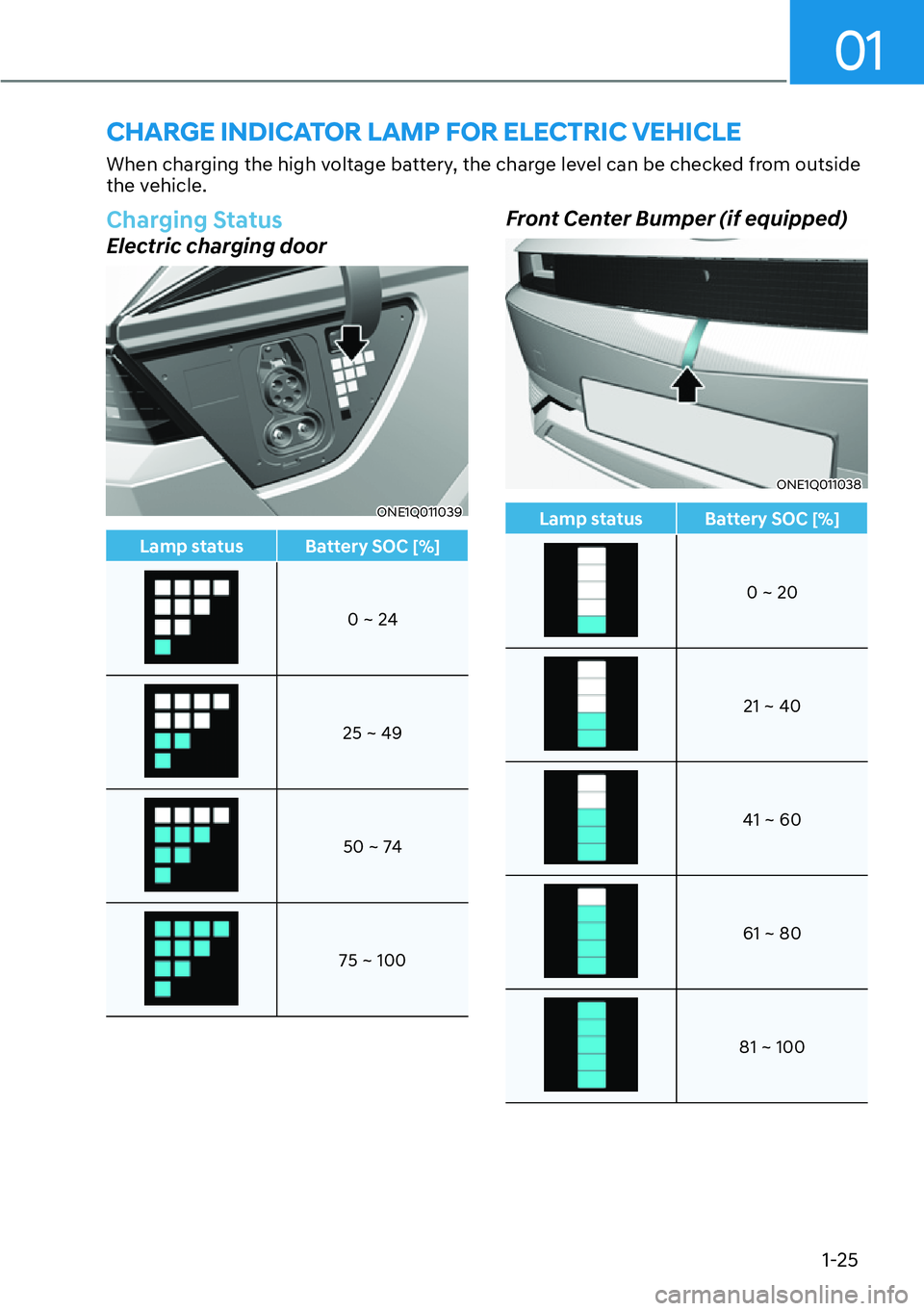

CHARGE INDICATOR LAMP FOR ELECTRIC VEHICLE
When charging the high voltage battery, the charge level can be checked from outside
the vehicle.
Charging Status
Electric charging door
ONE1Q011039
Lamp status Battery SOC [%]
0 ~ 24
25 ~ 49
50 ~ 74
75 ~ 100
Front Center Bumper (if equipped)
ONE1Q011038
Lamp status Battery SOC [%]
0 ~ 20
21 ~ 40
41 ~ 60
61 ~ 80
81 ~ 100
