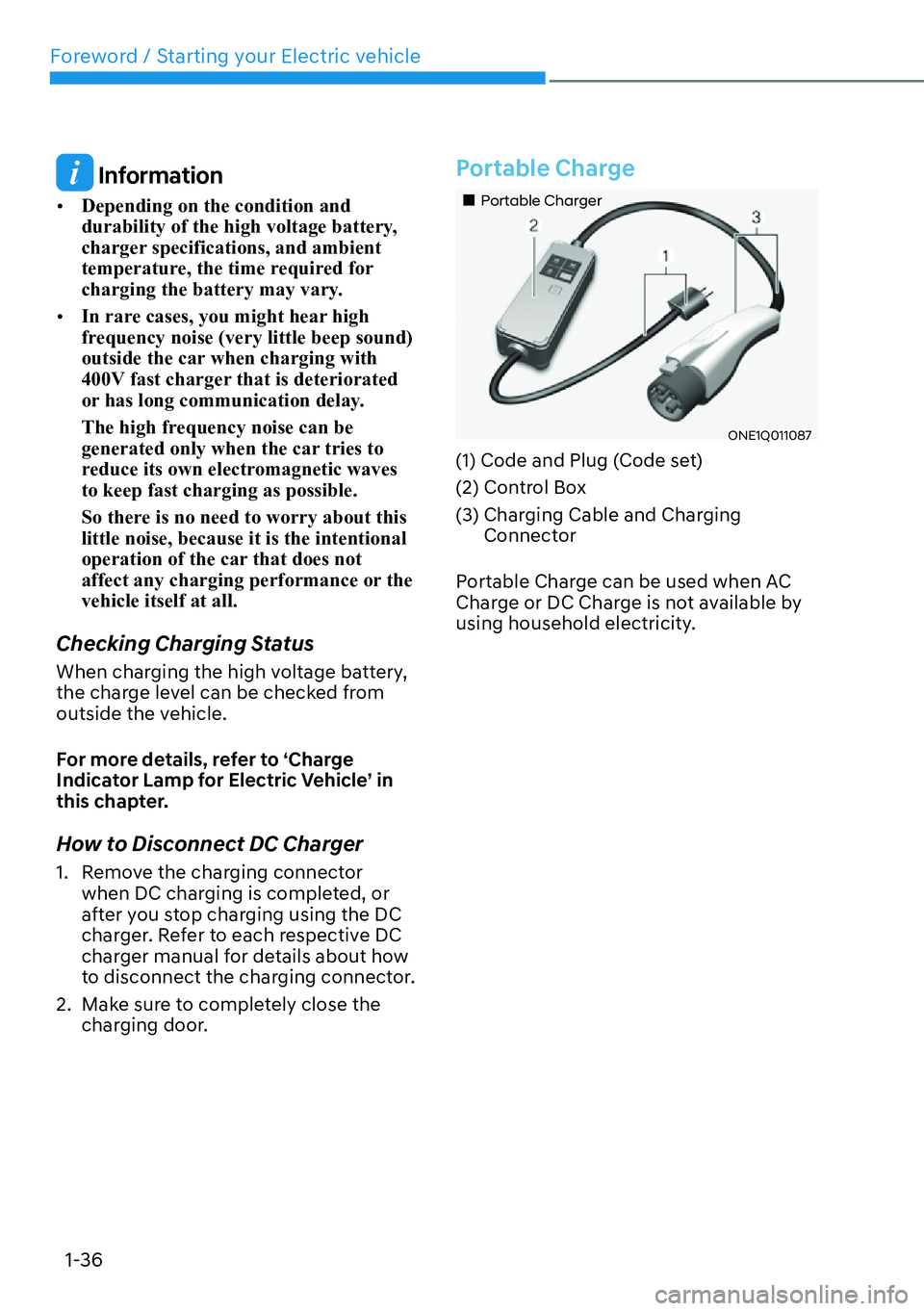

Page 41 of 663

HYUNDAI IONIQ 5 2022 Service Manual Foreword / Starting your Electric vehicle
1-36
 Information
[�Depending on the condition and
durability of the high voltage battery,
charger specifications, and ambient
temperature, the time requ

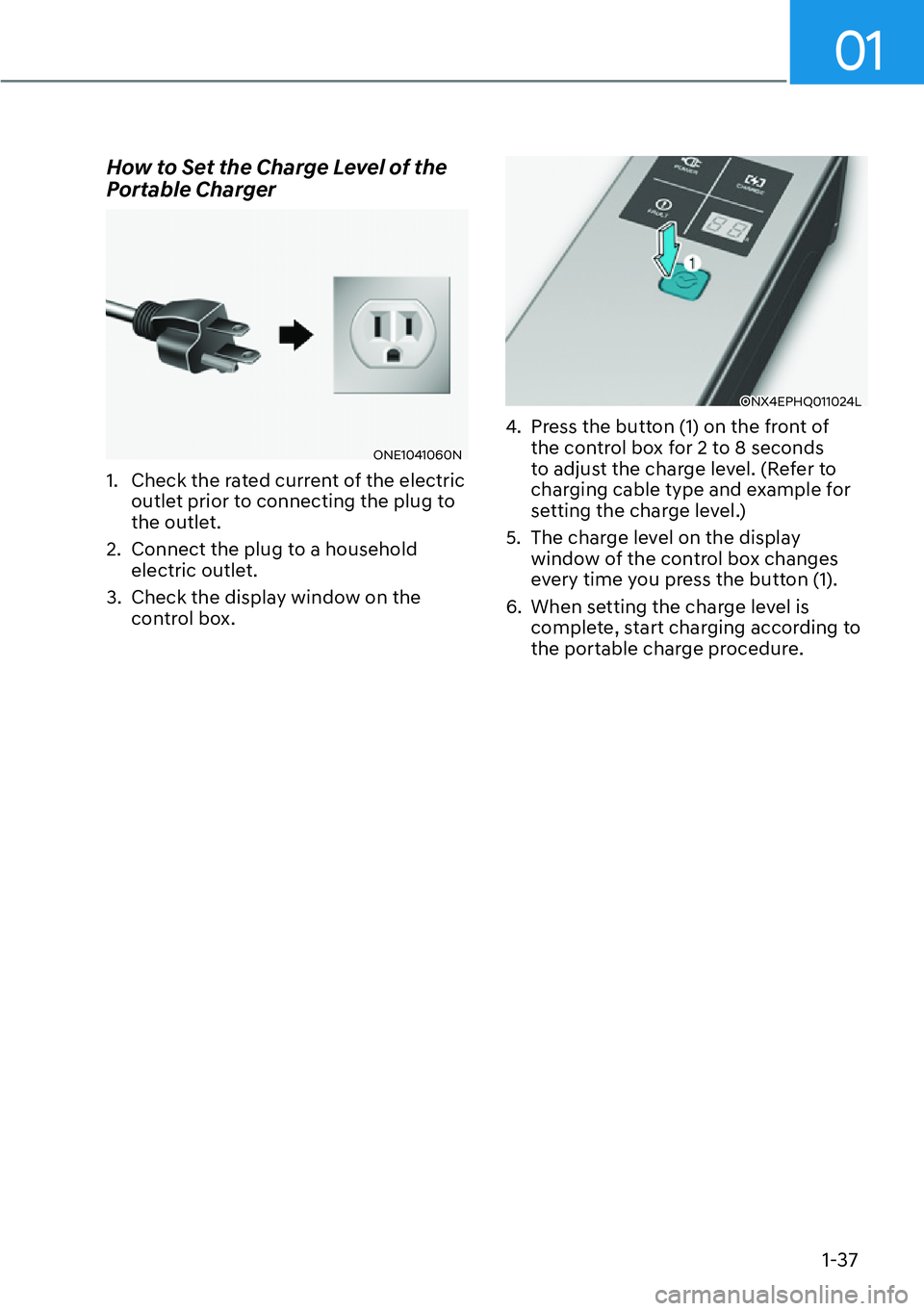

Page 42 of 663

HYUNDAI IONIQ 5 2022 Service Manual 01
1-37
How to Set the Charge Level of the
Portable Charger
ONE1041060N
1.  Check the rated current of the electric
outlet prior to connecting the plug to
the outlet.
2.  Connect the plug to a hou

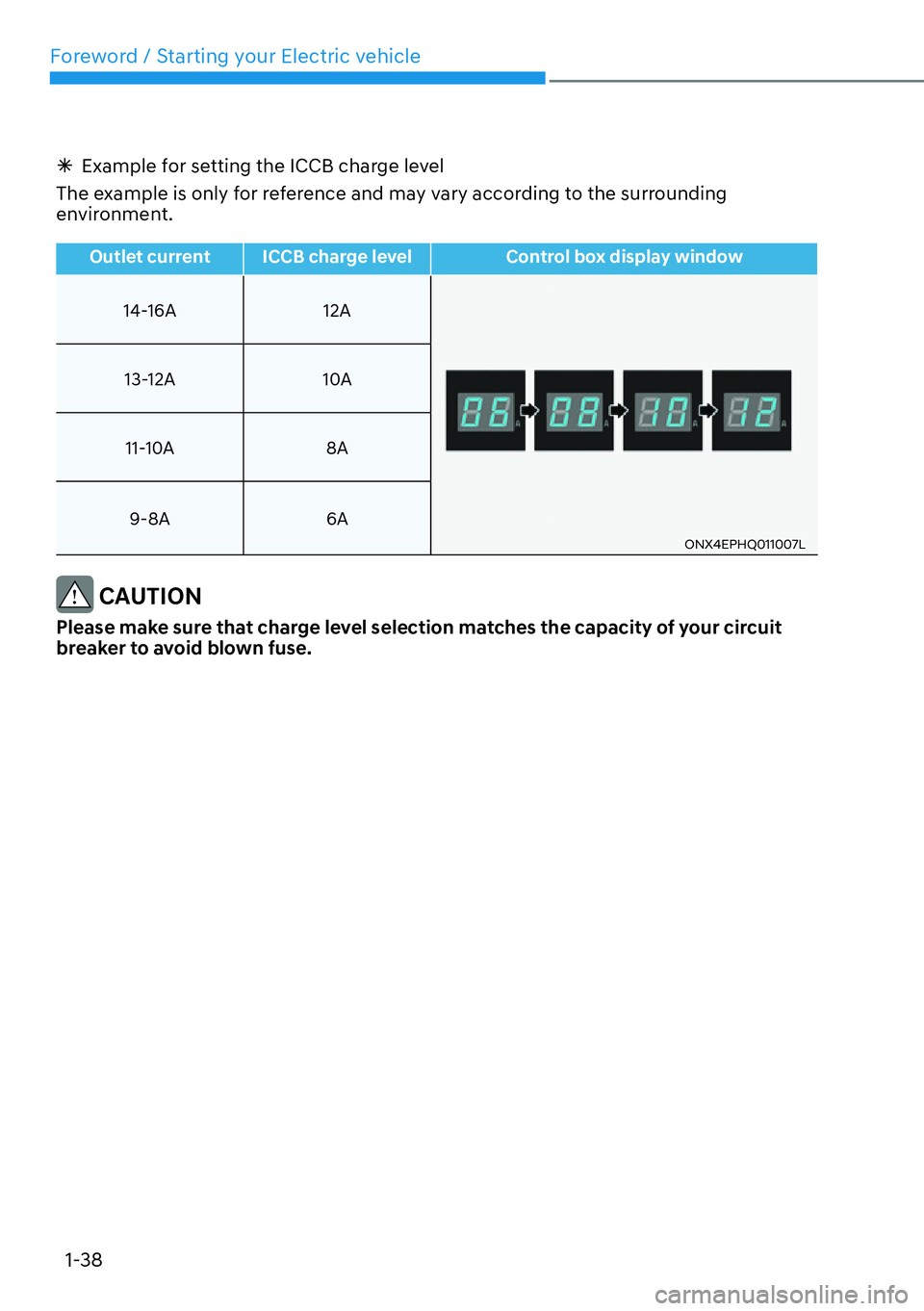

Page 43 of 663

HYUNDAI IONIQ 5 2022 Service Manual Foreword / Starting your Electric vehicle
1-38
  �ÃExample for setting the ICCB charge level
The example is only for reference and may vary according to the surrounding
environment.
Outlet current I

Page 44 of 663

HYUNDAI IONIQ 5 2022 Service Manual 01
1-39
How to Connect Portable Charger
(ICCB: In-Cable Control Box)
ONE1041060N
1.  Connect the plug to a household
electric outlet.
ONX4EPHQ011005L
2.  Check if the power lamp (green)
illuminate

Page 45 of 663

HYUNDAI IONIQ 5 2022 Service Manual Foreword / Starting your Electric vehicle
1-40
 Information
Locking Charging Cable
�6�H�O�H�F�W��

Page 46 of 663

HYUNDAI IONIQ 5 2022 Service Manual 01
1-41
 Information
To control the temperature of the high
voltage battery while charging, the air
conditioner is used to cool down the
battery. It may generate noise or vibration
from operation

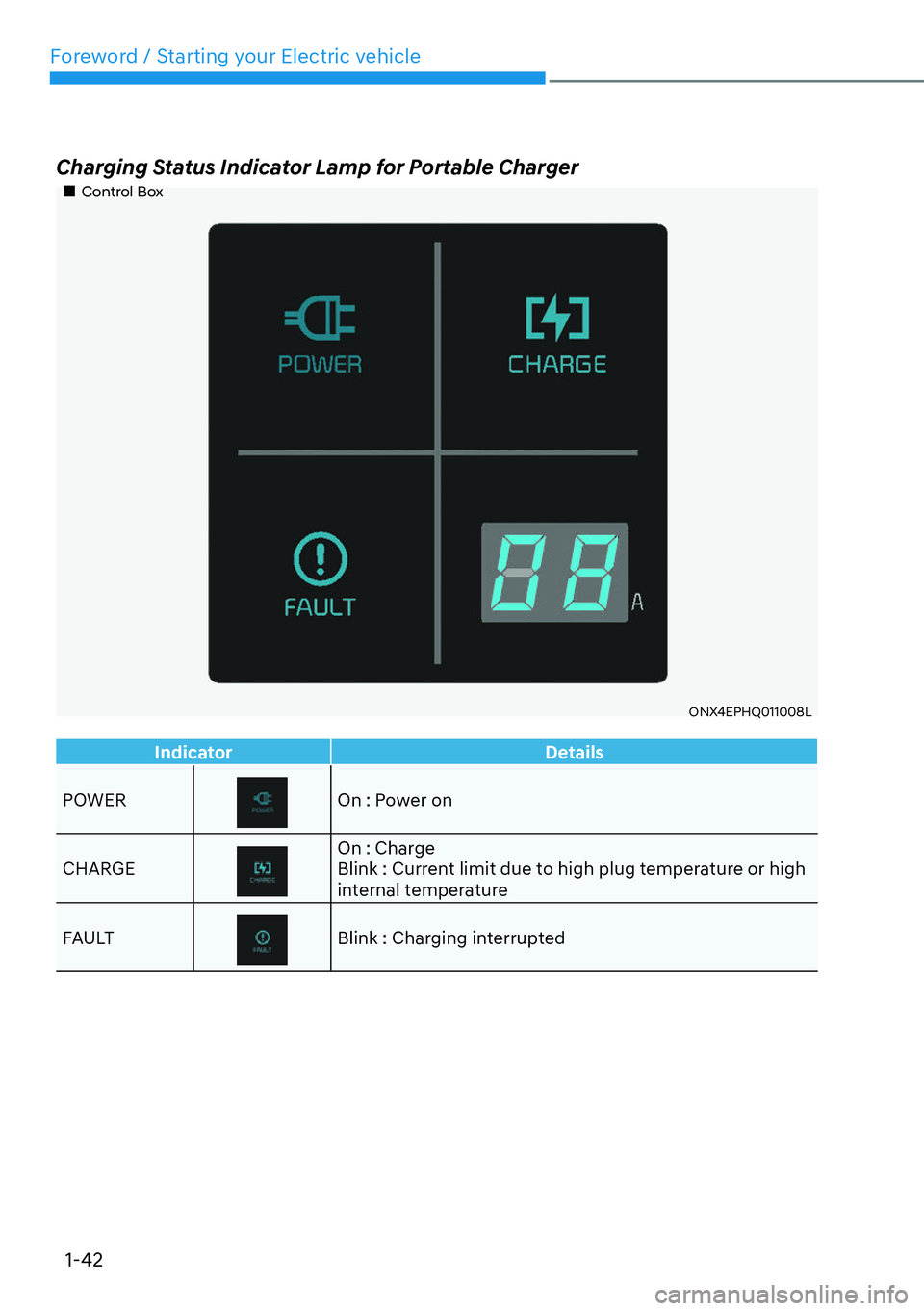

Page 47 of 663

HYUNDAI IONIQ 5 2022 Service Manual Foreword / Starting your Electric vehicle
1-42
Charging Status Indicator Lamp for Portable Charger
��„Control Box
ONX4EPHQ011008L
Indicator Details
POWEROn : Power on
CHARGE
On : Charge
Blink : Cur

Page 48 of 663

HYUNDAI IONIQ 5 2022 Service Manual 01
1-43
Indicator Details
Error code
On : Error while charging/ Error during self-diagnosis
Error code Item Cause
E1Control Pilot
communicationVehicle communication error
E2
LeakageCurrent leakage
E3

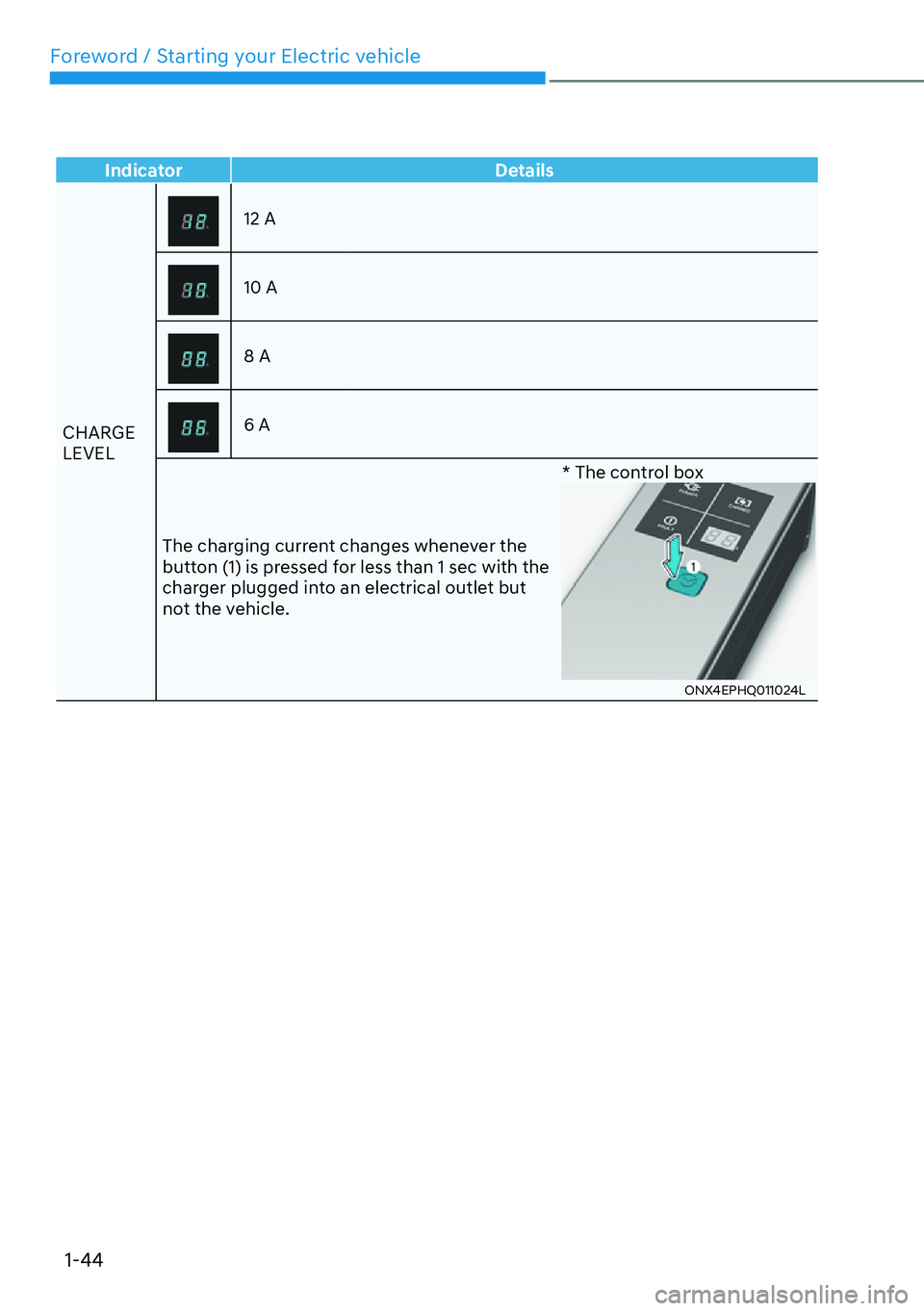

Page 49 of 663

HYUNDAI IONIQ 5 2022 Service Manual Foreword / Starting your Electric vehicle
1-44
Indicator Details
CHARGE
LEVEL
12 A
10 A
8 A
6 A
The charging current changes whenever the
button (1) is pressed for less than 1 sec with the
charger

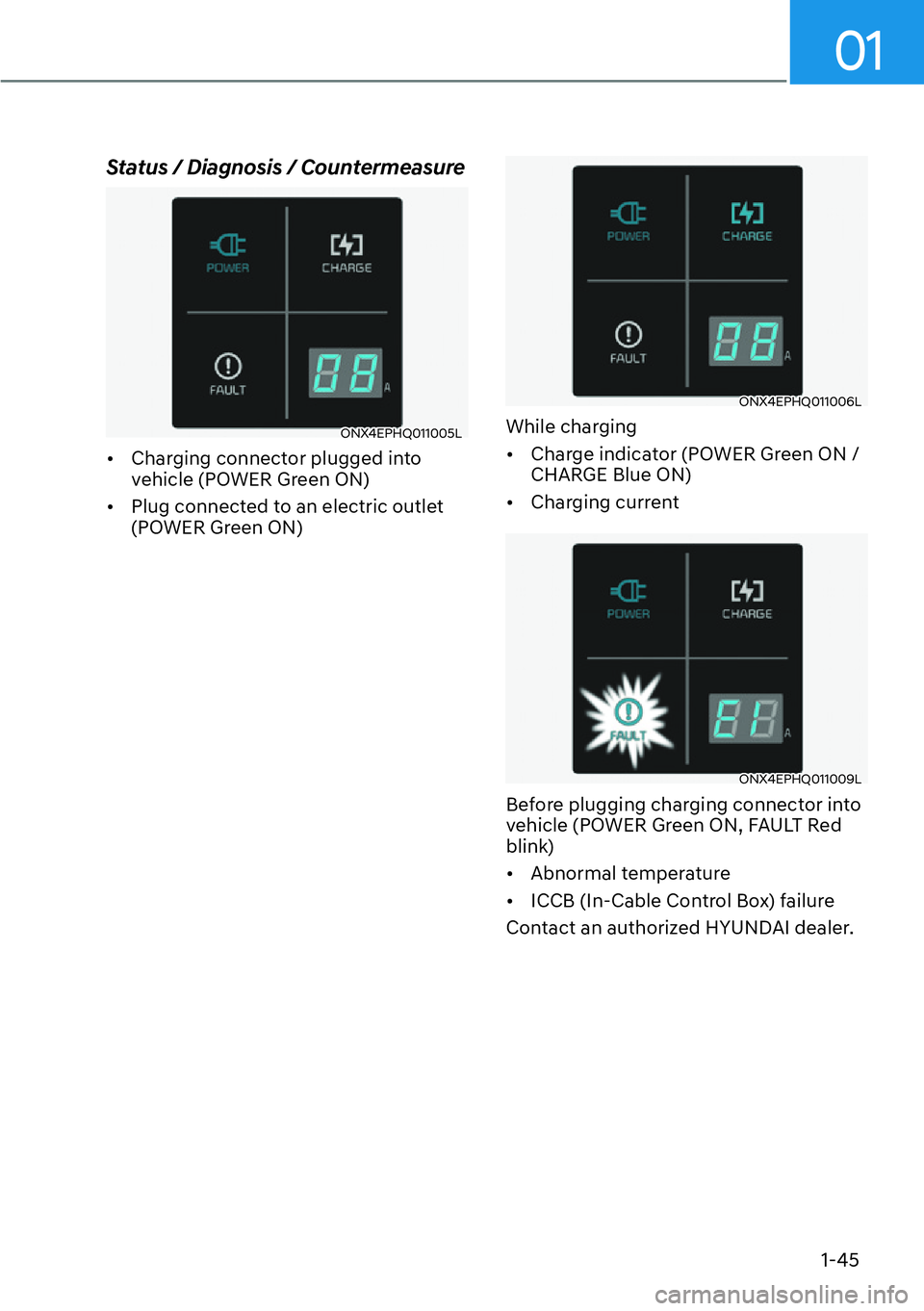

Page 50 of 663

HYUNDAI IONIQ 5 2022 Service Manual 01
1-45
Status / Diagnosis / Countermeasure
ONX4EPHQ011005L
[�Charging connector plugged into
vehicle (POWER Green ON)
[�Plug connected to an electric outlet
(POWER Green ON)
ONX4EPHQ011006L
Whi
