Page 391 of 663

HYUNDAI IONIQ 5 2022  Owners Manual Driving Your Vehicle
6-64

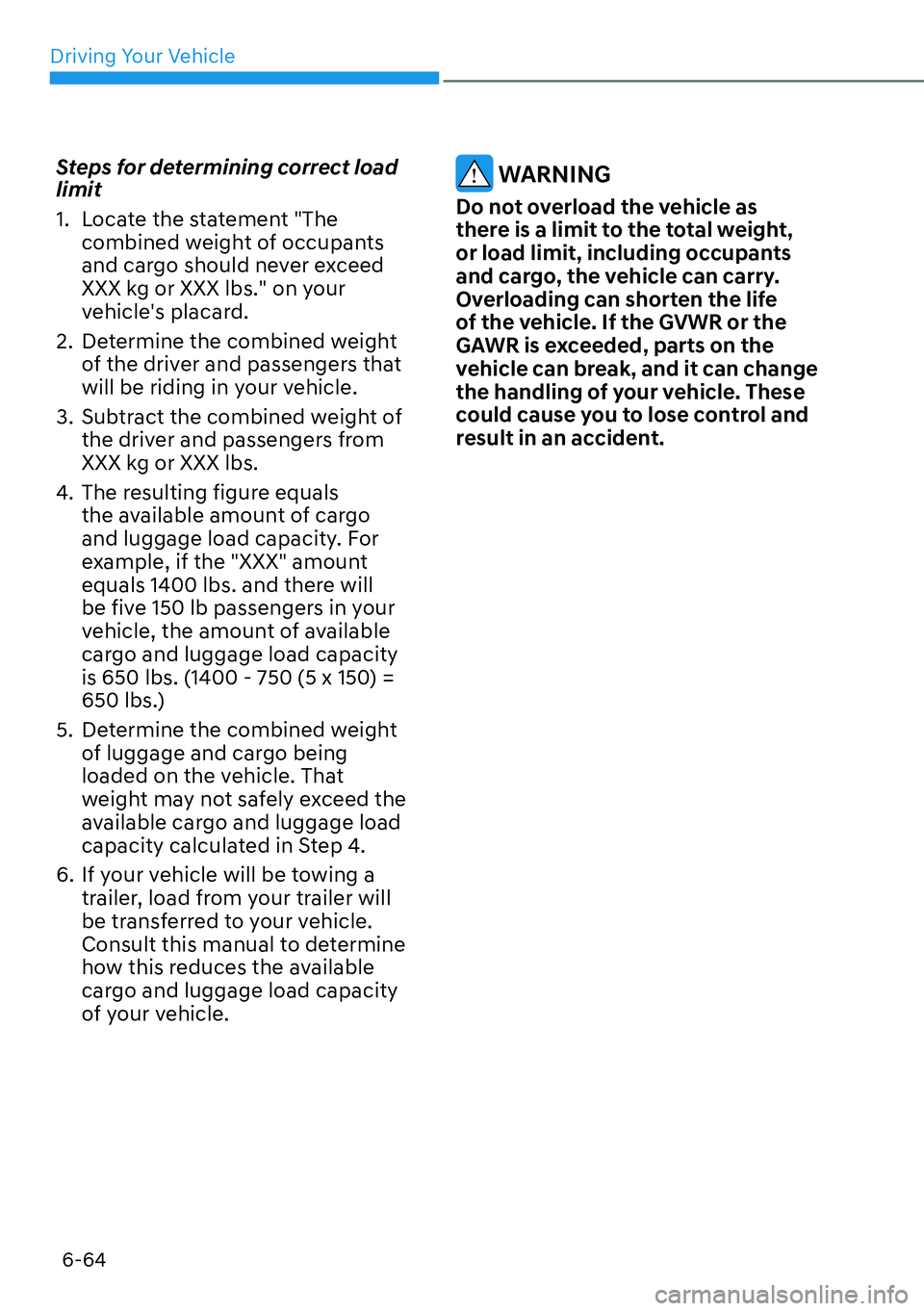

Steps for determining correct load
limit
1.  Locate the statement "The
combined weight of occupants
and cargo should never exceed
XXX kg or XXX lbs." on your
vehicles p

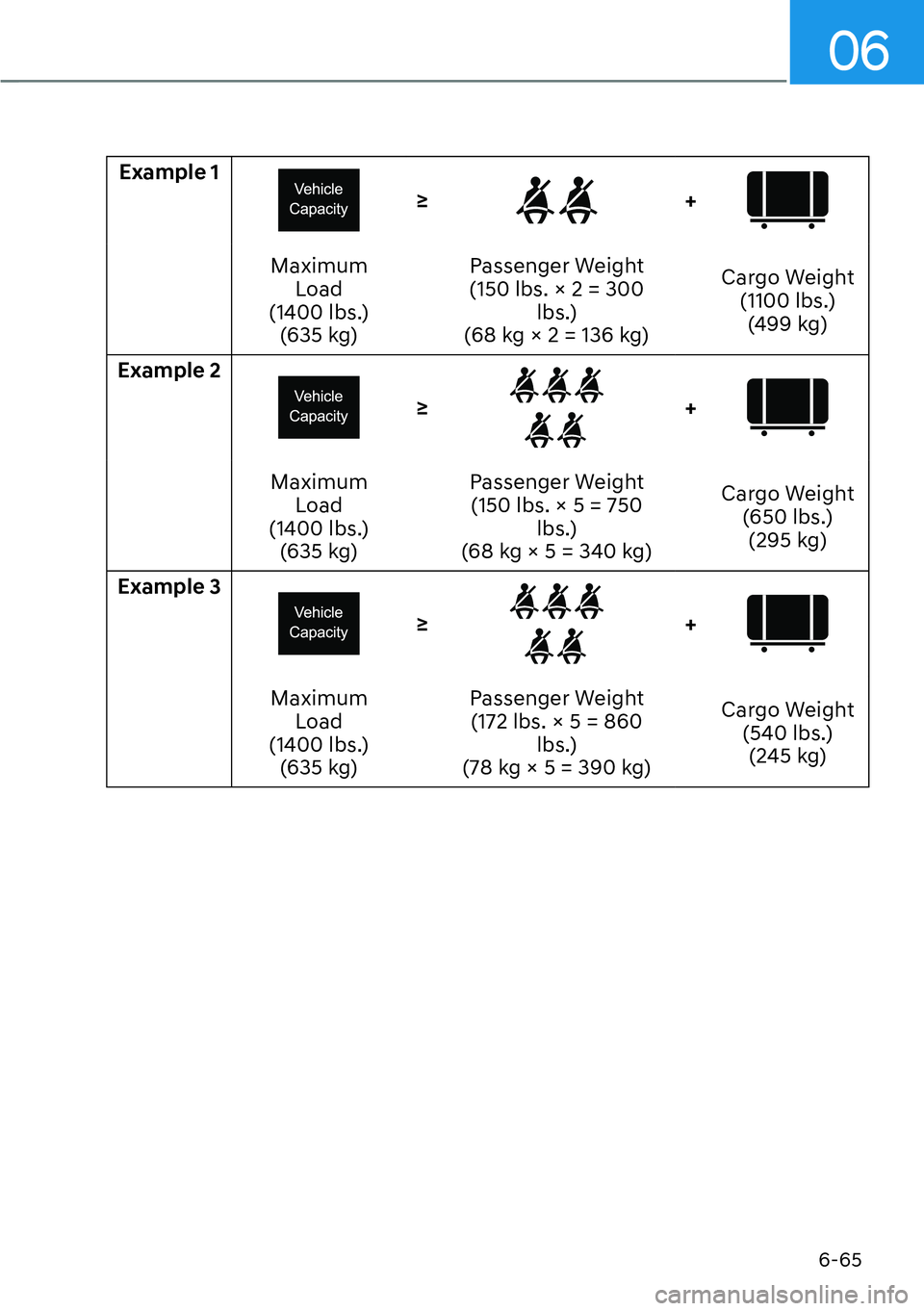

Page 392 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 06
6-65
Example 1
g+
Maximum
Load
(1400 lbs.)
(635 kg)Passenger Weight
(150 lbs. × 2 = 300
lbs.)
(68 kg × 2 = 136 kg)Cargo Weight
(1100 lbs.)
(499 kg)
Example 2
g+
Maximum
Load
(1400 lbs.)
(63

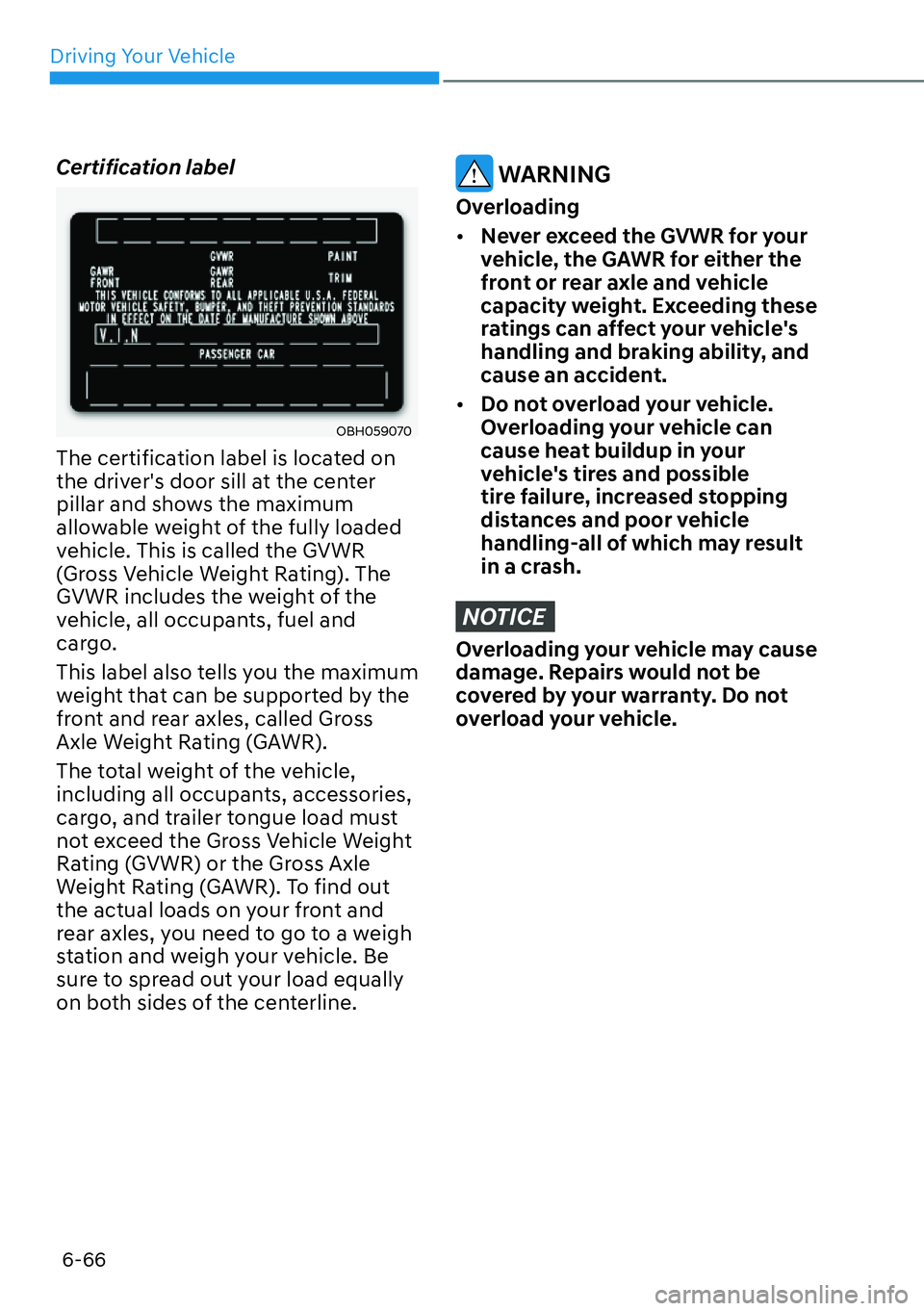

Page 393 of 663

HYUNDAI IONIQ 5 2022  Owners Manual Driving Your Vehicle
6-66
Certification label
OBH059070
The certification label is located on
the drivers door sill at the center
pillar and shows the maximum
allowable weight of the fully loaded

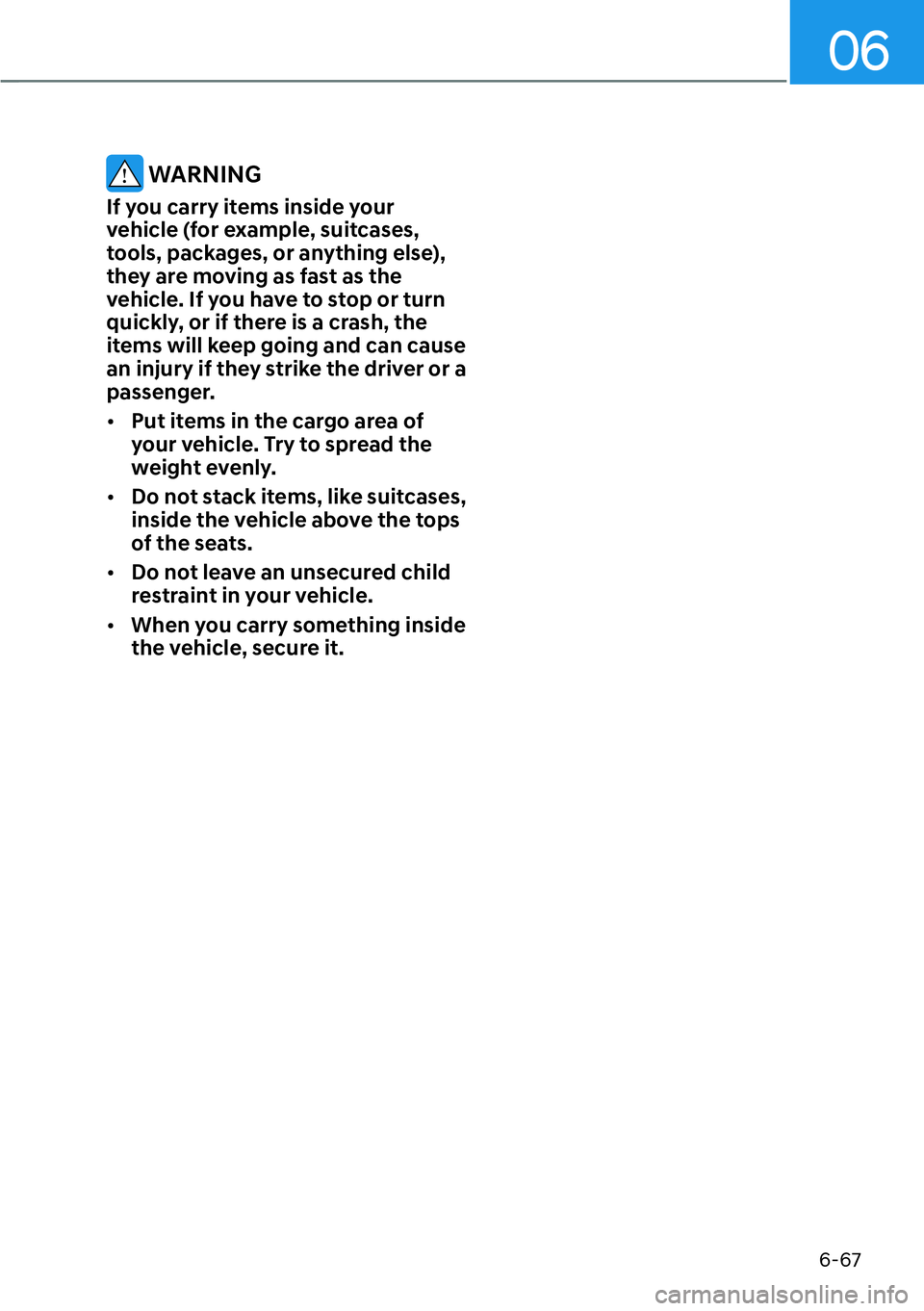

Page 394 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 06
6-67
 WARNING
If you carry items inside your
vehicle (for example, suitcases,
tools, packages, or anything else),
they are moving as fast as the
vehicle. If you have to stop or turn
quickly, o

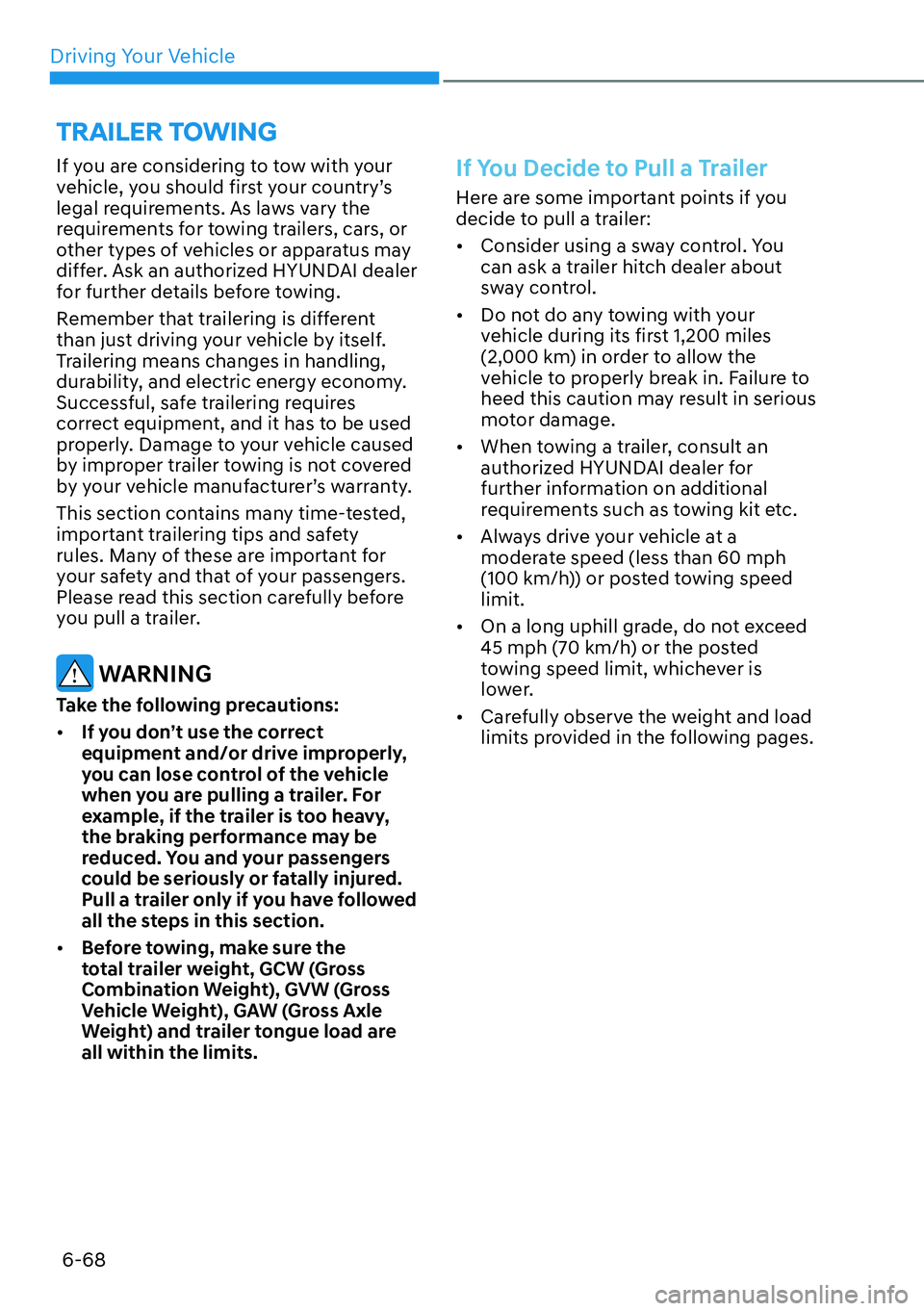

Page 395 of 663

HYUNDAI IONIQ 5 2022  Owners Manual Driving Your Vehicle
6-68
If you are considering to tow with your
vehicle, you should first your country’s
legal requirements. As laws vary the
requirements for towing trailers, cars, or
other t

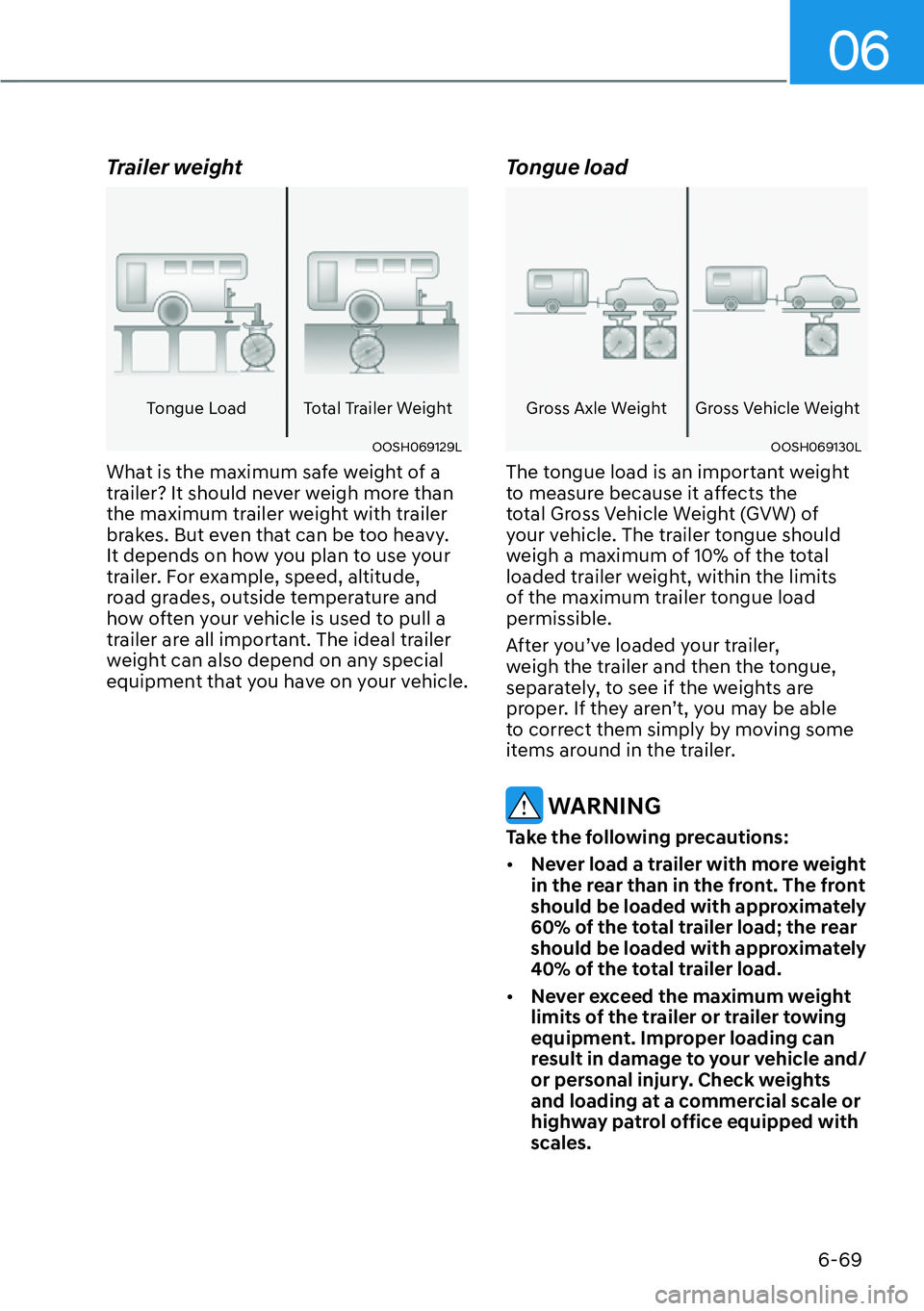

Page 396 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 06
6-69
Trailer weight
Tongue Load Total Trailer Weight
OOSH069129L
What is the maximum safe weight of a
trailer? It should never weigh more than
the maximum trailer weight with trailer
brakes. But

Page 397 of 663

HYUNDAI IONIQ 5 2022  Owners Manual Driving Your Vehicle
6-70

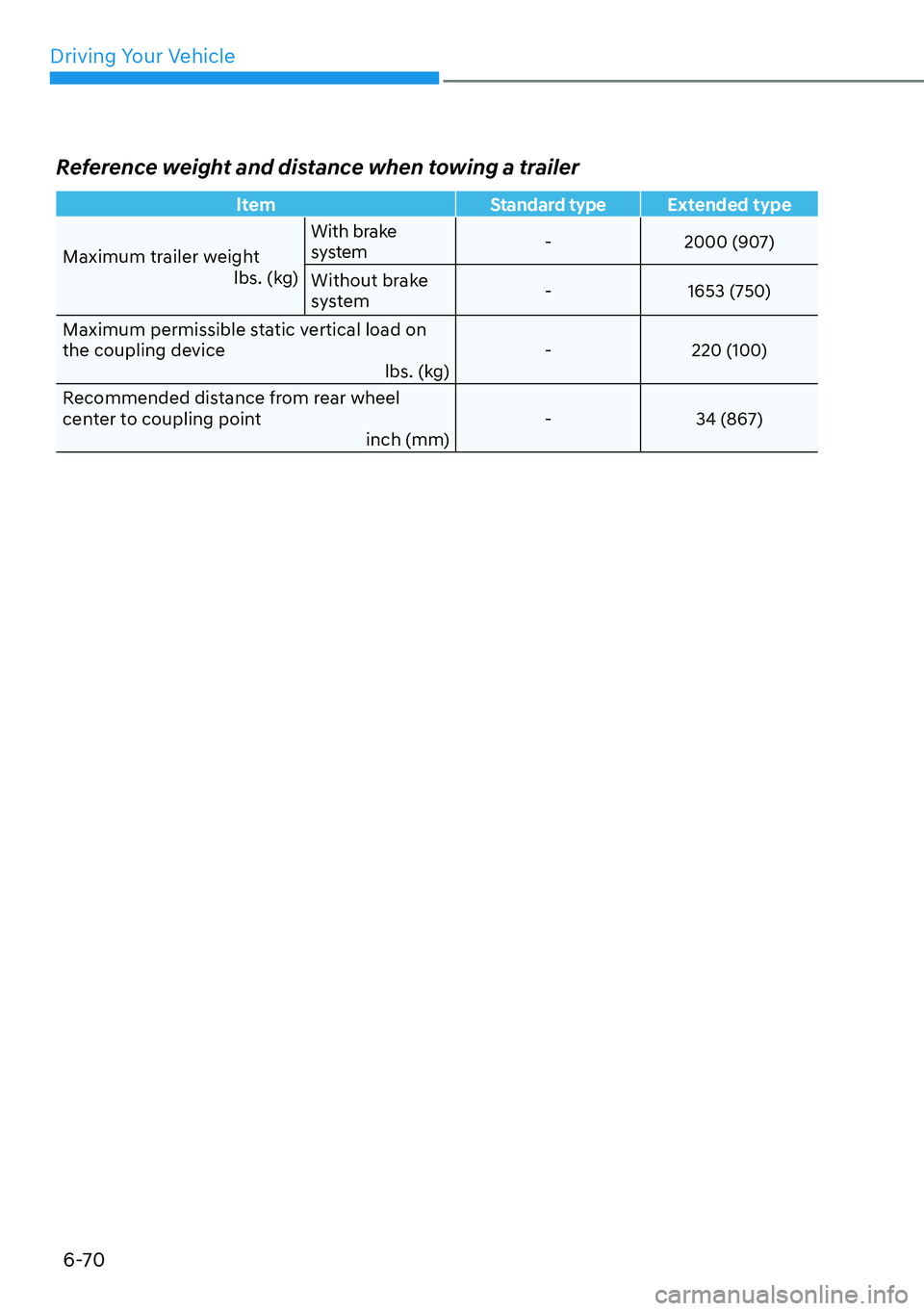

Reference weight and distance when towing a trailer
ltem Standard type Extended type
Maximum trailer weight
lbs. (kg)With brake
system- 2000 (907)
Without brake
system- 165

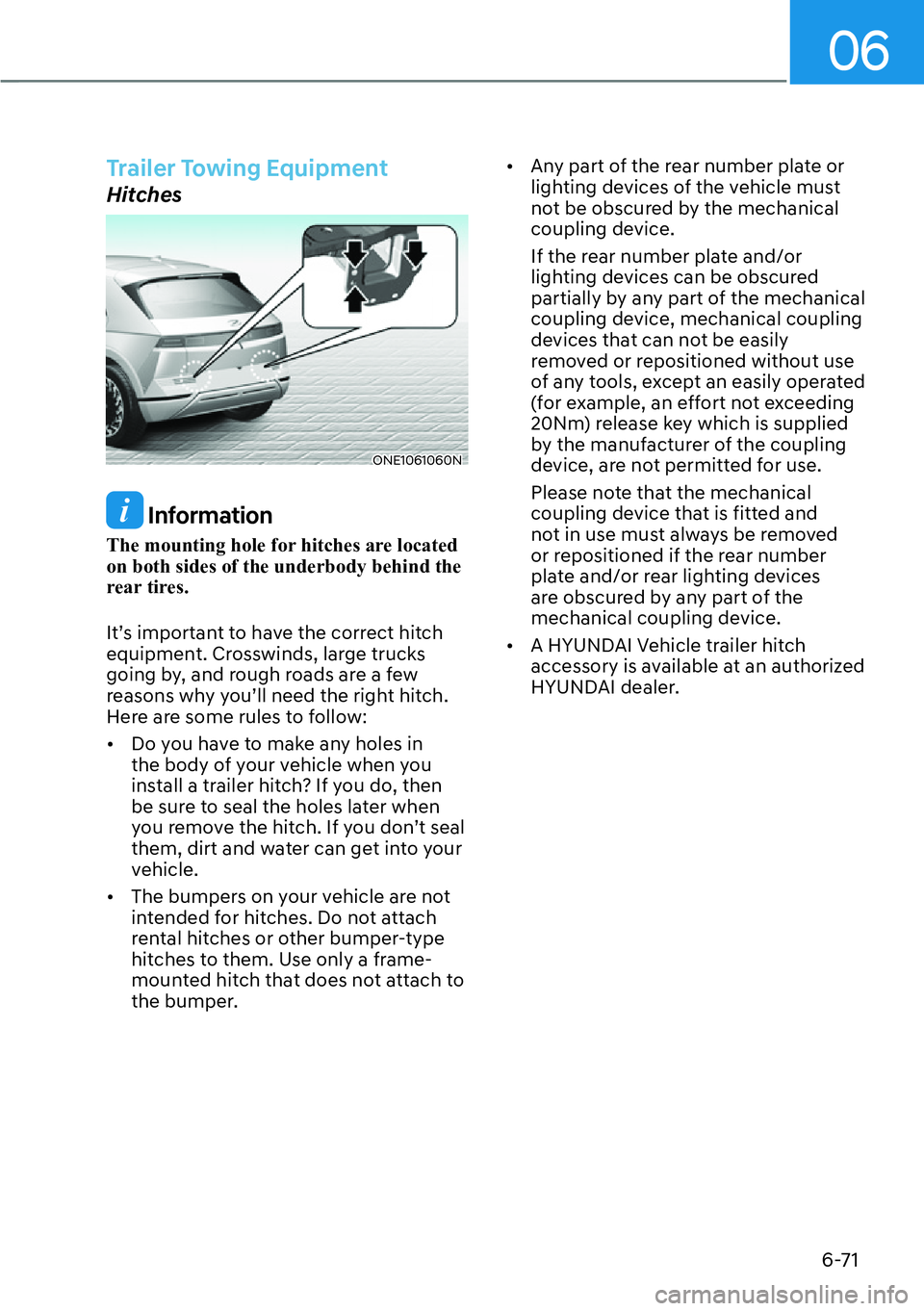

Page 398 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 06
6-71
Trailer Towing Equipment
Hitches
ONE1061060N
 Information
The mounting hole for hitches are located
on both sides of the underbody behind the
rear tires.
It’s important to have the correct

Page 399 of 663

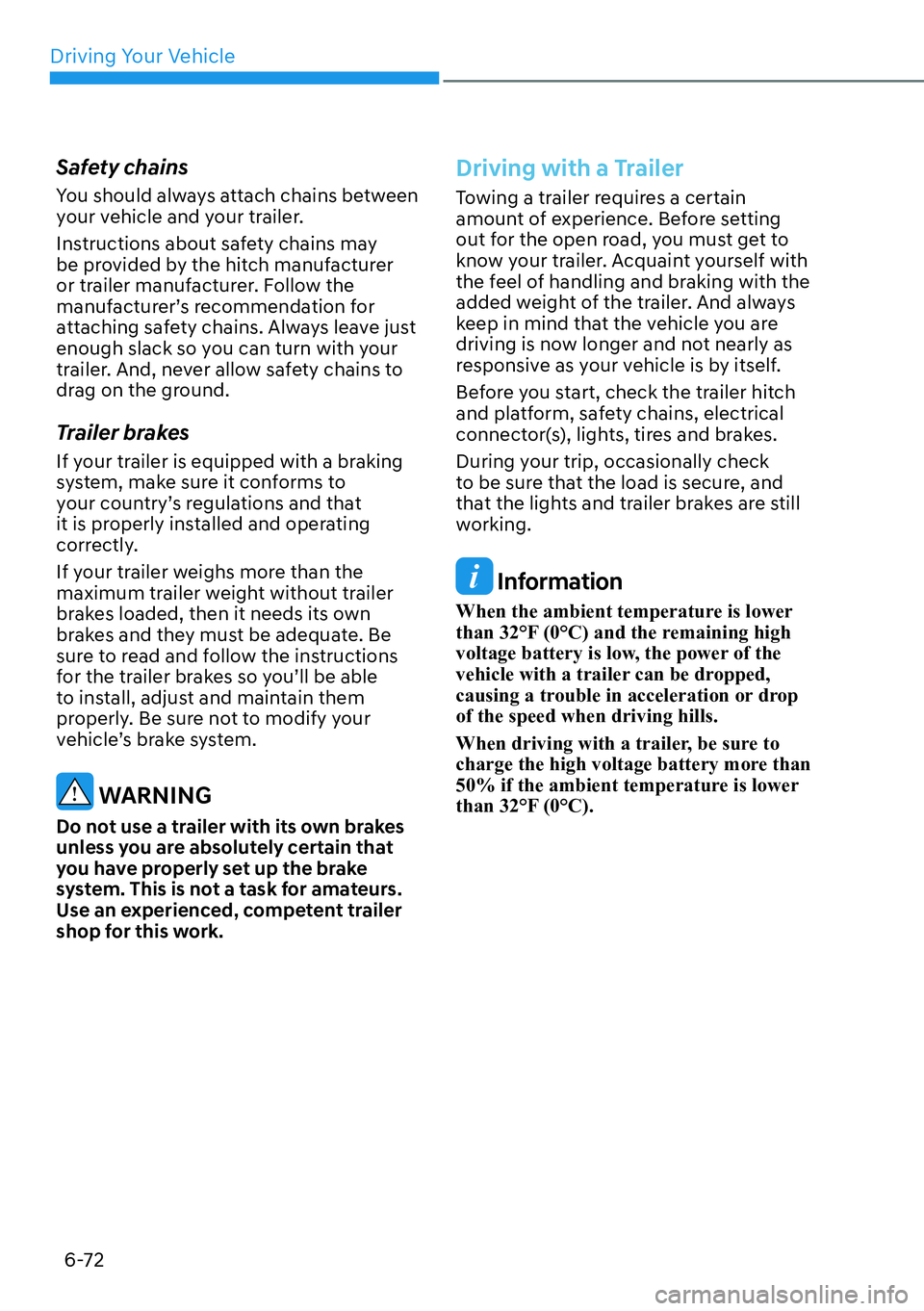

HYUNDAI IONIQ 5 2022  Owners Manual Driving Your Vehicle
6-72
Safety chains
You should always attach chains between
your vehicle and your trailer.
Instructions about safety chains may
be provided by the hitch manufacturer
or trailer

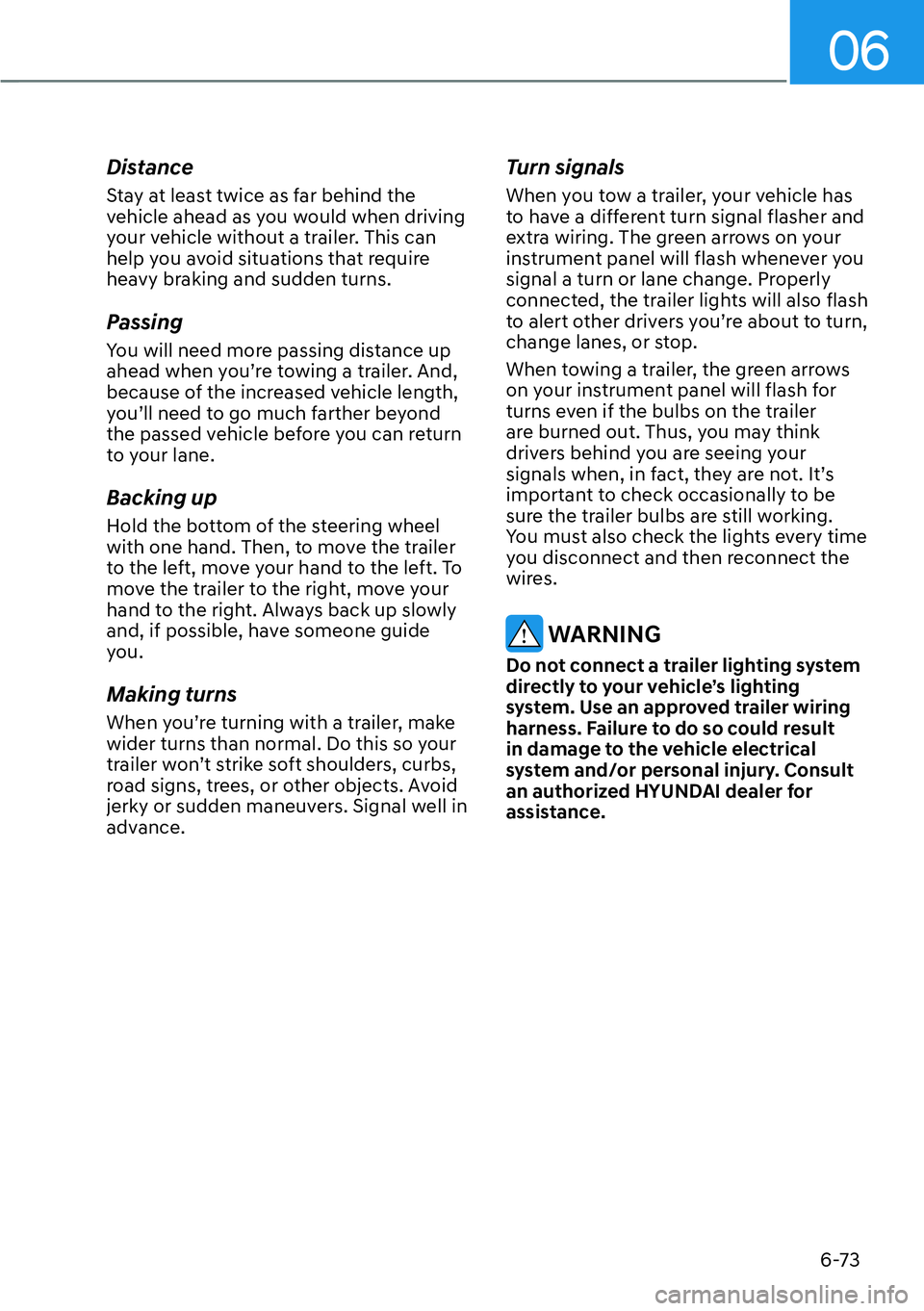

Page 400 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 06
6-73
Distance
Stay at least twice as far behind the
vehicle ahead as you would when driving
your vehicle without a trailer. This can
help you avoid situations that require
heavy braking and sud
