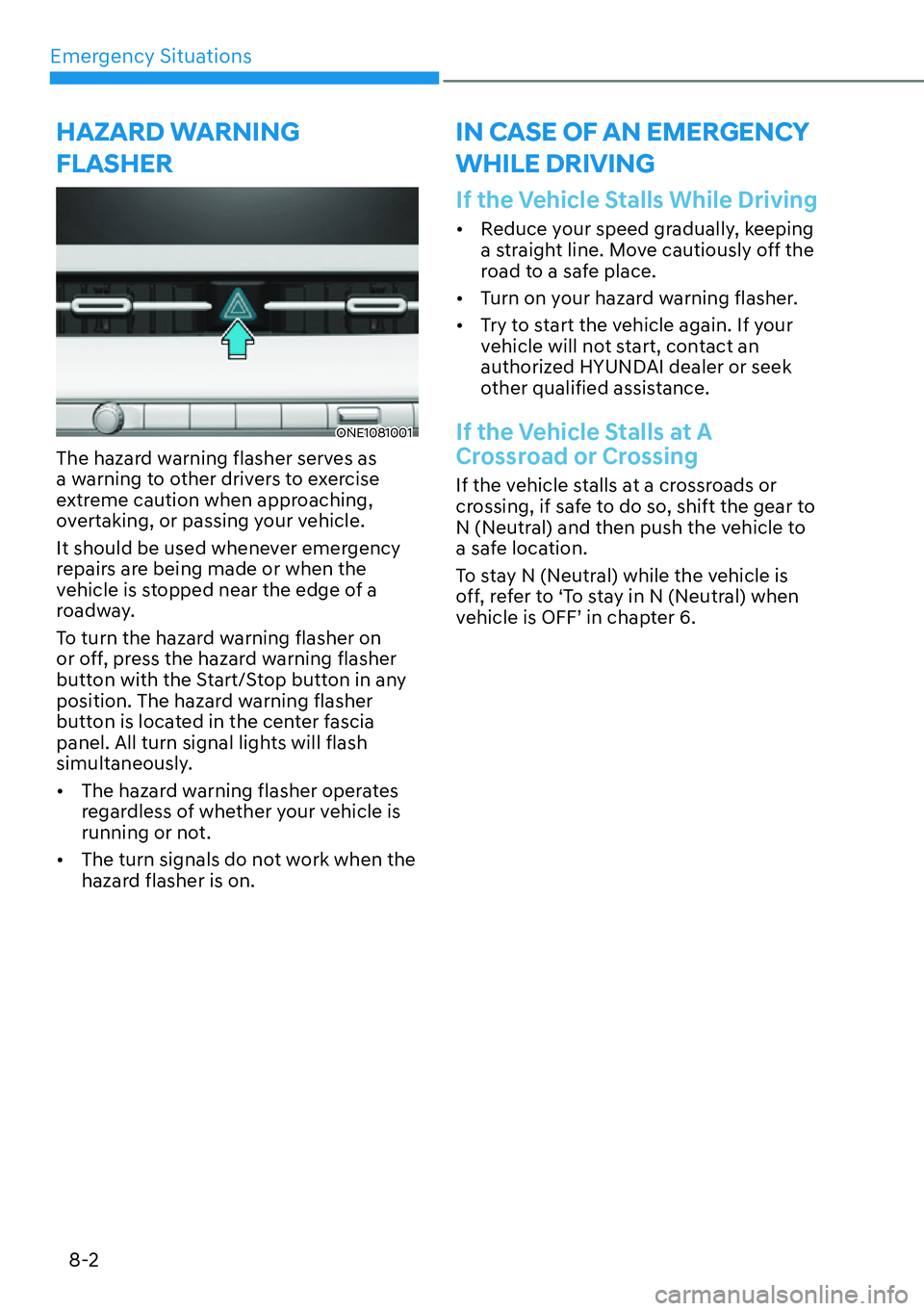

Page 581 of 663

HYUNDAI IONIQ 5 2022  Owners Manual Emergency Situations
8-2
ONE1081001
The hazard warning flasher serves as
a warning to other drivers to exercise
extreme caution when approaching,
overtaking, or passing your vehicle.
It should be u

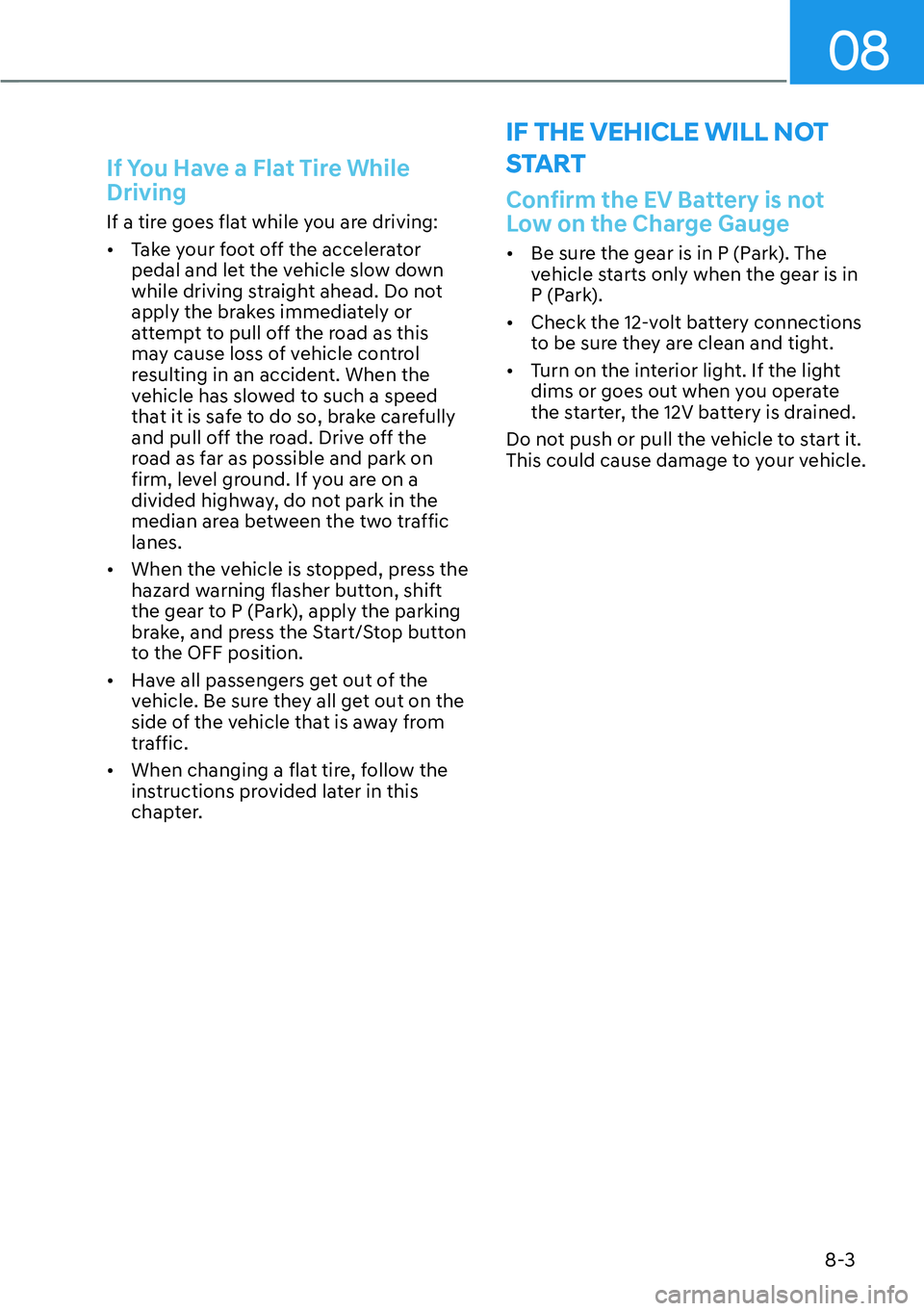

Page 582 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 08
8-3
If You Have a Flat Tire While
Driving
If a tire goes flat while you are driving:
[�Take your foot off the accelerator
pedal and let the vehicle slow down
while driving straight ahead. Do n

Page 583 of 663

HYUNDAI IONIQ 5 2022  Owners Manual Emergency Situations
8-4
Jump starting can be dangerous if done
incorrectly. Follow the jump starting
procedure in this section to avoid serious
injury or damage to your vehicle. If in
doubt about

Page 584 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 08
8-5
Jump starting procedure
 Information
When you jump start your vehicle,
use the jumper terminal in the motor
compartment.
1.  Position the vehicles close enough
that the jumper cables will re

Page 585 of 663

HYUNDAI IONIQ 5 2022  Owners Manual Emergency Situations
8-6
11. Start the assisting vehicle and let
it run at approximately for a few
minutes. Then start your vehicle.
12. Keep your vehicle operating for at
least 30 minutes at idle

Page 586 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 08
8-7
ONE1081004
ONE1081005L
(1)  Low Tire Pressure Telltale/TPMS
Malfunction Indicator
(2)  Low Tire Pressure Position Telltale
and Tire Pressure Telltale (Shown on
the LCD display)
Check Tire Pr

Page 587 of 663

HYUNDAI IONIQ 5 2022  Owners Manual Emergency Situations
8-8
Tire Pressure Monitoring System
 WARNING
Over-inflation or under-inflation can
reduce tire life, adversely affect vehicle
handling, and lead to sudden tire failure
that may

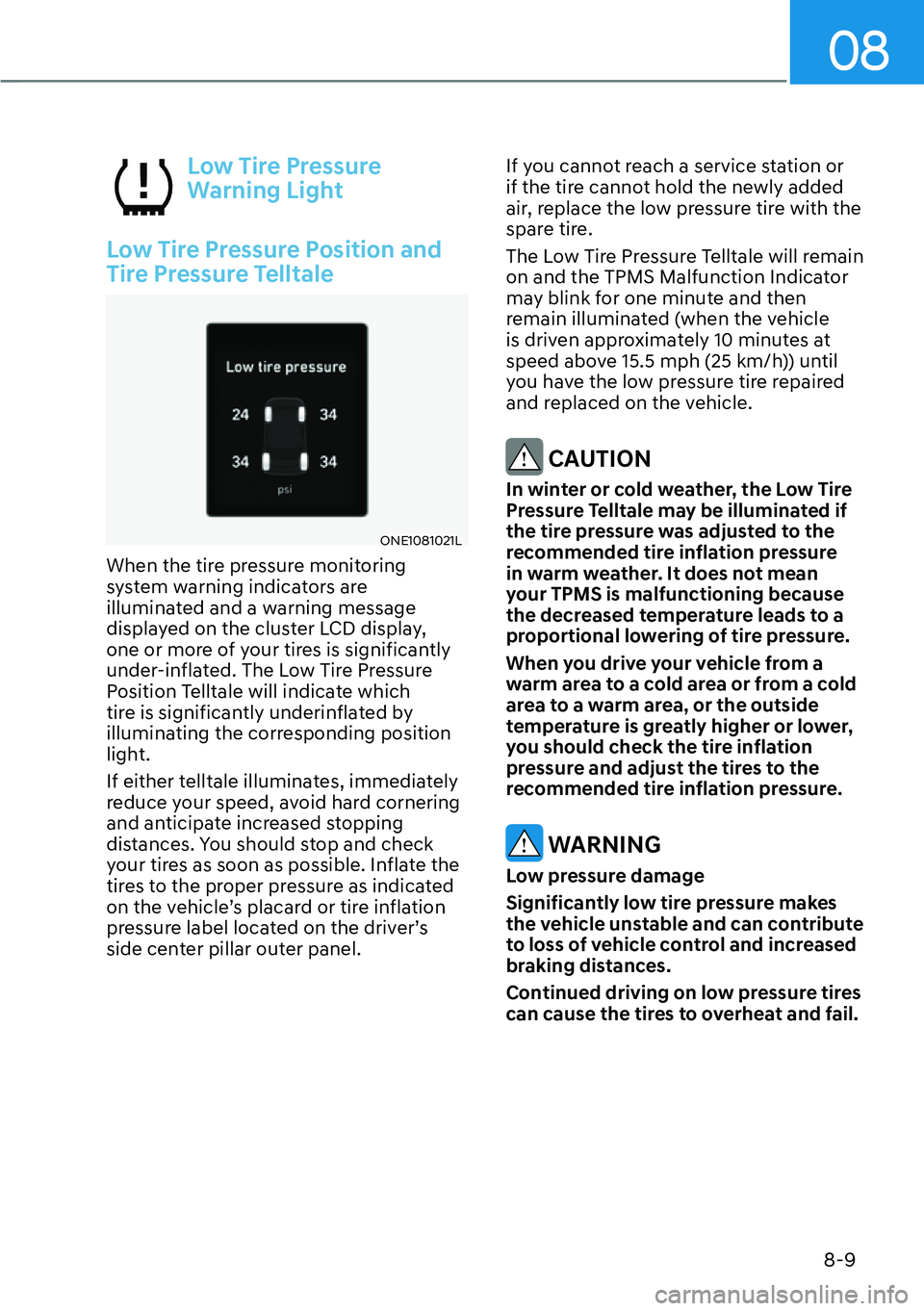

Page 588 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 08
8-9
Low Tire Pressure
Warning Light
Low Tire Pressure Position and
Tire Pressure Telltale
ONE1081021L
When the tire pressure monitoring
system warning indicators are
illuminated and a warning m

Page 589 of 663

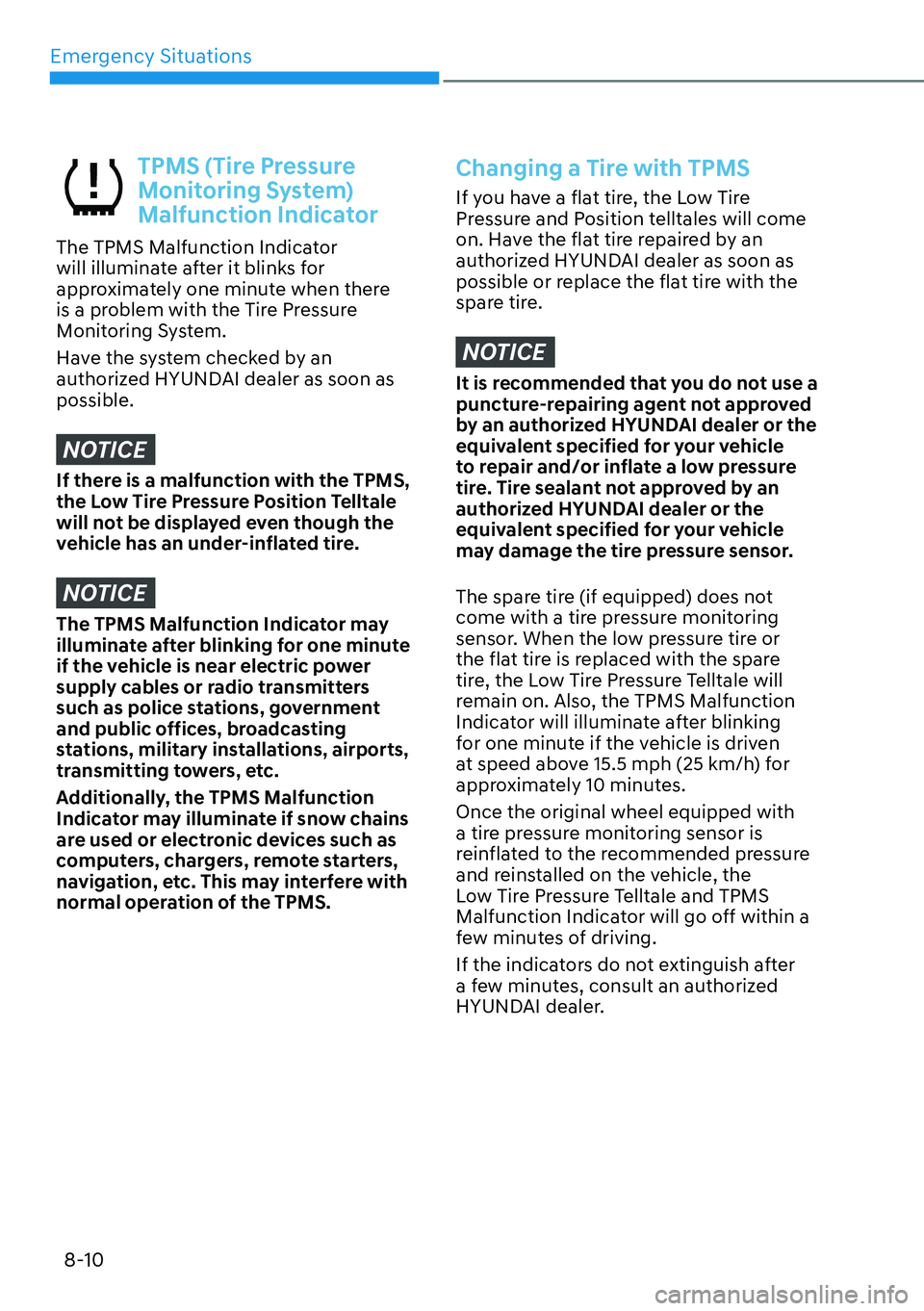

HYUNDAI IONIQ 5 2022  Owners Manual Emergency Situations
8-10
TPMS (Tire Pressure
Monitoring System)
Malfunction Indicator
The TPMS Malfunction Indicator
will illuminate after it blinks for
approximately one minute when there
is a

Page 590 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 08
8-11
Each wheel is equipped with a tire
pressure sensor mounted inside the tire
behind the valve stem (except for the
spare tire). You must use TPMS specific
wheels. It is recommended that you
