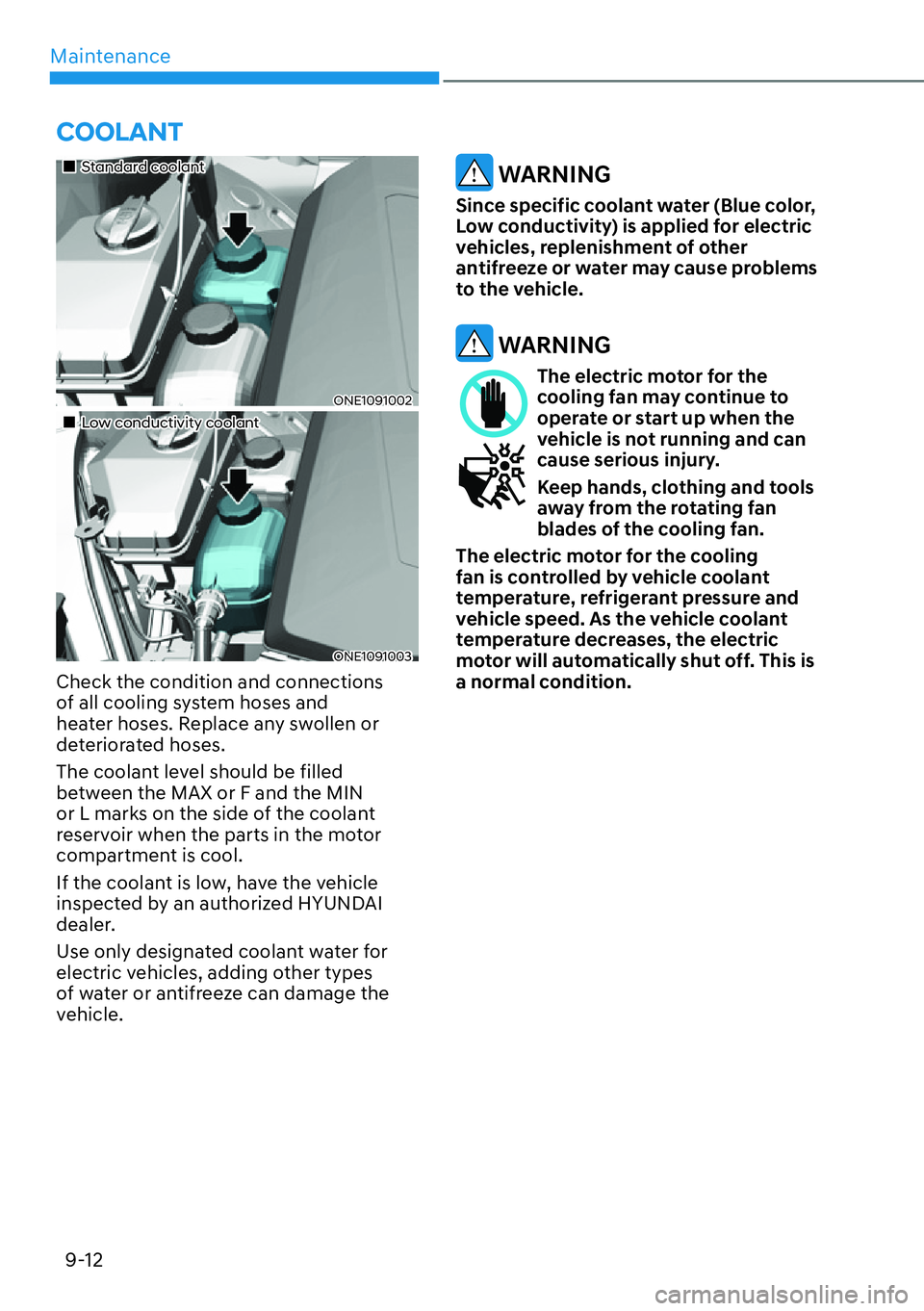

Page 611 of 663

HYUNDAI IONIQ 5 2022  Owners Manual Maintenance
9-12
��„Standard coolant
ONE1091002
��„Low conductivity coolant
ONE1091003
Check the condition and connections
of all cooling system hoses and
heater hoses. Replace any swollen or

Page 612 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 09
9-13
Checking the Brake Fluid Level
ONE1091004
Check the fluid level in the reservoir
periodically. The fluid level should be
between MAX and MIN marks on the side
of the reservoir.
Before remov

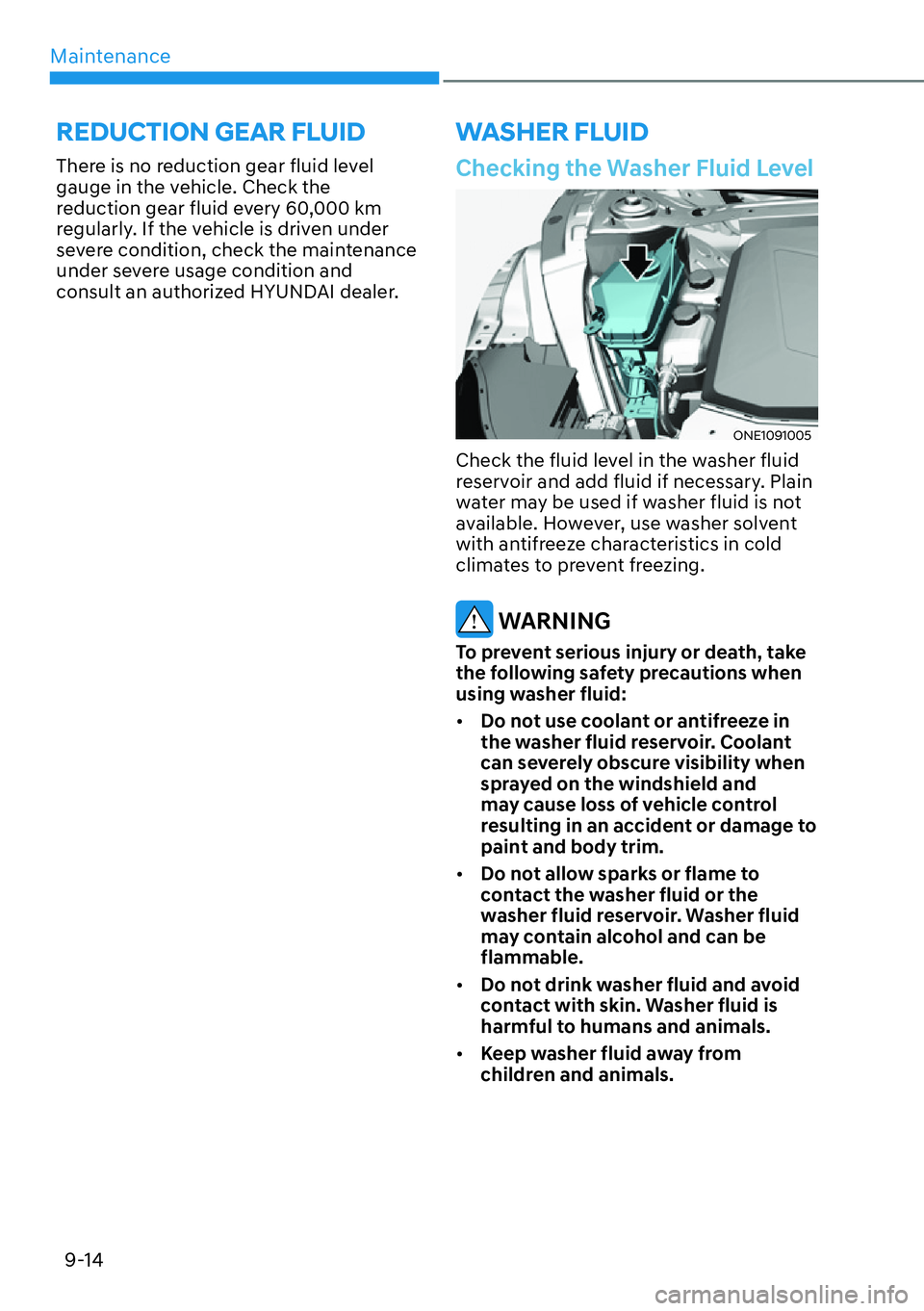

Page 613 of 663

HYUNDAI IONIQ 5 2022  Owners Manual Maintenance
9-14
Checking the Washer Fluid Level
ONE1091005
Check the fluid level in the washer fluid
reservoir and add fluid if necessary. Plain
water may be used if washer fluid is not
available.

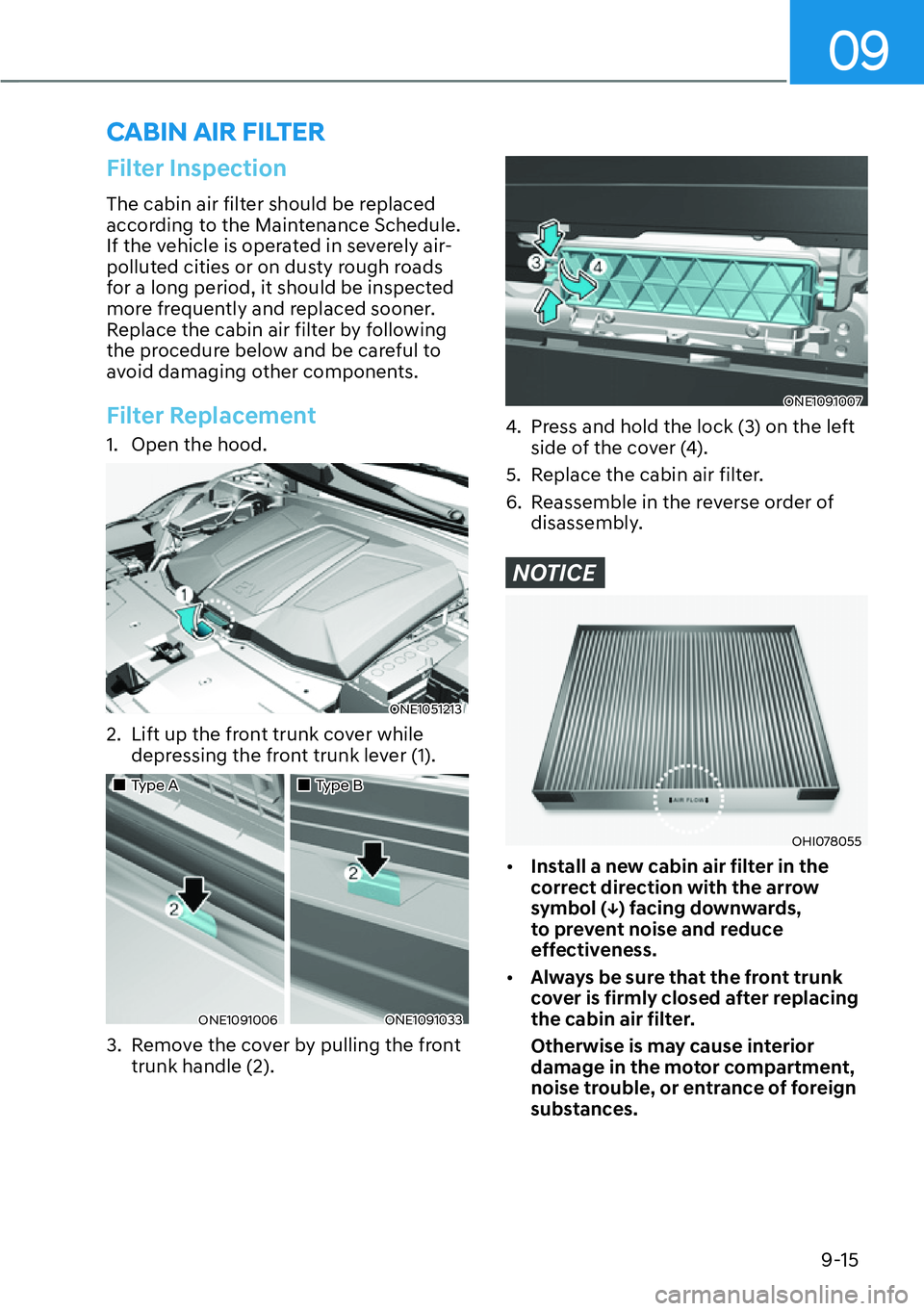

Page 614 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 09
9-15
Filter Inspection
The cabin air filter should be replaced
according to the Maintenance Schedule.
If the vehicle is operated in severely air-
polluted cities or on dusty rough roads
for a lo

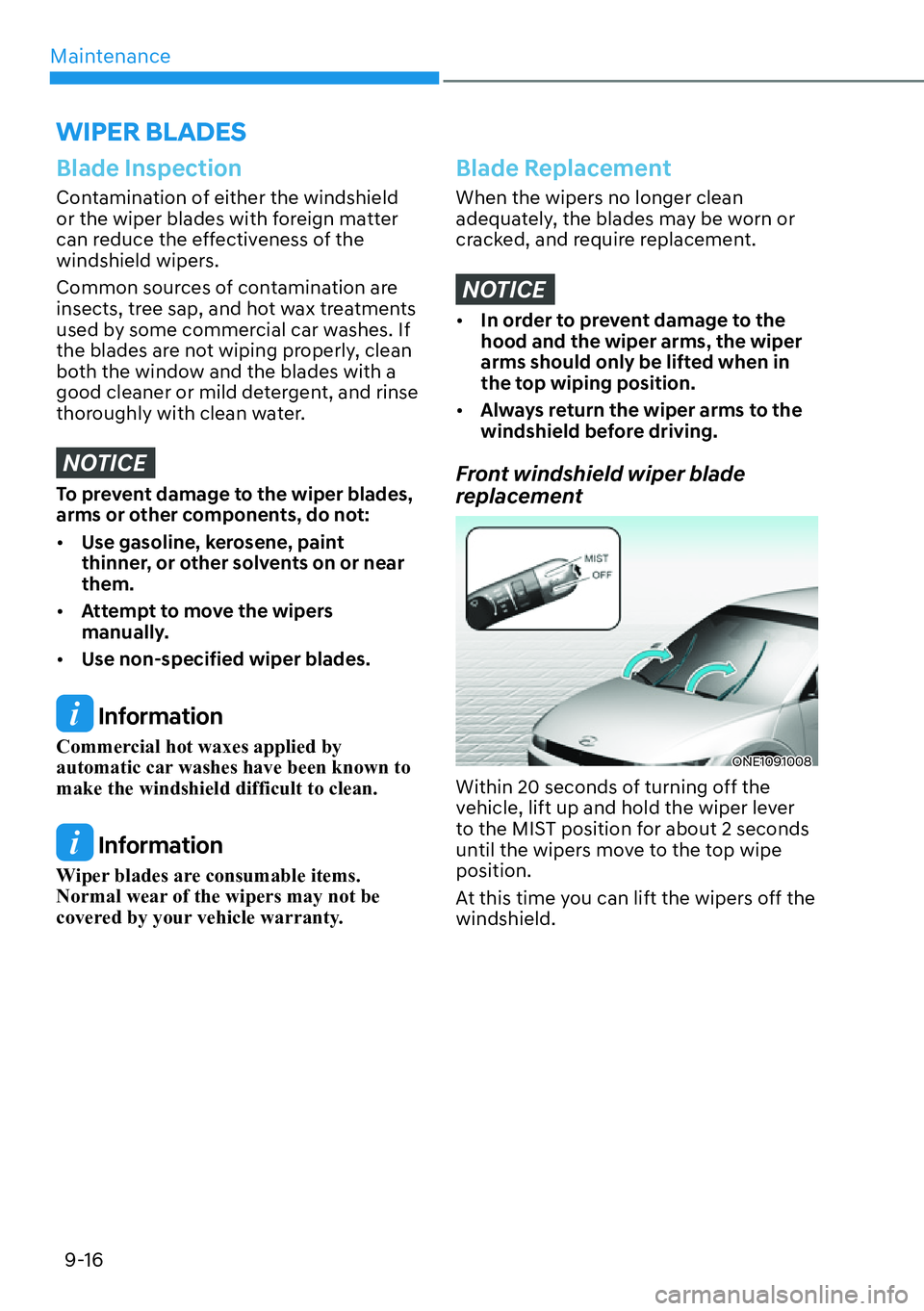

Page 615 of 663

HYUNDAI IONIQ 5 2022  Owners Manual Maintenance
9-16
Blade Inspection
Contamination of either the windshield
or the wiper blades with foreign matter
can reduce the effectiveness of the
windshield wipers.
Common sources of contaminati

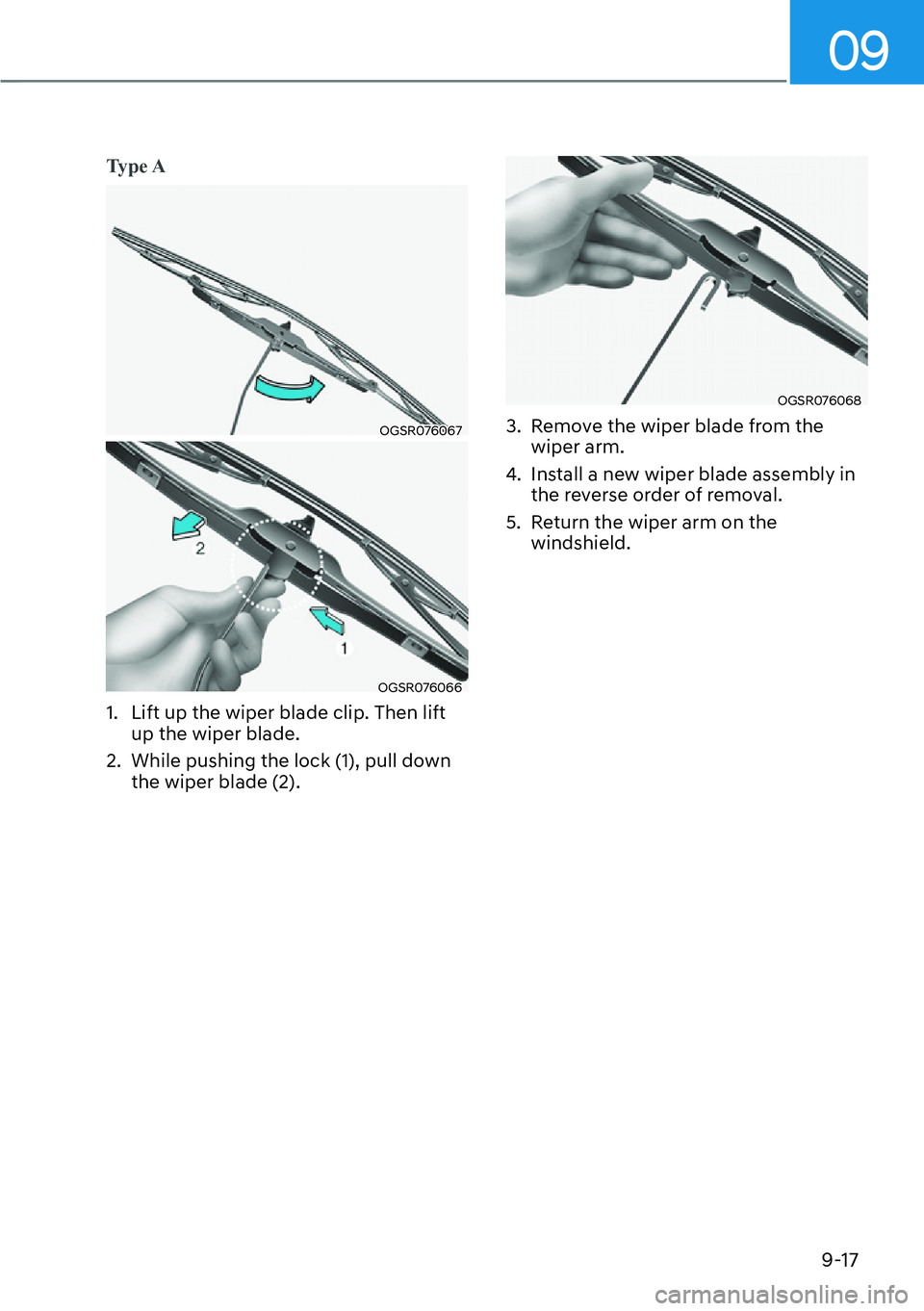

Page 616 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 09
9-17
Ty p e  A
OGSR076067
OGSR076066
1.  Lift up the wiper blade clip. Then lift
up the wiper blade.
2.  While pushing the lock (1), pull down
the wiper blade (2).
OGSR076068
3.  Remove the wipe

Page 617 of 663

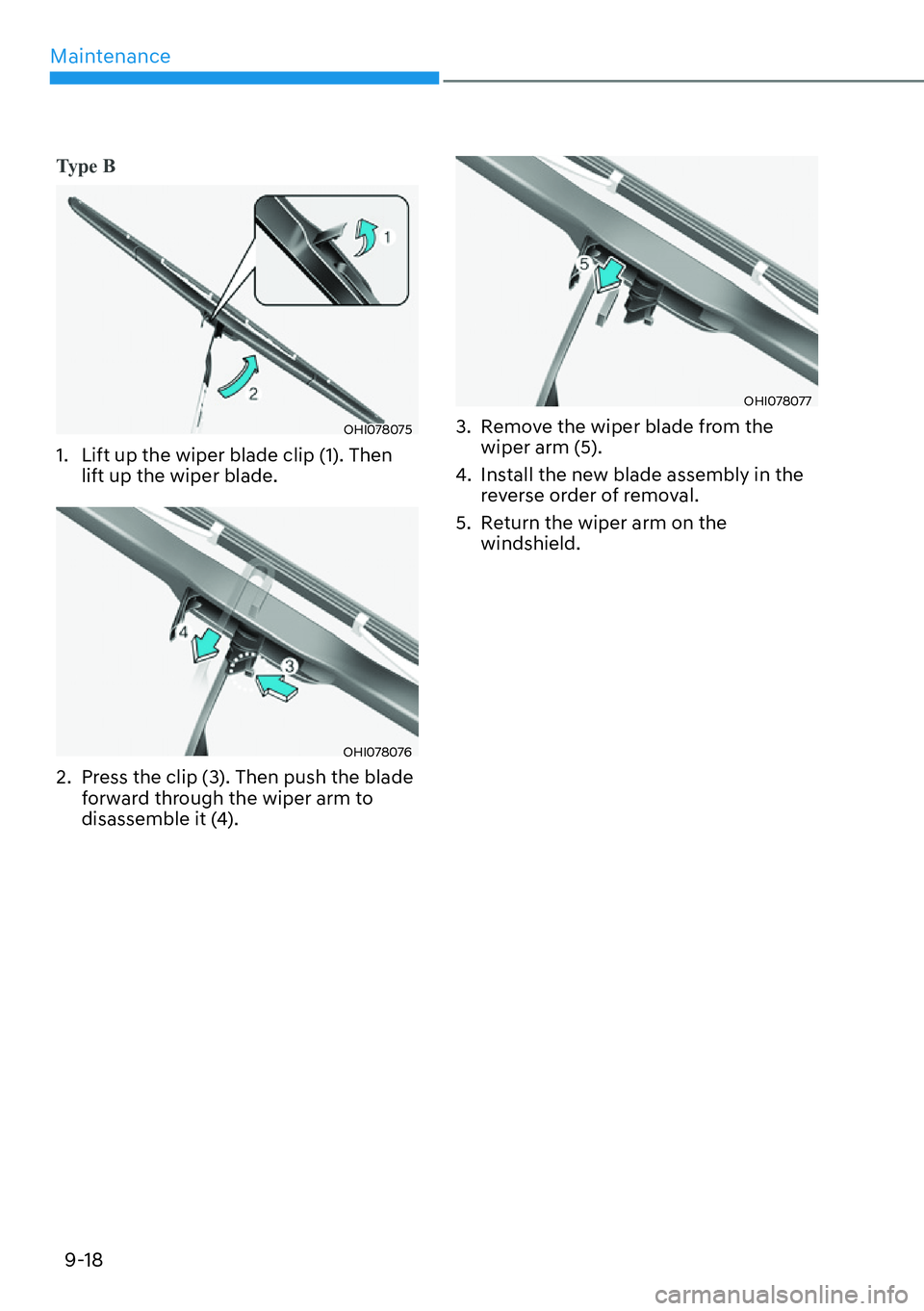

HYUNDAI IONIQ 5 2022  Owners Manual Maintenance
9-18
Ty p e   B
OHI078075
1.  Lift up the wiper blade clip (1). Then
lift up the wiper blade.
OHI078076
2.  Press the clip (3). Then push the blade
forward through the wiper arm to
disa

Page 618 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 09
9-19
 WARNING
To prevent SERIOUS INJURY or DEATH
to you or bystanders, always follow
these precautions when working near
or handling the battery:
Always read and follow
instructions carefully w

Page 619 of 663

HYUNDAI IONIQ 5 2022  Owners Manual Maintenance
9-20
For best battery service
ONE1091009
[�Keep the battery securely mounted.
[�Keep the battery top clean and dry.
[�Keep the terminals and connections
clean, tight, and coated wit

Page 620 of 663

HYUNDAI IONIQ 5 2022  Owners Manual 09
9-21
 WARNING
Always follow these instructions when
recharging your vehicle’s battery to
avoid the risk of SERIOUS INJURY or
DEATH from explosions or acid burns:
[�Before performing maintena
