seat memory HYUNDAI IONIQ 5 2022 Owners Manual

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
ONE1011003N
1. Inside door handle ................................ 5-34
2. Integrated memory system ................. 5-40
3. Side view mirror control switch ........... 5-60
4. Side view mirror folding button........... 5-60
5. Central door lock switch ...................... 5-34
6. Power window switches ...................... 5-63
7. Power window lock button / ............... 5-65
Electronic child safety lock button .......5-37
8. Instrument panel illumination ............... 4-59. ESC (Electronic Stability Control) OFF
button .................................................... 6-37
10. Power liftgate open/close button ........5-78
11. AUTO Hold button ................................ 6-32
12. EPB (Electronic Parking Brake)
switch .....................................................6-27
13. Hood release lever .................................5-73
14. Steering wheel tilt/telescopic lever .... 5-45
15. Steering wheel ...................................... 5-44
16. Seat .......................................................... 3-3
17. Cluster fascia side panel ..................... 5-130
INTERIOR OVERVIEW

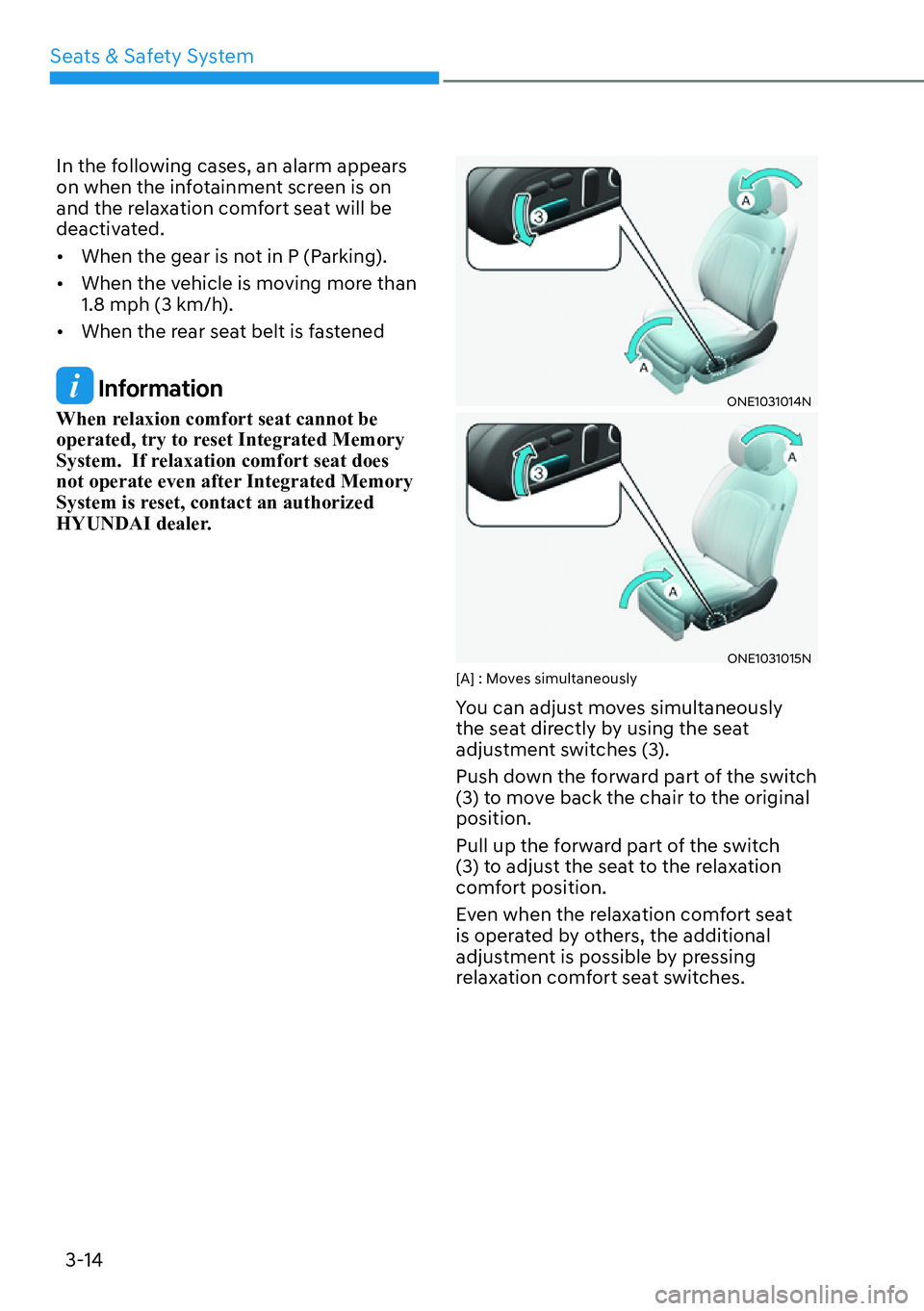

Seats & Safety System
3-14
In the following cases, an alarm appears
on when the infotainment screen is on
and the relaxation comfort seat will be
deactivated.

[When the gear is not in P (Parking).

[When the vehicle is moving more than
1.8 mph (3 km/h).

[When the rear seat belt is fastened
Information
When relaxion comfort seat cannot be
operated, try to reset Integrated Memory
System. If relaxation comfort seat does
not operate even after Integrated Memory
System is reset, contact an authorized
HYUNDAI dealer. ONE1031014N
ONE1031015N[A] : Moves simultaneously
You can adjust moves simultaneously
the seat directly by using the seat
adjustment switches (3).
Push down the forward part of the switch
(3) to move back the chair to the original
position.
Pull up the forward part of the switch
(3) to adjust the seat to the relaxation
comfort position.
Even when the relaxation comfort seat
is operated by others, the additional
adjustment is possible by pressing
relaxation comfort seat switches.

03
3-15

[To deactivate relaxation comfort seat
If you press the front portion of the
switch (2) while the seat is in the
relaxion comfort seat position, the
seat return backs to the original
position.
When relaxation comfort seat is
deactivated:

[The driver seat will return to the
position which the gear was in P
(Park).

[Passenger seat will return to the
original position.
In the following cases, the relaxation
comfort seat will not return to the
original position for the driver’ seat.

[When the gear is not in P (Parking).

[When the vehicle is moving more than
1.8 mph (3 km/h).
Information
When relaxation comfort seat cannot be
operated, try to reset Integrated Memory
System. If relaxation comfort seat does
not operate even after Integrated Memory
System is reset, contact an authorized
HYUNDAI dealer.
NOTICE
Do not use the seat switches
simultaneously. It may damage the seat
system.
Seatback pocket
ONE1031022
The seatback pocket is provided on the
back of the front seatbacks.
CAUTION
Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.

5

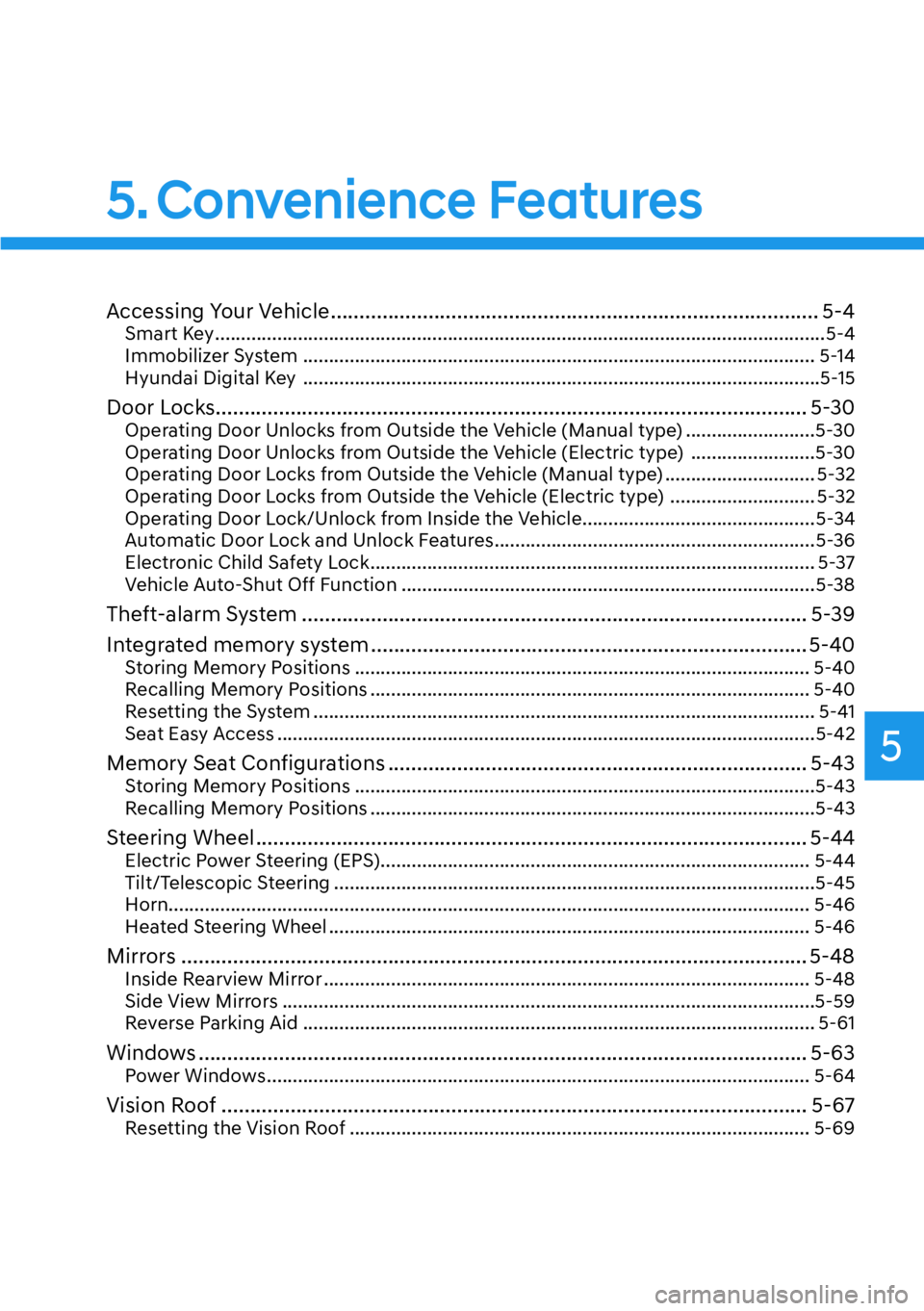

5. Convenience Features
Accessing Your Vehicle ..................................................................................... 5-4Smart Key ......................................................................................................................5-4
Immobilizer System ................................................................................................... 5-14
Hyundai Digital Key ....................................................................................................5-15
Door Locks ....................................................................................................... 5-30Operating Door Unlocks from Outside the Vehicle (Manual type) .........................5-30
Operating Door Unlocks from Outside the Vehicle (Electric type) ........................5-30
Operating Door Locks from Outside the Vehicle (Manual type) ............................. 5-32
Operating Door Locks from Outside the Vehicle (Electric type) ............................ 5-32
Operating Door Lock/Unlock from Inside the Vehicle ............................................. 5-34
Automatic Door Lock and Unlock Features ..............................................................5-36
Electronic Child Safety Lock ...................................................................................... 5-37
Vehicle Auto-Shut Off Function ................................................................................5-38
Theft-alarm System ........................................................................................ 5-39
Integrated memory system ............................................................................ 5-40
Storing Memory Positions ........................................................................................ 5-40
Recalling Memory Positions ..................................................................................... 5-40
Resetting the System ................................................................................................. 5-41
Seat Easy Access ........................................................................................................5-42
Memory Seat Configurations ......................................................................... 5-43Storing Memory Positions .........................................................................................5-43
Recalling Memory Positions ......................................................................................5-43
Steering Wheel ................................................................................................ 5-44Electric Power Steering (EPS) ................................................................................... 5-44
Tilt/Telescopic Steering .............................................................................................5-45
Horn............................................................................................................................ 5-46
Heated Steering Wheel ............................................................................................. 5-46
Mirrors ............................................................................................................. 5-48Inside Rearview Mirror .............................................................................................. 5-48
Side View Mirrors .......................................................................................................5-59
Reverse Parking Aid ................................................................................................... 5-61
Windows .......................................................................................................... 5-63Power Windows ......................................................................................................... 5-64
Vision Roof ...................................................................................................... 5-67Resetting the Vision Roof ......................................................................................... 5-69

05
5-41
Resetting the System
Take the following procedures to reset
integrated memory system, when it does
not operate properly.
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s
door with the Start/Stop button in the
ON position and the vehicle shifted to
P (Park).
2. Adjust the driver’s seat and seatback
to the foremost position.
3. Press the memory button 1 (or 2)
and push forward the driver’s seat
movement switch over 2 seconds
simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification
sound.
2. The driver’s seat and seatback is
adjusted to the rearward position with
the notification sound.
3. The driver’s seat and seatback is
re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.

[The memory button is pressed.

[The seat control switch is operated.

[The gear is shifted out of P (Park).

[The driving speed exceeds 3 km/h
(2 mph).

[The driver’s door is closed.
NOTICE

[While integrated memory system
is being reset, if the resetting
and notification sound stops
incompletely, restart the resetting
procedure again.

[Make sure that there is no objects
around the driver’s seat in advance
of resetting the integrated memory
system.

[After resetting the integrated
memory system, the adjustment for
the driver seat must be stored again
to recall the memory position.

09
9-41

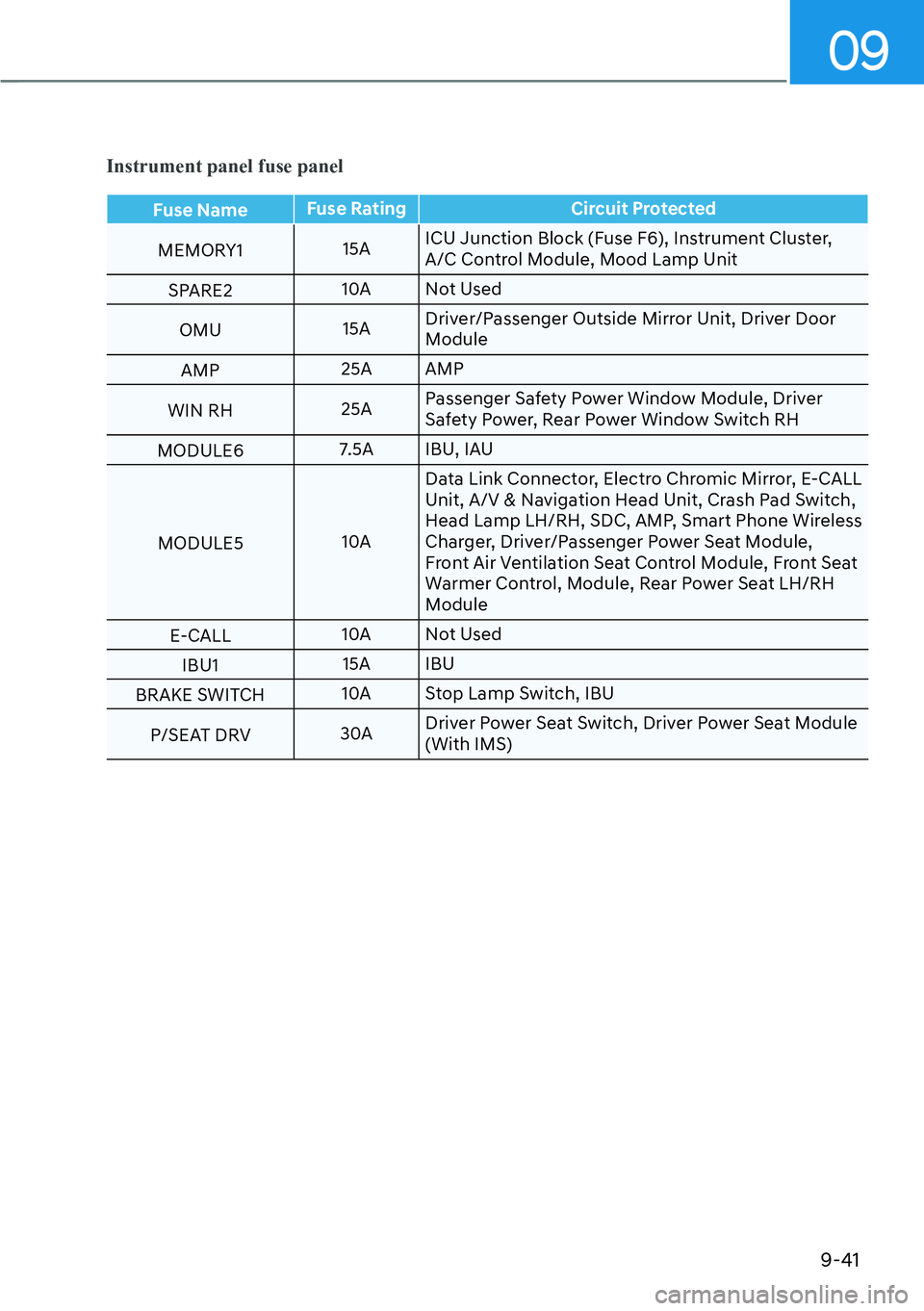

Instrument panel fuse panel
Fuse NameFuse Rating Circuit Protected
MEMORY115AICU Junction Block (Fuse F6), Instrument Cluster,
A/C Control Module, Mood Lamp Unit
SPARE210A Not Used
OMU15ADriver/Passenger Outside Mirror Unit, Driver Door
Module
AMP25A AMP
WIN RH25APassenger Safety Power Window Module, Driver
Safety Power, Rear Power Window Switch RH
MODULE67.5A IBU, IAU
MODULE510AData Link Connector, Electro Chromic Mirror, E-CALL
Unit, A/V & Navigation Head Unit, Crash Pad Switch,
Head Lamp LH/RH, SDC, AMP, Smart Phone Wireless
Charger, Driver/Passenger Power Seat Module,
Front Air Ventilation Seat Control Module, Front Seat
Warmer Control, Module, Rear Power Seat LH/RH
Module
E-CALL10A Not Used
IBU115A IBU
BRAKE SWITCH10A Stop Lamp Switch, IBU
P/SEAT DRV30ADriver Power Seat Switch, Driver Power Seat Module
(With IMS)
