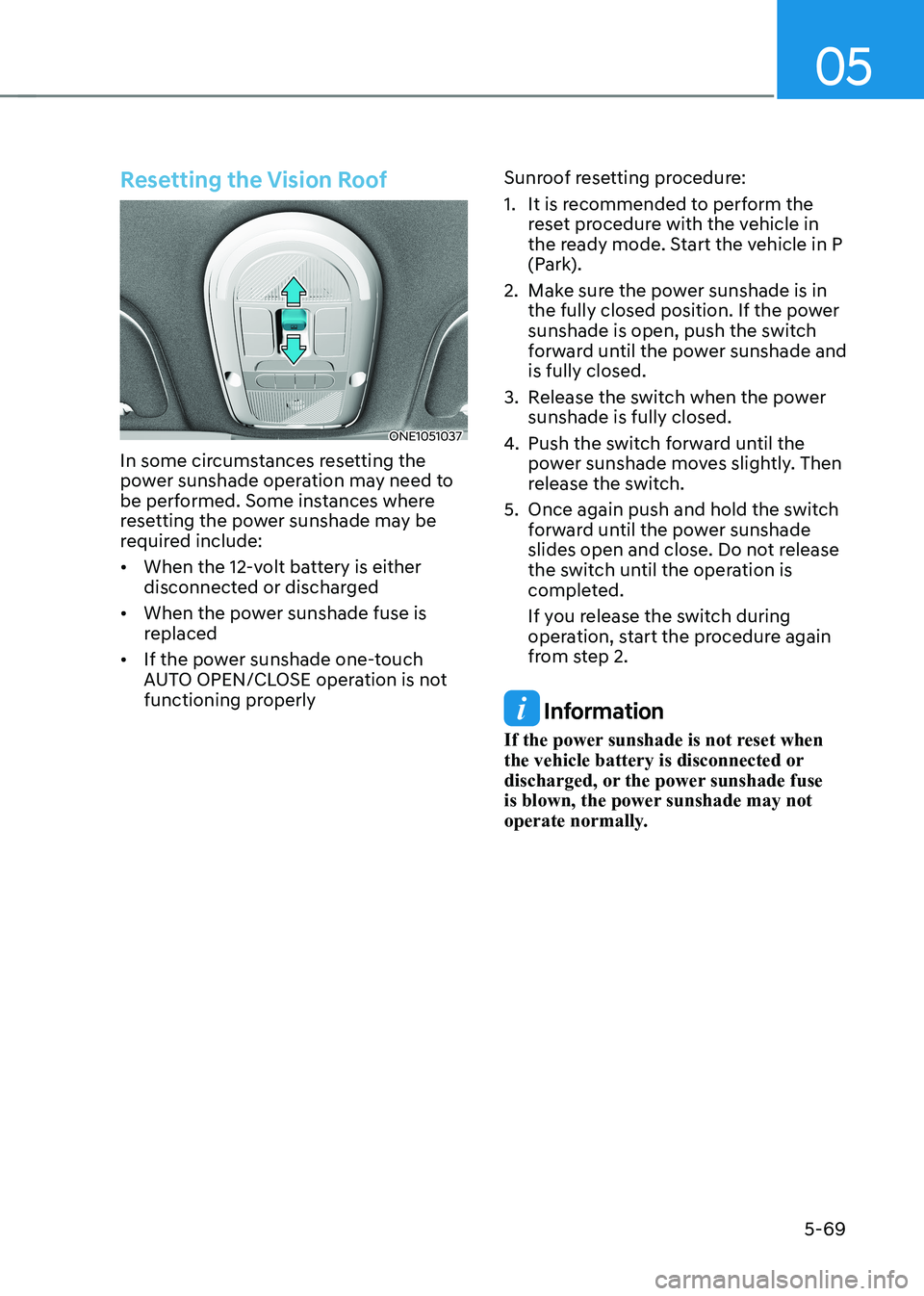

Page 261 of 680

HYUNDAI IONIQ 5 2023  Owners Manual 05
5-69
Resetting the Vision Roof
ONE1051037
In some circumstances resetting the
power sunshade operation may need to
be performed. Some instances where
resetting the power sunshade may be
requir

Page 262 of 680

HYUNDAI IONIQ 5 2023  Owners Manual Convenience Features
5-70
exterior feAtures
Hood
Opening the hood
ONE1051041
1.  Park the vehicle and set the parking  brake.
2.  Pull the release lever to unlatch the  hood. The hood should pop open

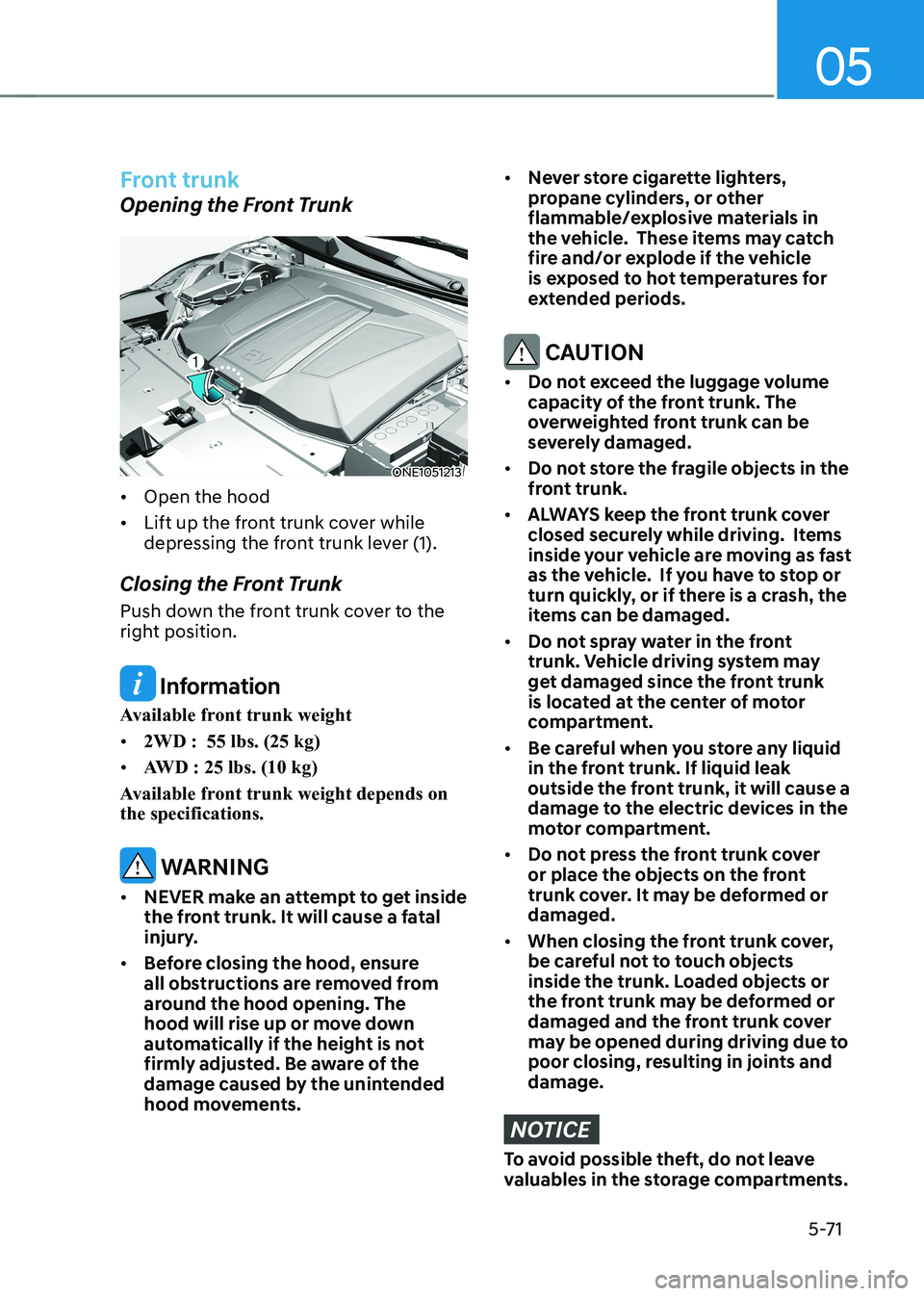

Page 263 of 680

HYUNDAI IONIQ 5 2023  Owners Manual 05
5-71
Front trunk
Opening the Front Trunk
ONE1051213
•	 Open the hood
•	 Lift up the front trunk cover while
depressing the front trunk lever (1).
Closing the Front Trunk
Push down the front

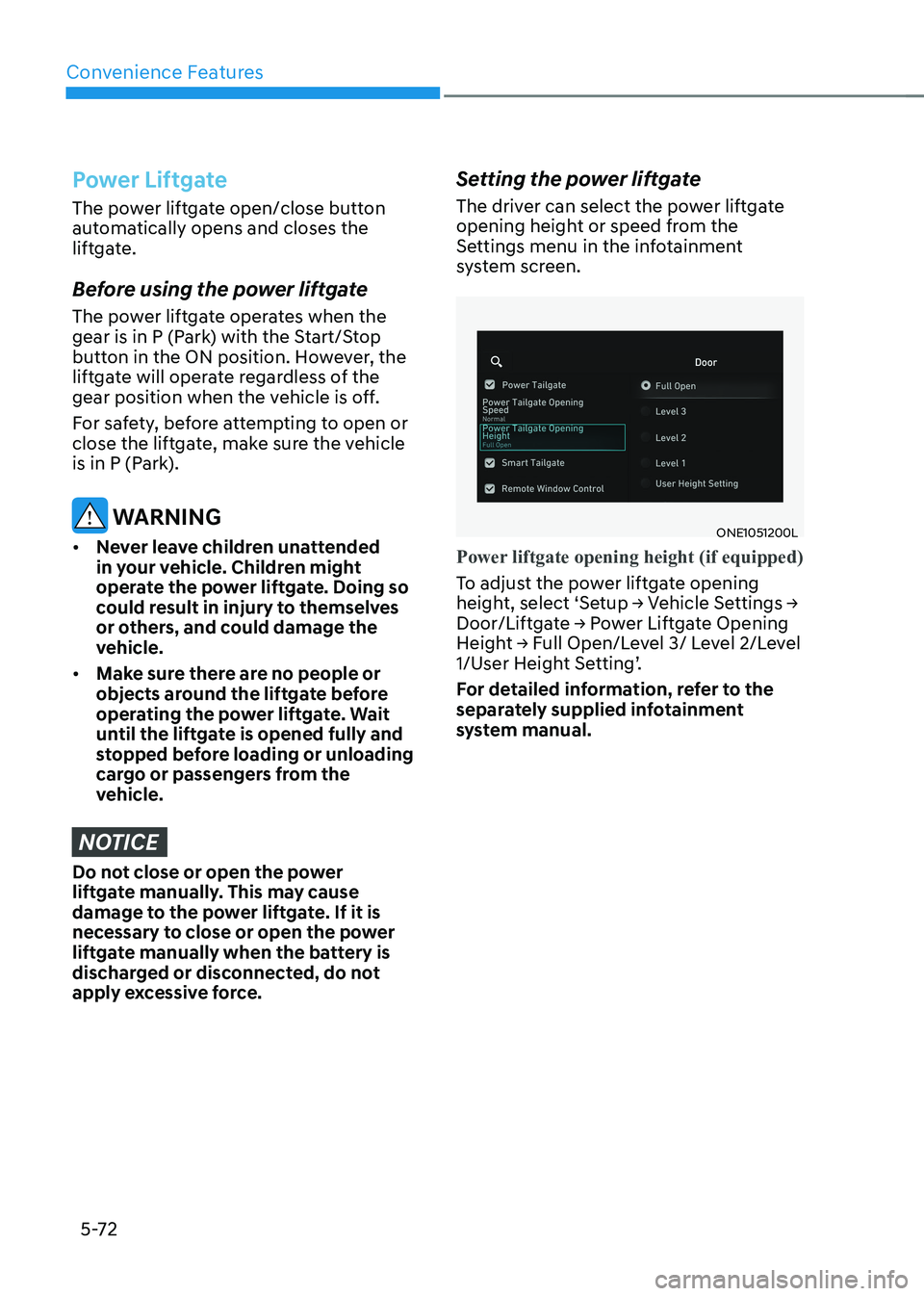

Page 264 of 680

HYUNDAI IONIQ 5 2023  Owners Manual Convenience Features
5-72
Power Liftgate
The power liftgate open/close button
automatically opens and closes the
liftgate.
Before using the power liftgate
The power liftgate operates when the
g

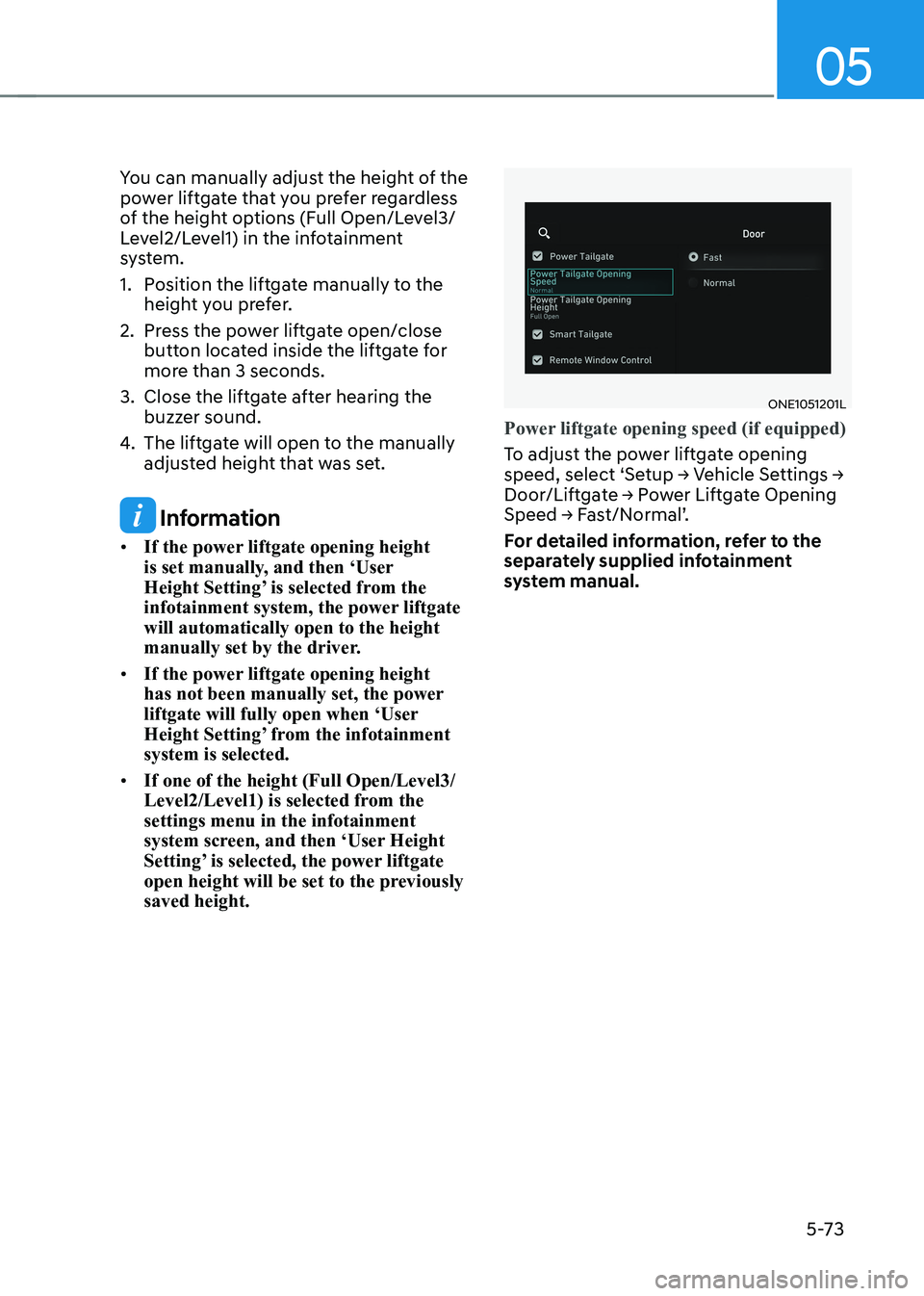

Page 265 of 680

HYUNDAI IONIQ 5 2023  Owners Manual 05
5-73
You can manually adjust the height of the
power liftgate that you prefer regardless
of the height options (Full Open/Level3/
Level2/Level1) in the infotainment
system.
1.  Position the l

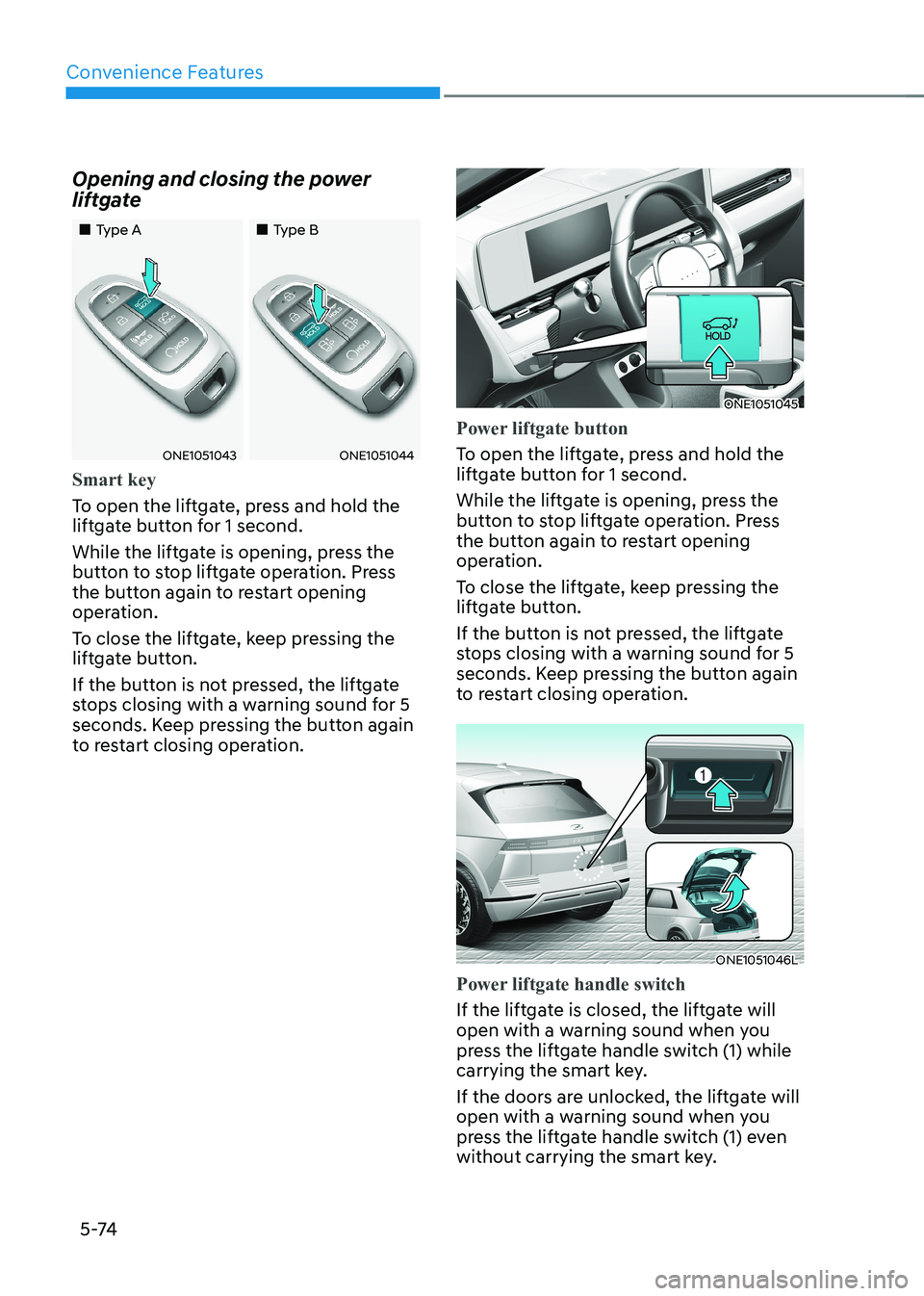

Page 266 of 680

HYUNDAI IONIQ 5 2023  Owners Manual Convenience Features
5 -74
Opening and closing the power
liftgate
„„Type A
„„Type B
ONE1051043ONE1051044
Smart key
To open the liftgate, press and hold the
liftgate button for

Page 267 of 680

HYUNDAI IONIQ 5 2023  Owners Manual 05
5-75
ONE1051047
Power liftgate open/close button
Press the liftgate open/close button
located inside the liftgate to open or
close the power liftgate. The power
liftgate will open or close wit

Page 268 of 680

HYUNDAI IONIQ 5 2023  Owners Manual Convenience Features
5 -76
Automatic reverse
ONE1051048
During power opening or closing if the
power liftgate senses any obstacle, the
power liftgate will stop and move in the
opposite direction.

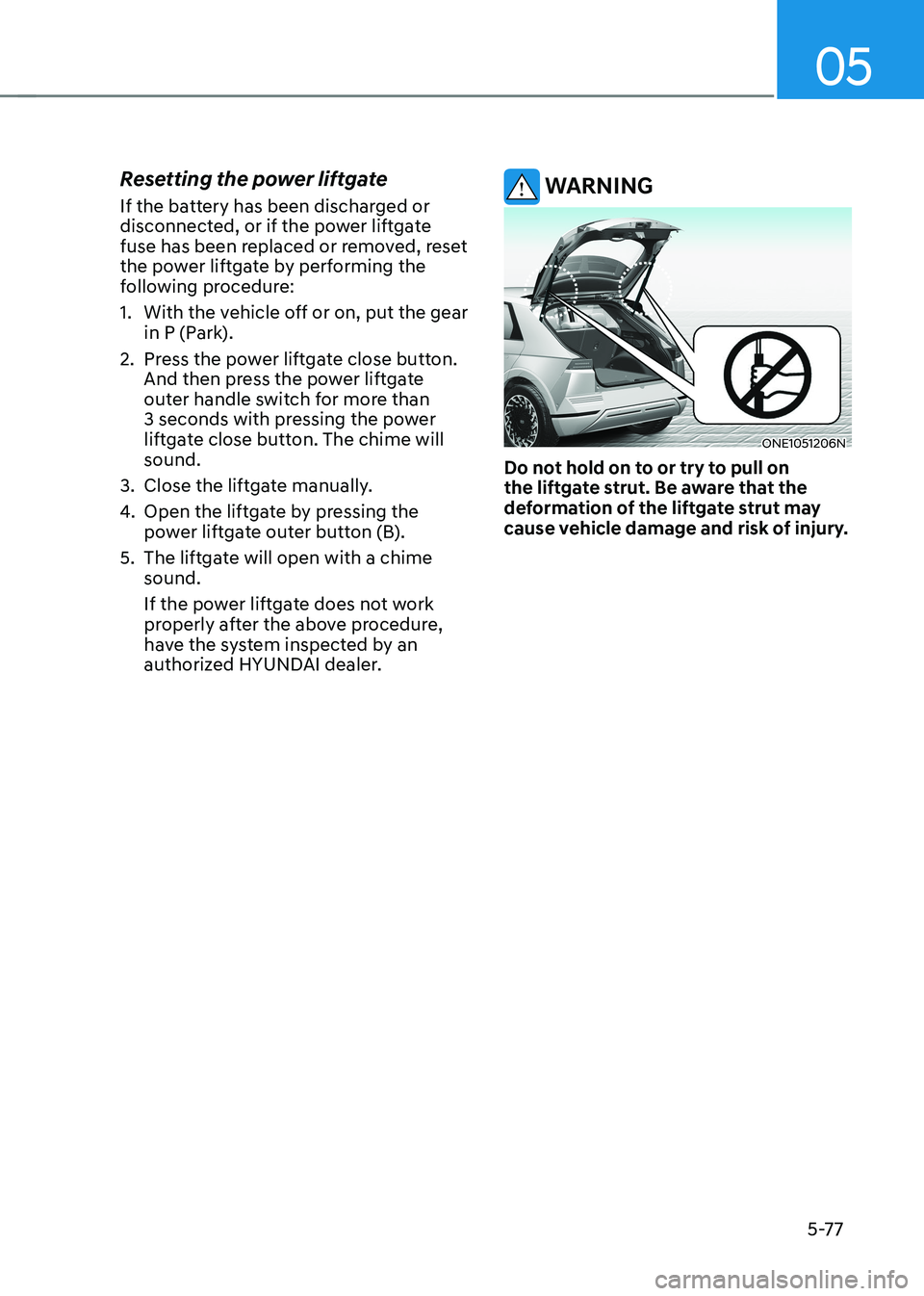

Page 269 of 680

HYUNDAI IONIQ 5 2023  Owners Manual 05
5-77
Resetting the power liftgate
If the battery has been discharged or
disconnected, or if the power liftgate
fuse has been replaced or removed, reset
the power liftgate by performing the
fo

Page 270 of 680

HYUNDAI IONIQ 5 2023  Owners Manual Convenience Features
5-78
Emergency liftgate safety release
Your vehicle is equipped with an
emergency liftgate safety release lever
located on the bottom of the liftgate
inside the vehicle.
ONE1
