HYUNDAI IONIQ 5 2023 Manual Online

02
2-11
Item Weight of volume Classification
RefrigerantHeat pump 900±25g (32±0.9 oz.)
R-1234yf
Without heat pump 700±25g (25±0.9 oz.)
Compressor lubricant Heat pump 180±10 g (6.35±0.35 oz.)
POE J639
Without heat pump 150±10 g (5.29±0.35 oz.)
Contact an authorized HYUNDAI dealer for more details.
vehIcle weIght anD luggage voluMe
Gross vehicle weight Luggage volume
Standard type Extended type
2WD: 5225 lbs. (2370 kg)
AWD: 5467 lbs. (2480 kg) 2WD: 5457 lbs. (2430 kg)
4WD: 5600 lbs. (2540 kg) 27.2 cu.ft (770 ℓ)
avaIlaBle front trunk weIght
2WD55 lbs (25 kg)
4WD25 lbs (10 kg)
Available front trunk weight depends on the specifications.

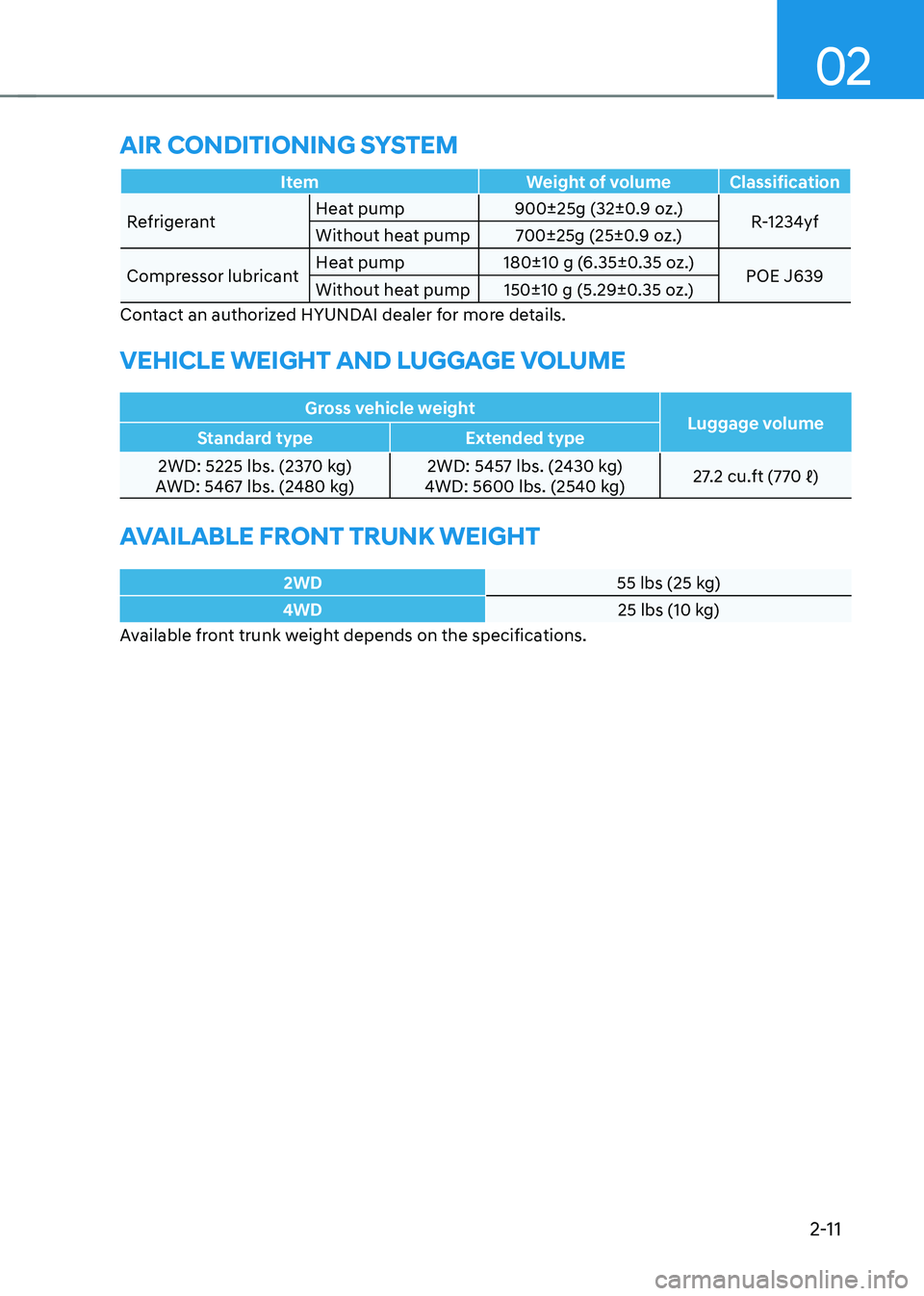

aIr conDItIonIng systeM

Vehicle Information, Consumer Information and Reporting Safety Defects
2-12
To help achieve proper vehicle performance and durability, use only lubricants of the
proper quality.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Reduction gear fluid
2WD Rear
0.90~0.92 US gal.
(3.4~3.5 ℓ)
HK ATF 65 SP4M-1
4WD Front
0.85~0.87 US gal.
(3.2~3.3 ℓ)
Rear 0.90~0.92 US gal.
(3.4~3.5 ℓ)
Coolant Standard type
with heat
pump 2WD
1.67 US gal. (6.3 ℓ)
Designated
coolant water for electric vehicles
4WD
1.80 US gal. (6.8 ℓ)
without heat pump 2WD
1.70 US gal. (6.4 ℓ)
4WD 1.80 US gal. (6.8 ℓ)
Extended type with heat
pump 2WD
1.67 US gal. (6.3 ℓ)
4WD 1.80 US gal. (6.8 ℓ)
without heat pump 2WD
1.70 US gal. (6.4 ℓ)
4WD 1.80 US gal. (6.8 ℓ)
LCW
Coolant Standard type
with heat
pump 2WD
2.49 US gal. (9.4 ℓ)
4WD 2.49 US gal. (9.4 ℓ)
without heat pump 2WD
2.32 US gal. (8.8 ℓ)
4WD 2.32 US gal. (8.8 ℓ)
Extended type with heat
pump 2WD
3.14 US gal. (11.9 ℓ)
4WD 3.06 US gal. (11.6 ℓ)
without heat pump 2WD
2.96 US gal. (11.2 ℓ)
4WD 3.09 US gal. (11.7 ℓ)
Brake fluid As requiredSAE J1704 DOT-
4 LV, FMVSS 116
DOT-4, ISO 4925 CLASS-6

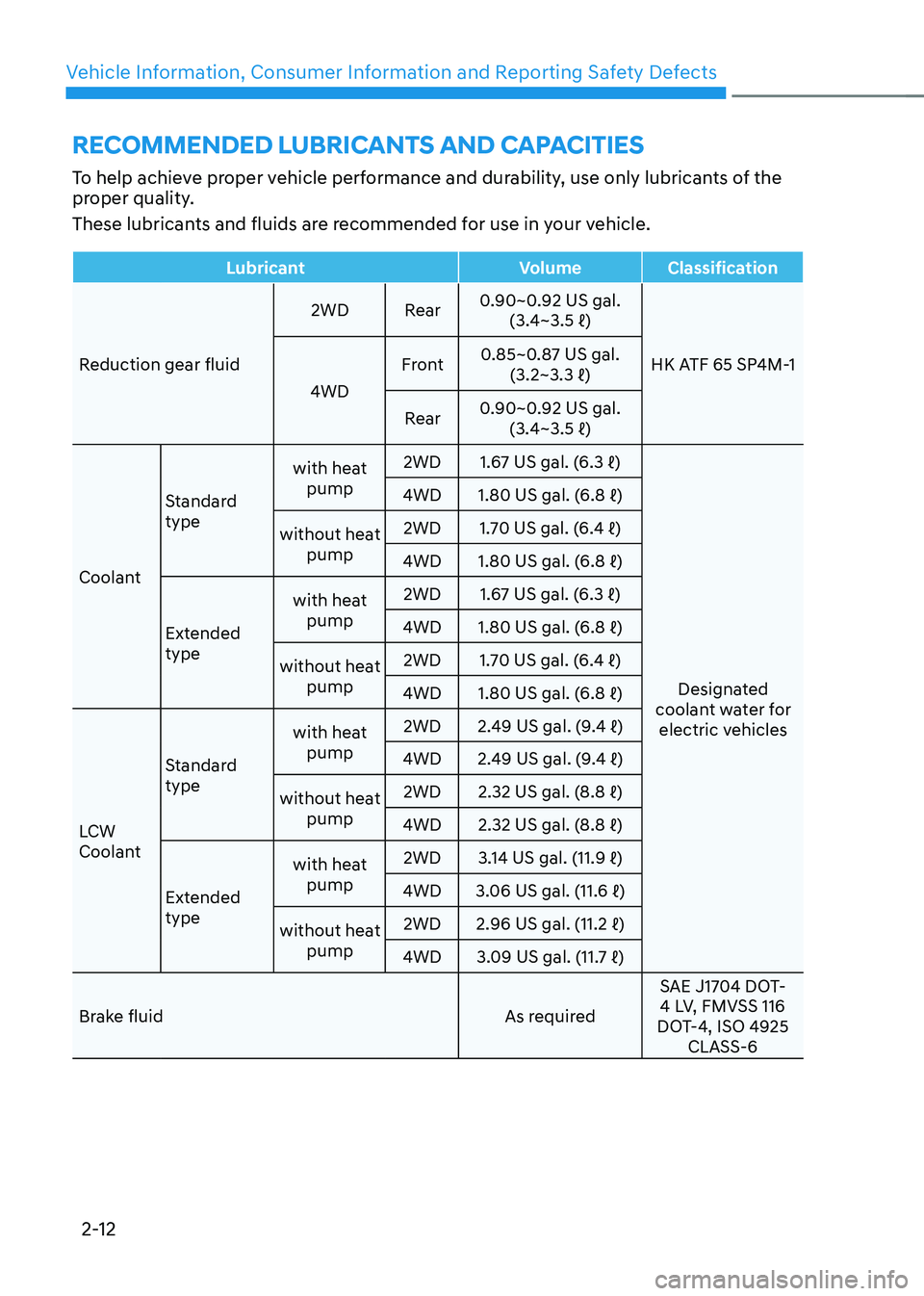

recoMMenDeD luBrIcants anD capacItIes

02
2-13

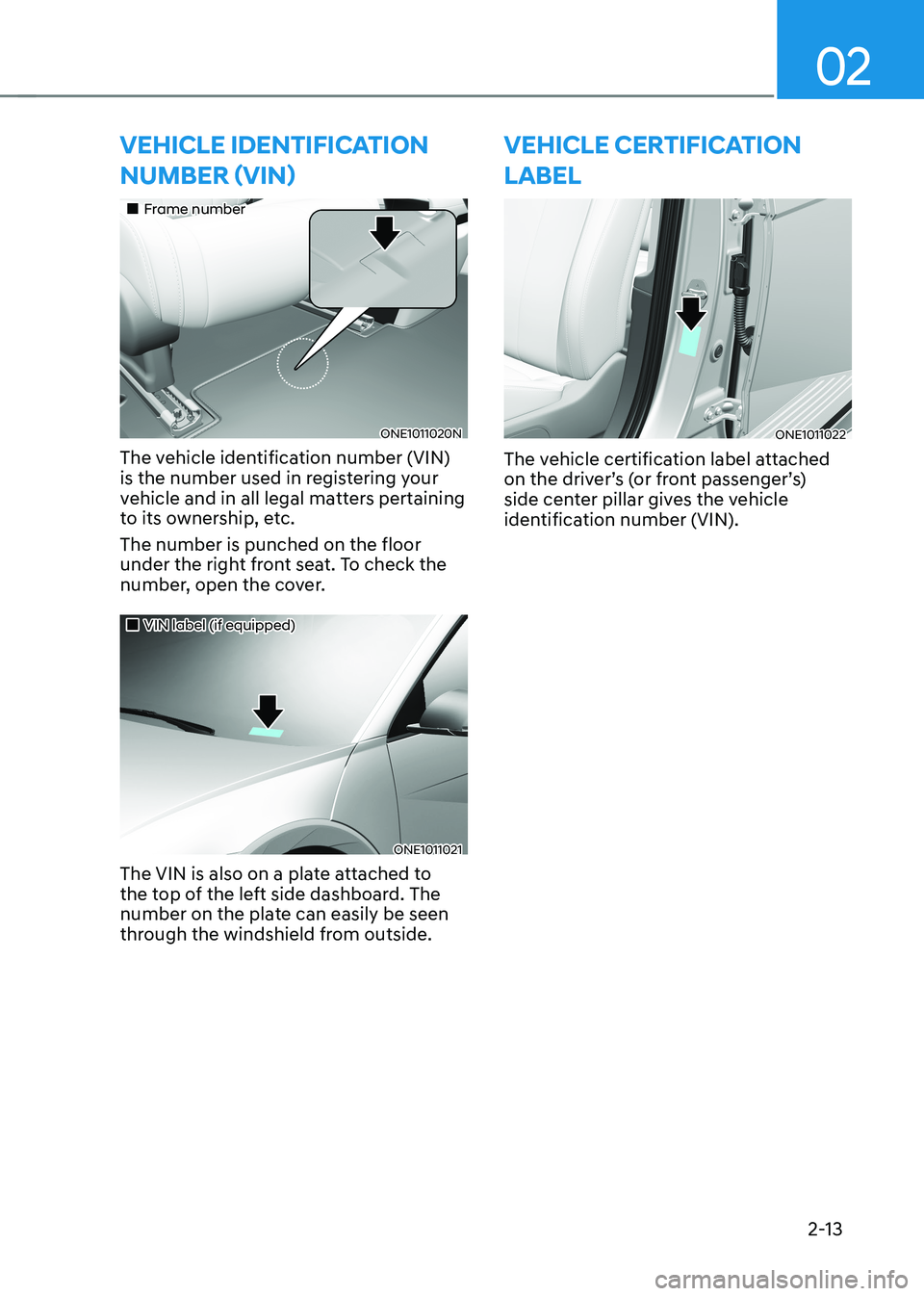

vehIcle IDentIfIcatIon numbEr (vin)
„„Frame number
ONE1011020N
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc. The number is punched on the floor
under the right front seat. To check the
number, open the cover.
„„VIN label (if equipped)
ONE1011021
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
vehIcle certIfIcatIon laBel
ONE1011022
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).

Vehicle Information, Consumer Information and Reporting Safety Defects
2-14

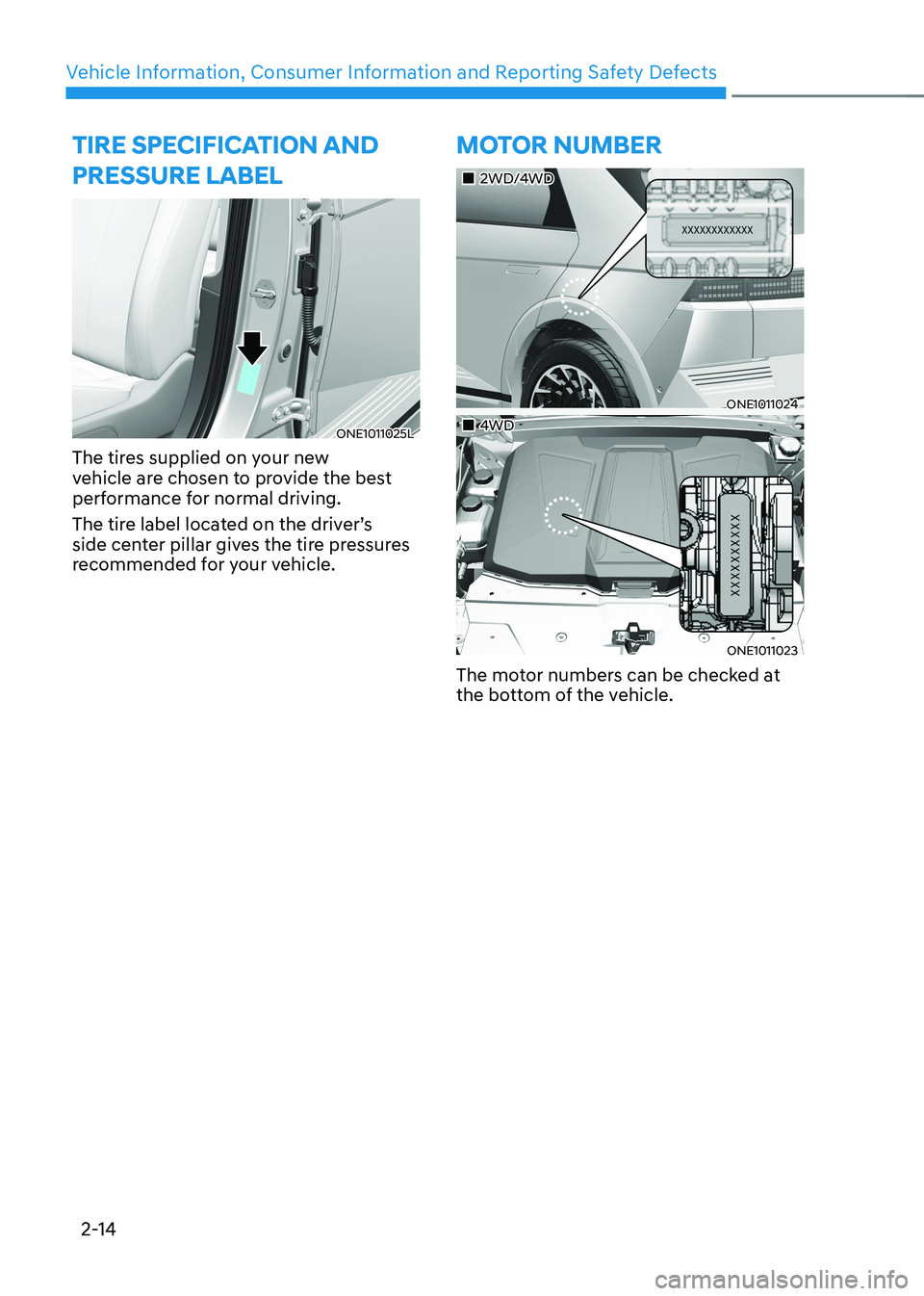

tIre specIfIcatIon anD pressure laBel
ONE1011025L
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
Motor nuMBer
„„2WD/4WD
ONE1011024
„„4WD
ONE1011023
The motor numbers can be checked at
the bottom of the vehicle.

02
2-15

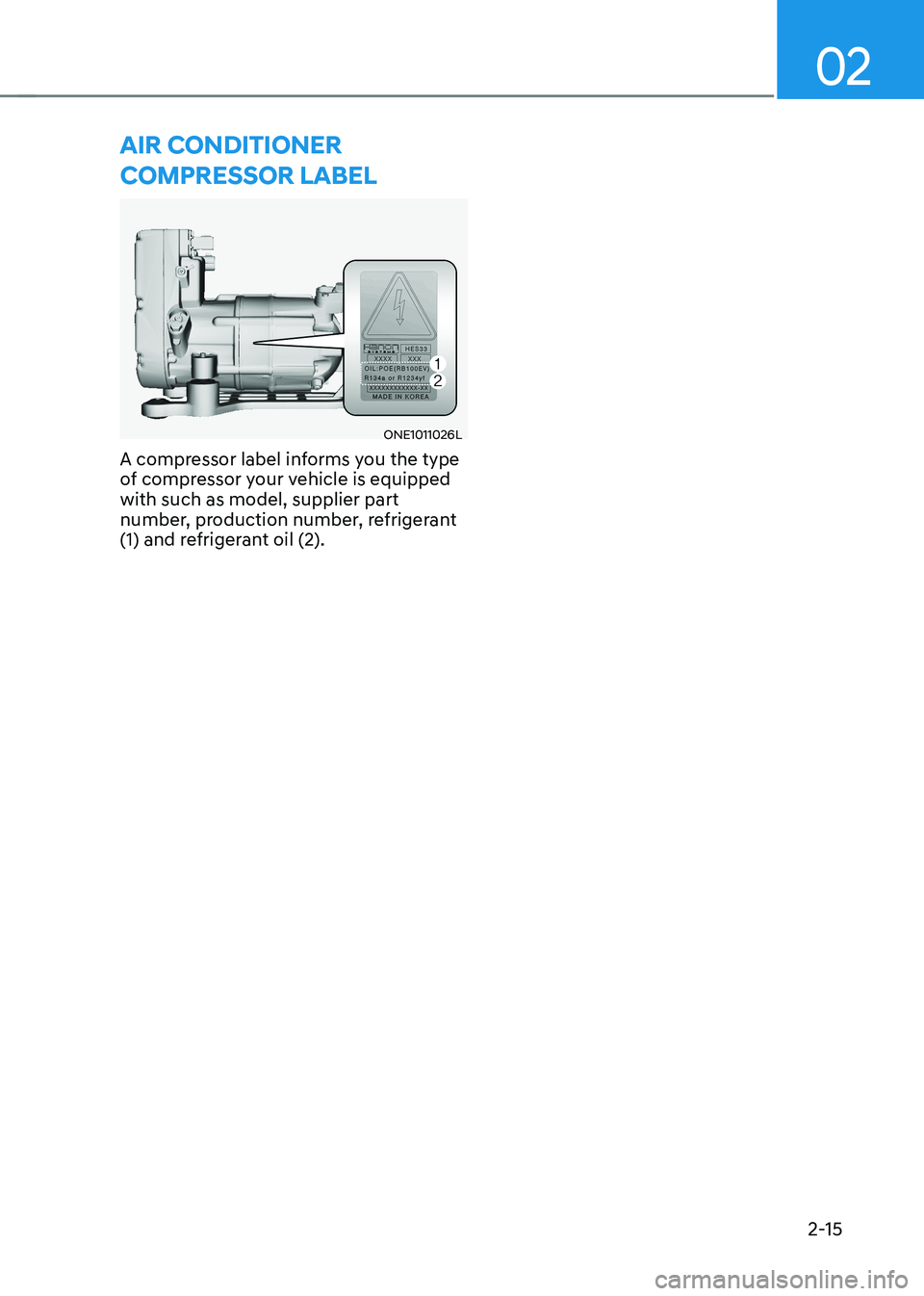

aIr conDItIoner
coMpressor laBel
ONE1011026L
A compressor label informs you the type
of compressor your vehicle is equipped with such as model, supplier part
number, production number, refrigerant
(1) and refrigerant oil (2).

Vehicle Information, Consumer Information and Reporting Safety Defects
2-16

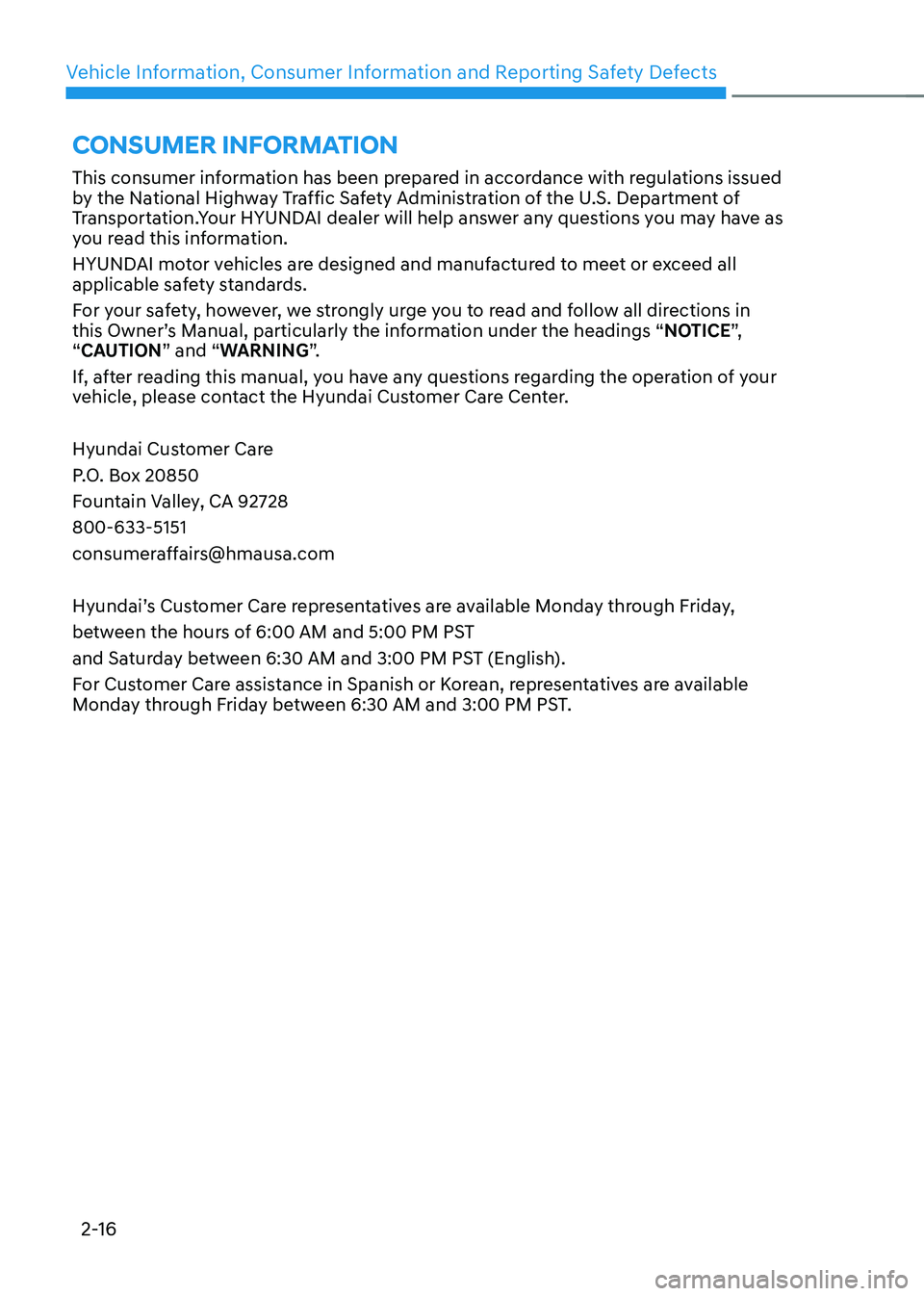

This consumer information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Department of
Transportation.Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “
NOTICE”,
“ CAUTION ” and “WARNING ”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center.
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728 800-633-5151
[email protected]
Hyundai’s Customer Care representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are available
Monday through Friday between 6:30 AM and 3:00 PM PST.
consuMer InforMatIon

02
2-17
If you believe that your vehicle has a defect which could cause a crash or
could cause injury or death, you should immediately inform the National
Highway Traffic Safety Administration (NHTSA) in addition to notifying
HYUNDAI MOTOR AMERICA.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153);
go to http://www.safercar.gov;
download the SaferCar mobile application;
or write to: Administrator, NHTSA
1200 New Jersey Ave, SE,
West Building Washington, D.C. 20590.
You can also obtain other information about motor vehicle safety from
http://www.safercar.gov.
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual
problems between you, your dealer, or HYUNDAI MOTOR AMERICA.

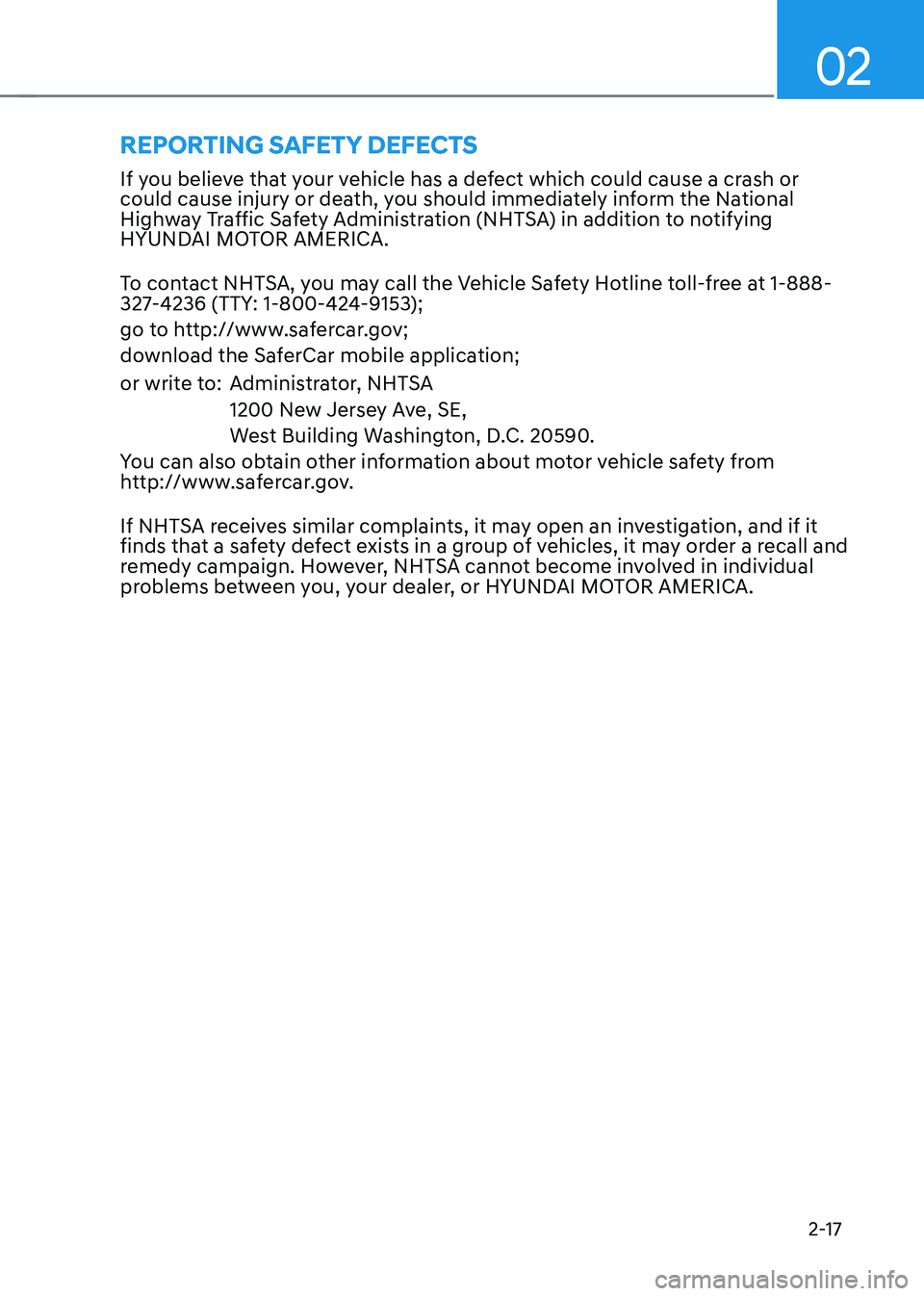

reportIng safety Defects

3
3. Seats & Safety System
Important Safety Precautions ........................................................................... 3-2
Always Wear Your Seat Belt ......................................................................................... 3-2
Restrain All Children ..................................................................................................... 3-2
Air Bag Hazards ............................................................................................................ 3-2
Driver Distraction ......................................................................................................... 3-2
Control Your Speed ...................................................................................................... 3-2
Keep Your Vehicle In Safe Condition ........................................................................... 3-2
Seats .................................................................................................................. 3-3
Safety Precautions ....................................................................................................... 3-6
Front Seats .................................................................................................................... 3 -7
Rear Seats ................................................................................................................... 3-16
Head Restraint ............................................................................................................ 3-20
Seat Warmers ............................................................................................................. 3-24
Air Ventilation Seats ................................................................................................... 3-26
Advanced Rear Occupant Alert (ROA) ...................................................................... 3-28
Seat Belts ......................................................................................................... 3-29
Seat Belt Safety Precautions ..................................................................................... 3-29
Seat Belt Warning Light ............................................................................................. 3-30
Seat Belt Restraint System ......................................................................................... 3-31
Additional Seat Belt Safety Precautions ................................................................... 3-36
Care of Seat Belts ....................................................................................................... 3-38
Child Restraint System (CRS) ......................................................................... 3-39
Children Always in the Rear ....................................................................................... 3-39
Selecting a Child Restraint System (CRS) ................................................................3-40
Installing a Child Restraint System (CRS) .................................................................3-41
Air Bag - Supplemental Restraint System .....................................................3-49
Where are the Air Bags? ............................................................................................. 3-51
How does the Air Bags System Operate? .................................................................3-54
What to Expect After an Air Bag Inflates .................................................................. 3-58
Occupant Classification System (OCS) ..................................................................... 3-59
Why didn’t my air bag go off in a collision? ..............................................................3-65
SRS Care ..................................................................................................................... 3-70
Additional Safety Precautions .................................................................................... 3-71
Air Bag Warning Labels ............................................................................................... 3-71

Seats & Safety System
3-2
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not to replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate Child Restraint System.
Larger children should use a booster
seat with the lap/shoulder belt until they
can use the seat belt properly without a
booster seat.
Air Bag Hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers, and using mobile phones.
Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving.
To reduce your risk of distraction and an
accident: •
Set up your mobile devices (for
example, MP3 players, phones,
navigation units, etc.) ONLY when
your vehicle is parked or safely
stopped.
• ONLY use your mobile device when
allowed by laws and conditions permit
safe use. NEVER text or email while
driving. Most countries have laws
prohibiting drivers from texting. Some
countries and cities also prohibit
drivers from using handheld phones.
• NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but
serious injuries can also occur at lower
speeds. Never drive faster than is safe
for current conditions, regardless of the
maximum speed posted.
Keep Your Vehicle In Safe Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
Important safety precautIons

3-3
03
Front seat
(1) Seat sliding forward or rearward/Cushion height/Seat
cushion(Relaxion comfort) angle
(2) Seatback angle
(3) Lumbar support (4)
Relaxion comfort seat switch
(5) Rear seat control switch
(6) Leg support
(7) Head restraint

à RELAXION: Relax + Position
seats
The actual shape may differ from the illustration.
ONE1031001
