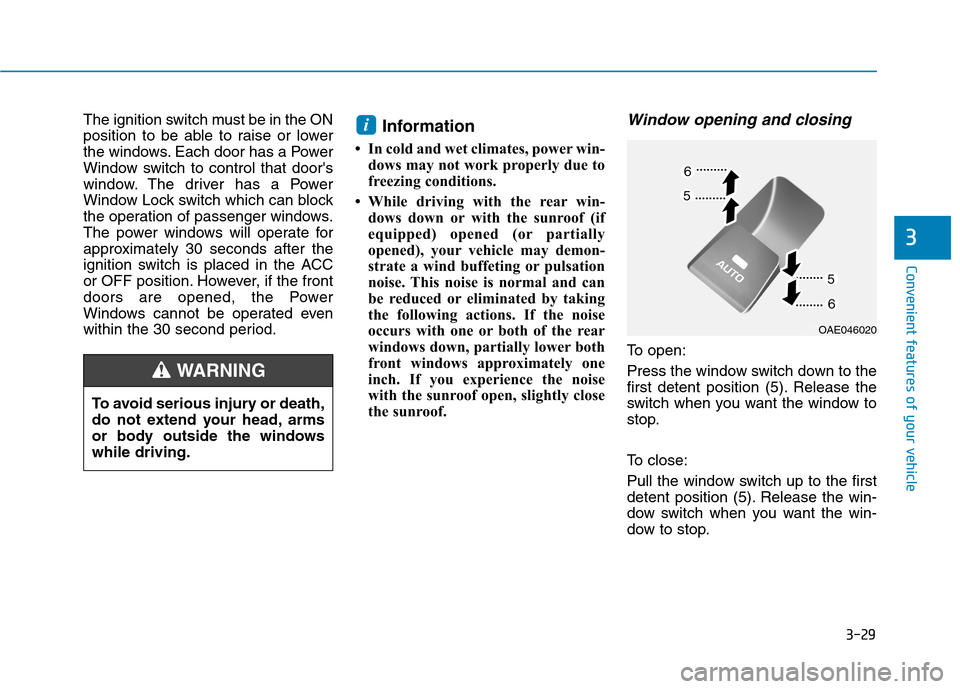

Page 131 of 553

Hyundai Ioniq Hybrid 2017  Owners Manual 3-29
Convenient features of your vehicle
3
The ignition switch must be in the ON
position to be able to raise or lower
the windows. Each door has a Power
Window switch to control that doors
window.

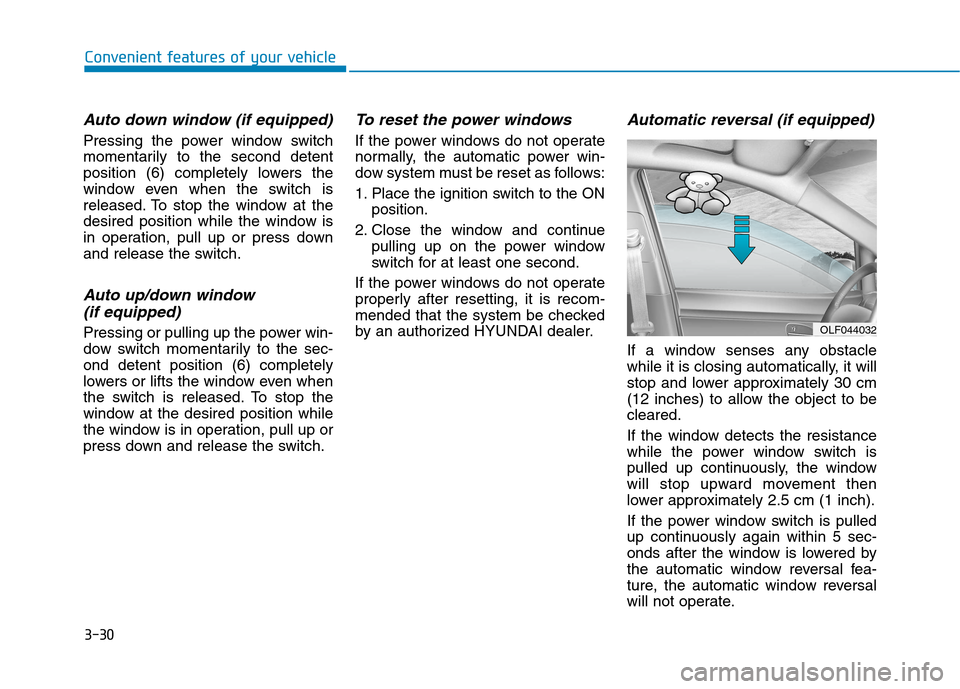

Page 132 of 553

Hyundai Ioniq Hybrid 2017  Owners Manual 3-30
Convenient features of your vehicle
Auto down window (if equipped)
Pressing the power window switch
momentarily to the second detent
position (6) completely lowers the
window even when the swit

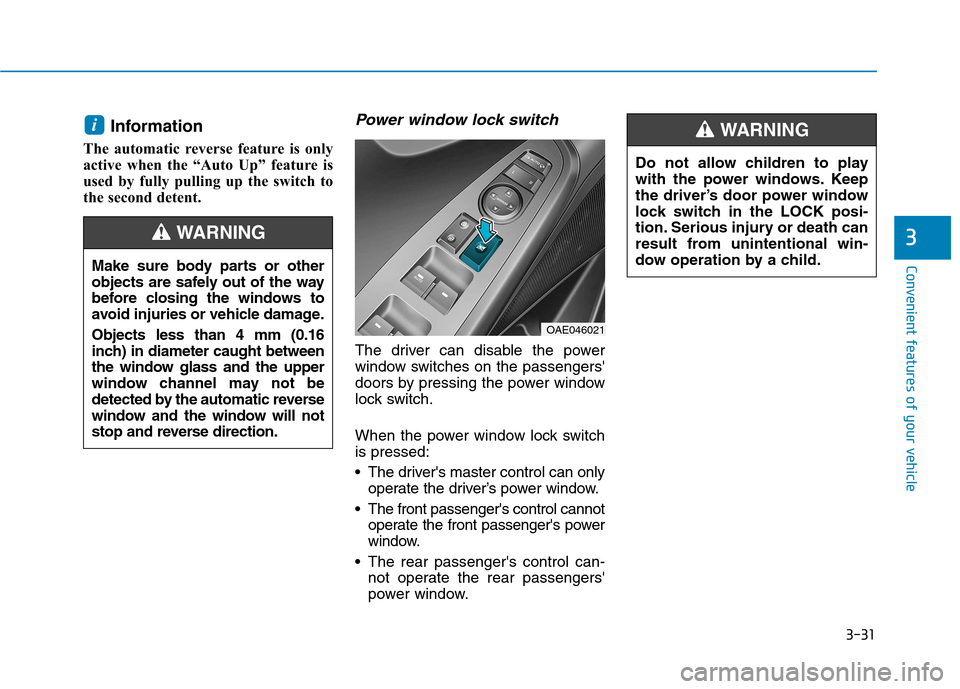

Page 133 of 553

Hyundai Ioniq Hybrid 2017  Owners Manual 3-31
Convenient features of your vehicle
3
Information
The automatic reverse feature is only
active when the “Auto Up” feature is
used by fully pulling up the switch to
the second detent.Power w

Page 134 of 553

Hyundai Ioniq Hybrid 2017  Owners Manual 3-32
Convenient features of your vehicle
 To prevent possible damage tothe power window system, do
not open or close two windows
or more at the same time. This
will also ensure the longevity of
the f

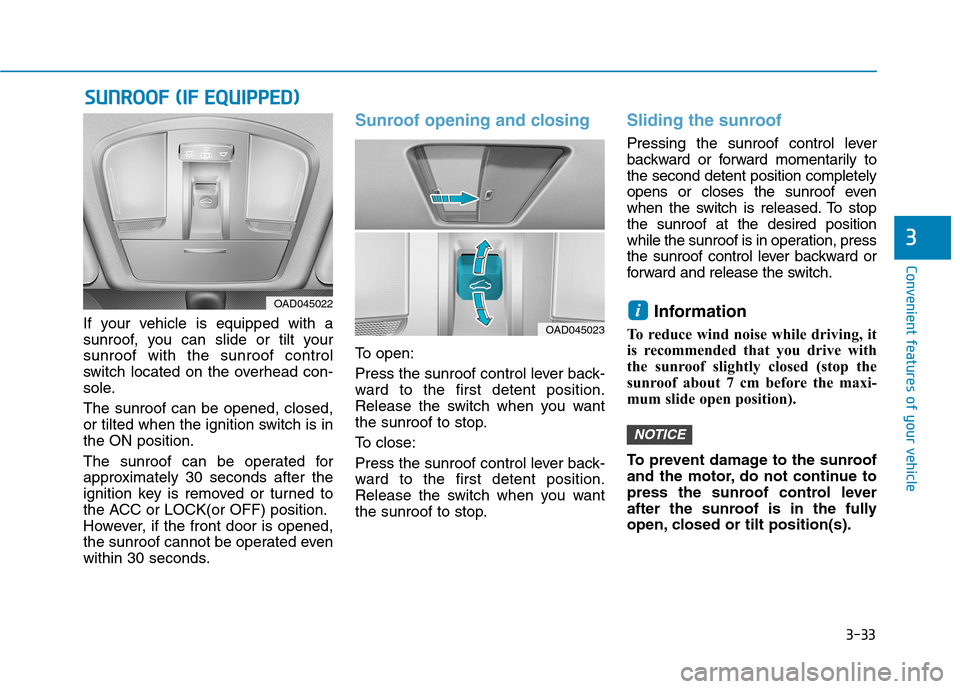

Page 135 of 553

Hyundai Ioniq Hybrid 2017  Owners Manual 3-33
Convenient features of your vehicle
3
SSUU NNRROO OO FF  (( IIFF   EE QQ UUIIPP PP EEDD ))
If your vehicle is equipped with a
sunroof, you can slide or tilt yoursunroof with the sunroof control

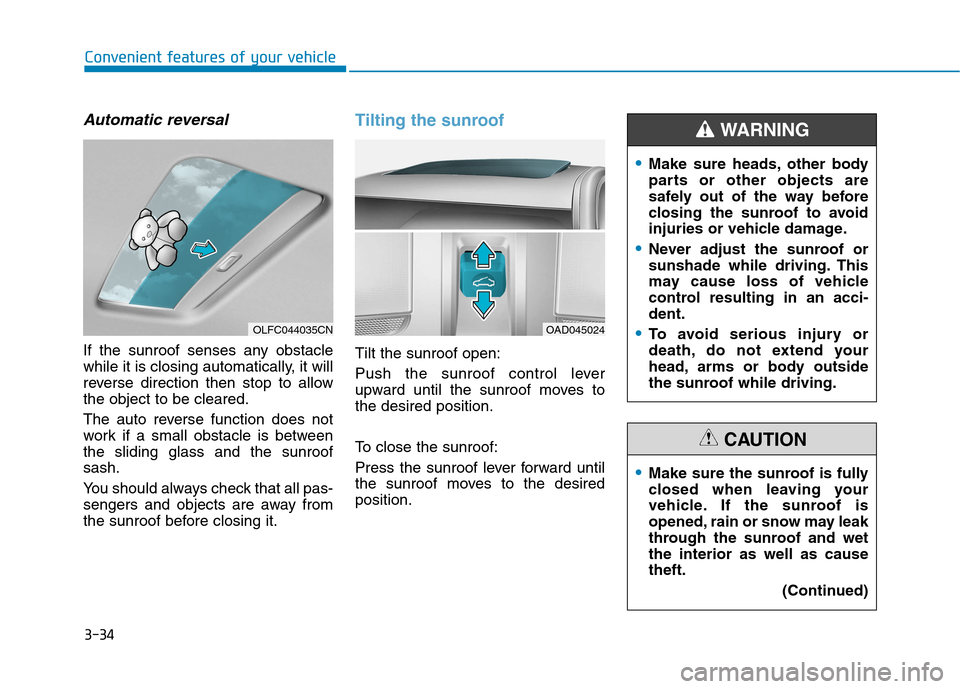

Page 136 of 553

Hyundai Ioniq Hybrid 2017  Owners Manual 3-34
Convenient features of your vehicle
Automatic reversal
If the sunroof senses any obstacle
while it is closing automatically, it will
reverse direction then stop to allowthe object to be cleared.

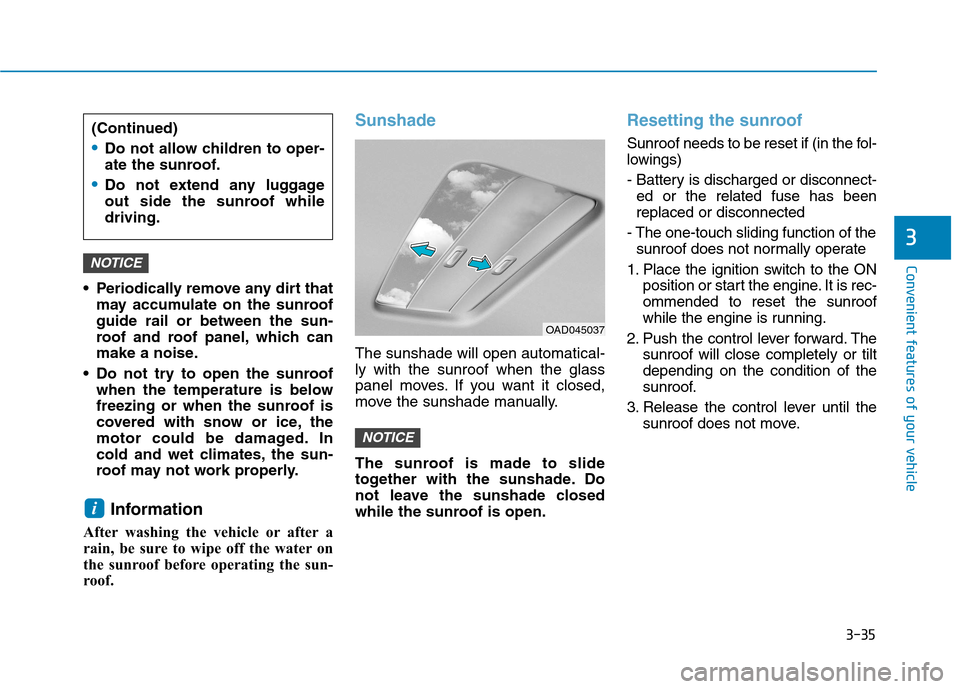

Page 137 of 553

Hyundai Ioniq Hybrid 2017  Owners Manual 3-35
Convenient features of your vehicle
3
 Periodically remove any dirt thatmay accumulate on the sunroof guide rail or between the sun-
roof and roof panel, which can
make a noise.
 Do not try to op

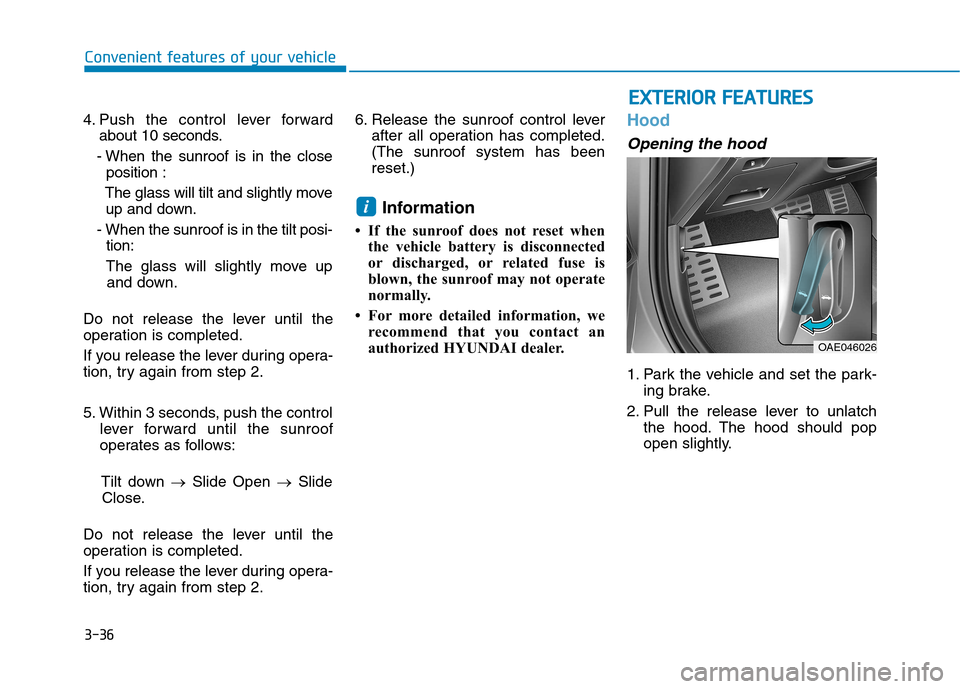

Page 138 of 553

Hyundai Ioniq Hybrid 2017  Owners Manual 3-36
EEXX TTEERR IIOO RR  FF EE AA TTUU RREESS
Convenient features of your vehicle
4. Push the control lever forward
about 10 seconds.
- When the sunroof is in the close position :
The glass will tilt

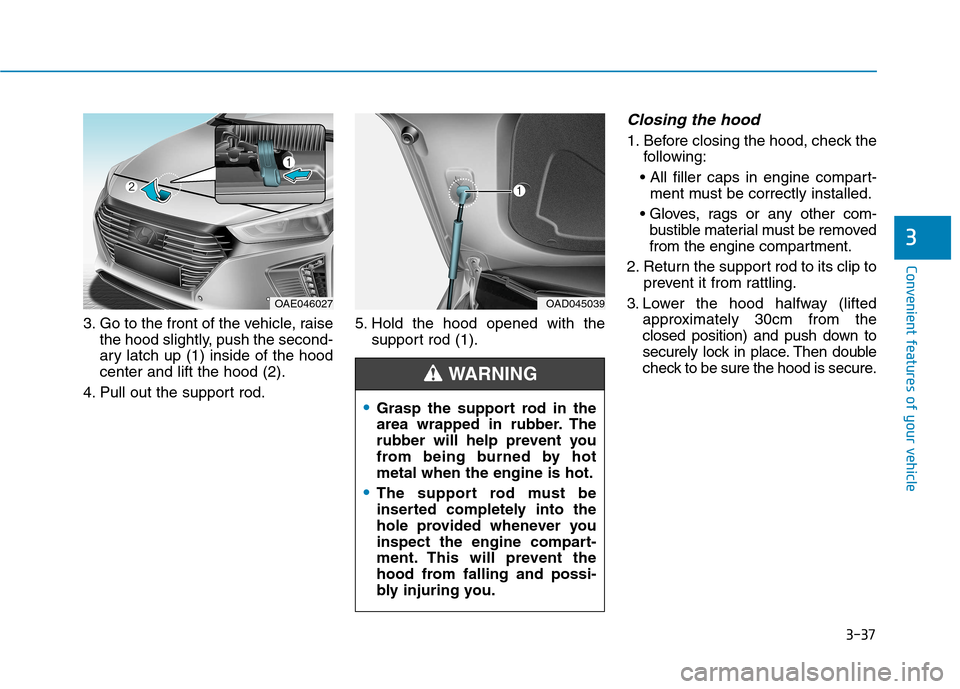

Page 139 of 553

Hyundai Ioniq Hybrid 2017  Owners Manual 3-37
Convenient features of your vehicle
3
3. Go to the front of the vehicle, raisethe hood slightly, push the second-
ary latch up (1) inside of the hoodcenter and lift the hood (2).
4. Pull out the

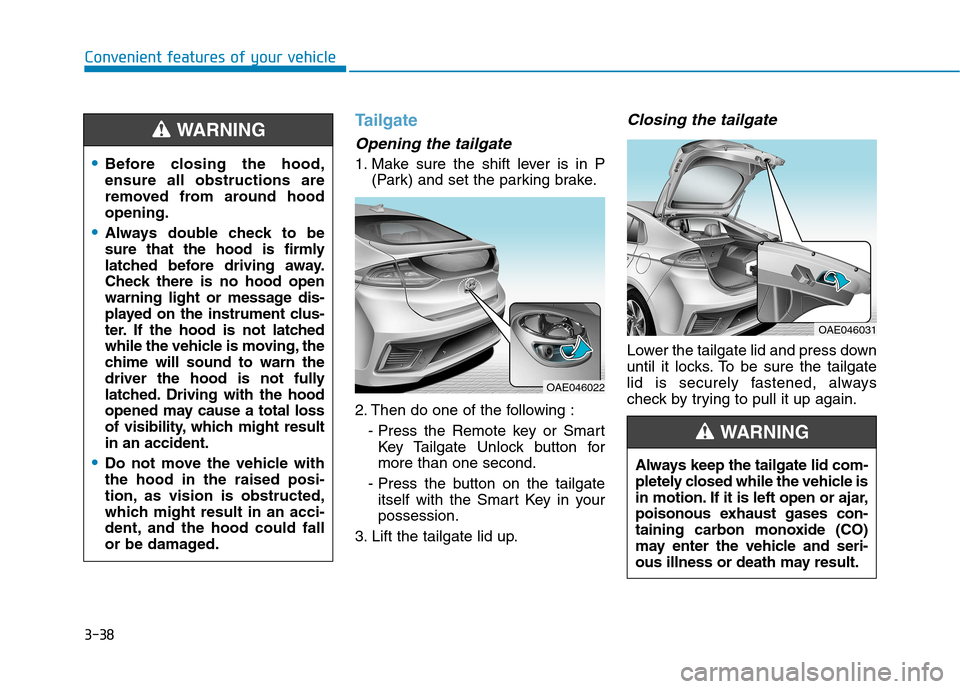

Page 140 of 553

Hyundai Ioniq Hybrid 2017  Owners Manual 3-38
Convenient features of your vehicle
Tailgate
Opening the tailgate
1. Make sure the shift lever is in P(Park) and set the parking brake.
2. Then do one of the following : - Press the Remote key or
