Hyundai Ioniq Hybrid 2020 Owner's Manual

H50
S SA
AF
FE
ET
TY
Y
P
PR
RE
EC
CA
AU
UT
TI
IO
ON
NS
S
F
FO
OR
R
H
HY
YB
BR
RI
ID
D
S
SY
YS
ST
TE
EM
M
(
(C
CO
ON
NT
T.
.)
)

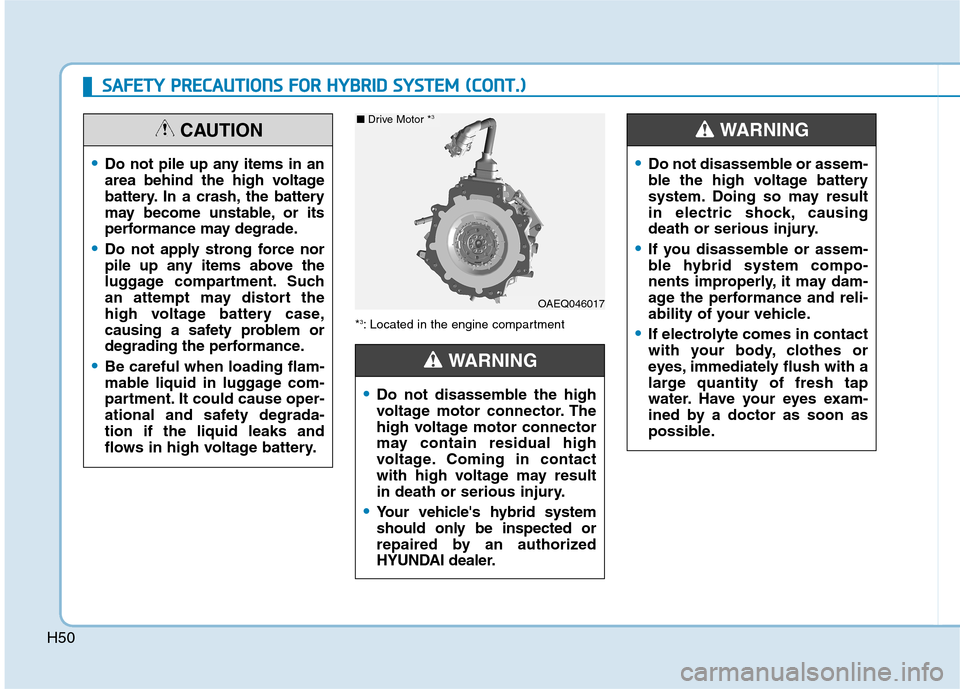

*3: Located in the engine compartment
OAEQ046017
■ Drive Motor *3
Do not disassemble the high
voltage motor connector. The
high voltage motor connector
may contain residual high
voltage. Coming in contact
with high voltage may result
in death or serious injury.
Your vehicle's hybrid system
should only be inspected or
repaired by an authorized
HYUNDAI dealer.
WARNING
Do not disassemble or assem-
ble the high voltage battery
system. Doing so may result
in electric shock, causing
death or serious injury.
If you disassemble or assem-
ble hybrid system compo-
nents improperly, it may dam-
age the performance and reli-
ability of your vehicle.
If electrolyte comes in contact
with your body, clothes or
eyes, immediately flush with a
large quantity of fresh tap
water. Have your eyes exam-
ined by a doctor as soon as
possible.
WARNING
Do not pile up any items in an
area behind the high voltage
battery. In a crash, the battery
may become unstable, or its
performance may degrade.
Do not apply strong force nor
pile up any items above the
luggage compartment. Such
an attempt may distort the
high voltage battery case,
causing a safety problem or
degrading the performance.
Be careful when loading flam-
mable liquid in luggage com-
partment. It could cause oper-
ational and safety degrada-
tion if the liquid leaks and
flows in high voltage battery.
CAUTION

H51

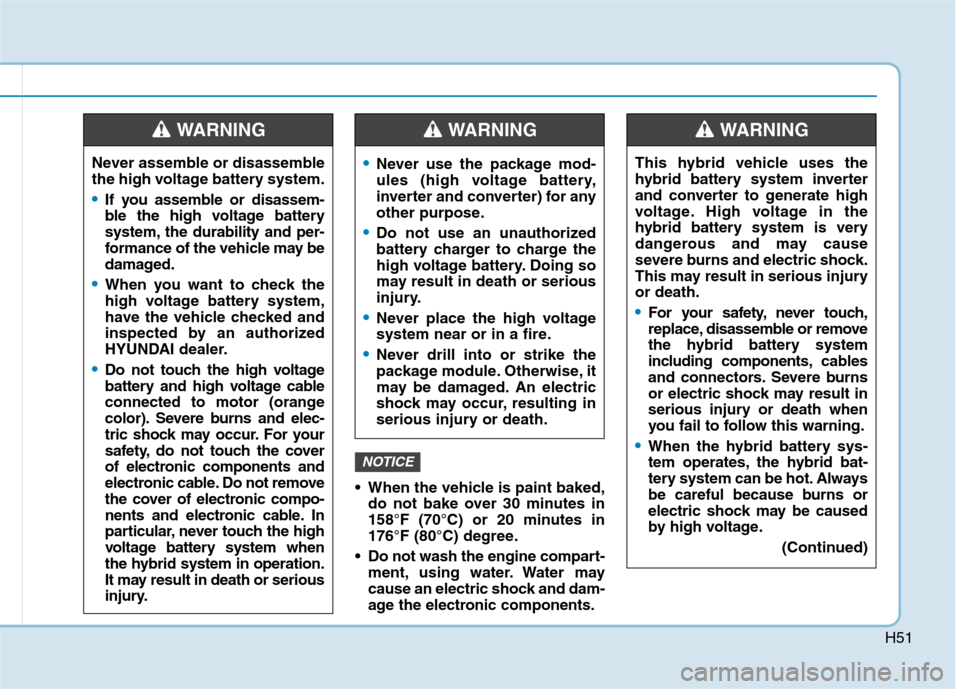

When the vehicle is paint baked,
do not bake over 30 minutes in
158°F (70°C) or 20 minutes in
176°F (80°C) degree.
Do not wash the engine compart-
ment, using water. Water may
cause an electric shock and dam-
age the electronic components.
NOTICE
Never use the package mod-
ules (high voltage battery,
inverter and converter) for any
other purpose.
Do not use an unauthorized
battery charger to charge the
high voltage battery. Doing so
may result in death or serious
injury.
Never place the high voltage
system near or in a fire.
Never drill into or strike the
package module. Otherwise, it
may be damaged. An electric
shock may occur, resulting in
serious injury or death.
WARNING
This hybrid vehicle uses the
hybrid battery system inverter
and converter to generate high
voltage. High voltage in the
hybrid battery system is very
dangerous and may cause
severe burns and electric shock.
This may result in serious injury
or death.
For your safety, never touch,
replace, disassemble or remove
the hybrid battery system
including components, cables
and connectors. Severe burns
or electric shock may result in
serious injury or death when
you fail to follow this warning.
When the hybrid battery sys-
tem operates, the hybrid bat-
tery system can be hot. Always
be careful because burns or
electric shock may be caused
by high voltage.
(Continued)
WARNING
Never assemble or disassemble
the high voltage battery system.
If you assemble or disassem-
ble the high voltage battery
system, the durability and per-
formance of the vehicle may be
damaged.
When you want to check the
high voltage battery system,
have the vehicle checked and
inspected by an authorized
HYUNDAI dealer.
Do not touch the high voltage
battery and high voltage cable
connected to motor (orange
color). Severe burns and elec-
tric shock may occur. For your
safety, do not touch the cover
of electronic components and
electronic cable. Do not remove
the cover of electronic compo-
nents and electronic cable. In
particular, never touch the high
voltage battery system when
the hybrid system in operation.
It may result in death or serious
injury.
WARNING

H52
S SA
AF
FE
ET
TY
Y
P
PR
RE
EC
CA
AU
UT
TI
IO
ON
NS
S
F
FO
OR
R
H
HY
YB
BR
RI
ID
D
S
SY
YS
ST
TE
EM
M
(
(C
CO
ON
NT
T.
.)
)
Information
Gradual capacity reduction of the
high voltage battery.
The high voltage Battery capacity
gradually reduces with time and use.
This is natural characteristic of the
high voltage batteries. The extent at
which capacity is reduced changes
drastically depending on the environ-
ment(ambient temperature, etc.) and
usage conditions such as how the vehi-
cle is driven and how the high voltage
battery is charged. Reduction of the
high voltage battery capacity is not
covered under warranty.

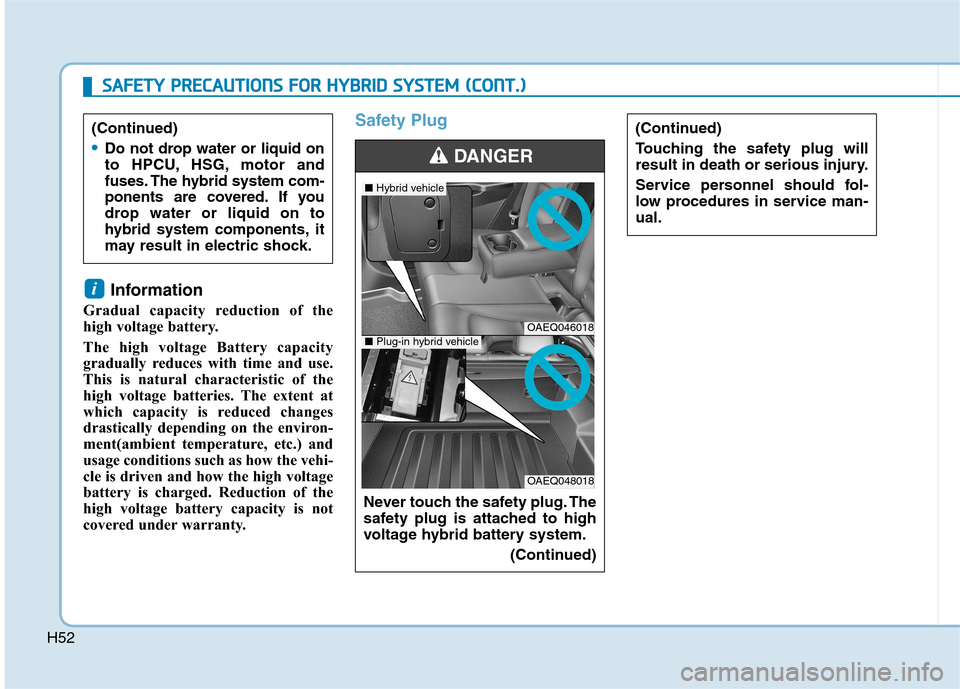

Safety Plug
i
Never touch the safety plug. The
safety plug is attached to high
voltage hybrid battery system.
(Continued)
(Continued)
Touching the safety plug will
result in death or serious injury.
Service personnel should fol-
low procedures in service man-
ual.
DANGER
OAEQ046018
■Hybrid vehicle
OAEQ048018
■Plug-in hybrid vehicle
(Continued)
Do not drop water or liquid on
to HPCU, HSG, motor and
fuses. The hybrid system com-
ponents are covered. If you
drop water or liquid on to
hybrid system components, it
may result in electric shock.

H53

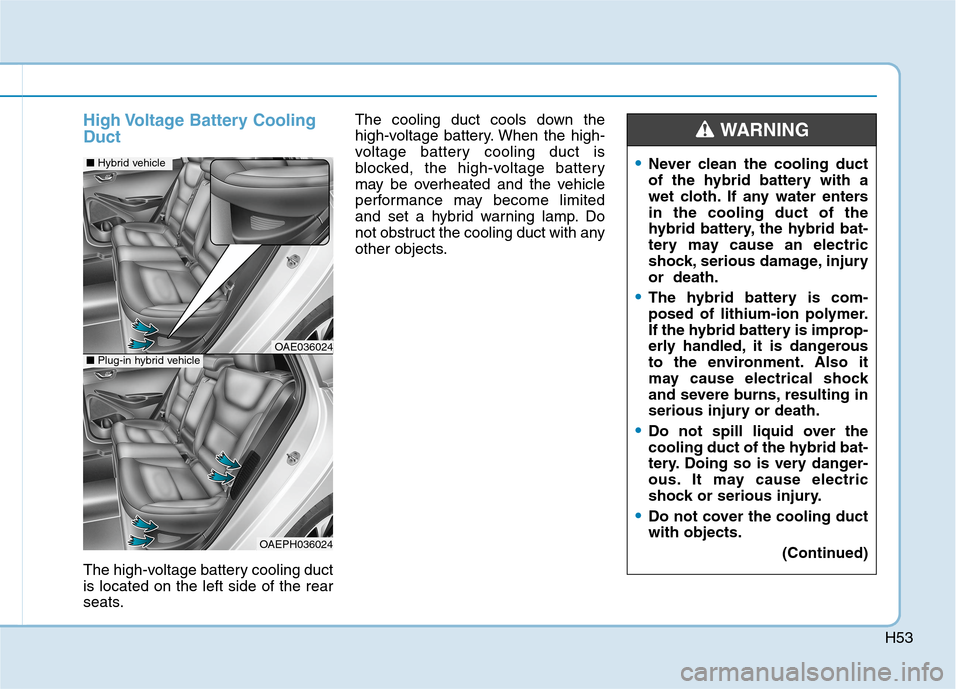

High Voltage Battery Cooling
Duct
The high-voltage battery cooling duct
is located on the left side of the rear
seats.The cooling duct cools down the
high-voltage battery. When the high-
voltage battery cooling duct is
blocked, the high-voltage battery
may be overheated and the vehicle
performance may become limited
and set a hybrid warning lamp. Do
not obstruct the cooling duct with any
other objects.
OAE036024
■Hybrid vehicle
OAEPH036024
■Plug-in hybrid vehicle
Never clean the cooling duct
of the hybrid battery with a
wet cloth. If any water enters
in the cooling duct of the
hybrid battery, the hybrid bat-
tery may cause an electric
shock, serious damage, injury
or death.
The hybrid battery is com-
posed of lithium-ion polymer.
If the hybrid battery is improp-
erly handled, it is dangerous
to the environment. Also it
may cause electrical shock
and severe burns, resulting in
serious injury or death.
Do not spill liquid over the
cooling duct of the hybrid bat-
tery. Doing so is very danger-
ous. It may cause electric
shock or serious injury.
Do not cover the cooling duct
with objects.
(Continued)
WARNING

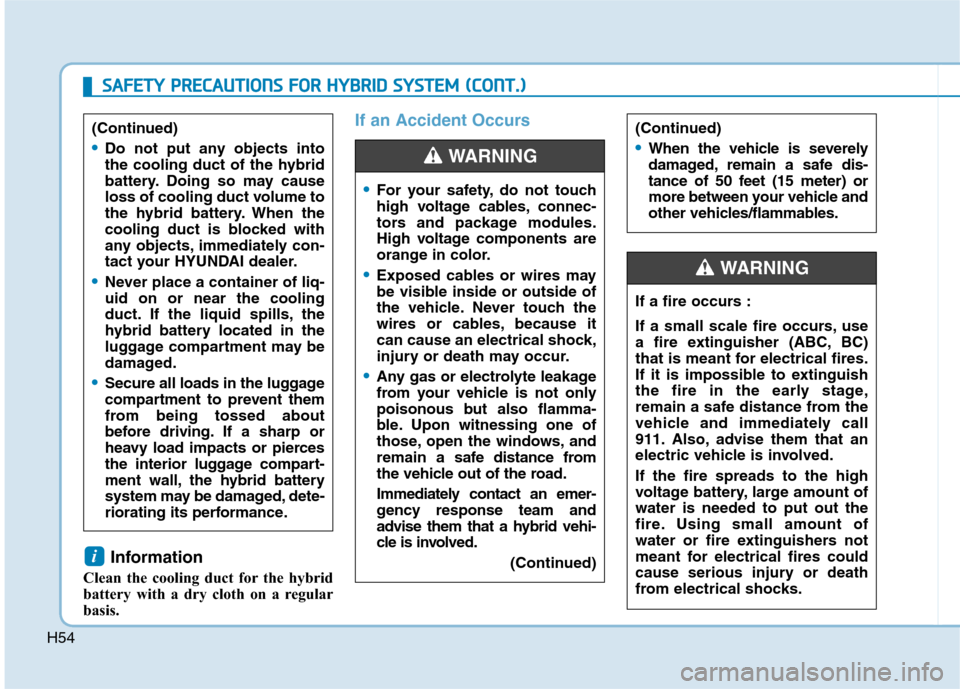

H54
Information
Clean the cooling duct for the hybrid
battery with a dry cloth on a regular
basis.
If an Accident Occurs
i
For your safety, do not touch
high voltage cables, connec-
tors and package modules.
High voltage components are
orange in color.
Exposed cables or wires may
be visible inside or outside of
the vehicle. Never touch the
wires or cables, because it
can cause an electrical shock,
injury or death may occur.
Any gas or electrolyte leakage
from your vehicle is not only
poisonous but also flamma-
ble. Upon witnessing one of
those, open the windows, and
remain a safe distance from
the vehicle out of the road.
Immediately contact an emer-
gency response team and
advise them that a hybrid vehi-
cle is involved.
(Continued)
WARNING
(Continued)
When the vehicle is severely
damaged, remain a safe dis-
tance of 50 feet (15 meter) or
more between your vehicle and
other vehicles/flammables.
If a fire occurs :
If a small scale fire occurs, use
a fire extinguisher (ABC, BC)
that is meant for electrical fires.
If it is impossible to extinguish
the fire in the early stage,
remain a safe distance from the
vehicle and immediately call
911. Also, advise them that an
electric vehicle is involved.
If the fire spreads to the high
voltage battery, large amount of
water is needed to put out the
fire. Using small amount of
water or fire extinguishers not
meant for electrical fires could
cause serious injury or death
from electrical shocks.
WARNING
S SA
AF
FE
ET
TY
Y
P
PR
RE
EC
CA
AU
UT
TI
IO
ON
NS
S
F
FO
OR
R
H
HY
YB
BR
RI
ID
D
S
SY
YS
ST
TE
EM
M
(
(C
CO
ON
NT
T.
.)
)
(Continued)
Do not put any objects into
the cooling duct of the hybrid
battery. Doing so may cause
loss of cooling duct volume to
the hybrid battery. When the
cooling duct is blocked with
any objects, immediately con-
tact your HYUNDAI dealer.
Never place a container of liq-
uid on or near the cooling
duct. If the liquid spills, the
hybrid battery located in the
luggage compartment may be
damaged.
Secure all loads in the luggage
compartment to prevent them
from being tossed about
before driving. If a sharp or
heavy load impacts or pierces
the interior luggage compart-
ment wall, the hybrid battery
system may be damaged, dete-
riorating its performance.

H55

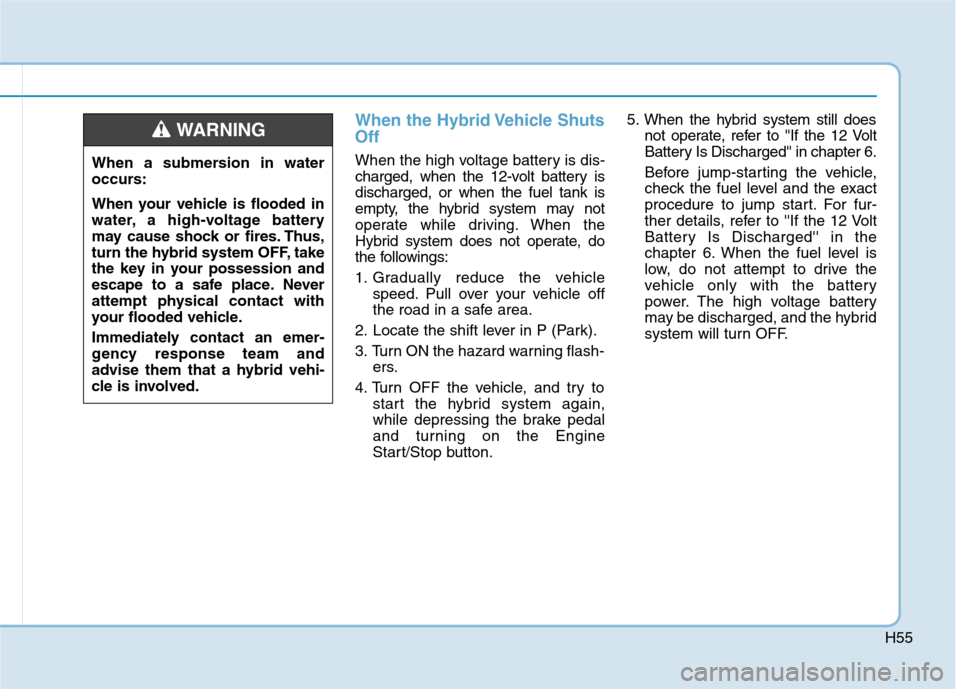

When the Hybrid Vehicle Shuts
Off
When the high voltage battery is dis-
charged, when the 12-volt battery is
discharged, or when the fuel tank is
empty, the hybrid system may not
operate while driving. When the
Hybrid system does not operate, do
the followings:
1. Gradually reduce the vehicle
speed. Pull over your vehicle off
the road in a safe area.
2. Locate the shift lever in P (Park).
3. Turn ON the hazard warning flash-
ers.
4. Turn OFF the vehicle, and try to
start the hybrid system again,
while depressing the brake pedal
and turning on the Engine
Start/Stop button.5. When the hybrid system still does
not operate, refer to ''If the 12 Volt
Battery Is Discharged'' in chapter 6.
Before jump-starting the vehicle,
check the fuel level and the exact
procedure to jump start. For fur-
ther details, refer to ''If the 12 Volt
Battery Is Discharged'' in the
chapter 6. When the fuel level is
low, do not attempt to drive the
vehicle only with the battery
power. The high voltage battery
may be discharged, and the hybrid
system will turn OFF. When a submersion in water
occurs:
When your vehicle is flooded in
water, a high-voltage battery
may cause shock or fires. Thus,
turn the hybrid system OFF, take
the key in your possession and
escape to a safe place. Never
attempt physical contact with
your flooded vehicle.
Immediately contact an emer-
gency response team and
advise them that a hybrid vehi-
cle is involved.
WARNING

I

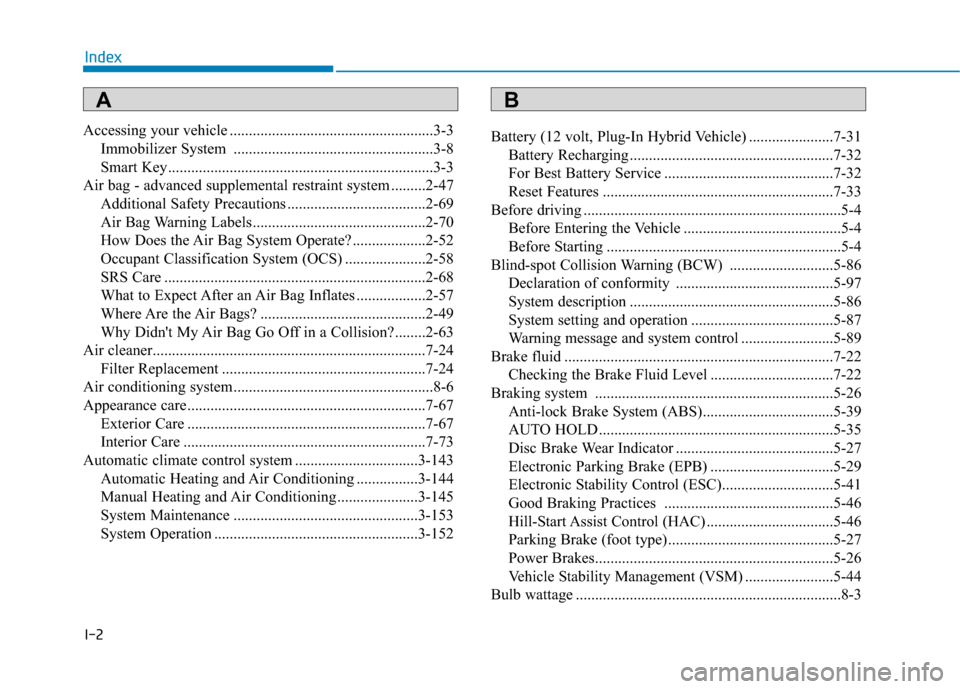

Index
I

I-2
Accessing your vehicle .....................................................3-3
Immobilizer System ....................................................3-8
Smart Key.....................................................................3-3
Air bag - advanced supplemental restraint system .........2-47
Additional Safety Precautions ....................................2-69
Air Bag Warning Labels.............................................2-70
How Does the Air Bag System Operate? ...................2-52
Occupant Classification System (OCS) .....................2-58
SRS Care ....................................................................2-68
What to Expect After an Air Bag Inflates ..................2-57
Where Are the Air Bags? ...........................................2-49
Why Didn't My Air Bag Go Off in a Collision?........2-63
Air cleaner.......................................................................7-24
Filter Replacement .....................................................7-24
Air conditioning system....................................................8-6
Appearance care..............................................................7-67
Exterior Care ..............................................................7-67
Interior Care ...............................................................7-73
Automatic climate control system ................................3-143
Automatic Heating and Air Conditioning ................3-144
Manual Heating and Air Conditioning .....................3-145
System Maintenance ................................................3-153
System Operation .....................................................3-152Battery (12 volt, Plug-In Hybrid Vehicle) ......................7-31
Battery Recharging .....................................................7-32
For Best Battery Service ............................................7-32
Reset Features ............................................................7-33
Before driving ...................................................................5-4
Before Entering the Vehicle .........................................5-4
Before Starting .............................................................5-4
Blind-spot Collision Warning (BCW) ...........................5-86
Declaration of conformity .........................................5-97
System description .....................................................5-86
System setting and operation .....................................5-87
Warning message and system control ........................5-89
Brake fluid ......................................................................7-22
Checking the Brake Fluid Level ................................7-22
Braking system ..............................................................5-26
Anti-lock Brake System (ABS)..................................5-39
AUTO HOLD .............................................................5-35
Disc Brake Wear Indicator .........................................5-27
Electronic Parking Brake (EPB) ................................5-29
Electronic Stability Control (ESC).............................5-41
Good Braking Practices ............................................5-46
Hill-Start Assist Control (HAC) .................................5-46
Parking Brake (foot type) ...........................................5-27
Power Brakes..............................................................5-26
Vehicle Stability Management (VSM) .......................5-44
Bulb wattage .....................................................................8-3
Index
AB

I-3

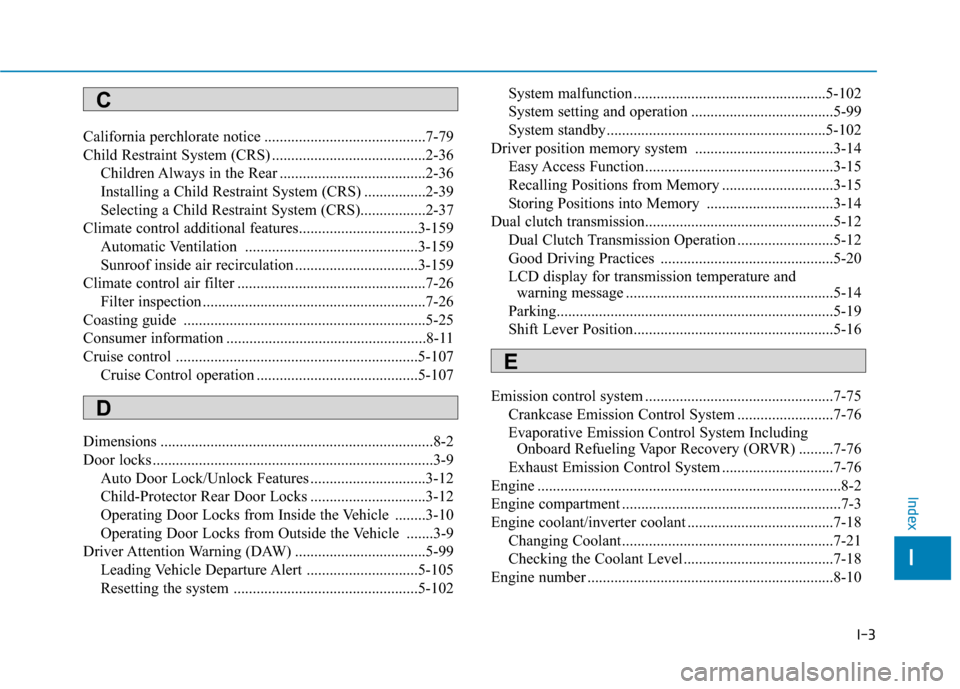

California perchlorate notice ..........................................7-79
Child Restraint System (CRS) ........................................2-36
Children Always in the Rear ......................................2-36
Installing a Child Restraint System (CRS) ................2-39
Selecting a Child Restraint System (CRS).................2-37
Climate control additional features...............................3-159
Automatic Ventilation .............................................3-159
Sunroof inside air recirculation ................................3-159
Climate control air filter .................................................7-26
Filter inspection ..........................................................7-26
Coasting guide ...............................................................5-25
Consumer information ....................................................8-11
Cruise control ...............................................................5-107
Cruise Control operation ..........................................5-107
Dimensions .......................................................................8-2
Door locks .........................................................................3-9
Auto Door Lock/Unlock Features ..............................3-12
Child-Protector Rear Door Locks ..............................3-12
Operating Door Locks from Inside the Vehicle ........3-10
Operating Door Locks from Outside the Vehicle .......3-9
Driver Attention Warning (DAW) ..................................5-99
Leading Vehicle Departure Alert .............................5-105
Resetting the system ................................................5-102System malfunction ..................................................5-102
System setting and operation .....................................5-99
System standby.........................................................5-102
Driver position memory system ....................................3-14
Easy Access Function .................................................3-15
Recalling Positions from Memory .............................3-15
Storing Positions into Memory .................................3-14
Dual clutch transmission.................................................5-12
Dual Clutch Transmission Operation .........................5-12
Good Driving Practices .............................................5-20
LCD display for transmission temperature and
warning message ......................................................5-14
Parking........................................................................5-19
Shift Lever Position....................................................5-16
Emission control system .................................................7-75
Crankcase Emission Control System .........................7-76
Evaporative Emission Control System Including
Onboard Refueling Vapor Recovery (ORVR) .........7-76
Exhaust Emission Control System .............................7-76
Engine ...............................................................................8-2
Engine compartment .........................................................7-3
Engine coolant/inverter coolant ......................................7-18
Changing Coolant.......................................................7-21
Checking the Coolant Level .......................................7-18
Engine number ................................................................8-10
I
Index
C
D
E

I-4

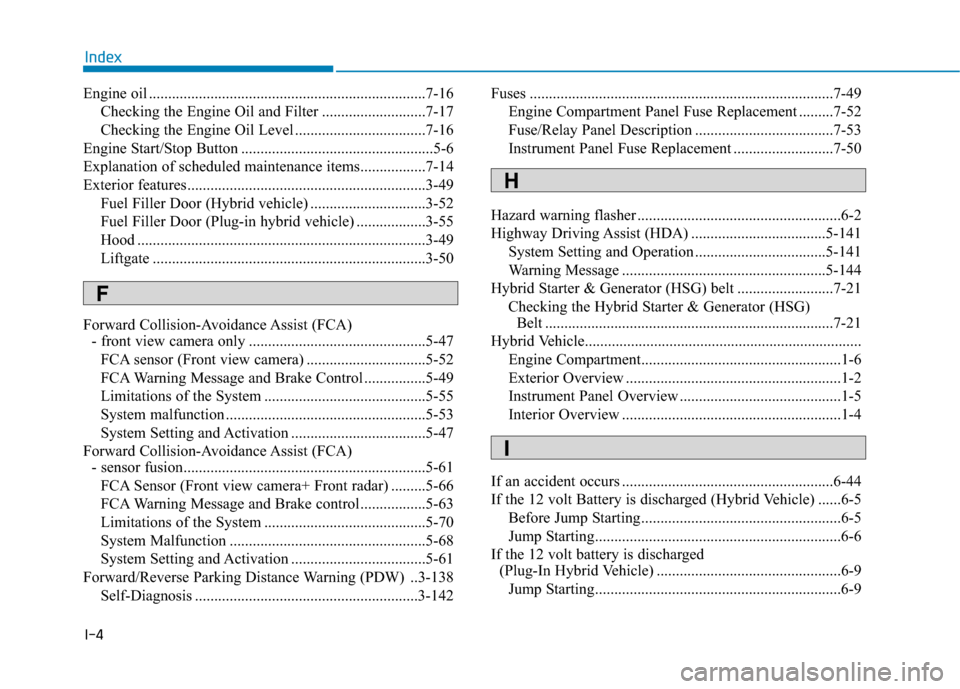

Engine oil ........................................................................7-16
Checking the Engine Oil and Filter ...........................7-17
Checking the Engine Oil Level ..................................7-16
Engine Start/Stop Button ..................................................5-6
Explanation of scheduled maintenance items.................7-14
Exterior features..............................................................3-49
Fuel Filler Door (Hybrid vehicle) ..............................3-52
Fuel Filler Door (Plug-in hybrid vehicle) ..................3-55
Hood ...........................................................................3-49
Liftgate .......................................................................3-50
Forward Collision-Avoidance Assist (FCA)
- front view camera only ..............................................5-47
FCA sensor (Front view camera) ...............................5-52
FCA Warning Message and Brake Control ................5-49
Limitations of the System ..........................................5-55
System malfunction ....................................................5-53
System Setting and Activation ...................................5-47
Forward Collision-Avoidance Assist (FCA)
- sensor fusion...............................................................5-61
FCA Sensor (Front view camera+ Front radar) .........5-66
FCA Warning Message and Brake control.................5-63
Limitations of the System ..........................................5-70
System Malfunction ...................................................5-68
System Setting and Activation ...................................5-61
Forward/Reverse Parking Distance Warning (PDW) ..3-138
Self-Diagnosis ..........................................................3-142Fuses ...............................................................................7-49
Engine Compartment Panel Fuse Replacement .........7-52
Fuse/Relay Panel Description ....................................7-53
Instrument Panel Fuse Replacement ..........................7-50
Hazard warning flasher .....................................................6-2
Highway Driving Assist (HDA) ...................................5-141
System Setting and Operation ..................................5-141
Warning Message .....................................................5-144
Hybrid Starter & Generator (HSG) belt .........................7-21
Checking the Hybrid Starter & Generator (HSG)
Belt ...........................................................................7-21
Hybrid Vehicle........................................................................
Engine Compartment....................................................1-6
Exterior Overview ........................................................1-2
Instrument Panel Overview ..........................................1-5
Interior Overview .........................................................1-4
If an accident occurs .......................................................6-44
If the 12 volt Battery is discharged (Hybrid Vehicle) ......6-5
Before Jump Starting....................................................6-5
Jump Starting................................................................6-6
If the 12 volt battery is discharged
(Plug-In Hybrid Vehicle) ................................................6-9
Jump Starting................................................................6-9
Index
F
H
I
