Hyundai Ioniq Hybrid 2020 Owner's Manual - RHD (UK, Australia)
Manufacturer: HYUNDAI, Model Year: 2020, Model line: Ioniq Hybrid, Model: Hyundai Ioniq Hybrid 2020Pages: 613, PDF Size: 58.64 MB
Page 1 of 613
HEV (Hybrid electric vehicle) system ................H-2
Hybrid Vehicle....................................................................H-2
Plug-in Hybrid Vehicle ....................................................H-3
Charging Information .......................................................H-4
Charging Time....................................................................H-4
Charging Types ..................................................................H-4
Charging Status .................................................................H-5
Charging the plug-in hybrid vehicle...................H-4
Scheduled Charging..........................................................H-6
Charging Connector AUTO/ LOCK Mode ....................H-7
Charging Precautions.......................................................H-8
Normal Charge.................................................................H-10
Trickle Charge..................................................................H-16
Driving the hybrid/plug-in hybrid vehicle.......H-28
Starting the Vehicle .......................................................H-28
Special Features ............................................................H-29
Hybrid System Gauge ....................................................H-31
Plug-in Hybrid Mode(Plug-in hybrid vehicle).........H-33
Aux. Battery Saver+ (Plug-in hybrid vehicle).........H-34
Warning and Indicator Lights ......................................H-36
LCD Display Messages ..................................................H-37
Energy Flow .....................................................................H-45
Safety precautions for hybrid system .............H-49
Hybrid Vehicle Components Safety Precautions ....H-49
Service Plug .....................................................................H-52
Hybrid Battery Cooling Duct........................................H-53
If an Accident Occurs ....................................................H-54
When the Hybrid Vehicle Shuts Off ..........................H-55
H Hy
yb
br
ri
id
d
s
sy
ys
st
te
em
m
o
ov
ve
er
rv
vi
ie
ew
w
Page 2 of 613
H2
H HE
EV
V
(
(H
HY
YB
BR
RI
ID
D
E
EL
LE
EC
CT
TR
RI
IC
C
V
VE
EH
HI
IC
CL
LE
E)
)
S
SY
YS
ST
TE
EM
M

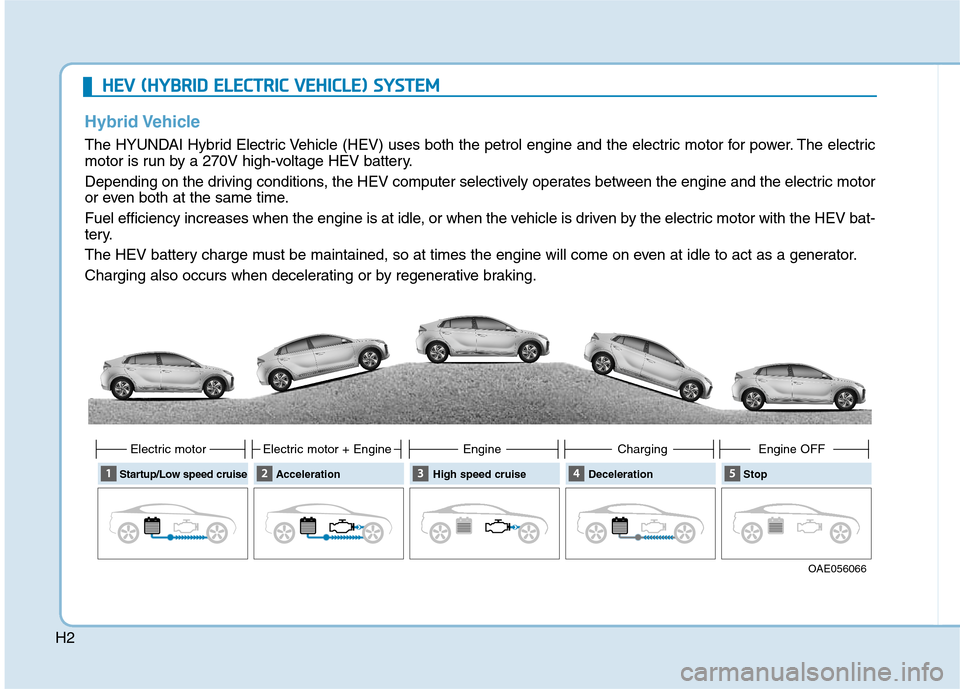

Hybrid Vehicle
The HYUNDAI Hybrid Electric Vehicle (HEV) uses both the petrol engine and the electric motor for power. The electric
motor is run by a 270V high-voltage HEV battery.
Depending on the driving conditions, the HEV computer selectively operates between the engine and the electric motor
or even both at the same time.
Fuel efficiency increases when the engine is at idle, or when the vehicle is driven by the electric motor with the HEV bat-
tery.
The HEV battery charge must be maintained, so at times the engine will come on even at idle to act as a generator.
Charging also occurs when decelerating or by regenerative braking.
OAE056066 Startup/Low speed cruise
Electric motor
Acceleration
Electric motor + Engine
High speed cruise
Engine
Deceleration
Charging
Stop
Engine OFF
Page 3 of 613
H3

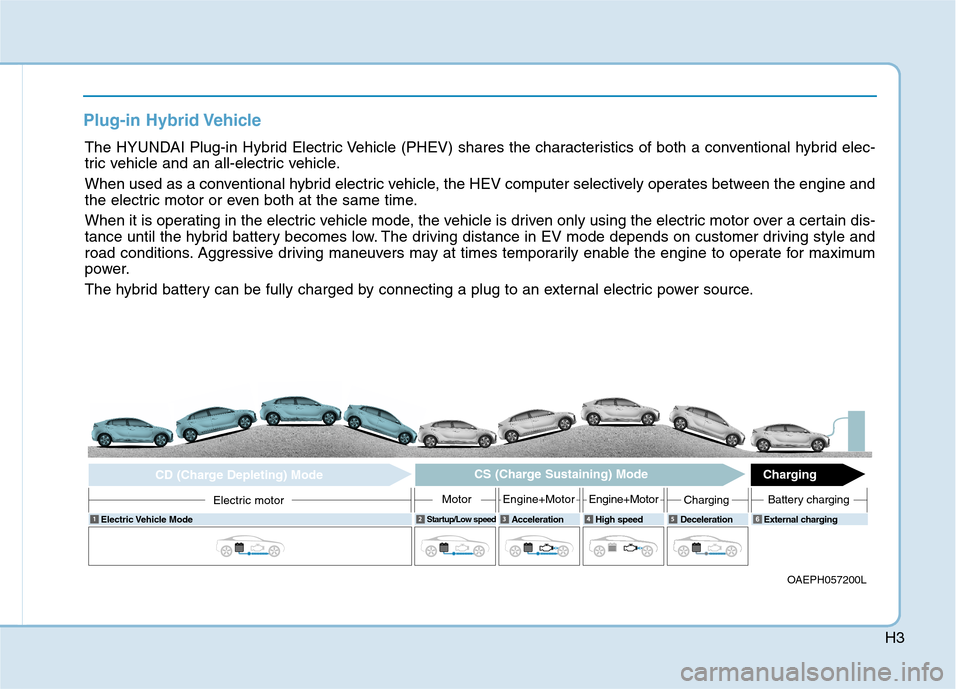

Plug-in Hybrid Vehicle
The HYUNDAI Plug-in Hybrid Electric Vehicle (PHEV) shares the characteristics of both a conventional hybrid elec-
tric vehicle and an all-electric vehicle.
When used as a conventional hybrid electric vehicle, the HEV computer selectively operates between the engine and
the electric motor or even both at the same time.
When it is operating in the electric vehicle mode, the vehicle is driven only using the electric motor over a certain dis-
tance until the hybrid battery becomes low. The driving distance in EV mode depends on customer driving style and
road conditions. Aggressive driving maneuvers may at times temporarily enable the engine to operate for maximum
power.
The hybrid battery can be fully charged by connecting a plug to an external electric power source.
OAEPH057200L
Electric Vehicle ModeStartup/Low speedAcceleration High speed Deceleration External charging
Electric motor
CD (Charge Depleting) ModeCS (Charge Sustaining) Mode
Charging
MotorEngine+MotorEngine+MotorChargingBattery charging
6
Page 4 of 613
H4
Charging Information
•AC Charge :
The plug-in hybrid vehicle is
charged by plugging into a AC
charger installed in your home or a
public charging station. (For further
details, refer to the 'AC Charge'.)Trickle Charge :
The plug-in hybrid vehicle can be
charged by using household elec-
tricity. The electrical outlet in your
home must comply with regulations
and can safely accommodate the
Voltage / Current (Amps) / Power
(Watts) ratings specified on the
portable charge.
Charging Time
AC Charge :
Takes approximately 2 hours 15
minutes at room temperature. (Can
be charged to 100%.)
Information
Depending on the condition and dura-
bility of the high voltage battery, charg-
er specifications, and ambient tempera-
ture, the time required for charging the
high voltage battery may vary.
i
C CH
HA
AR
RG
GI
IN
NG
G
T
TH
HE
E
P
PL
LU
UG
G-
-I
IN
N
H
HY
YB
BR
RI
ID
D
V
VE
EH
HI
IC
CL
LE
E
Charging Types
CategoryCharging Inlet (Vehicle)Charging ConnectorCharging OutletHow to ChargeCharging Time
AC Charge
Use AC charger
installed in
homes or public
charging stationApprox. 2 hours
15 minutes (to fully
charge, 100%)
Trickle
Charge Use household
current
For charging at home.
Please note that the
Trickle Charger is
slower than the AC
Charger.
• Depending on the condition and durability of the high voltage battery, charger specifications, and ambient
temperature, the time required for charging the high voltage battery may vary.
Actual charger image and charging method may vary in accordance with the charger manufacturer.
OLFP0Q5006K
OAEEQ016020
OAEEQ016020
OAEEQ016024OLFP0Q5007K
OLFP0Q5006K
Page 5 of 613
H5

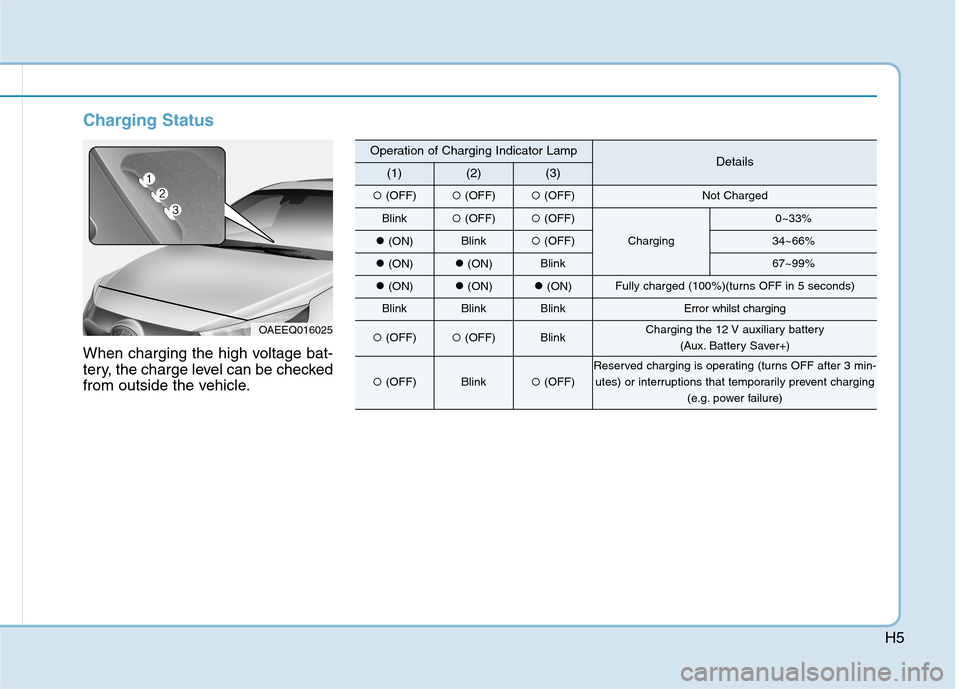

Charging Status
When charging the high voltage bat-
tery, the charge level can be checked
from outside the vehicle.
OAEEQ016025
Operation of Charging Indicator LampDetails(1)(2)(3)
(OFF)(OFF)(OFF)Not Charged
Blink(OFF)(OFF)
Charging
0~33%
(ON)Blink(OFF)34~66%
(ON)(ON)Blink67~99%
(ON)(ON)(ON)Fully charged (100%)(turns OFF in 5 seconds)
BlinkBlinkBlinkError whilst charging
(OFF)(OFF)BlinkCharging the 12 V auxiliary battery
(Aux. Battery Saver+)
(OFF)Blink(OFF)
Reserved charging is operating (turns OFF after 3 min-
utes) or interruptions that temporarily prevent charging
(e.g. power failure)
Page 6 of 613
H6
Scheduled Charging
(if equipped)
You can set-up a charging sched-
ule for your vehicle using the AVN
or BlueLink application.
Refer to the Multimedia manual or
the BlueLink manual for detailed
information about setting sched-
uled charging.
Scheduled charging can only be
done when using a AC charger or
the portable charger (ICCB: In-
Cable Control Box). When scheduled charging is set
and the AC charger or the portable
charger (ICCB: In-Cable Control
Box) is connected for charging, the
indicator lamp in the middle blinks
(for 3 minutes) to indicate that
scheduled charging is set.
When scheduled charging is set,
charging is not initiated immediate-
ly when the AC charger or portable
charger (ICCB: In-Cable Control
Box) is connected. When immedi-
ate charging is required, use the
infotainment system to deactivate
the scheduled charge setting or
press scheduled charging deacti-
vation ( ) button. If you press the scheduled charg-
ing deactivation ( ) button to
immediately charge the battery,
charging must be initiated 3 min-
utes after the charging cable has
been connected.
When you press the scheduled
charging deactivation ( ) button
for immediate charging, the sched-
uled charge setting is not com-
pletely deactivated. If you need to
completely deactivate the sched-
uled charge setting, use the AVN
to finalize the deactivation.
Refer to "Normal Charge or Trickle
Charge" for details about connecting
the AC charger and the portable
charger (ICCB: In-Cable Control Box).
C CH
HA
AR
RG
GI
IN
NG
G
T
TH
HE
E
P
PL
LU
UG
G-
-I
IN
N
H
HY
YB
BR
RI
ID
D
V
VE
EH
HI
IC
CL
LE
E
(
(C
CO
ON
NT
T.
.)
)
OAEEQ016026OAEPHQ019027R
Page 7 of 613
H7

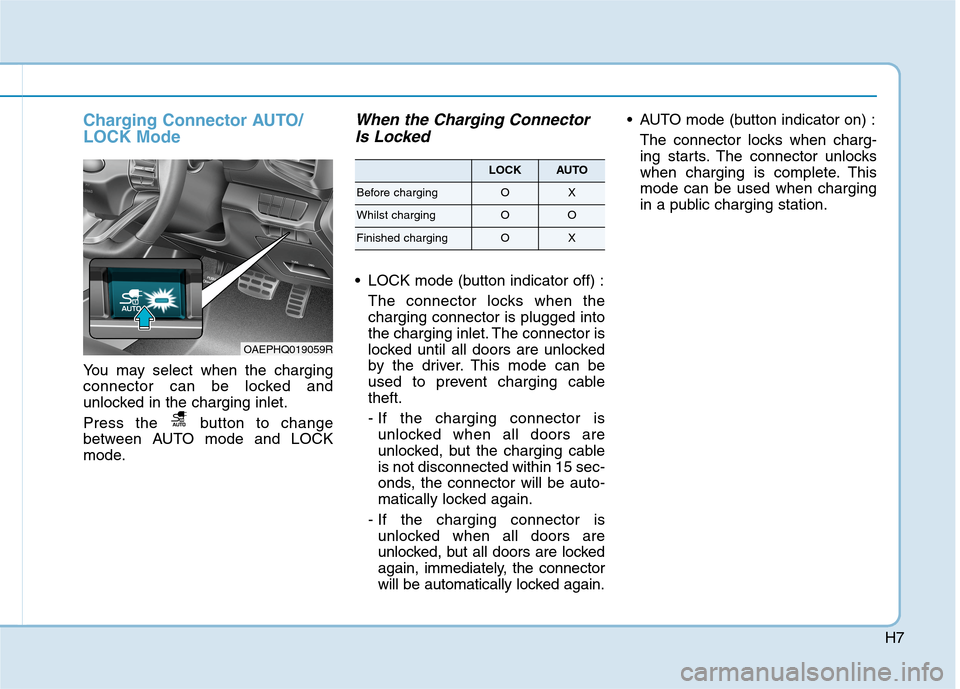

Charging Connector AUTO/
LOCK Mode
You may select when the charging
connector can be locked and
unlocked in the charging inlet.
Press the button to change
between AUTO mode and LOCK
mode.
When the Charging Connector
Is Locked
LOCK mode (button indicator off) :
The connector locks when the
charging connector is plugged into
the charging inlet. The connector is
locked until all doors are unlocked
by the driver. This mode can be
used to prevent charging cable
theft.
- If the charging connector is
unlocked when all doors are
unlocked, but the charging cable
is not disconnected within 15 sec-
onds, the connector will be auto-
matically locked again.
- If the charging connector is
unlocked when all doors are
unlocked, but all doors are locked
again, immediately, the connector
will be automatically locked again. AUTO mode (button indicator on) :
The connector locks when charg-
ing starts. The connector unlocks
when charging is complete. This
mode can be used when charging
in a public charging station.
OAEPHQ019059R
LOCKAUTO
Before chargingOX
Whilst chargingOO
Finished chargingOX
Page 8 of 613
H8

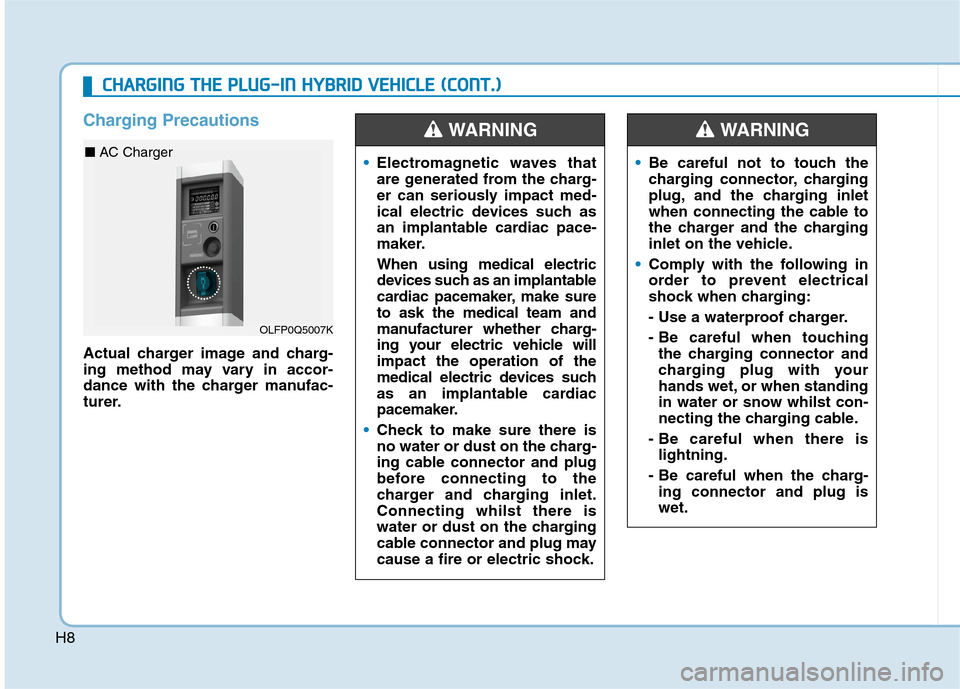

Charging Precautions
Actual charger image and charg-
ing method may vary in accor-
dance with the charger manufac-
turer.
Electromagnetic waves that
are generated from the charg-
er can seriously impact med-
ical electric devices such as
an implantable cardiac pace-
maker.
When using medical electric
devices such as an implantable
cardiac pacemaker, make sure
to ask the medical team and
manufacturer whether charg-
ing your electric vehicle will
impact the operation of the
medical electric devices such
as an implantable cardiac
pacemaker.
Check to make sure there is
no water or dust on the charg-
ing cable connector and plug
before connecting to the
charger and charging inlet.
Connecting whilst there is
water or dust on the charging
cable connector and plug may
cause a fire or electric shock.
WARNING
Be careful not to touch the
charging connector, charging
plug, and the charging inlet
when connecting the cable to
the charger and the charging
inlet on the vehicle.
Comply with the following in
order to prevent electrical
shock when charging:
- Use a waterproof charger.
- Be careful when touching
the charging connector and
charging plug with your
hands wet, or when standing
in water or snow whilst con-
necting the charging cable.
- Be careful when there is
lightning.
- Be careful when the charg-
ing connector and plug is
wet.
WARNING
OLFP0Q5007K
■ AC Charger
C
CH
HA
AR
RG
GI
IN
NG
G
T
TH
HE
E
P
PL
LU
UG
G-
-I
IN
N
H
HY
YB
BR
RI
ID
D
V
VE
EH
HI
IC
CL
LE
E
(
(C
CO
ON
NT
T.
.)
)
Page 9 of 613
H9

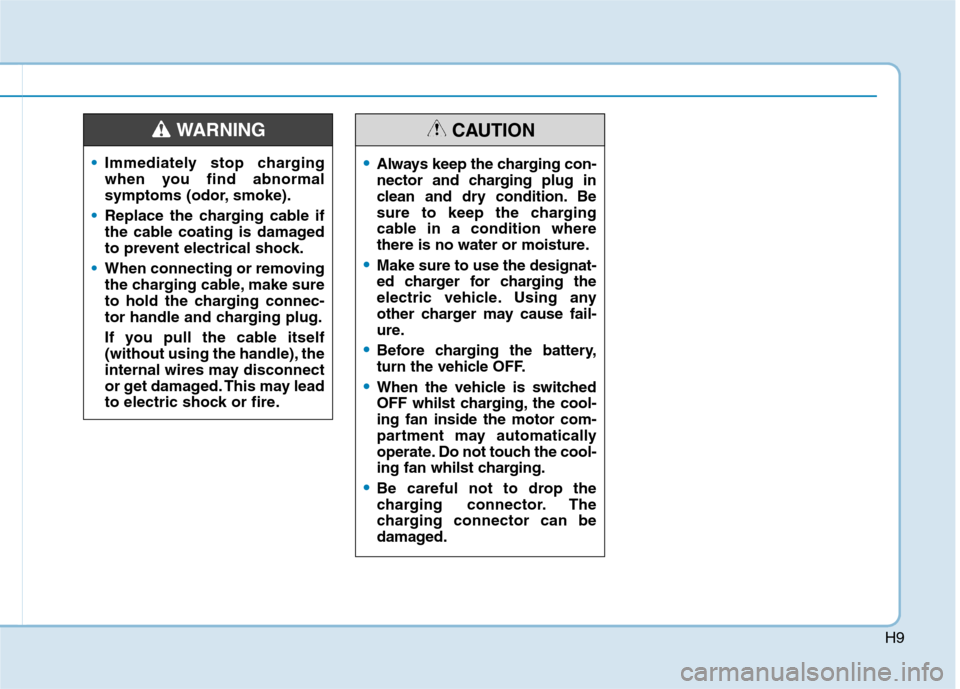

Immediately stop charging
when you find abnormal
symptoms (odor, smoke).
Replace the charging cable if
the cable coating is damaged
to prevent electrical shock.
When connecting or removing
the charging cable, make sure
to hold the charging connec-
tor handle and charging plug.
If you pull the cable itself
(without using the handle), the
internal wires may disconnect
or get damaged. This may lead
to electric shock or fire.
WARNING
Always keep the charging con-
nector and charging plug in
clean and dry condition. Be
sure to keep the charging
cable in a condition where
there is no water or moisture.
Make sure to use the designat-
ed charger for charging the
electric vehicle. Using any
other charger may cause fail-
ure.
Before charging the battery,
turn the vehicle OFF.
When the vehicle is switched
OFF whilst charging, the cool-
ing fan inside the motor com-
partment may automatically
operate. Do not touch the cool-
ing fan whilst charging.
Be careful not to drop the
charging connector. The
charging connector can be
damaged.
CAUTION
Page 10 of 613

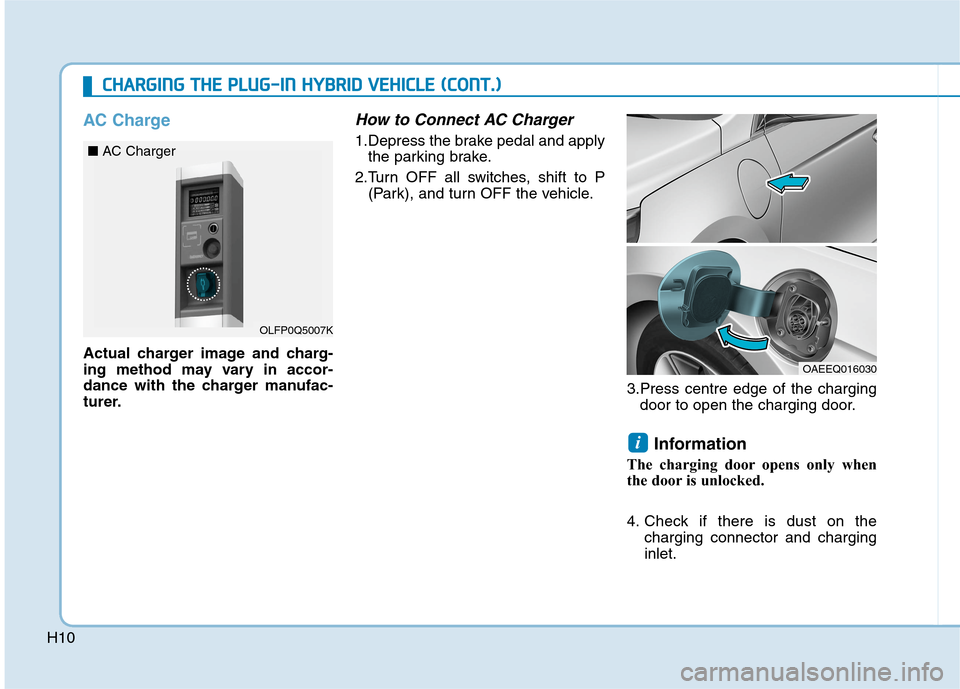

H10
AC Charge
Actual charger image and charg-
ing method may vary in accor-
dance with the charger manufac-
turer.
How to Connect AC Charger
1.Depress the brake pedal and apply
the parking brake.
2.Turn OFF all switches, shift to P
(Park), and turn OFF the vehicle.
3.Press centre edge of the charging
door to open the charging door.
Information
The charging door opens only when
the door is unlocked.
4. Check if there is dust on the
charging connector and charging
inlet.
i
C CH
HA
AR
RG
GI
IN
NG
G
T
TH
HE
E
P
PL
LU
UG
G-
-I
IN
N
H
HY
YB
BR
RI
ID
D
V
VE
EH
HI
IC
CL
LE
E
(
(C
CO
ON
NT
T.
.)
)
OLFP0Q5007K
■ AC Charger
OAEEQ016030
