The actual shape may differ from the illustration.
1-5
Your vehicle at a glance
11. Instrument cluster ..............................3-58
2. Horn ....................................................3-17
3. Driver's front air bag ..........................2-49
4. Engine Start/Stop button ......................5-6
5. Light control/Turn signals ..................3-119
6. Wiper/Washer ..................................3-130
7. Infotainment system..............................4-2
8. Hazard warning flasher ........................6-2
9. Automatic climate control system ....3-143
10. Passenger's front air bag ..................2-49
11. Knee air bag ....................................2-49
12. Glove box ........................................3-160
13. Dual clutch transmission ..................5-12
14. Power outlet ....................................3-163
15. USB port ............................................4-2
16. Seat warmer switch ..........................2-21
17. Parking Distance Warning system
ON button ......................................3-138
18. Electronic Parking Brake (EPB) ........5-29
19. Cup holder ......................................3-162
20. Steering wheel audio controls/ ..........4-3
Bluetooth®wireless technology
hands-free controls ............................4-5
21. Cruise Controls/ ..............................5-107
Smart Cruise Control system
button ..............................................5-112
OAEPH019015N
Page 21 of 635
1-10
Your vehicle at a glance
I IN
NS
ST
TR
RU
UM
ME
EN
NT
T
P
PA
AN
NE
EL
L
O
OV
VE
ER
RV
VI
IE
EW
W
-
-
P
PL
LU
UG
G-
-I
IN
N
H
HY
YB
BR
RI
ID
D
V
VE
EH
HI
IC
CL
LE
E
The actual shape may differ from the illustration.1. Instrument cluster ..............................3-58
2. Horn ....................................................3-17
3. Driver's front air bag ..........................2-49
4. Engine Start/Stop button ......................5-6
5. Light control/Turn signals ..................3-119
6. Wiper/Washer ..................................3-130
7. Infotainment system..............................4-2
8. Hazard warning flasher ........................6-2
9. Automatic climate control system ....3-143
10. Passenger's front air bag ..................2-49
11. Knee air bag ....................................2-49
12. Glove box ........................................3-160
13. Dual clutch transmission ..................5-12
14. Power outlet ....................................3-163
15. USB port ............................................4-2
16. Seat warmer switch ..........................2-21
17. HEV button ......................................H-32
18. Parking Distance Warning system
ON button ......................................3-138
19. Electronic Parking Brake (EPB) ........5-29
20. Cup holder ......................................3-162
21. Steering wheel audio controls/ ..........4-3
Bluetooth®wireless technology
hands-free controls ............................4-5
22. Cruise Controls/ ..............................5-107
Smart Cruise Control system
button ............................................5-112
OAEPH019004N
Page 166 of 635
3-74
Convenient features of your vehicle
Engine Coolant
Temperature Warning
Light
This warning light illuminates:
When the engine coolant temper-
ature is above 248°F (120°C). This
means that the engine is overheat-
ed and may be damaged.
If your vehicle is overheated, refer
to "Overheating" in chapter 6.
Master Warning Light
This indicator light illuminates:
When there is a malfunction in oper-
ation in any of the following systems:
- Forward Collision-Avoidance
Assist system malfunction
(if equipped)
- Forward Collision-Avoidance
Assist radar blocked (if equipped)
- Blind-Spot Collision Warning
system malfunction (if equipped)
- Blind-Spot Collision Warning radar
blocked (if equipped)
- Smart Cruise Control malfunction
(if equipped)
- LED Headlamp malfunction
- High Beam Assist malfunction
(if equipped)
- Tire Pressure Monitoring System
(TPMS) malfunction (if equipped)
To identify the details of the warning,
look at the LCD display.
Low Tire Pressure
Warning Light
(if equipped)
This warning light illuminates:
When you place Engine Start/Stop
button to the ON position.
- It illuminates for approximately 3
seconds and then goes off.
When one or more of your tires are
significantly underinflated.
For more details, refer to
"Tire Pressure Monitoring System
(TPMS)" in chapter 6.
Page 170 of 635
3-78
Convenient features of your vehicle
LED Headlight Warning
Light (if equipped)
This warning light illuminates:
When there is a malfunction with
the LED headlight.
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer.
This warning light blinks:
When there is a malfunction with a
LED headlight related part.
In this case, have the vehicle
inspected by an authorized
HYUNDAI dealer.
Continuous driving with the LED
Headlight Warning Light on or
blinking can reduce LED headlight
life.

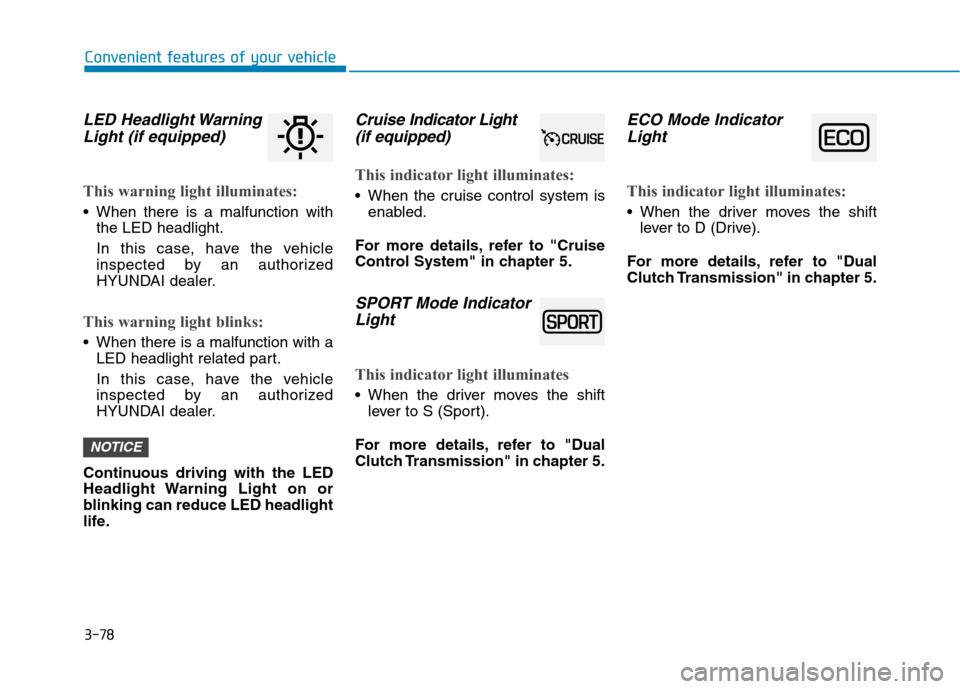

Cruise Indicator Light
(if equipped)
This indicator light illuminates:
When the cruise control system is
enabled.
For more details, refer to "Cruise
Control System" in chapter 5.
SPORT Mode Indicator
Light
This indicator light illuminates
When the driver moves the shift
lever to S (Sport).
For more details, refer to "Dual
Clutch Transmission" in chapter 5.
ECO Mode Indicator
Light
This indicator light illuminates:
When the driver moves the shift
lever to D (Drive).
For more details, refer to "Dual
Clutch Transmission" in chapter 5.
NOTICE
Page 189 of 635
3-97
Convenient features of your vehicle
3
LCD display modes
The information provided may differ depending on which functions are applicable to your vehicle.
Range
(Plug-in hybrid vehicle)
Route GuidanceSmart Cruise ControlDriver Assistance
The Master Warning
mode displays warn-
ing messages related
to the vehicle when
one or more systems
is not operating nor-
mally.
Fuel Economy
Accumulated InfoDestination InfoLane Keeping AssistDoor
Drive InfoLane Following AssistLights
Driving styleHighway Driving
AssistSound
Energy flowDriver Attention
WarningConvenience
Engine coolant
temperatureService Interval
Tire PressureOther Features
Language
Reset
Menu
Trip Computer TBT Driving Assist User Settings Master warning
Up/Down
Page 190 of 635
3-98
Convenient features of your vehicle

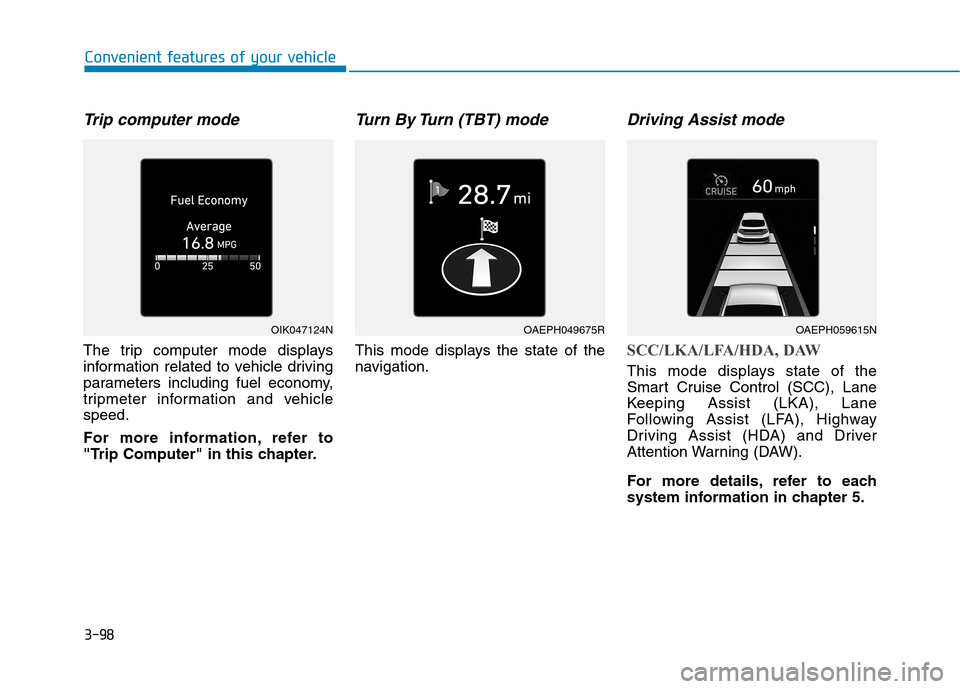

Trip computer mode
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle
speed.
For more information, refer to
"Trip Computer" in this chapter.
Turn By Turn (TBT) mode
This mode displays the state of the
navigation.
Driving Assist mode
SCC/LKA/LFA/HDA, DAW
This mode displays state of the
Smart Cruise Control (SCC), Lane
Keeping Assist (LKA), Lane
Following Assist (LFA), Highway
Driving Assist (HDA) and Driver
Attention Warning (DAW).
For more details, refer to each
system information in chapter 5.
OIK047124NOAEPH049675ROAEPH059615N
Page 191 of 635
3-99
Convenient features of your vehicle
3
Tire Pressure
This mode displays information relat-
ed to Tire Pressure.
For more information, refer to
"Tire Pressure Monitoring System
(TPMS)" in chapter 6.

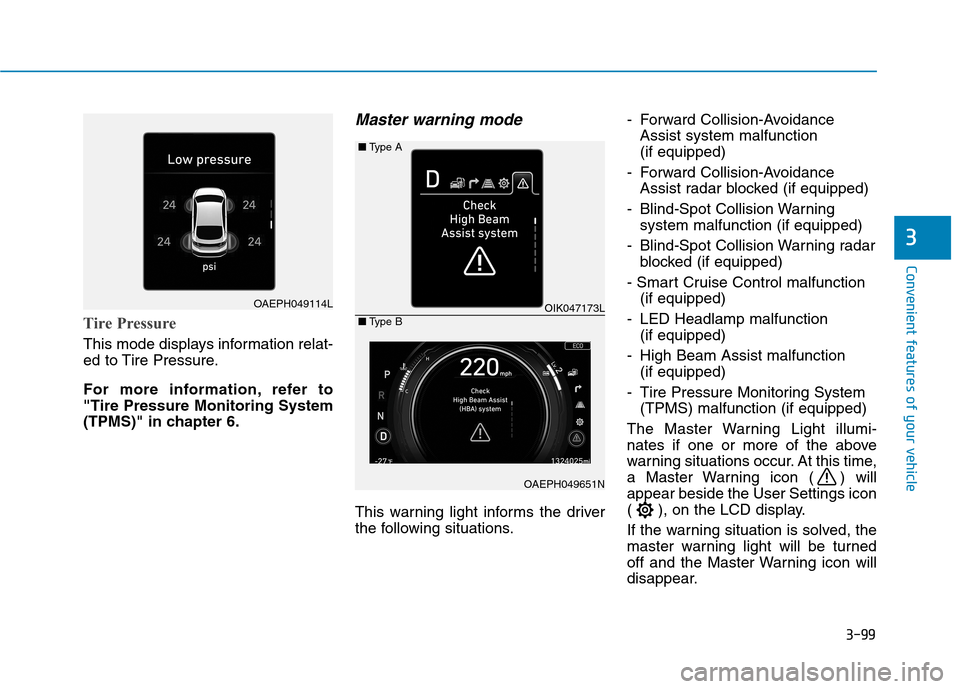

Master warning mode
This warning light informs the driver
the following situations.- Forward Collision-Avoidance
Assist system malfunction
(if equipped)
- Forward Collision-Avoidance
Assist radar blocked (if equipped)
- Blind-Spot Collision Warning
system malfunction (if equipped)
- Blind-Spot Collision Warning radar
blocked (if equipped)
- Smart Cruise Control malfunction
(if equipped)
- LED Headlamp malfunction
(if equipped)
- High Beam Assist malfunction
(if equipped)
- Tire Pressure Monitoring System
(TPMS) malfunction (if equipped)
The Master Warning Light illumi-
nates if one or more of the above
warning situations occur. At this time,
a Master Warning icon ( ) will
appear beside the User Settings icon
( ), on the LCD display.
If the warning situation is solved, the
master warning light will be turned
off and the Master Warning icon will
disappear.
OAEPH049114LOIK047173L ■Type A
OAEPH049651N ■Type B
Page 193 of 635
3-101
Convenient features of your vehicle
3
ItemsExplanation
SCC Response
To adjust the sensitivity of Smart Cruise Control system.
For more details, refer to ''Smart Cruise Control (SCC)'' in chapter 5.
Driving Assist
To activate or deactivate the Lane Following Assist system.
For more details, refer to "Lane Following Assist (LFA)" in chapter 5.
To activate or deactivate the Highway Driving Assist (HDA) system.
For more details, refer to "Highway Driving Assist (HDA)" in chapter 5.
To activate or deactivate the Navigation-based Smart Cruise Control system.
For more details, refer to "Navigation-based Smart Cruise Control (NSCC)" in chapter 5.
Warning TimingTo adjust the warning timing of the driver assistance system.
- Normal/Late
Warning VolumeTo adjust the warning volume of the driver assistance system.
- High/Medium/Low
Driver Attention Warning
To activate or deactivate Leading Vehicle Departure Alert.
For more details, refer to the "Driver Attention Warning (DAW)" in chapter 5.
To adjust the sensitivity of DAW (Driver Attention Warning).
For more details, refer to the "Driver Attention Warning (DAW)" in chapter 5.

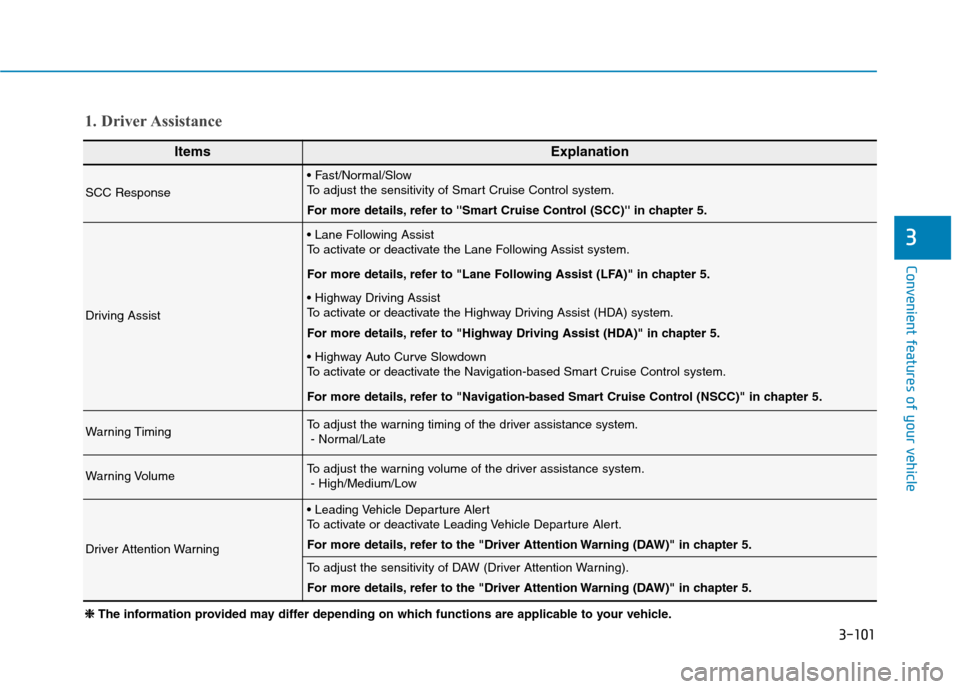

1. Driver Assistance
❈ ❈
The information provided may differ depending on which functions are applicable to your vehicle.
Page 268 of 635
5

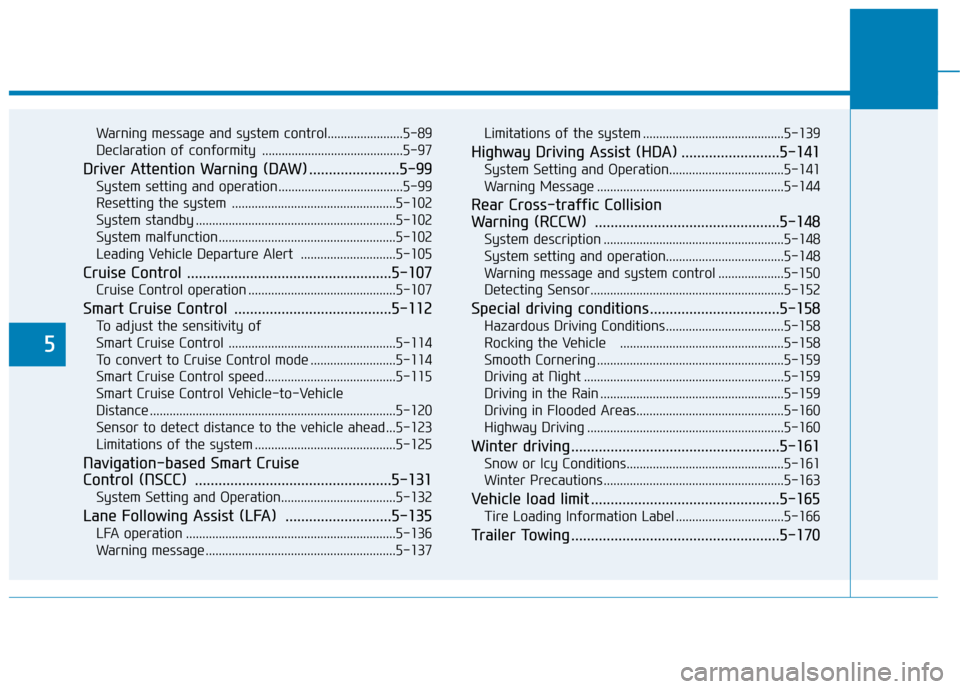

Warning message and system control.......................5-89
Declaration of conformity ...........................................5-97
Driver Attention Warning (DAW) .......................5-99
System setting and operation ......................................5-99
Resetting the system ..................................................5-102
System standby .............................................................5-102
System malfunction......................................................5-102
Leading Vehicle Departure Alert .............................5-105
Cruise Control ....................................................5-107
Cruise Control operation .............................................5-107
Smart Cruise Control ........................................5-112
To adjust the sensitivity of
Smart Cruise Control ...................................................5-114
To convert to Cruise Control mode ..........................5-114
Smart Cruise Control speed........................................5-115
Smart Cruise Control Vehicle-to-Vehicle
Distance ...........................................................................5-120
Sensor to detect distance to the vehicle ahead ...5-123
Limitations of the system ...........................................5-125
Navigation-based Smart Cruise
Control (NSCC) ..................................................5-131
System Setting and Operation...................................5-132
Lane Following Assist (LFA) ...........................5-135
LFA operation ................................................................5-136
Warning message ..........................................................5-137Limitations of the system ...........................................5-139
Highway Driving Assist (HDA) .........................5-141
System Setting and Operation...................................5-141
Warning Message .........................................................5-144
Rear Cross-traffic Collision
Warning (RCCW) ...............................................5-148
System description .......................................................5-148
System setting and operation....................................5-148
Warning message and system control ....................5-150
Detecting Sensor...........................................................5-152
Special driving conditions .................................5-158
Hazardous Driving Conditions....................................5-158
Rocking the Vehicle ..................................................5-158
Smooth Cornering .........................................................5-159
Driving at Night .............................................................5-159
Driving in the Rain ........................................................5-159
Driving in Flooded Areas.............................................5-160
Highway Driving ............................................................5-160
Winter driving .....................................................5-161
Snow or Icy Conditions................................................5-161
Winter Precautions .......................................................5-163
Vehicle load limit ................................................5-165
Tire Loading Information Label .................................5-166
Trailer Towing .....................................................5-170
Page 288 of 635
5-22

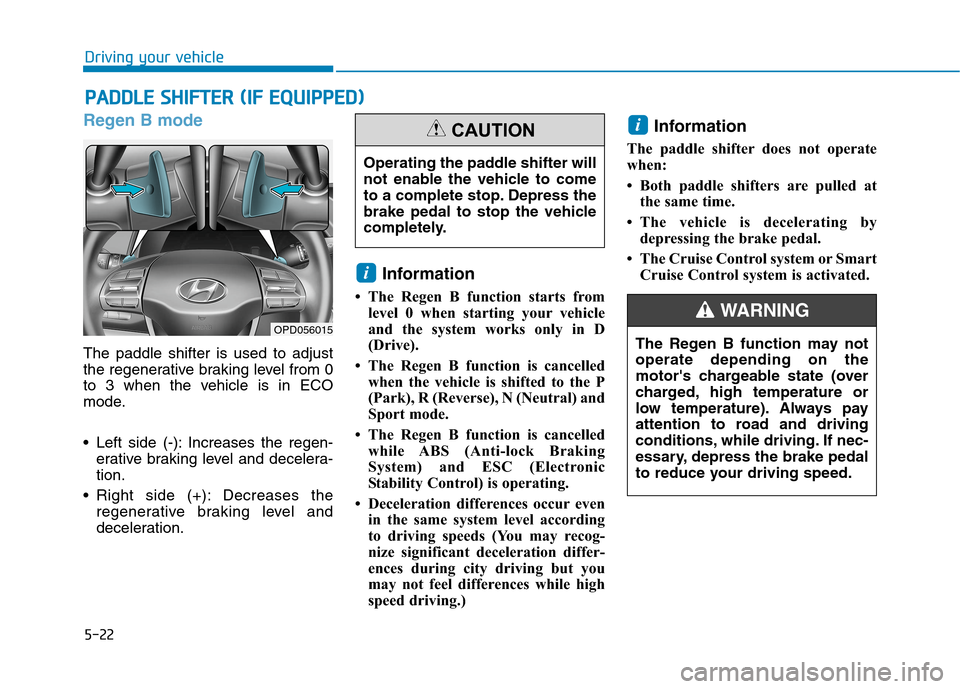

Regen B mode
The paddle shifter is used to adjust
the regenerative braking level from 0
to 3 when the vehicle is in ECO
mode.
Left side (-): Increases the regen-
erative braking level and decelera-
tion.
Right side (+): Decreases the
regenerative braking level and
deceleration.
Information
• The Regen B function starts from
level 0 when starting your vehicle
and the system works only in D
(Drive).
• The Regen B function is cancelled
when the vehicle is shifted to the P
(Park), R (Reverse), N (Neutral) and
Sport mode.
• The Regen B function is cancelled
while ABS (Anti-lock Braking
System) and ESC (Electronic
Stability Control) is operating.
• Deceleration differences occur even
in the same system level according
to driving speeds (You may recog-
nize significant deceleration differ-
ences during city driving but you
may not feel differences while high
speed driving.)
Information
The paddle shifter does not operate
when:
• Both paddle shifters are pulled at
the same time.
• The vehicle is decelerating by
depressing the brake pedal.
• The Cruise Control system or Smart
Cruise Control system is activated.
i
i
P PA
AD
DD
DL
LE
E
S
SH
HI
IF
FT
TE
ER
R
(
(I
IF
F
E
EQ
QU
UI
IP
PP
PE
ED
D)
)
Driving your vehicle
OPD056015
Operating the paddle shifter will
not enable the vehicle to come
to a complete stop. Depress the
brake pedal to stop the vehicle
completely.
CAUTION
The Regen B function may not
operate depending on the
motor's chargeable state (over
charged, high temperature or
low temperature). Always pay
attention to road and driving
conditions, while driving. If nec-
essary, depress the brake pedal
to reduce your driving speed.
WARNING
