Maintenance

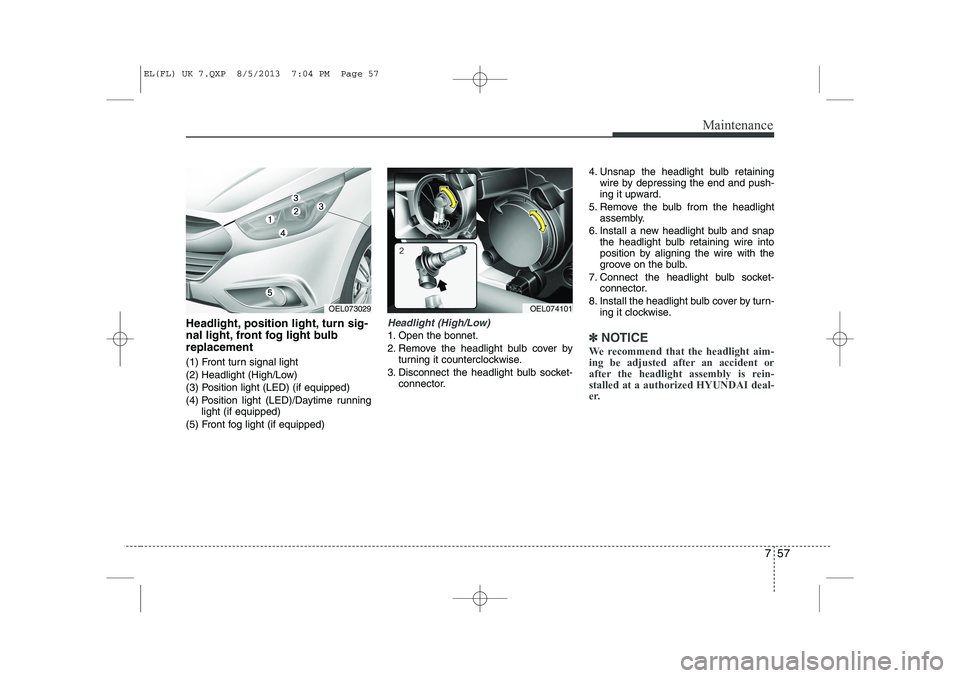

Headlight, position light, turn sig-
nal light, front fog light bulbreplacement
(1) Front turn signal light
(2) Headlight (High/Low)
(3) Position light (LED) (if equipped)
(4) Position light (LED)/Daytime runninglight (if equipped)
(5) Front fog light (if equipped)Headlight (High/Low)
1. Open the bonnet.
2. Remove the headlight bulb cover by turning it counterclockwise.
3. Disconnect the headlight bulb socket- connector. 4. Unsnap the headlight bulb retaining
wire by depressing the end and push-
ing it upward.
5. Remove the bulb from the headlight assembly.
6. Install a new headlight bulb and snap the headlight bulb retaining wire into
position by aligning the wire with the
groove on the bulb.
7. Connect the headlight bulb socket- connector.
8. Install the headlight bulb cover by turn- ing it clockwise.✽✽ NOTICE
We recommend that the headlight aim-
ing be adjusted after an accident or
after the headlight assembly is rein-stalled at a authorized HYUNDAI deal-
er.
OEL073029OEL074101
EL(FL) UK 7.QXP 8/5/2013 7:04 PM Page 57

OHD076046
WARNING- Halogen bulbs
 Halogen bulbs contain pressur-
ized gas that will produce flying
pieces of glass if broken.
 Always handle them carefully, and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never touchthe glass with bare hands.
Residual oil may cause the bulb
to overheat and burst when lit. A
bulb should be operated onlywhen installed in a headlight.
(Continued)
Maintenance
58
7

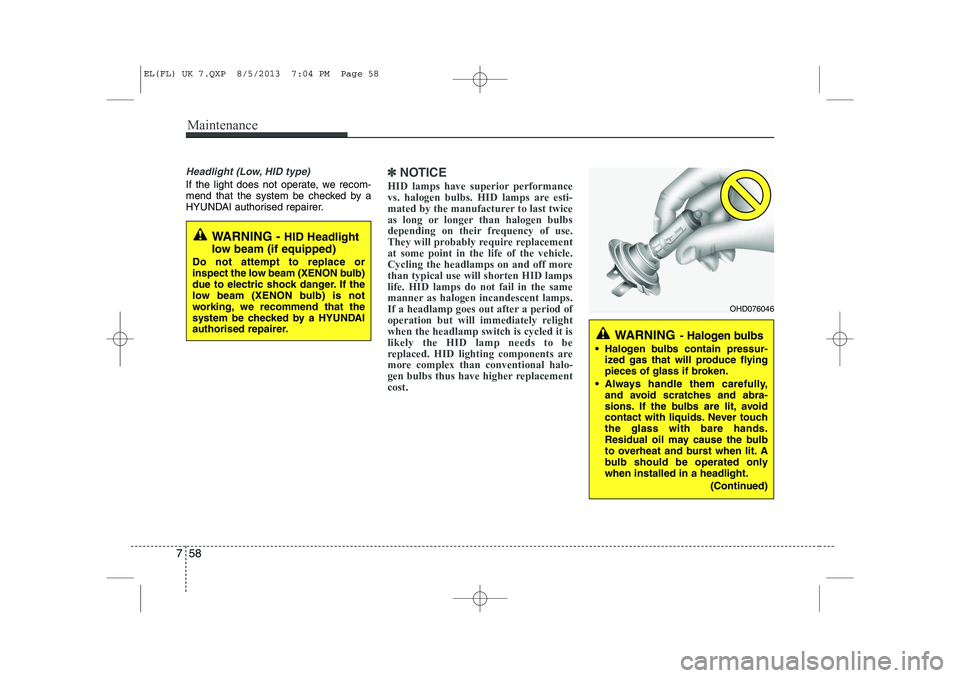

Headlight (Low, HID type)
If the light does not operate, we recom-
mend that the system be checked by a
HYUNDAI authorised repairer.✽✽
NOTICE
HID lamps have superior performance
vs. halogen bulbs. HID lamps are esti-
mated by the manufacturer to last twice
as long or longer than halogen bulbs
depending on their frequency of use.
They will probably require replacementat some point in the life of the vehicle.
Cycling the headlamps on and off morethan typical use will shorten HID lampslife. HID lamps do not fail in the same
manner as halogen incandescent lamps.
If a headlamp goes out after a period of
operation but will immediately relightwhen the headlamp switch is cycled it islikely the HID lamp needs to be
replaced. HID lighting components are
more complex than conventional halo-
gen bulbs thus have higher replacementcost.
WARNING - HID Headlight
low beam (if equipped)
Do not attempt to replace or
inspect the low beam (XENON bulb)
due to electric shock danger. If the
low beam (XENON bulb) is not
working, we recommend that the
system be checked by a HYUNDAI
authorised repairer.
EL(FL) UK 7.QXP 8/5/2013 7:04 PM Page 58

759
Maintenance

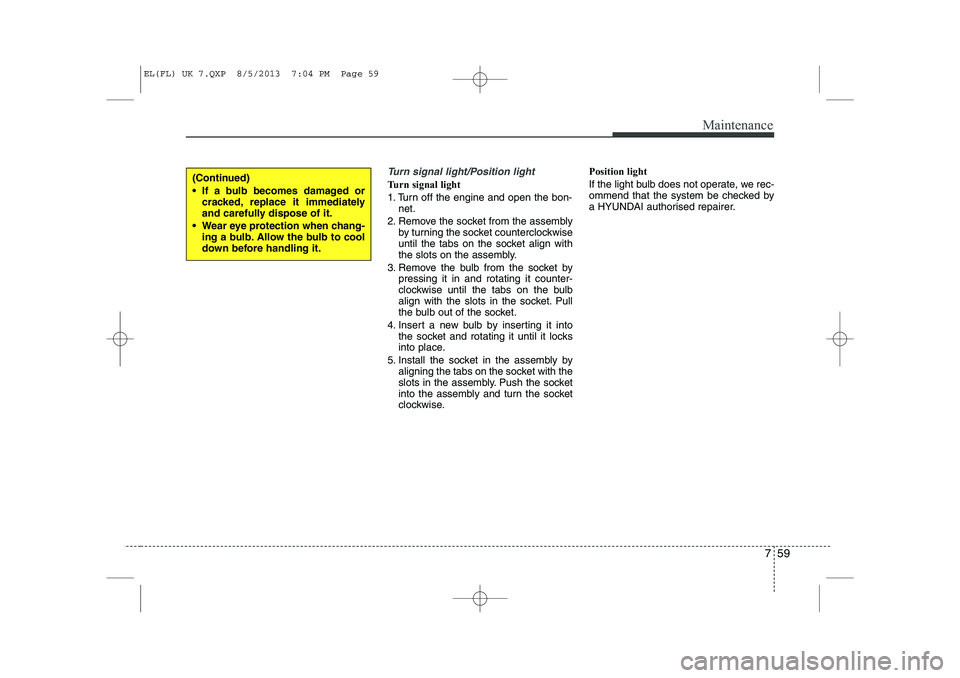

Turn signal light/Position light
Turn signal light
1. Turn off the engine and open the bon-net.
2. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
3. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
4. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
5. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise. Position light
If the light bulb does not operate, we rec-
ommend that the system be checked by
a HYUNDAI authorised repairer.(Continued)
 If a bulb becomes damaged or
cracked, replace it immediately
and carefully dispose of it.
 Wear eye protection when chang- ing a bulb. Allow the bulb to cool
down before handling it.
EL(FL) UK 7.QXP 8/5/2013 7:04 PM Page 59

Maintenance
60
7

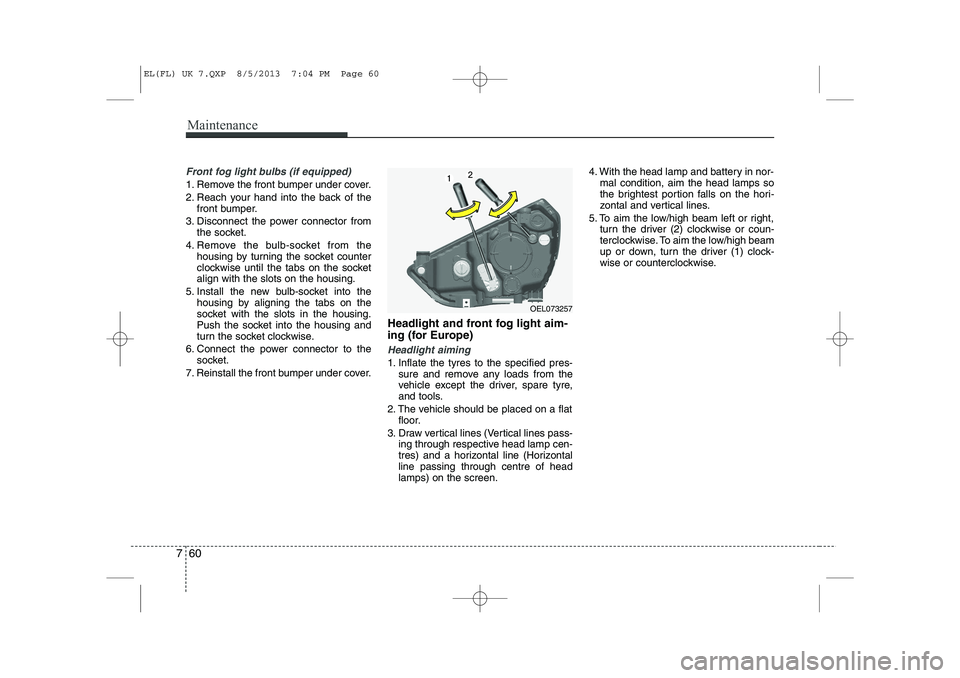

Front fog light bulbs (if equipped)
1. Remove the front bumper under cover.
2. Reach your hand into the back of the
front bumper.
3. Disconnect the power connector from the socket.
4. Remove the bulb-socket from the housing by turning the socket counter
clockwise until the tabs on the socketalign with the slots on the housing.
5. Install the new bulb-socket into the housing by aligning the tabs on the
socket with the slots in the housing.
Push the socket into the housing and
turn the socket clockwise.
6. Connect the power connector to the socket.
7. Reinstall the front bumper under cover. Headlight and front fog light aim-
ing (for Europe)
Headlight aiming
1. Inflate the tyres to the specified pres-
sure and remove any loads from the
vehicle except the driver, spare tyre,
and tools.
2. The vehicle should be placed on a flat floor.
3. Draw vertical lines (Vertical lines pass- ing through respective head lamp cen-
tres) and a horizontal line (Horizontalline passing through centre of headlamps) on the screen. 4. With the head lamp and battery in nor-
mal condition, aim the head lamps so
the brightest portion falls on the hori-
zontal and vertical lines.
5. To aim the low/high beam left or right, turn the driver (2) clockwise or coun-
terclockwise. To aim the low/high beam
up or down, turn the driver (1) clock-
wise or counterclockwise.
OEL073257
EL(FL) UK 7.QXP 8/5/2013 7:04 PM Page 60

761
Maintenance

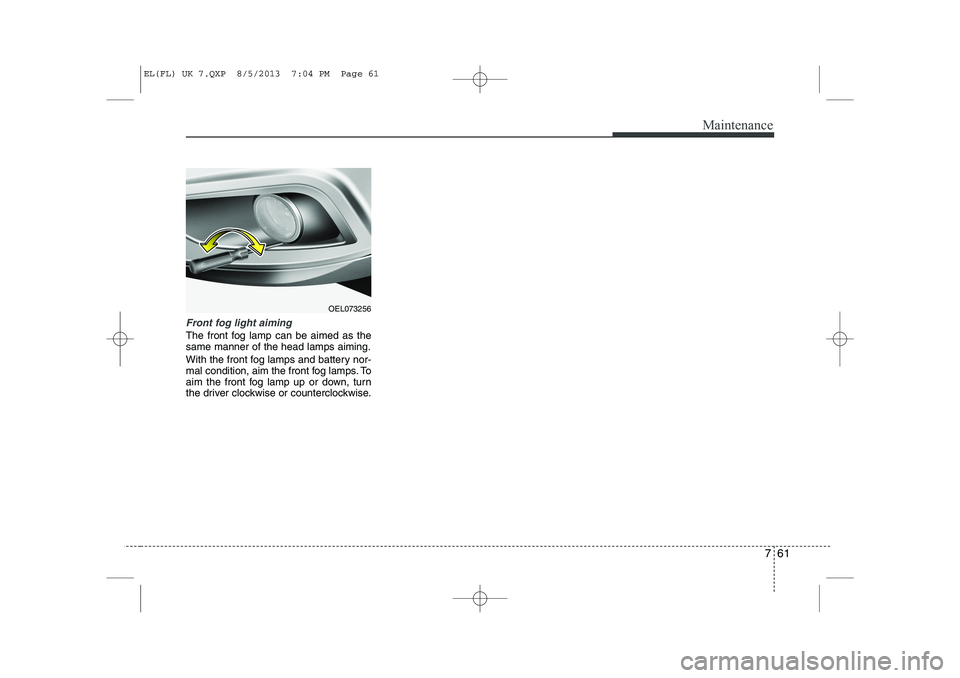

Front fog light aiming
The front fog lamp can be aimed as the same manner of the head lamps aiming.
With the front fog lamps and battery nor-
mal condition, aim the front fog lamps. To
aim the front fog lamp up or down, turn
the driver clockwise or counterclockwise.
OEL073256
EL(FL) UK 7.QXP 8/5/2013 7:04 PM Page 61

Maintenance
62
7

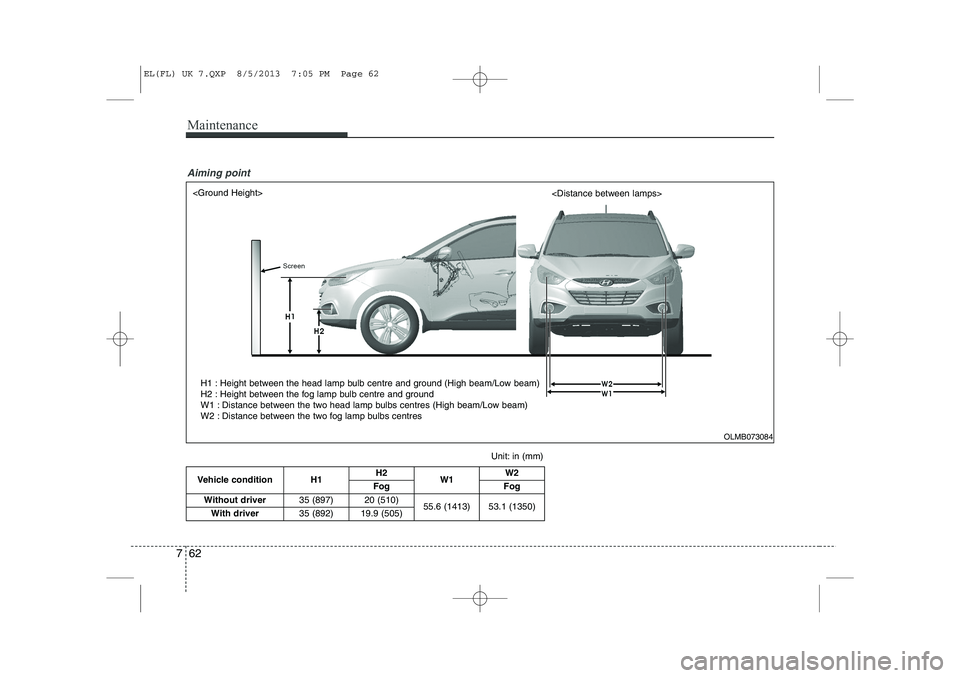

Vehicle condition H1 H2
W1 W2
Fog Fog
Without driver 35 (897) 20 (510)
55.6 (1413) 53.1 (1350)
With driver 35 (892) 19.9 (505)
Unit: in (mm)


H1 : Height between the head lamp bulb centre and ground (High beam/Low beam)
H2 : Height between the fog lamp bulb centre and ground
W1 : Distance between the two head lamp bulbs centres (High beam/Low beam)
W2 : Distance between the two fog lamp bulbs centres
Aiming point
OLMB073084
EL(FL) UK 7.QXP 8/5/2013 7:05 PM Page 62

763
Maintenance

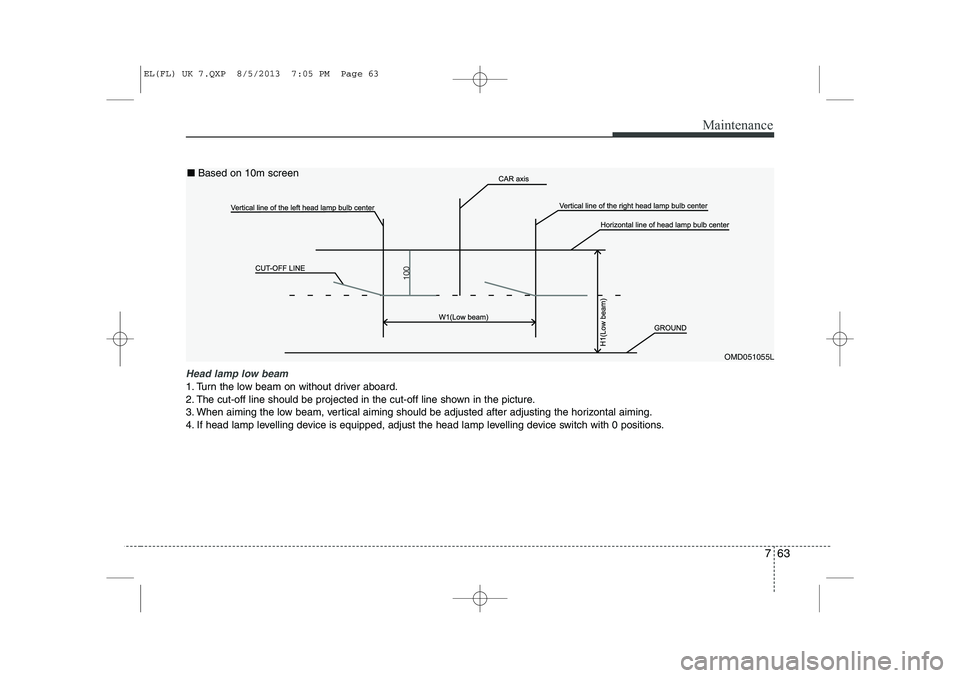

Head lamp low beam
1. Turn the low beam on without driver aboard.
2. The cut-off line should be projected in the cut-off line shown in the picture.
3. When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
4. If head lamp levelling device is equipped, adjust the head lamp levelling device switch with 0 positions.
OMD051055L
■
Based on 10m screen
EL(FL) UK 7.QXP 8/5/2013 7:05 PM Page 63

Maintenance
64
7

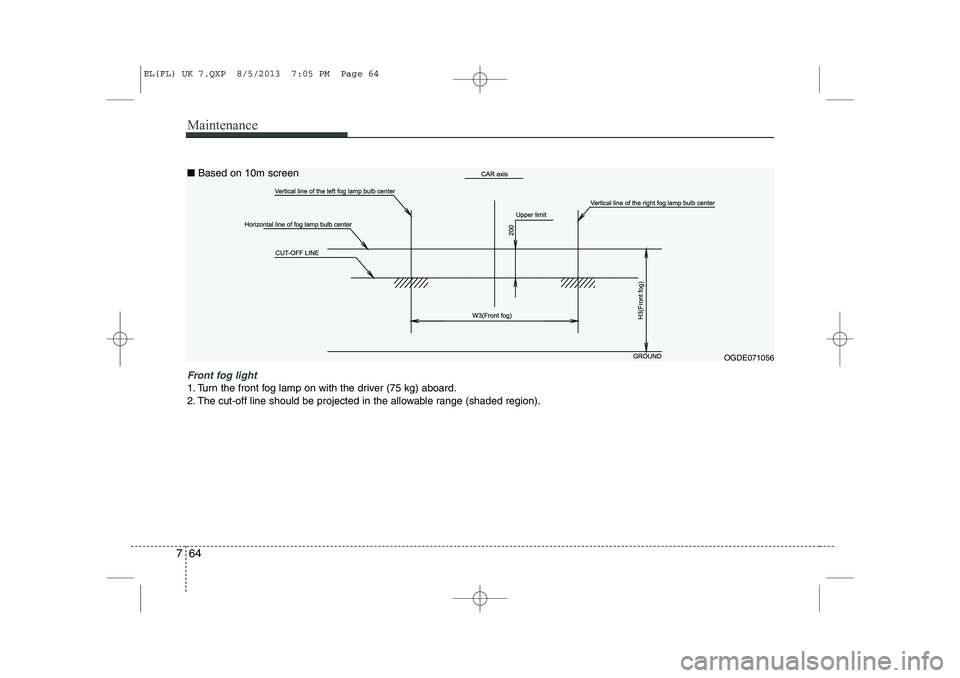

Front fog light
1. Turn the front fog lamp on with the driver (75 kg) aboard.
2. The cut-off line should be projected in the allowable range (shaded region).
OGDE071056
■
Based on 10m screen
EL(FL) UK 7.QXP 8/5/2013 7:05 PM Page 64

765
Maintenance

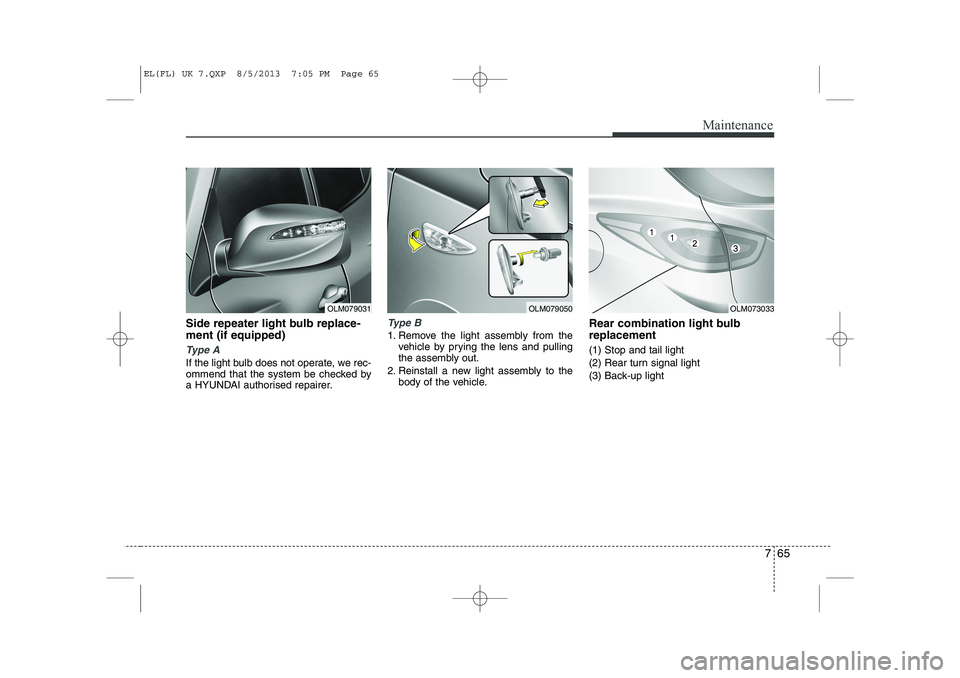

Side repeater light bulb replace- ment (if equipped)
Type A
If the light bulb does not operate, we rec-
ommend that the system be checked by
a HYUNDAI authorised repairer.
Type B
1. Remove the light assembly from thevehicle by prying the lens and pulling
the assembly out.
2. Reinstall a new light assembly to the body of the vehicle. Rear combination light bulb replacement (1) Stop and tail light
(2) Rear turn signal light
(3) Back-up light
OLM079031OLM079050OLM073033
EL(FL) UK 7.QXP 8/5/2013 7:05 PM Page 65

Maintenance
66
7

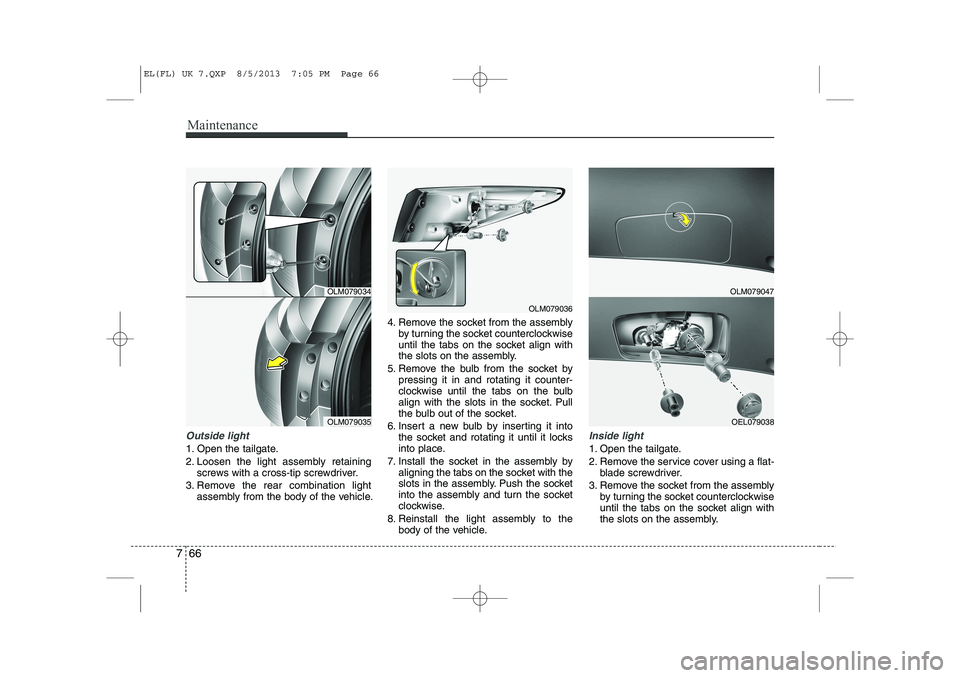

Outside light
1. Open the tailgate.
2. Loosen the light assembly retaining
screws with a cross-tip screwdriver.
3. Remove the rear combination light assembly from the body of the vehicle. 4. Remove the socket from the assembly
by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
5. Remove the bulb from the socket by pressing it in and rotating it counter-
clockwise until the tabs on the bulb
align with the slots in the socket. Pull
the bulb out of the socket.
6. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place.
7. Install the socket in the assembly by aligning the tabs on the socket with the
slots in the assembly. Push the socket
into the assembly and turn the socket
clockwise.
8. Reinstall the light assembly to the body of the vehicle.
Inside light
1. Open the tailgate.
2. Remove the service cover using a flat- blade screwdriver.
3. Remove the socket from the assembly by turning the socket counterclockwise
until the tabs on the socket align with
the slots on the assembly.
OLM079034
OLM079035
OLM079036
OLM079047
OEL079038
