HYUNDAI IX35 2014 Owners Manual

25

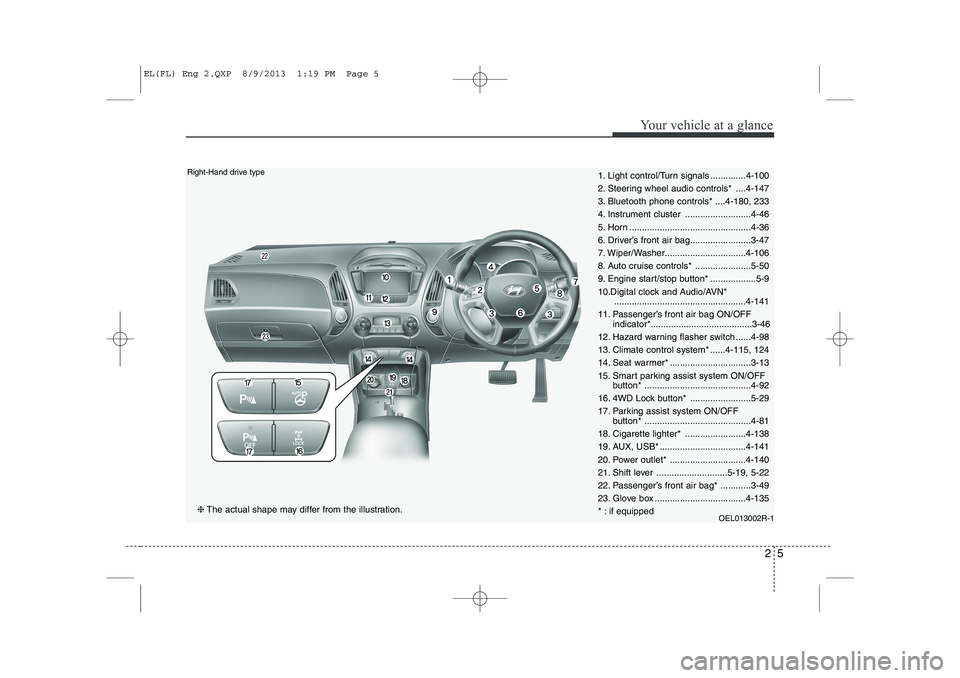

Your vehicle at a glance
1. Light control/Turn signals ..............4-100
2. Steering wheel audio controls* ....4-147
3. Bluetooth phone controls* ....4-180, 233
4. Instrument cluster ..........................4-46
5. Horn ................................................4-36
6. Driver’s front air bag........................3-47
7. Wiper/Washer................................4-106
8. Auto cruise controls* ......................5-50
9. Engine start/stop button* ..................5-9
10.Digital clock and Audio/AVN*....................................................4-141
11. Passenger’s front air bag ON/OFF indicator*........................................3-46
12. Hazard warning flasher switch ......4-98
13. Climate control system* ......4-115, 124
14. Seat warmer* ................................3-13
15. Smart parking assist system ON/OFF button* ..........................................4-92
16. 4WD Lock button* ........................5-29
17. Parking assist system ON/OFF button* ..........................................4-81
18. Cigarette lighter* ........................4-138
19. AUX, USB* ..................................4-141
20. Power outlet* ..............................4-140
21. Shift lever ............................5-19, 5-22
22. Passenger’s front air bag* ............3-49
23. Glove box ....................................4-135
* : if equipped OEL013002R-1Right-Hand drive type
❈The actual shape may differ from the illustration.
EL(FL) Eng 2.QXP 8/9/2013 1:19 PM Page 5

Your vehicle at a glance
6
2

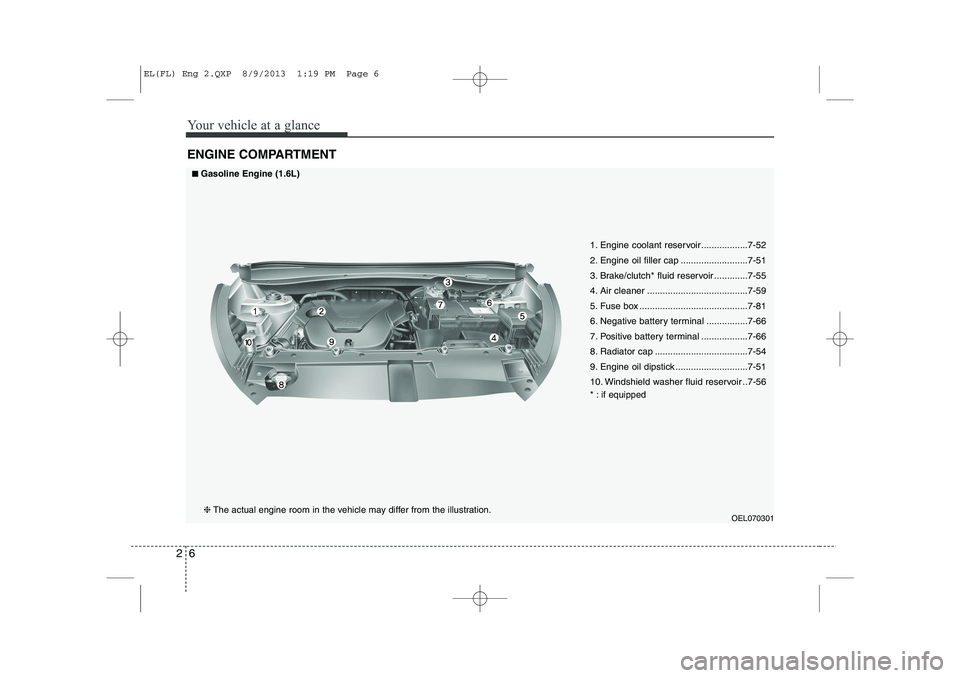

ENGINE COMPARTMENT
OEL070301
1. Engine coolant reservoir ..................7-52
2. Engine oil filler cap ..........................7-51
3. Brake/clutch* fluid reservoir .............7-55
4. Air cleaner .......................................7-59
5. Fuse box ..........................................7-81
6. Negative battery terminal ................7-66
7. Positive battery terminal ..................7-66
8. Radiator cap ....................................7-54
9. Engine oil dipstick ............................7-51
10. Windshield washer fluid reservoir ..7-56
* : if equipped
■■
Gasoline Engine (1.6L)
❈ The actual engine room in the vehicle may differ from the illustration.
EL(FL) Eng 2.QXP 8/9/2013 1:19 PM Page 6

27
Your vehicle at a glance

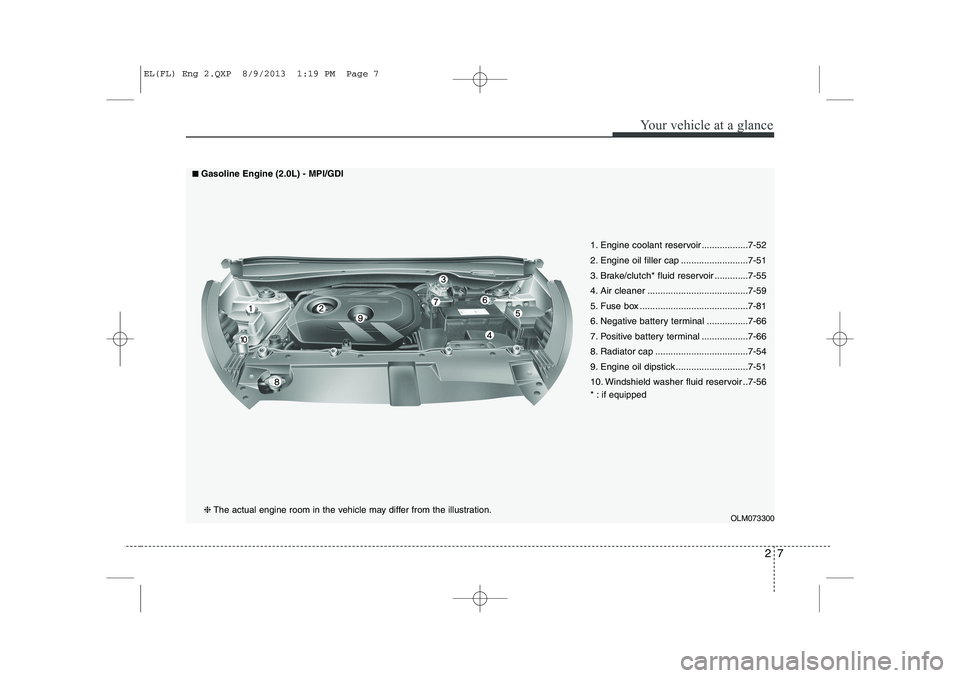

OLM073300
1. Engine coolant reservoir ..................7-52
2. Engine oil filler cap ..........................7-51
3. Brake/clutch* fluid reservoir .............7-55
4. Air cleaner .......................................7-59
5. Fuse box ..........................................7-81
6. Negative battery terminal ................7-66
7. Positive battery terminal ..................7-66
8. Radiator cap ....................................7-54
9. Engine oil dipstick ............................7-51
10. Windshield washer fluid reservoir ..7-56
* : if equipped
■■Gasoline Engine (2.0L) - MPI/GDI
❈ The actual engine room in the vehicle may differ from the illustration.
EL(FL) Eng 2.QXP 8/9/2013 1:19 PM Page 7

Your vehicle at a glance
8
2
OEL070302
1. Engine coolant reservoir ..................7-52
2. Fuse box ..........................................7-81
3. Fuel filter ..........................................7-57
4. Engine oil dipstick ............................7-51
5. Engine oil filler cap ..........................7-51
6. Brake/clutch* fluid reservoir ............7-55
7. Air cleaner ........................................7-59
8. Negative battery terminal ................7-66
9. Positive battery terminal ..................7-66
10. Radiator cap ..................................7-54
11. Windshield washer fluid reservoir ..7-56
* : if equipped
■■
Diesel Engine (1.7L)
❈ The actual engine room in the vehicle may differ from the illustration.
EL(FL) Eng 2.QXP 8/9/2013 1:19 PM Page 8

29
Your vehicle at a glance

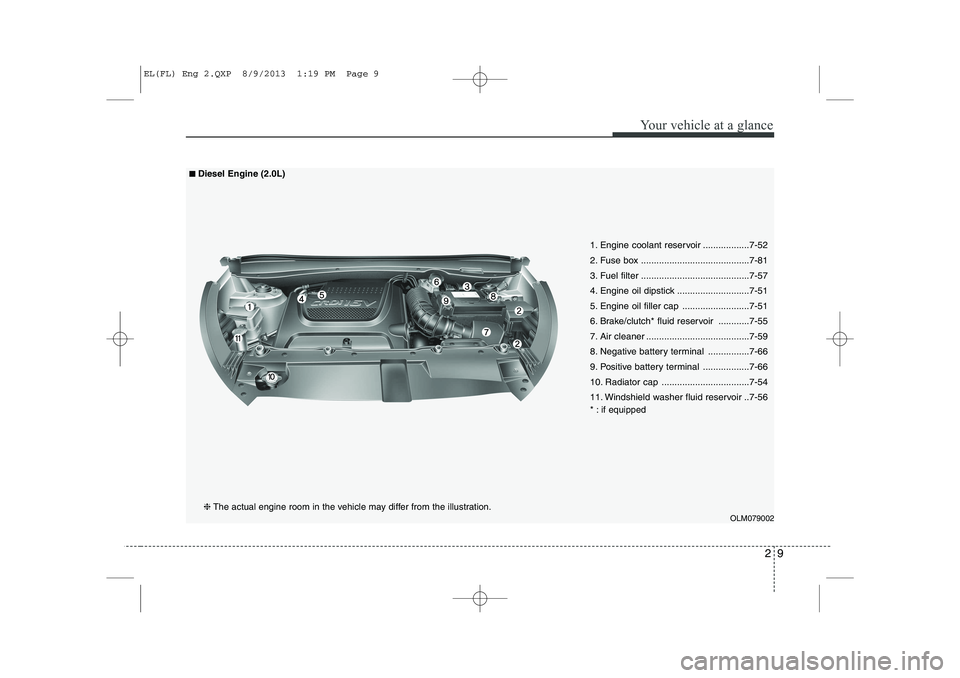

OLM079002
1. Engine coolant reservoir ..................7-52
2. Fuse box ..........................................7-81
3. Fuel filter ..........................................7-57
4. Engine oil dipstick ............................7-51
5. Engine oil filler cap ..........................7-51
6. Brake/clutch* fluid reservoir ............7-55
7. Air cleaner ........................................7-59
8. Negative battery terminal ................7-66
9. Positive battery terminal ..................7-66
10. Radiator cap ..................................7-54
11. Windshield washer fluid reservoir ..7-56
* : if equipped
■■Diesel Engine (2.0L)
❈ The actual engine room in the vehicle may differ from the illustration.
EL(FL) Eng 2.QXP 8/9/2013 1:19 PM Page 9

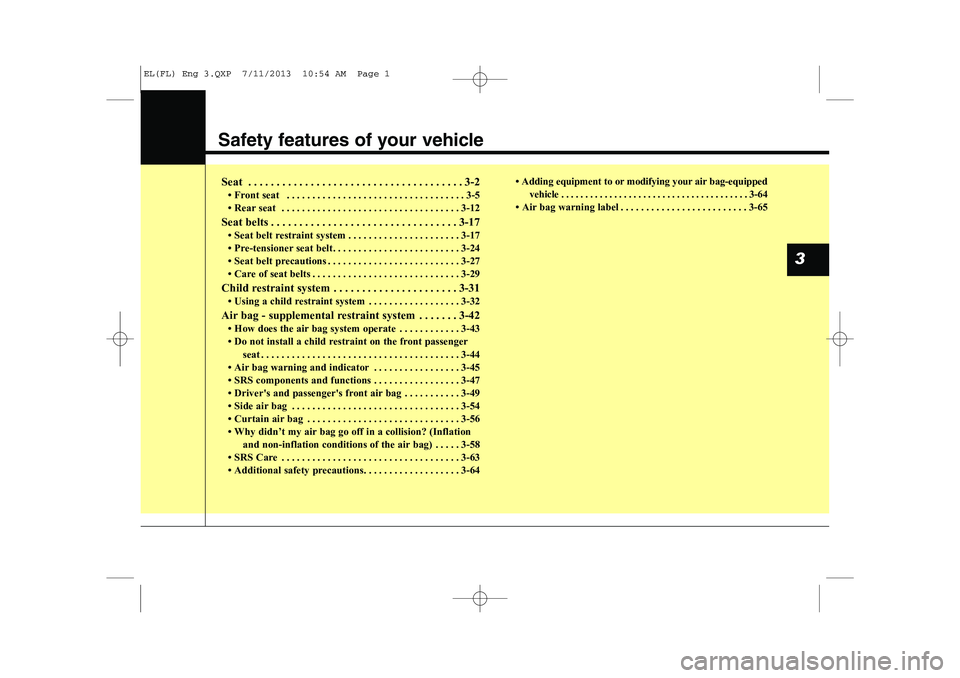

Safety features of your vehicle
Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Safety features of your vehicle
2
3
Front seat
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height (Driver’s seat)
(4) Lumbar support (Driver’s seat)*
(5) Seat warmer*(6) Headrest Rear seat
(7) Seatback folding (8) Headrest
(9) Armrest
(10) Seat warmer* * if equipped
SEAT
OEL039001
EL(FL) Eng 3.QXP 7/11/2013 10:54 AM Page 2

33
Safety features of your vehicle

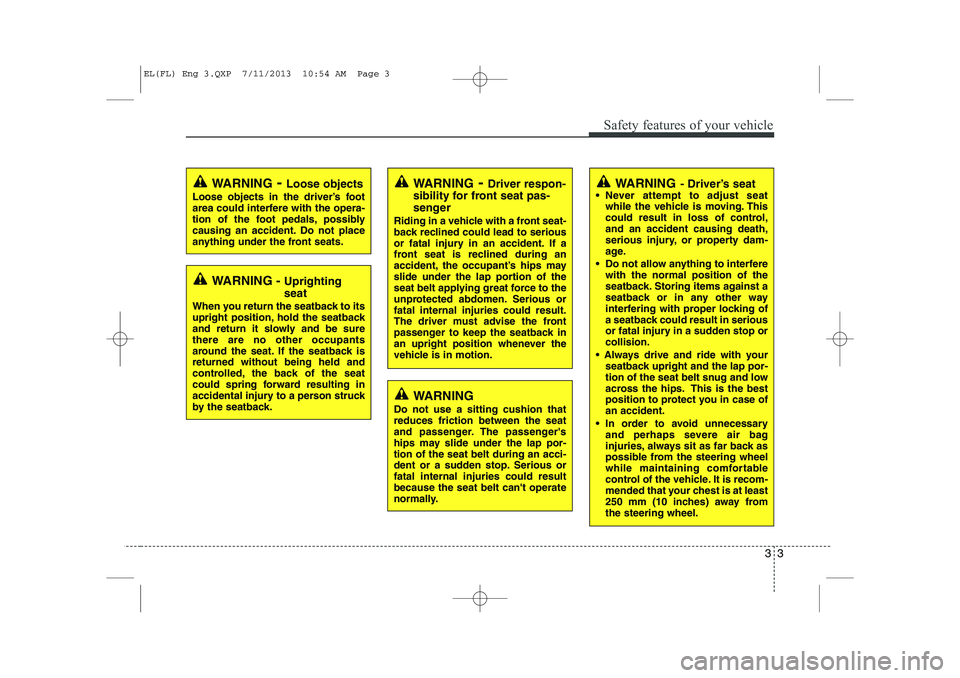

WARNING- Driver’s seat
 Never attempt to adjust seat while the vehicle is moving. This
could result in loss of control,and an accident causing death,
serious injury, or property dam-
age.
 Do not allow anything to interfere with the normal position of the
seatback. Storing items against a
seatback or in any other way
interfering with proper locking of
a seatback could result in serious
or fatal injury in a sudden stop orcollision.
 Always drive and ride with your seatback upright and the lap por-
tion of the seat belt snug and low
across the hips. This is the best
position to protect you in case ofan accident.
 In order to avoid unnecessary and perhaps severe air bag
injuries, always sit as far back as
possible from the steering wheel
while maintaining comfortable
control of the vehicle. It is recom-
mended that your chest is at least
250 mm (10 inches) away fromthe steering wheel.
WARNING - Uprighting seat
When you return the seatback to its
upright position, hold the seatback
and return it slowly and be surethere are no other occupants
around the seat. If the seatback isreturned without being held and
controlled, the back of the seat
could spring forward resulting in
accidental injury to a person struck
by the seatback.
WARNING - Loose objects
Loose objects in the driver’s foot
area could interfere with the opera-
tion of the foot pedals, possibly
causing an accident. Do not place
anything under the front seats.WARNING - Driver respon-
sibility for front seat pas-
senger
Riding in a vehicle with a front seat-
back reclined could lead to serious
or fatal injury in an accident. If a
front seat is reclined during an
accident, the occupant’s hips may
slide under the lap portion of the
seat belt applying great force to the
unprotected abdomen. Serious orfatal internal injuries could result.
The driver must advise the front
passenger to keep the seatback in
an upright position whenever the
vehicle is in motion.
WARNING
Do not use a sitting cushion that reduces friction between the seat
and passenger. The passenger's
hips may slide under the lap por-tion of the seat belt during an acci-
dent or a sudden stop. Serious orfatal internal injuries could resultbecause the seat belt can't operate
normally.
EL(FL) Eng 3.QXP 7/11/2013 10:54 AM Page 3

Safety features of your vehicle
4
3

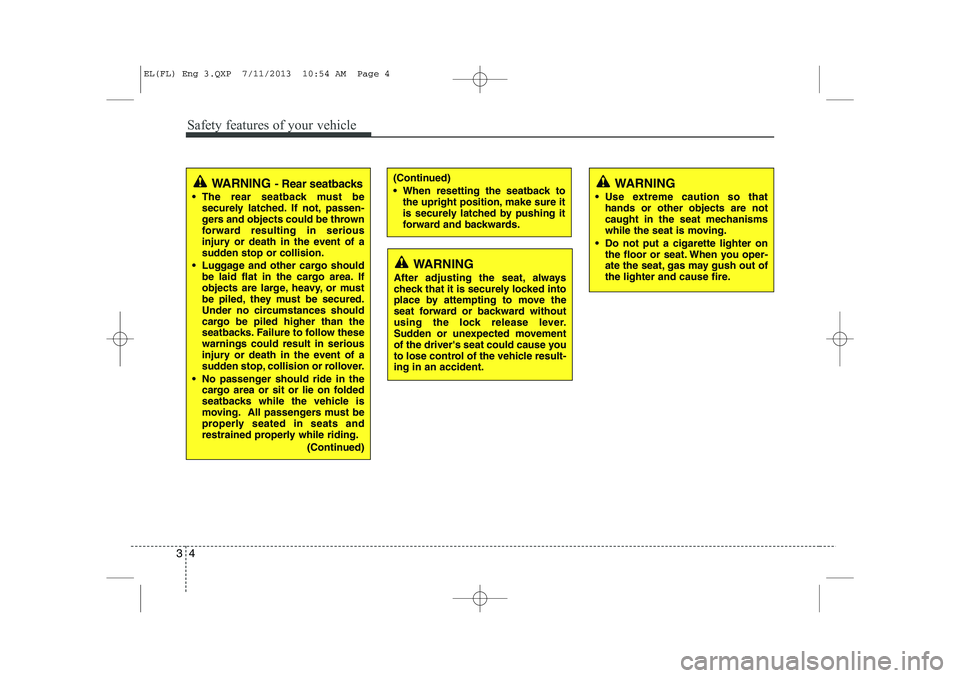

(Continued)
 When resetting the seatback to
the upright position, make sure it
is securely latched by pushing it
forward and backwards.WARNING - Rear seatbacks
 The rear seatback must be securely latched. If not, passen-
gers and objects could be thrown
forward resulting in serious
injury or death in the event of a
sudden stop or collision.
 Luggage and other cargo should be laid flat in the cargo area. If
objects are large, heavy, or must
be piled, they must be secured.
Under no circumstances should
cargo be piled higher than the
seatbacks. Failure to follow thesewarnings could result in serious
injury or death in the event of a
sudden stop, collision or rollover.
 No passenger should ride in the cargo area or sit or lie on folded
seatbacks while the vehicle is
moving. All passengers must be
properly seated in seats and
restrained properly while riding.
(Continued)
WARNING
After adjusting the seat, always
check that it is securely locked into
place by attempting to move the
seat forward or backward without
using the lock release lever.
Sudden or unexpected movement
of the driver's seat could cause you
to lose control of the vehicle result-ing in an accident.
WARNING
 Use extreme caution so that hands or other objects are not
caught in the seat mechanisms
while the seat is moving.
 Do not put a cigarette lighter on the floor or seat. When you oper-
ate the seat, gas may gush out of
the lighter and cause fire.
EL(FL) Eng 3.QXP 7/11/2013 10:54 AM Page 4

35
Safety features of your vehicle

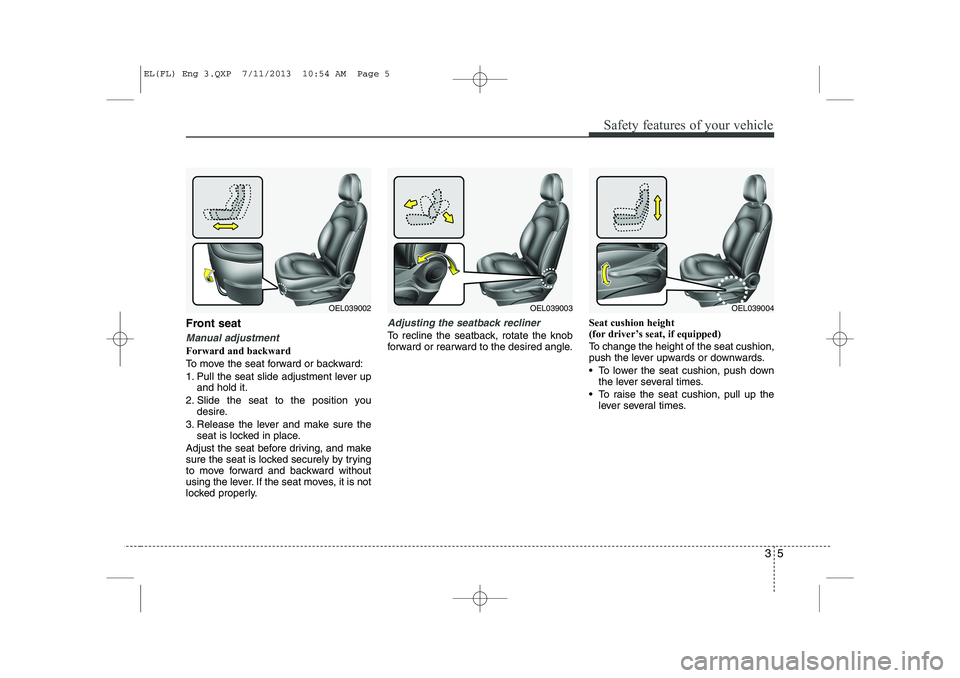

Front seat
Manual adjustment
Forward and backward
To move the seat forward or backward:
1. Pull the seat slide adjustment lever upand hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
Adjust the seat before driving, and make
sure the seat is locked securely by trying
to move forward and backward without
using the lever. If the seat moves, it is not
locked properly.
Adjusting the seatback recliner
To recline the seatback, rotate the knob
forward or rearward to the desired angle. Seat cushion height
(for driver’s seat, if equipped)
To change the height of the seat cushion,
push the lever upwards or downwards.
 To lower the seat cushion, push down
the lever several times.
 To raise the seat cushion, pull up the lever several times.
OEL039002OEL039003OEL039004
