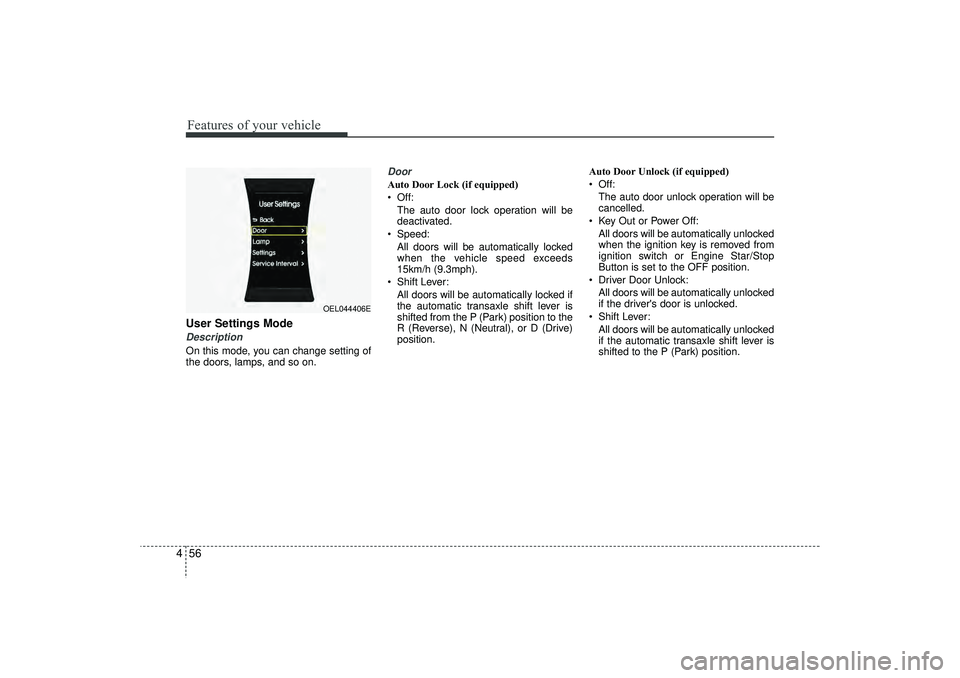

Features of your vehicle56
4User Settings ModeDescriptionOn this mode, you can change setting of
the doors, lamps, and so on.
DoorAuto Door Lock (if equipped)
 Off:
The auto door lock operation will be
deactivated.
 Speed: All doors will be automatically locked
when the vehicle speed exceeds
15km/h (9.3mph).
 Shift Lever: All doors will be automatically locked if
the automatic transaxle shift lever is
shifted from the P (Park) position to the
R (Reverse), N (Neutral), or D (Drive)
position. Auto Door Unlock (if equipped)
 Off:
The auto door unlock operation will be
cancelled.
 Key Out or Power Off: All doors will be automatically unlocked
when the ignition key is removed from
ignition switch or Engine Star/Stop
Button is set to the OFF position.
 Driver Door Unlock: All doors will be automatically unlocked
if the driver's door is unlocked.
 Shift Lever: All doors will be automatically unlocked
if the automatic transaxle shift lever is
shifted to the P (Park) position.
OEL044406E
EL(FL) UK 4A.QXP 2/9/2015 9:04 PM Page 56

457
Features of your vehicle

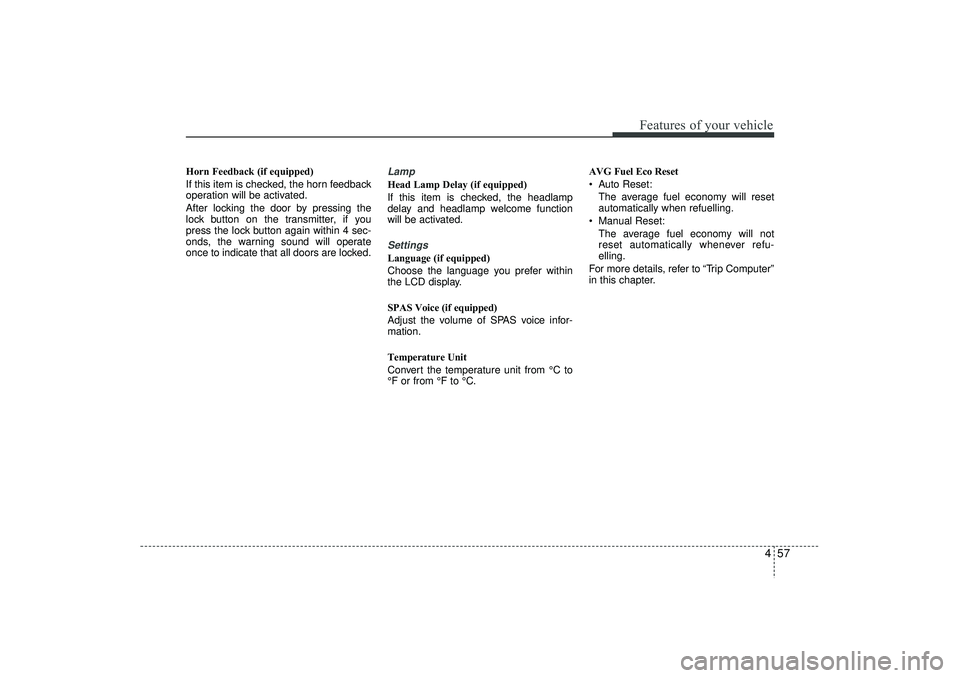

Horn Feedback (if equipped)
If this item is checked, the horn feedback
operation will be activated.
After locking the door by pressing the
lock button on the transmitter, if you
press the lock button again within 4 sec-
onds, the warning sound will operate
once to indicate that all doors are locked.
LampHead Lamp Delay (if equipped)
If this item is checked, the headlamp
delay and headlamp welcome function
will be activated.SettingsLanguage (if equipped)
Choose the language you prefer within
the LCD display.
SPAS Voice (if equipped)
Adjust the volume of SPAS voice infor-
mation.
Temperature Unit
Convert the temperature unit from °C to
°F or from °F to °C.AVG Fuel Eco Reset
 Auto Reset:
The average fuel economy will reset
automatically when refuelling.
 Manual Reset: The average fuel economy will not
reset automatically whenever refu-
elling.
For more details, refer to “Trip Computer”
in this chapter.
EL(FL) UK 4A.QXP 2/9/2015 9:04 PM Page 57

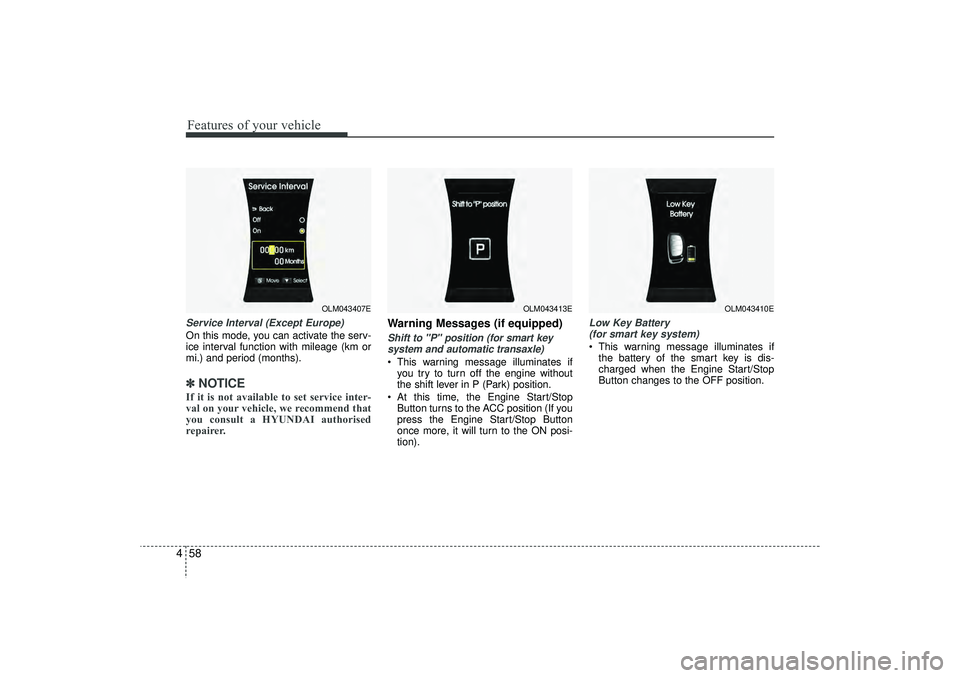

Features of your vehicle58
4Service Interval (Except Europe)On this mode, you can activate the serv-
ice interval function with mileage (km or
mi.) and period (months).✽ ✽
NOTICEIf it is not available to set service inter-
val on your vehicle, we recommend that
you consult a HYUNDAI authorised
repairer.
Warning Messages (if equipped)Shift to "P" position (for smart key
system and automatic transaxle) This warning message illuminates if you try to turn off the engine without
the shift lever in P (Park) position.
 At this time, the Engine Start/Stop Button turns to the ACC position (If you
press the Engine Start/Stop Button
once more, it will turn to the ON posi-
tion).
Low Key Battery (for smart key system) This warning message illuminates if the battery of the smart key is dis-
charged when the Engine Start/Stop
Button changes to the OFF position.
OLM043407E
OLM043413E
OLM043410E
EL(FL) UK 4A.QXP 2/9/2015 9:04 PM Page 58

459
Features of your vehicle
Press start button whilst turn steer-ing (for smart key system) This warning message illuminates if the steering wheel does not unlock
normally when the Engine Start/Stop
Button is pressed.
 It means that you should press the Engine Start/Stop Button whilst turning
the steering wheel right and left.
Steering wheel unlocked (for smart key system) This warning message illuminates if the steering wheel does not lock when
the Engine Start/Stop Button changes
to the OFF position.
Check steering wheel lock system (for smart key system) This warning message illuminates if the steering wheel does not lock nor-
mally when the Engine Start/Stop
Button changes to the OFF position.
OLM043500N
OLM043502N
OLM043503N
EL(FL) UK 4A.QXP 2/9/2015 9:05 PM Page 59

Features of your vehicle60

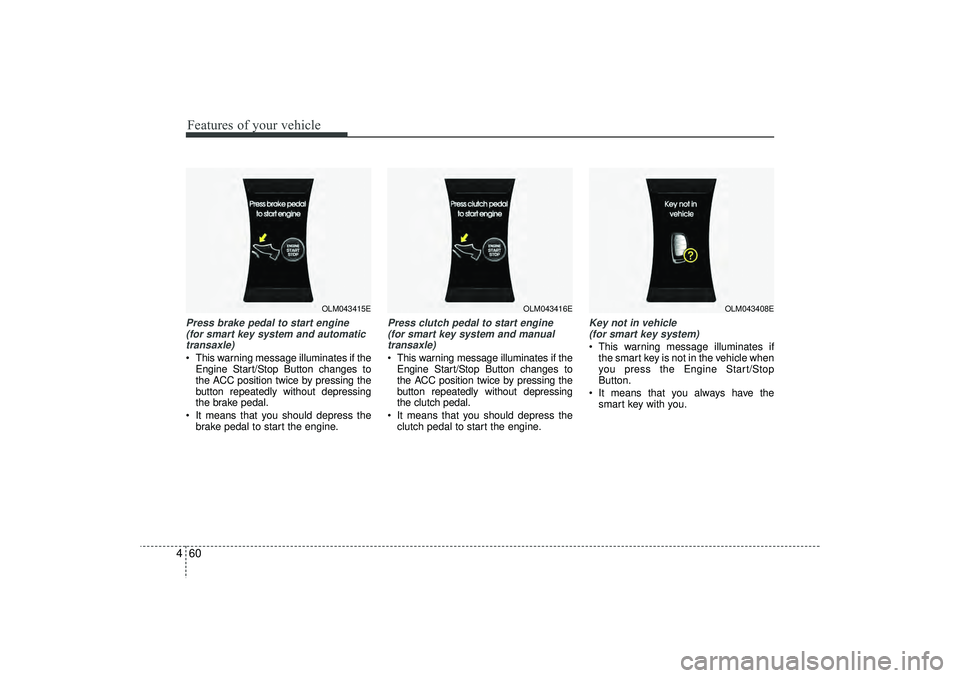

4Press brake pedal to start engine
(for smart key system and automatictransaxle) This warning message illuminates if the Engine Start/Stop Button changes to
the ACC position twice by pressing the
button repeatedly without depressing
the brake pedal.
 It means that you should depress the brake pedal to start the engine.
Press clutch pedal to start engine(for smart key system and manualtransaxle) This warning message illuminates if the Engine Start/Stop Button changes to
the ACC position twice by pressing the
button repeatedly without depressing
the clutch pedal.
 It means that you should depress the clutch pedal to start the engine.
Key not in vehicle (for smart key system) This warning message illuminates if the smart key is not in the vehicle when
you press the Engine Start/Stop
Button.
 It means that you always have the smart key with you.
OLM043415E
OLM043416E
OLM043408E
EL(FL) UK 4A.QXP 2/9/2015 9:05 PM Page 60

461
Features of your vehicle

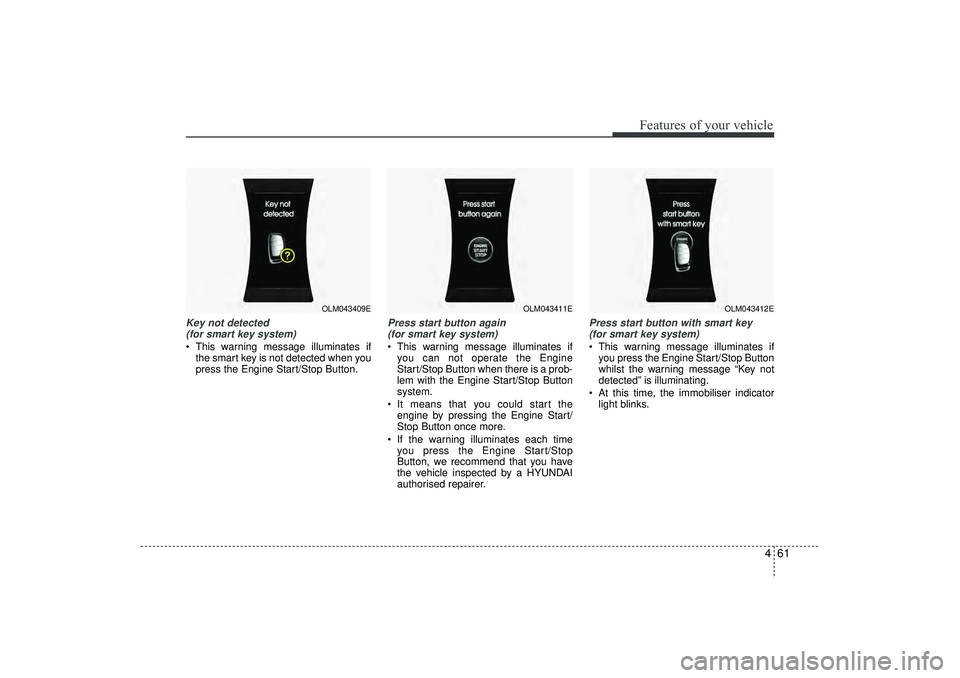

Key not detected (for smart key system) This warning message illuminates if the smart key is not detected when you
press the Engine Start/Stop Button.
Press start button again (for smart key system) This warning message illuminates if you can not operate the Engine
Start/Stop Button when there is a prob-
lem with the Engine Start/Stop Button
system.
 It means that you could start the engine by pressing the Engine Start/
Stop Button once more.
 If the warning illuminates each time you press the Engine Start/Stop
Button, we recommend that you have
the vehicle inspected by a HYUNDAI
authorised repairer.
Press start button with smart key (for smart key system) This warning message illuminates if you press the Engine Start/Stop Button
whilst the warning message “Key not
detected” is illuminating.
 At this time, the immobiliser indicator light blinks.
OLM043409E
OLM043411E
OLM043412E
EL(FL) UK 4A.QXP 2/9/2015 9:05 PM Page 61

Features of your vehicle62

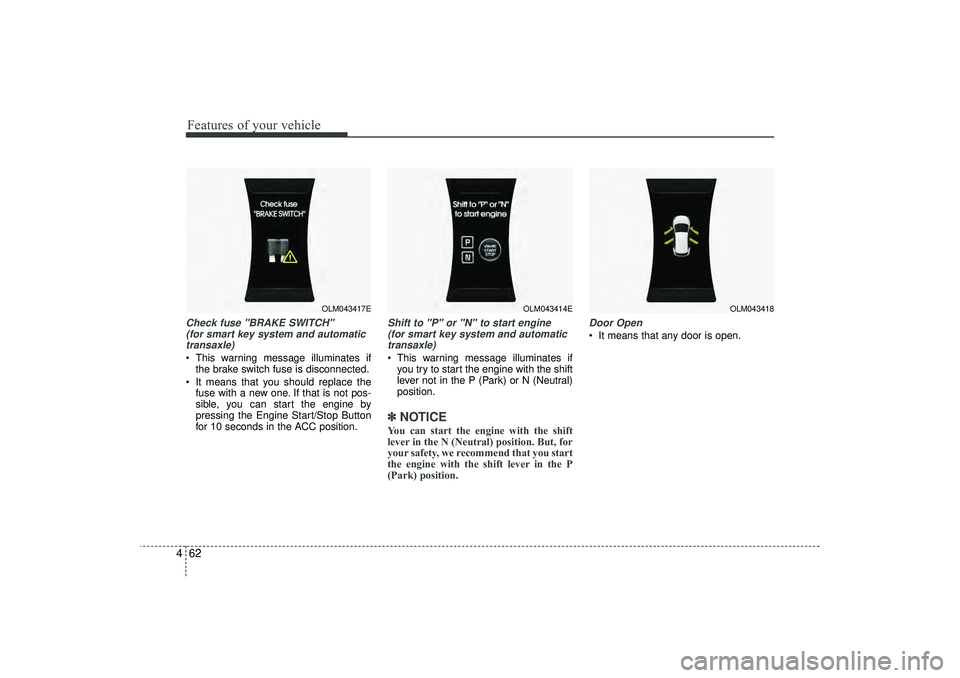

4Check fuse "BRAKE SWITCH"
(for smart key system and automatictransaxle) This warning message illuminates if the brake switch fuse is disconnected.
 It means that you should replace the fuse with a new one. If that is not pos-
sible, you can start the engine by
pressing the Engine Start/Stop Button
for 10 seconds in the ACC position.
Shift to "P" or "N" to start engine (for smart key system and automatictransaxle) This warning message illuminates if you try to start the engine with the shift
lever not in the P (Park) or N (Neutral)
position.✽ ✽ NOTICEYou can start the engine with the shift
lever in the N (Neutral) position. But, for
your safety, we recommend that you start
the engine with the shift lever in the P
(Park) position.
Door Open It means that any door is open.
OLM043417E
OLM043414E
OLM043418
EL(FL) UK 4A.QXP 2/9/2015 9:05 PM Page 62

463
Features of your vehicle

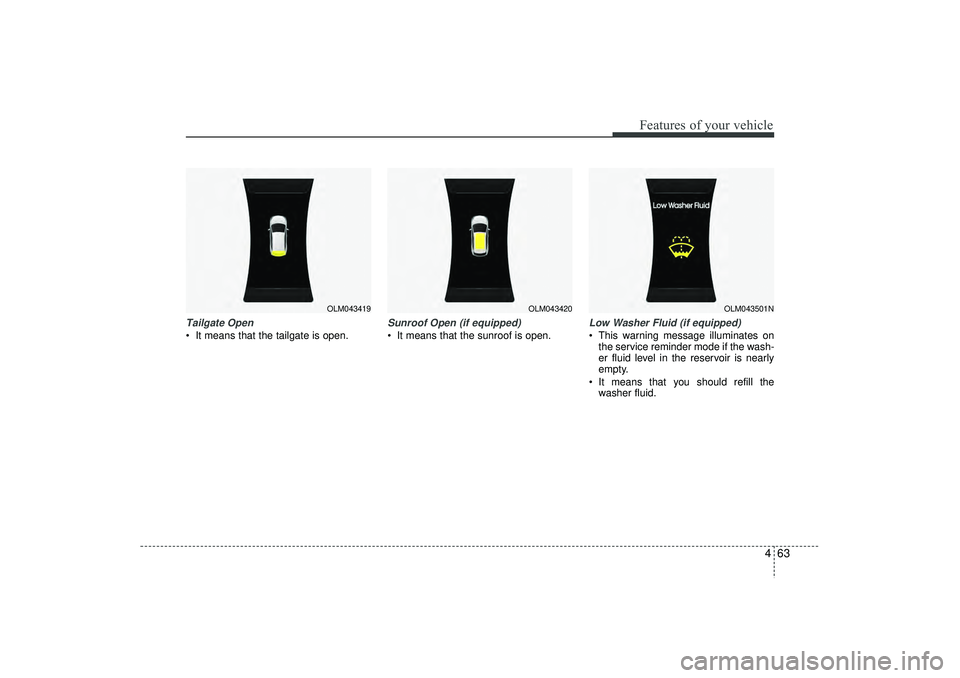

Tailgate Open  It means that the tailgate is open.
Sunroof Open (if equipped) It means that the sunroof is open.
Low Washer Fluid (if equipped) This warning message illuminates onthe service reminder mode if the wash-
er fluid level in the reservoir is nearly
empty.
 It means that you should refill the washer fluid.
OLM043419
OLM043420
OLM043501N
EL(FL) UK 4A.QXP 2/9/2015 9:05 PM Page 63

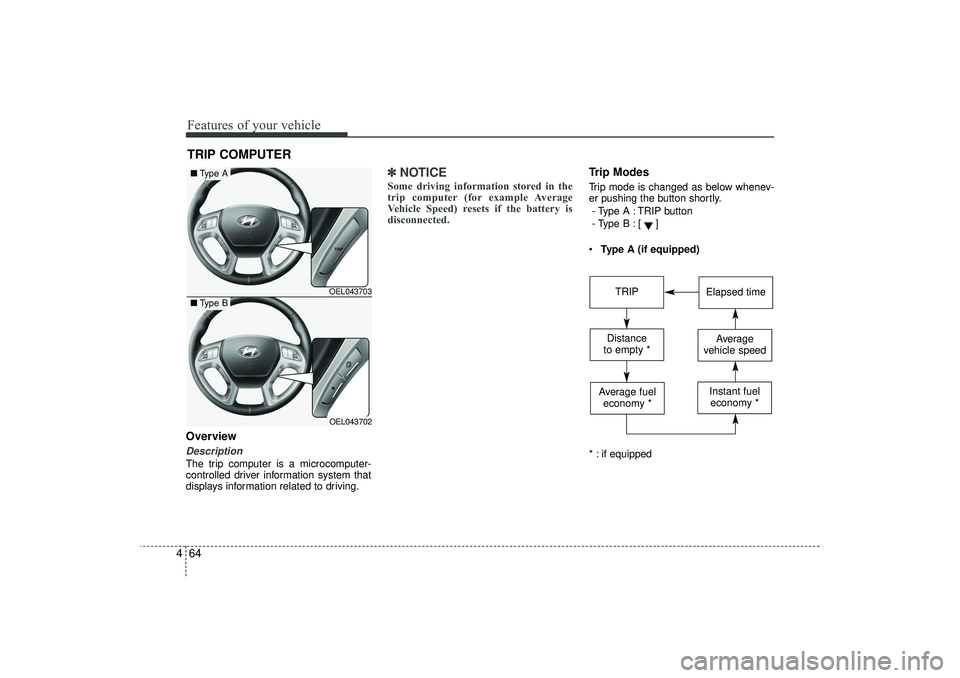

Features of your vehicle64
4OverviewDescriptionThe trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
✽ ✽
NOTICESome driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip ModesTrip mode is changed as below whenev-
er pushing the button shortly.
- Type A : TRIP button
- Type B :
[]
 Type A (if equipped)
* : if equipped
TRIP COMPUTER
OEL043703OEL043702
■ Type A■Type B
TRIP
Elapsed time
Distance
to empty *
Average
vehicle speed
Average fuel economy *
Instant fueleconomy *
EL(FL) UK 4A.QXP 2/9/2015 9:05 PM Page 64

465
Features of your vehicle

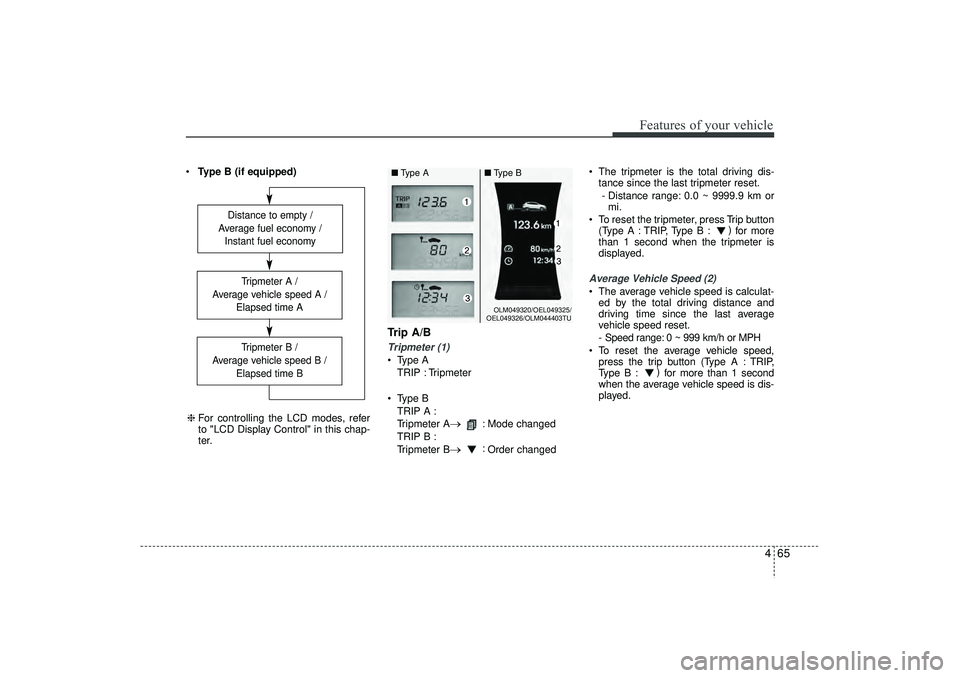

Type B (if equipped)
Trip A/BTripmeter (1) Type A
TRIP : Tripmeter
 Type B TRIP A :
Tripmeter A
→
: Mode changed
TRIP B :
Tripmeter B
→
: Order changed  The tripmeter is the total driving dis-
tance since the last tripmeter reset.
- Distance range: 0.0 ~ 9999.9 km or mi.
 To reset the tripmeter, press Trip button (Type A : TRIP, Type B : )
for more
than 1 second when the tripmeter is
displayed.
Average Vehicle Speed (2) The average vehicle speed is calculat- ed by the total driving distance and
driving time since the last average
vehicle speed reset.
- Speed range: 0 ~ 999 km/h or MPH
 To reset the average vehicle speed, press the trip button (Type A : TRIP,
Type B : )
for more than 1 second
when the average vehicle speed is dis-
played.
Distance to empty /
Average fuel economy / Instant fuel economy
Tripmeter B /
Average vehicle speed B / Elapsed time BTripmeter A /
Average vehicle speed A / Elapsed time A
❈For controlling the LCD modes, refer
to "LCD Display Control" in this chap-
ter.
OLM049320/OEL049325/
OEL049326/OLM044403TU
■ Type A ■Type B
