Features of your vehicle86
4

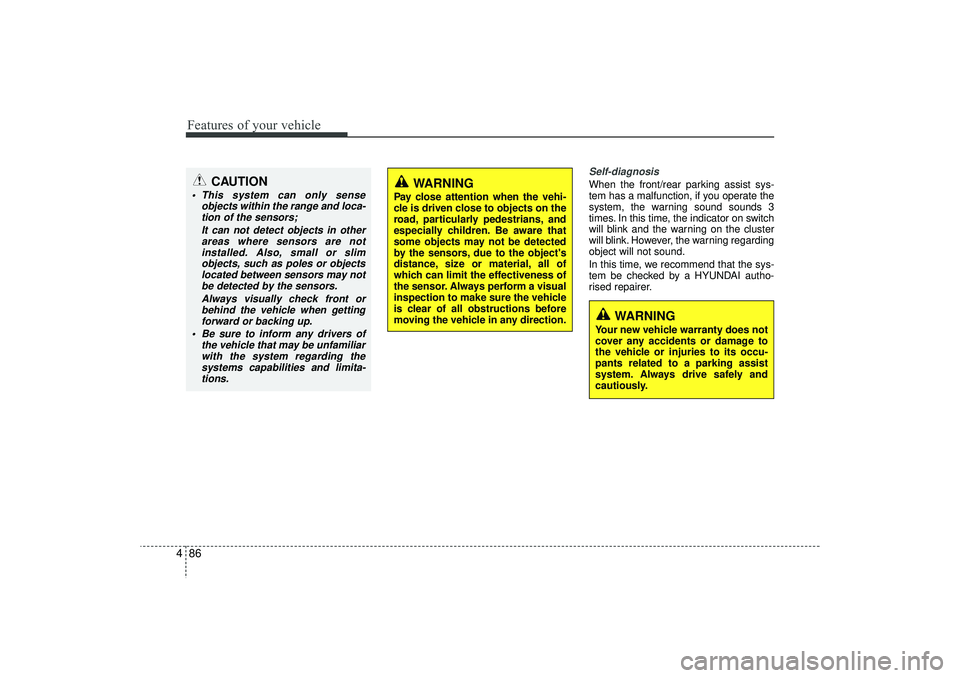

Self-diagnosis When the front/rear parking assist sys-
tem has a malfunction, if you operate the
system, the warning sound sounds 3
times. In this time, the indicator on switch
will blink and the warning on the cluster
will blink. However, the warning regarding
object will not sound.
In this time, we recommend that the sys-
tem be checked by a HYUNDAI autho-
rised repairer.
WARNING
Pay close attention when the vehi-
cle is driven close to objects on the
road, particularly pedestrians, and
especially children. Be aware that
some objects may not be detected
by the sensors, due to the object's
distance, size or material, all of
which can limit the effectiveness of
the sensor. Always perform a visual
inspection to make sure the vehicle
is clear of all obstructions before
moving the vehicle in any direction.
CAUTION
 This system can only sense
objects within the range and loca-tion of the sensors;
It can not detect objects in otherareas where sensors are notinstalled. Also, small or slimobjects, such as poles or objects located between sensors may notbe detected by the sensors.
Always visually check front orbehind the vehicle when gettingforward or backing up.
 Be sure to inform any drivers of the vehicle that may be unfamiliarwith the system regarding thesystems capabilities and limita-tions.
WARNING
Your new vehicle warranty does not
cover any accidents or damage to
the vehicle or injuries to its occu-
pants related to a parking assist
system. Always drive safely and
cautiously.
EL(FL) UK 4A.QXP 2/9/2015 9:05 PM Page 86

487
Features of your vehicle

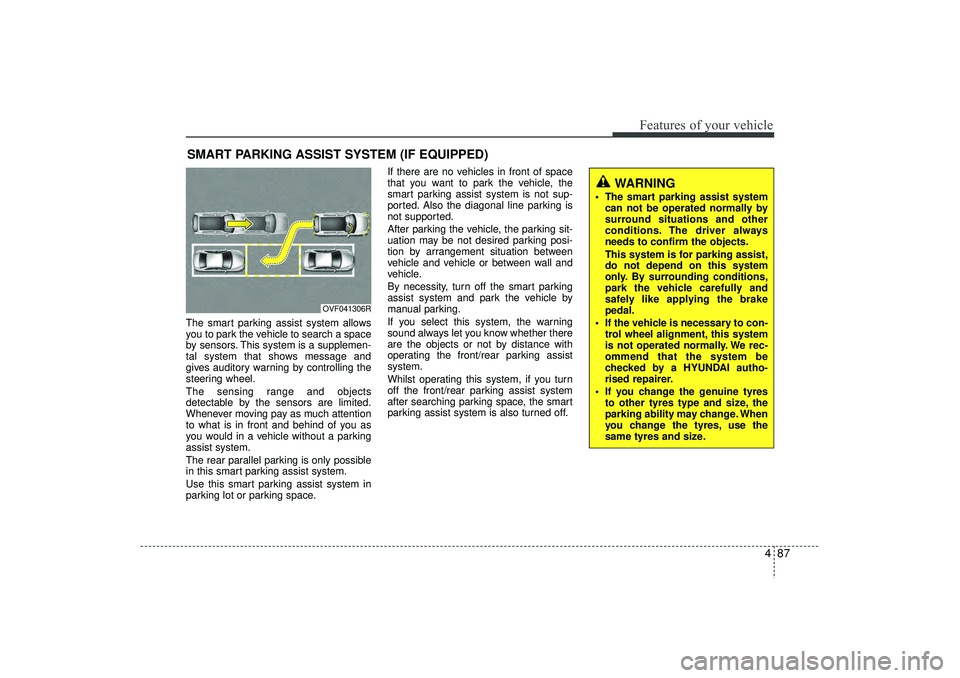

The smart parking assist system allows
you to park the vehicle to search a space
by sensors. This system is a supplemen-
tal system that shows message and
gives auditory warning by controlling the
steering wheel.
The sensing range and objects
detectable by the sensors are limited.
Whenever moving pay as much attention
to what is in front and behind of you as
you would in a vehicle without a parking
assist system.
The rear parallel parking is only possible
in this smart parking assist system.
Use this smart parking assist system in
parking lot or parking space.If there are no vehicles in front of space
that you want to park the vehicle, the
smart parking assist system is not sup-
ported. Also the diagonal line parking is
not supported.
After parking the vehicle, the parking sit-
uation may be not desired parking posi-
tion by arrangement situation between
vehicle and vehicle or between wall and
vehicle.
By necessity, turn off the smart parking
assist system and park the vehicle by
manual parking.
If you select this system, the warning
sound always let you know whether there
are the objects or not by distance with
operating the front/rear parking assist
system.
Whilst operating this system, if you turn
off the front/rear parking assist system
after searching parking space, the smart
parking assist system is also turned off.SMART PARKING ASSIST SYSTEM (IF EQUIPPED)
OVF041306R
WARNING
 The smart parking assist system
can not be operated normally by
surround situations and other
conditions. The driver always
needs to confirm the objects.
This system is for parking assist,
do not depend on this system
only. By surrounding conditions,
park the vehicle carefully and
safely like applying the brake
pedal.
 If the vehicle is necessary to con- trol wheel alignment, this system
is not operated normally. We rec-
ommend that the system be
checked by a HYUNDAI autho-
rised repairer.
 If you change the genuine tyres to other tyres type and size, the
parking ability may change. When
you change the tyres, use the
same tyres and size.
EL(FL) UK 4A.QXP 2/9/2015 9:05 PM Page 87

Features of your vehicle88

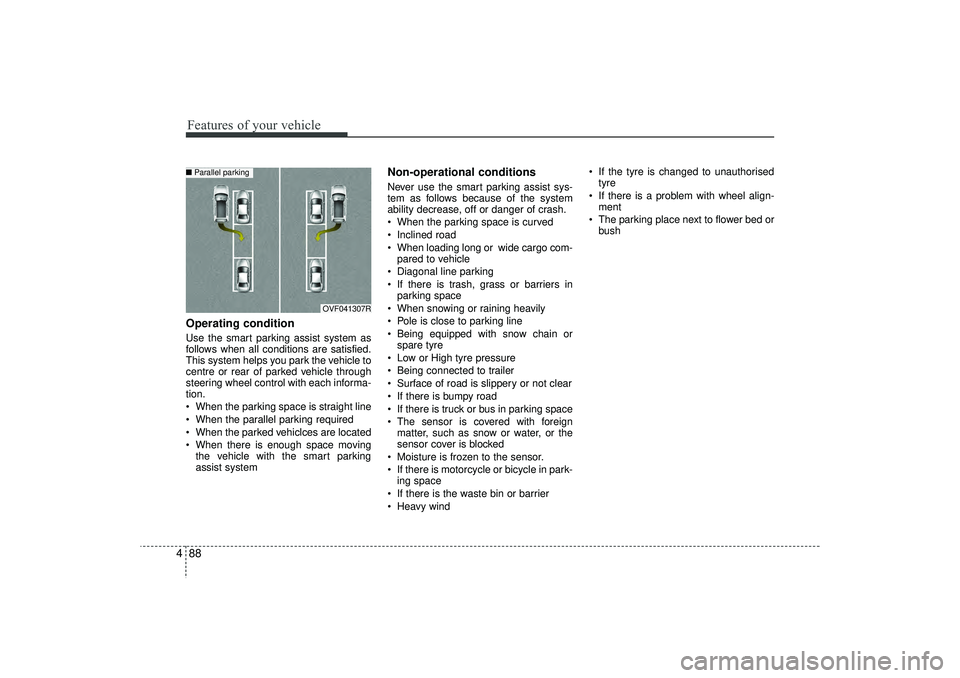

4Operating conditionUse the smart parking assist system as
follows when all conditions are satisfied.
This system helps you park the vehicle to
centre or rear of parked vehicle through
steering wheel control with each informa-
tion.
 When the parking space is straight line
 When the parallel parking required
 When the parked vehiclces are located
 When there is enough space moving
the vehicle with the smart parking
assist system
Non-operational conditionsNever use the smart parking assist sys-
tem as follows because of the system
ability decrease, off or danger of crash.
 When the parking space is curved
 Inclined road
 When loading long or wide cargo com-pared to vehicle
 Diagonal line parking
 If there is trash, grass or barriers in parking space
 When snowing or raining heavily
 Pole is close to parking line
 Being equipped with snow chain or spare tyre
 Low or High tyre pressure
 Being connected to trailer
 Surface of road is slippery or not clear
 If there is bumpy road
 If there is truck or bus in parking space
 The sensor is covered with foreign matter, such as snow or water, or the
sensor cover is blocked
 Moisture is frozen to the sensor.
 If there is motorcycle or bicycle in park- ing space
 If there is the waste bin or barrier
 Heavy wind  If the tyre is changed to unauthorised
tyre
 If there is a problem with wheel align- ment
 The parking place next to flower bed or bush
OVF041307R
■ Parallel parking
EL(FL) UK 4A.QXP 2/9/2015 9:05 PM Page 88

489
Features of your vehicle
WARNING
In following conditions, when smart
parking assist system is operated,
the unexpected result may occur
and it could result in serious injury.
Do not use the smart parking assist
system.

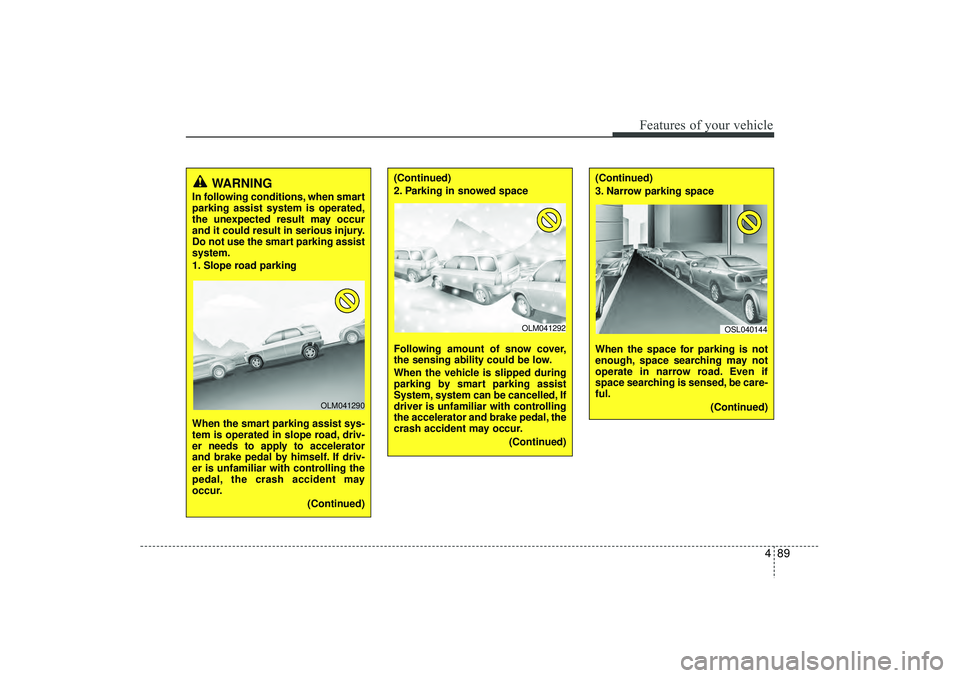

1. Slope road parking
When the smart parking assist sys-
tem is operated in slope road, driv-
er needs to apply to accelerator
and brake pedal by himself. If driv-
er is unfamiliar with controlling the
pedal, the crash accident may
occur.(Continued)
OLM041290
(Continued)
2. Parking in snowed space
Following amount of snow cover,
the sensing ability could be low.
When the vehicle is slipped during
parking by smart parking assist
System, system can be cancelled, If
driver is unfamiliar with controlling
the accelerator and brake pedal, the
crash accident may occur.(Continued)
(Continued)
3. Narrow parking space
When the space for parking is not
enough, space searching may not
operate in narrow road. Even if
space searching is sensed, be care-
ful.(Continued)
OLM041292
OSL040144
EL(FL) UK 4A.QXP 2/9/2015 9:05 PM Page 89

Features of your vehicle90
4(Continued)

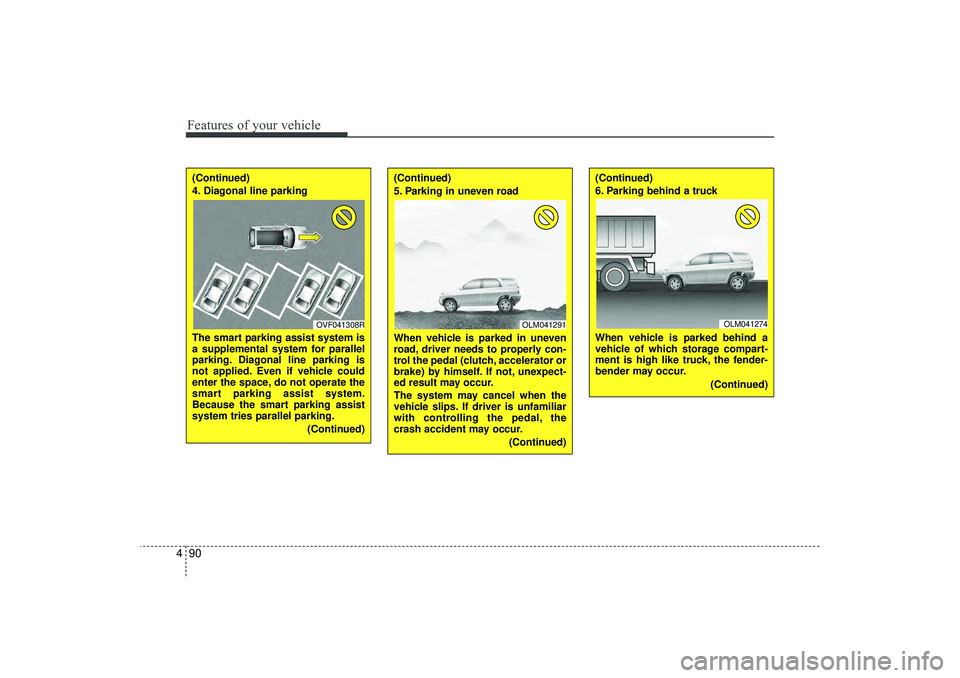

4. Diagonal line parking
The smart parking assist system is
a supplemental system for parallel
parking. Diagonal line parking is
not applied. Even if vehicle could
enter the space, do not operate the
smart parking assist system.
Because the smart parking assist
system tries parallel parking.
(Continued)
(Continued)
5. Parking in uneven road
When vehicle is parked in uneven
road, driver needs to properly con-
trol the pedal (clutch, accelerator or
brake) by himself. If not, unexpect-
ed result may occur.
The system may cancel when the
vehicle slips. If driver is unfamiliar
with controlling the pedal, the
crash accident may occur.(Continued)
(Continued)
6. Parking behind a truck
When vehicle is parked behind a
vehicle of which storage compart-
ment is high like truck, the fender-
bender may occur.(Continued)
OVF041308R
OLM041291
OLM041274
EL(FL) UK 4A.QXP 2/9/2015 9:05 PM Page 90

491
Features of your vehicle

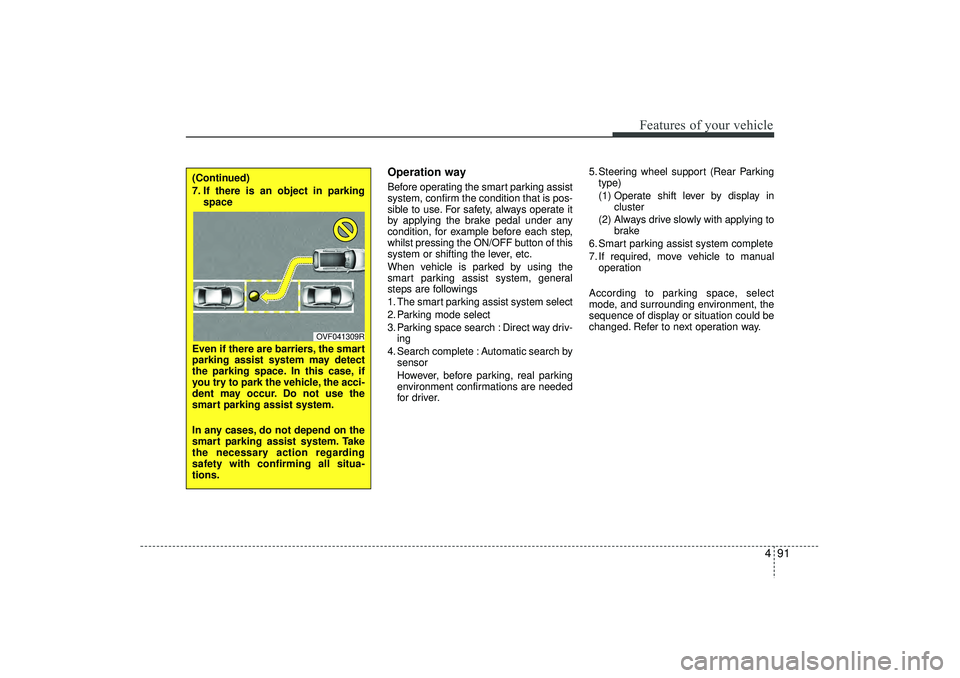

Operation wayBefore operating the smart parking assist
system, confirm the condition that is pos-
sible to use. For safety, always operate it
by applying the brake pedal under any
condition, for example before each step,
whilst pressing the ON/OFF button of this
system or shifting the lever, etc.
When vehicle is parked by using the
smart parking assist system, general
steps are followings
1. The smart parking assist system select
2. Parking mode select
3. Parking space search : Direct way driv-ing
4. Search complete : Automatic search by sensor
However, before parking, real parking
environment confirmations are needed
for driver. 5. Steering wheel support (Rear Parking
type)
(1) Operate shift lever by display in cluster
(2) Always drive slowly with applying to brake
6. Smart parking assist system complete
7. If required, move vehicle to manual operation
According to parking space, select
mode, and surrounding environment, the
sequence of display or situation could be
changed. Refer to next operation way.
(Continued)
7. If there is an object in parking space
Even if there are barriers, the smart
parking assist system may detect
the parking space. In this case, if
you try to park the vehicle, the acci-
dent may occur. Do not use the
smart parking assist system.
In any cases, do not depend on the
smart parking assist system. Take
the necessary action regarding
safety with confirming all situa-
tions.
OVF041309R
EL(FL) UK 4A.QXP 2/9/2015 9:05 PM Page 91

Features of your vehicle92

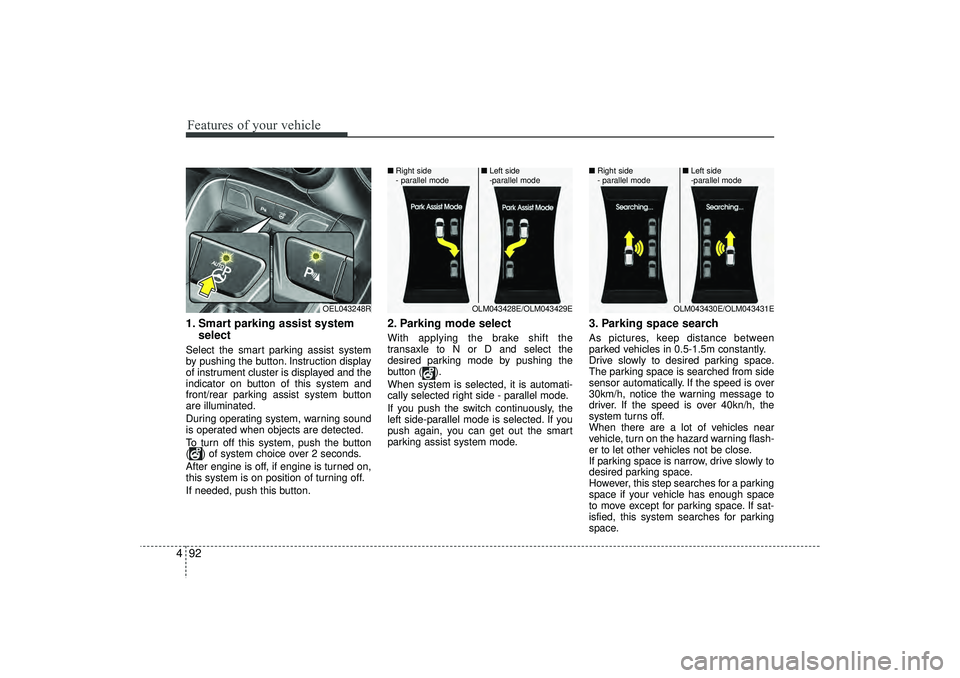

41. Smart parking assist system
selectSelect the smart parking assist system
by pushing the button. Instruction display
of instrument cluster is displayed and the
indicator on button of this system and
front/rear parking assist system button
are illuminated.
During operating system, warning sound
is operated when objects are detected.
To turn off this system, push the button
( ) of system choice over 2 seconds.
After engine is off, if engine is turned on,
this system is on position of turning off.
If needed, push this button.
2. Parking mode selectWith applying the brake shift the
transaxle to N or D and select the
desired parking mode by pushing the
button ( ).
When system is selected, it is automati-
cally selected right side - parallel mode.
If you push the switch continuously, the
left side-parallel mode is selected. If you
push again, you can get out the smart
parking assist system mode.
3. Parking space searchAs pictures, keep distance between
parked vehicles in 0.5-1.5m constantly.
Drive slowly to desired parking space.
The parking space is searched from side
sensor automatically. If the speed is over
30km/h, notice the warning message to
driver. If the speed is over 40kn/h, the
system turns off.
When there are a lot of vehicles near
vehicle, turn on the hazard warning flash-
er to let other vehicles not be close.
If parking space is narrow, drive slowly to
desired parking space.
However, this step searches for a parking
space if your vehicle has enough space
to move except for parking space. If sat-
isfied, this system searches for parking
space.
OEL043248R
OLM043428E/OLM043429E
■
Right side
- parallel mode ■
Left side
-parallel mode
OLM043430E/OLM043431E
■
Right side
- parallel mode ■
Left side
-parallel mode
EL(FL) UK 4A.QXP 2/9/2015 9:06 PM Page 92

493
Features of your vehicle

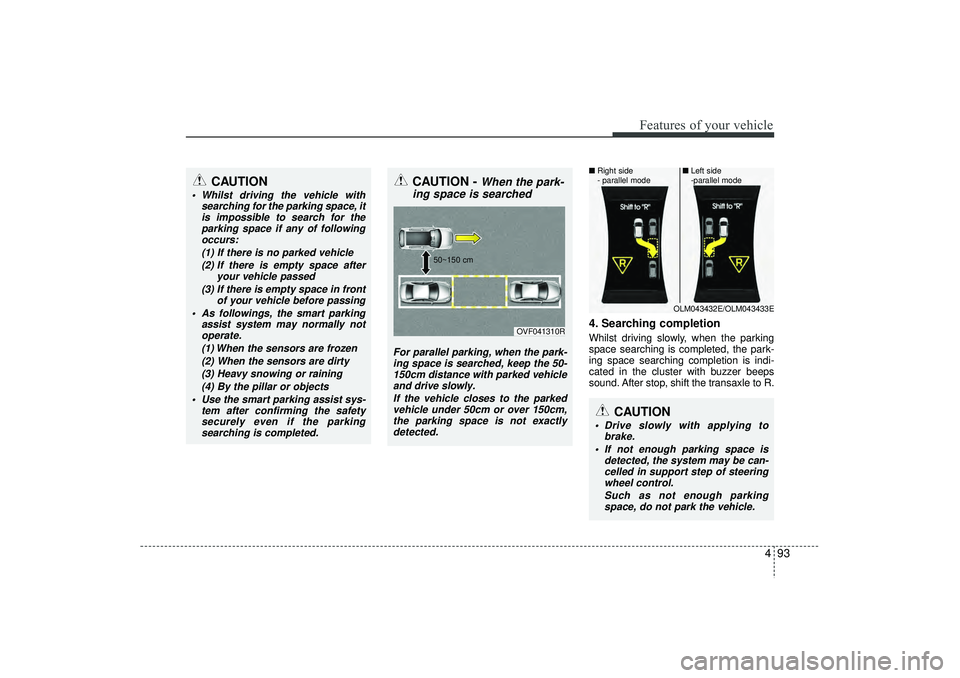

4. Searching completionWhilst driving slowly, when the parking
space searching is completed, the park-
ing space searching completion is indi-
cated in the cluster with buzzer beeps
sound. After stop, shift the transaxle to R.
CAUTION
 Whilst driving the vehicle withsearching for the parking space, itis impossible to search for theparking space if any of followingoccurs:
(1) If there is no parked vehicle(2) If there is empty space after your vehicle passed
(3) If there is empty space in front of your vehicle before passing
 As followings, the smart parking assist system may normally notoperate.
(1) When the sensors are frozen(2) When the sensors are dirty(3) Heavy snowing or raining (4) By the pillar or objects
 Use the smart parking assist sys- tem after confirming the safetysecurely even if the parking searching is completed.
CAUTION -
When the park-
ing space is searched
For parallel parking, when the park-
ing space is searched, keep the 50- 150cm distance with parked vehicleand drive slowly.
If the vehicle closes to the parkedvehicle under 50cm or over 150cm,the parking space is not exactly detected.
OVF041310R
50~150 cm
CAUTION
 Drive slowly with applying to
brake.
 If not enough parking space is detected, the system may be can-celled in support step of steering wheel control.
Such as not enough parkingspace, do not park the vehicle.
OLM043432E/OLM043433E
■
Right side
- parallel mode ■
Left side
-parallel mode
EL(FL) UK 4A.QXP 2/9/2015 9:06 PM Page 93

Features of your vehicle94
4
CAUTION
 If you go forward or backward
without notice like warning mes-sage, the parking state may be not good.
However, if the 3rd warning sound(continuous sound) occurs, drivethe vehicle reverse direction slowly after confirming surround-ing objects.
 When parking the vehicle, care- fully go forward or backward withdepressing the brake pedal after completing steering wheel con-trol support.
 If the speed of vehicle is high, the crash accident may occur.
 Whilst parking the vehicle, if the 3rd warning sound (continuoussound) occurs, it means the vehi- cle is close to objects. Check thesurround objects by yourself.

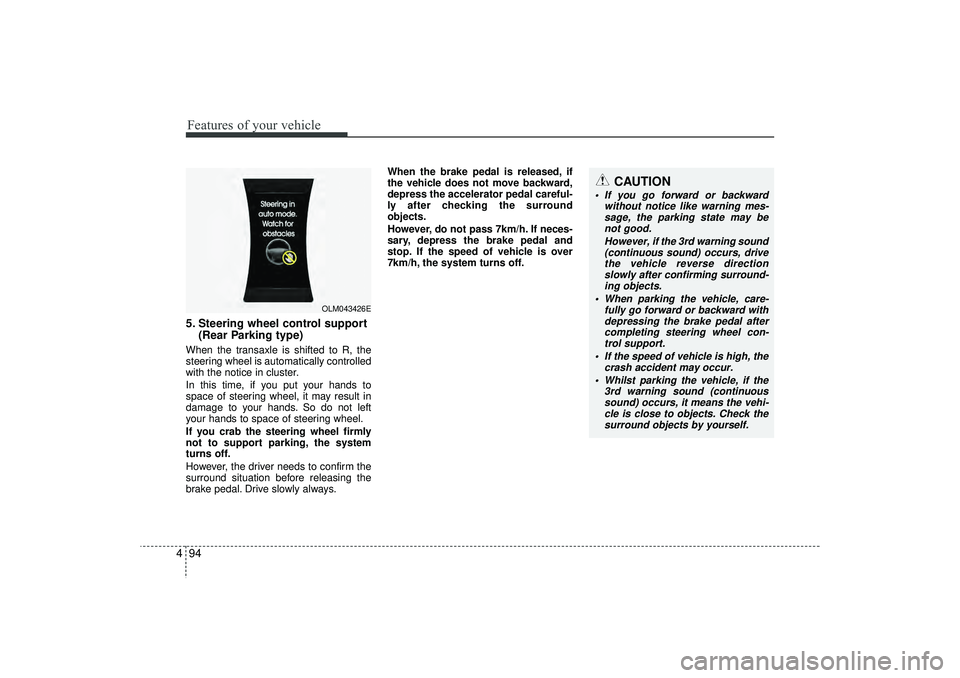

5. Steering wheel control support (Rear Parking type)When the transaxle is shifted to R, the
steering wheel is automatically controlled
with the notice in cluster.
In this time, if you put your hands to
space of steering wheel, it may result in
damage to your hands. So do not left
your hands to space of steering wheel.
If you crab the steering wheel firmly
not to support parking, the system
turns off.
However, the driver needs to confirm the
surround situation before releasing the
brake pedal. Drive slowly always. When the brake pedal is released, if
the vehicle does not move backward,
depress the accelerator pedal careful-
ly after checking the surround
objects.
However, do not pass 7km/h. If neces-
sary, depress the brake pedal and
stop. If the speed of vehicle is over
7km/h, the system turns off.
OLM043426E
EL(FL) UK 4A.QXP 2/9/2015 9:06 PM Page 94

495
Features of your vehicle

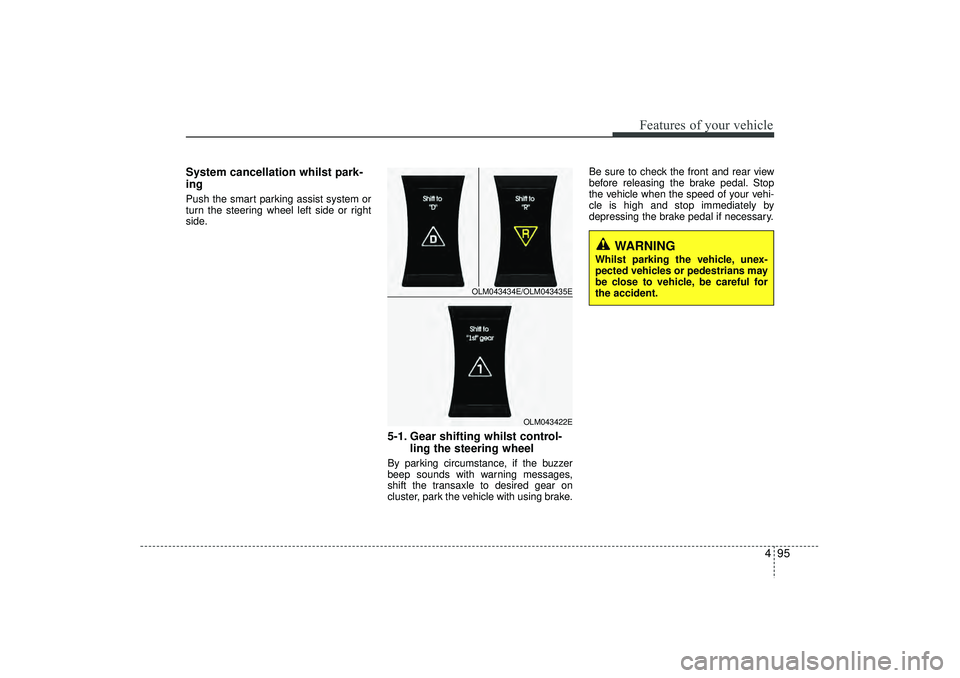

System cancellation whilst park-
ingPush the smart parking assist system or
turn the steering wheel left side or right
side.
5-1. Gear shifting whilst control-ling the steering wheelBy parking circumstance, if the buzzer
beep sounds with warning messages,
shift the transaxle to desired gear on
cluster, park the vehicle with using brake. Be sure to check the front and rear view
before releasing the brake pedal. Stop
the vehicle when the speed of your vehi-
cle is high and stop immediately by
depressing the brake pedal if necessary.
OLM043434E/OLM043435E
OLM043422E
WARNING
Whilst parking the vehicle, unex-
pected vehicles or pedestrians may
be close to vehicle, be careful for
the accident.
EL(FL) UK 4A.QXP 2/9/2015 9:06 PM Page 95
