Hyundai Kona 2019 Owner's Manual

7-89
7
Maintenance

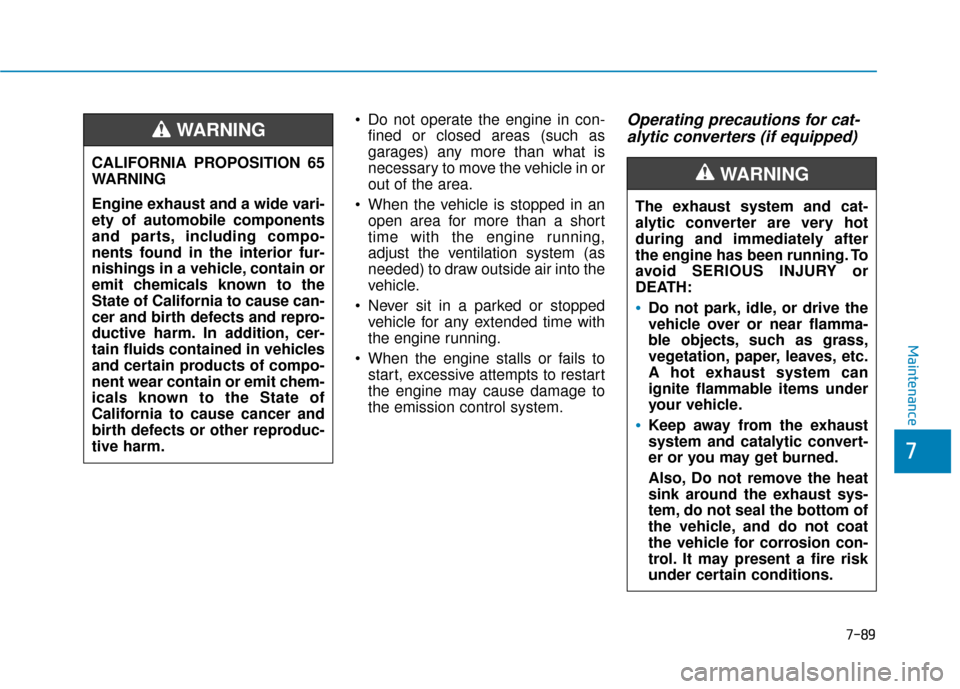

Do not operate the engine in con-fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
When the vehicle is stopped in an open area for more than a short
time with the engine running,
adjust the ventilation system (as
needed) to draw outside air into the
vehicle.
Never sit in a parked or stopped vehicle for any extended time with
the engine running.
When the engine stalls or fails to start, excessive attempts to restart
the engine may cause damage to
the emission control system.Operating precautions for cat-alytic converters (if equipped)
The exhaust system and cat-
alytic converter are very hot
during and immediately after
the engine has been running. To
avoid SERIOUS INJURY or
DEATH:
Do not park, idle, or drive the
vehicle over or near flamma-
ble objects, such as grass,
vegetation, paper, leaves, etc.
A hot exhaust system can
ignite flammable items under
your vehicle.
Keep away from the exhaust
system and catalytic convert-
er or you may get burned.
Also, Do not remove the heat
sink around the exhaust sys-
tem, do not seal the bottom of
the vehicle, and do not coat
the vehicle for corrosion con-
trol. It may present a fire risk
under certain conditions.
WARNING CALIFORNIA PROPOSITION 65
WARNING
Engine exhaust and a wide vari-
ety of automobile components
and parts, including compo-
nents found in the interior fur-
nishings in a vehicle, contain or
emit chemicals known to the
State of California to cause can-
cer and birth defects and repro-
ductive harm. In addition, cer-
tain fluids contained in vehicles
and certain products of compo-
nent wear contain or emit chem-
icals known to the State of
California to cause cancer and
birth defects or other reproduc-
tive harm.
WARNING

7-90
Maintenance

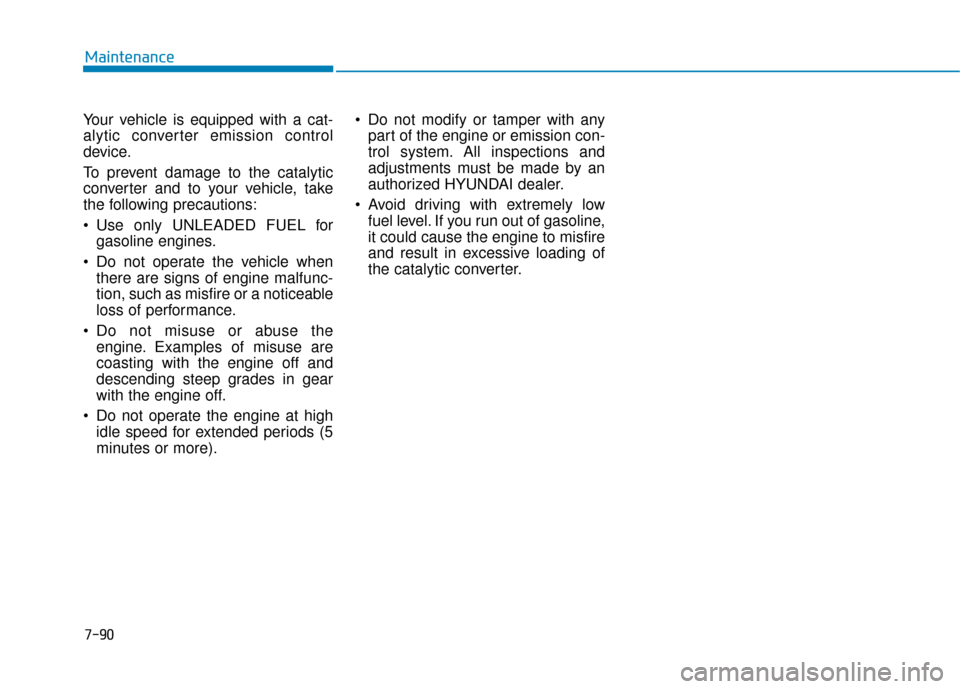

Your vehicle is equipped with a cat-
alytic converter emission control
device.
To prevent damage to the catalytic
converter and to your vehicle, take
the following precautions:
Use only UNLEADED FUEL for gasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a noticeable
loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the engine off and
descending steep grades in gear
with the engine off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more). Do not modify or tamper with any
part of the engine or emission con-
trol system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer.
Avoid driving with extremely low fuel level. If you run out of gasoline,
it could cause the engine to misfire
and result in excessive loading of
the catalytic converter.

7-91
7
Maintenance
C
CA
A L
LI
IF
F O
O R
RN
N I
IA
A
P
P E
ER
R C
CH
H L
LO
O R
RA
A T
TE
E
N
N O
O T
TI
IC
C E
E

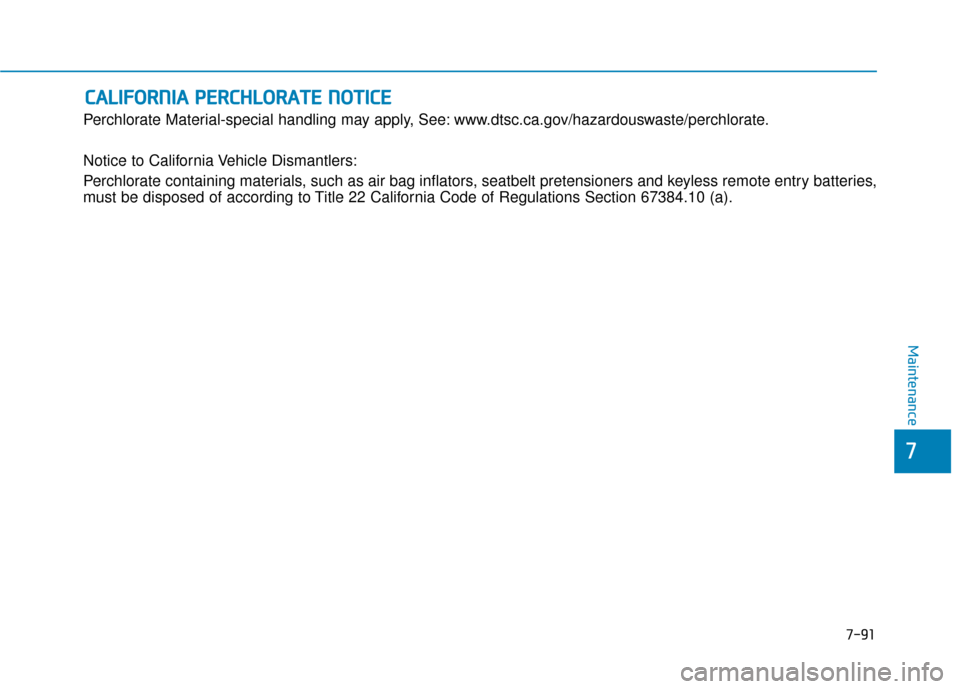

Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).

888
Specifications & Consumer information
8

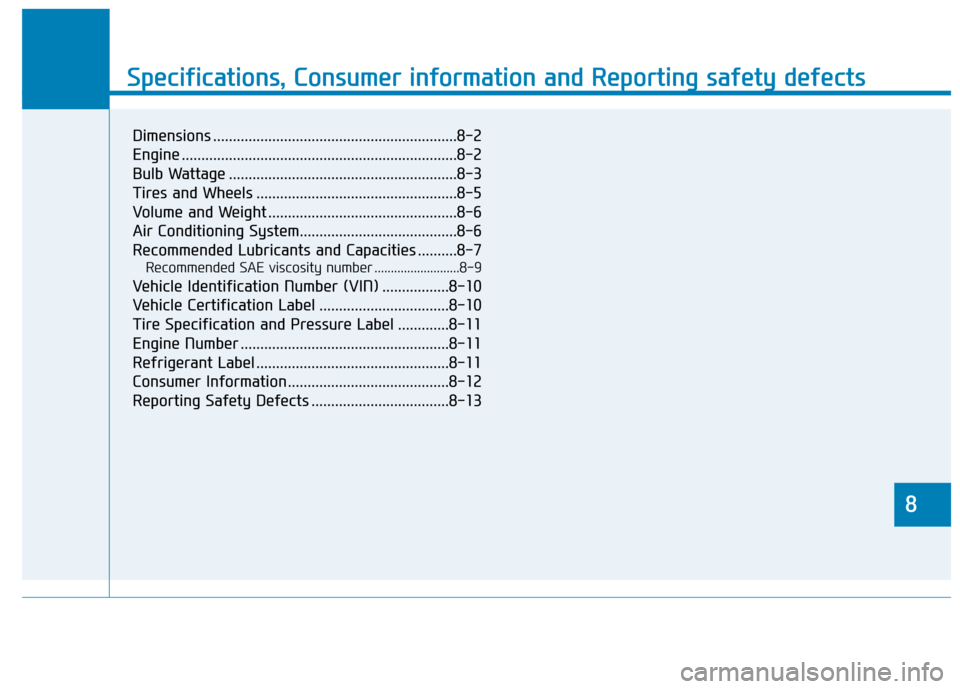

Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-\
2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-5
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7
Recommended SAE viscosity number ..........................8-9
Vehicle Identification Number (VIN) .................8-10
Vehicle Certification Label .................................8-10
Tire Specification and Pressure Label .............8-11
Engine Number .....................................................8-11
Refrigerant Label .................................................8-11
Consumer Information .........................................8-12
Reporting Safety Defects ...................................8-13

D
DI
IM
M E
EN
N S
SI
IO
O N
NS
S
8-2
Specifications, Consumer information and Reporting safety defects
E
EN
N G
GI
IN
N E
E

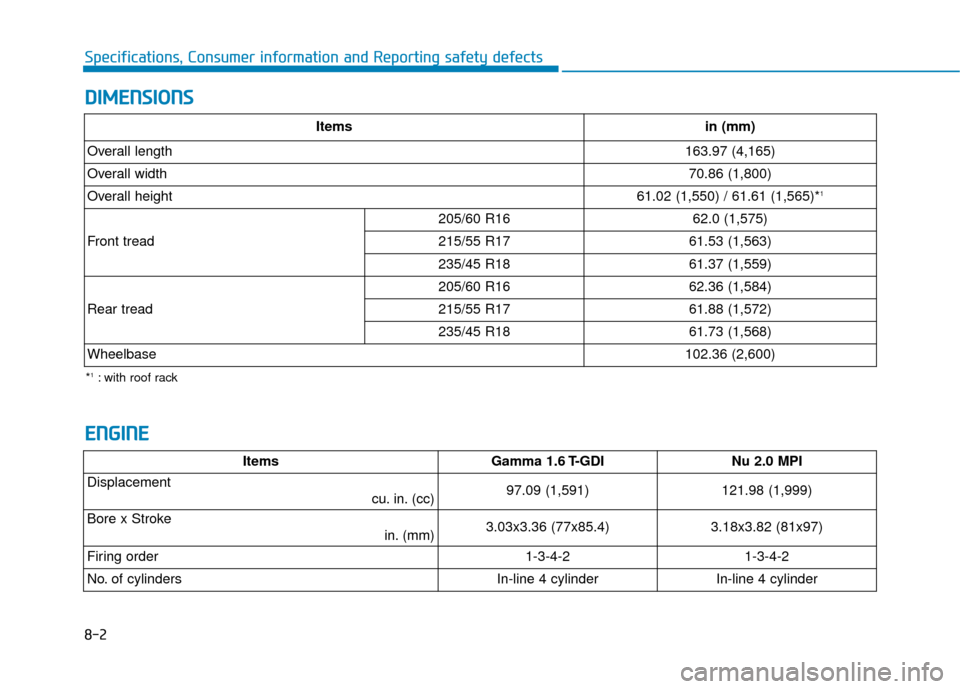

Items Gamma 1.6 T-GDINu 2.0 MPI
Displacement
cu. in. (cc)97.09 (1,591)121.98 (1,999)
Bore x Stroke in. (mm)3.03x3.36 (77x85.4)3.18x3.82 (81x97)
Firing order1-3-4-21-3-4-2
No. of cylindersIn-line 4 cylinderIn-line 4 cylinder
*1: with roof rack
Itemsin (mm)
Overall length163.97 (4,165)
Overall width70.86 (1,800)
Overall height61.02 (1,550) / 61.61 (1,565)*1
Front tread
205/60 R1662.0 (1,575)
215/55 R1761.53 (1,563)
235/45 R1861.37 (1,559)
Rear tread
205/60 R1662.36 (1,584)
215/55 R1761.88 (1,572)
235/45 R1861.73 (1,568)
Wheelbase102.36 (2,600)

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
88
Specifications, Consumer information and Reporting safety defects

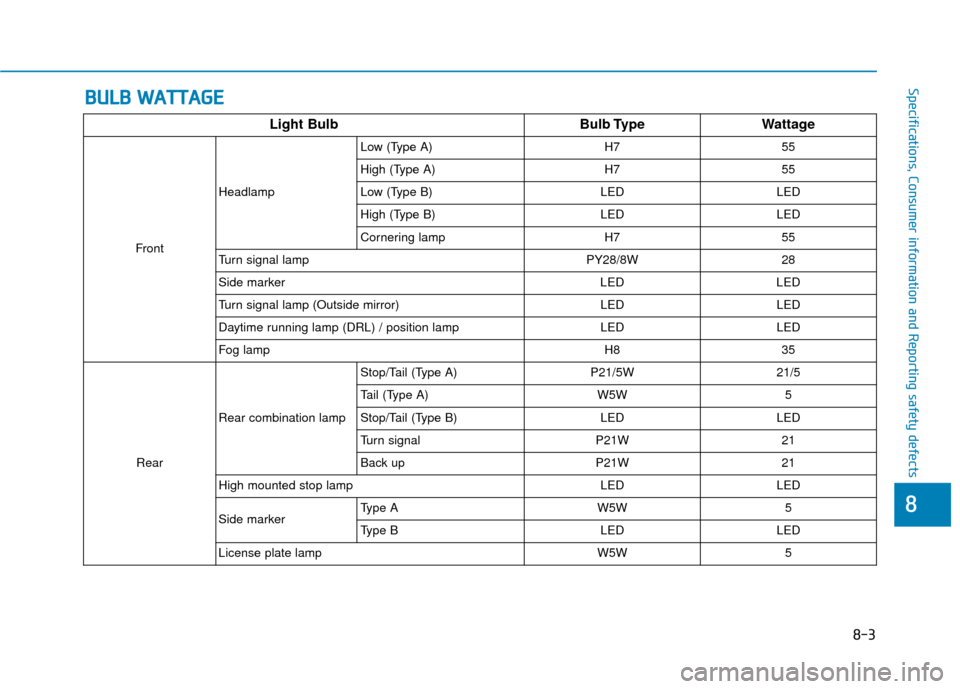

Light Bulb Bulb TypeWattage
FrontHeadlamp
Low (Type A) H7 55
High (Type A) H7 55
Low (Type B) LED LED
High (Type B) LED LED
Cornering lamp H7 55
Turn signal lamp PY28/8W28
Side marker LEDLED
Turn signal lamp (Outside mirror) LEDLED
Daytime running lamp (DRL) / position lamp LEDLED
Fog lamp H835
Rear Rear combination lamp Stop/Tail (Type A)
P21/5W21/5
Tail (Type A) W5W5
Stop/Tail (Type B) LEDLED
Turn signal P21W21
Back up P21W21
High mounted stop lamp LEDLED
Side marker Type A
W5W5
Type B LEDLED
License plate lamp W5W5
8-3

8-4
Specifications, Consumer information and Reporting safety defects

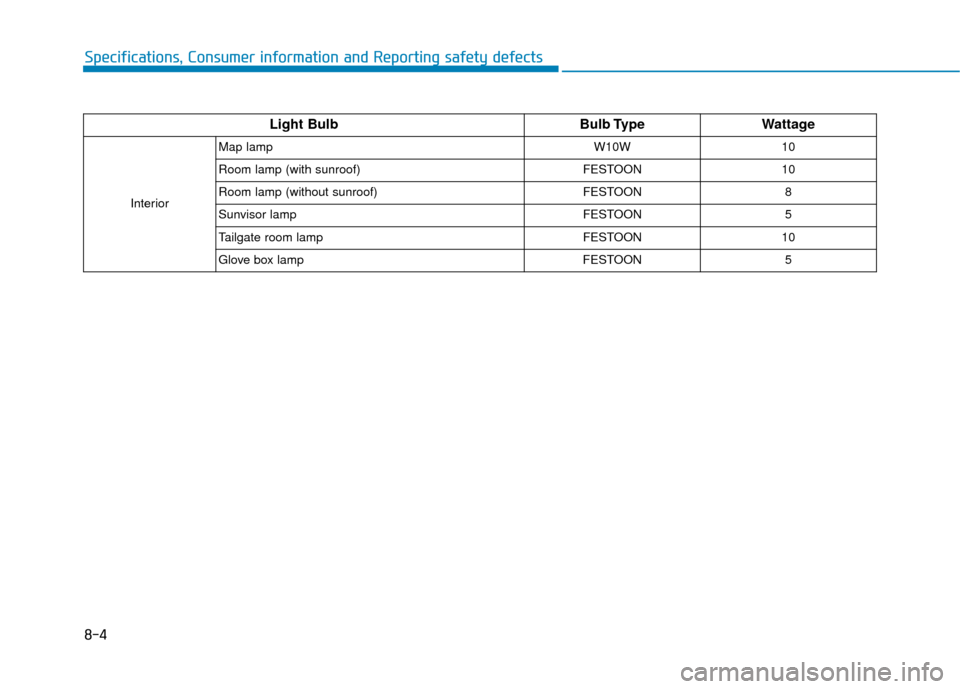

Light BulbBulb TypeWattage
InteriorMap lamp W10W 10
Room lamp (with sunroof) FESTOON 10
Room lamp (without sunroof) FESTOON 8
Sunvisor lamp FESTOON 5
Tailgate room lampFESTOON10
Glove box lamp FESTOON5

T
TI
IR
R E
ES
S
A
A N
N D
D
W
W H
HE
EE
EL
LS
S
8-5
88
Specifications, Consumer information and Reporting safety defects

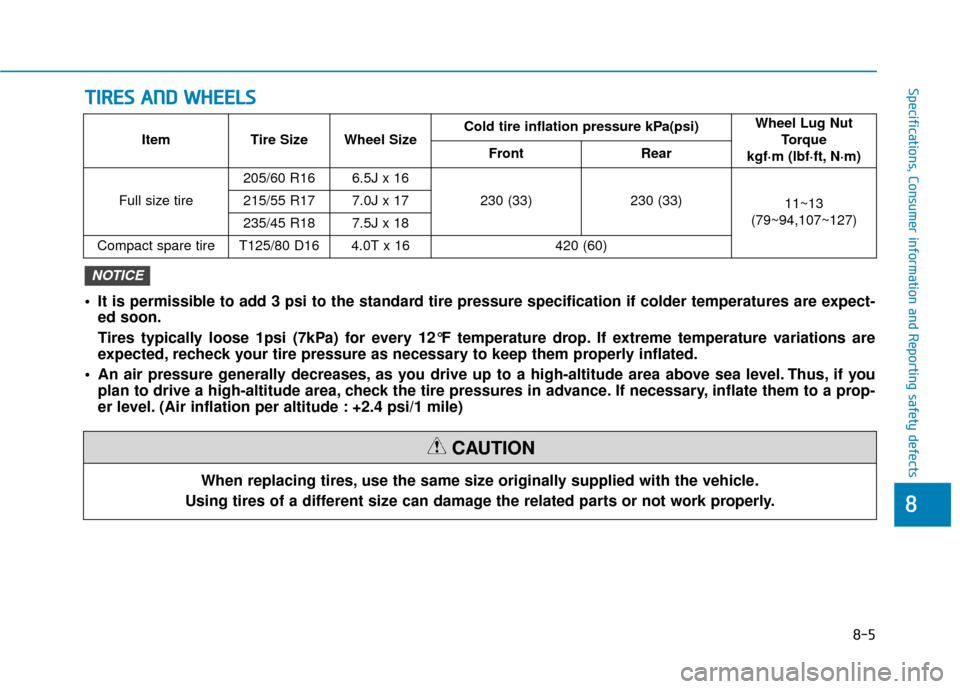

When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
• It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect- ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
NOTICE
Item Tire Size Wheel Size Cold tire inflation pressure kPa(psi)
Wheel Lug Nut
Torque
kgf·m (lbf·ft, N·m)
Front
Rear
Full size tire 205/60 R16 6.5J x 16
230 (33)230 (33)
11~13
(79~94,107~127)
215/55 R17 7.0J x 17
235/45 R18 7.5J x 18
Compact spare tire T125/80 D16 4.0T x 16 420 (60)

8-6
Specifications, Consumer information and Reporting safety defects
V
VO
O L
LU
U M
M E
E
A
A N
N D
D
W
W E
EI
IG
G H
H T
T
A
A I
IR
R
C
C O
O N
ND
DI
IT
T I
IO
O N
NI
IN
N G
G
S
S Y
Y S
ST
T E
EM
M
Contact an authorized HYUNDAI dealer for more details.

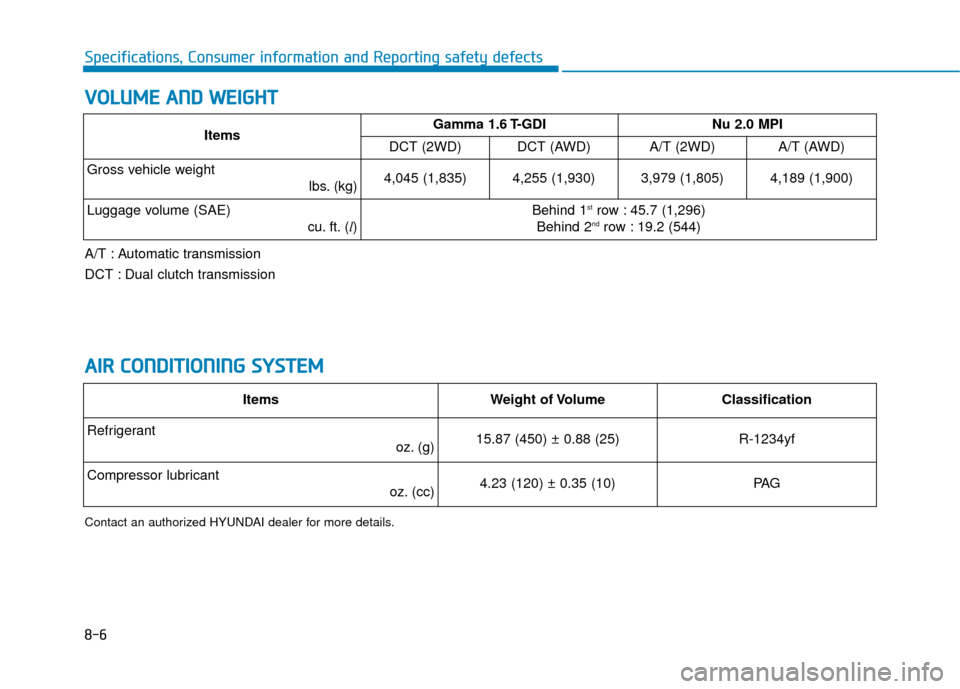

ItemsGamma 1.6 T-GDINu 2.0 MPI
DCT (2WD)DCT (AWD)A/T (2WD)A/T (AWD)
Gross vehicle weight
lbs. (kg)4,045 (1,835)4,255 (1,930)3,979 (1,805)4,189 (1,900)
Luggage volume (SAE)cu. ft. (l)Behind 1strow : 45.7 (1,296)
Behind 2ndrow : 19.2 (544)
ItemsWeight of VolumeClassification
Refrigerant oz. (g) 15.87 (450) ± 0.88 (25) R-1234yf
Compressor lubricantoz. (cc) 4.23 (120) ± 0.35 (10)PA G
A/T : Automatic transmission
DCT : Dual clutch transmission

8-7
88
Specifications, Consumer information and Reporting safety defects

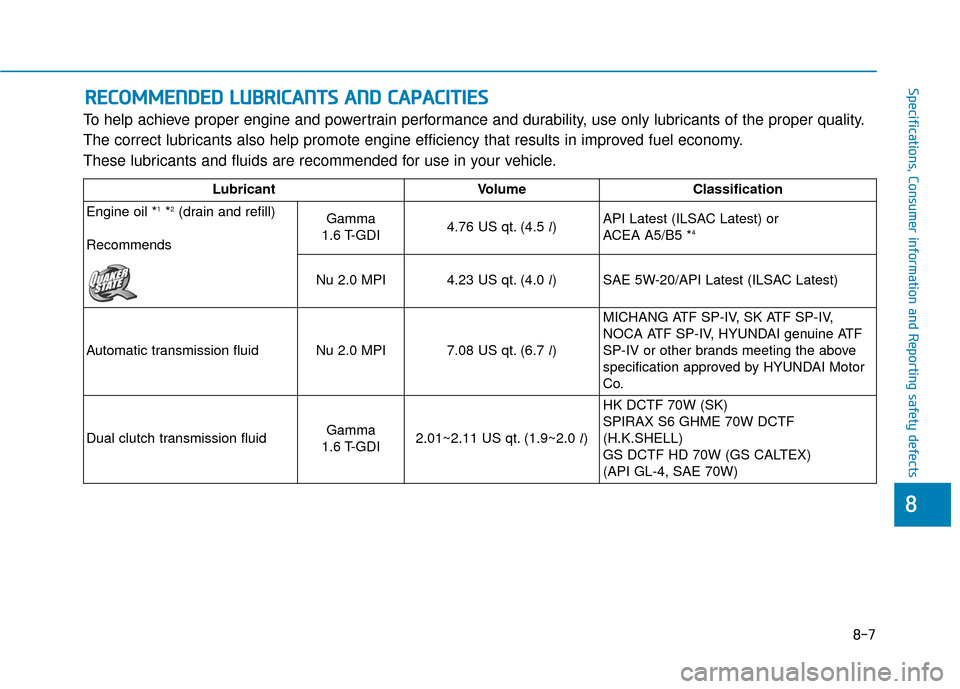

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
R RE
EC
CO
O M
M M
ME
EN
N D
DE
ED
D
L
L U
U B
BR
RI
IC
C A
A N
N T
TS
S
A
A N
N D
D
C
C A
A P
PA
A C
CI
IT
T I
IE
E S
S
LubricantVolume Classification
Engine oil *
1*2(drain and refill)
RecommendsGamma
1.6 T-GDI4.76 US qt. (4.5 l)API Latest (ILSAC Latest) or
ACEA A5/B5 *4
Nu 2.0 MPI4.23 US qt. (4.0
l)
SAE 5W-20/API Latest (ILSAC Latest)
Automatic transmission fluidNu 2.0 MPI7.08 US qt. (6.7 l)
MICHANG ATF SP-IV, SK ATF SP-IV,
NOCA ATF SP-IV, HYUNDAI genuine ATF
SP-IV or other brands meeting the above
specification approved by HYUNDAI Motor
Co.
Dual clutch transmission fluidGamma
1.6 T-GDI2.01~2.11 US qt. (1.9~2.0 l)
HK DCTF 70W (SK)
SPIRAX S6 GHME 70W DCTF
(H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W)
