2-8
Vehicle Information, Consumer Information and Reporting Safety Defects
Smartstream G1.6 T-GDi
Smarstream G2.0 Atkinson
The actual engine compartment in the vehicle may differ from the illustration.
OOS090002K/OOS090001K
1. Engine coolant reservoir .......................9-18
Engine coolant cap ................................9-18
2. Fuse box ................................................ 9-47
3. Battery ................................................... 9-29
4. Brake fluid reservoir .............................. 9-21
5. Air cleaner ............................................. 9-23
6. Engine oil dipstick ................................. 9-15
7. Engine oil filler cap ................................9-16
8. Windshield washer fluid reservoir ....... 9-22

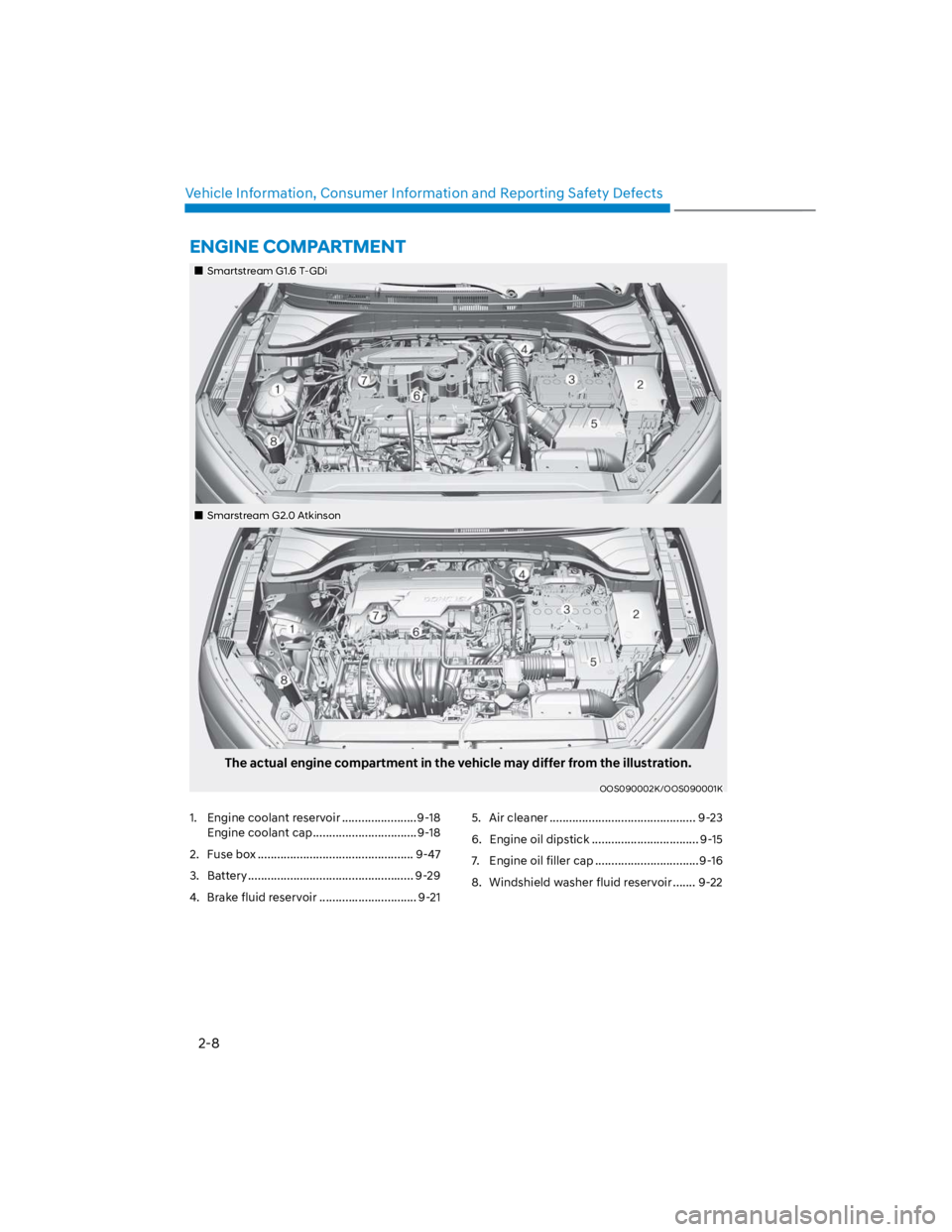

ENGINE COMPARTMENT
Page 22 of 579
02
2-9
Items in. (mm)
Overall length165.55 (4,205)
N Line: 165.94 (4,215)
Overall width 70.86 (1800)
Overall height61.02 (1550) / 61.61 (1565)*1
N Line: 61.42 (1,560) / 61.81 (1,570)*1
Front tread
205/60 R16 62.0 (1575)
215/55 R17 61.53 (1563)
235/45 R1861.37 (1559)
N Line: 61.73 (1,559)
Rear tread
205/60 R16 62.36 (1584)
215/55 R17 61.88 (1572)
235/45 R1861.73 (1568)
N Line: 61.73 (1,568)
Wheelbase 102.36 (2600)
*1 : with roof rack
ENGINE
Engine Smartstream G1.6 T-GDi Smartstrem G2.0 Atkinson
Displacement
cu. in (cc)97.5 (1598) 121.9 (1999)
Bore x Stroke
in. (mm)2.98 X 3.5 (75.6 X 89.0) 3.18 x 3.81 (81.0 x 97.0)
Firing order 1-3-4-2 1-3-4-2
No. of cylinders In-line 4 cylinder In-line 4 cylinder

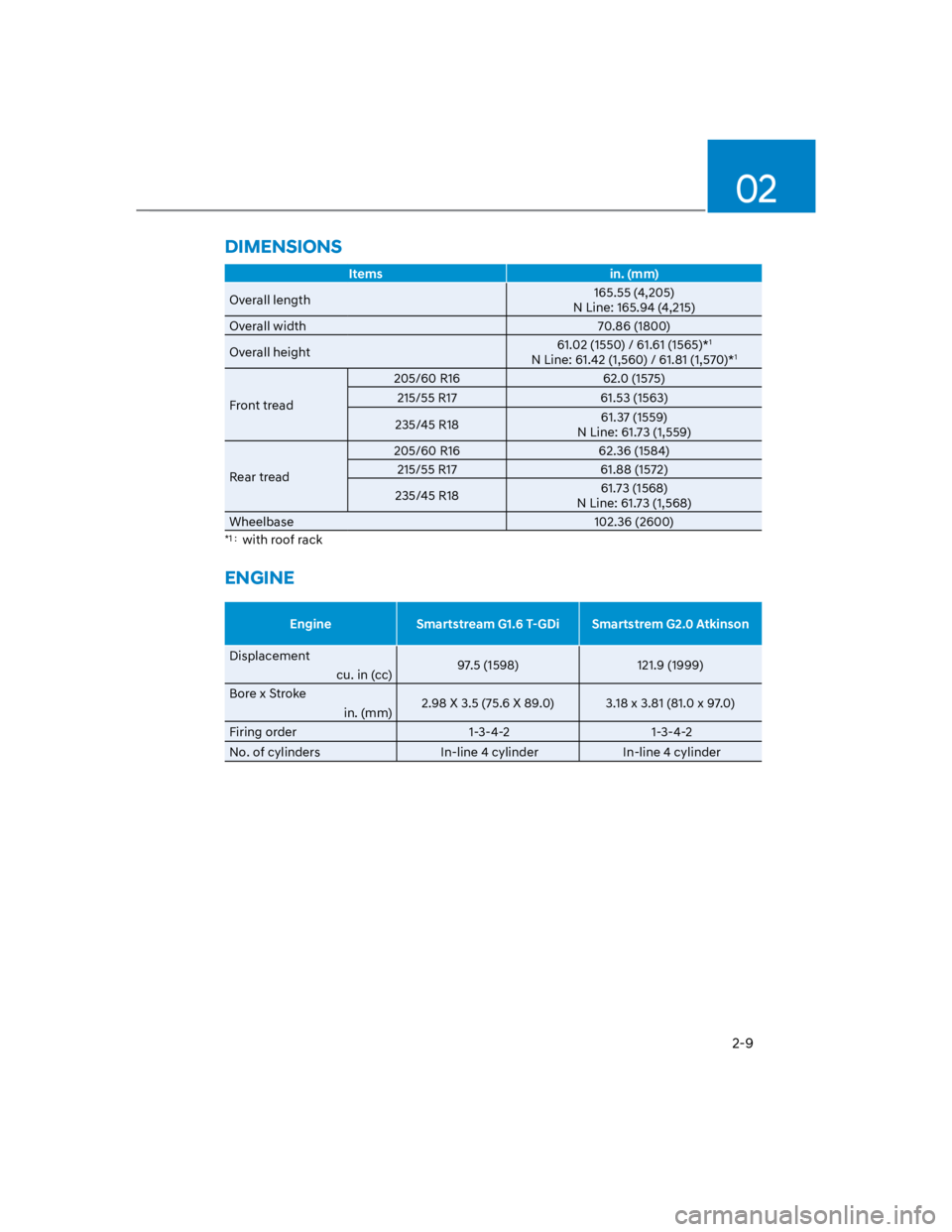

DIMENSIONS
Page 23 of 579
Vehicle Information, Consumer Information and Reporting Safety Defects
2-10

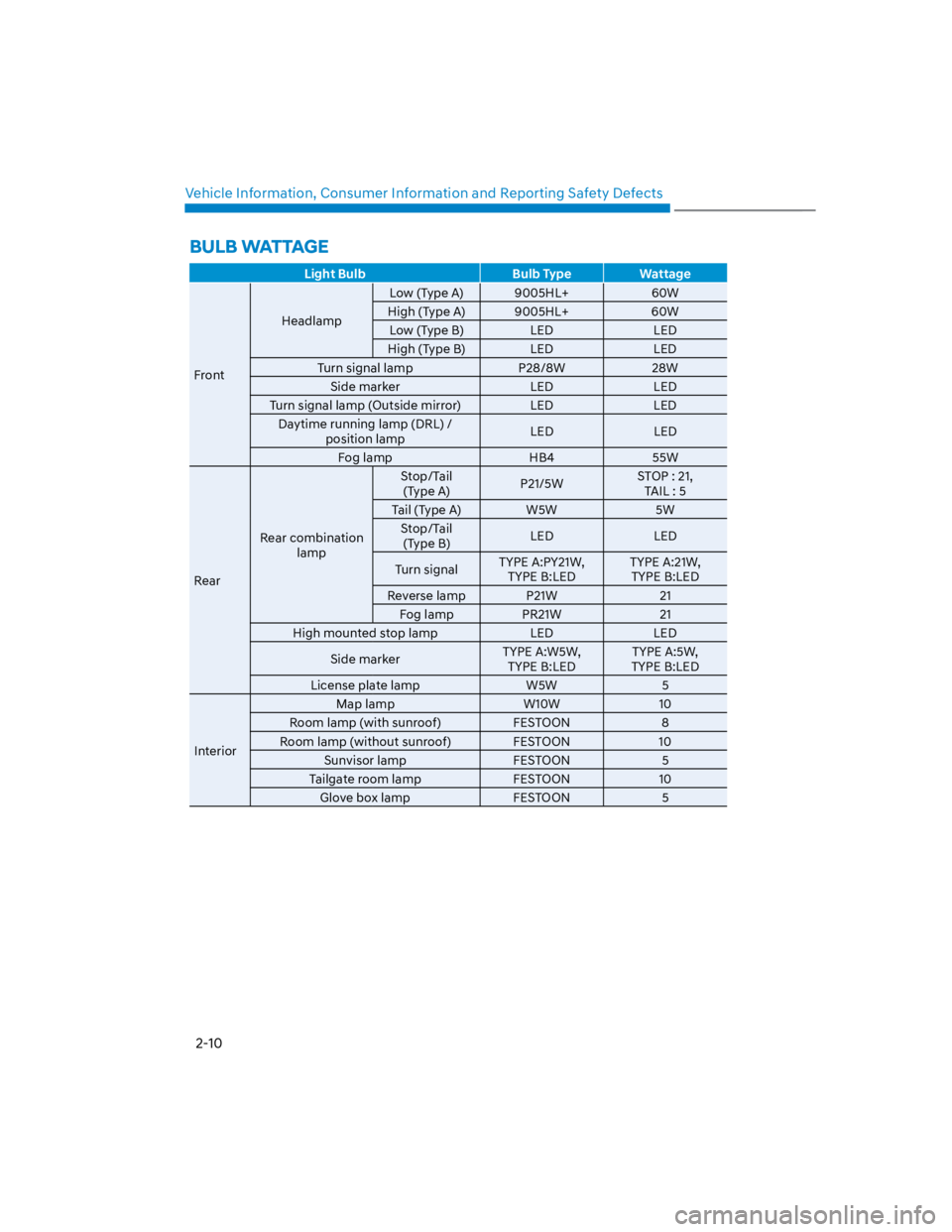

Light Bulb Bulb Type Wattage
Front
Headlamp
Low (Type A) 9005HL+ 60W
High (Type A) 9005HL+ 60W
Low (Type B) LED LED
High (Type B) LED LED
Turn signal lamp P28/8W 28W
Side marker LED LED
Turn signal lamp (Outside mirror) LED LED
Daytime running lamp (DRL) /
position lampLED LED
Fog lamp HB4 55W
Rear
Rear combination
lamp
Stop/Tail
(Type A)P21/5WSTOP : 21,
TAIL : 5
Tail (Type A) W5W 5W
Stop/Tail
(Type B)LED LED
Turn signalTYPE A:PY21W,
TYPE B:LED
TYPE A:21W,
TYPE B:LED
Reverse lamp P21W 21
Fog lamp PR21W 21
High mounted stop lamp LED LED
Side markerTYPE A:W5W,
TYPE B:LED
TYPE A:5W,
TYPE B:LED
License plate lamp W5W 5
Interior
Map lamp W10W 10
Room lamp (with sunroof) FESTOON 8
Room lamp (without sunroof) FESTOON 10
Sunvisor lamp FESTOON 5
Tailgate room lamp FESTOON 10
Glove box lamp FESTOON 5
BULB WATTAGE
Page 24 of 579
02
2-11
Items Tire size Wheel size
Cold tire inflation pressure
kPa (psi)
Wheel bolt
torque kgf·m
(lbf·ft, N·m)Front Rear
Full size tire
205/60 R16
6.5J x 16
230 (33) 230 (33)11~13
(79~94, 107~127)
215/55 R17 7.0J x 17
235/45 R18 7.5J x 18
Compact
spare tire
T125/80 D16
4.0T x 16
420 (60)
NOTICE
It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.
Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.
TIRES AND WHEELS
Page 25 of 579
Vehicle Information, Consumer Information and Reporting Safety Defects
2-12
Items Weight of volume Classification
Refrigerant
oz. (g)15.87 (450) ± 0.88 (25) R-1234yf
Compressor lubricant
oz. (g)4.23 (120) ± 0.35 (10) PAG
Contact an authorized HYUNDAI dealer for more details.
VOLUME AND WEIGHT
Items
Smartstream G 1.6T-GDi Smartstream G2.0 Atkinson
2WD 4WD 2WD 4WD
DCT DCT IVT IVT
Gross vehicle weight
lbs. (kg)
4,090 (1,855) 4,222 (1,915) 3,968 (1,800) 4,134 (1,875)
Luggage volume (VDA) MIN : 12.75 (361)
MAX : 40.36 (1,143)
DCT : Dual clutch transmission
IVT : Intelligent variable transmission
MIN : Behind rear seat to upper edge of the seat back.
MAX : Behind front seat to roof.

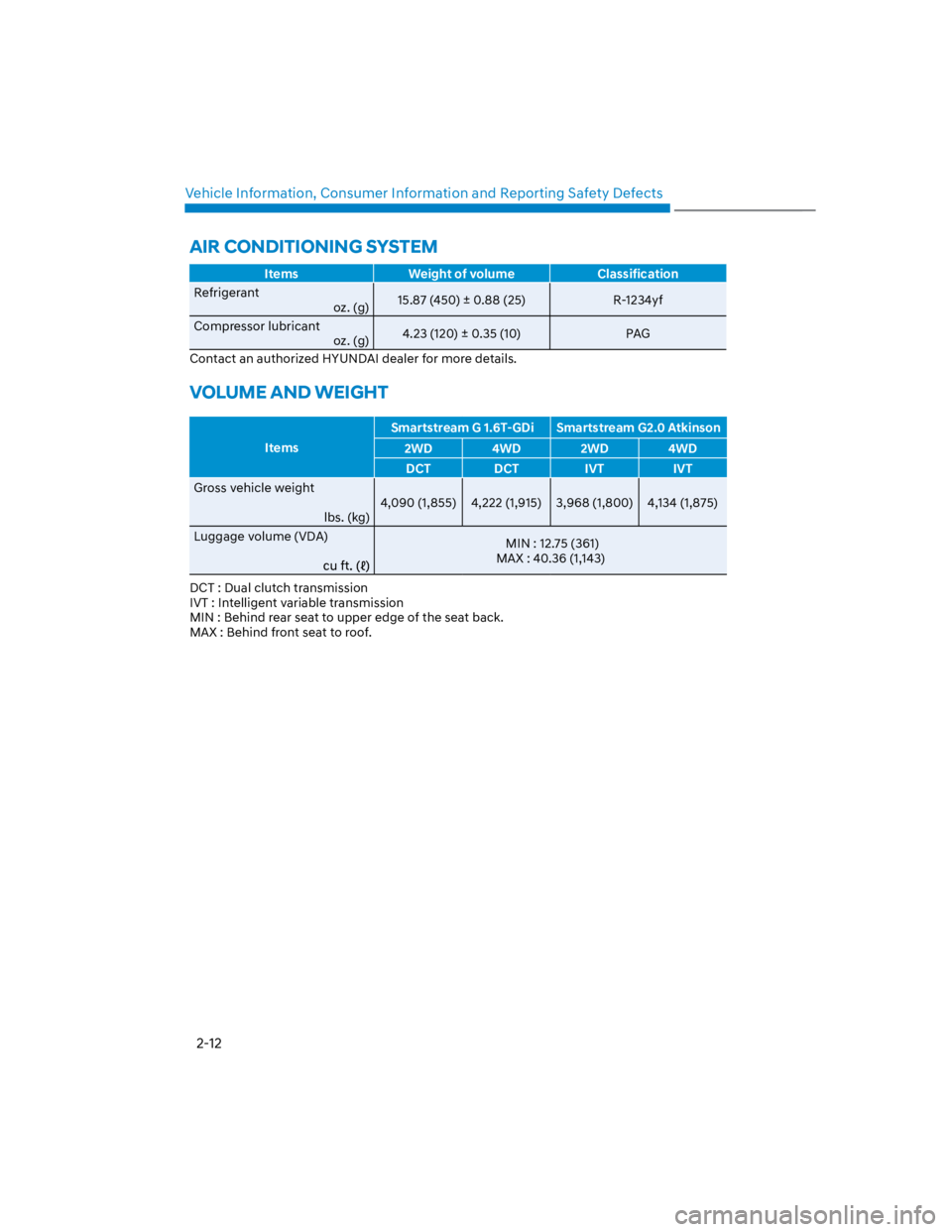

AIR CONDITIONING SYSTEM
Page 26 of 579
02
2-13

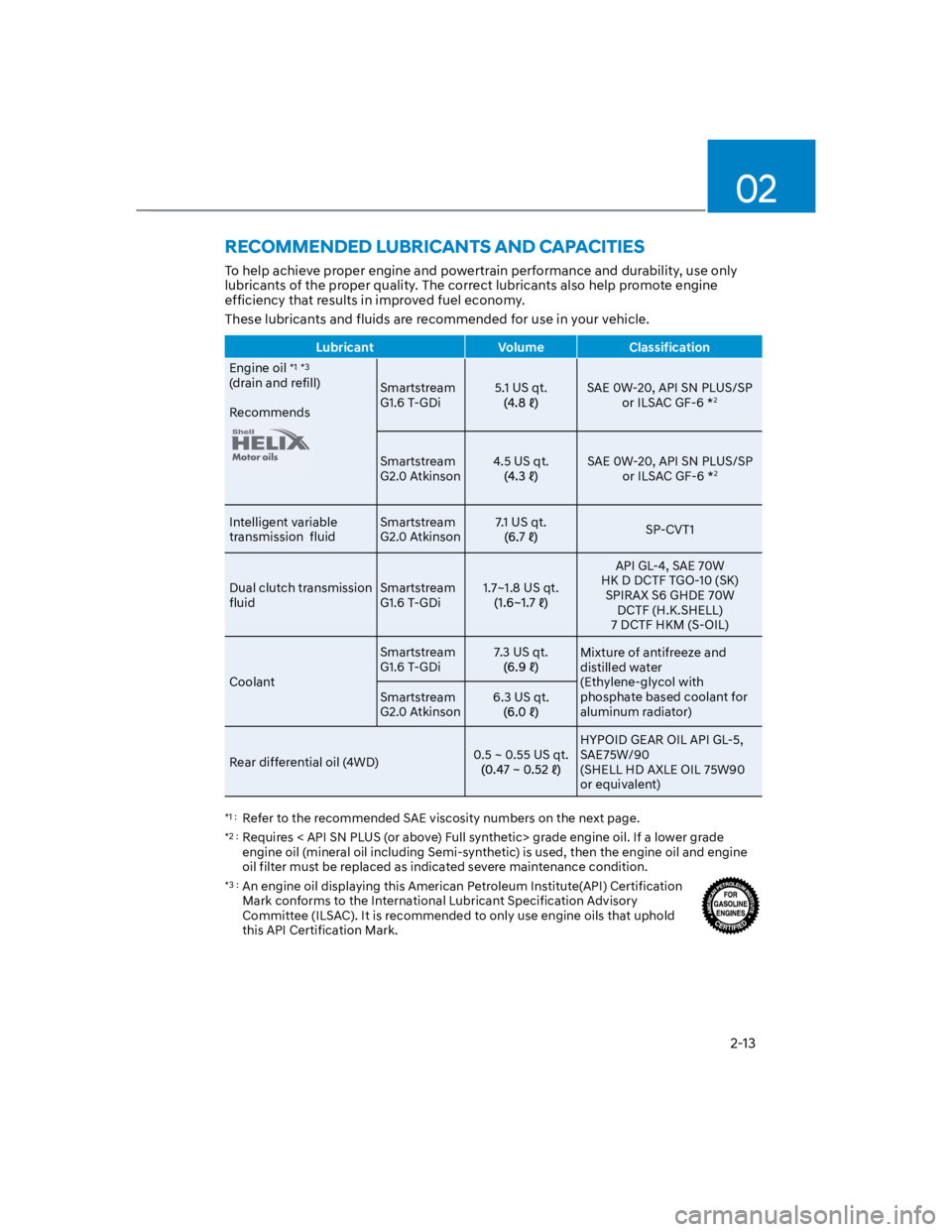

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
Lubricant Volume Classification
Engine oil *1 *3
(drain and refill)
Recommends
Smartstream
G1.6 T-GDi
5.1 US qt. SAE 0W-20, API SN PLUS/SP
or ILSAC GF-6 *2
Smartstream
G2.0 Atkinson
4.5 US qt. SAE 0W-20, API SN PLUS/SP
or ILSAC GF-6 *2
Intelligent variable
transmission fluid
Smartstream
G2.0 Atkinson
7.1 US qt. SP-CVT1
Dual clutch transmission
fluid
Smartstream
G1.6 T-GDi
1.7~1.8 US qt.
API GL-4, SAE 70W
HK D DCTF TGO-10 (SK)
SPIRAX S6 GHDE 70W
DCTF (H.K.SHELL)
7 DCTF HKM (S-OIL)
Coolant
Smartstream
G1.6 T-GDi
7.3 US qt. Mixture of antifreeze and
distilled water
(Ethylene-glycol with
phosphate based coolant for
aluminum radiator)
Smartstream
G2.0 Atkinson
6.3 US qt.
Rear differential oil (4WD)0.5 ~ 0.55 US qt.
HYPOID GEAR OIL API GL-5,
SAE75W/90
(SHELL HD AXLE OIL 75W90
or equivalent)
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.
*3 : An engine oil displaying this American Petroleum Institute(API) Certification
Mark conforms to the International Lubricant Specification Advisory
Committee (ILSAC). It is recommended to only use engine oils that uphold
this API Certification Mark.
Page 27 of 579
Vehicle Information, Consumer Information and Reporting Safety Defects
2-14
Lubricant Volume Classification
Transfer case oil (4WD)
Smartstream
G1.6 T-GDi
0.49~0.55 US qt.
(0.47~0.52 )HYPOID GEAR OIL API GL-5,
SAE 75W85(SK HCT-5 GEAR
OIL 75W85 or EQUIVALENT)Smartstream
G2.0 Atkinson
0.4 ~ 0.44 US qt.
Brake fluid0.5 ~ 0.6 US qt.
(0.7 ~ 0.8 )
SAE J1704 DOT-4 LV,
FMVSS 116 DOT-4,
ISO4925 CLASS-6
Fuel13.21 US gal.
(50 )
Refer to “Fuel Requirements”
in the Introduction chapter.
Recommended SAE viscosity number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that
could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature°C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Engine Oil
Smartstream
G1.6 T-GDI
/Smartstream
G2.0 Atkinson
0W-200W-20
Page 28 of 579
02
2-15
VEHICLE IDENTIFICATION
Frame number
OOS087001
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, open the cover.
VIN label (if equipped)
OOS087006L
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
VEHICLE CERTIFICATION
LABEL
OOS087002
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).
TIRE SPECIFICATION AND
PRESSURE LABEL
OOS087003
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
Page 29 of 579
Vehicle Information, Consumer Information and Reporting Safety Defects
2-16
ENGINE NUMBER
Smartstream G1.6 T-GDi
OOS010020K
Smartstream G2.0 Atkinson
OOS010021K
The engine number is stamped on the
engine block as shown in the drawing.
REFRIGERANT LABEL
OOS050010K
The refrigerant label provides
information such as refrigerant type and
amount. (R-1234yf)
Page 30 of 579
02
2-17
This consumer information has been prepared in accordance with regulations issued
by the National Highway Traffic Safety Administration of the U.S. Department of
Transportation.Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in
this Owner’s Manual, particularly the information under the headings “NOTICE”,
“CAUTION” and “WARNING”.
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center.
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
[email protected]
Hyundai’s Customer Care representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are available
Monday through Friday between 6:30 AM and 3:00 PM PST.
CONSUMER INFORMATION
