HYUNDAI KONA 2023 User Guide

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects

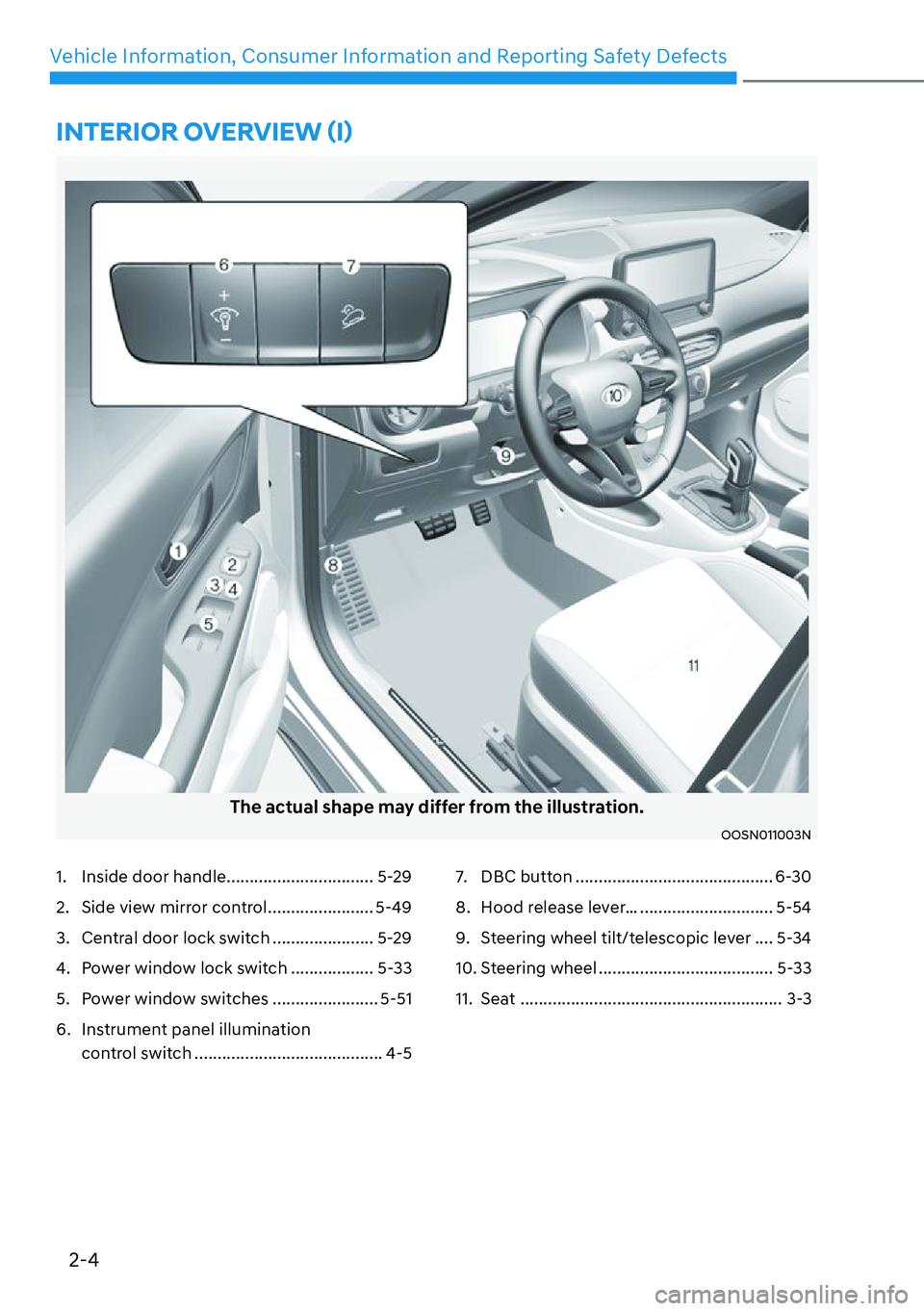

1. Inside door handle ................................ 5-29
2. Side view mirror control ....................... 5-49
3. Central door lock switch ...................... 5-29
4. Power window lock switch .................. 5-33
5. Power window switches ....................... 5-51
6. Instrument panel illumination
control switch ......................................... 4-5 7. DBC button ........................................... 6-30
8. Hood release lever… ............................. 5-54
9. Steering wheel tilt/telescopic lever .... 5-34
10. Steering wheel ...................................... 5-33
11. Seat ......................................................... 3-3
,17(5,2529(59,(:

2-5
02
1. Instrument cluster .................................. 4-4
2. Horn ....................................................... 5-35
3. Driver’s front air bag .............................. 3-41
4. Engine Start/Stop button ....................... 6-5
5. Light control/Turn signals .................... 5-60
6. Wiper/Washer ....................................... 5-70
7. Infotainment system ........................... 5-101
8. Hazard warning flasher switch .............. 8-2
9. Automatic climate control system ....... 5-74
10. Passenger’s front air bag ...................... 3-41
11. Glove box .............................................. 5-88
12. USB Charger ......................................... 5-93
13. USB Port ............................................... 5-101
14. Power outlet .......................................... 5-92
15. Dual clutch transmission shift lever .....6-10 16. Drive mode knob .................................. 6-38
17. Seat warmer ........................................... 3-16
18. ESC off button ...................................... 6-23
19. Parking Safety button ........................... 7-68
20. Parking/ View button ............................7-55
21. Wireless Smart Phone Charging
System .................................................. 5-94
22. Cup holder ............................................. 5-91
23. Steering wheel audio controls/ Bluetooth® wireless technology
hands-free controls ......................5-102/103
24. Driving Assist button/ Lane Driving Assist button .................... 7-15
The actual shape may differ from the illustration.
OOSN011004N
,17(5,2529(59,(:

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects

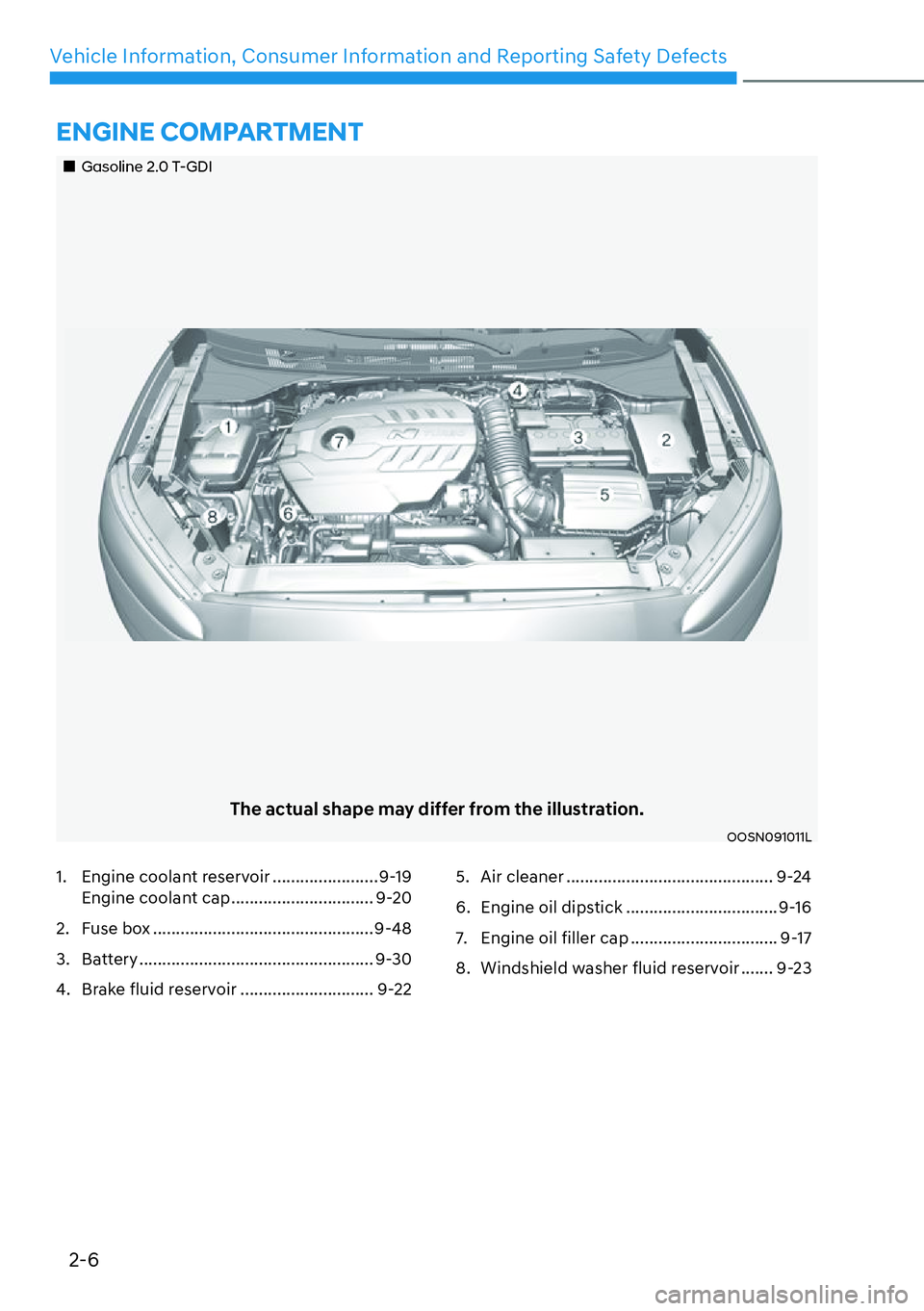

„Gasoline 2.0 T-GDI
The actual shape may differ from the illustration.
OOSN091011L
1. Engine coolant reservoir ....................... 9-19
Engine coolant cap ............................... 9-20
2. Fuse box ................................................ 9-48
3. Battery ................................................... 9-30
4. Brake fluid reservoir ............................. 9-22 5. Air cleaner ............................................. 9-24
6. Engine oil dipstick ................................. 9-16
7. Engine oil filler cap ................................ 9-17
8. Windshield washer fluid reservoir ....... 9-23
ENGINE COMPARTMENT

02
2-7

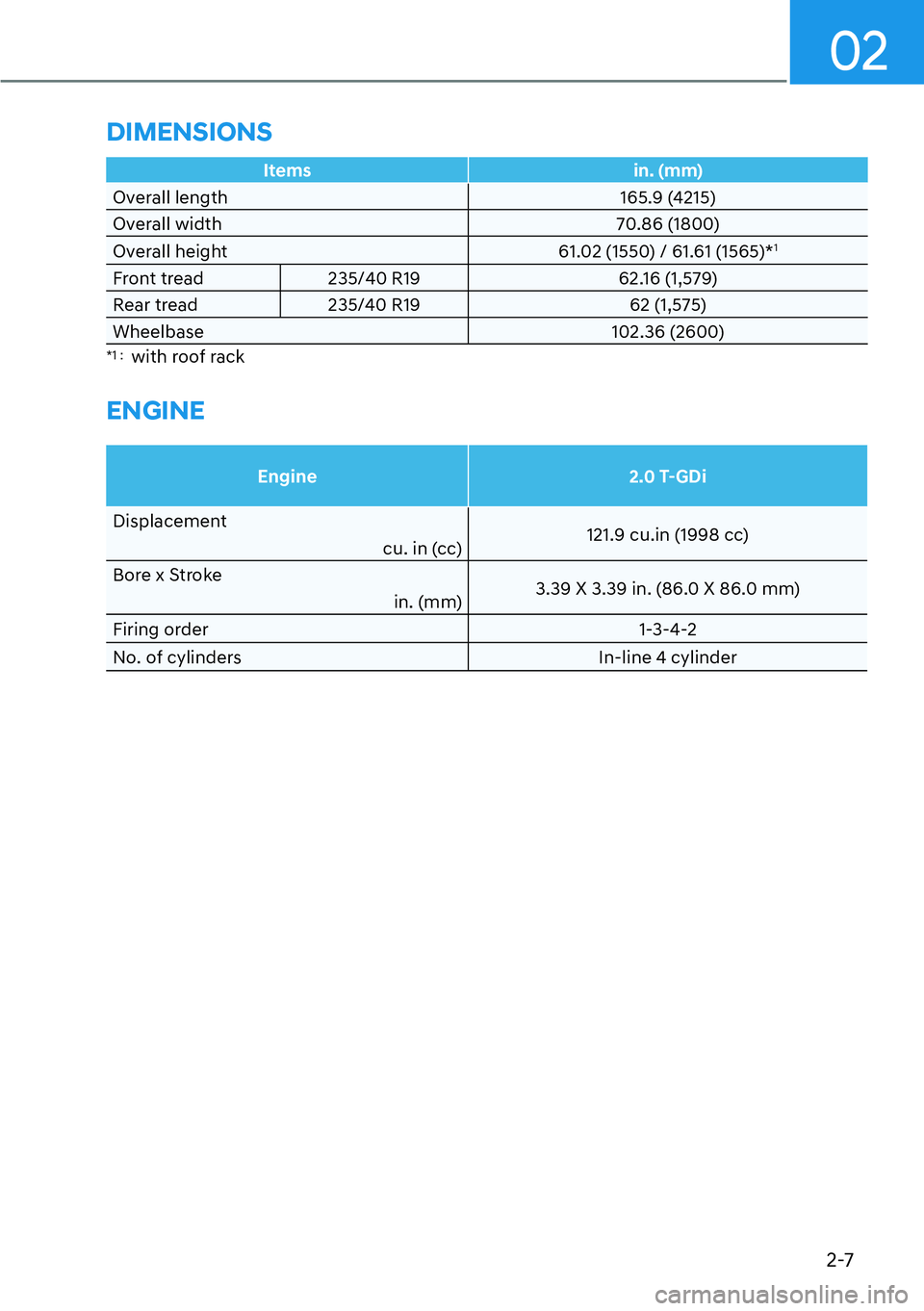

Itemsin. (mm)
Overall length 165.9 (4215)
O
verall width 70.86 (1800)
Overall height 61.02 (1550) / 61.61 (1565)*
1
Front tread235/40 R19 62.16 (1,579)
Rear tread 235/40 R19 62 (1,575)
Wheelbase 102.36 (2600)
*1 : with roof rack
ENGINE
Engine2.0 T-GDi
Displacement cu. in (
cc)121.9 cu.in (1998 cc)
Bore x Stroke in. (mm)3.39 X 3.39 in. (86.0 X 86.0 mm)
Firing order 1-3-4-2
No. of cylinders In-line 4 cylinder
DIMENSIONS

Vehicle Information, Consumer Information and Reporting Safety Defects2-8

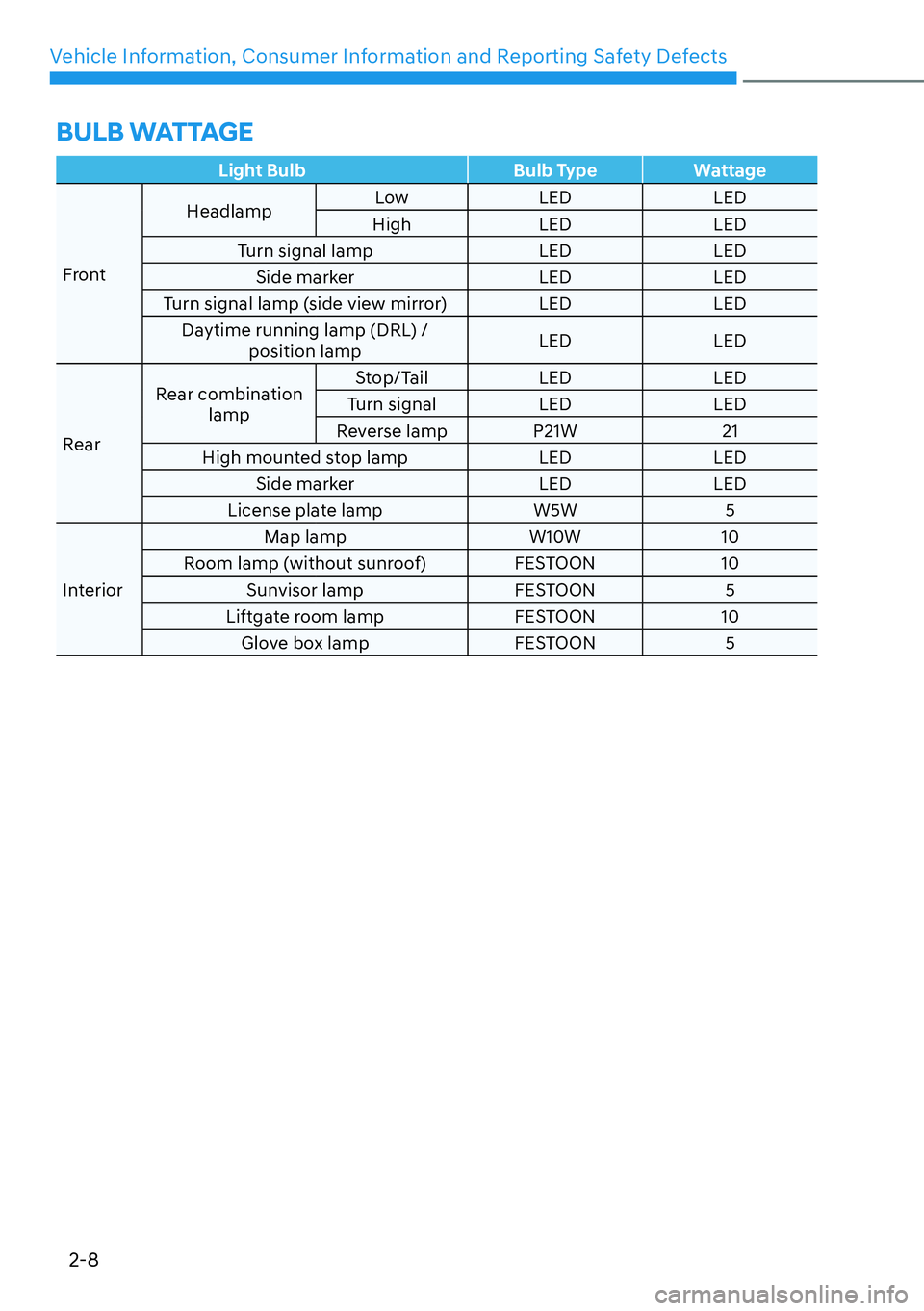

Light Bulb Bulb TypeWattage
Front H
eadlamp
Low LED LED
High LED LED
Turn signal lamp LED LED Side marker LED LED
Turn signal lamp (side view mirror) LED LED Daytime running lamp (DRL) / position lamp LED LED
Rear Rear combination
lamp Stop/Tail LED LED
Turn signal LED LED
Reverse lamp P21W 21
High mounted stop lamp LED LED Side marker LED LED
License plate lamp W5W 5
Interior Map lamp
W10W10
Room lamp (without sunroof) FESTOON 10
Sunvisor lamp FESTOON5
Liftgate room lamp FESTOON10
Glove box lamp FESTOON5
BULB WATTAGE

02
2-9

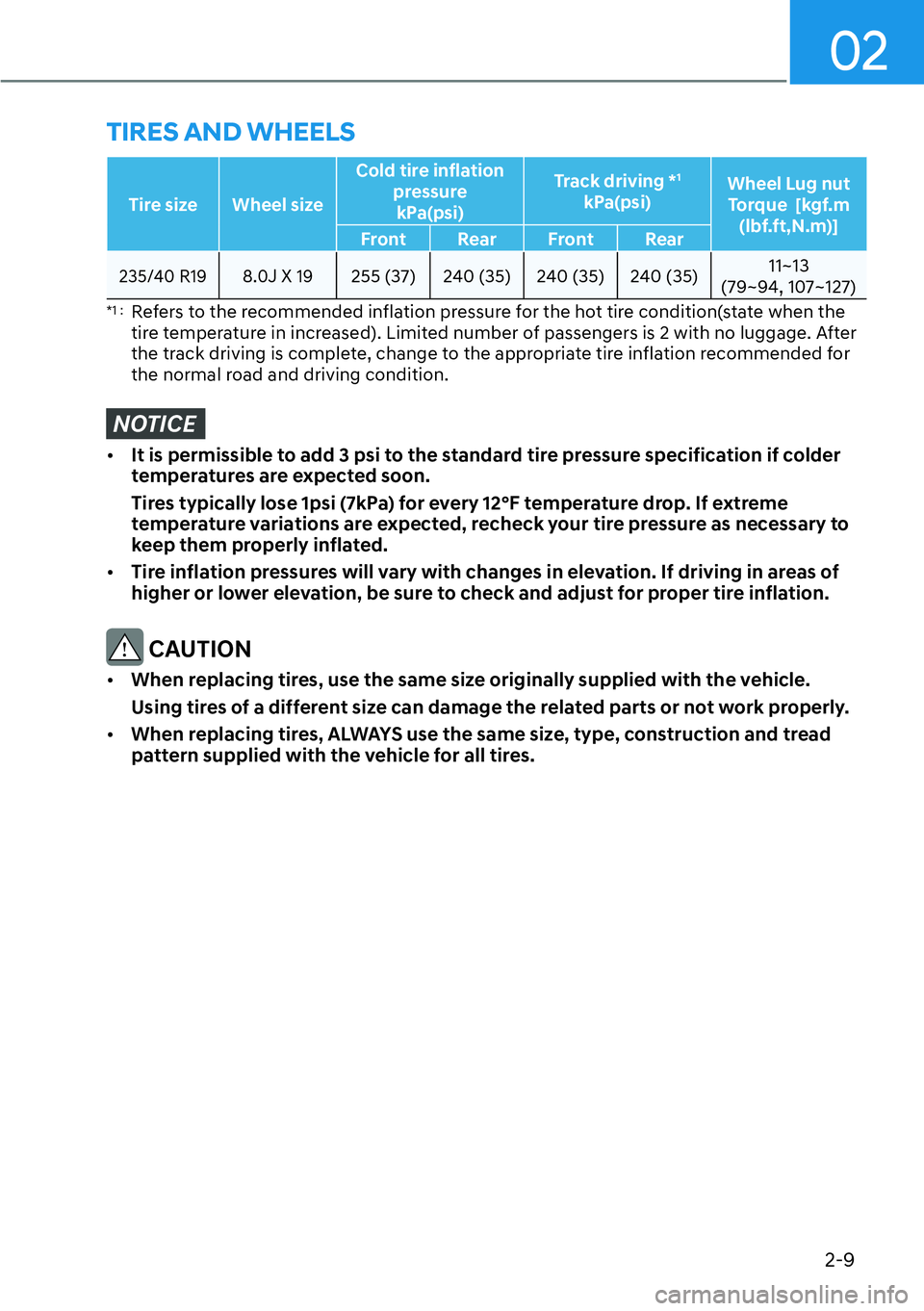

Tire size Wheel sizeCold tire inflation
pressure kPa(psi) Track driving *
1
kPa(psi) Wheel Lug nut
Torque [kgf.m (lbf.ft,N.m)]
Front Rear Front Rear
235/40 R19 8.0J X 19255 (37) 240 (35) 240 (35) 240 (35) 11~13
(79~94, 107~127)
*1 : Refers to the recommended inflation pressure for the hot tire condition(state when the
tire temperature in increased). Limited number of passengers is 2 with no luggage. After
the track driving is complete, change to the appropriate tire inflation recommended for
the normal road and driving condition.
NOTICE

[ It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.

[ Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION

[When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.

[ When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.
TIRES AND WHEELS

Vehicle Information, Consumer Information and Reporting Safety Defects2-10

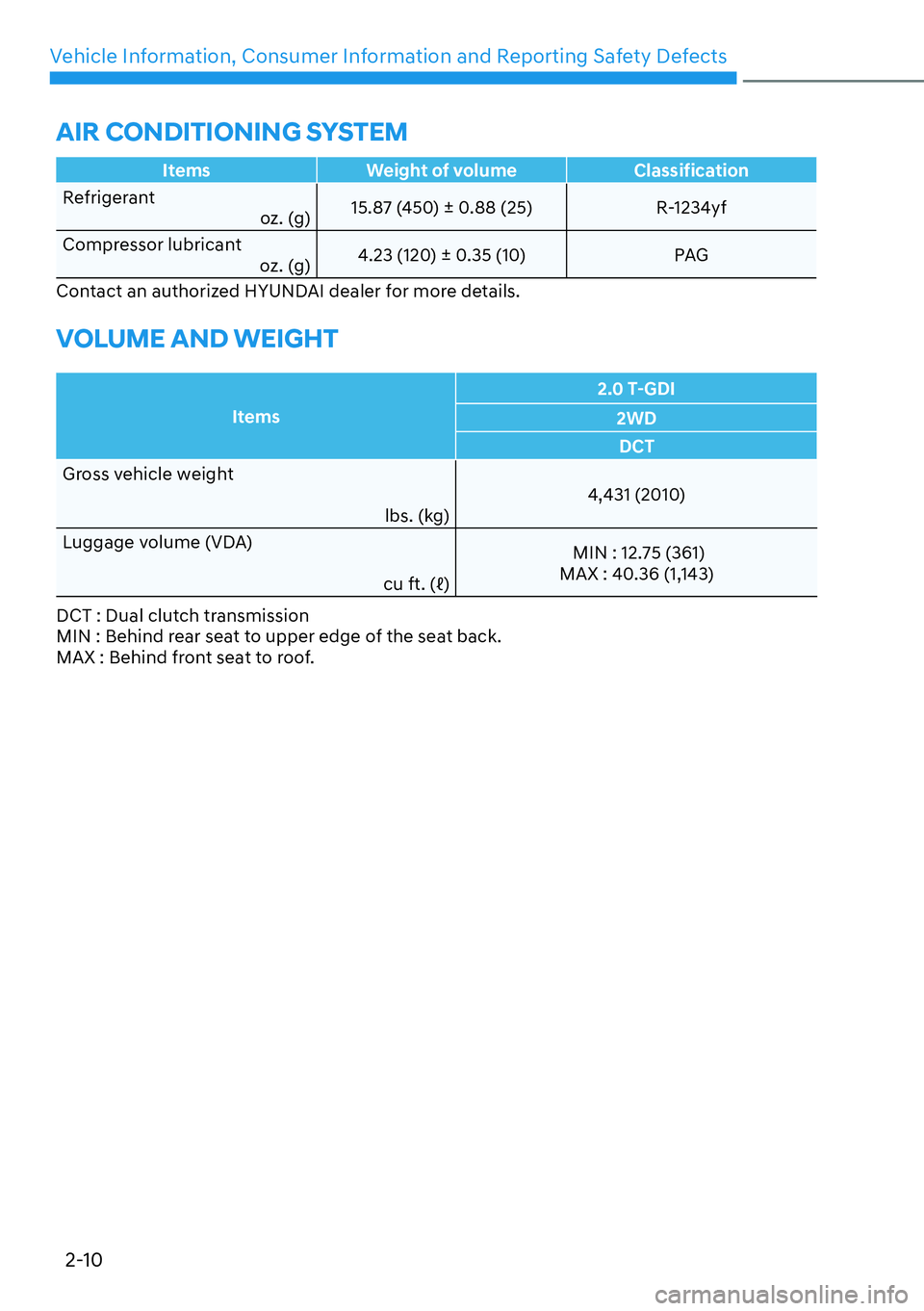

Items Weight of volume Classification
Refrigerant o
z. (g)15.87 (450) ± 0.88 (25) R-1234yf
Compressor lubricant oz. (g)4.23 (120) ± 0.35 (10) PAG
Contact an authorized HYUNDAI dealer for more details.
VOLUME AND WEIGHT
Items 2.0 T-GDI
2WD DCT
Gross vehicle weight
lbs. (k
g) 4,431 (2010)
Luggage volume (VDA) FXIW
b  MIN : 12.75 (361)
MAX : 40.36 (1,143)
DCT : Dual clutch transmission
MIN : Behind rear seat to upper edge of the seat back.
MAX : Behind front seat to roof.
AIR CONDITIONING SYSTEM

02
2-11

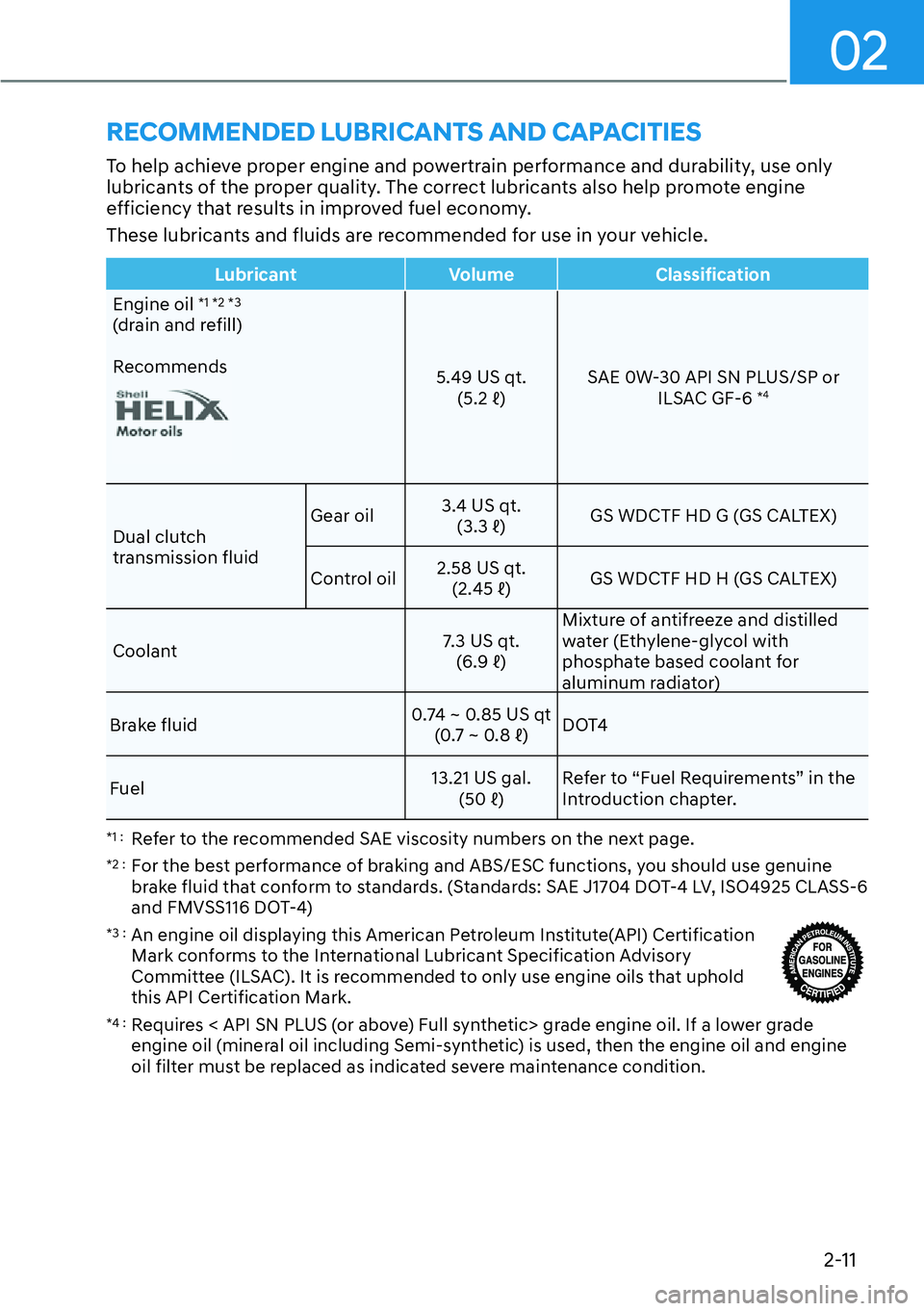

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil
*1 *2 *3
(drain and refill)
Recommends
5.49 US qt.
b  SAE 0W-30 API SN PLUS/SP or
ILSAC GF-6 *4
Dual clutch
transmission fluid Gear oil
3.4 US qt.

b  GS WDCTF HD G (GS CALTEX)
Control oil 2.58 US qt.

b  GS WDCTF HD H (GS CALTEX)
Coolant 7.3 US qt.

b  Mixture of antifreeze and distilled
water (Ethylene-glycol with
phosphate based coolant for
aluminum radiator)
Brake fluid 0.74 ~ 0.85 US qt
a
b DOT4
Fuel 13.21 US gal.
(50
b) Refer to “Fuel Requirements” in the
Introduction chapter.
*1 : Refer to the recommended SAE viscosity numbers on the next page.
*2 : For the best performance of braking and ABS/ESC functions, you should use genuine
brake fluid that conform to standards. (Standards: SAE J1704 DOT-4 LV, ISO4925 CLASS-6
and FMVSS116 DOT-4)
*3 : An engine oil displaying this American Petroleum Institute(API) Certification
Mark conforms to the International Lubricant Specification Advisory
Committee (ILSAC). It is recommended to only use engine oils that uphold
this API Certification Mark.
*4 : Requires < API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade
engine oil (mineral oil including Semi-synthetic) is used, then the engine oil and engine
oil filter must be replaced as indicated severe maintenance condition.

Vehicle Information, Consumer Information and Reporting Safety Defects2-12

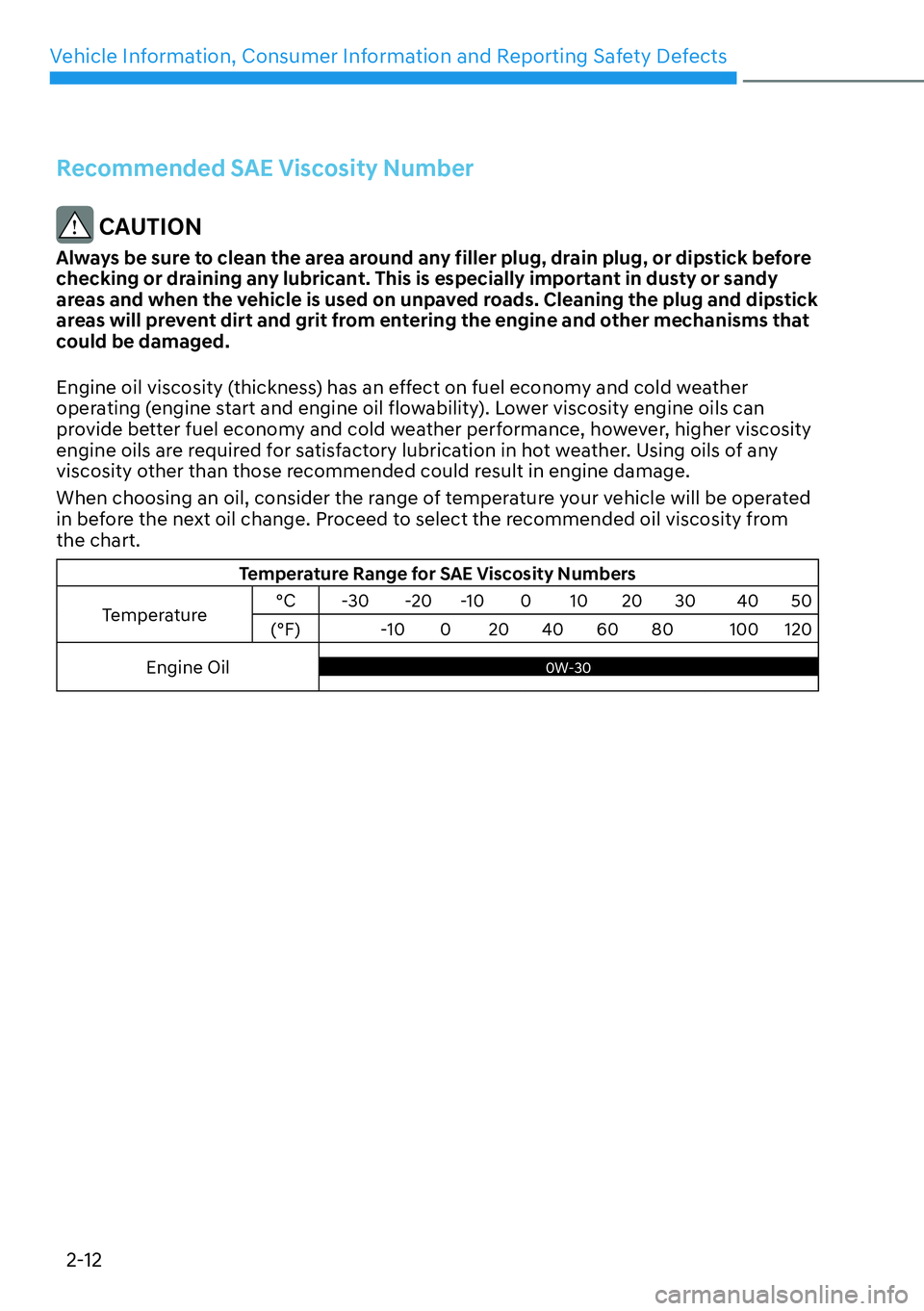

Recommended SAE Viscosity Number
CAUTION
Always be sure to clean the area around any filler plug, drain plug, or dipstick before
checking or draining any lubricant. This is especially important in dusty or sandy
areas and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick
areas will prevent dirt and grit from entering the engine and other mechanisms that
could be damaged.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather
operating (engine start and engine oil flowability). Lower viscosity engine oils can
provide better fuel economy and cold weather performance, however, higher viscosity
engine oils are required for satisfactory lubrication in hot weather. Using oils of any
viscosity other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated
in before the next oil change. Proceed to select the recommended oil viscosity from
the chart.
Temperature Range for SAE Viscosity Numbers
Temperature °C -30 -20 -10 0 10 20 30 40 50
(°F) -10 0 20 40 60 80 100 120
Engine Oil
0W-30

02
2-13
VEHICLE IDENTIFICATION

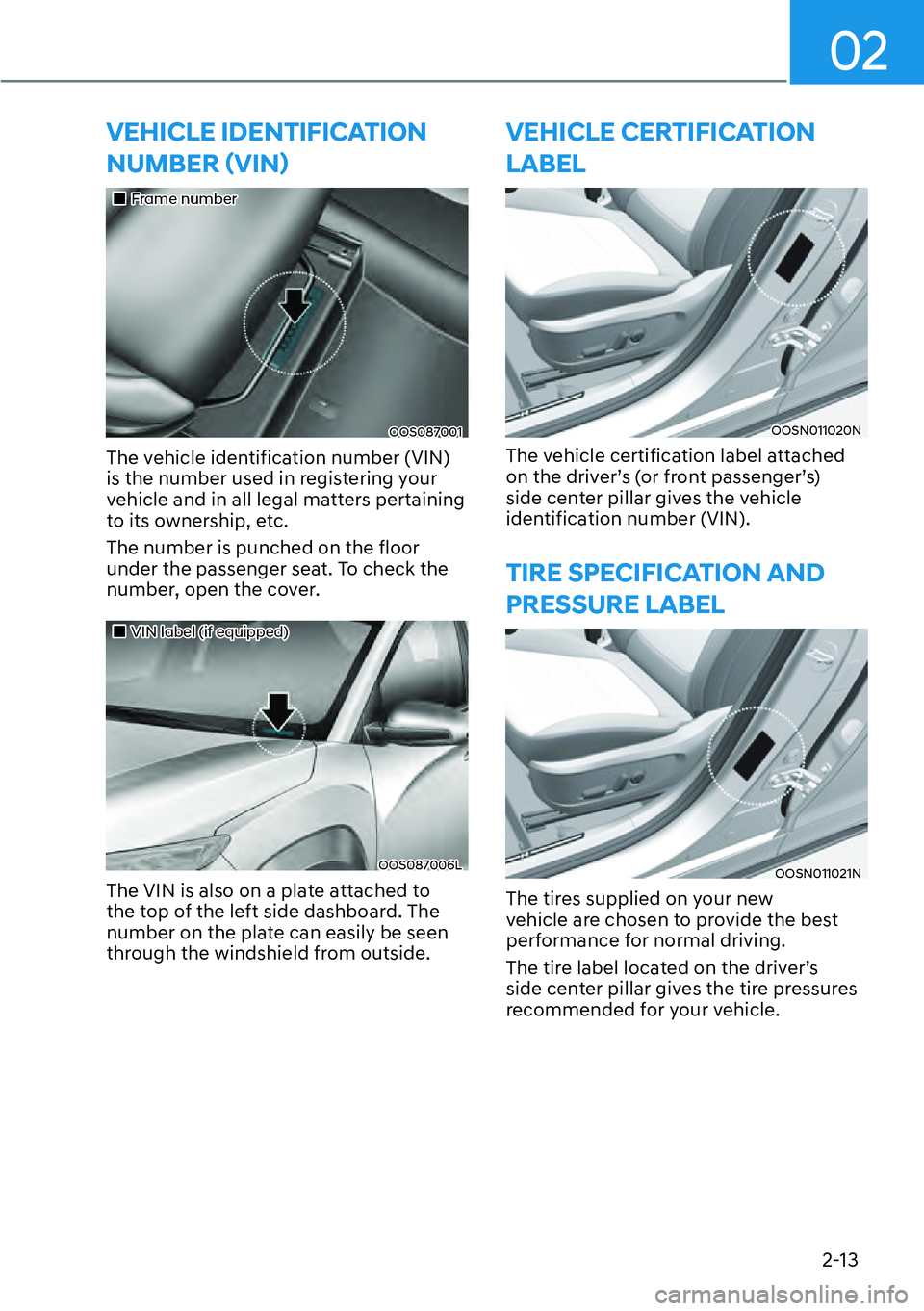

180%(5
ã9,1
ä
„Frame number
OOS087001
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check the
number, open the cover.
„VIN label (if equipped)
OOS087006L
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
VEHICLE CERTIFICATION
LABEL
OOSN011020N
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).
TIRE SPECIFICATION AND
PRESSURE LABEL
OOSN011021N
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
