HYUNDAI KONA 2023 Owners Manual

09
9-5

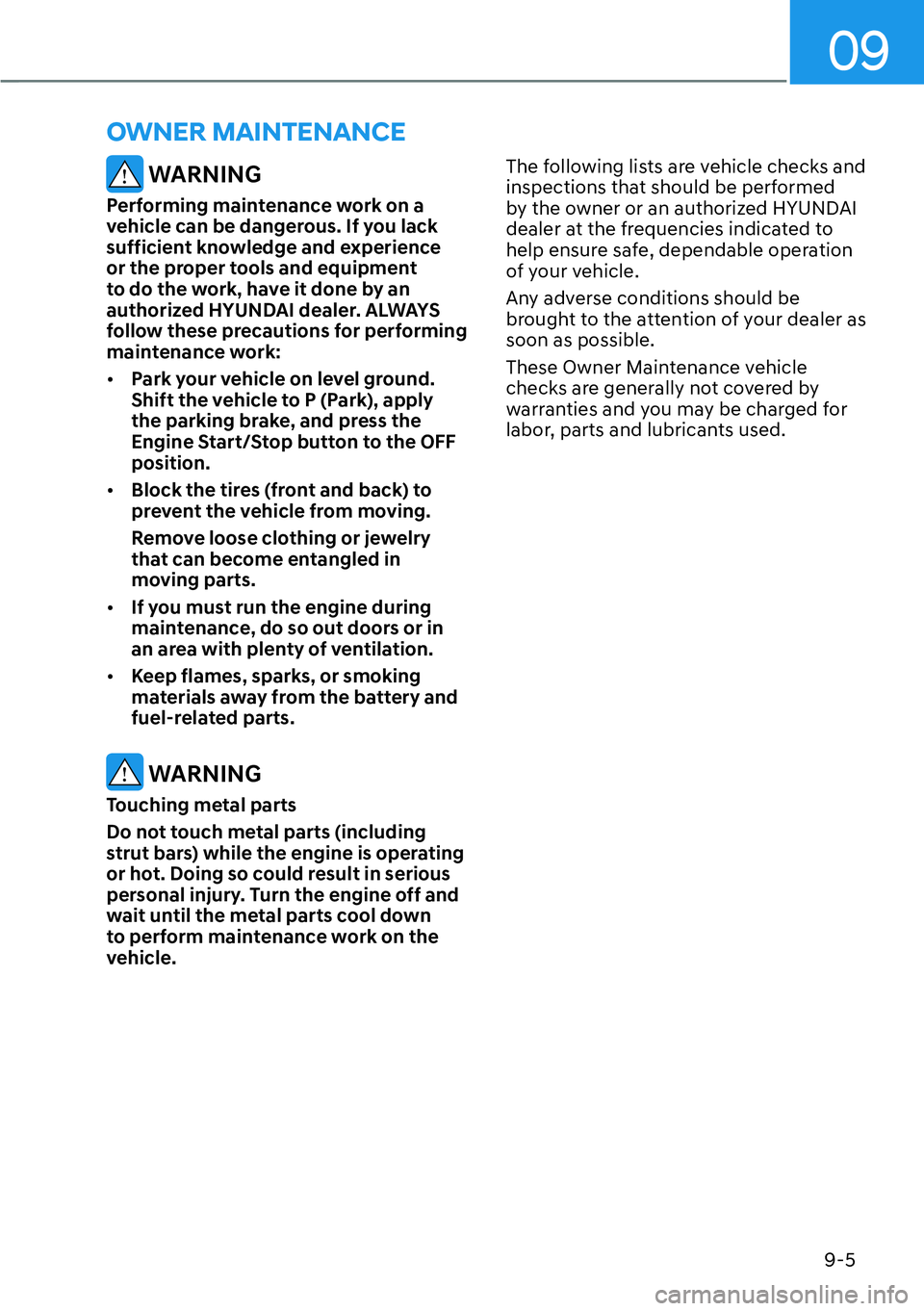

WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience
or the proper tools and equipment
to do the work, have it done by an
authorized HYUNDAI dealer. ALWAYS
follow these precautions for performing
maintenance work:

[Park your vehicle on level ground.
Shift the vehicle to P (Park), apply
the parking brake, and press the
Engine Start/Stop button to the OFF
position.

[ Block the tires (front and back) to
prevent the vehicle from moving.
Remove loose clothing or jewelry
that can become entangled in
moving parts.

[ If you must run the engine during
maintenance, do so out doors or in
an area with plenty of ventilation.

[ Keep flames, sparks, or smoking
materials away from the battery and
fuel-related parts.
WARNING
Touching metal parts
Do not touch metal parts (including
strut bars) while the engine is operating
or hot. Doing so could result in serious
personal injury. Turn the engine off and
wait until the metal parts cool down
to perform maintenance work on the
vehicle. The following lists are vehicle checks and
inspections that should be performed
by the owner or an authorized HYUNDAI
dealer at the frequencies indicated to
help ensure safe, dependable operation
of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer as
soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labor, parts and lubricants used.
OWNER MAINTENANCE

Maintenance9-6

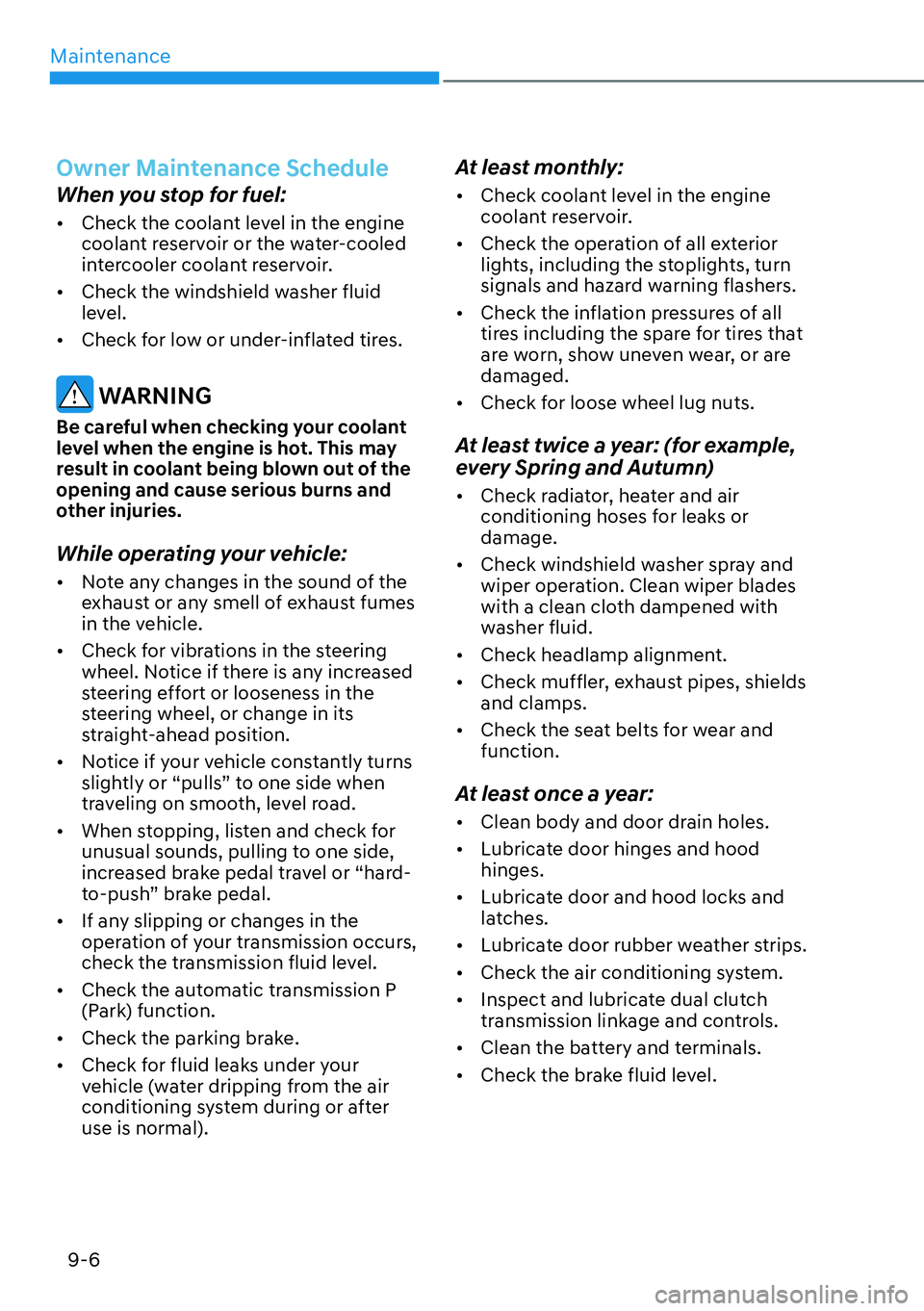

Owner Maintenance Schedule
When you stop for fuel:

[ Check the coolant level in the engine
coolant reservoir or the water-cooled
intercooler coolant reservoir.

[ Check the windshield washer fluid
level.

[ Check for low or under-inflated tires.
WARNING
Be careful when checking your coolant
level when the engine is hot. This may
result in coolant being blown out of the
opening and cause serious burns and
other injuries.
While operating your vehicle:

[Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.

[ Check for vibrations in the steering
wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.

[ Notice if your vehicle constantly turns
slightly or “pulls” to one side when
traveling on smooth, level road.

[ When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.

[ If any slipping or changes in the
operation of your transmission occurs,
check the transmission fluid level.

[ Check the automatic transmission P
(Park) function.

[ Check the parking brake.

[ Check for fluid leaks under your
vehicle (water dripping from the air
conditioning system during or after
use is normal).
At least monthly:

[Check coolant level in the engine
coolant reservoir.

[ Check the operation of all exterior
lights, including the stoplights, turn
signals and hazard warning flashers.

[ Check the inflation pressures of all
tires including the spare for tires that
are worn, show uneven wear, or are
damaged.

[ Check for loose wheel lug nuts.
At least twice a year: (for example,
every Spring and Autumn)

[Check radiator, heater and air
conditioning hoses for leaks or
damage.

[ Check windshield washer spray and
wiper operation. Clean wiper blades
with a clean cloth dampened with
washer fluid.

[ Check headlamp alignment.

[ Check muffler, exhaust pipes, shields
and clamps.

[ Check the seat belts for wear and
function.
At least once a year:

[Clean body and door drain holes.

[ Lubricate door hinges and hood
hinges.

[ Lubricate door and hood locks and
latches.

[ Lubricate door rubber weather strips.

[ Check the air conditioning system.

[ Inspect and lubricate dual clutch
transmission linkage and controls.

[ Clean the battery and terminals.

[ Check the brake fluid level.

09
9-7

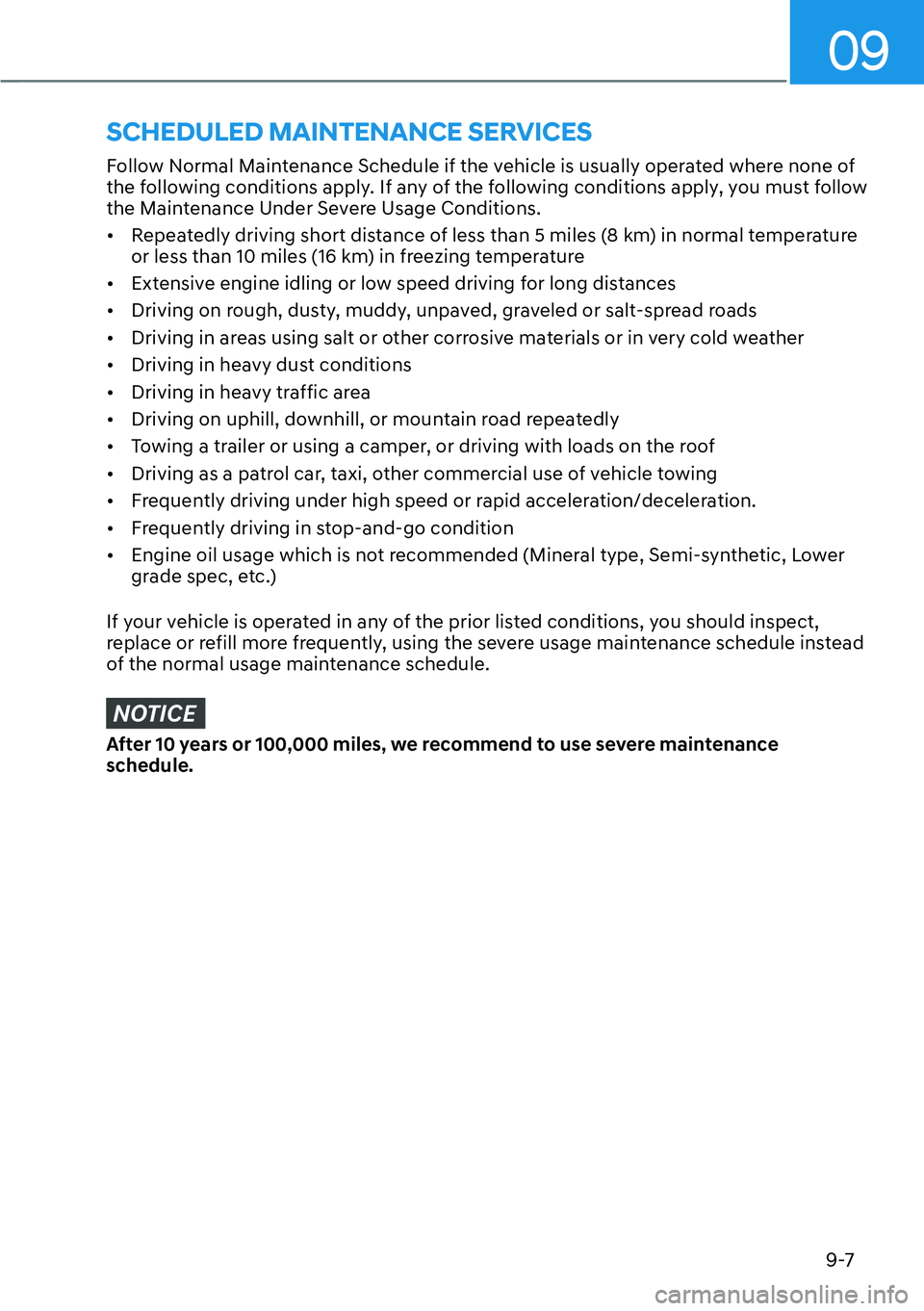

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of
the following conditions apply. If any of the following conditions apply, you must follow
the Maintenance Under Severe Usage Conditions.

[Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature
or less than 10 miles (16 km) in freezing temperature

[ Extensive engine idling or low speed driving for long distances

[ Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads

[ Driving in areas using salt or other corrosive materials or in very cold weather

[ Driving in heavy dust conditions

[ Driving in heavy traffic area

[ Driving on uphill, downhill, or mountain road repeatedly

[ Towing a trailer or using a camper, or driving with loads on the roof

[ Driving as a patrol car, taxi, other commercial use of vehicle towing

[ Frequently driving under high speed or rapid acceleration/deceleration.

[ Frequently driving in stop-and-go condition

[ Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower
grade spec, etc.)
If your vehicle is operated in any of the prior listed conditions, you should inspect,
replace or refill more frequently, using the severe usage maintenance schedule instead
of the normal usage maintenance schedule.
NOTICE
After 10 years or 100,000 miles, we recommend to use severe maintenance
schedule.
SCHEDULED MAINTENANCE SERVICES

Maintenance9-8

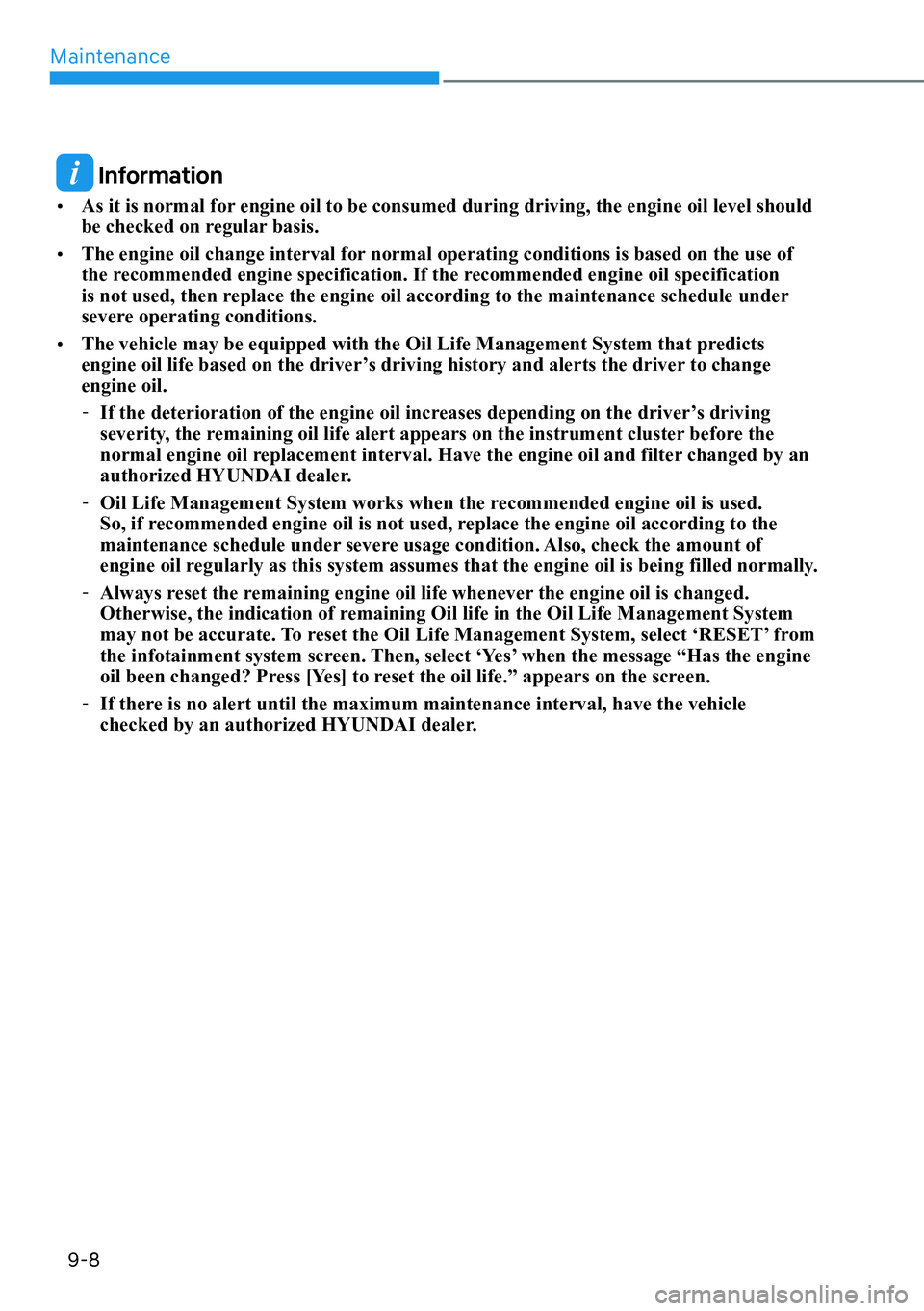

Information

[ As it is normal for engine oil to be consumed during driving, the engine oil level should
be checked on regular basis.

[ The engine oil change interval for normal operating conditions is based on the use of
the recommended engine specification. If the recommended engine oil specification
is not used, then replace the engine oil according to the maintenance schedule under
severe operating conditions.

[ The vehicle may be equipped with the Oil Life Management System that predicts
engine oil life based on the driver’s driving history and alerts the driver to change
engine oil.
- If the deterioration of the engine oil increases depending on the driver’s driving
severity, the remaining oil life alert appears on the instrument cluster before the
normal engine oil replacement interval. Have the engine oil and filter changed by an
authorized HYUNDAI dealer.
- Oil Life Management System works when the recommended engine oil is used.
So, if recommended engine oil is not used, replace the engine oil according to the
maintenance schedule under severe usage condition. Also, check the amount of
engine oil regularly as this system assumes that the engine oil is being filled normally.
- Always reset the remaining engine oil life whenever the engine oil is changed.
Otherwise, the indication of remaining Oil life in the Oil Life Management System
may not be accurate. To reset the Oil Life Management System, select ‘RESET’ from
the infotainment system screen. Then, select ‘Yes’ when the message “Has the engine
oil been changed? Press [Yes] to reset the oil life.” appears on the screen.
- If there is no alert until the maximum maintenance interval, have the vehicle
checked by an authorized HYUNDAI dealer.

09
9-9

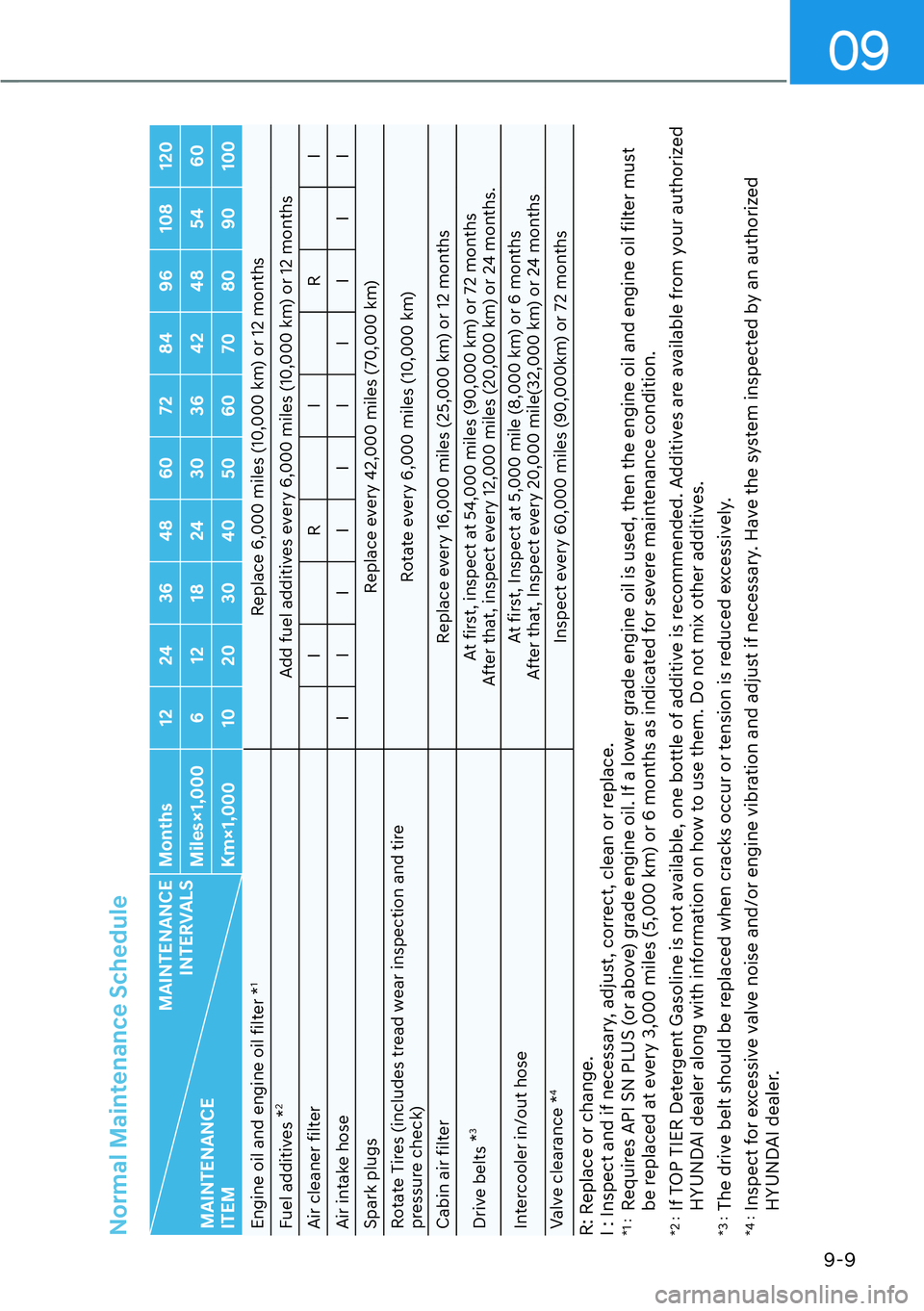

Normal Maintenance Schedule
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Months 12 24 36 48 60 72 84 96 108 120
Miles×1,000 6 12 18 24 30 36 42 48 54 60
Km×1,000 10 20 30 40 50 60 70 80 90 100
Engine oil and engine oil filter *
1
Replace 6,000 miles (10,000 km) or 12 months
Fuel additives *
2
Add fuel additives every 6,000 miles (10,000 km) or 12 months
Air cleaner filter I R I R I
Air intake hose I I I I I I I I I I
Spark plugs Replace every 42,000 miles (70,000 km)
Rotate Tires (includes tread wear inspection and tire
pressure check) Rotate every 6,000 miles (10,000 km)
Cabin air filter Replace every 16,000 miles (25,000 km) or 12 months
Drive belts *
3
At first, inspect at 54,000 miles (90,000 km) or 72 months
After that, inspect every 12,000 miles (20,000 km) or 24 months.
Intercooler in/out hose At first, Inspect at 5,000 mile (8,000 km) or 6 months
After that, Inspect every 20,000 mile(32,000 km) or 24 months
Valve clearance *
4
Inspect every 60,000 miles (90,000km) or 72 months
R: Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.*1 :
Requires API SN PLUS (or above) grade engine oil. If a lower grade engine oil is used, then the engine oil and engine oil filter must
be replaced at every 3,000 miles (5,000 km) or 6 months as indicated for severe maintenance condition.
*2 :
If TOP TIER Detergent Gasoline is not available, one bottle of additive is recommended. Additives are available from your authorized
HYUNDAI dealer along with information on how to use them. Do not mix other additives.
*3 :
The drive belt should be replaced when cracks occur or tension is reduced excessively.
*4 :
Inspect for excessive valve noise and/or engine vibration and adjust if necessary. Have the system inspected by an authorized
HYUNDAI dealer.

Maintenance9-10

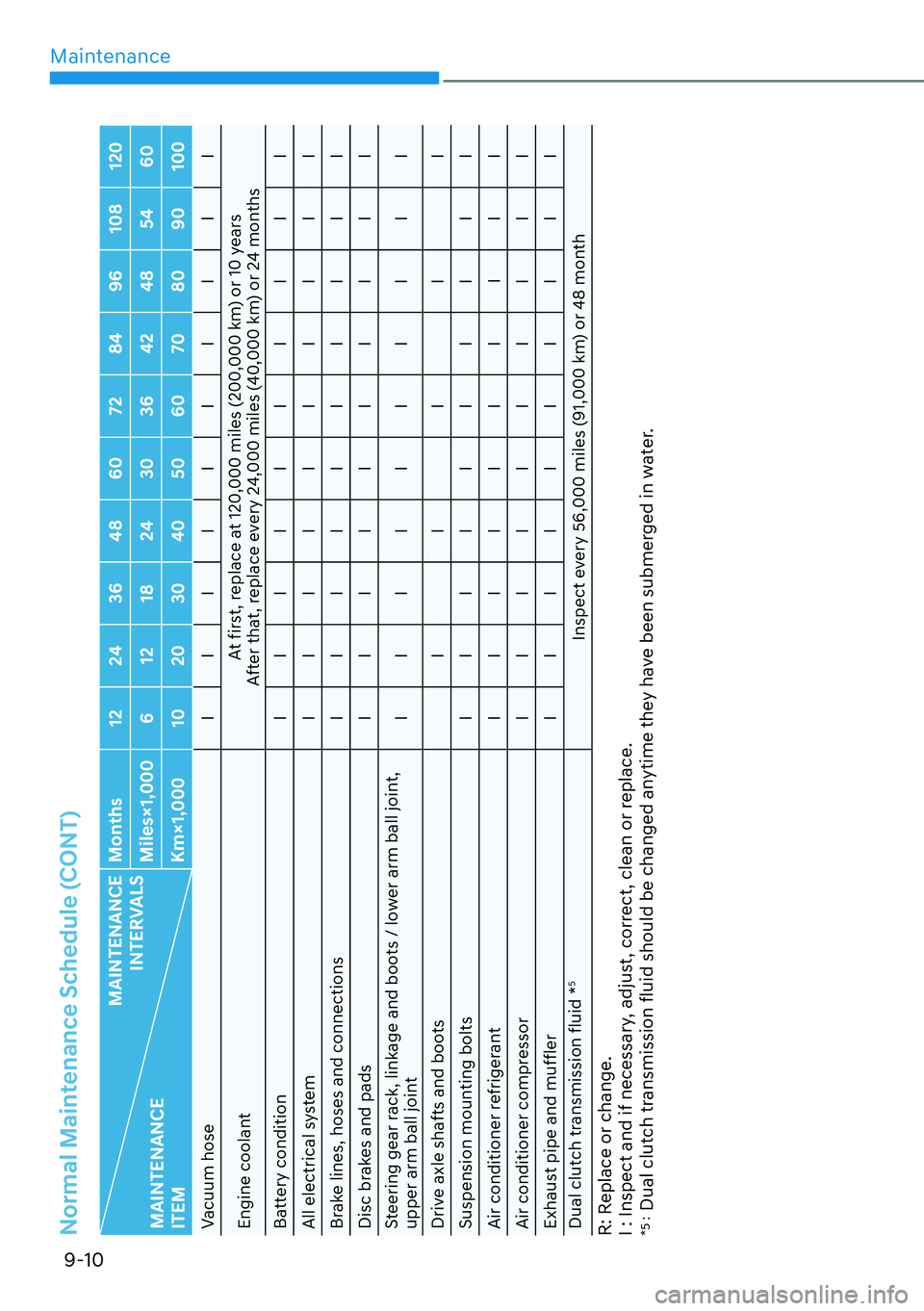

Normal Maintenance Schedule (CONT)
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Months 12 24 36 48 60 72 84 96 108 120
Miles×1,000 6 12 18 24 30 36 42 48 54 60
Km×1,000 10 20 30 40 50 60 70 80 90 100
Vacuum hose
I I I I I I I I I I
Engine coolant At first, replace at 120,000 miles (200,000 km) or 10 years
After that, replace every 24,000 miles (40,000 km) or 24 months
Battery condition I I I I I I I I I I
All electrical system I I I I I I I I I I
Brake lines, hoses and connections I I I I I I I I I I
Disc brakes and pads I I I I I I I I I I
Steering gear rack, linkage and boots / lower arm ball joint,
upper arm ball joint IIIIIIIIII
Drive axle shafts and boots IIIII
Suspension mounting bolts I I I I I I I I I I
Air conditioner refrigerant I I I I I I I I I I
Air conditioner compressor I I I I I I I I I I
Exhaust pipe and muffler I I I I I I I I I I
Dual clutch transmission fluid *
5
Inspect every 56,000 miles (91,000 km) or 48 month
R: Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.*5 :
Dual clutch transmission fluid should be changed anytime they have been submerged in water.

09
9-11

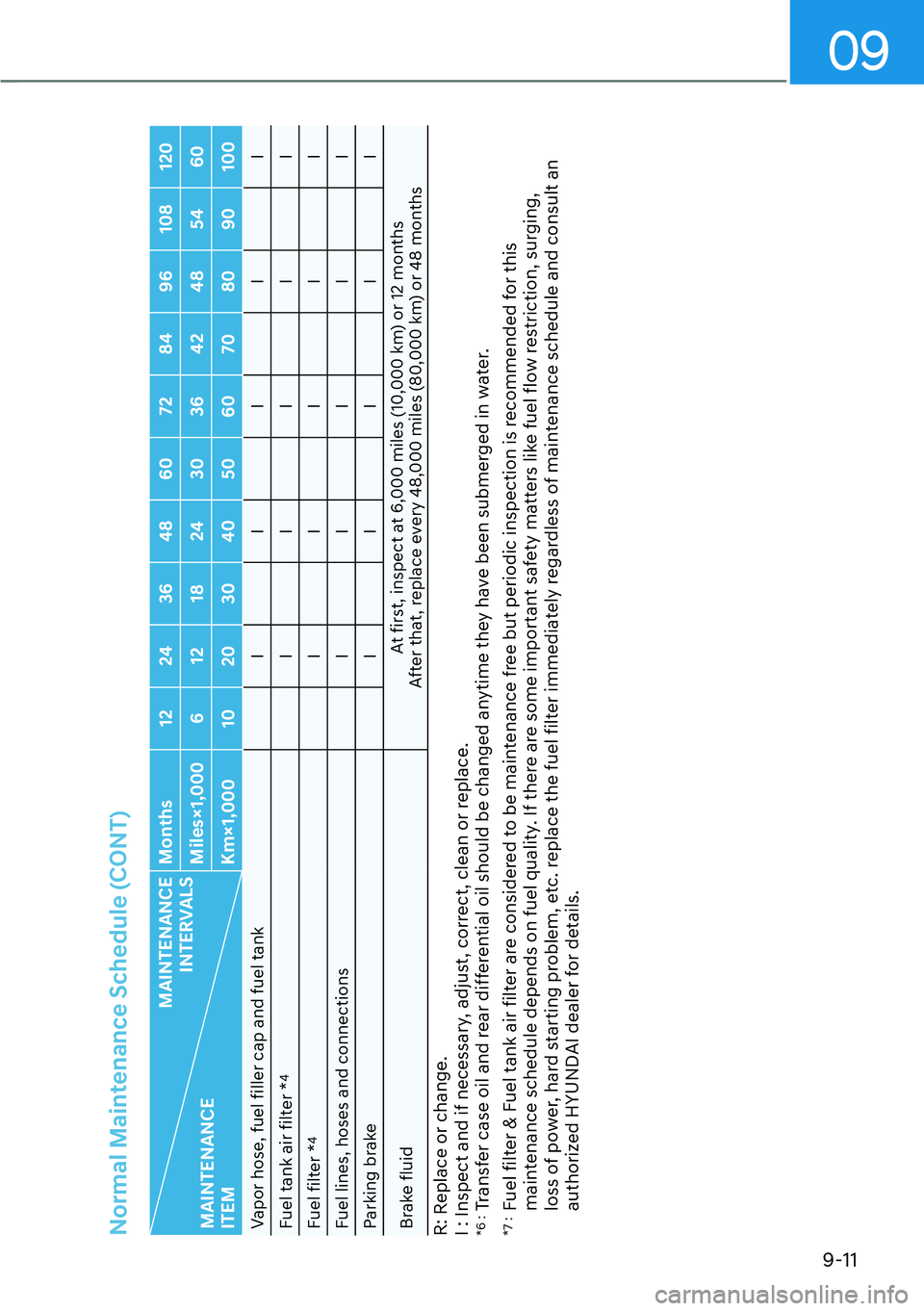

Normal Maintenance Schedule (CONT)
MAINTENANCE INTERVALS
MAINTENANCE
ITEM Months 12 24 36 48 60 72 84 96 108 120
Miles×1,000 6 12 18 24 30 36 42 48 54 60
Km×1,000 10 20 30 40 50 60 70 80 90 100
Vapor hose, fuel filler cap and fuel tank
IIIII
Fuel tank air filter *
4
IIIII
Fuel filter *
4
IIIII
Fuel lines, hoses and connections IIIII
Parking brake IIIII
Brake fluid At first, inspect at 6,000 miles (10,000 km) or 12 months
After that, replace every 48,000 miles (80,000 km) or 48 months
R: Replace or change.
I : Inspect and if necessary, adjust, correct, clean or replace.*6 :
Transfer case oil and rear differential oil should be changed anytime they have been submerged in water.
*7 :
Fuel filter & Fuel tank air filter are considered to be maintenance free but periodic inspection is recommended for this
maintenance schedule depends on fuel quality. If there are some important safety matters like fuel flow restriction, surging,
loss of power, hard starting problem, etc. replace the fuel filter immediately regardless of maintenance schedule and consult an
authorized HYUNDAI dealer for details.

Maintenance9-12

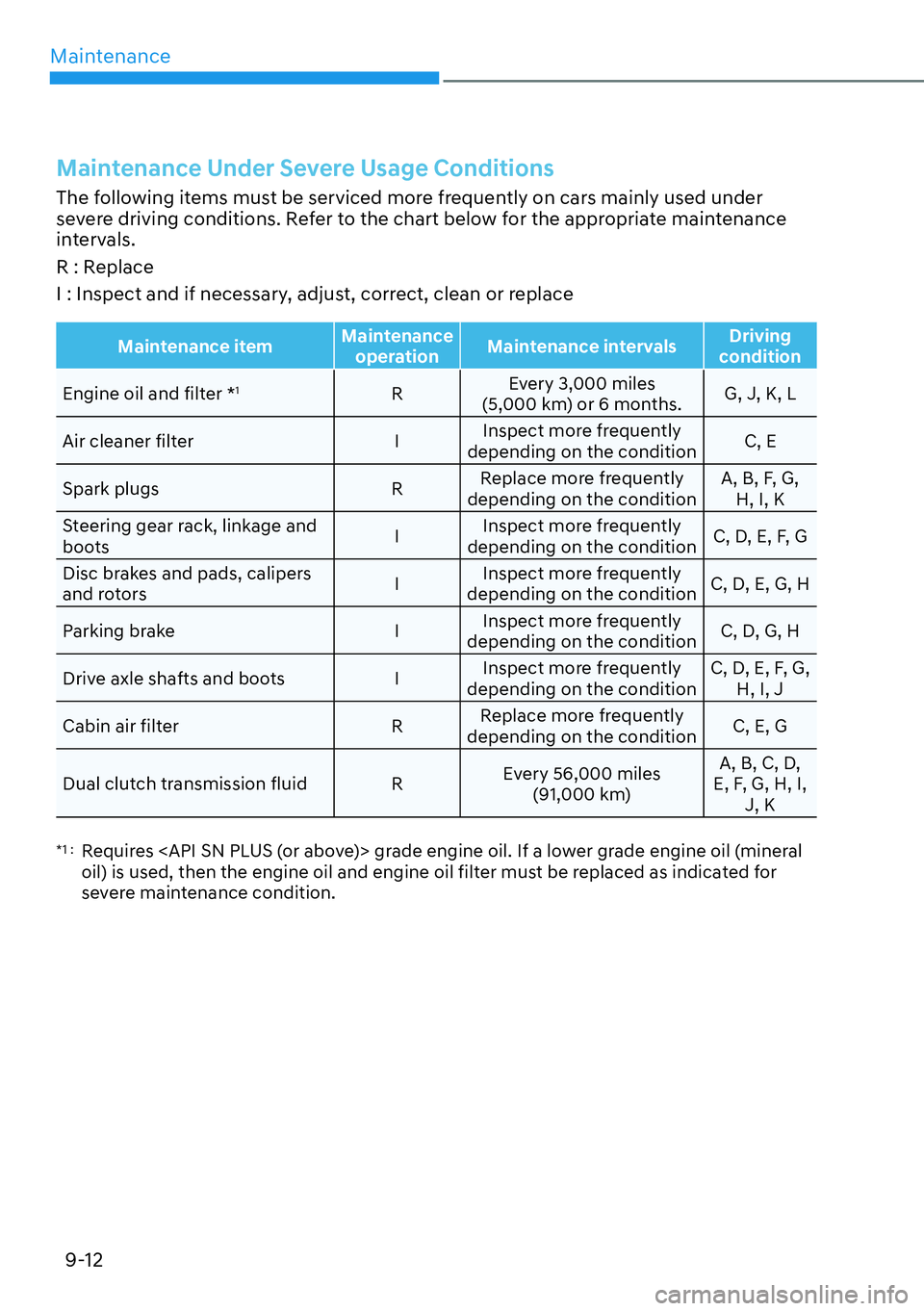

Maintenance Under Severe Usage Conditions
The following items must be serviced more frequently on cars mainly used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace
I : Inspect and if necessary, adjust, correct, clean or replace
Maintenance item Maintenance
operation Maintenance intervals Driving
condition
Engine oil and filter *
1R Every 3,000 miles
(5,000 km) or 6 months. G, J, K, L
Air cleaner filter I Inspect more frequently
depending on the condition C, E
Spark plugs R Replace more frequently
depending on the condition A, B, F, G,
H, I, K
Steering gear rack, linkage and
boots IInspect more frequently
depending on the condition C, D, E, F, G
Disc brakes and pads, calipers
and rotors IInspect more frequently
depending on the condition C, D, E, G, H
Parking brake IInspect more frequently
depending on the condition C, D, G, H
Drive axle shafts and boots IInspect more frequently
depending on the condition C, D, E, F, G,
H, I, J
Cabin air filter RReplace more frequently
depending on the condition C, E, G
Dual clutch transmission fluid R Every 56,000 miles
(91,000 km) A, B, C, D,
E, F, G, H, I, J, K
*1 : Requires grade engine oil. If a lower grade engine oil (mineral
oil) is used, then the engine oil and engine oil filter must be replaced as indicated for
severe maintenance condition.

09
9-13

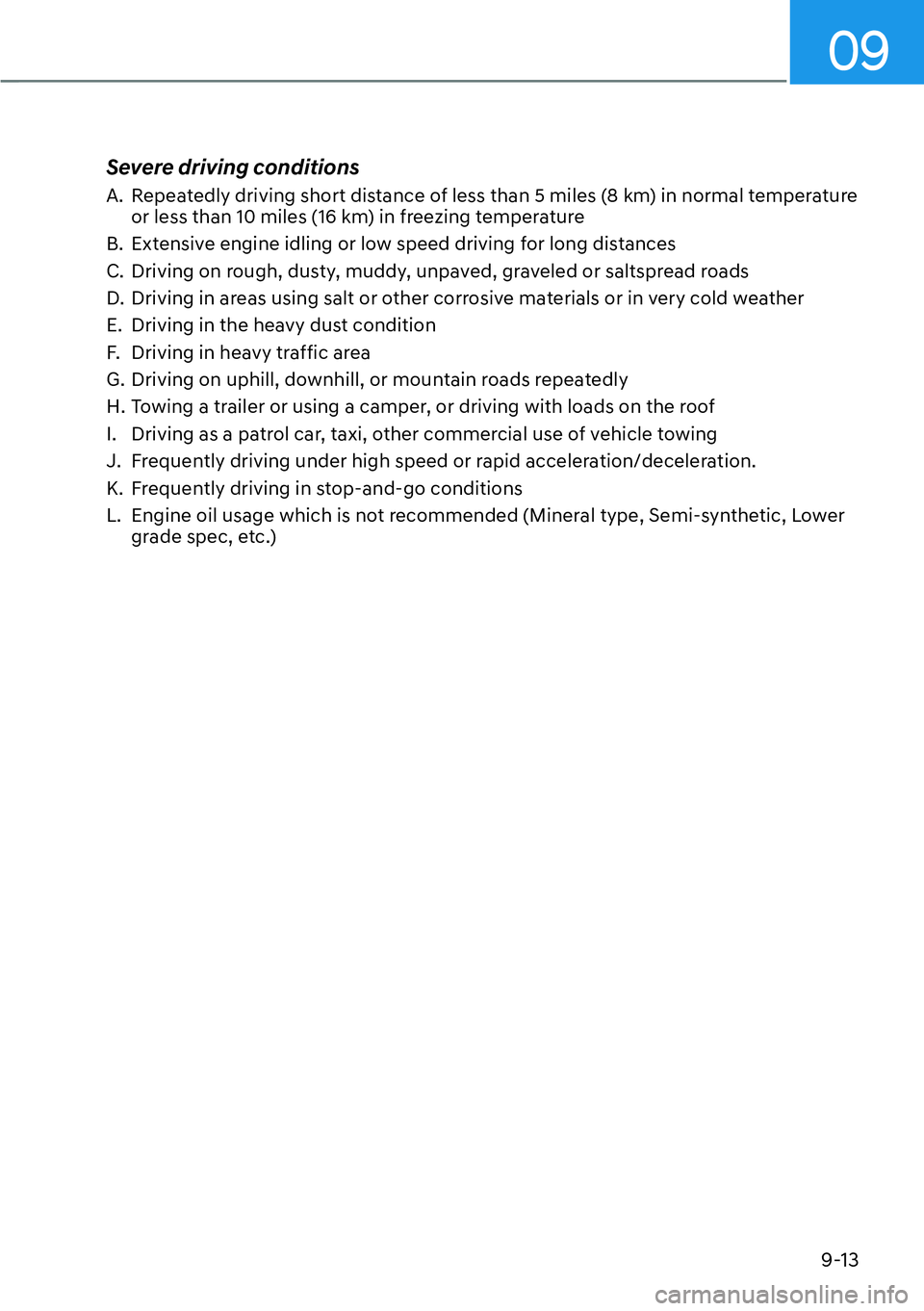

Severe driving conditions
A. Repeatedly driving short distance of less than 5 miles (8 km) in normal temperature or less than 10 miles (16 km) in freezing temperature
B. Extensive engine idling or low speed driving for long distances
C. Driving on rough, dusty, muddy, unpaved, graveled or saltspread roads
D. Driving in areas using salt or other corrosive materials or in very cold weather
E. Driving in the heavy dust condition
F. Driving in heavy traffic area
G. Driving on uphill, downhill, or mountain roads repeatedly
H. Towing a trailer or using a camper, or driving with loads on the roof
I. Driving as a patrol car, taxi, other commercial use of vehicle towing
J. Frequently driving under high speed or rapid acceleration/deceleration.
K. Frequently driving in stop-and-go conditions
L. Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower grade spec, etc.)

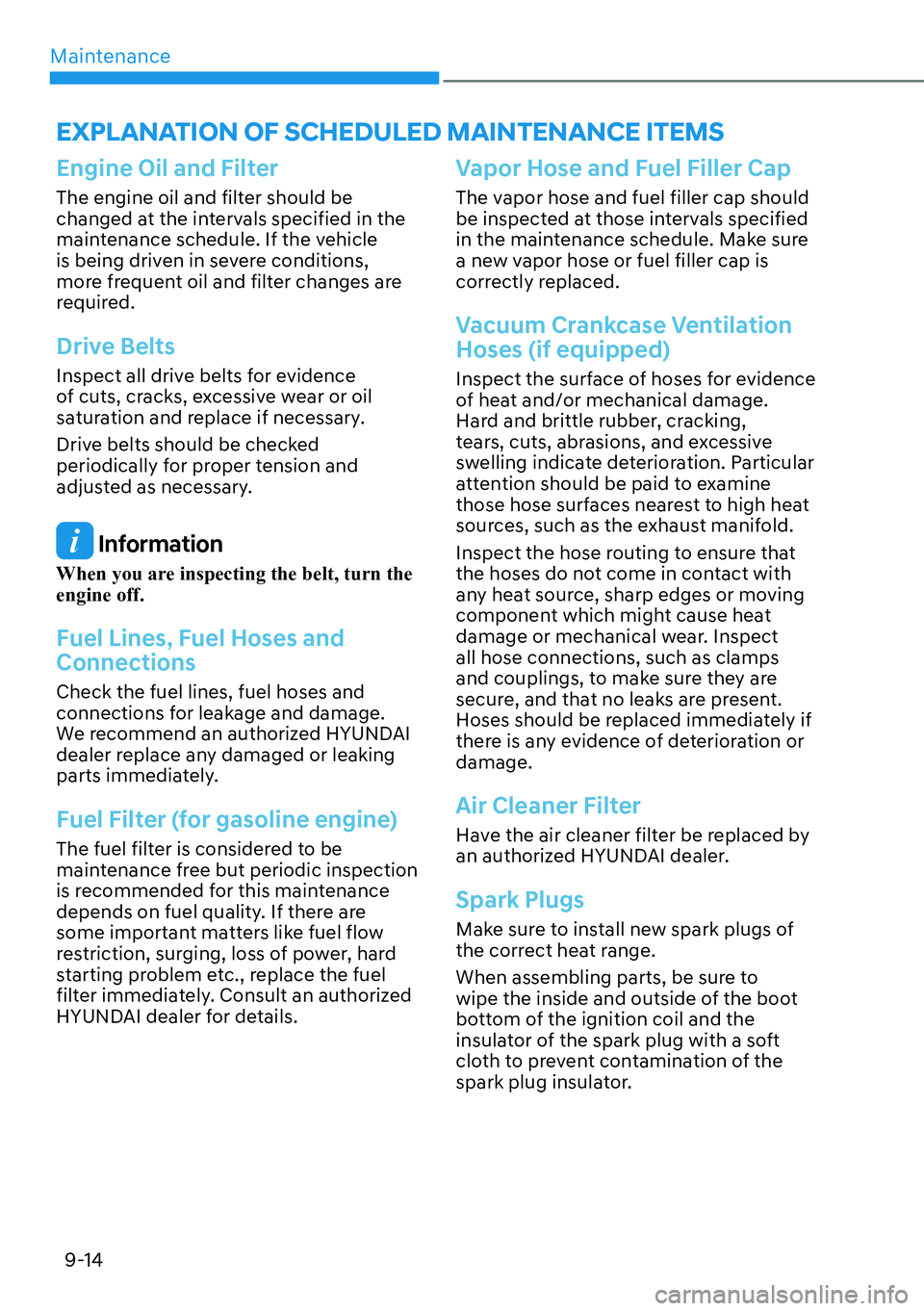

Maintenance9-14
Engine Oil and Filter
The engine oil and filter should be
changed at the intervals specified in the
maintenance schedule. If the vehicle
is being driven in severe conditions,
more frequent oil and filter changes are
required.
Drive Belts
Inspect all drive belts for evidence
of cuts, cracks, excessive wear or oil
saturation and replace if necessary.
Drive belts should be checked
periodically for proper tension and
adjusted as necessary.
Information
When you are inspecting the belt, turn the
engine off.
Fuel Lines, Fuel Hoses and
Connections
Check the fuel lines, fuel hoses and
connections for leakage and damage.
We recommend an authorized HYUNDAI
dealer replace any damaged or leaking
parts immediately.
Fuel Filter (for gasoline engine)
The fuel filter is considered to be
maintenance free but periodic inspection
is recommended for this maintenance
depends on fuel quality. If there are
some important matters like fuel flow
restriction, surging, loss of power, hard
starting problem etc., replace the fuel
filter immediately. Consult an authorized
HYUNDAI dealer for details.
Vapor Hose and Fuel Filler Cap
The vapor hose and fuel filler cap should
be inspected at those intervals specified
in the maintenance schedule. Make sure
a new vapor hose or fuel filler cap is
correctly replaced.
Vacuum Crankcase Ventilation
Hoses (if equipped)
Inspect the surface of hoses for evidence
of heat and/or mechanical damage.
Hard and brittle rubber, cracking,
tears, cuts, abrasions, and excessive
swelling indicate deterioration. Particular
attention should be paid to examine
those hose surfaces nearest to high heat
sources, such as the exhaust manifold.
Inspect the hose routing to ensure that
the hoses do not come in contact with
any heat source, sharp edges or moving
component which might cause heat
damage or mechanical wear. Inspect
all hose connections, such as clamps
and couplings, to make sure they are
secure, and that no leaks are present.
Hoses should be replaced immediately if
there is any evidence of deterioration or
damage.
Air Cleaner Filter
Have the air cleaner filter be replaced by
an authorized HYUNDAI dealer.
Spark Plugs
Make sure to install new spark plugs of
the correct heat range.
When assembling parts, be sure to
wipe the inside and outside of the boot
bottom of the ignition coil and the
insulator of the spark plug with a soft
cloth to prevent contamination of the
spark plug insulator.
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS
