All Season Tires
HYUNDAI specifies all season tires
on some models to provide good
performance for use all year round,
including snowy and icy road conditions.
All season tires are identified by ALL
SEASON and/or M+S (Mud and Snow) on
the tire sidewall. Snow tires have better
snow traction than all season tires and
may be more appropriate in some areas.
Summer Tires
HYUNDAI specifies summer tires on
some models to provide superior
performance on dry roads. Summer tire
performance is substantially reduced in
snow and ice. Summer tires do not have
the tire traction rating M+S (Mud and
Snow) on the tire side wall. If you plan
to operate your vehicle in snowy or icy
conditions, HYUNDAI recommends the
use of snow tires or all season tires on all
four wheels.
Snow Tires
If you equip your car with snow tires,
they should be the same size and have
the same load capacity as the original
tires. Snow tires should be installed on
all four wheels; otherwise, poor handling
may result. Snow tires should carry 4
psi (28 kPa) more air pressure than the
pressure recommended for the standard
tires on the tire label on the driver’s
side of the center pillar, or up to the
maximum pressure shown on the tire
sidewall, whichever is less. Do not drive
faster than 75 mph (120 km/h) when your
vehicle is equipped with snow tires.
Radial-Ply Tires
Radial-ply tires provide improved tread
life, road hazard resistance and smoother
high speed ride. The radial-ply tires used
on this vehicle are of belted construction,
and are selected to complement the
ride and handling characteristics of your
vehicle.
Radial-ply tires have the same load
carrying capacity, as bias-ply or bias
belted tires of the same size, and use the
same recommended inflation pressure.
Mixing of radial-ply tires with bias-ply or
bias belted tires is not recommended.
Any combinations of radial-ply and bias-
ply or bias belted tires when used on the
same vehicle will seriously deteriorate
vehicle handling. The best rule to follow
is: Identical pairs of radial-ply tires
should always be used as a set for the
front tires and a set for the rear tires.
Longer wearing tires can be more
susceptible to irregular tread wear. It is
very important to follow the tire rotation
interval in this chapter to achieve the
tread life potential of these tires. Cuts
and punctures in radial-ply tires are
repairable only in the tread area, because
of sidewall flexing. Consult your tire
dealer for radial-ply tire repairs.
WARNING
Do not mix bias ply and radial ply tires
under any circumstances. This may
cause unusual handling characteristics
that may cause loss of vehicle control
resulting in an accident.

Maintenance9-46

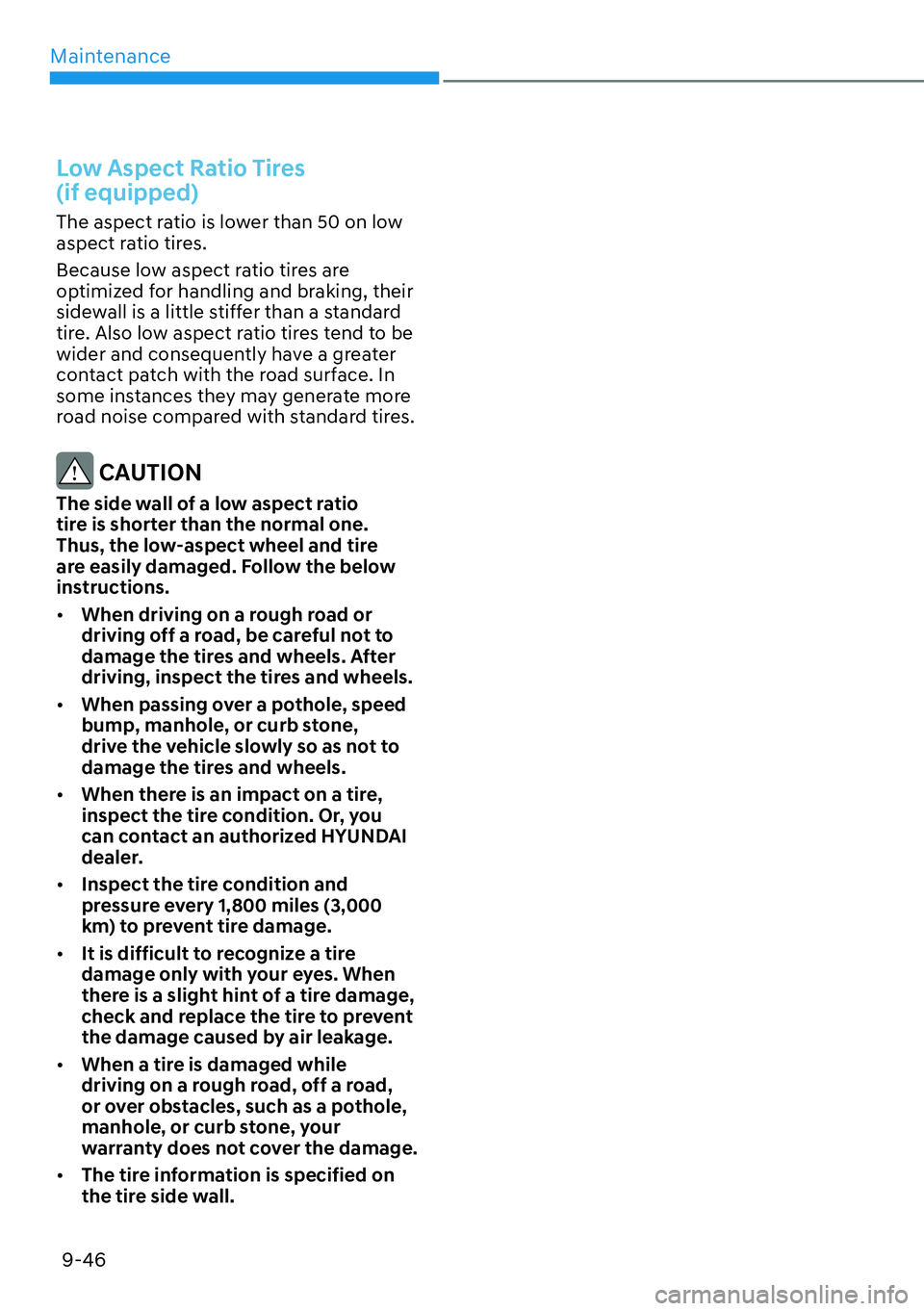

Low Aspect Ratio Tires
(if equipped)
The aspect ratio is lower than 50 on low
aspect ratio tires.
Because low aspect ratio tires are
optimized for handling and braking, their
sidewall is a little stiffer than a standard
tire. Also low aspect ratio tires tend to be
wider and consequently have a greater
contact patch with the road surface. In
some instances they may generate more
road noise compared with standard tires.
CAUTION
The side wall of a low aspect ratio
tire is shorter than the normal one.
Thus, the low-aspect wheel and tire
are easily damaged. Follow the below
instructions.

[ When driving on a rough road or
driving off a road, be careful not to
damage the tires and wheels. After
driving, inspect the tires and wheels.

[ When passing over a pothole, speed
bump, manhole, or curb stone,
drive the vehicle slowly so as not to
damage the tires and wheels.

[ When there is an impact on a tire,
inspect the tire condition. Or, you
can contact an authorized HYUNDAI
dealer.

[ Inspect the tire condition and
pressure every 1,800 miles (3,000
km) to prevent tire damage.

[ It is difficult to recognize a tire
damage only with your eyes. When
there is a slight hint of a tire damage,
check and replace the tire to prevent
the damage caused by air leakage.

[ When a tire is damaged while
driving on a rough road, off a road,
or over obstacles, such as a pothole,
manhole, or curb stone, your
warranty does not cover the damage.

[ The tire information is specified on
the tire side wall.

09
9-47
FUSES
OLF074075
A

„Blade type

„Cartridge type

„Multi fuseA
A
B
B
B
B
A
[A] : Normal, [B] : Blown
A vehicle’s electrical system is protected
from electrical overload damage by
fuses.
This vehicle has 2 (or 3) fuse panels, one
located in the driver’s side panel bolster,
the other in the engine compartment.
If any of your vehicle’s lights,
accessories, or controls do not work,
check the appropriate circuit fuse. If a
fuse has blown, the element inside the
fuse will be melted or broken.
If the electrical system does not work,
first check the driver’s side fuse panel.
Before replacing a blown fuse, turn the
engine and all switches off, and then
disconnect the negative battery cable.
Always replace a blown fuse with one of
the same rating.
If the replacement fuse blows, this
indicates an electrical problem.
Avoid using the system involved. We
recommend that you immediately
consult an authorized HYUNDAI dealer.
WARNING
NEVER replace a fuse with anything but
another fuse of the same rating.

[ A higher capacity fuse could cause
damage and possibly cause a fire.

[ Do not install a wire or aluminum
foil instead of the proper fuse -
even as a temporary repair. It may
cause extensive wiring damage and
possibly a fire.
NOTICE
Do not use a screwdriver or any other
metal object to remove fuses because
it may cause a short circuit and damage
the system.

Maintenance9-48
Instrument Panel Fuse
Replacement
„Driver’s side
OOSN091012L
1. Turn the vehicle off.
2. Turn all other switches off.
3. Open the fuse panel cover.
4. Refer to the label on the inside of the fuse panel cover to locate the
suspected fuse location.
OOS090030L
5. Pull the suspected fuse straight out. Use the removal tool (1) provided in
the engine compartment fuses panel
cover.
6. Check the removed fuse; replace it if it is blown. Spare fuses are provided in
the instrument panel fuse panels (or in
the engine compartment fuse panel).
7. Push in a new fuse of the same rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.
In an emergency, if you do not have
a spare fuse, use a fuse of the same
rating from a circuit you may not need
for operating the vehicle, such as the
cigarette lighter fuse.
If the headlamps or other electrical
components do not work and the fuses
are undamaged, check the fuse panel
in the engine compartment. If a fuse is
blown, it must be replaced with the same
rating.

09
9-49
Fuse switch
OOSN091013L
Always, place the fuse switch to the ON
position.
If you move the switch to the OFF
position, some items such as the audio
system and digital clock must be reset
and the smart key may not work properly.
Information
OOSN081019N
If the fuse switch is OFF, the above
message will appear.
NOTICE

[Always place the fuse switch in the
ON position while driving the vehicle.

[ Do not move the fuse switch
repeatedly. The fuse switch may be
damaged.
Engine Compartment Panel Fuse
Replacement
Blade fuse / Cartridge fuse
„Blade type fuse
OOS090031L
„Cartridge type fuse
OOS090032L
1. Turn the vehicle off.
2. Turn all other switches off.
3. Remove the fuse panel cover by
pressing the tap and pulling up.
4. Check the removed fuse; replace it if it is blown. To remove or insert the
fuse, use the fuse puller in the engine
compartment fuse panel.
5. Push in a new fuse of the same rating, and make sure it fits tightly in
the clips. If it fits loosely, consult an
authorized HYUNDAI dealer.

Maintenance9-50
NOTICE
After checking the fuse panel in the
engine compartment, securely install
the fuse panel cover. You may hear a
clicking sound if the cover is securely
latched. If it is not securely latched,
electrical failure may occur from water
contact.

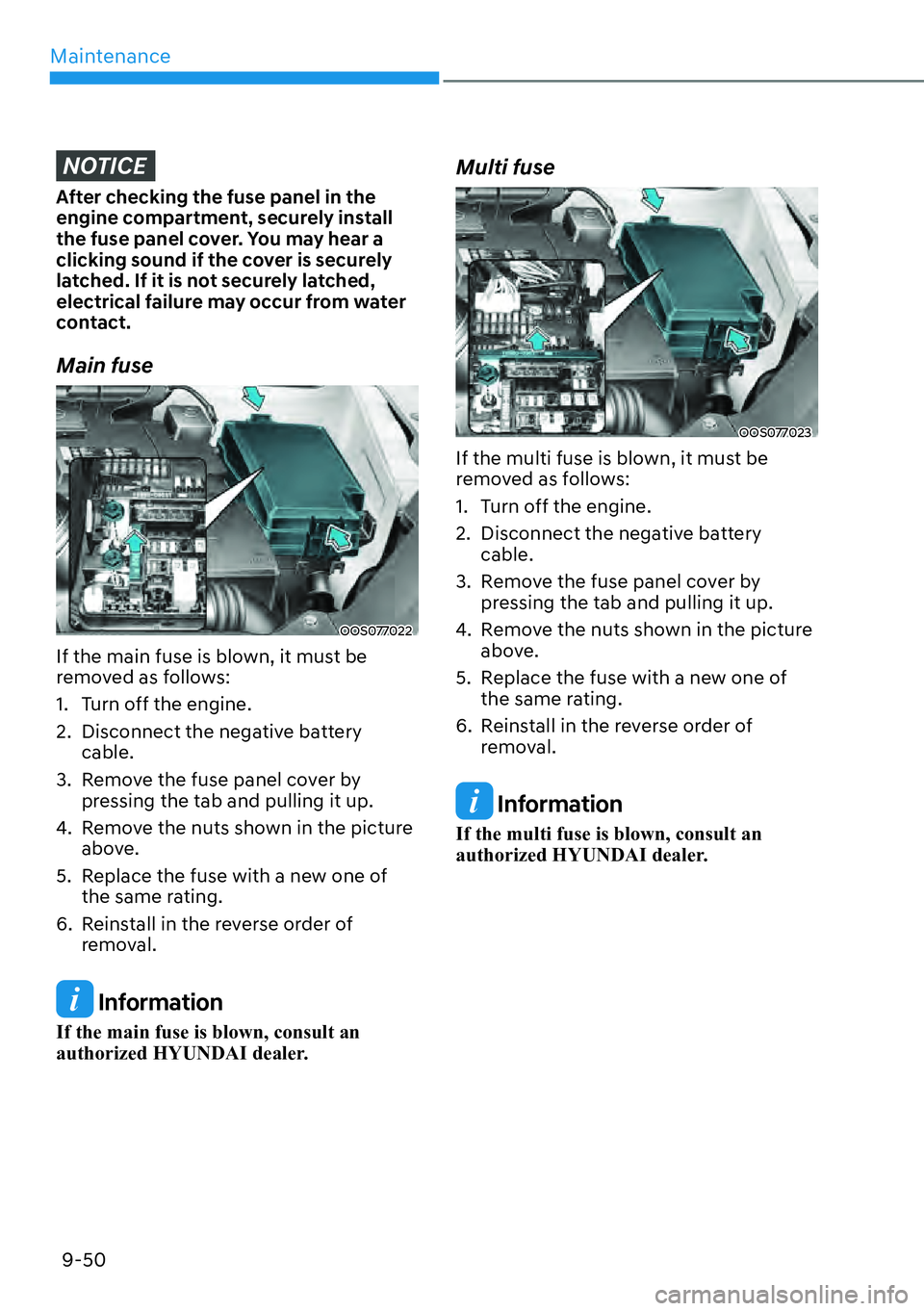

Main fuse
OOS077022
If the main fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
Information
If the main fuse is blown, consult an
authorized HYUNDAI dealer.
Multi fuse
OOS077023
If the multi fuse is blown, it must be
removed as follows:
1. Turn off the engine.
2. Disconnect the negative battery cable.
3. Remove the fuse panel cover by pressing the tab and pulling it up.
4. Remove the nuts shown in the picture above.
5. Replace the fuse with a new one of the same rating.
6. Reinstall in the reverse order of removal.
Information
If the multi fuse is blown, consult an
authorized HYUNDAI dealer.

09
9-51

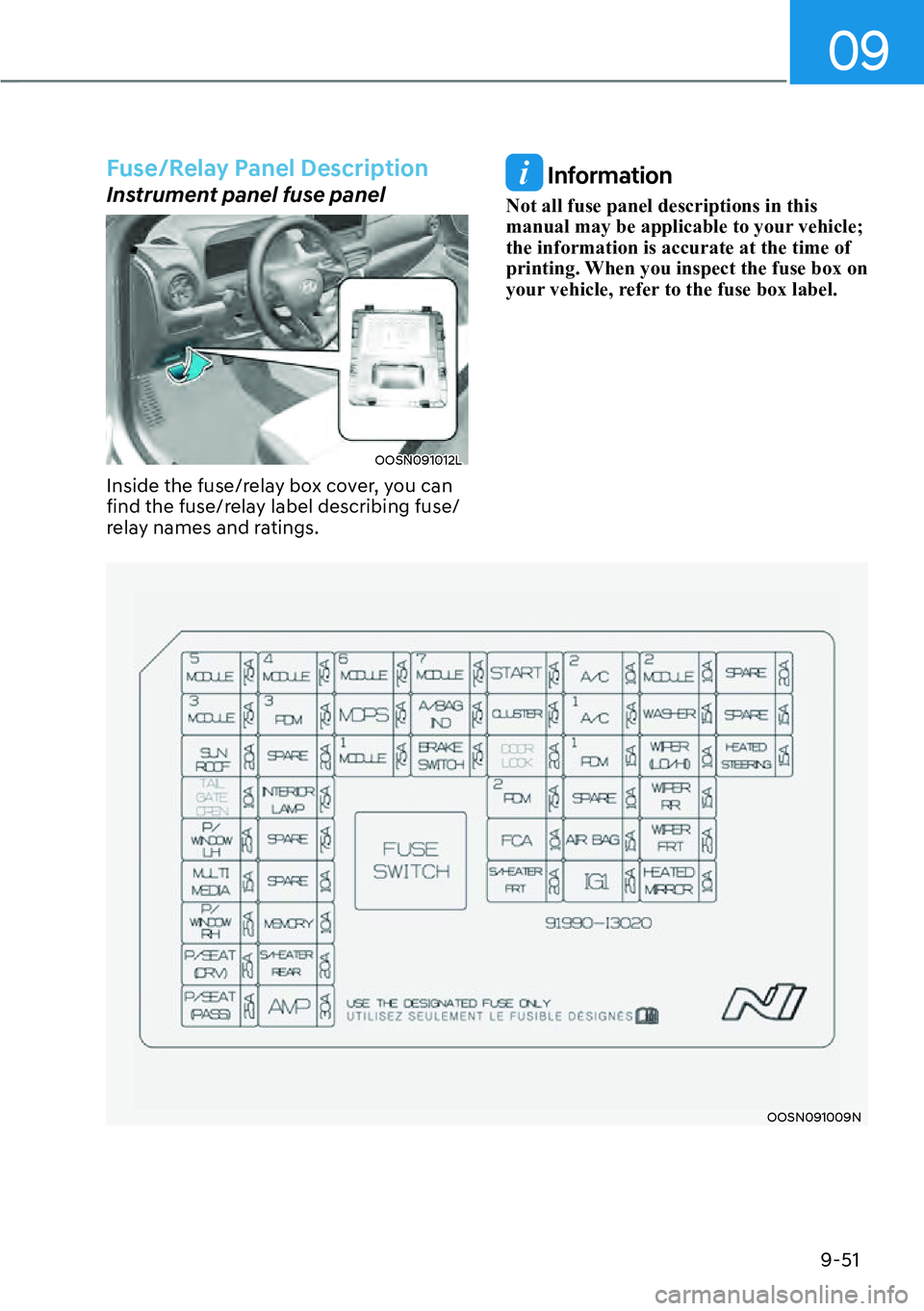

Fuse/Relay Panel Description
Instrument panel fuse panel
OOSN091012L
Inside the fuse/relay box cover, you can
find the fuse/relay label describing fuse/
relay names and ratings.
Information
Not all fuse panel descriptions in this
manual may be applicable to your vehicle;
the information is accurate at the time of
printing. When you inspect the fuse box on
your vehicle, refer to the fuse box label.
OOSN091009N

Maintenance9-52

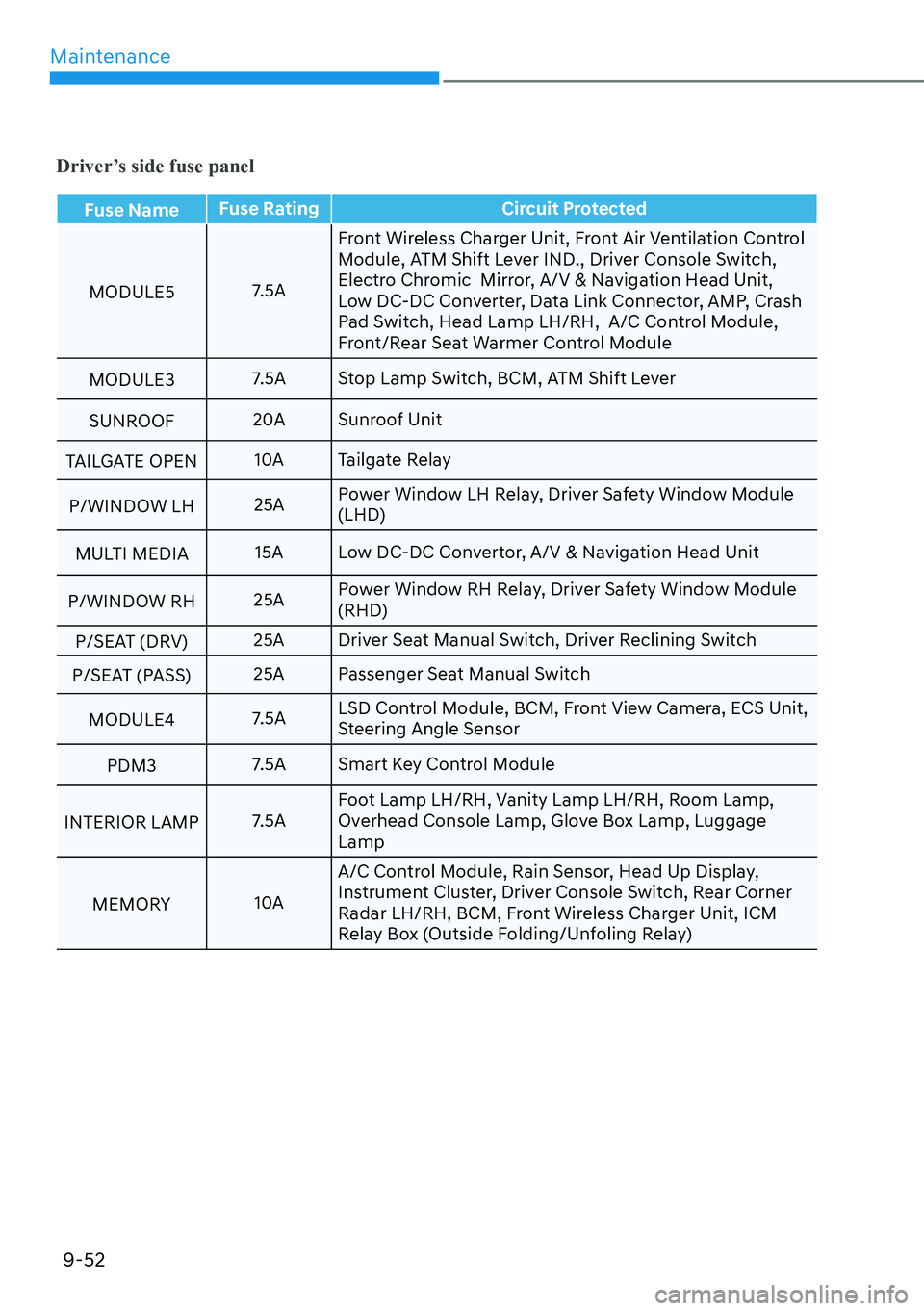

Driver’s side fuse panel
Fuse Name Fuse Rating Circuit Protected
MODULE5 7
.5AFront Wireless Charger Unit, Front Air Ventilation Control
Module, ATM Shift Lever IND., Driver Console Switch,
Electro Chromic Mirror, A/V & Navigation Head Unit,
Low DC-DC Converter, Data Link Connector, AMP, Crash
Pad Switch, Head Lamp LH/RH, A/C Control Module,
Front/Rear Seat Warmer Control Module
MODULE3 7.5A Stop Lamp Switch, BCM, ATM Shift Lever
SUNROOF 20A Sunroof Unit
TAILGATE OPEN 10A Tailgate Relay
P/WINDOW LH 25APower Window LH Relay, Driver Safety Window Module
(LHD)
MULTI MEDIA 15A Low DC-DC Convertor, A/V & Navigation Head Unit
P/WINDOW RH 25APower Window RH Relay, Driver Safety Window Module
(RHD)
P/SEAT (DRV) 25A Driver Seat Manual Switch, Driver Reclining Switch
P/SEAT (PASS) 25A Passenger Seat Manual Switch
MODULE4 7.5ALSD Control Module, BCM, Front View Camera, ECS Unit,
Steering Angle Sensor
PDM3 7.5A Smart Key Control Module
INTERIOR LAMP 7.5AFoot Lamp LH/RH, Vanity Lamp LH/RH, Room Lamp,
Overhead Console Lamp, Glove Box Lamp, Luggage
Lamp
MEMORY 10AA/C Control Module, Rain Sensor, Head Up Display,
Instrument Cluster, Driver Console Switch, Rear Corner
Radar LH/RH, BCM, Front Wireless Charger Unit, ICM
Relay Box (Outside Folding/Unfoling Relay)

09
9-53

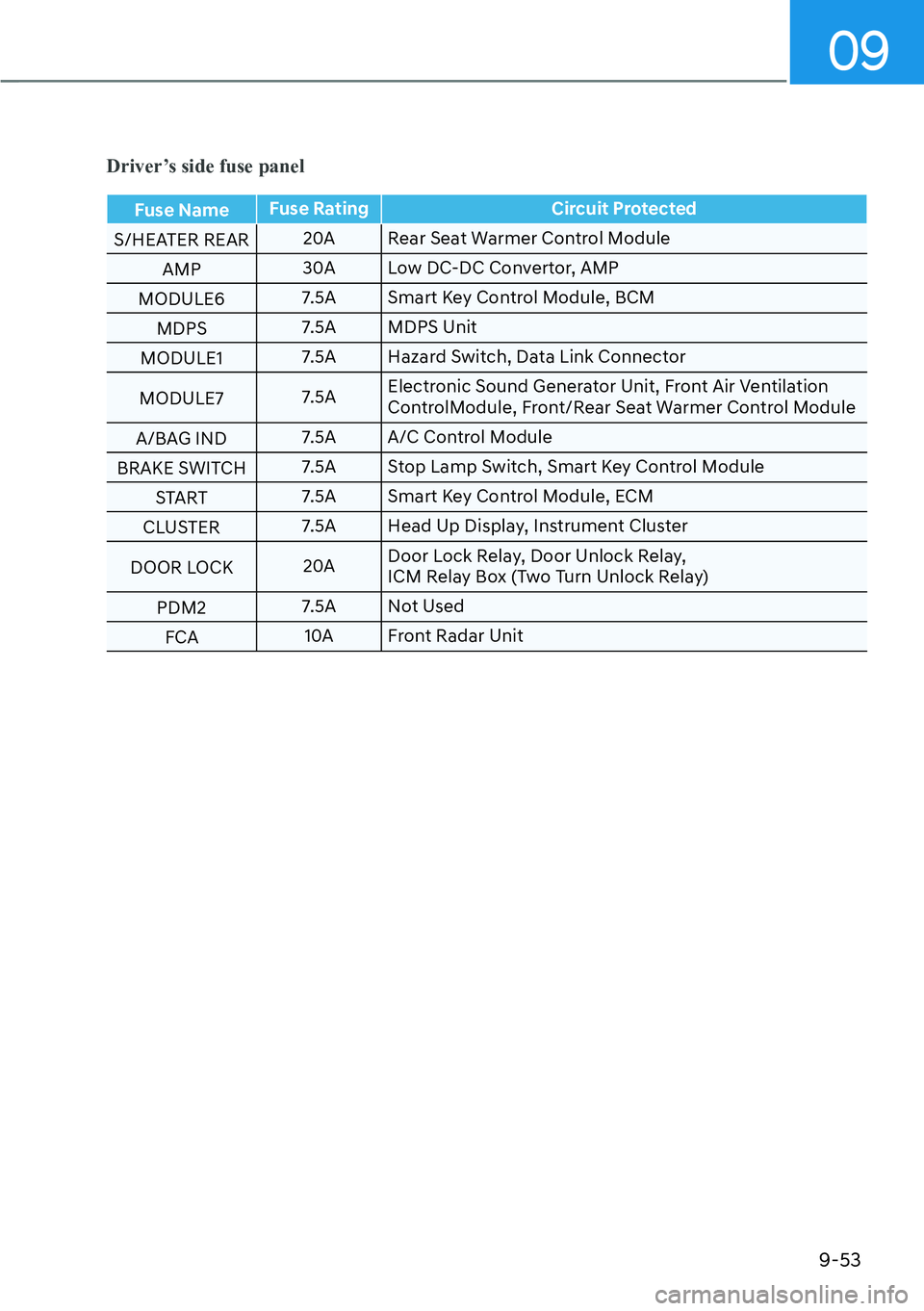

Driver’s side fuse panel
Fuse NameFuse Rating Circuit Protected
S/HEATER REAR 20
A Rear Seat Warmer Control Module
AMP 30A Low DC-DC Convertor, AMP
MODULE6 7.5A Smart Key Control Module, BCM
MDPS 7.5A MDPS Unit
MODULE1 7.5A Hazard Switch, Data Link Connector
MODULE7 7.5AElectronic Sound Generator Unit, Front Air Ventilation
Control Module, Front/Rear Seat Warmer Control Module
A/BAG IND 7.5A A/C Control Module
BRAKE SWITCH 7.5A Stop Lamp Switch, Smart Key Control Module
START 7.5A Smart Key Control Module, ECM
CLUSTER 7.5A Head Up Display, Instrument Cluster
DOOR LOCK 20ADoor Lock Relay, Door Unlock Relay,
ICM Relay Box (Two Turn Unlock Relay)
PDM2 7.5A Not Used
FCA 10A Front Radar Unit

Maintenance9-54

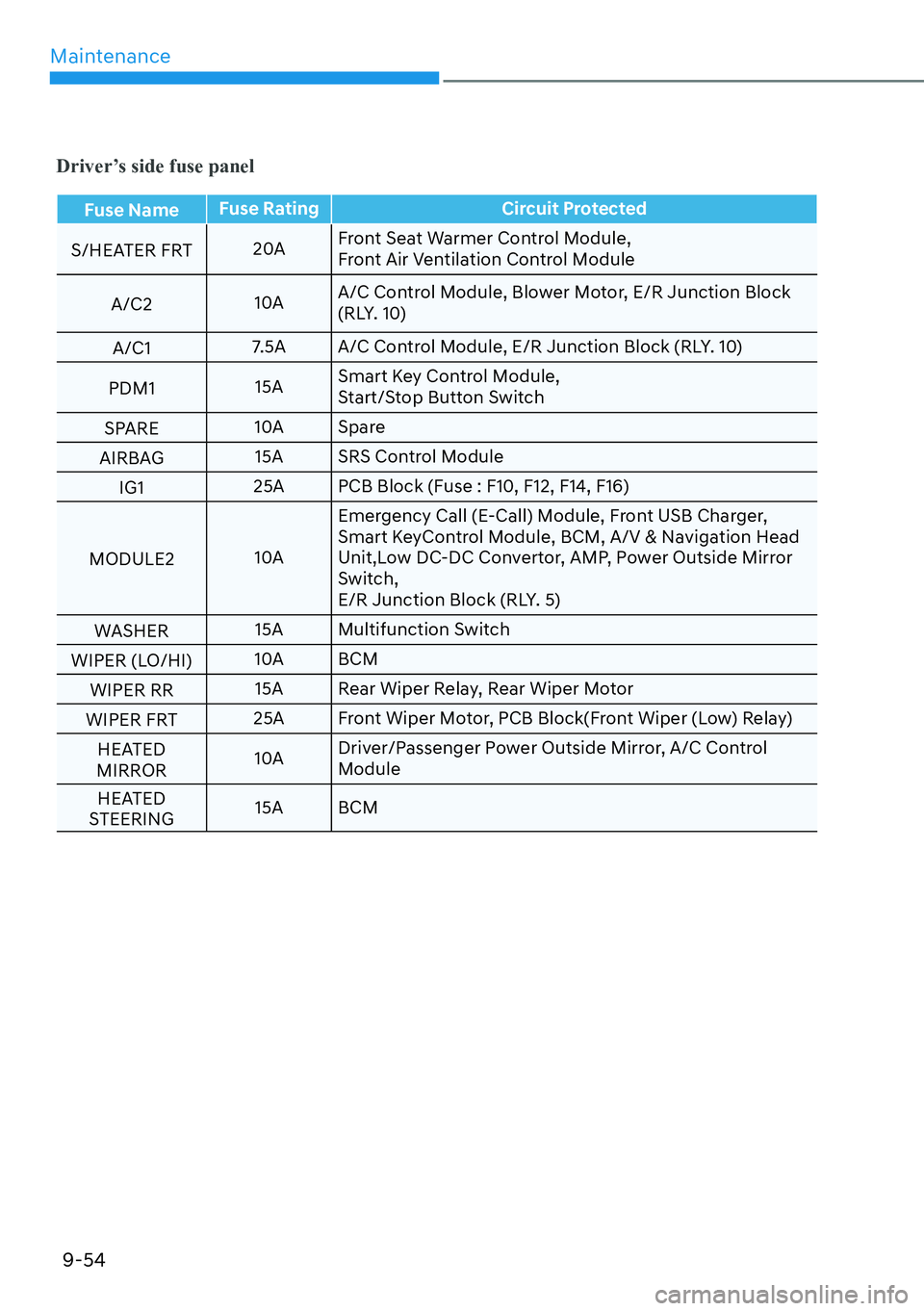

Driver’s side fuse panel
Fuse Name Fuse Rating Circuit Protected
S/HEATER FRT 20
AFront Seat Warmer Control Module,
Front Air Ventilation Control Module
A/C2 10AA/C Control Module, Blower Motor, E/R Junction Block
(RLY. 10)
A/C1 7.5A A/C Control Module, E/R Junction Block (RLY. 10)
PDM1 15ASmart Key Control Module,
Start/Stop Button Switch
SPARE 10A Spare
AIRBAG 15A SRS Control Module
IG1 25A PCB Block (Fuse : F10, F12, F14, F16)
MODULE2 10AEmergency Call (E-Call) Module, Front USB Charger,
Smart Key Control Module, BCM, A/V & Navigation Head
Unit, Low DC-DC Convertor, AMP, Power Outside Mirror
Switch,
E/R Junction Block (RLY. 5)
WASHER 15A Multifunction Switch
WIPER (LO/HI) 10A BCM
WIPER RR 15A Rear Wiper Relay, Rear Wiper Motor
WIPER FRT 25A Front Wiper Motor, PCB Block(Front Wiper (Low) Relay)
HEATED
MIRROR 10A
Driver/Passenger Power Outside Mirror, A/C Control
Module
HEATED
STEERING 15A BCM
